Available from 20/5/2024
Professionally converted by Venturevan.
Full off-grid set up
Full Victron Electrical setup

Cabinetry all in Light Weight Ply

Kitchen
Vitrifrigo – 115L Fridge with Ice Box 12/24V Air Lock
Thetford Triplex Cooker 3 Burner, Grill & oven
Oak counter tops with 2x folding extensions
Full size sink with 360 rotating sink faucet, pull out sprayer head which can switch between stream and spray.
Teal porcelain tile back splash.
Bull Finch outdoor shower.
2 x swivel captain seats

Shower/wet room
OGO Compost Toilet w/ power agitation, liquid level sensor, fan and extractor hose leading outside the van.
Full size shower with wood slats deck, Fiamma Roof light w/ extractor fan. Full size mirror on inside door.

Electrical
Full Victron electrical set-up from Batteries and Solar consisting of
Victron – 3 x 115W Solar Panels
Victron – MultiPlus 12v w inverter
Victron -SmartSolar MPPT 100/30
Complete DC-DC Charger Kit
Orion isolated -Tr Smart 12/12-30A
Mains Hook Up
3 x 12v 125ah TNE12-125 deep cycle AGM leisure Batteries
4 x 240 watt 3 pin plug sockets
8 x usb sockets
Poynting 5G Antenna and Huawei Router
6 x spot lights with dimmer switches
2 x reading lights
Outside sliding door LED light.

The rest
Full remis blind kit
4 x shield autocare side windows with fly and black out screens.
Maxxair maxxFan Delux/ remote, thermostate and rain sensor.
Large Dometic MIDI Heki sky light above bed for star or sky gazing.
Solway pillar covers
8 x over head storage cupboard with roller catches
2 x seat cupboard storage
Large Garage
Truma Combi heater
120l underslung fresh water tank 60l grey water.
16l underslung LPG gas tank
190 x 135 cm bed with memory foam mattress
Rapid ECOLANDER A/T 16 Tyres
Recovery tracks
Unladen weight 3.1 T

Intro
The design directive for this build prioritized the development of a generously proportioned living space tailored for two individuals to sustainably inhabit off-grid for extended durations while engaging in remote work. Essential features included ample storage capacity to accommodate up to four surfboards, along with kitesurfing and spearfishing equipment. Employing lightweight white ply and other conventional campervan materials facilitated the integration of genuine wood for both the ceiling and surfaces, ensuring durability without compromising overall weight management. Additionally, the bed’s removable design enhances versatility, allowing the van to double as a practical transporter for furniture and materials when not in use as a living space. Using the most optimal insulation available and heating system, enabling cozy snowboarding excursions in the Alps, while also providing ample ventilation for navigating the scorching deserts of Morocco. Equipped with all-terrain tires and recovery tracks, it guarantees exceptional mobility across various terrains.

Full description

The standing height in this van is 6’2” with an inside width of 6’4”. It features full remis blinds at the front and two single captain swivel seats, maximizing space utilization. The passenger seat can be substituted with a double seat, equipped with a swivel, to accommodate a third person. For urban stays requiring discretion, a blackout curtain is conveniently stowed above the cabin. Our goal was to design a layout that facilitates comfortable work for two individuals without sacrificing space. To achieve this, we devised three distinct desk options: outdoor, upfront, or at the dining table area.

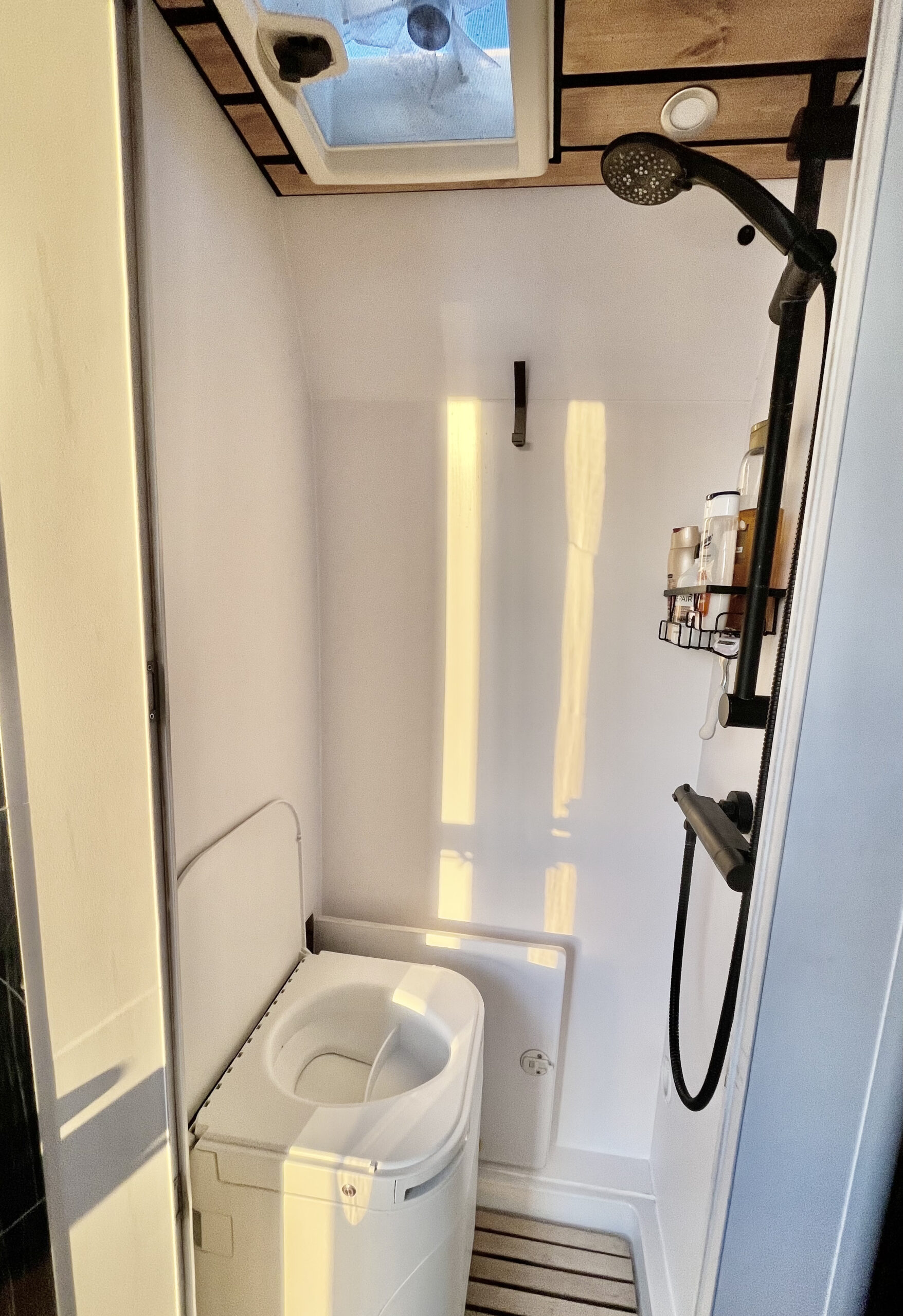

The spacious shower features a Fiamma roof fan and spotlight. With a heater vent, it easily transforms into an excellent drying room for wetsuits and damp clothes. Concealed behind a cupboard door, you’ll find the OGO composting toilet, set on sturdy 200kg drawer runners, a real game changer off-grid living.

The Kitchen boasts an oak worktop with two folding extensions, providing an impressive total length of over 2 meters! With a teal porcelain tile back splash, Complemented by the Vitrifrigo 115-liter fridge with freezer, the Thetford Triplex 3-hob cooker with grill and oven, and a full-size sink, this kitchen isn’t just functional, it’s an absolute delight to use, making meal preparation a pleasure no matter where you are. Plus, the addition of a Maxx Air fan allows for great extraction whilst cooking, ensuring a comfortable and enjoyable cooking experience.

The dining setup includes a practical Lagun-style table, paired with a cozy sofa seat on one side and a single seat on the other, allowing for enjoyable meals facing each other. A slight modification can transform this area into a 182cm length bed to accommodate a third person if desired.

Six dimmable spotlights transforms the space, ideal for creating a serene atmosphere.

Storage consists of 8 overhead cupboards, 7 kitchen drawers for utensils pots and pans, a large cupboard under the sink housing the water pump, cleaning products space and a pull out 35l bin. Both the dinning area seats are set on gas struts and has a large capacity for more storage. A metre high cupboard above the fridge houses plug sockets and carpeted shelf to allow charging devices whilst on the move.

The bedroom boasts two side windows strategically positioned—one beside and the other at the foot, allowing for a refreshing breeze to pass over you at night and also a great for watching the surf or picturesque scenery. Moreover, a generously sized Heiki skylight above offers enchanting opportunities for cloud-watching and stargazing, all from the cozy confines of the bed.

On the roof we have 3 x 115W Victron Solar Panels giving a total of 345W of power. We left space so that long surfboards can be fitted to the roof if needed.

The appliances are powered by 375ah deep cycle AGM batteries. Fed by the solar panels on the roof this set up allows us to live off grid indefinitely. We have 30amps of DC to DC Charging off the alternator when we drive and shore power for when we plug in. Our 12 volt Multiplus 1600 watt inverter helps us to power all the 240 watt plug sockets which we use to run our larger draw devices such as laptops and smoothie maker. 8 usb ports situated around the van ensures you can charge and use your devices wherever you are in the space. We sourced all our Victron components from Batteries and Solar and there customer support is outstanding.

An underslung LPG tank supplies gas to both the triplex oven and Truma combi boiler. This ensures a steady stream of hot water and air for warming the space on chilly mornings without relying on electricity during periods of limited sunlight.

120l underslung fresh water and 60l grey water tanks have level sensors connected to a digital display in the kitchen.
As working remote was a key feature in the van it was really important to have the best internet signal possible so we opted for Poynting 5G Antenna and Huawei Router to allow us to work in places where our phones wouldn’t receive signal.
