Brand New Bespoke Campervan | 4 season | Off Grid | 24000 miles | 2018

Over the winter period at Cannon Conversions, we have been busy working on our newest campervan model. We wanted to keep the functionality and layout of our tried and tested Camper design but push the boundaries of this unique space. We feel that with this latest design we have created a truly special camper, developing our already advanced 12v electric system to new heights. We believe we have created a camper which is both extremely functional and adaptable but also highly luxurious and comfortable. This camper was built to suit both a first time campervan enthusiast or a dedicated Van lifer; with the capability of both total off grid travel or Campsite touring. We feel we have created a Campervan that fits around you and your travel style.

This newly converted Citroen Relay has been lovingly handcrafted down to the last detail from bespoke curtains to handmade kitchen cabinets. This is our 19th van conversion so you can expect the highest of standards, we have such trust in our team that we offer a 3 month warranty on both our conversion and the base vehicle itself. Along with making bespoke campervans our company is also dedicated to using as many sustainable and upcycled materials as possible to create a one of a kind camper van whilst also reducing our waste and carbon footprint.

Construction:
– A mixture of hard and soft insulation (keeping the van at the perfect temperature at anytime of the year)
– Thermal bubble foil insulation (to reduce solar gain and heat loss)
– Foil vapour barrier (to reduce moisture)
– Carpet (to reduce thermal bridging and increase sound insulation)

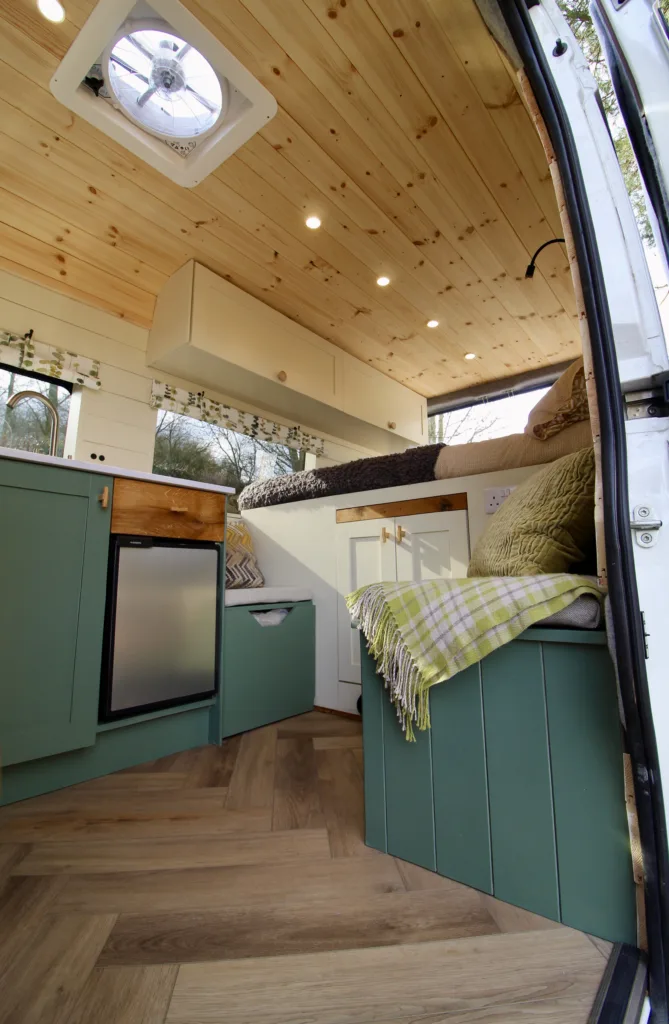

– The walls and ceiling are pine tongue and groove. Walls are painted in Farrow & Ball Lime White and the units with Caulk Green. The ceiling is treated with Danish oil.
– The floor is hard wood ply, covered with Howdens luxury flooring (easy to clean and sound deadening)
– Natural solid oak shelving and table

External:
– 400w solar panel (can keep the camper running completely off grid)
– Maxx air fan (with climate control and remote)
– 240 V Electric hook up mounted on the outside wall. Whilst hooked up, this powers 3 x 240 V sockets, 1 single socket (in the boot area) and 2 double socket (in the living area)
– 5 windows (1 opening nearest cooker) 80% tint
– Reversing camera
– Reversing sensors

Kitchen:
– Large L shaped kitchen (with massive amount of storage space)
– Large bespoke units and doors
– Quartz worktop and splash back (hardest wearing worktop on the market)
– SIA 2 ring gas hob, gas certified
– 3.9kg gas bottle (in purpose built locker, doubling as a seat)
– An integrated hot water system which uses our newly designed automatic 15 litre solar heating immersion heater, thermostatically controlled, using excess power from your solar panels to heat your water perfect for off grid living
– 400mm x 400mm stainless steel sink
– Brushed steel hot and cold tap
– A collapsible internal shower and basin, with hidden waste. The perfect compromise between space and functionality
– Extensional shower tent and pressure shower unit for out door showering
– 2x 10L removable fresh water tank with room to add another tank under the sink if you wish.
– External waste pipe (to reduce weight and fuel consumption)
– 45L Waeco Dometic fridge with removable freezer area inside. (Best on the market and very energy efficient.)
– Pull out solid oak table with even more storage cupboards underneath
– Thetford toilet (which pulls out from under the smaller seat)
– Quirky, individual door knobs

Internal electrics
– 2x 130ah leisure batteries
– Victron Shunt (Bluetooth connectivity between your phone and campervan batteries to keep you up to date with your campers battery life)
– 1x 12v socket
– 2x USB sockets (next to table and bed)
– 2x 12v dimmable giraffe necked reading lights with USB ports
– MPPT solar controller (controls the 400w solar panels on the roof which easily creates enough electric to run all appliances without needing to charge the batteries, making this van the perfect off grid camper)
– 3x 240 V sockets (for use when hooked up)
– 2kw diesel heater with independent fuel tank in the boot area (remote controlled, only uses 0.1 L per hour of fuel and fully warms the van in under 15 minutes)
– Maxx air fan (with climate control and remote)
– 6 LED warm coloured lights with dimmer switch
– 45L fridge
– Whale water pump for cold water (easy to clean and use)
– Sureflo Water pump for hot water
– 12v fuse box (all appliances clearly labelled)
– 240v fuse box
– 240v smart battery charger (will protect your batteries and increase their life)
– Split charge relay (charges the leisure batteries whilst the engine is running)
– 2000w pure sine wave inverter, running two extension leads in the living area, for a total of 4 x 240v sockets. (These are available to use fully off the grid. There’s an extra control panel making it easy to turn off and on to save energy, making it perfect for using normal appliances such as your air fryer, hair dryer or laptop chargers.)
– Soft furnishings and bed area
– Handmade blinds covering all windows (including a matching magnetic one for the sliding door)
– Custom seat cushions
– Memory foam mattress
– 2 x large wall units (perfect for storing clothes away from food items)
– There’s also even more storage above the cab area (we use this to store extra bedding, big coats etc in our camper)

Boot area:
– Boot area has its own independent light source
– Portable USB rechargeable shower pump (Great for rinsing off dogs, bikes and walking boots.)
– Pop up shower tent (for privacy when showering outside of the van)
– The boot area has been designed to be able to fit multiple bikes and has masses of room for all your needs. It is easily cleaned due to the luxury laminate flooring, making muddy bikes or boots no problem. It also has a divider to keep your stored items away from the electrics but with easy access to both fuse boxes, leisure batteries, diesel tank and heater.

We hope you love the van as much as we have loved converting it, if you have any questions or want to book a viewing, please get in touch.

Thank you,
Rory & Leila
