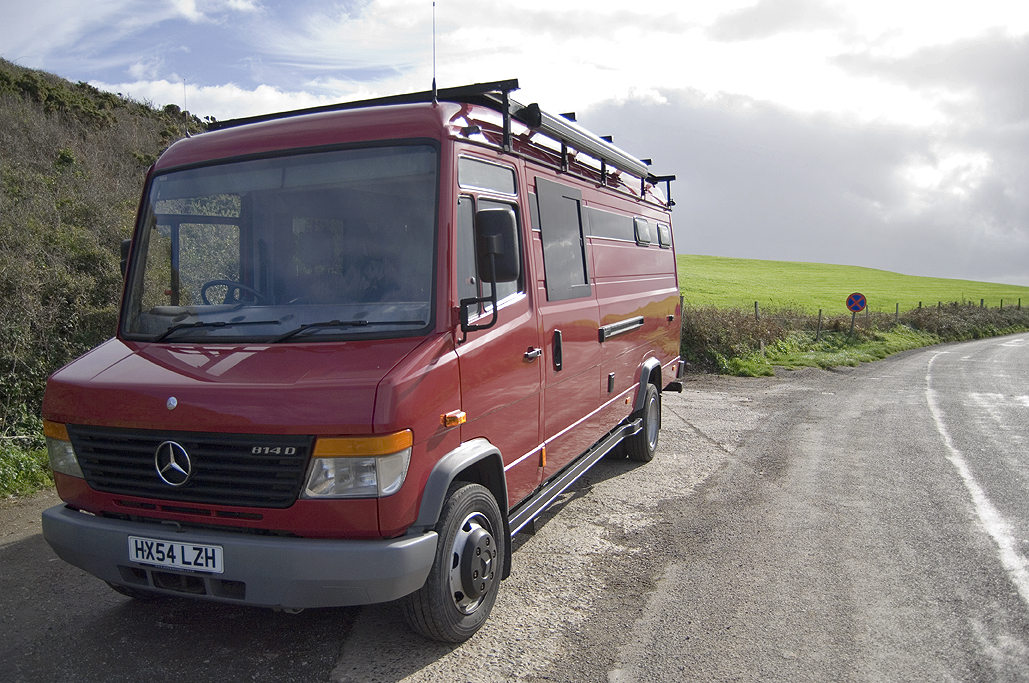

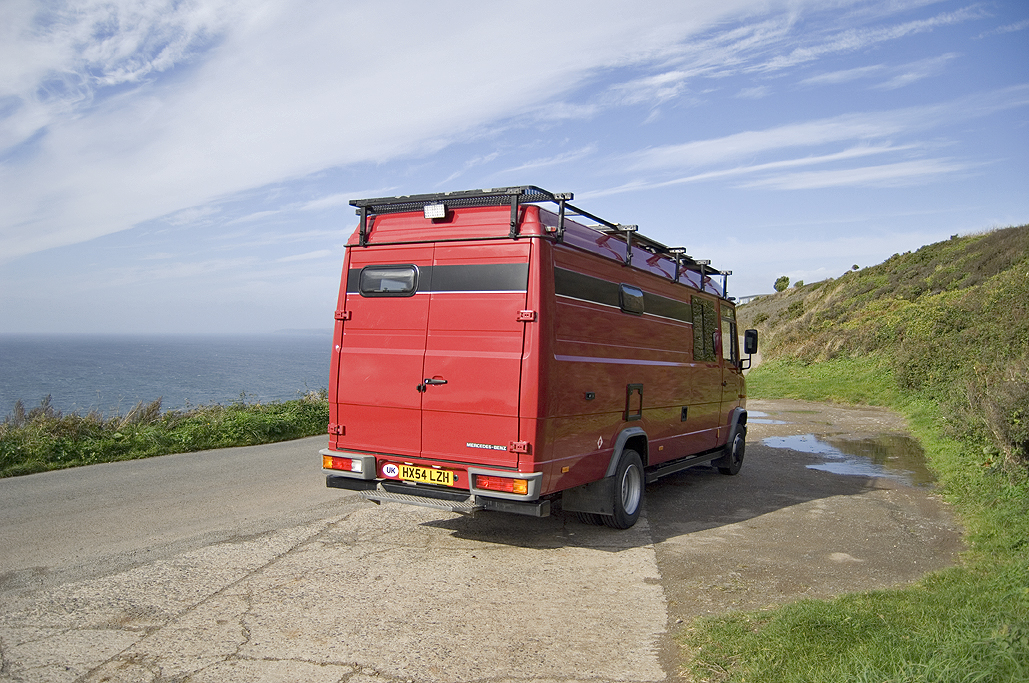

Ex fire service truck to bespoke off grid, self contained camper van.

Sold
£31,999

£31999 Sensible offers will be considered.
Mercedes Vario 814 d

Used
115,000 miles
4 Berths

Essential Information
Hob
Oven
Fridge
Kitchen Sink
Dining Table
Shower - Internal
Toilet - Cassette
Toilet - Built-in
DAB Radio
Audio Inputs
Awning
Extra Storage

Detailed Information
Vehicle Description

The truck came from Hampshire fire service and was previously used as a mobile maintenance workshop.
I have owned the truck since April 2017:-
It is registered it as a 5 seater motor caravan with DVLA. This went through with out any problems.
It has 5 x legal travel seats all with seat belts,
It sleeps 4, 1x fixed double bed and 2x single beds.

It’s MOT was carried out in Oct 2022 and passed without problem so is due in Oct 2023 If you look on the MOT checker you’ll only see the MOTs since I’ve had it as I presume they were done within the fire service along with the servicing. Since then I’ve had it serviced and MOT’d at the main public bus depot with no expense spared. It’s had new front brake disc and pads and rear caliper approximately 2000km’s ago.

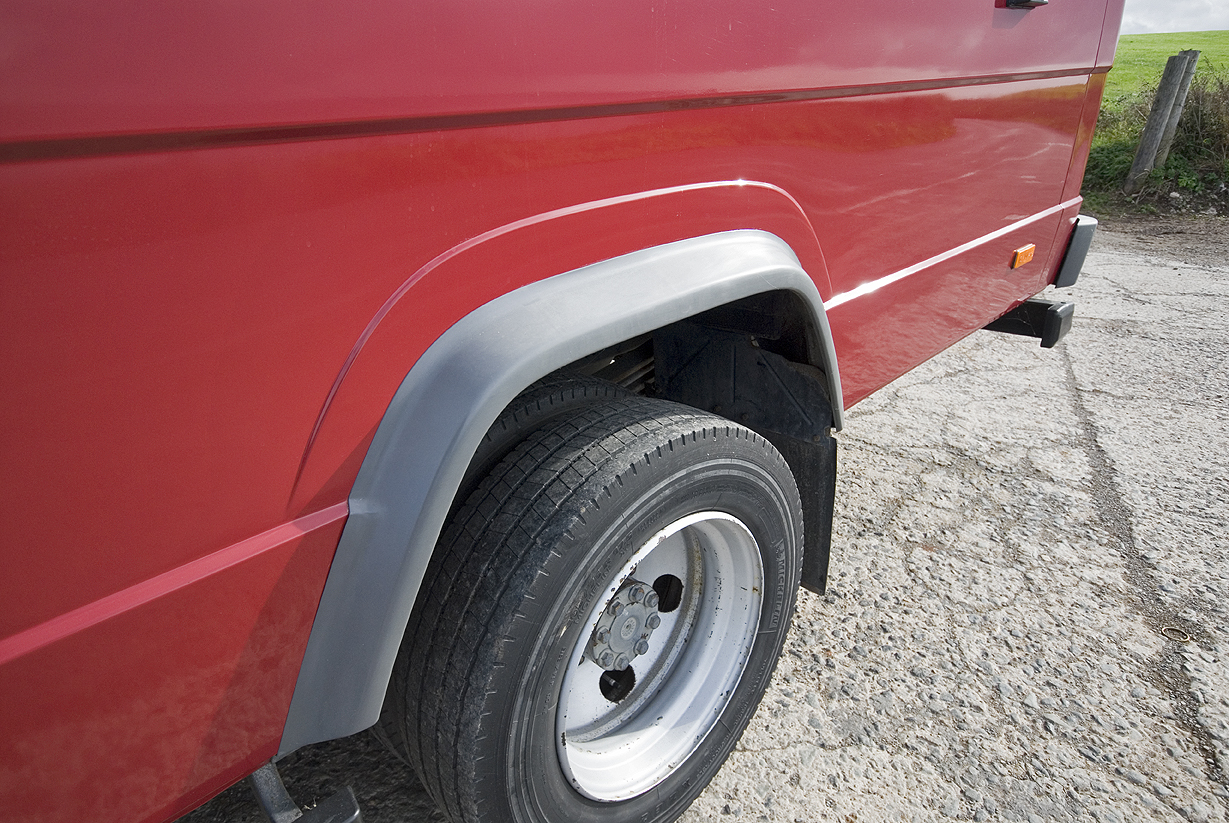

If you’ve done your research you’ll know these truck suffer from a variety of rust. As this truck spent most of its previous life in a fire station the body work and underneath is in amazing condition and I would argue that you won’t find one of this age in as good condition. ( I’m sure someone will tell me otherwise though!) . When I got the truck the rear wheel arches were starting to go underneath the plastic wheel arch trims and there was a bit on the back end of the sill so these were cut out and replaced. I have the pictures of the whole process. The doors front and back are original and in really good condition, One of the back doors had a bit of rust on the underside of it so had that cut out and replaced as well. The bonnet was also starting to rust on the front face, which again is common apparently, so replaced the bonnet as it was cheaper than getting it repaired. The arches and sills were replaced in 2018 and the bonnet was replaced in 2020/21. The underside of the truck is in exceptional condition and the Michelin tyres also have loads of tread left on them and the spare looks as if it has never been used.

Conversion Description

There is SuperFoil insulation in the bulk of the truck, things like doors and tight areas have the recycled plastic insulation.
Wall boards are 5mm ply screwed to batten which gives the internal basic shape with a head height is just over 6ft 3in
Various different thickness hardwood and birchwood ply boards have been used for all hand made fitted units.

Whale Expanse under slung gas and electric water heater ( heats the water in approximately 10 minutes)

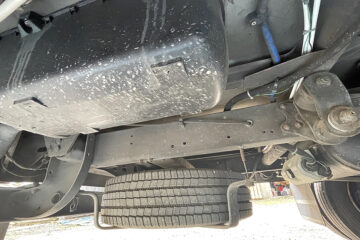

Underslung 23 ltr LPG gas tank. (Autogas2000) This is used for the water heater and cooker.
2 x under slung water carriers. Both 80 Ltrs one fresh water, one grey water. (As a guide 80ltr of water is enough for 5 showers and the odd kettle fill.)

270W All-Black Polycrystalline Solar Panel (set into the roof rack 1600mm x 1000mm)
2x120ah gel acid leisure batteries. These are set up as 24v with the Victron 24-12v converter.
Victron SmartSolar 15A 75V MPPT Solar Charge Controller
Victron Orion-Tr 24v to 12v Low Power DC DC Converters 25A
Victron Cyrix-CT Battery Combiner Kit ( 24V) (this charges the leisure batteries once the engine battery are fully charged)
Victron energy blue smart ip65 24v 8amp mains battery charger.

Shurflo water pump
Fiamm accumulator for water flow
Bullfinch external shower fitting inside. This saves having the shower head and hose in place when not in use
Bespoke fibre glass shower tray and waste in 21mm ridged pipe directly back to grey waste tank
Thetford C200CS electric flush cassette toilet
Single bowl sink (Ikea, with drainage through a normal household trap directly into grey water tank}
Standard black mixer kitchen tap
Thetford Triplex 3 burner Cooker, Oven & Grill Black
Waeco CRX80 compressor fridge freezer (powered by the batteries or 240v when hooked up)
Waeco coolpower 35 inverter 240v -12v. (Automatically changes power supply from battery to mains when you hook up.)
Removable rear seats with integrated seatbelts fixed into vehicle chassis framework. ( these are from a transit custom)
Silver screens made to measure front thermal screen
Sliding side windows with privacy class
4x Polivision 600x250mm windows
Lighting is mainly led strips with the addition of 2 reading lights above the beds.
F45S 300 AWNING Deep Black Case Deluxe GREY Fabric
Roof light 400mm x 400mm clear with blind and fly screen

On the dash there is the gas level meter, combined battery and leisure battery voltage meter and 2 usb charging points

There are various usb charging points around the camper.
The sound system is a Bluetooth amp that connects to laptop/mobile this is powered via the leisure batteries. It has the standard speakers at the front and also 2 larger ones in the middle of the van.
The roof rack is from an ex BBC outside broadcasting truck so completely over engineered but very sturdy.

Beds Description

The main fixed bed at the back of the camper is set up length ways. I am 6ft3″ tall so am too tall to sleep width ways. It has a Cooltech made to measure mattress in 2 halves to gain access to storage underneath and the covers are removable for cleaning. The length of the bed is 2010mm long x 1300mm wide from the head end to approximately half way down then reduces to 1100mm at the feet end. this was to allow space for the bathroom. The height of the bed allows bikes to be stored underneath but also allows enough height to easily sit up in bed.
The 2nd bed pulls out from the bench seat and is (1620mm x 800mm)
The 3rd bed is a bespoke bed at 90˚and on top of the 2nd bed.(2000mm x 660mm) This is a bit of a jigsaw puzzle to build but only takes a couple of minutes once you know the procedure.

Main Bed Length
200cm

Contact the Seller

The contact details for this vehicle are no longer available because it has either sold or the listing has expired.


Vehicle Spec
Registered Type:
Motor Caravan - approved
Fuel Type:
Diesel
Transmission:
Manual
Belted Seats:
5 Belts
Vehicle Length:
7.30 meters
Vehicle Height:
2.90 meters
Vehicle Width:
2.60 meters
Converter Type:
Self Build - Handcrafted Expert
Conversion Condition:
Excellent
Gas Sign-off:
Gas Safe Certificate
Max Weight (MAM, GVW or MTPLM):
7,490kg
Unladen Weight:
5,419kg
Unladen Weight Verified:
Yes - the vehicle has been weighed since completion

Electrics
12v Electrics
USB Sockets
Leisure Battery
Split Charge Relay
Solar Panel(s)
240v Electrics
240v Mains Charger
240v Sign off
