FORD TRANSIT High spec, off grid, hot water, Wifi..............

|
5180 | 22

£23,500
Campervan

LWB FORD TRANSIT L3 H3

Used
103,000 miles
3 Berths

Essential Information
Hob
Oven
Fridge
Kitchen Sink
Dining Table
Heater
Ceiling Fan/Vent
Shower - External
Toilet - Composting
Pet Bed/Pet Friendly
Audio Inputs
Air Conditioning

Detailed Information
Vehicle Description

New professional conversion.

HIGH LIGHTS
Hot water kitchen tap and rear outside hot shower
WiFi router with 4g antenna
Infra-red underfloor heating
Brand new professional exterior paint, full re spray and colour change
Underslung gas tank
Compost toilet
Diesel heater

LWB FORD TRANSIT L3 H3
Vehicle will be sold with new MOT and a fresh service.
Everything in working order, it drives very nicely.
2012
Ex-Ministry of Defense LWB people carrier. Full service history from its 8 years with the MOD and the time since, with all details of any work undertaken.
103K miles
Heated windscreen
Dash cam
CarPlay (sat nav/spotify etc)
Air con
6 gears
Reverse camera
Spare wheel
New starter motor

95% finished.
So, why only 95% finished I hear you ask. I am a campervan converter and this has been a slow burner project whilst doing other work, I now have customers waiting and I need the space in my workshop. This is a fantastic opportunity to personalise your new van with curtains, seat/bed foam to your own comfort needs, upholstery and a chance to get the paint out and add your own colour or leave it as it is, its up to you. I have done all the hard work so you get to do all the nice things to make it your own!

To summarise the camper needs
-rear curtains (these could be material with magnetic fixings)
-2 side window curtains
-a bit of painting if you want to add more colour
-seat /bed foam and upholstery
That’s it and it’s ready to rock!

Brand new professional exterior paint, full re spray and colour change completed 28th August 2024.
This is a white van, well , not anymore! It has a brand new £4500 respray and has only been out side for approximately 45 mins for the drive from the spray shop to my workshop. Since then it hasn’t seen a drop of rain or bird poo!
This van is completely rust free, dent free and scratch free. I have detailed photos of the complete respray process if you wish to see them. It’s a beautiful colour and not as grey as the pictures make out. In fact its official colour code is RAL 7031, a light bluey grey.

Insulation
This is an extremely well insulated van.
Subfloor with treated 25mm battens, 25mm PIR board (celotex) Underneath all of this, the floor has two coats of rust protection paint, not that it needed it but done as a precaution.
Panels have been sound deadened.
Thick sheeps wool throughout, 40mm PIR board in the ceiling and vapour barrier thought out.
Insulated bulk head

Comes with extra licence plate on board with lights for towing

High spec electrical system
– 320w panel series array – 2 x 160W monocrystalline panels
– ⁠200ah new lithium battery with Bluetooth bms
– ⁠Victron 100/20 MPPT solar charger (Bluetooth)
– ⁠ Victron Orion 18amp DC-DC charger (Bleutooth)
– ⁠Victron Lynx power
– ⁠Victron mains hook up charger and AC breaker box
– ⁠Renogy 2000W inverter
-2 double 240v sockets which run off both the inverter and mains hook up.
-USB and USB-C quick charge socket

Lighting
– ⁠4 lighting circuits using efficient LED puck lights – controlled by two wireless remotes, which allow you to control all circuits separately or together, and set scenes for easy lighting states
-2 reading lights with blue night light function and USB sockets.
-Maxxair Dome fan has built in ring light.

Plumbing
– 105l freshwater tank with level sensor and gauge
– underslung 70l grey water tank
-10 litre hot water tank
– ⁠Bobil vans hybrid hot water system – heats water from 12v solar dump when batteries are full (with excess solar), from diesel heater using a heat exchanger or from AC mains on 240V hookup/using inverter
– ⁠Shurflo water pump
– ⁠Shurflo water accumulator
– ⁠Shurflo water filter
– ⁠John Guest plumbing parts – shut off valves etc.
-rear hot water outside shower
-rear fresh water inlet

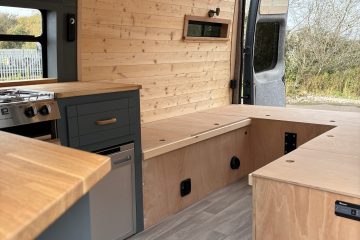

Kitchen
– Voyager 4500 oven, grill and hob
– ⁠50 litre 12v fridge/freezer with excellent efficiency
-Oak worktop treated with Osmo oil
-2 drawers
-Large under sink cupboard.
-lagun table
-sink and single lever tap

Bed
HUGE double bed measuring
6ft long (184cm)
5ft 6 wide (170cm)
The bed is made up by using the table and 2 extra slates which are stored in the over cab storage.

Storage
Large over cab storage area
Small shelf housing the WiFi router and double 240v plug with USB sockets
Large shelf for clothes
Storage under bench

Gas
– underslung 16l LPG tank with level indicator located in cupboard and external filler point.

Heating/ventilation/windows
– ⁠underfloor 12v infrared heating
– Maxxair Ventilation Fan – powerful and quiet, 10 speeds, remote control – in and out
– ⁠Maxxair dome vent with LED light
– ⁠Diesel heater
– ⁠Afterburner controller for the diesel heater – nicer remote, can control remotely via WiFi or locally using Bluetooth, runs off a Thermostat so the heater regulates the temperature like a house and stops you having to turn it on and off
-2 rear windows
-2 side windows
-1 vent window

Other
– New Kildwick composting toilet
– ⁠4G antenna installed and router to pair with it

Beds Description

6ft long (184cm)
5ft 6 wide (170cm)
The bed is made up by using the table and 2 extra slates which are stored in the over cab storage.


Contact the Seller

Please note: Quirky Campers do not inspect the listings for accuracy or check campervans in person. We have asked sellers to provide evidence of certificates and paperwork however you MUST check yourself that the information provided is present and correct. You will need to exercise the normal due diligence when buying any vehicle.

Contact Details

Vehicle Spec
Fuel Type:
Diesel
Transmission:
Manual
Belted Seats:
3 Belts
Driving Side:
Right-Hand Drive
Vehicle Length:
5.70 meters
Vehicle Width:
2.00 meters
Registered Vehicle Type:
Panel Van (meets DVLA standards)

Conversion Spec
Conversion Condition:
New
Converter Type:
Professional - Handcrafted
Gas Sign-off:
Habitation Certificate
Max Weight (MAM/GVW/MTPLM):
3,100kg
Unladen Weight:
2,200kg
Unladen Weight Verified:
Yes - the vehicle has been weighed since completion

Electrics
12v Electrics
USB Sockets
Leisure Battery
Split Charge Relay
Solar Panel(s)
Inverter
240v Electrics
240v Mains Charger
