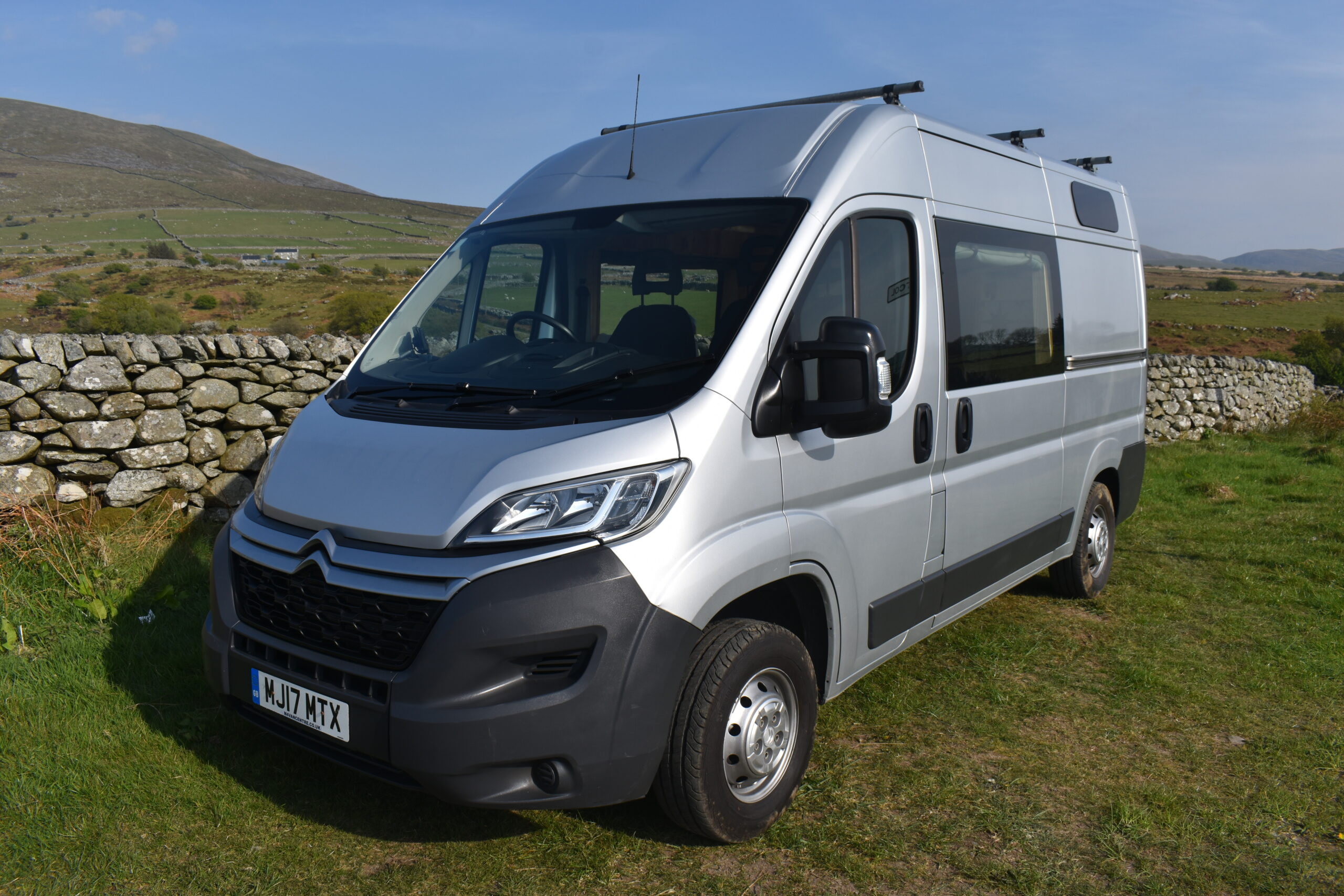

Hand Crafted Off Grid Campervan – Citroen Relay 33 Blue HDI MWB L2H2 - SILVER

Sold
|
321 | 20

£28,500
Campervan

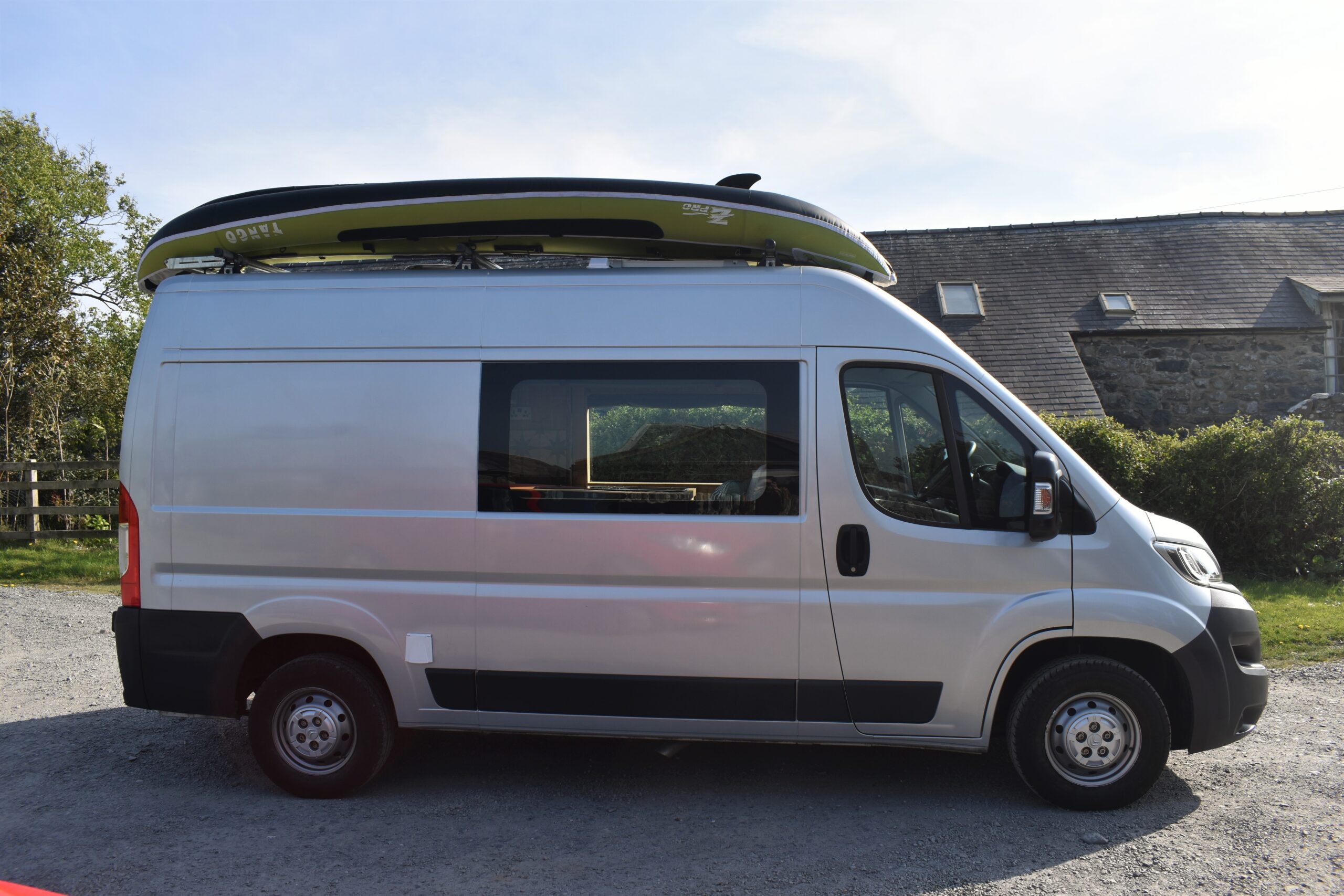

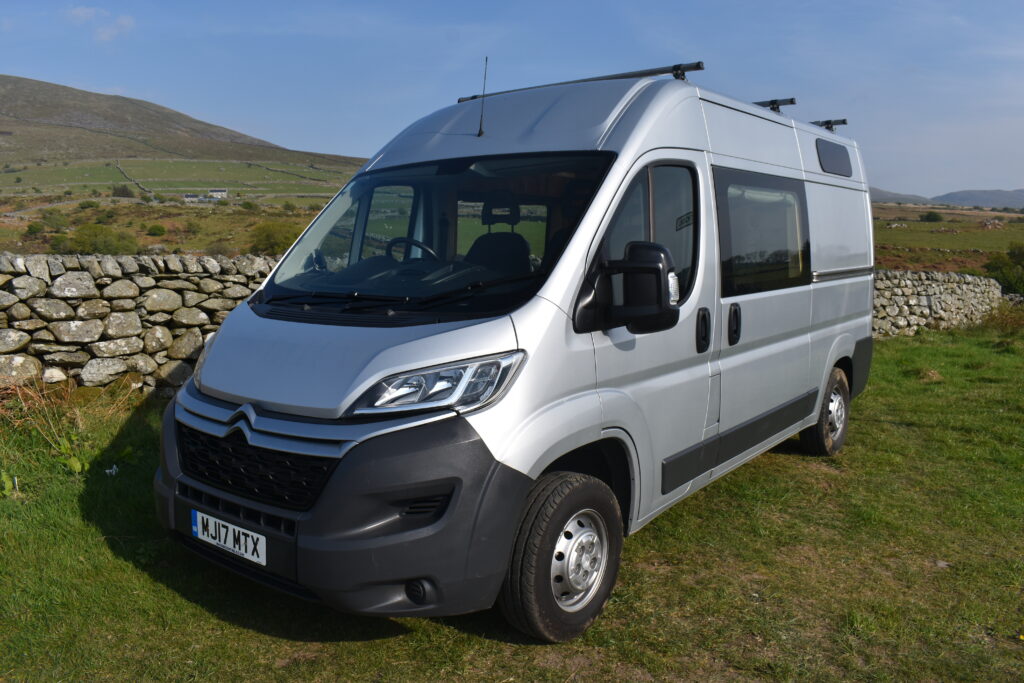

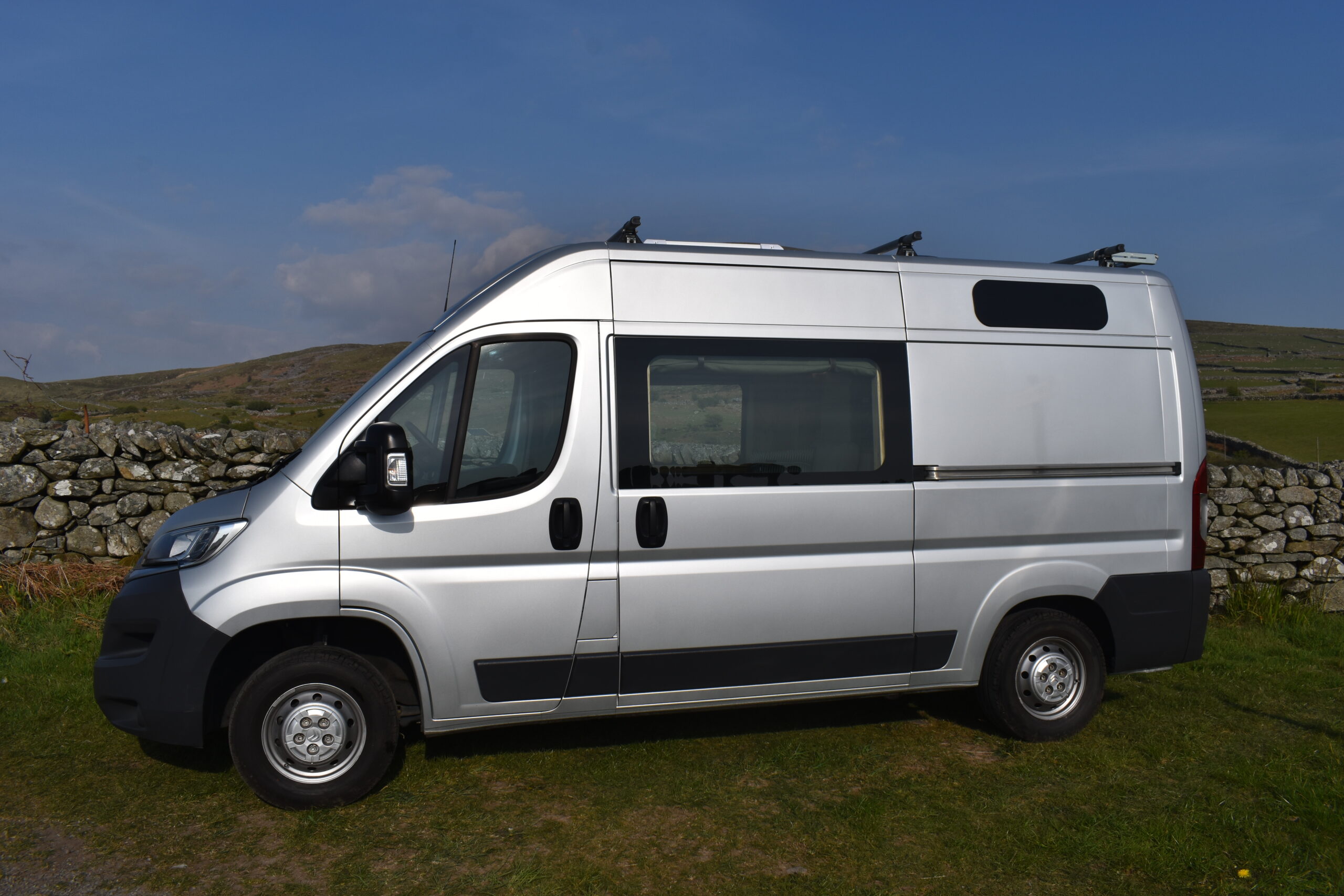

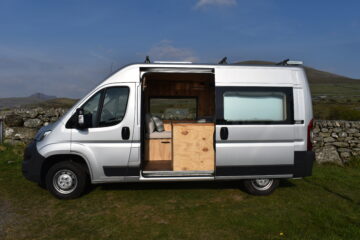

Citroen Relay 33 Blue HDI MWB L2H2

Used
61,226 miles
3 Berths

Essential Information
Hob
Fridge
Kitchen Sink
Dining Table
Heater
Ceiling Fan/Vent
Toilet - Portable
DAB Radio
Extra Storage

Detailed Information
Vehicle Description

2.0L Diesel Engine
6 Speed
Two keys
ABS
DAB/Bluetooth
USB Socket
12 Volt Accessory Socket
Hands free audio mounted on steering wheel
Remote configurable central locking
Alarm
Electronic Immobiliser
Electric front windows
Navigation system
Rear Parking Sensors
Power Steering
MOT until April 2023
Service History

Conversion Description

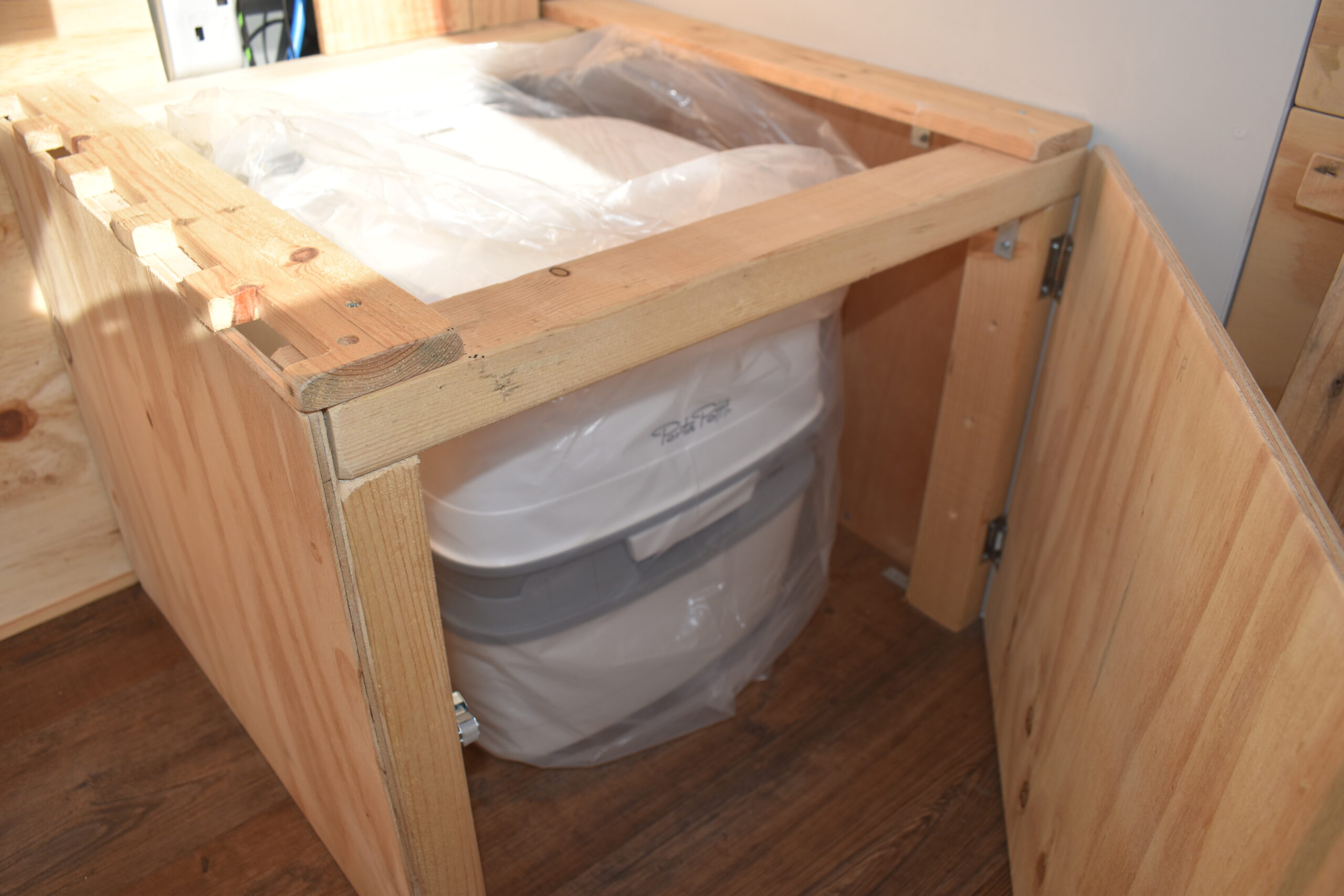

Storage under both seats, one side will fit a Thetford 165 Porta Potti (included)
New Dometic/Waeco 12 volt Compressor fridge/freezer Model No CRE50

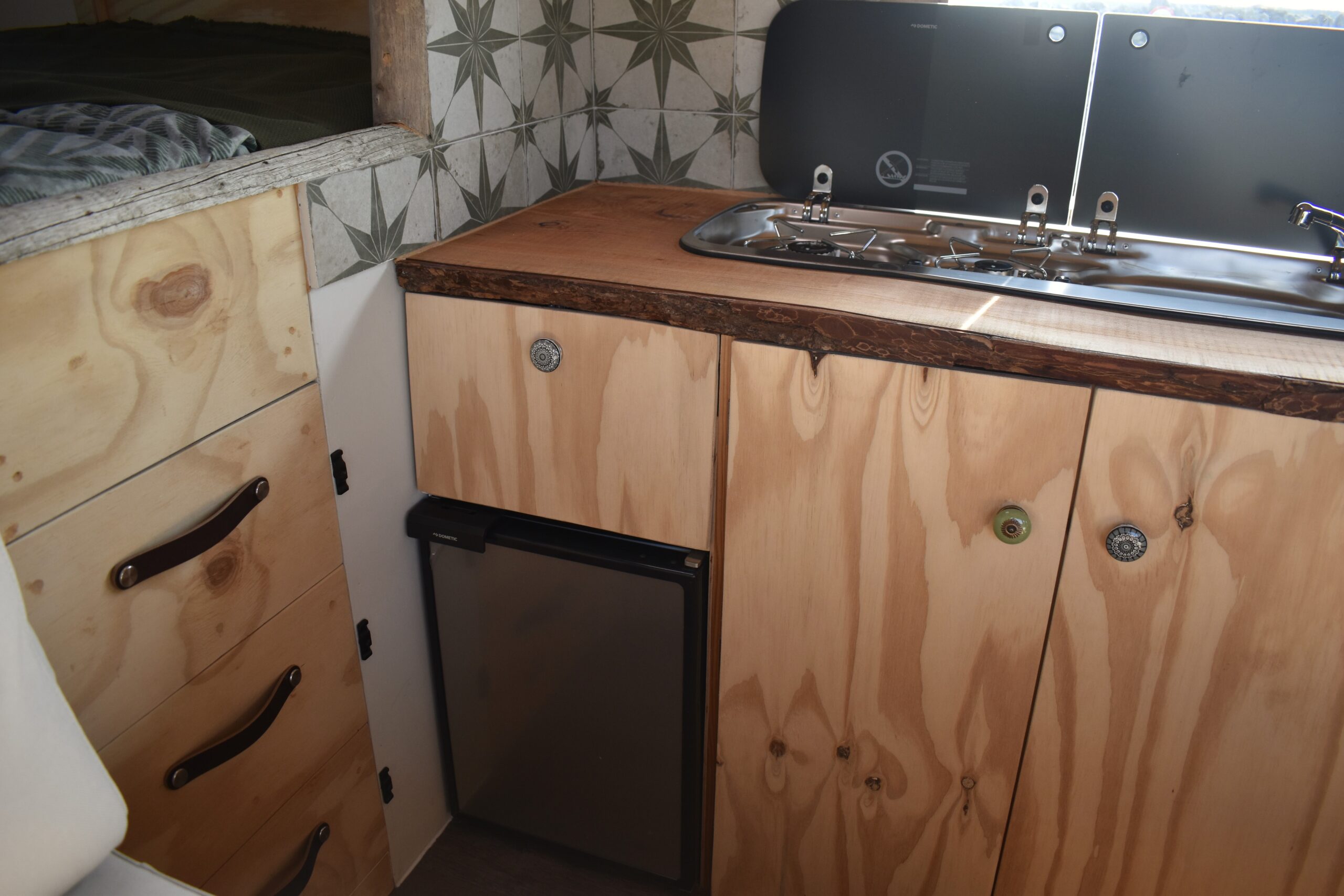

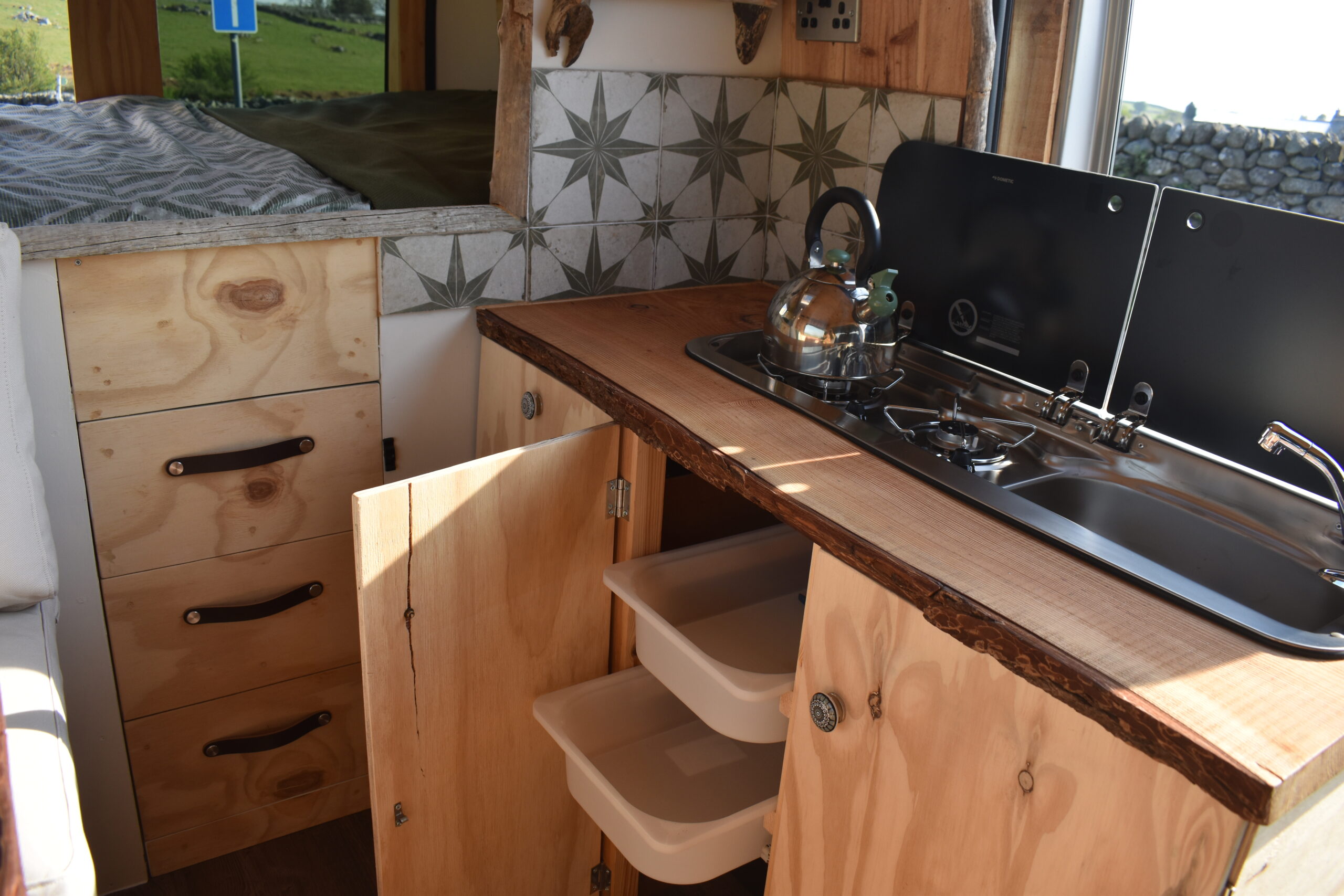

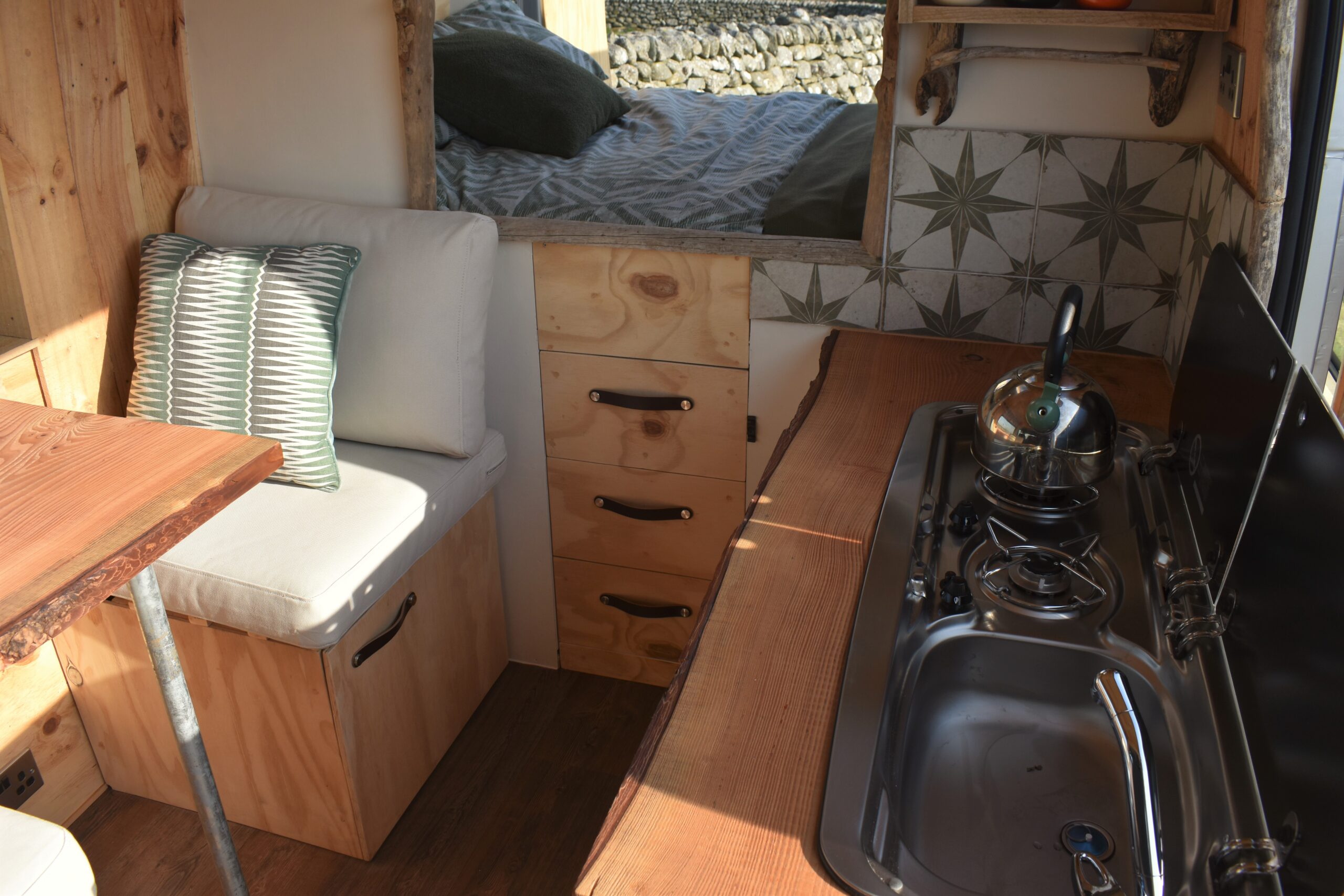

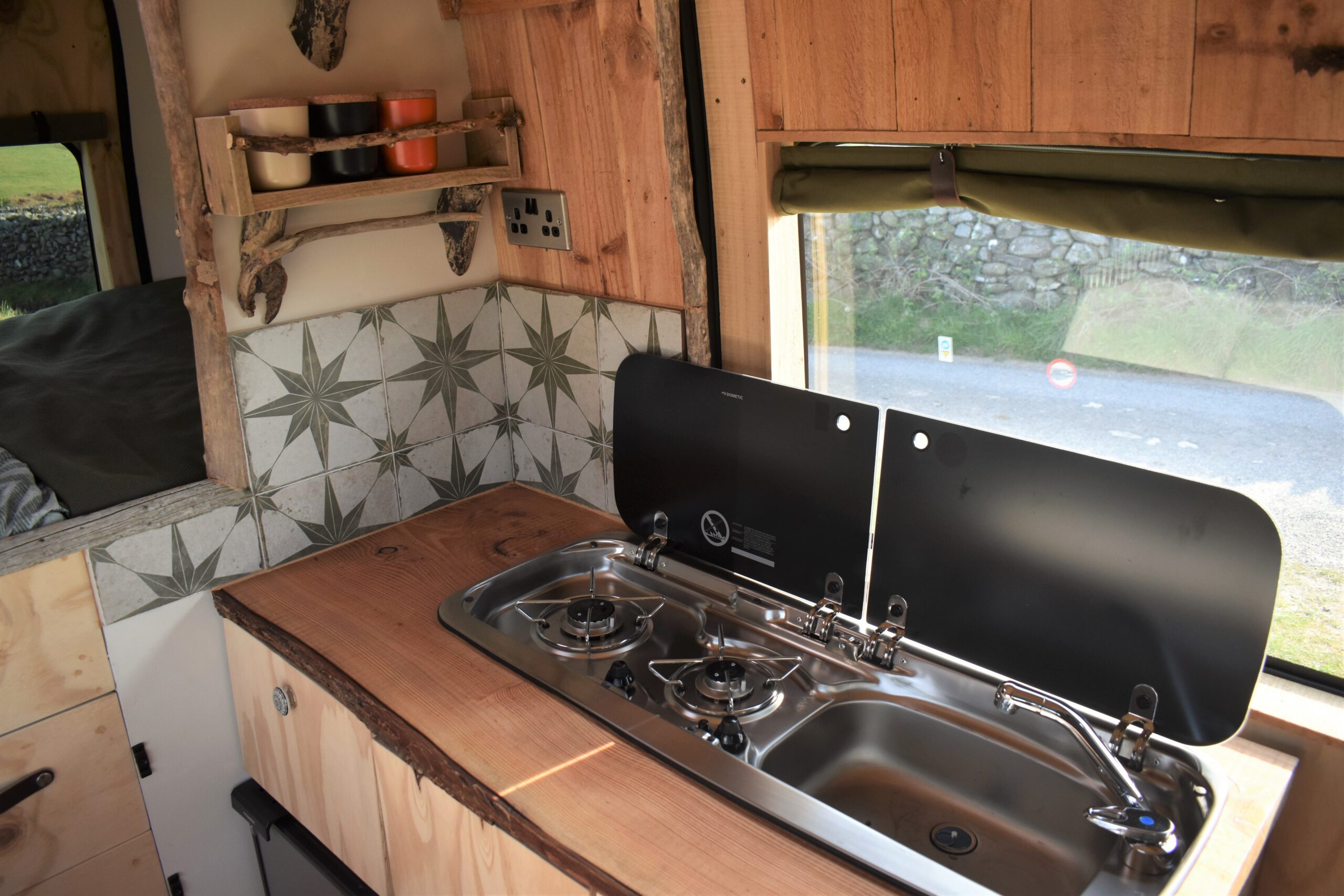

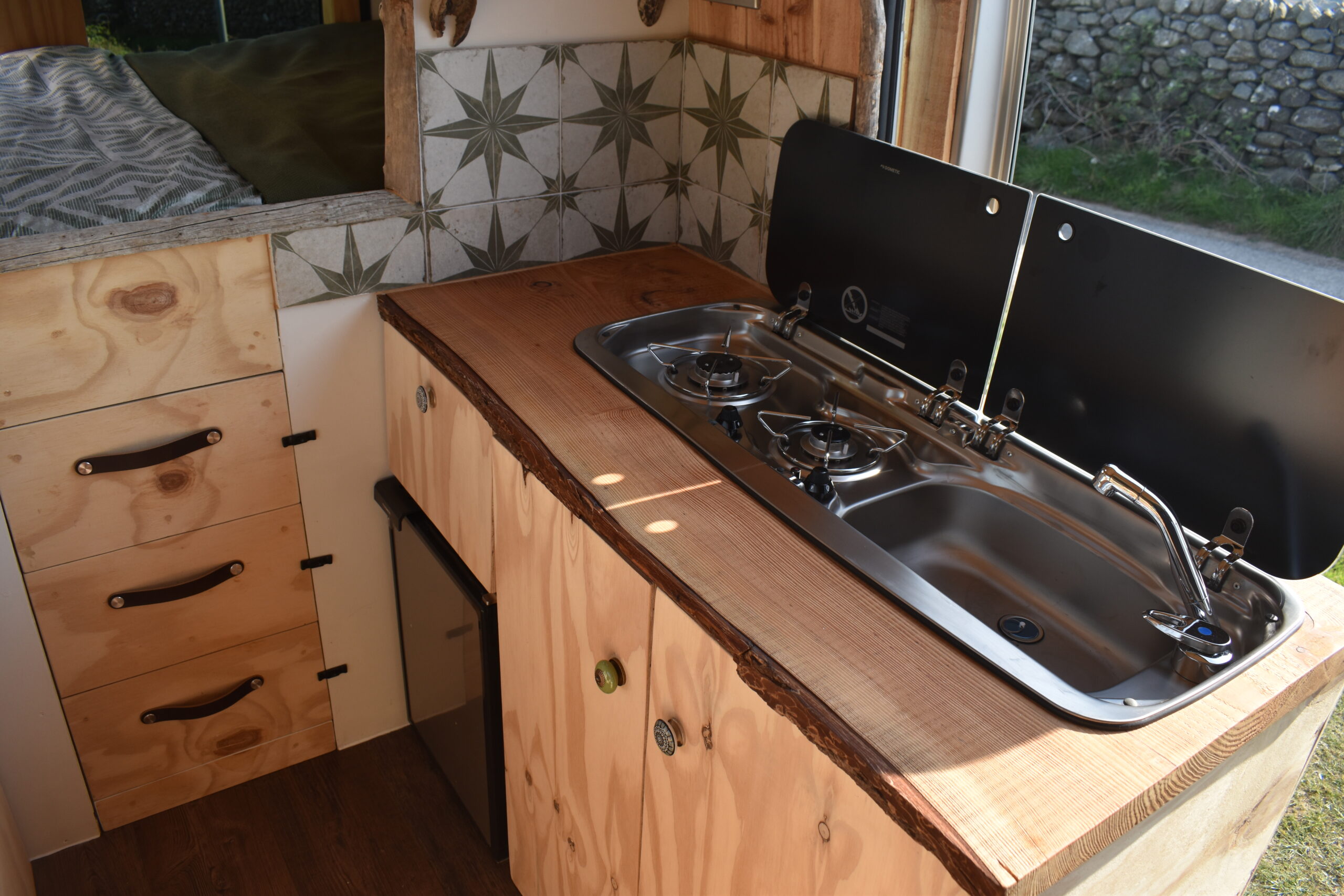

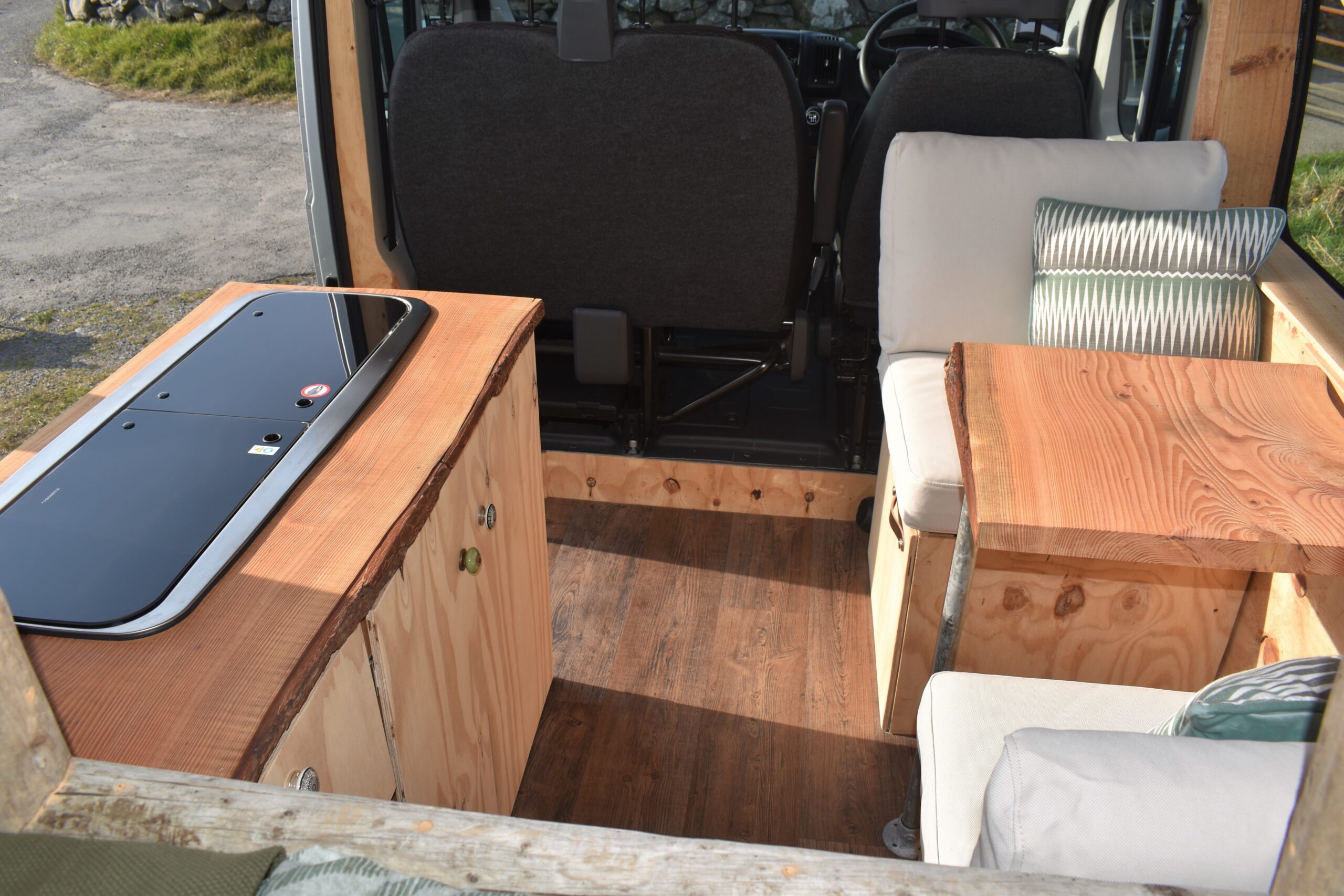

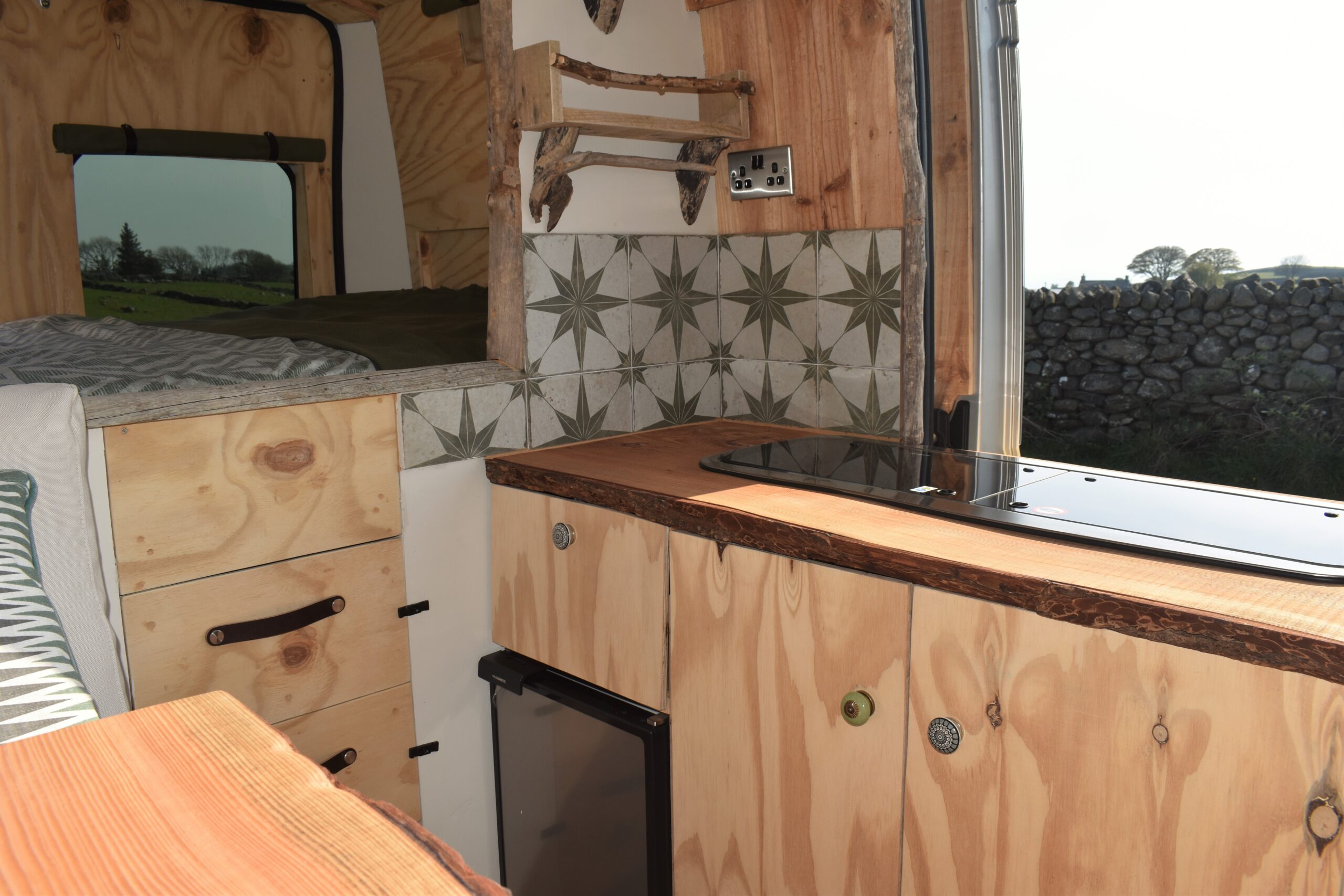

New Smev 9222 Double hob and sink unit
Wooden shelving for kitchen equipment

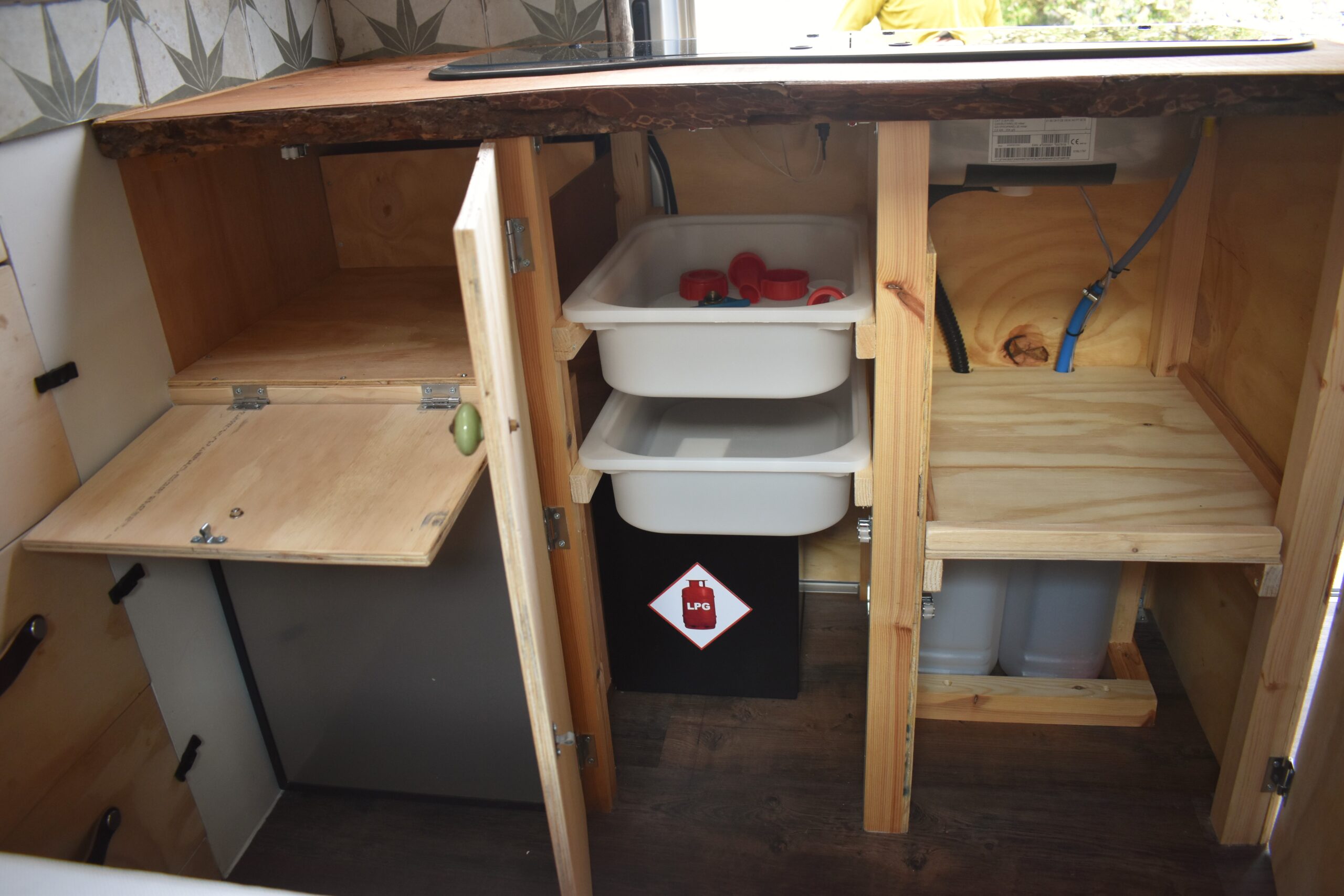

Three storage cupboards in the kitchen area
10 Litre Water Container
10 Litre Waste Container
Large storage area above the cab
240 volt Mains Inlet socket

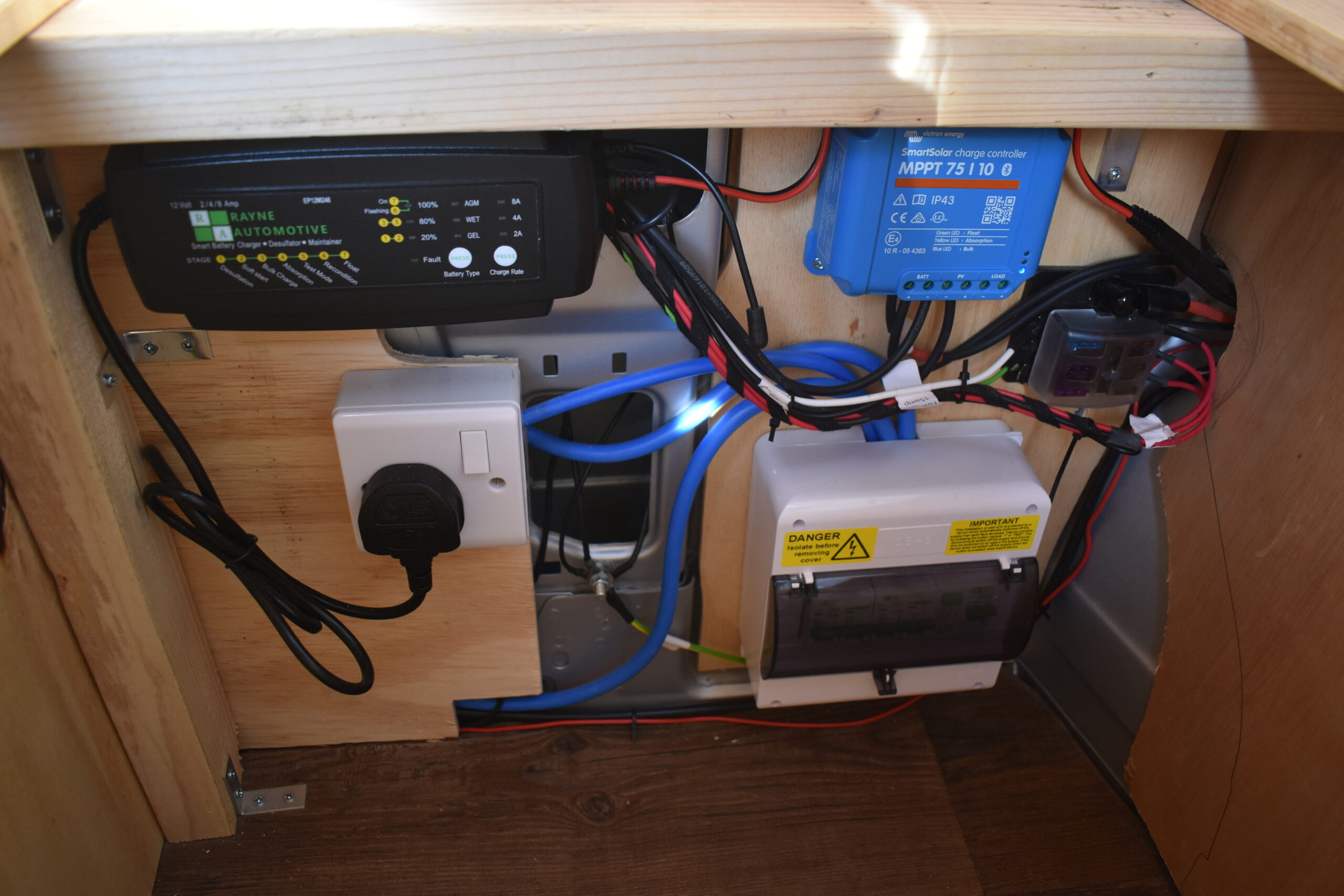

240 volt consumer unit with switched fuses
12 volt Fuse Box

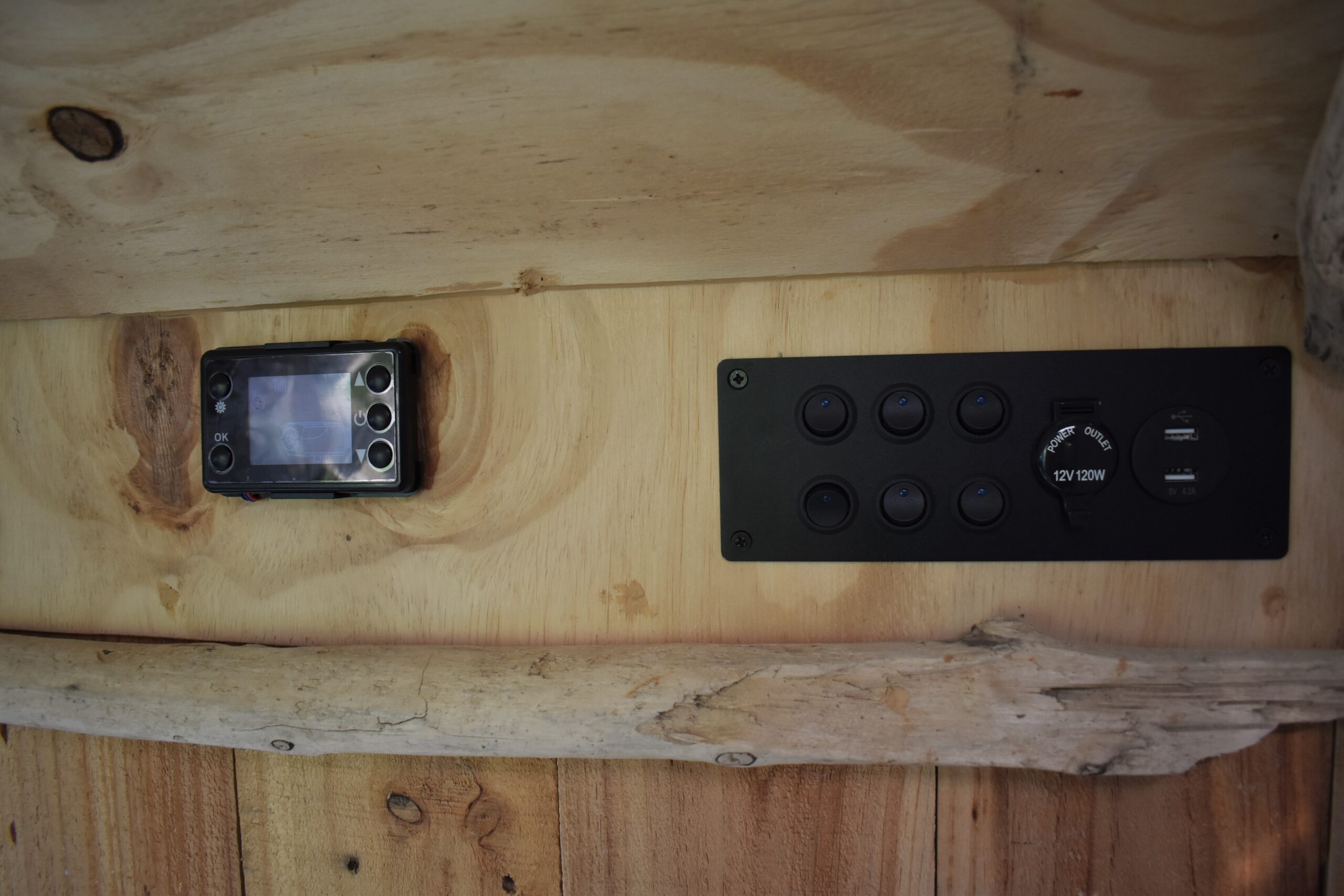

12 volt Control panel with 2 USB sockets, 12 volt power socket, battery condition indicator. Individual switches for lighting the bedroom, under bed storage and living area (these lights can be dimmed in the bedroom area).
240 volt mains battery charger
Split charge relay
4 LED Down Lights, the living area.
2 LED reading lamps in the bedroom area
1 LED dimmable light in the bedroom area
1 LED Down Light in the under-bed storage area

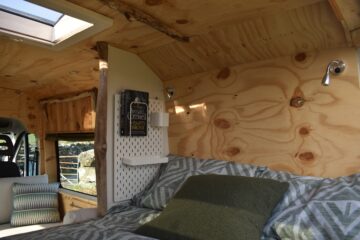

Peg Board in bedroom area for storage and phone charging area
120 watt Victron Energy Rigid Solar panel mounted on the roof
Victron MPPT 75 1 10 Charge Controller with Bluetooth
New 105 amp Numax Leisure Battery
Gas Bottle Locker with drop out vent, including new 2.75kg Camping Gaz bottle.

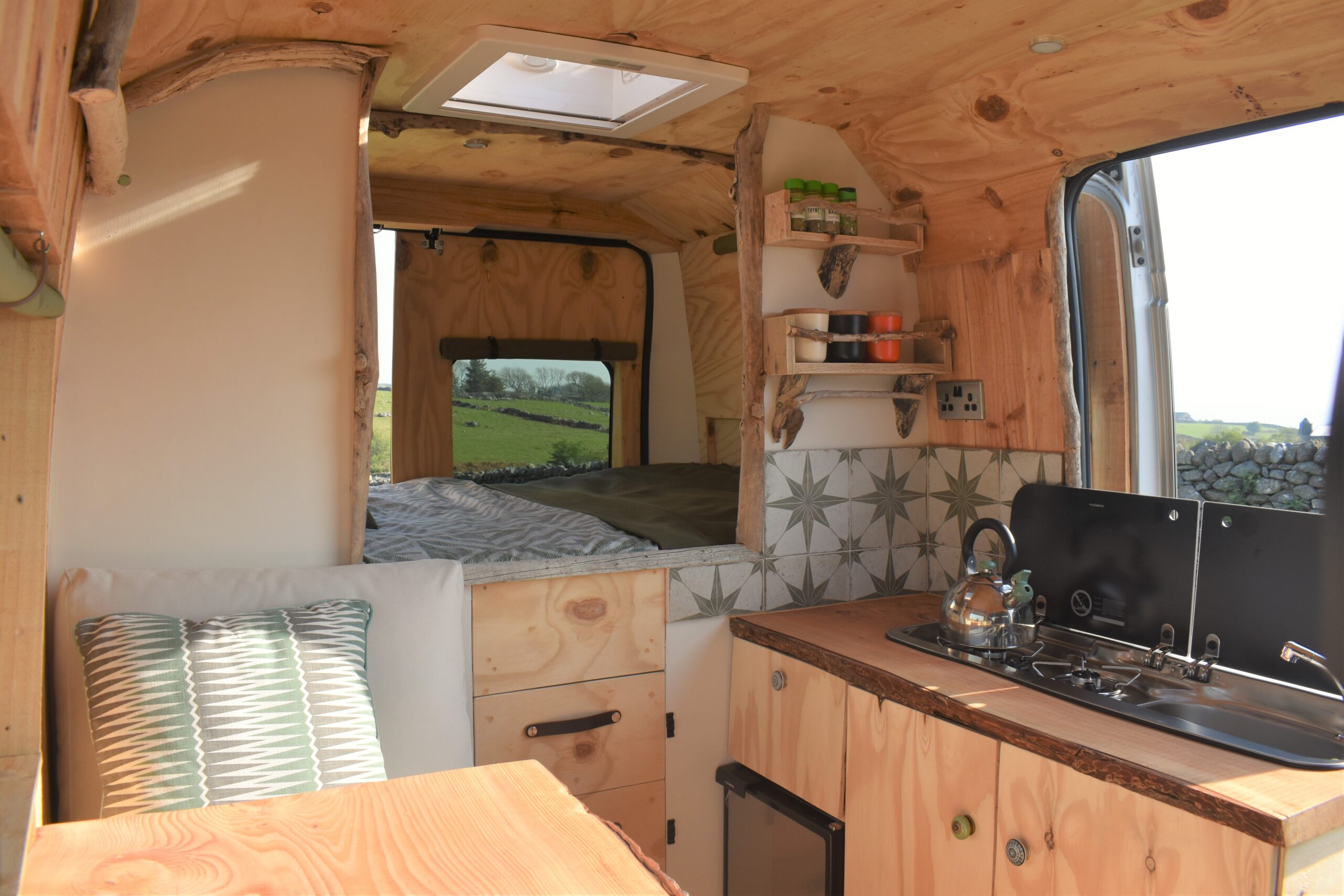

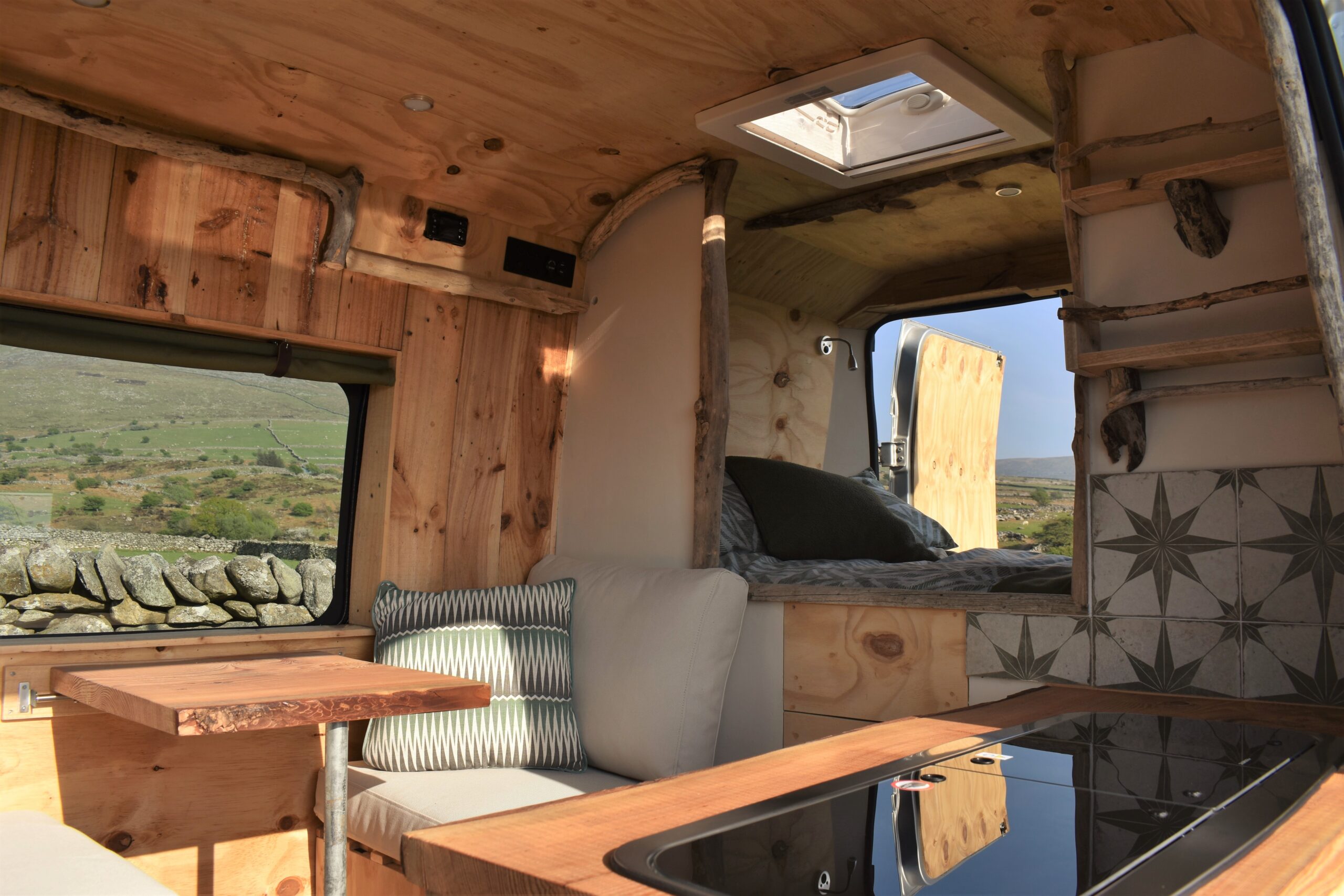

Seitz Mini Heki Roof Vent
Blinds to rear and side windows

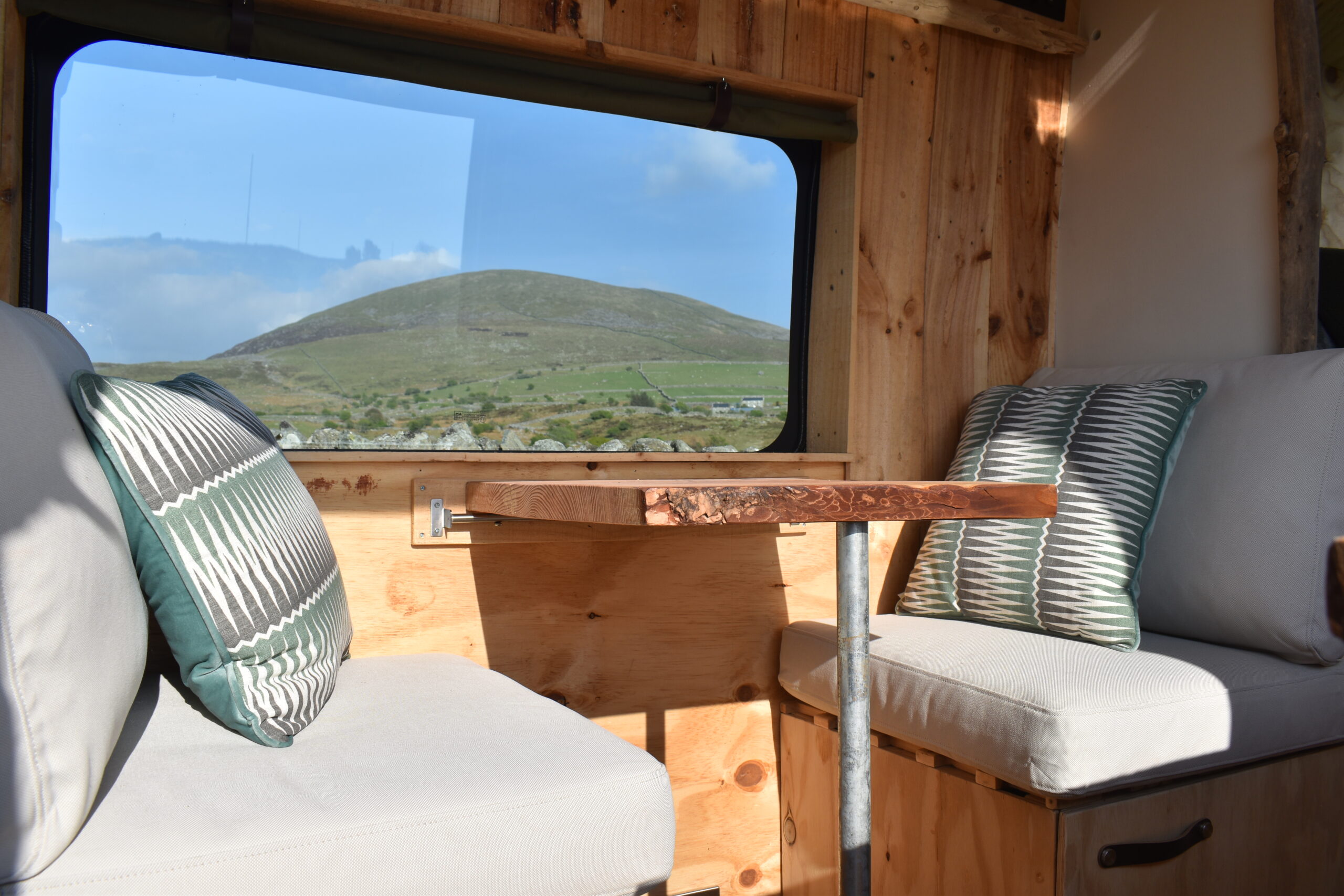

Waney edge wood removable table

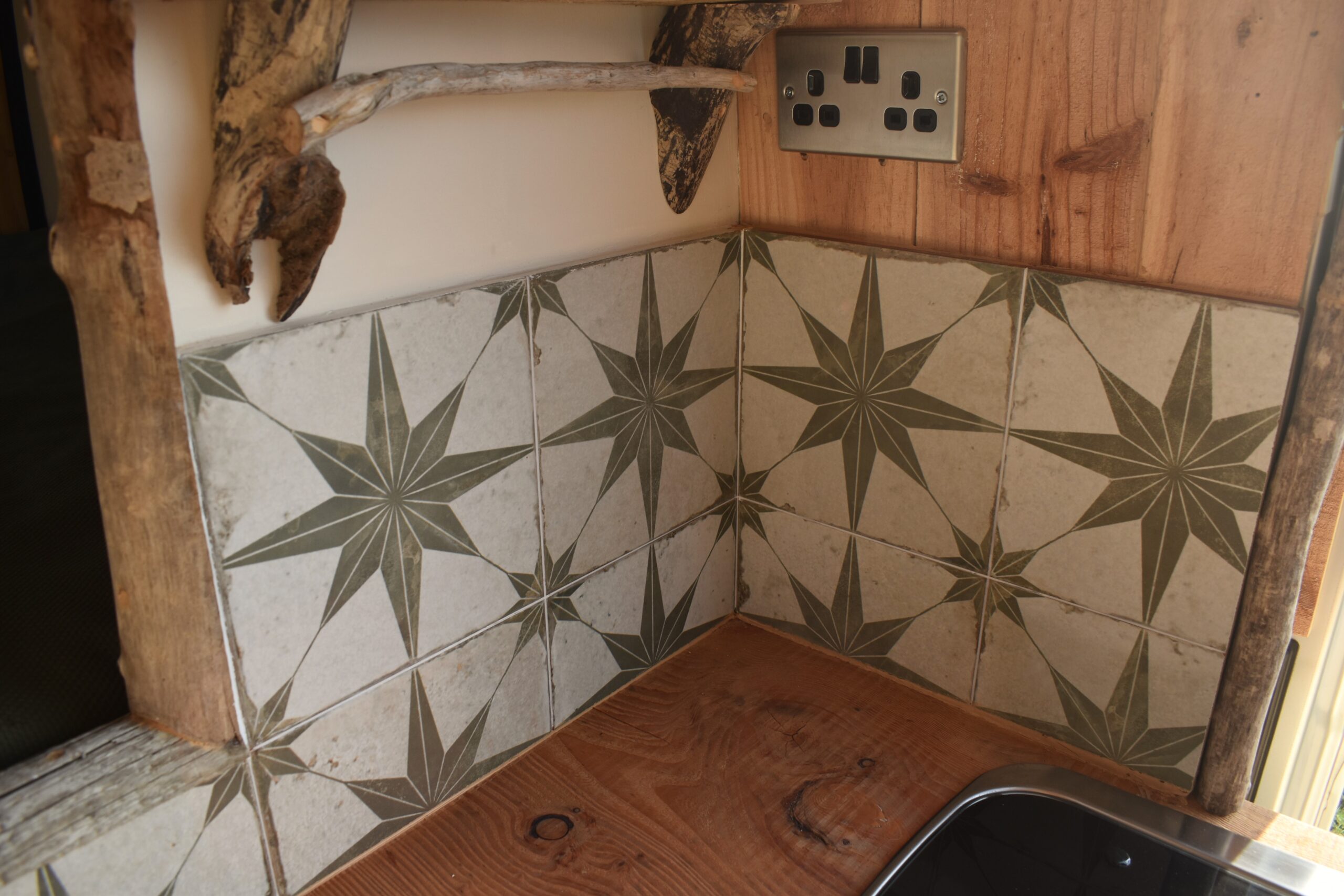

Waney edge worktop
Diesel Heater – 2kw – Connected to the vehicle fuel tank (no inconvenient topping up of separate fuel containers)

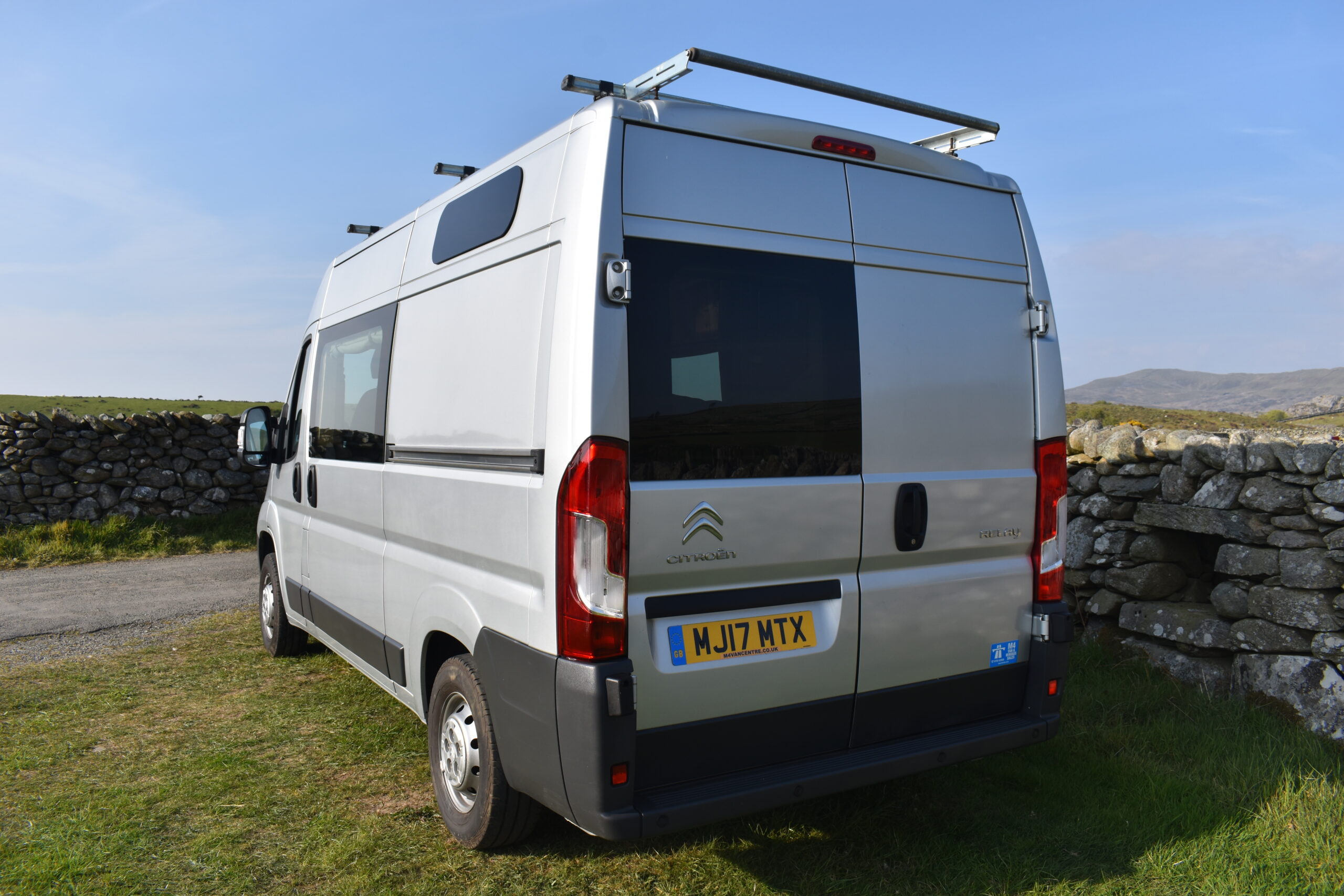

Rhino Roof Bars including rear roller
The two rear windows are privacy glass
The two living area windows are not privacy, green tinted
The van walls and ceiling have been fully insulated – Ceiling with 25mm Kingspan Styrofoam, the walls with 90% recycled polyester insulation and double-sided foil bubble wrap. The floor has 5mm foil insulation foam beneath the vinyl flooring.
The cladding is a combination of 9mm ply and 9mm recycled timber
The decorative driftwood is locally sourced
The camper hasn’t been weighed but previous identical vans have weighed 2460kg unladen.
The V5C currently shows the body type as panel van ready for the new owner to change to either ‘Van with windows’ or ‘Campervan’ depending on their requirements. The van meets all the requirements for ‘Campervan/Motorhome’ classification except for awning rail and exterior graphics which we felt was too personal a choice to include.

Kitchen accessories and kayak are not included.

Beds Description

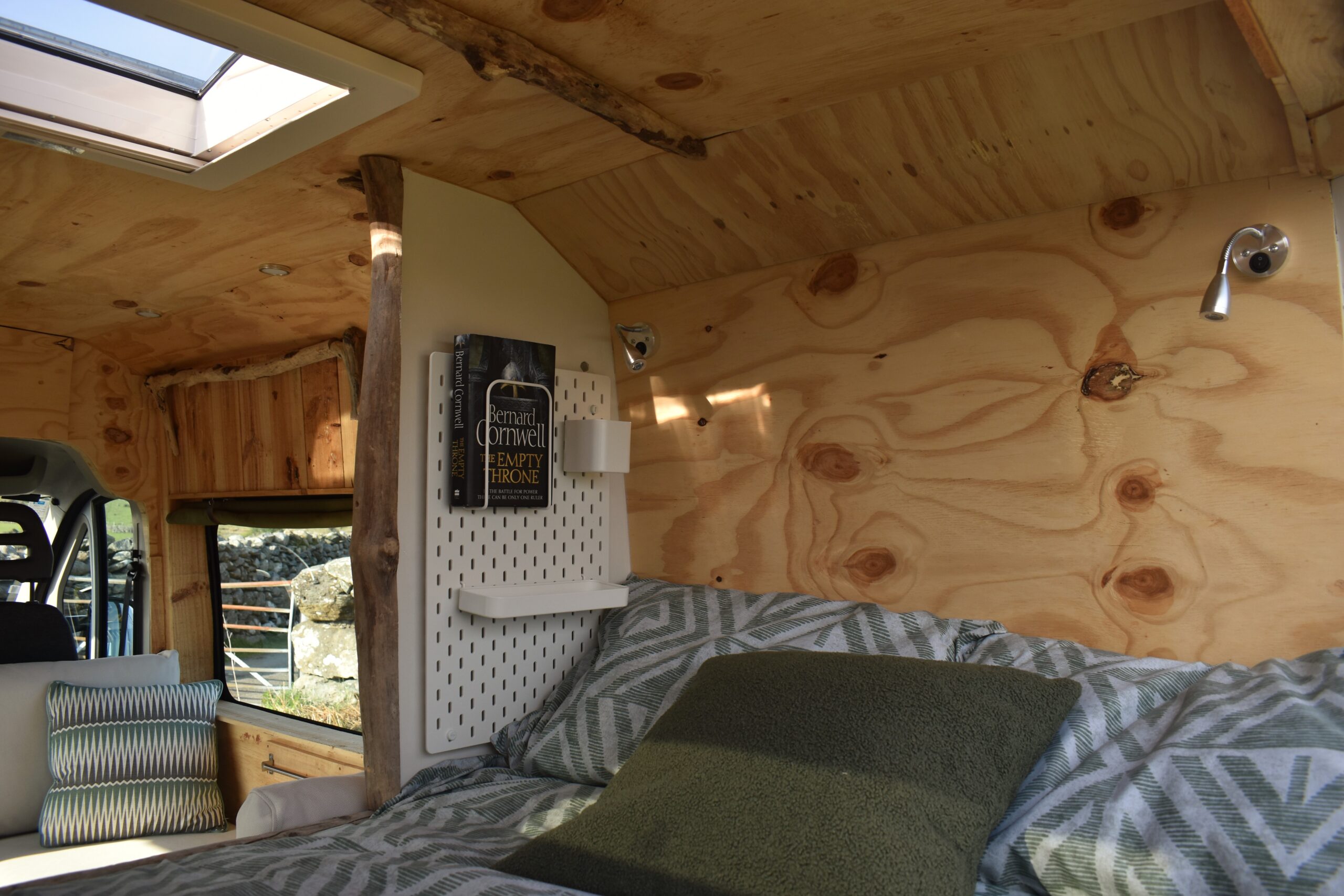

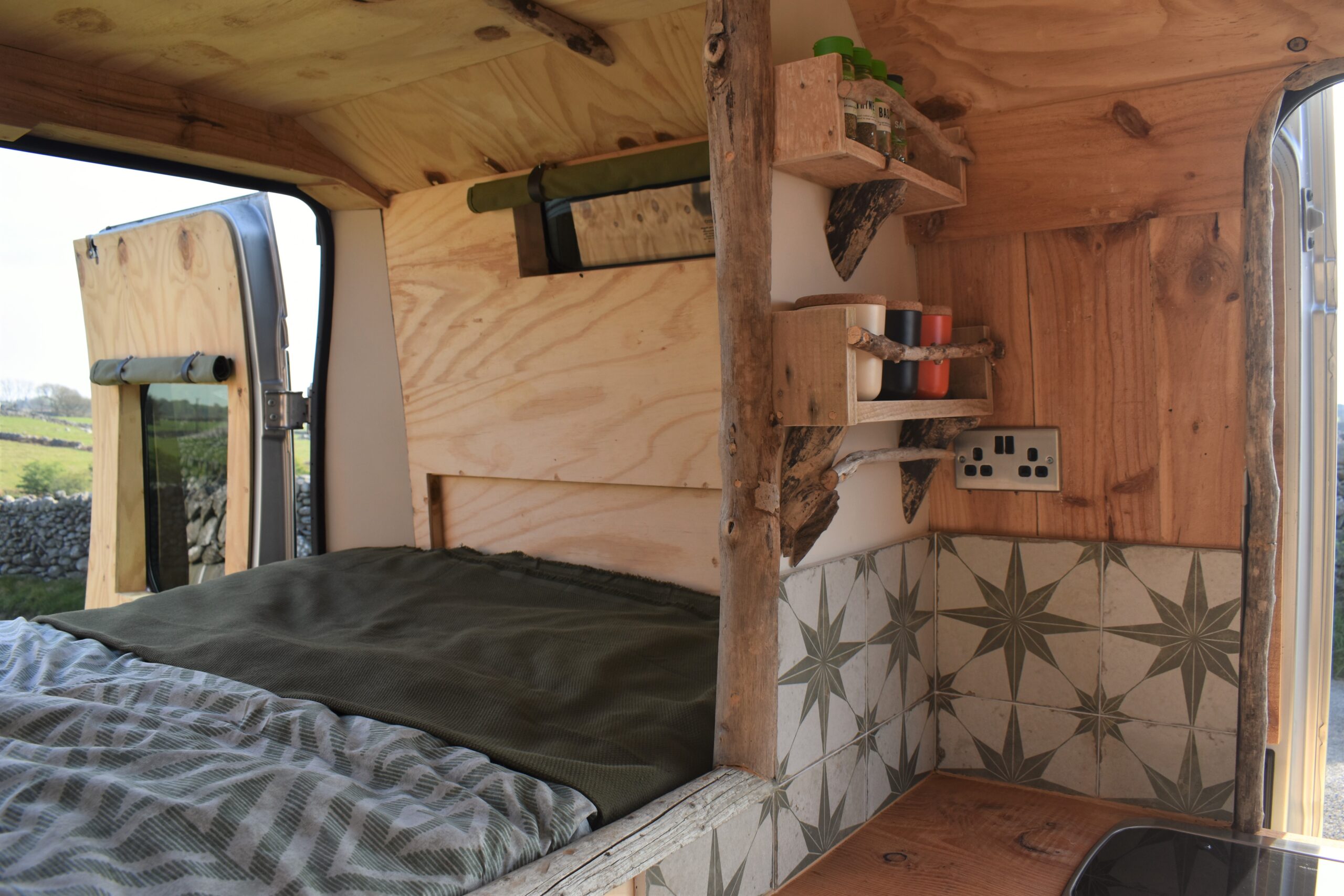

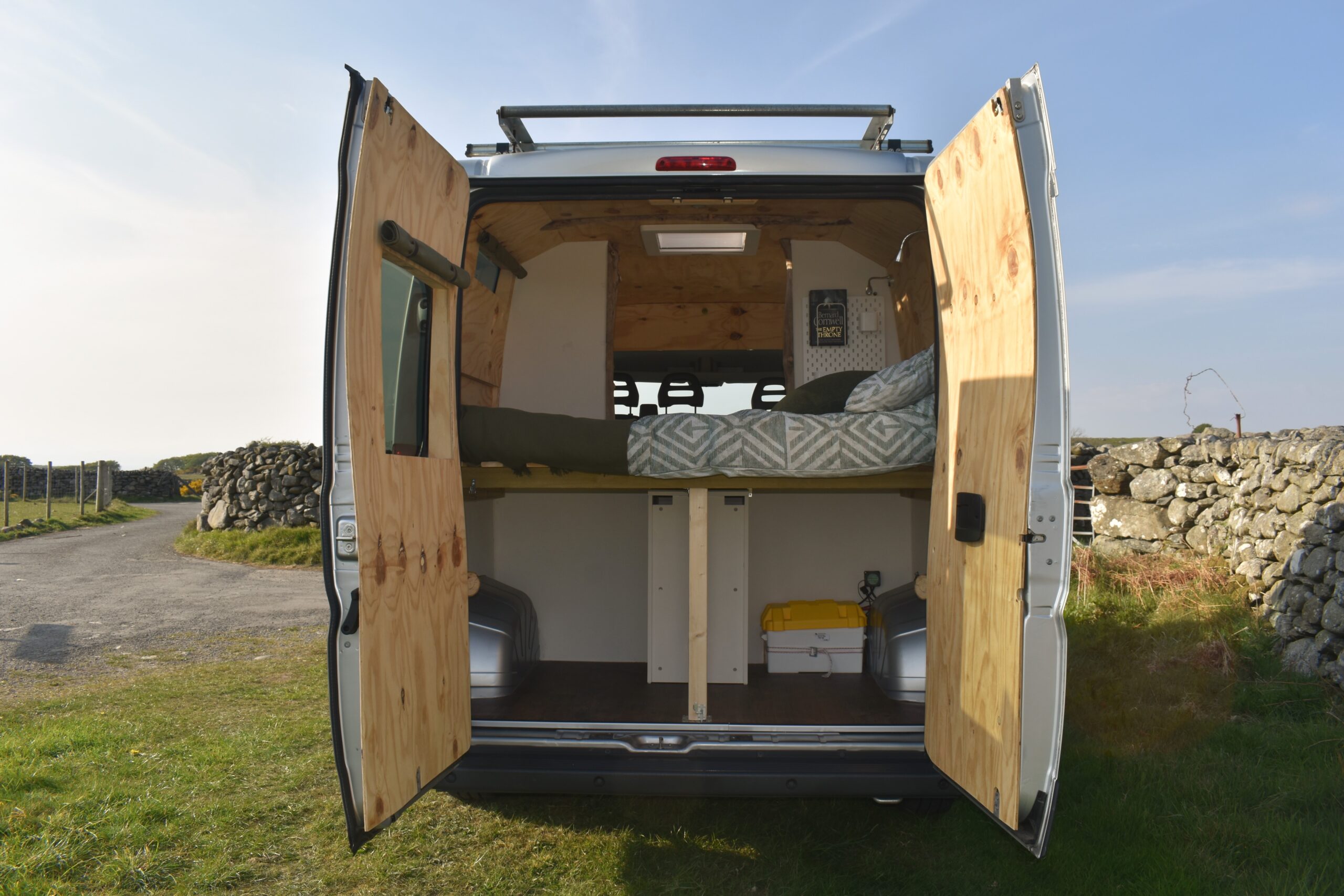

Fixed Bed 6.1ft x 4ft – Memory Foam Mattress – the bed can be removed to enable the carriage of bikes etc

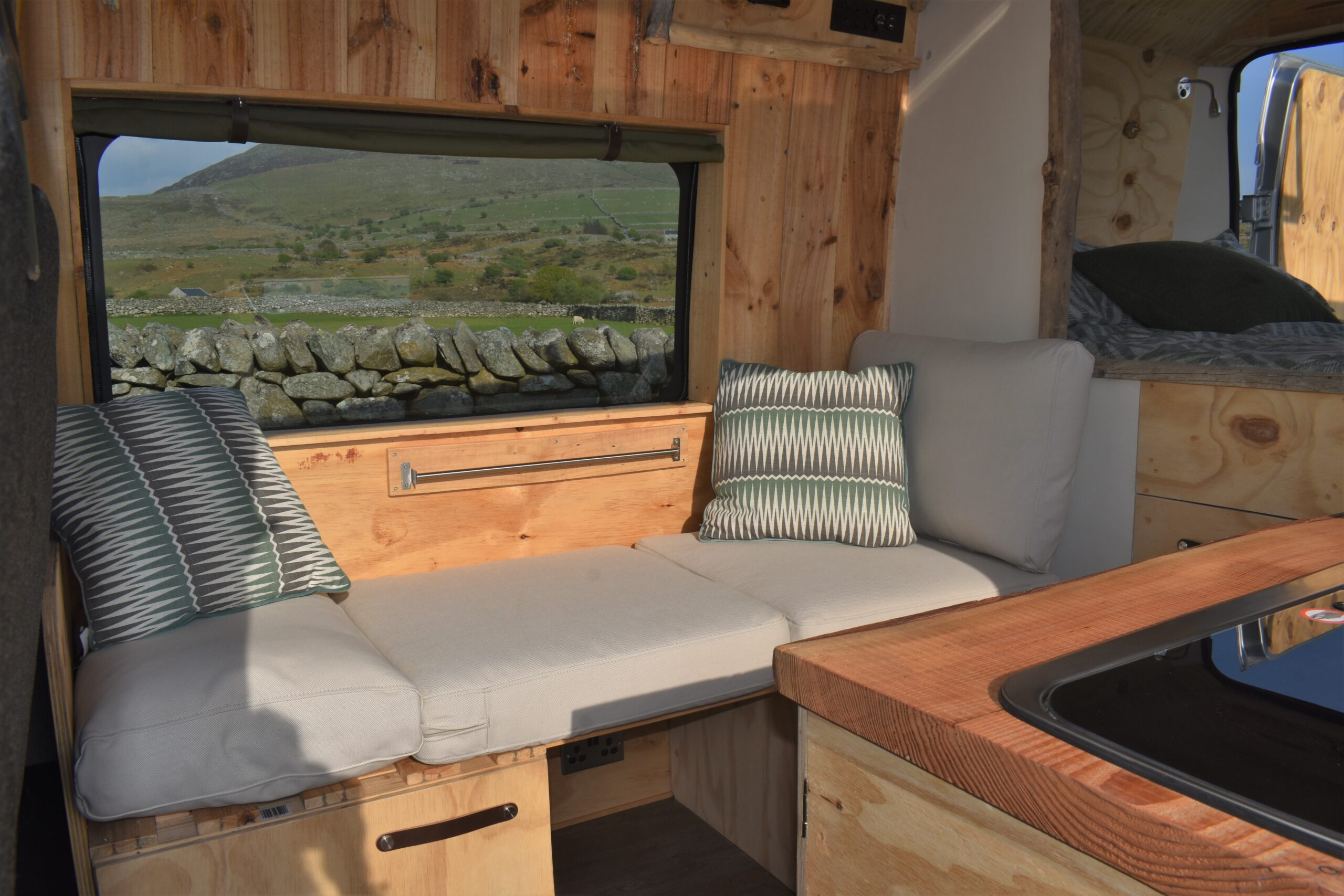

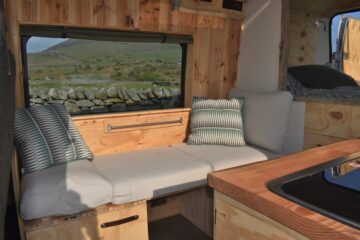

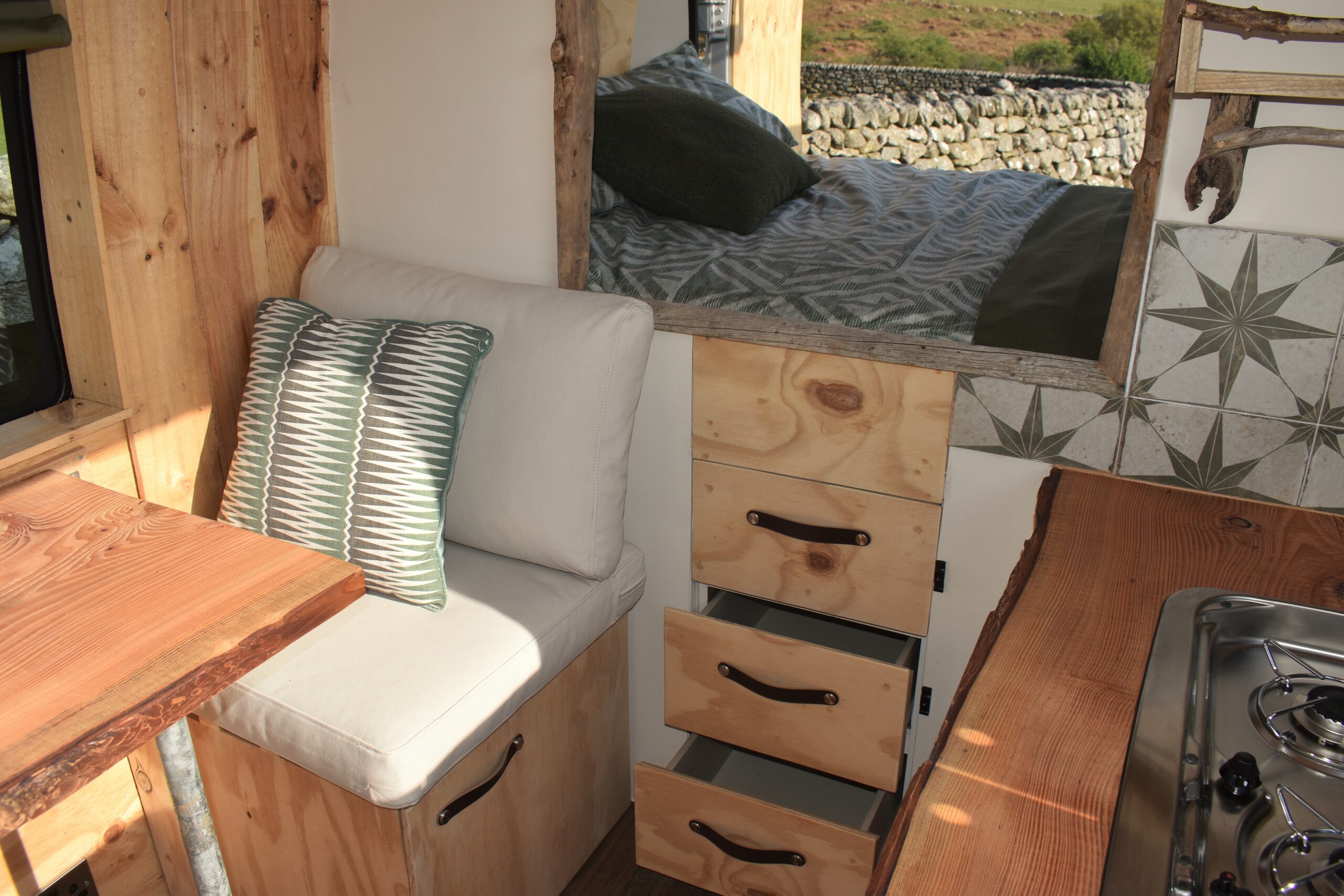

The dinette seating can be made up into a small single bed 5ft 8 inches long, includes two seat and back cushions

Main Bed Length
186cm

Contact the Seller

The contact details for this vehicle are no longer available because it has either sold or the listing has expired.


Vehicle Spec
Transmission:
Manual
Belted Seats:
3 Belts
Vehicle Length:
5.41 meters
Vehicle Height:
2.50 meters
Vehicle Width:
2.05 meters
Registered Vehicle Type:
Panel Van (does not meet DVLA standards)

Conversion Spec
Conversion Condition:
New
Converter Type:
Self Build - Handcrafted Expert
Gas Sign-off:
None
Max Weight (MAM/GVW/MTPLM):
3,500kg
Unladen Weight Verified:
No - the vehicle has not been weighed since completion

Electrics
12v Electrics
USB Sockets
Leisure Battery
Split Charge Relay
Solar Panel(s)
240v Electrics
240v Mains Charger
