Hi-Spec Off-Grid Ford Transit L4H3 Campervan

Experience off-grid van life with our beloved 2016 Ford Transit Conversion.

We bought the van in 2020 and spent a year converting it into a campervan, before heading off on a two-year adventure around the UK and Europe. We’ve had the best time of our lives in this campervan, but it’s time for us to explore further afield.

Working as digital nomads for the last two years has been possible thanks to its off-grid capabilities, including a large solar array, lithium batteries and robust 12v system with inverter. If you’re looking for a way to work on the road (or power movie marathons on weekends away), our van might be the perfect fit for you.

KEY FEATURES

👉 Style
The scandi style design, with dark wood surfaces and white walls and cabinets, feels both rustic and modern at the same time. With plenty of neutral colours it leaves ample space to add your own personality and flair.

👉 Living Area

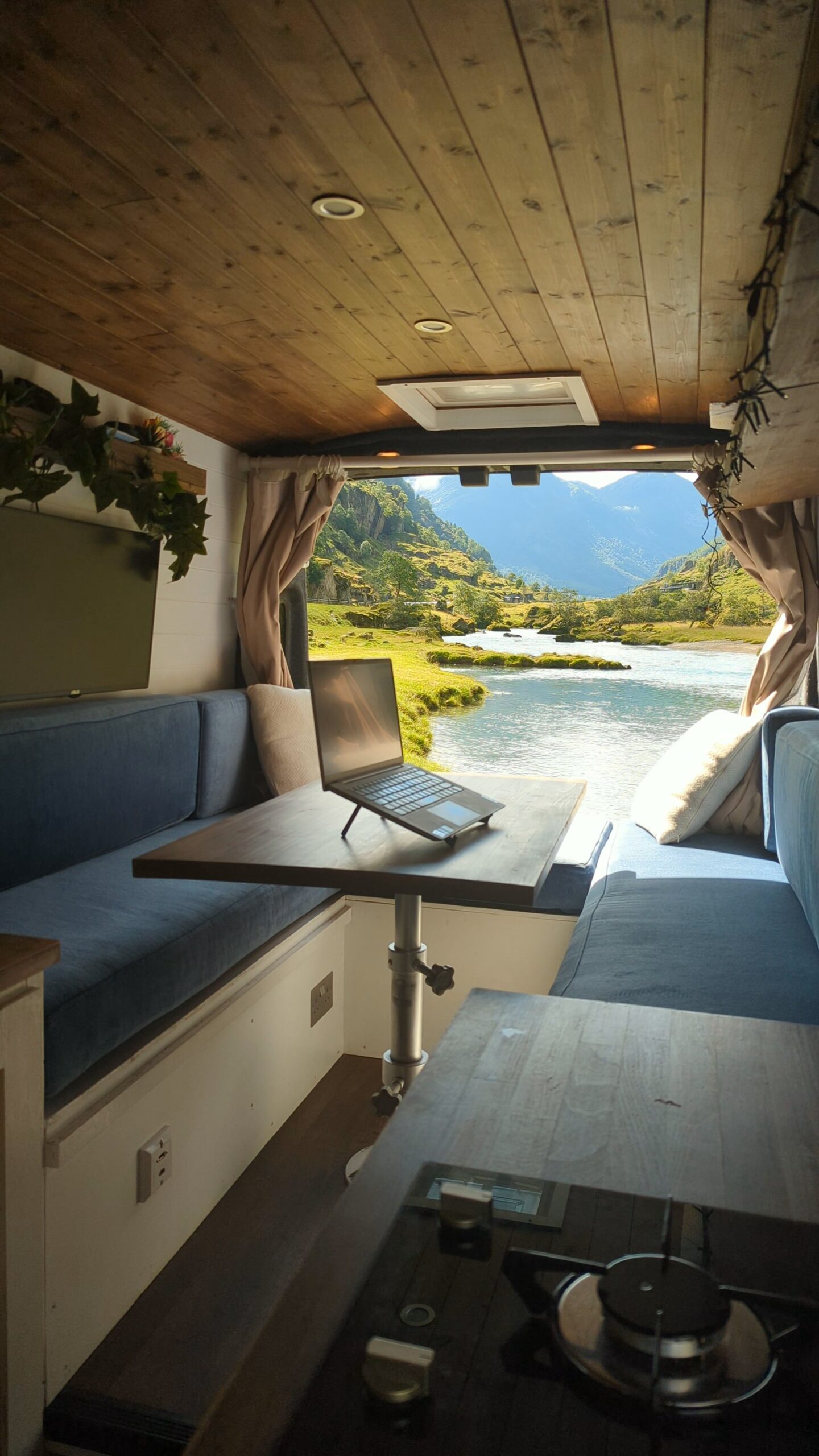

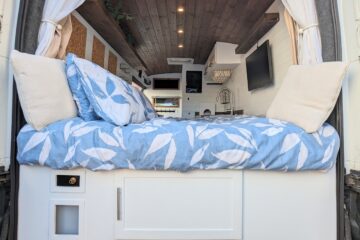

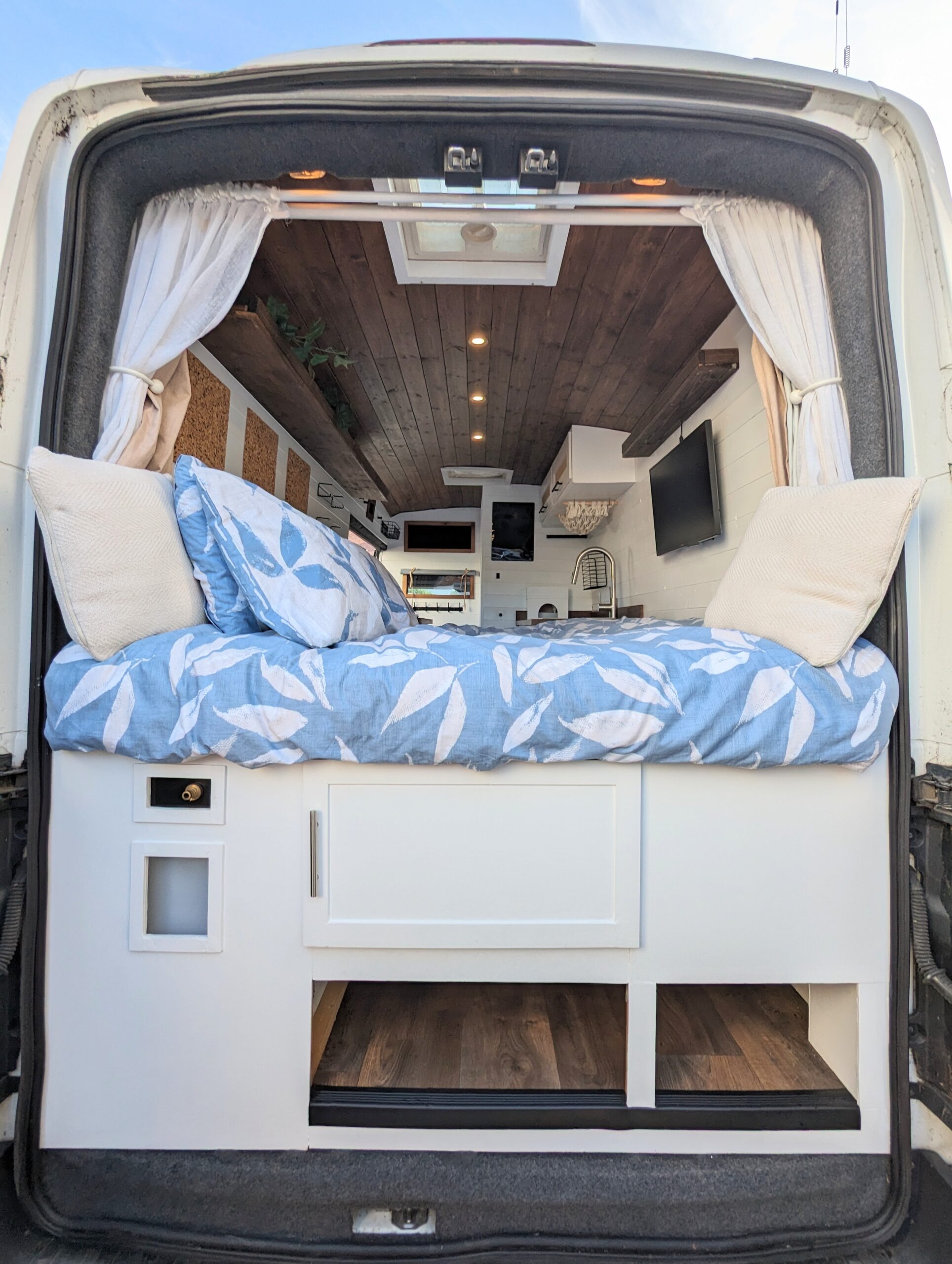

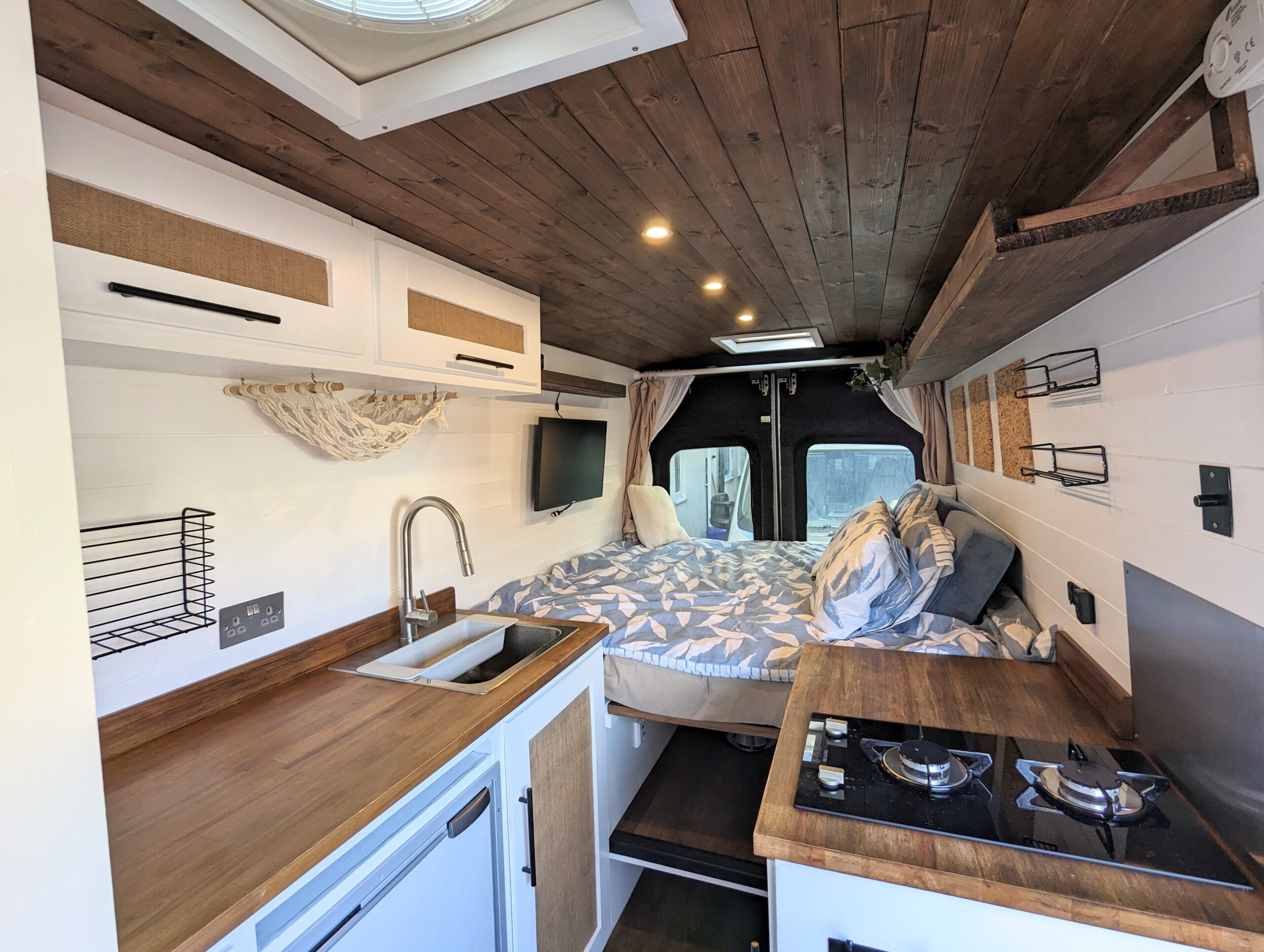

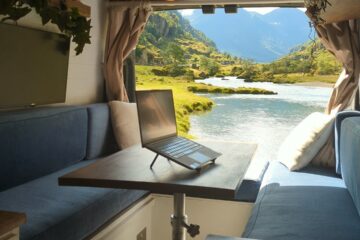

The main living area consists of a raised, large, horseshoe shaped seating area around a removable solid wood table. This then converts down into a 160cm x 180cm double bed, with plenty of room for two, plus a smaller child and/or dog! Space for a TV on the wall makes this a cosy area to tuck into and enjoy a film on a rainy night in.

👉 Kitchen

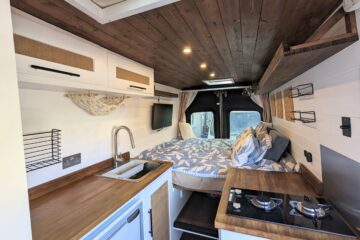

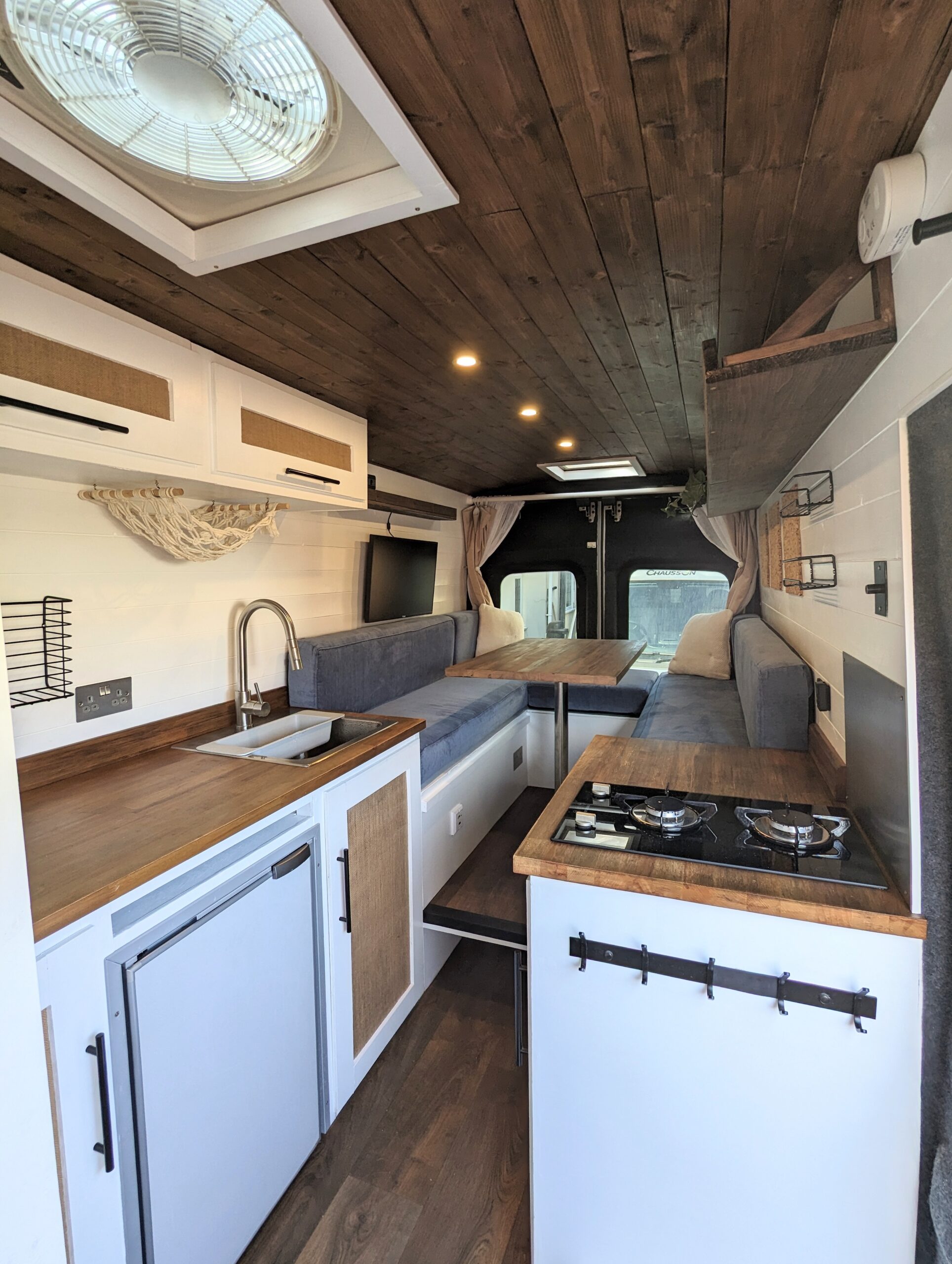

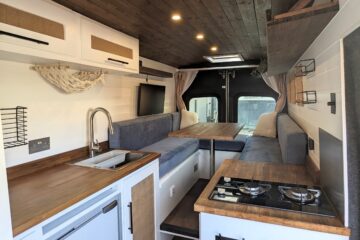

With large amounts of countertop space and a modern double-burner gas hob, It’s easy to prep and cook up plenty of delicious meals. The large full-size sink with hot water makes washing up a breeze, and the sizable fridge + freezer combo allows for the storage of plenty of fresh food and the occasional ice cream in the summer months!

👉 Shower/Bathroom

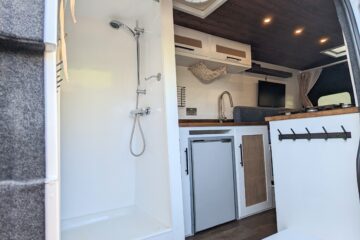

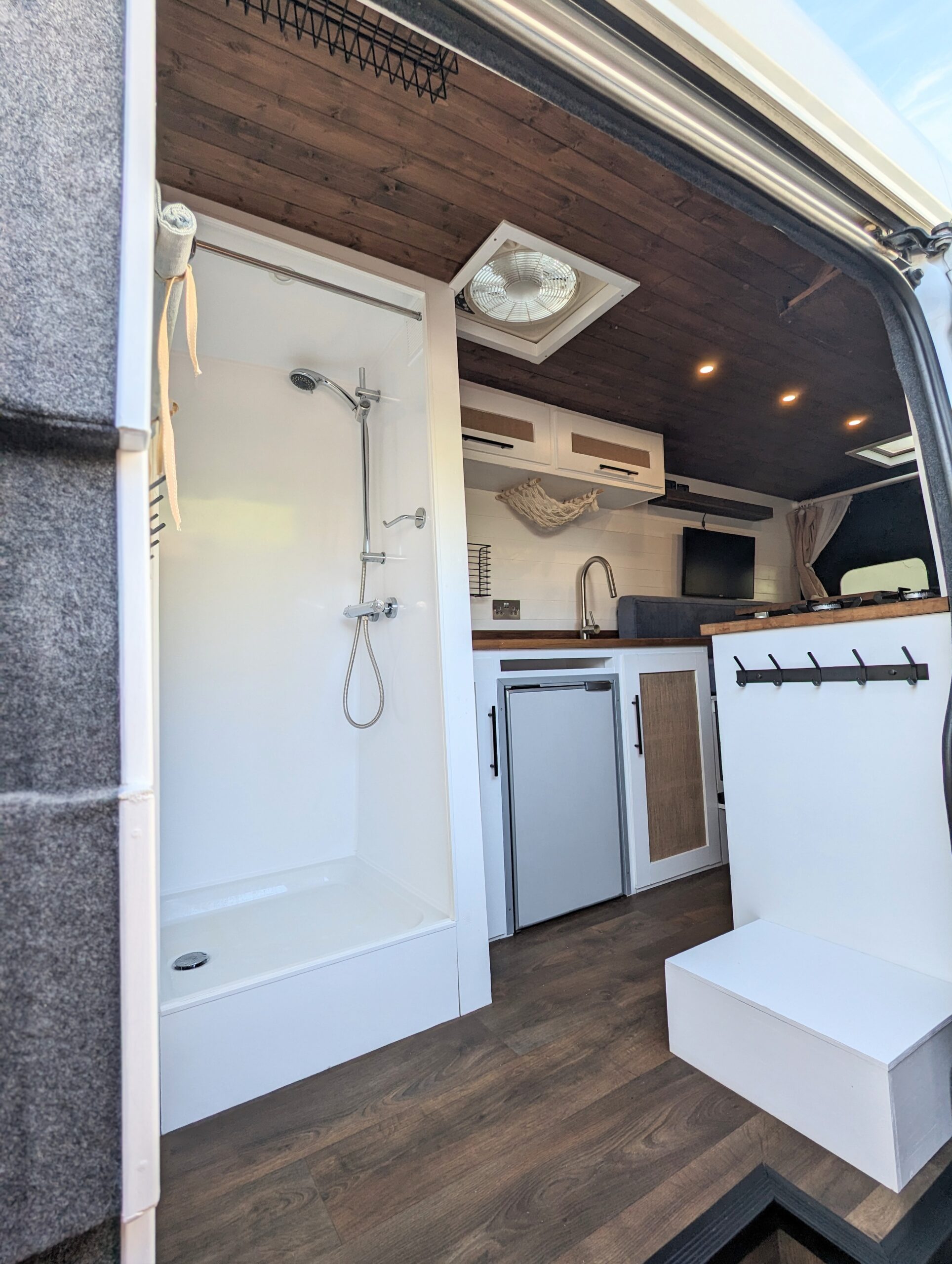

At the front of the van is a walled off shower/wetroom area, providing privacy for a portable chemical toilet, and a place to clean off after your outdoor adventures. The off-grid electric hot water system provides enough water for a hot shower wherever you might be.

👉 Storage
The van features built-in upper cabinets to store kitchenware, and an accessible full-length shelf for all your daily grabs. The lower cabinets provide additional storage for food, clothes and cleaning supplies. Above the cab we have installed a parcel shelf where we usually place our bedding during the day.

In the benches you’ll be able to access the electrical system, the water tank with plumbing, and store all of the extra blankets and plush cushions you could ever need. At the back of the van, the garage provides plenty of room for adventuring kit (we had several paddleboards!) as well as hookup cables, hoses and spare gas canisters.

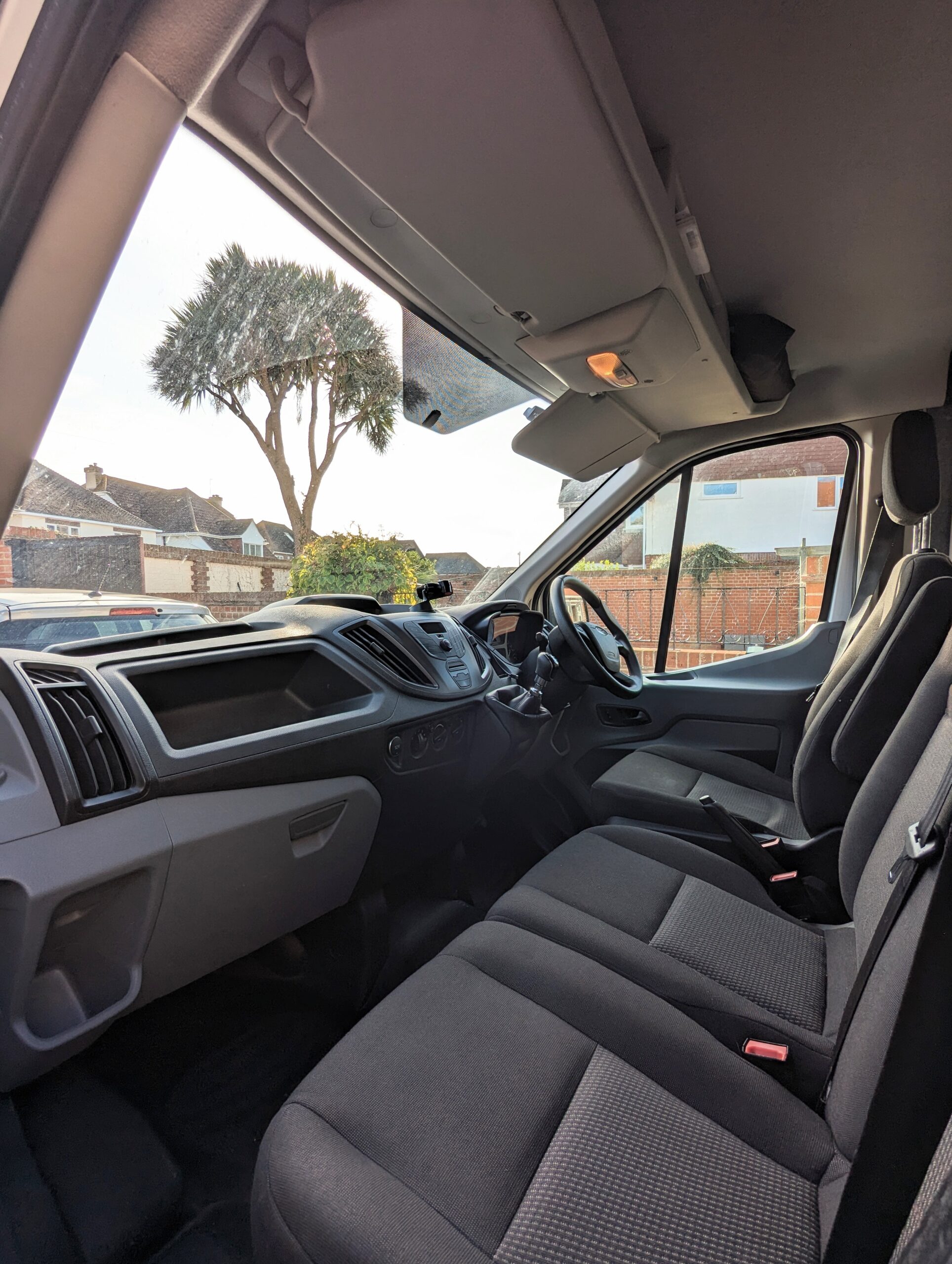

👉 Partition Wall
A large, insulated partition wall between the cab and living area provides extra security against potential break-ins, hiding your belongings from prying eyes and adding an extra barrier against entry. It also keeps you warm in winter, stopping those large cab windows from sucking the heat out and ruining your cosy night in.

👉 Off-Grid Capabilities
With a large amount of solar, plenty of battery capacity and a sizable fresh water tank, you can save plenty of money on campsites during your travels! We spent 3 months in the Alps last summer without needing to hook up once, powering our lives completely through the sun. Running our laptops for work, hot water for showers, the fridge on full power and the TV almost every night. Even spending the majority of our winters in Scotland we only needed to stop at a campsite once a week!

👉 Electrical System
With our requirements to work off-grid, we built a robust electrical system to power all our devices, including laptops for nearly 8-9 hours a day. With 200ah of Lithium batteries (and an empty space to easily add another 100ah), and 525W of solar to charge them, we rarely had issues with power. The 2000W inverter also gives you the flexibility to power larger, more demanding devices wherever you are. There’s also the space to fit a SIM-powered WiFi box with antenna ports, so you can have stable internet on the go.

SPECIFICATIONS

🔌 Electrics
– 2x100ah LiPo Batteries (with space and cables for a third to be added easily)
– 525W Flexible Solar Panels
– 50amp MPPT Solar Charge Controller
– 40amp DC-DC Charge Controller (For Alternator Charging)
– 240v Hook Up Port
– 20amp AC Charger
– 2000w Pure Sine-wave Inverter – connected to mains system via relay box.
– 3 x Double 240v Sockets (One in garage for AC Charger)
– 3 x 12v Cigarette Sockets
– 1 x 12v USB Hub
– 2 x Fiamma roof vents, 1 with fan
– Battery Monitoring Unit in Living Area
– Wall mount for a 12v TV (TV not included)
– 2 x antenna ports for a mobile router (router not included)

🔥 Gas
– 1 x Small Gas Locker (Fits up to 4kg Calor Butane)
– 2 x Campingaz 907 2.7kg canisters included

☀️ Heating
– 2kW Challenger Diesel Heater connected to main fuel tank (Professionally fitted with certificate)

💧 Water
– 100l main fresh water tank with tap-connector fill point inside back doors
– 60l underslung grey water waste tank
– 12v Shurflo water pump w/ accumulator
– 6l 1500W under-sink electric water heater

🍴 Kitchen
– Full size sink and tap with pull out head
– 2 x 1.5kW Thetford Gas Burner Hob with electric igniter
– 90l 12v Vitrifrigo compressor fridge with 12.9l freezer compartment
