High-Spec Off-Grid Citroen Relay Camper Conversion

£28,000

Citroen Relay 35 L3H2 Enterprise HDI

Used
121,418 miles
2 Berths
Essential Information
Hob
Fridge
Kitchen Sink
Dining Table
Heater
Ceiling Fan/Vent
Shower - Internal
Toilet - Cassette
Toilet - Built-in
Pet Bed/Pet Friendly
DAB Radio
Reversing Camera
Detailed Information
Vehicle Description

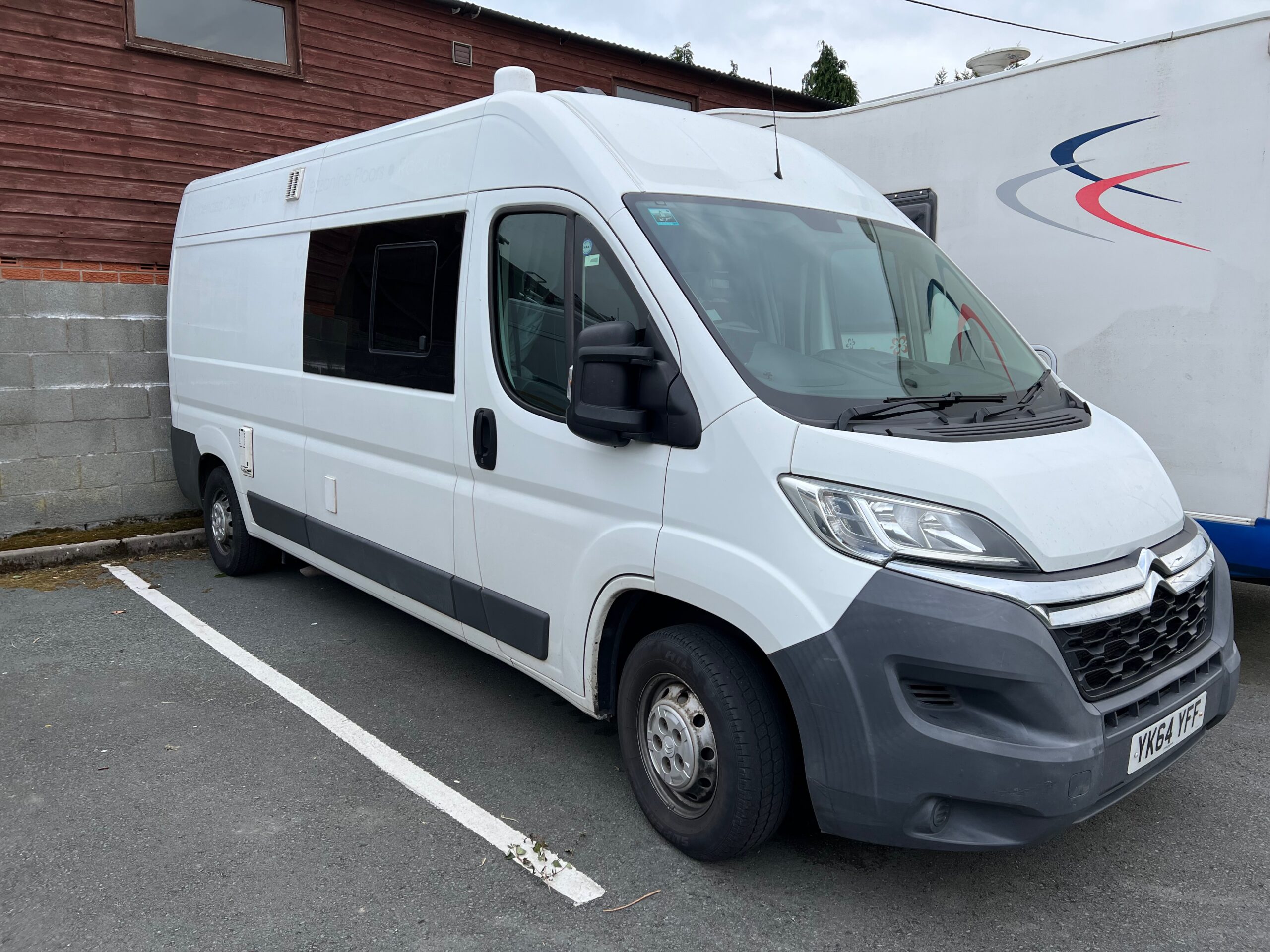

2014 Citroen Relay 35 L3H2 Enterprise HDI

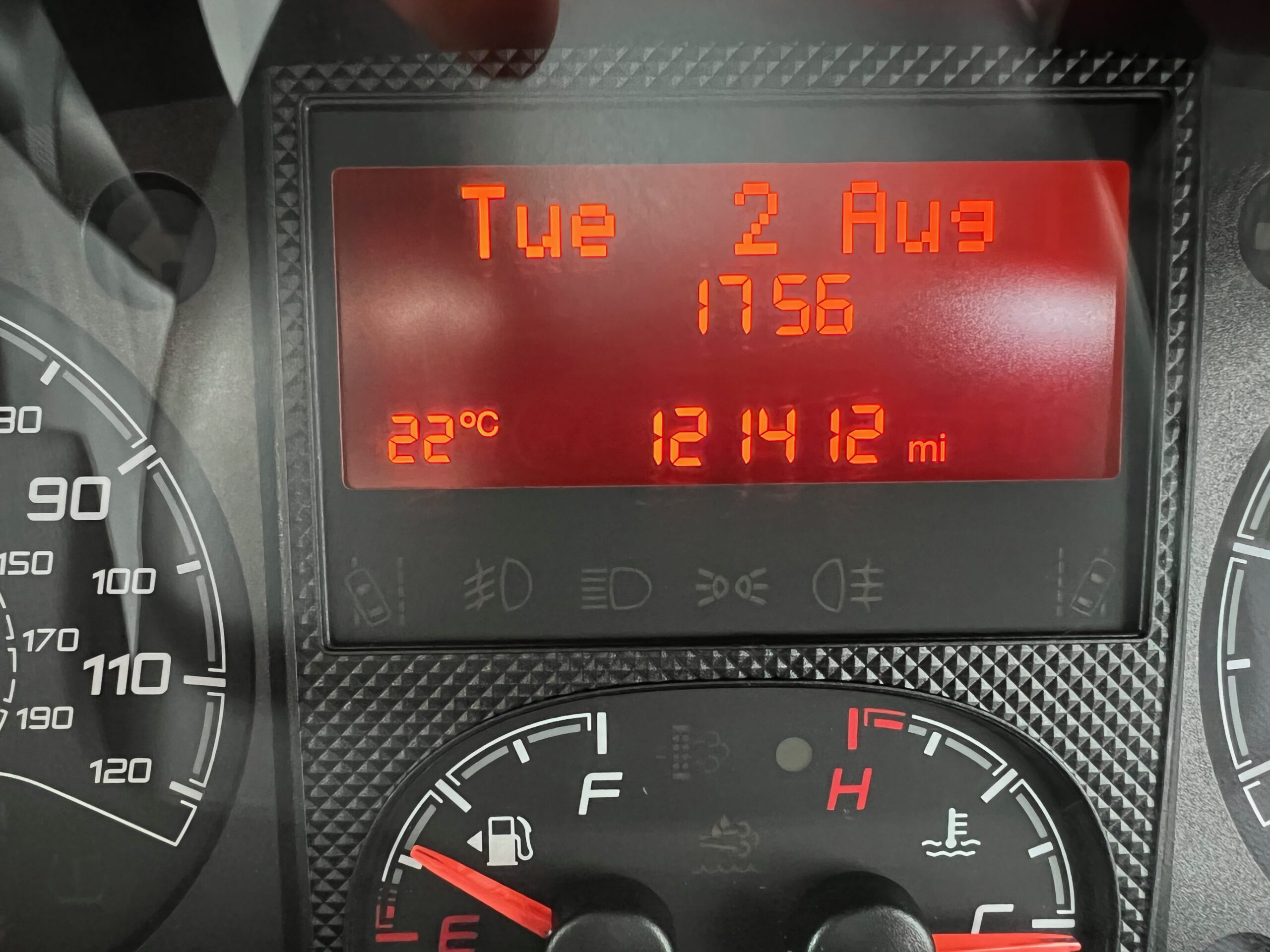

Milage: 121,418
MOT: Valid until 08.23
Flue: Diesel
Gears: 6
Tax Class: Light Goods Vehicle
Fully serviced on 15th September.
Aug 22- New all-season AL2 tyres fitted on both front wheels + tracking done
Mar 22 – Van battery replaced with a top spec model
Jun 21 – New set of brake pads and CV boot fitted
Mar 20 – windscreen replaced due to flying stone crack
Bodywork in great condition
Working A/C in the cab

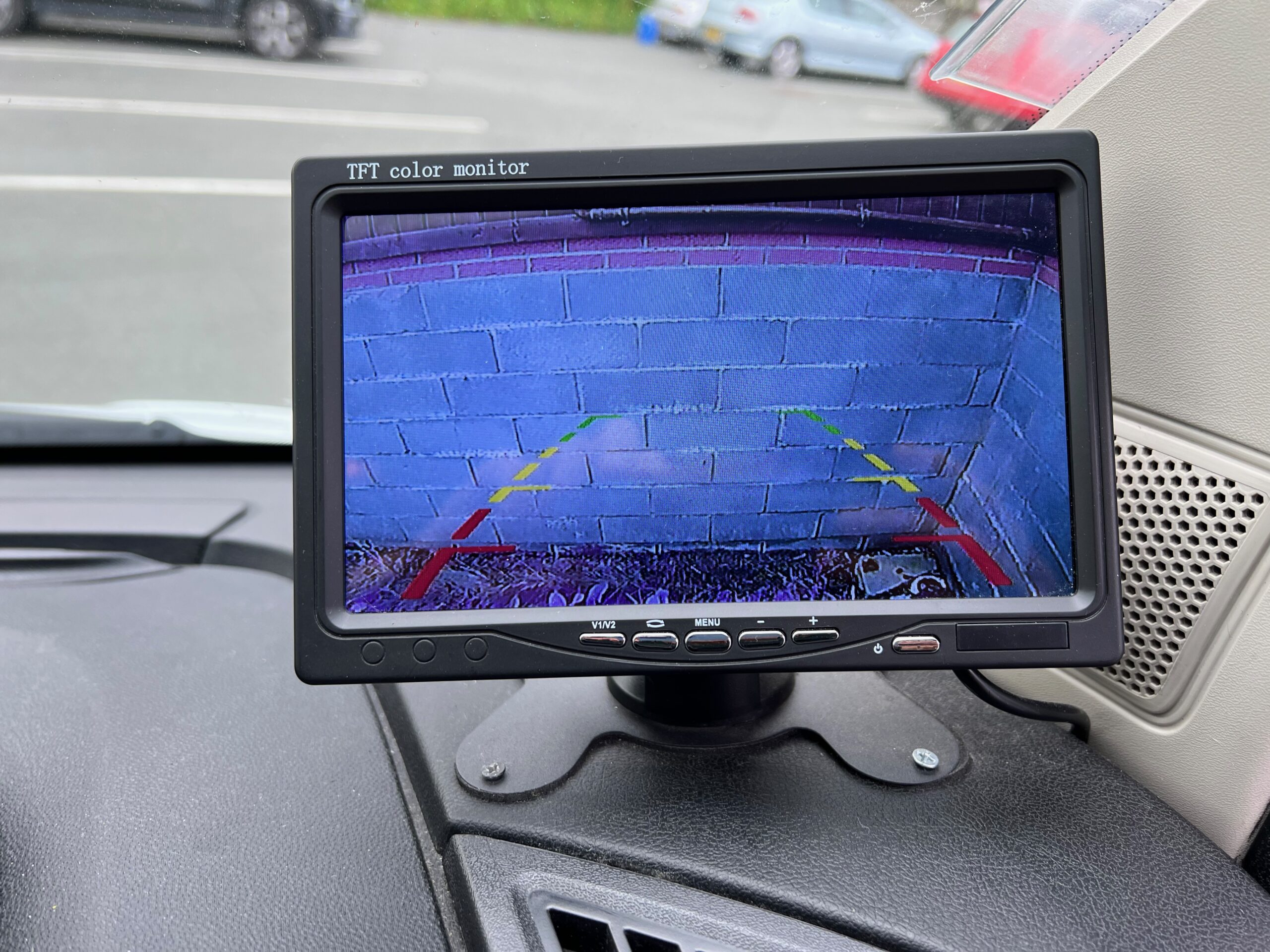

Reversing camera and sensors
Cruise control
Factory fitted alarm
DAB digital radio/CD player

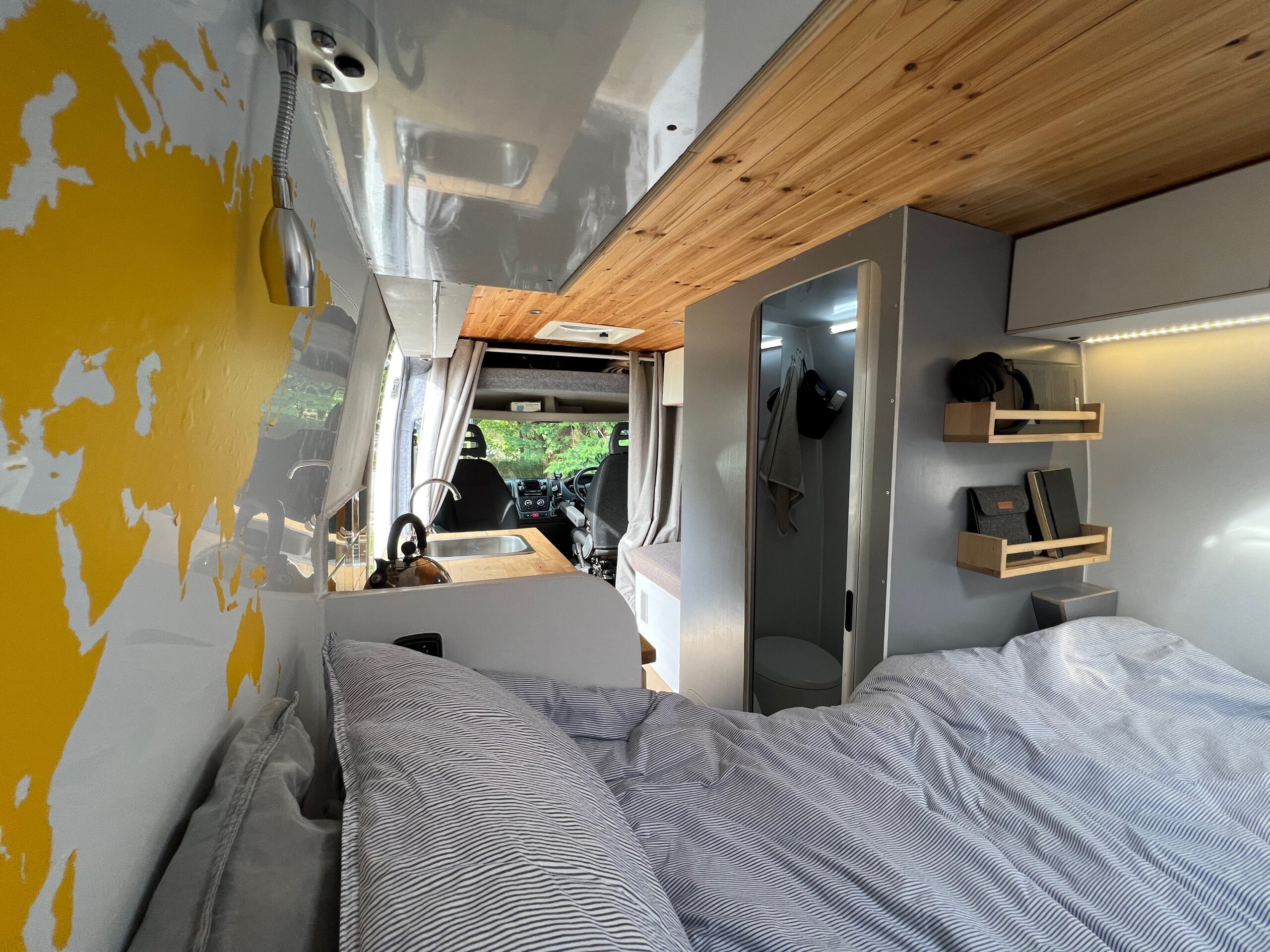

Beds Description

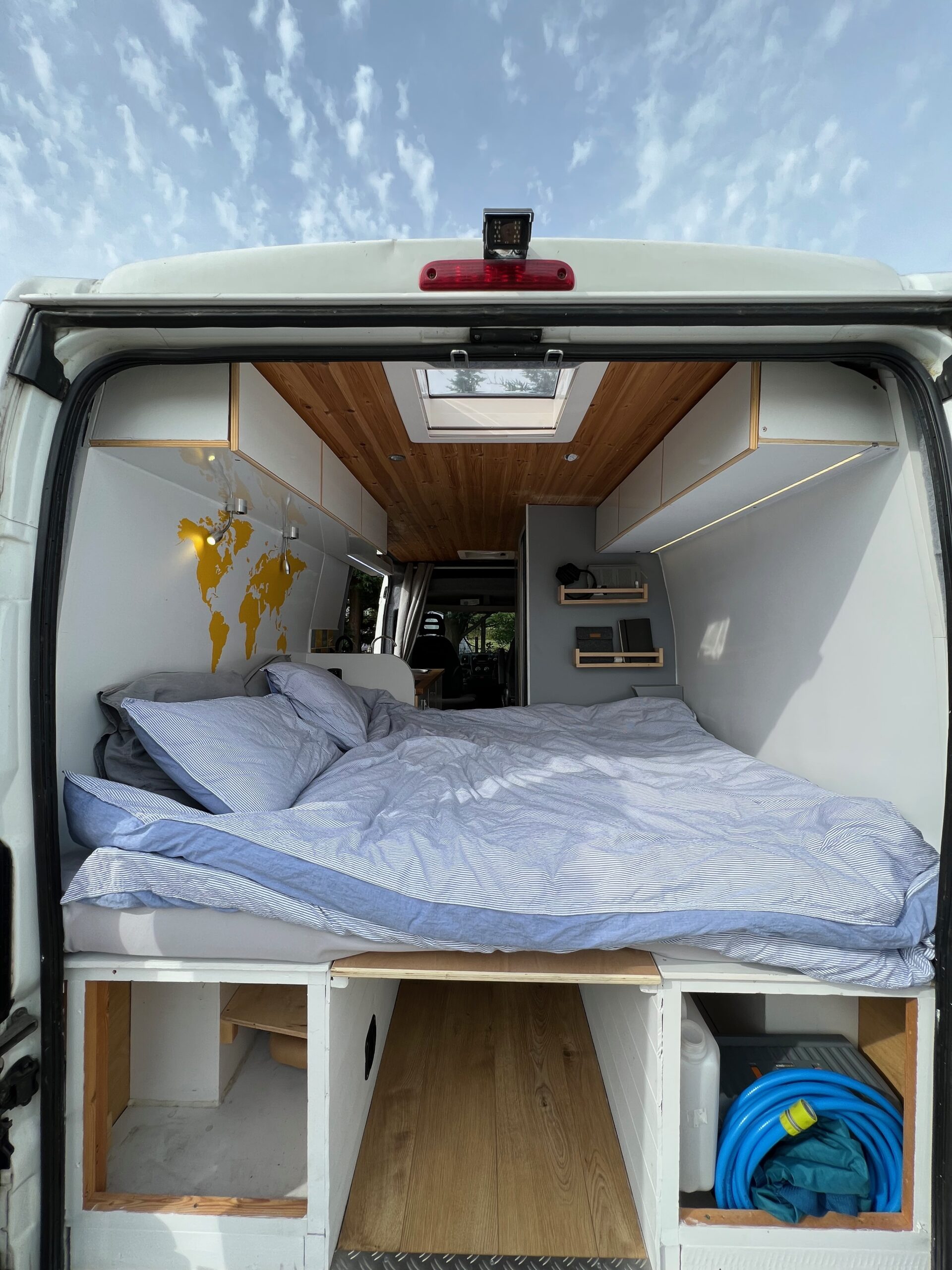

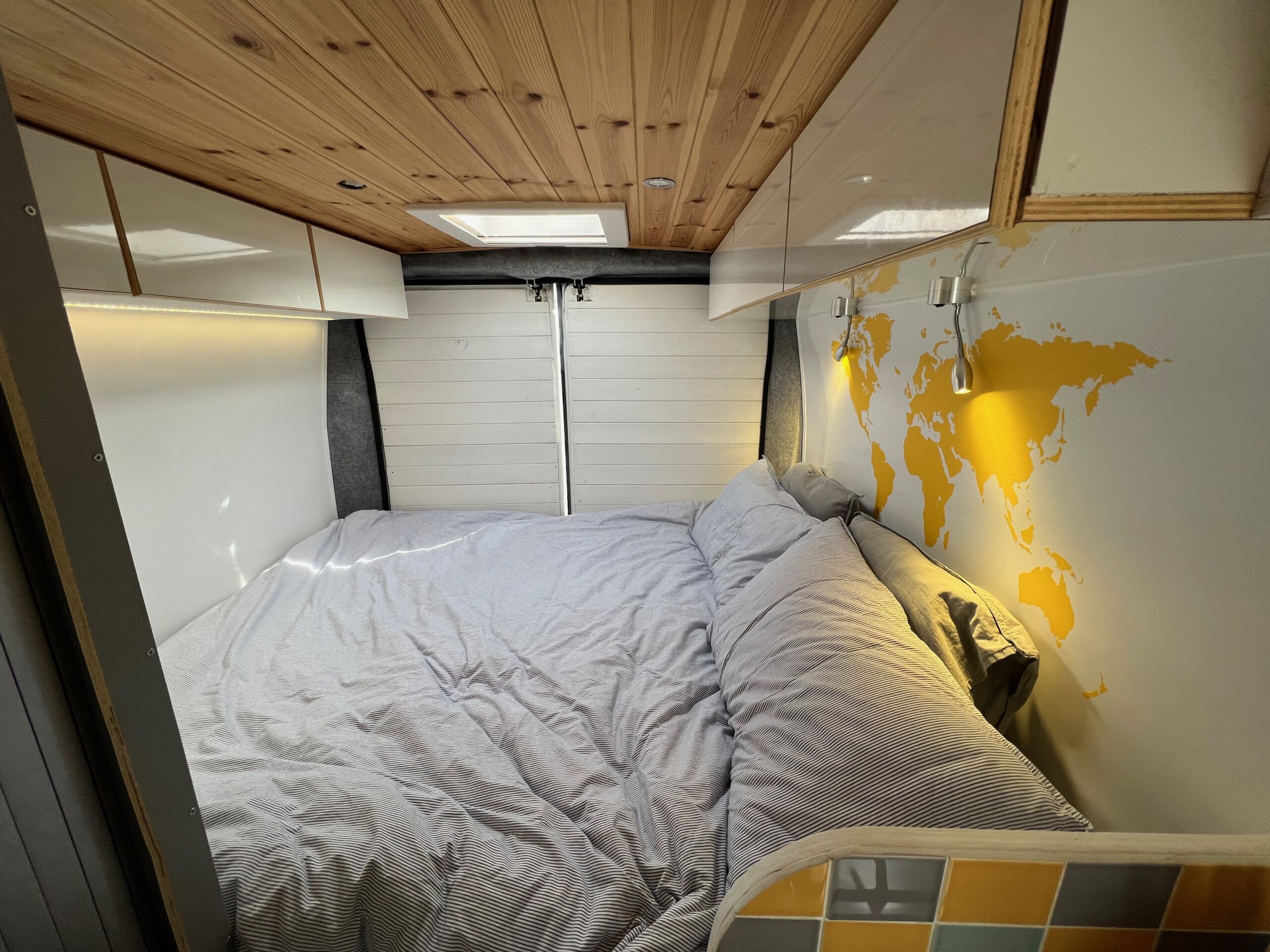

The rear table drops down to create a double bed, approx. 160cm x 180cm. Adults are best to sleep sideways across the van. It’s made up of the 4 cushions from the 2 bench seats. The 2 large sections are stuffed with a very comfy 11cm thick Reflex Superior (medium firmness).

Conversion Description

Hi. Selling our old camper conversion which is a total dream to drive and use.

It’s fully kitted out with everything you’d get in a high spec factory converted van.

Complete with a fitted shower/toilet room, hot and cold pressurised water system, underslung fresh and waste water tanks, gas hob, gas heating, 300W solar panel, Sterling battery charger, 214ah Odyssey AGM marine leisure battery and comfy double bed.

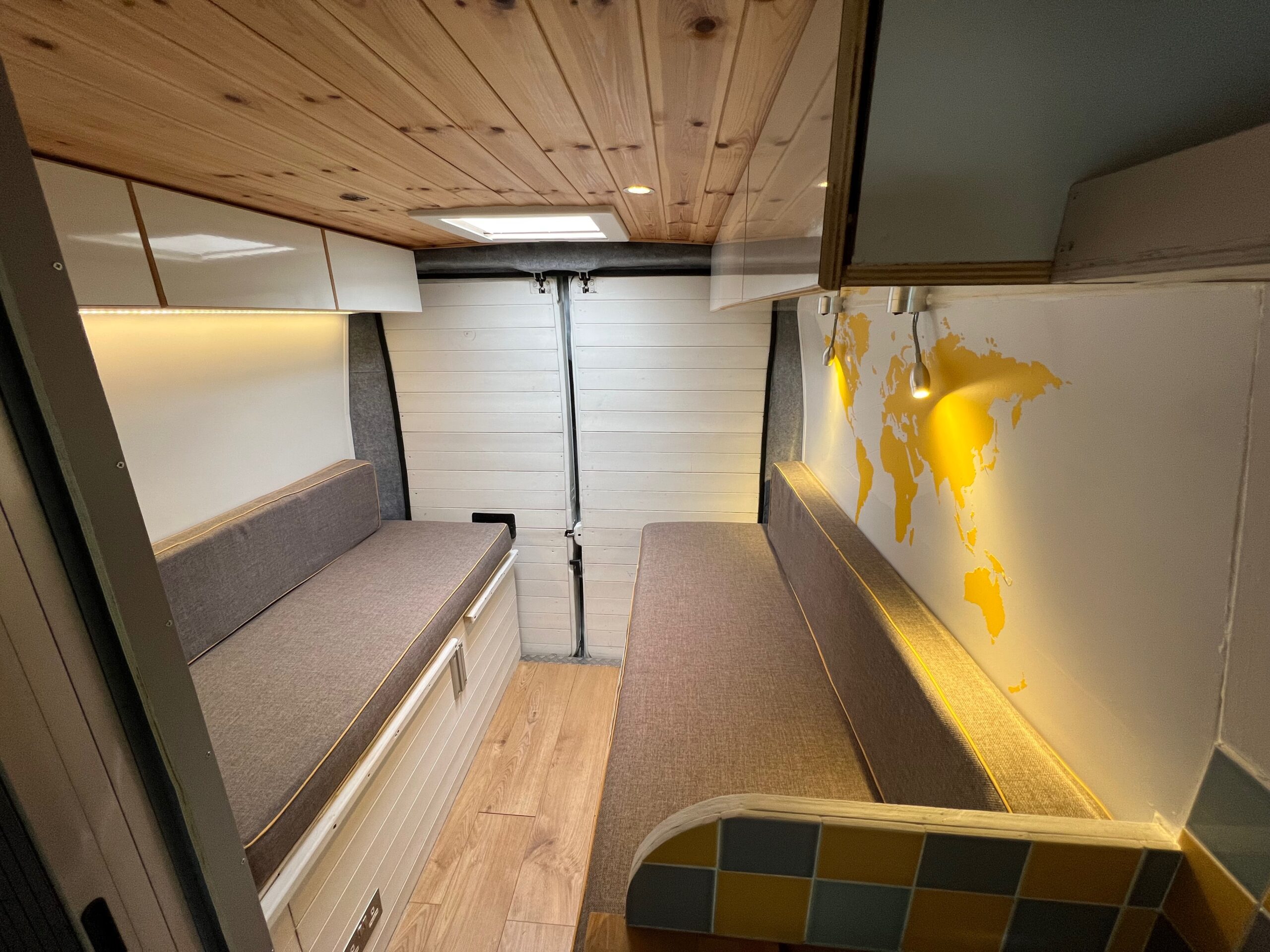

Unlike a lot of conversions, the bed isn’t fixed, giving you a large table and 2 bench seats for working, meals or chill time.

I built it using the best quality materials knowing that one day it would be sold on to a happy new owner.

I’ve listed all the specs I can think of below. Please drop me a line if you’d like to know anything else or pop over to view it.

Cheers, Charlie

About the Conversion

Interior:
Passenger side single seat swivels round to face inwards
Custom foam filled cushions with handmade covers

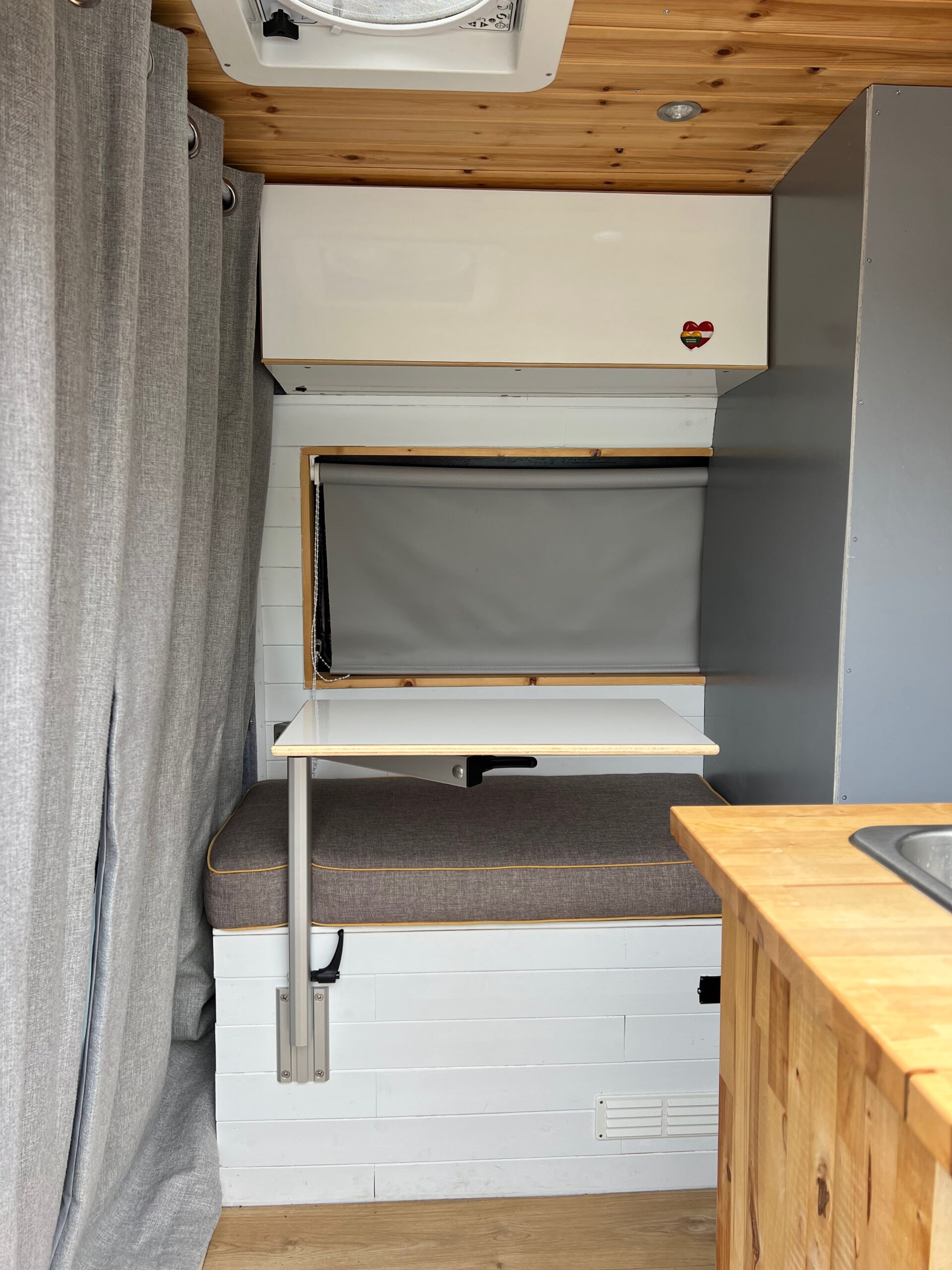

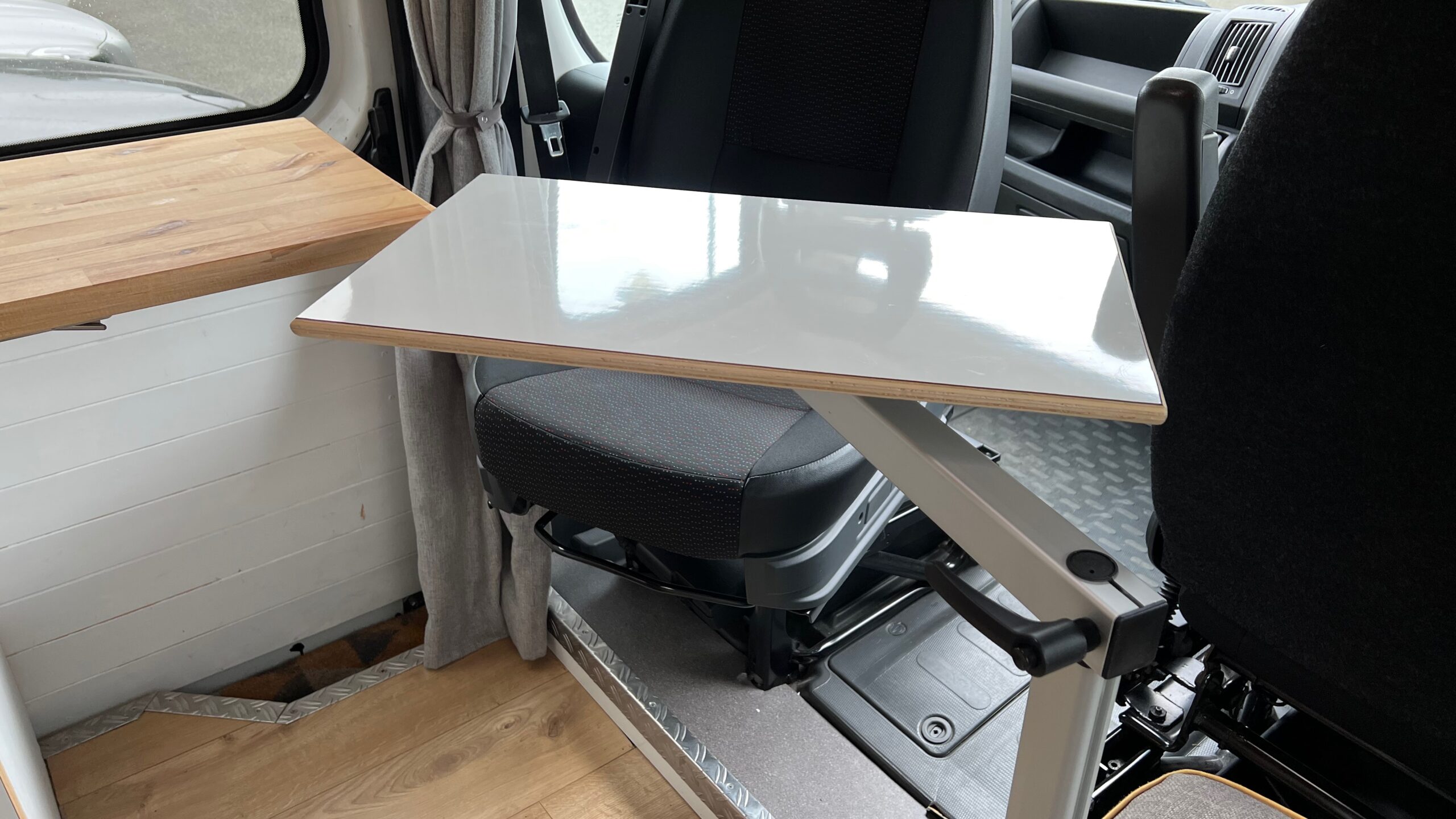

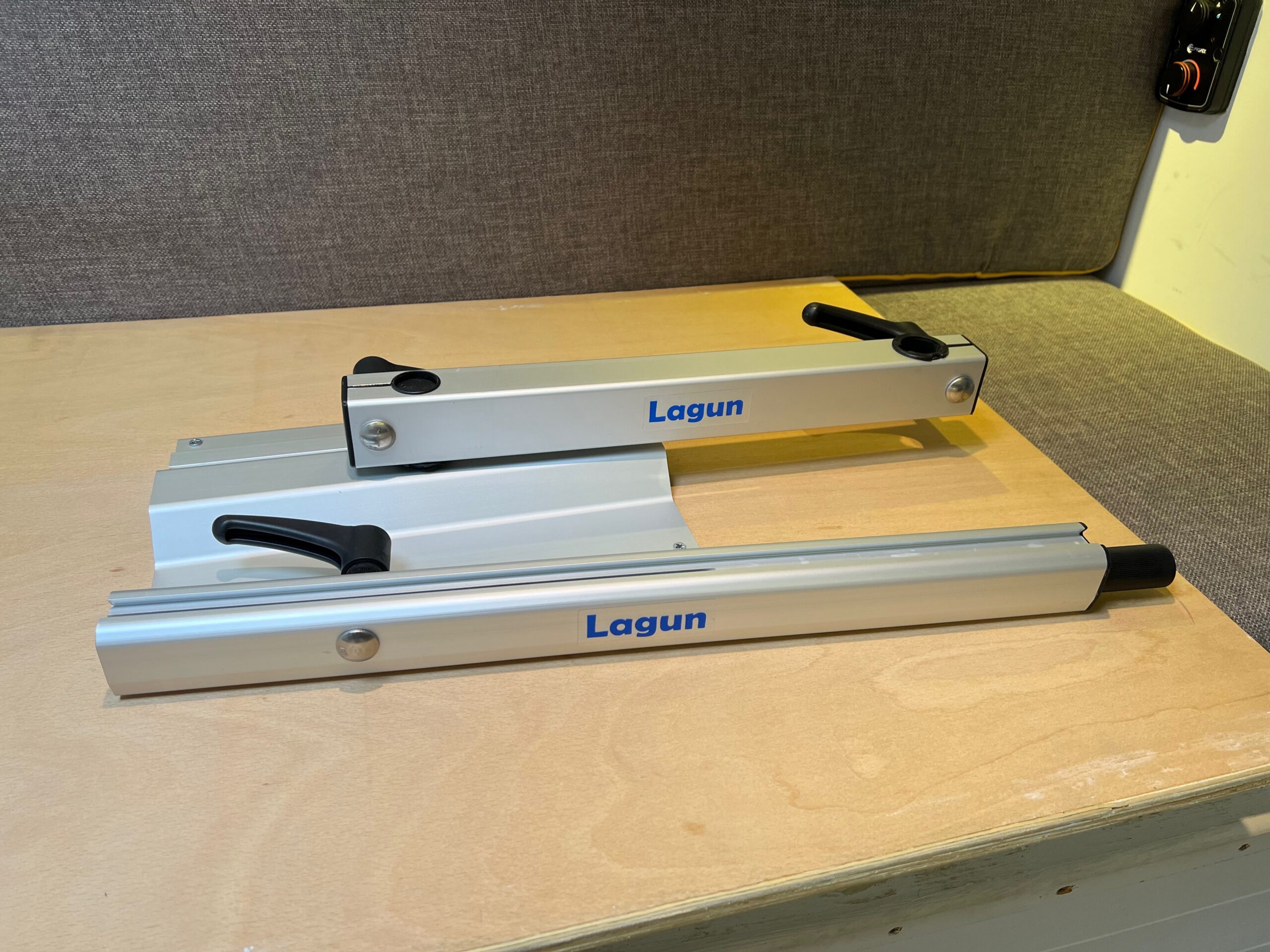

Front small table with Lagun adjustable leg

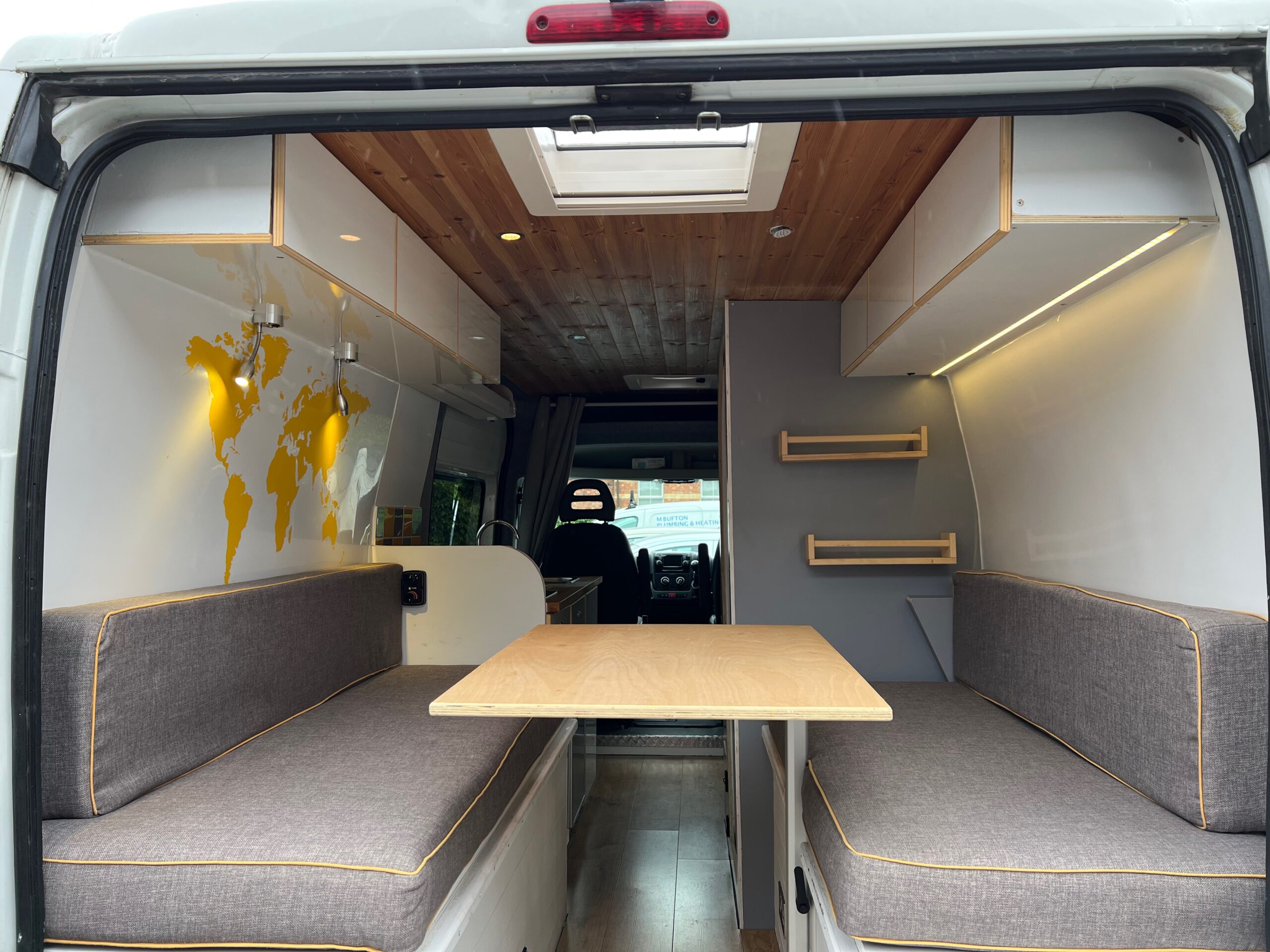

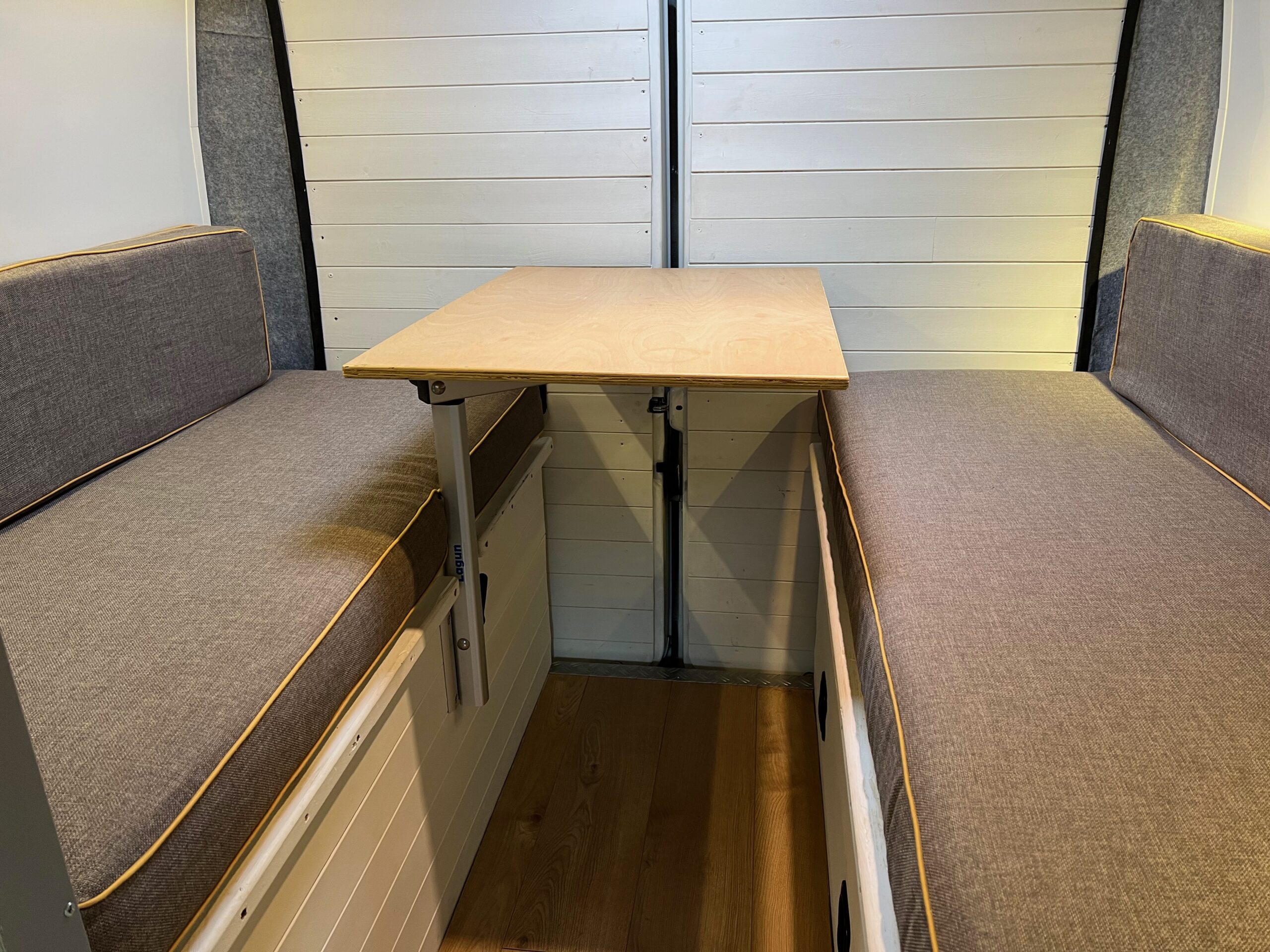

Rear large table with Lagun adjustable leg (used as bed base)
Table drops down + 2 other parts to form bed base
6 overhead storage cupboards at rear + 1 large above the snug
2 small shelves at rear

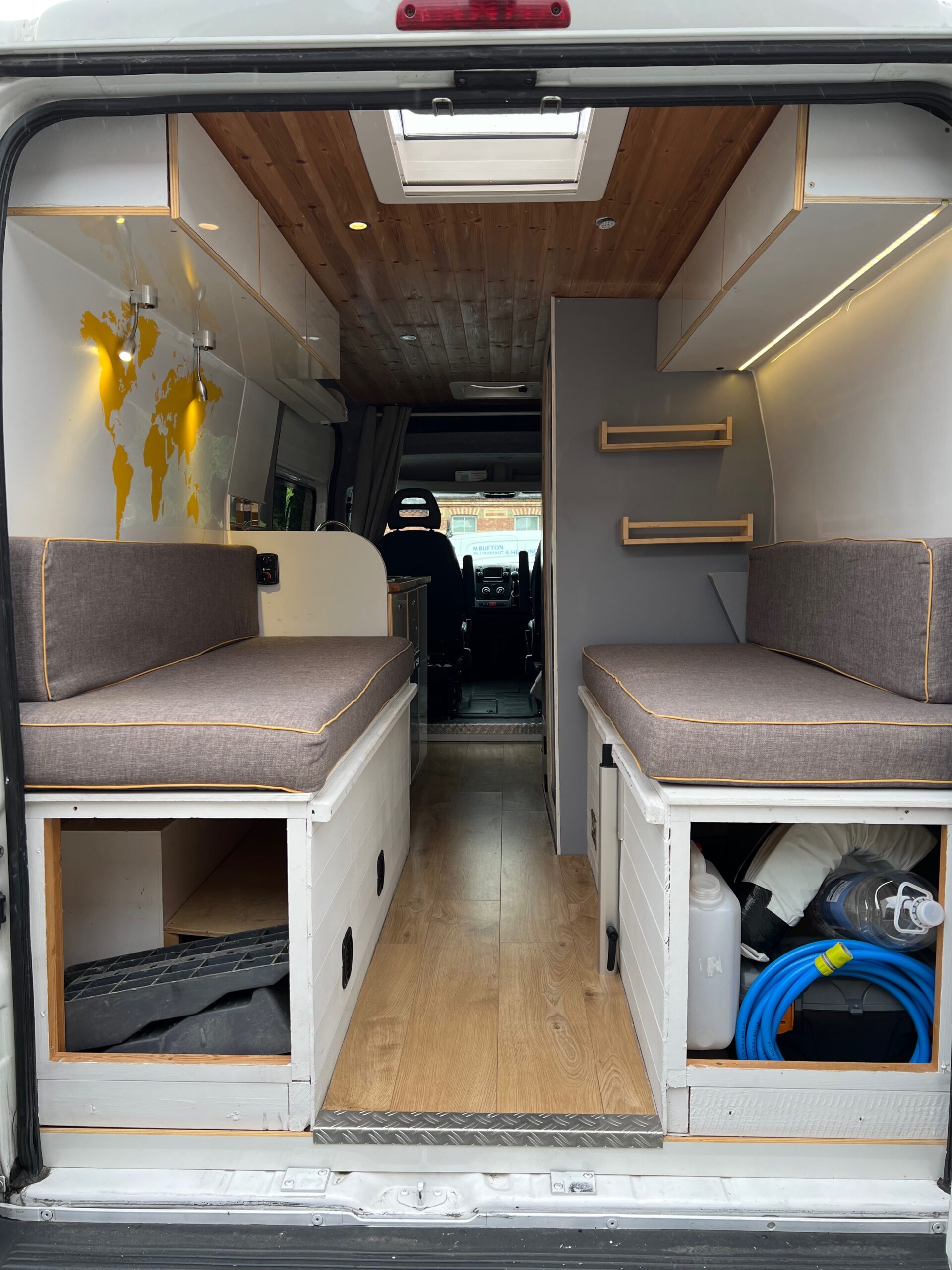

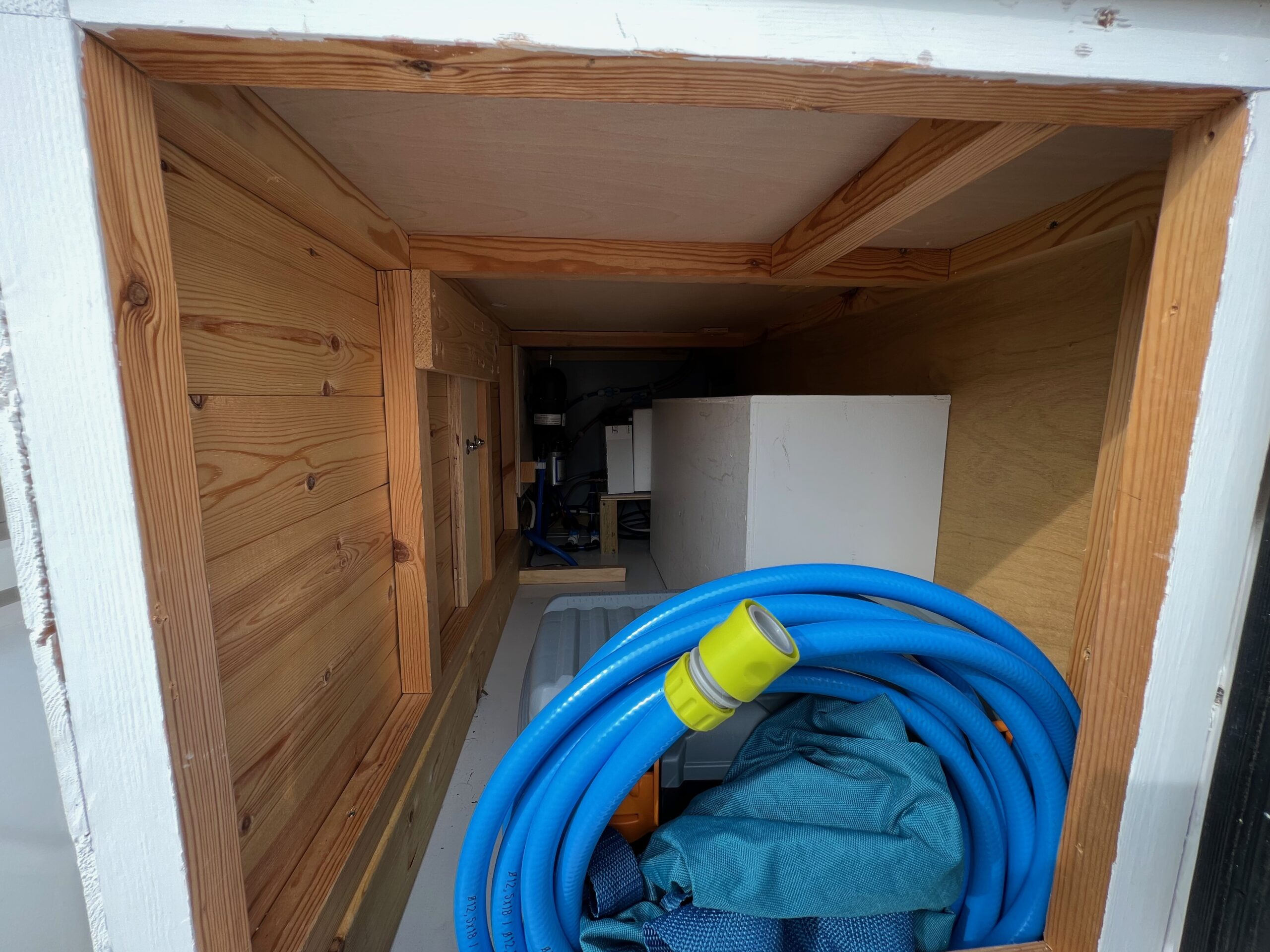

Lots of under seat storage throughout

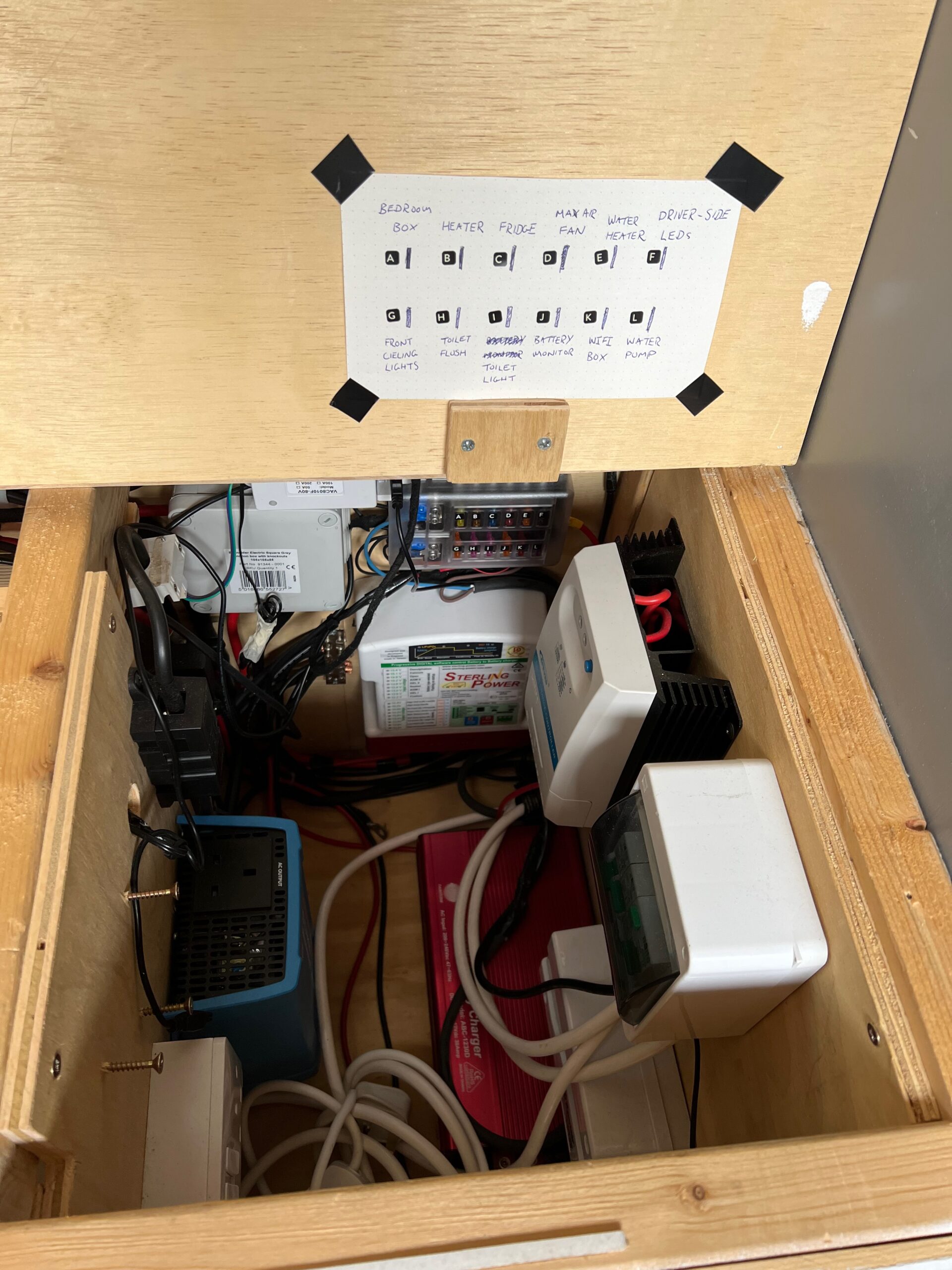

Electrics:
2 USB sockets by rear seats
1 USB + Cigarette lighter in cab
214 Ah Odyssey Marine AGM Leisure Battery
Sterling battery to battery charger
Victron 375VA, 12V 300W Inverter
2x 230v plug sockets
30A MPPT Solar charge controller

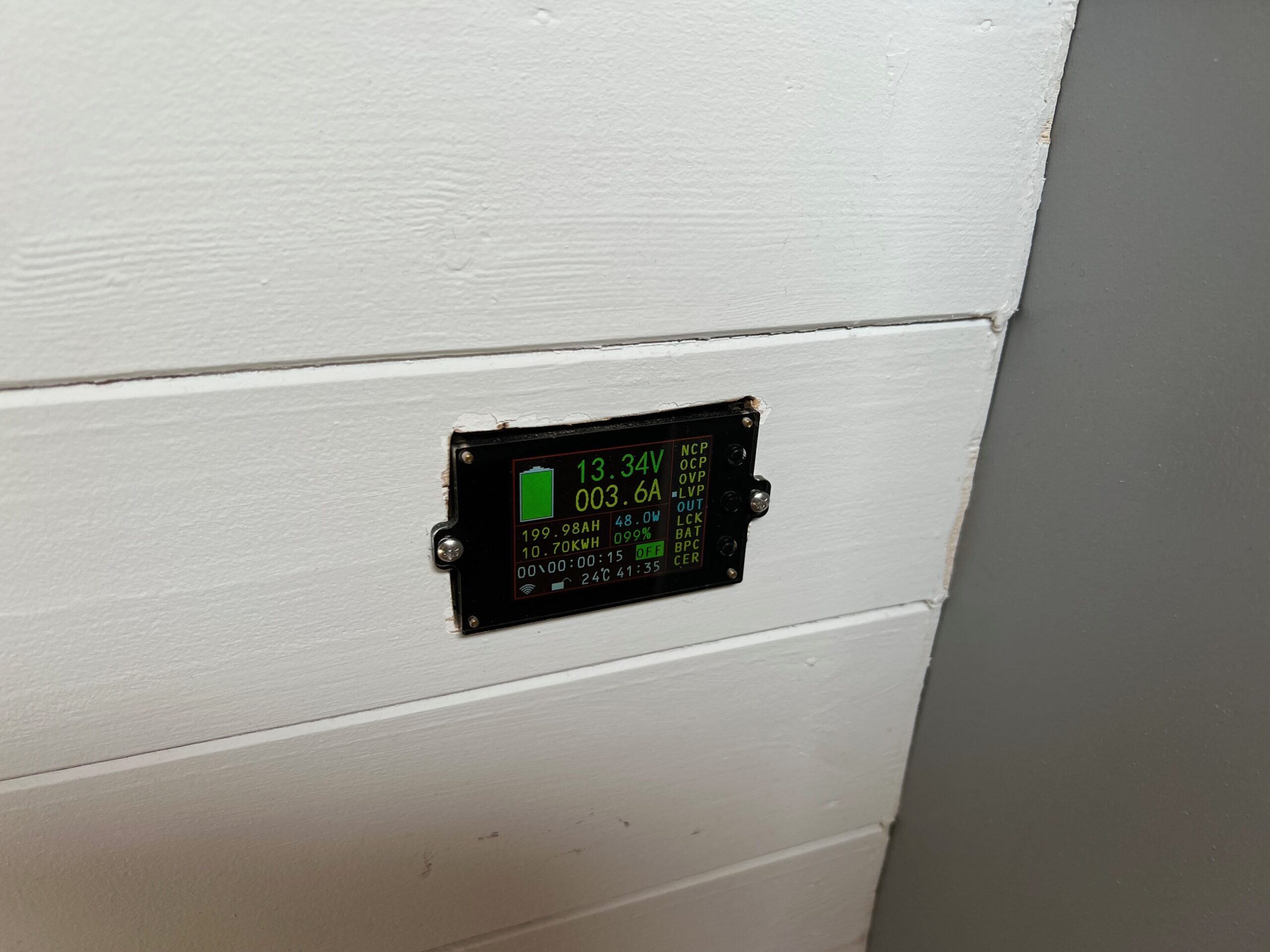

500A DC Wireless Battery Meter
300W solar panel

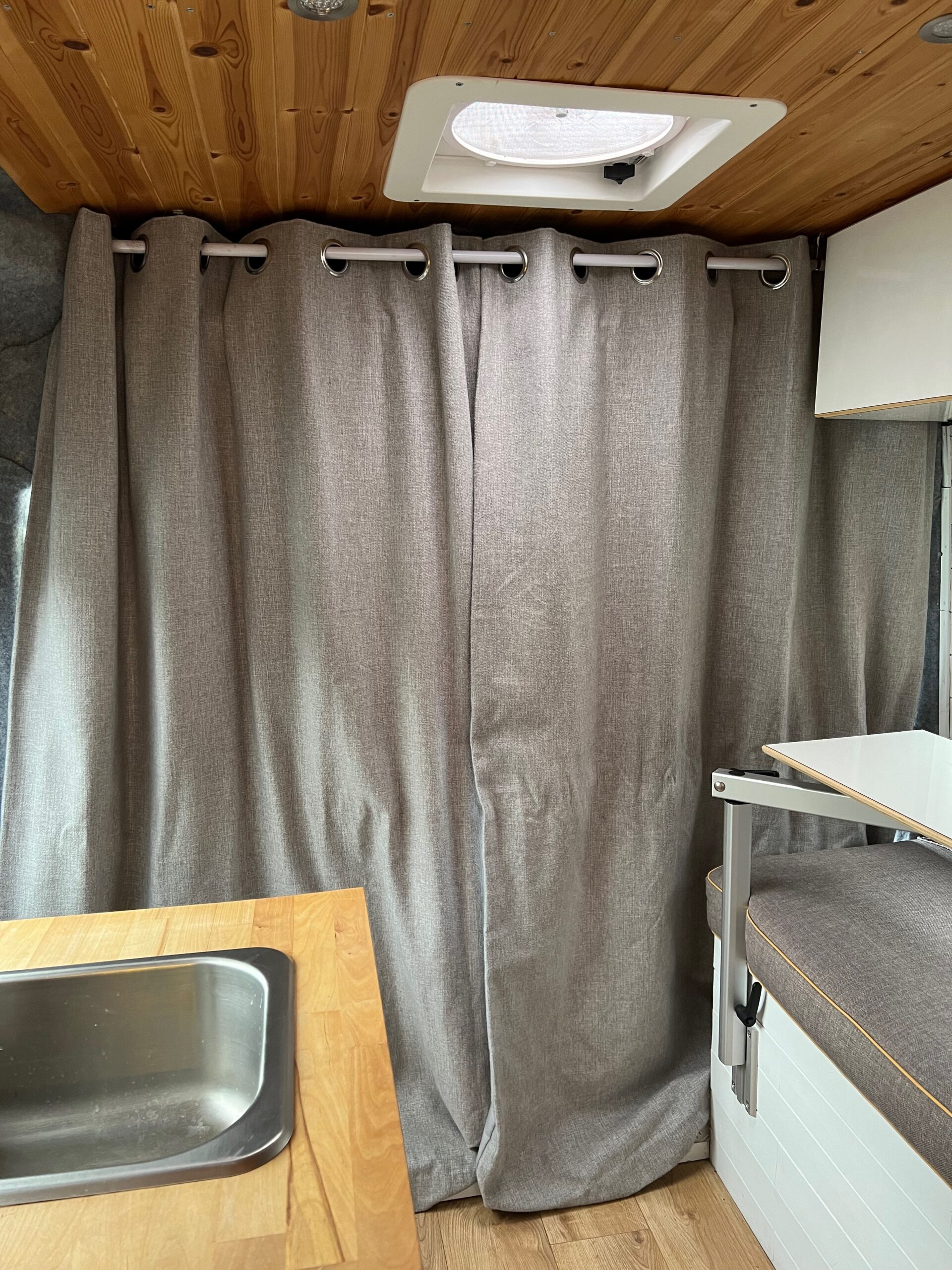

Blackout curtains with tiebacks to separate cab
Battery charger + mains hookup socket

Lighting:
LED strip lights above snug and rear seat
2 LED spot reading lights above bed
5 LED touch sensitive ceiling lights
LED strip light in bathroom

Gas + Heating:

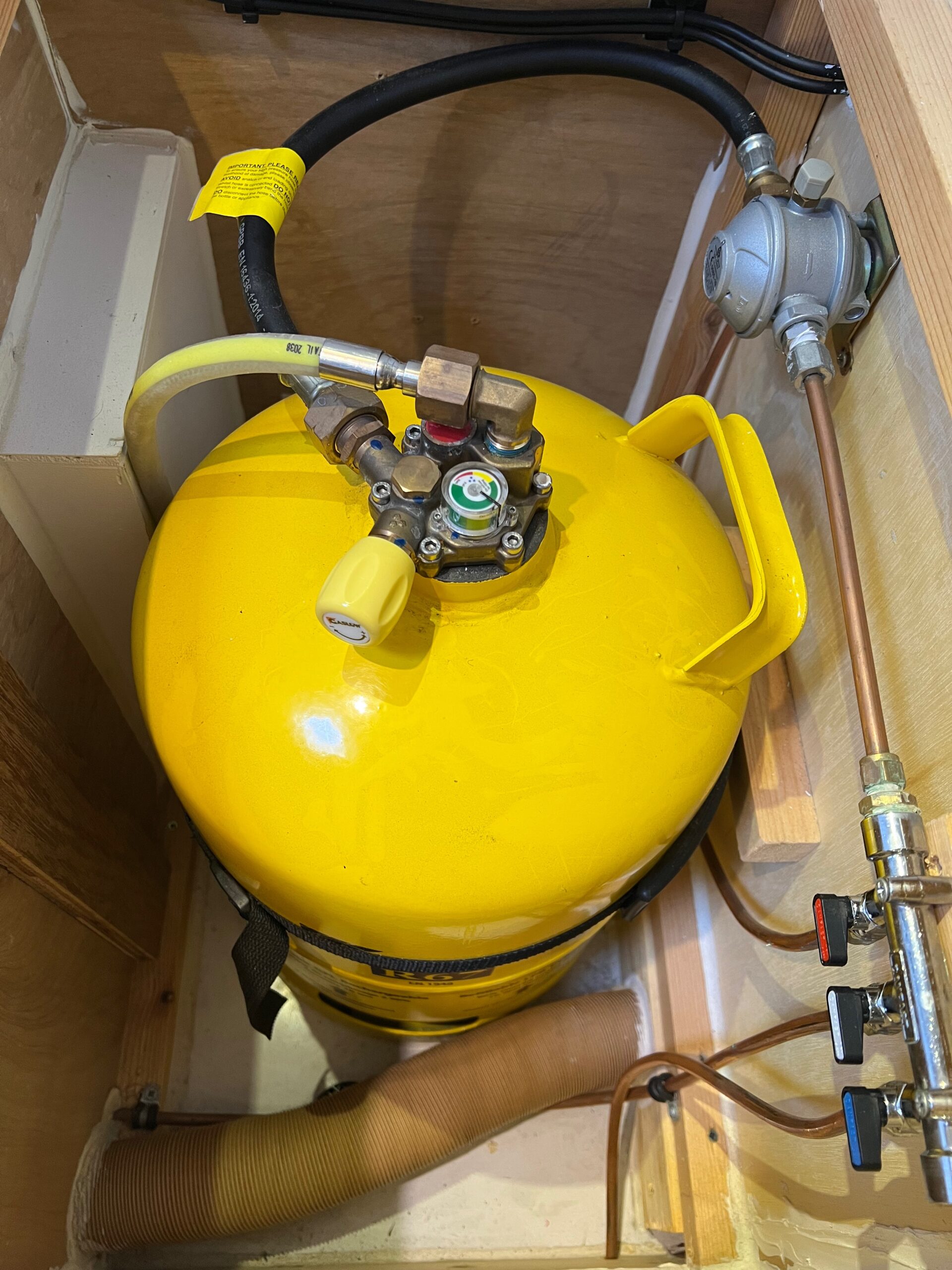

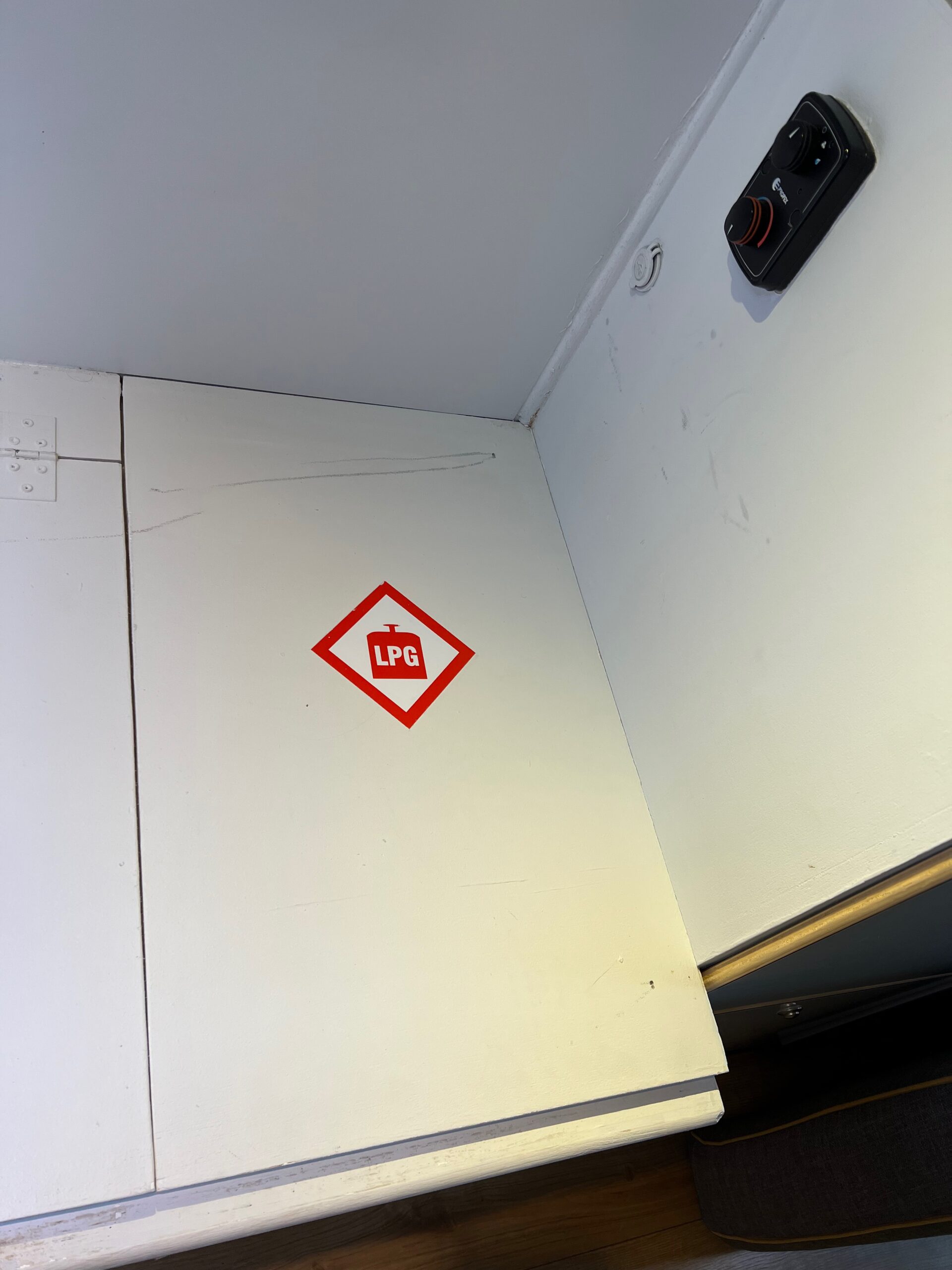

Gaslow 11kg refillable LPG tank with extra fill point
Propex LPG HS2000 unit with 2 outlets for heating
Controls next to the bed to stay cosy
Propex Malaga 5E unit – heats up 13 litres of water via LPG or mains hookup

Toilet + Shower:

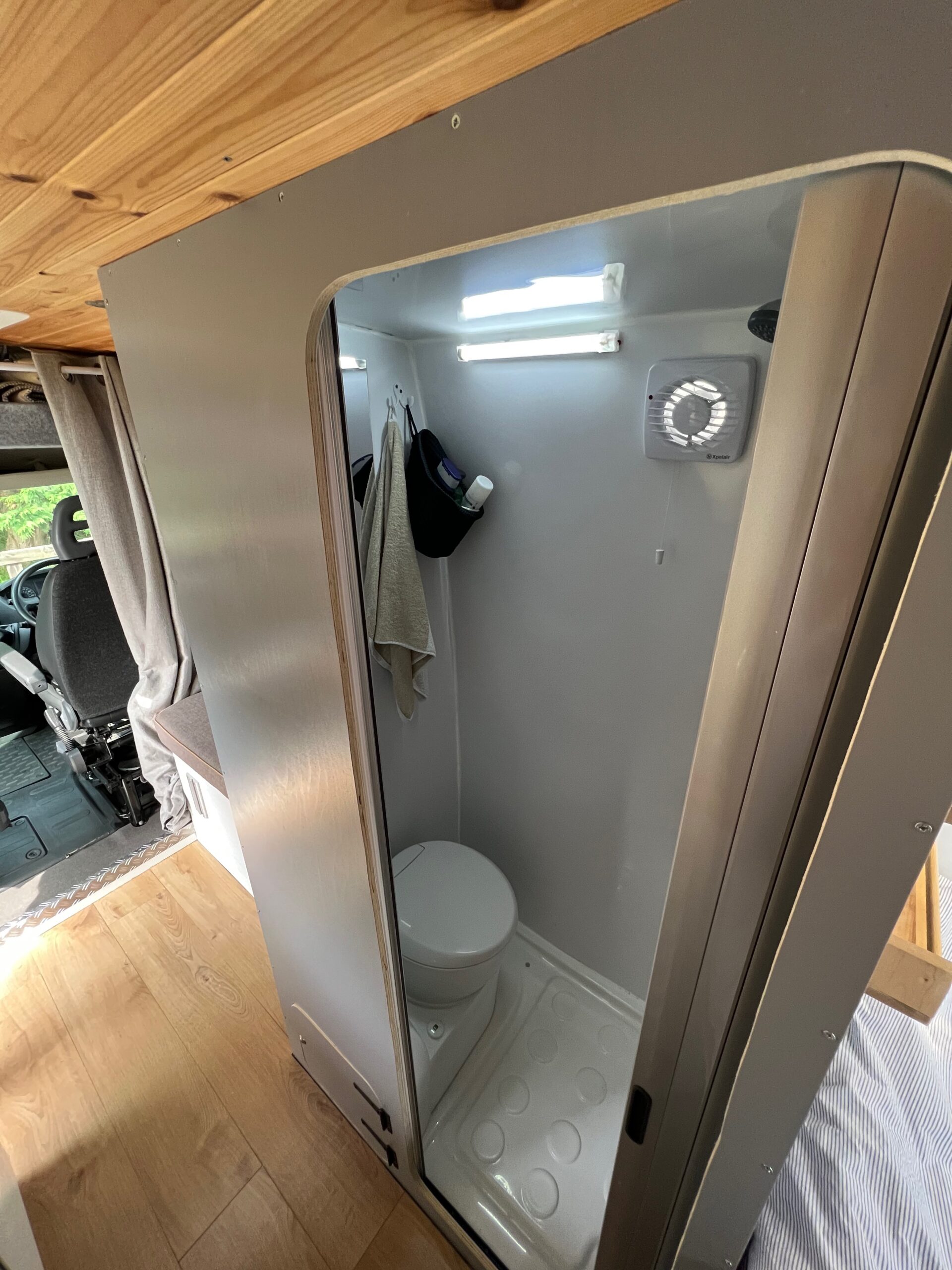

Fitted Thetford swivel cassette toilet with flush + shower tray
Cassette removed via inside door
Fitted mixer shower
Sliding tambour door – no shower curtain needed!

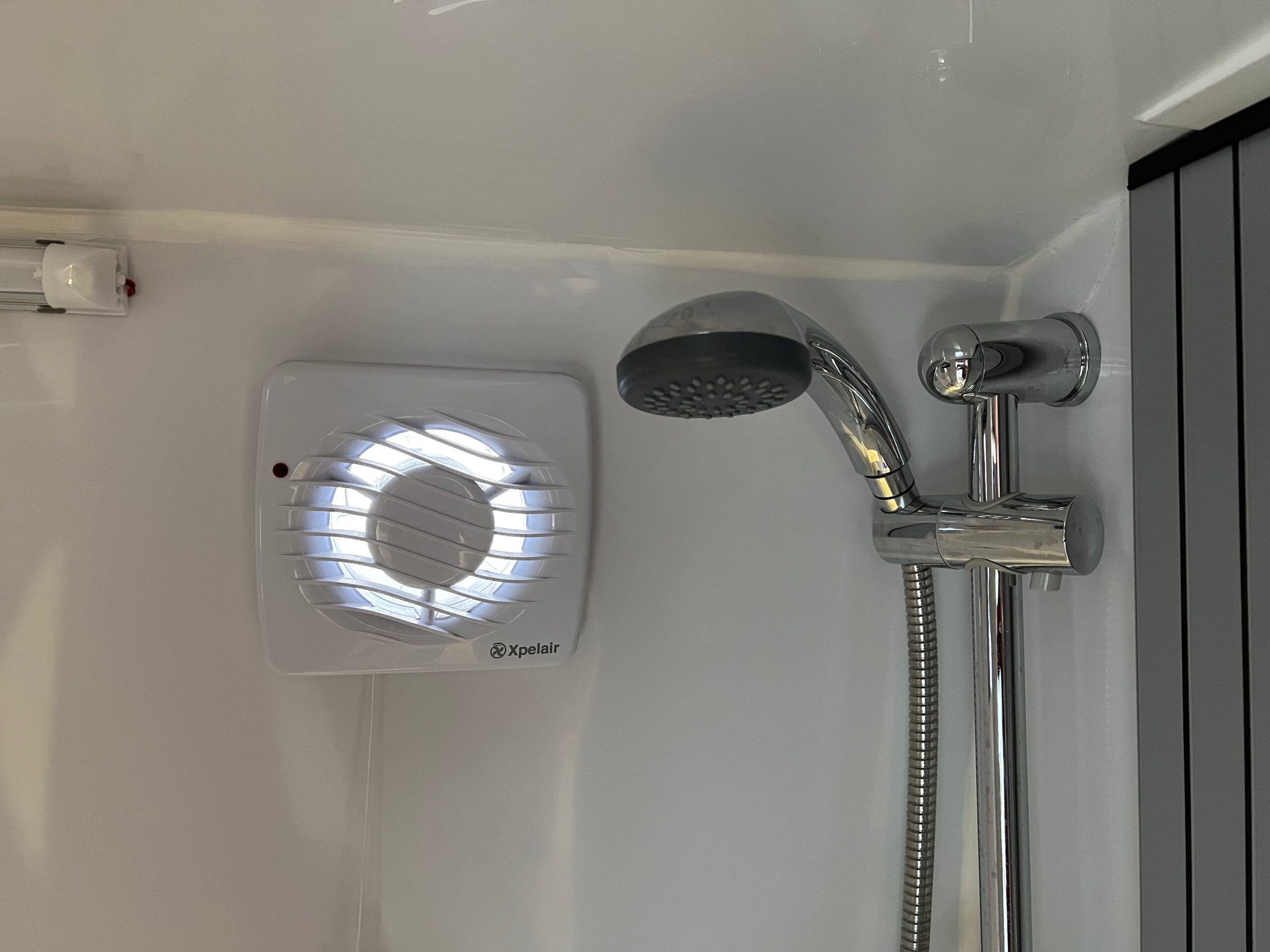

Xpelair low voltage extractor fan with humidity sensor
Removable perspex mirror

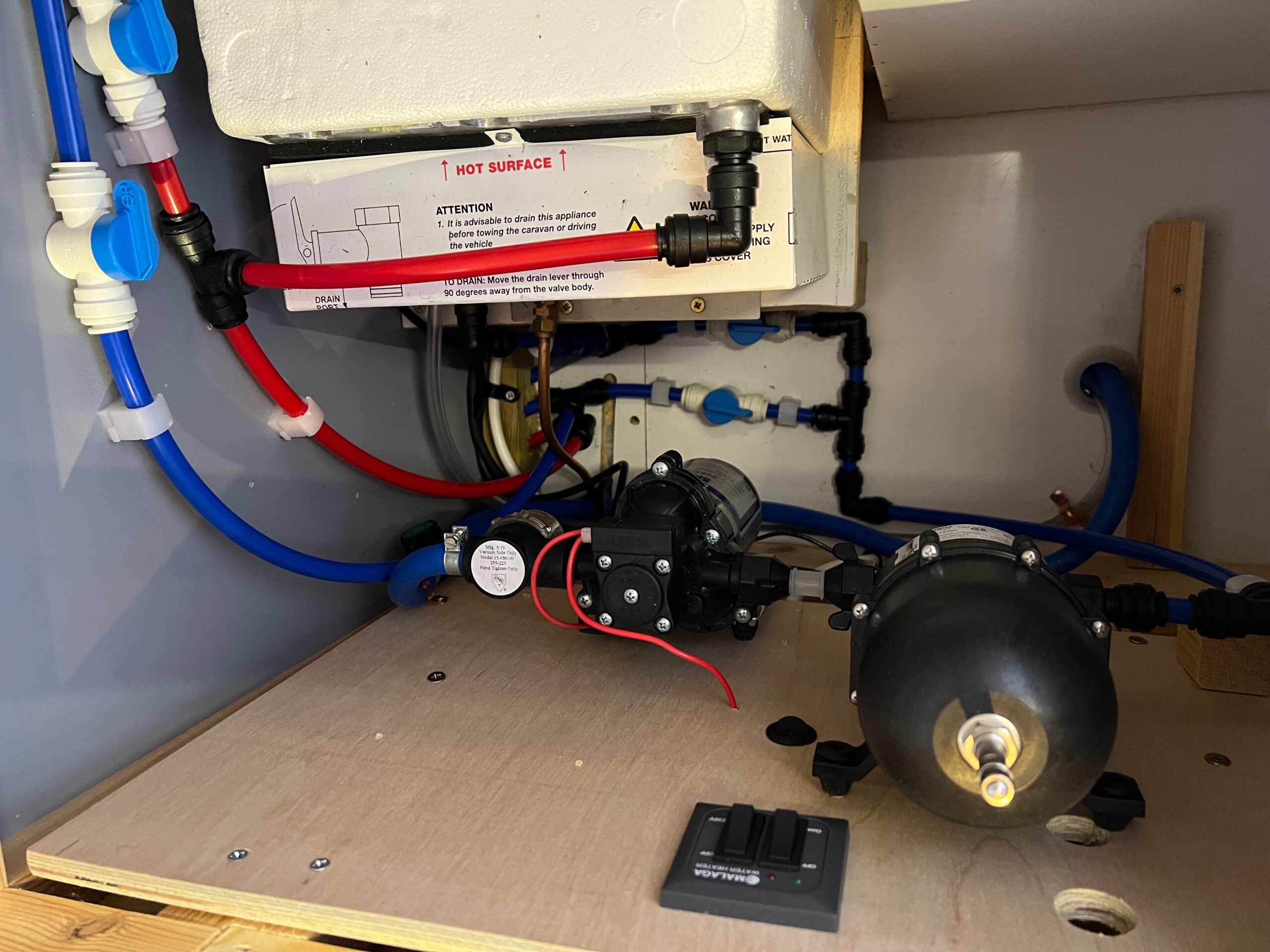

Plumbing:
66 litre underslung fresh water tank
50 litre underslung waste water tank
Shurflo 30psi accumulator tank (to keep system pressured)
Shurflo 12v pump
System build with high quality John Guest fittings
Plenty of isolation valves fitted if ever needed

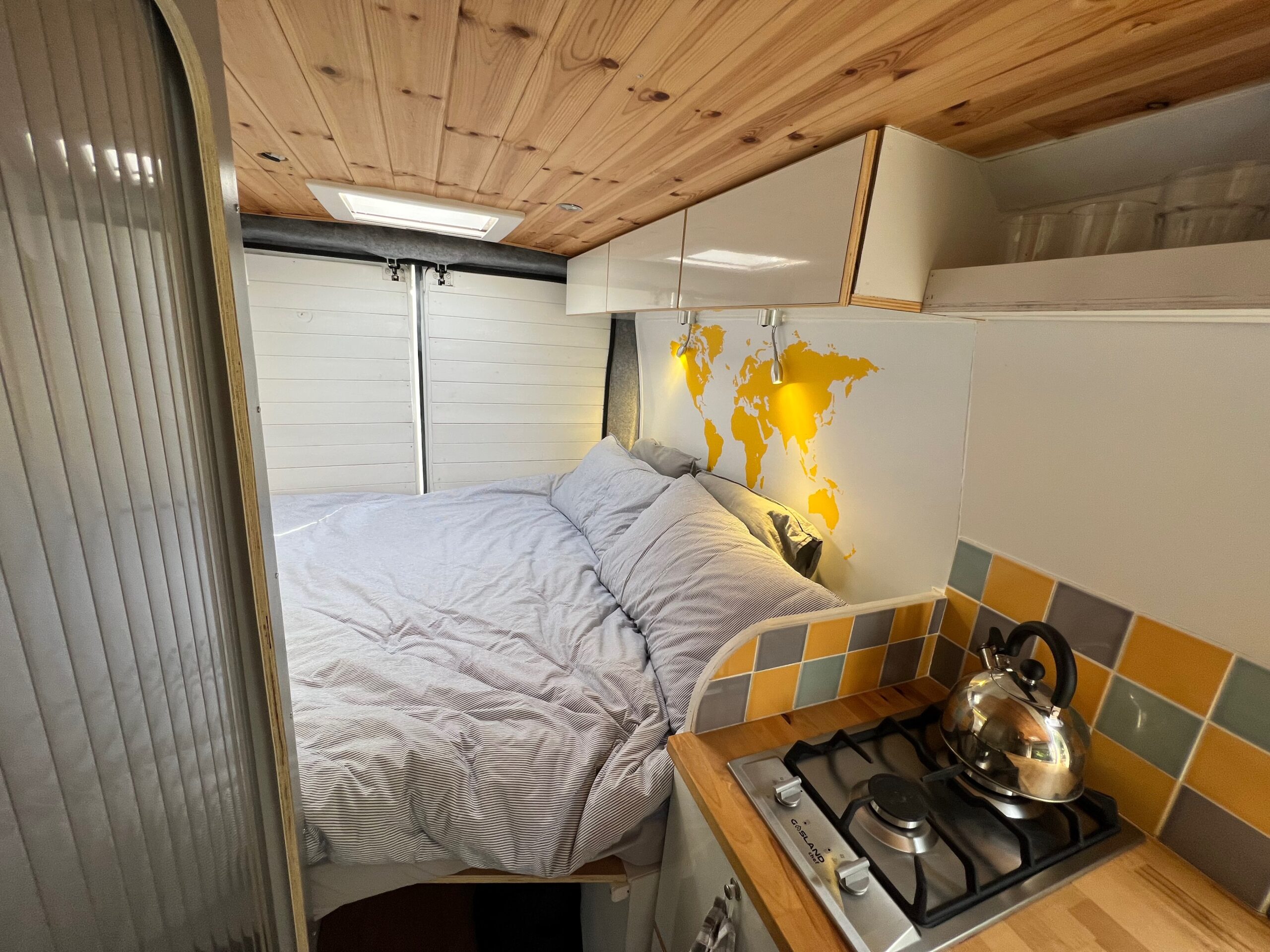

Kitchen:

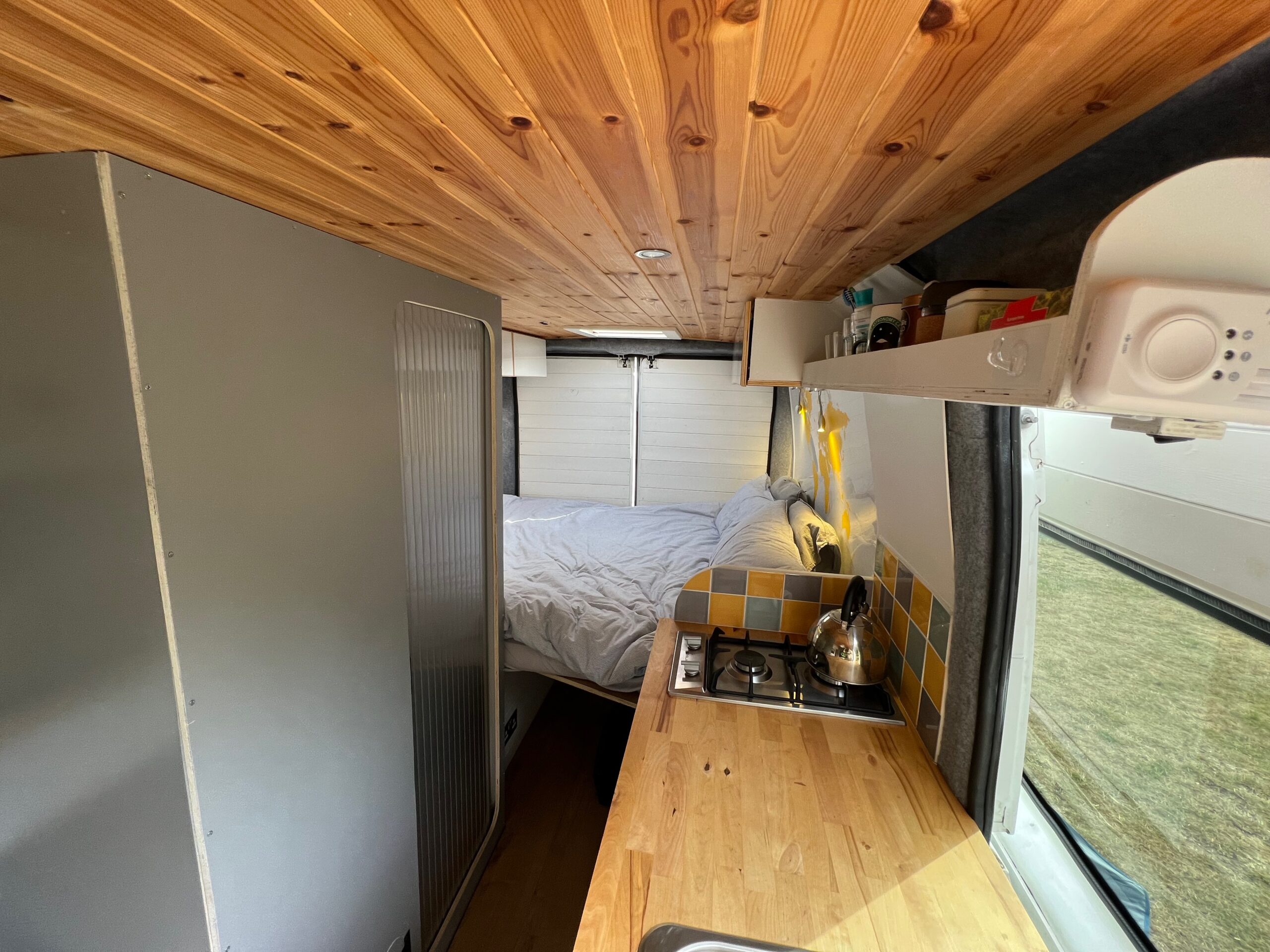

2 burner LPG gas hob (1 burner may need replacing)

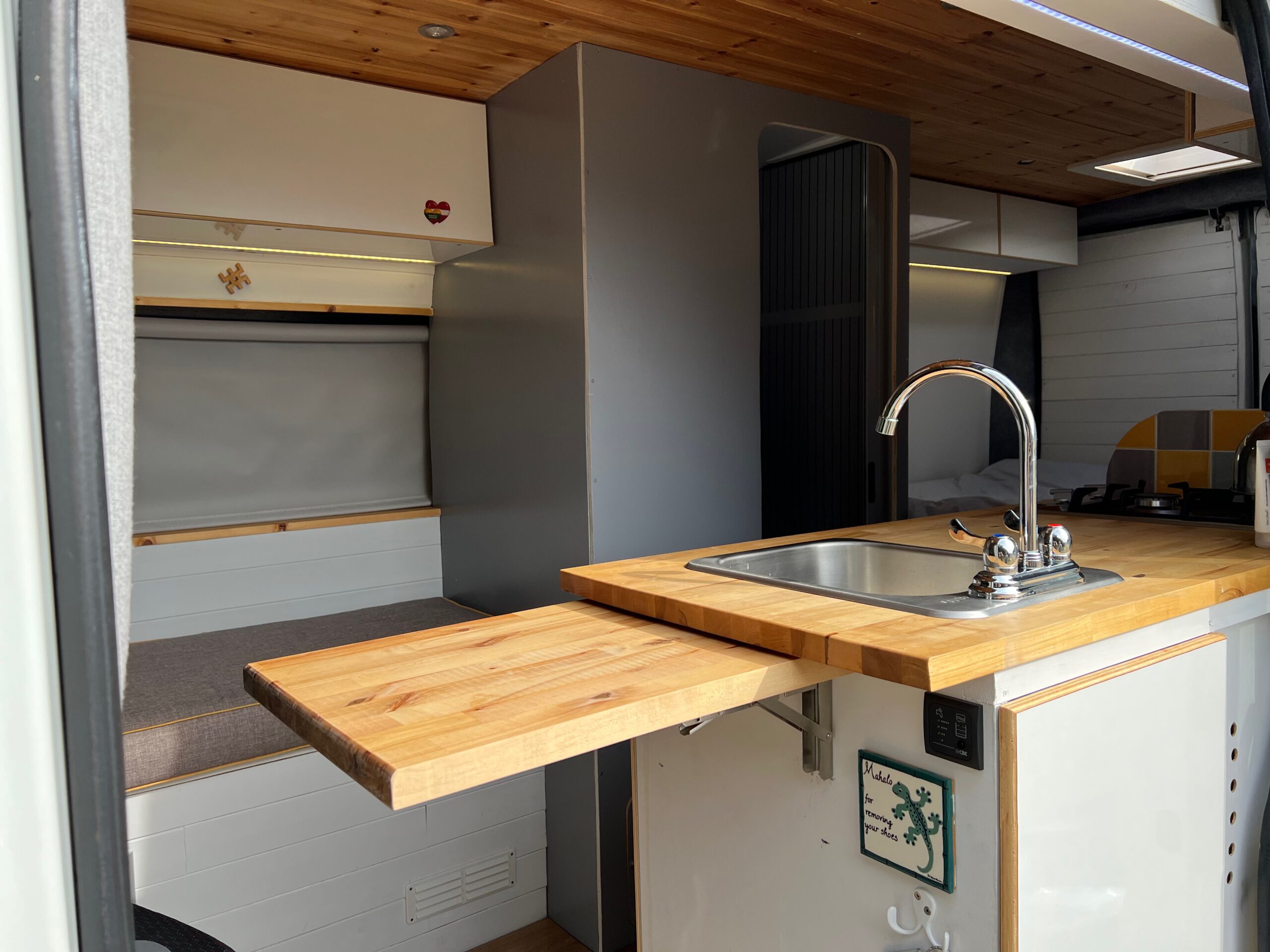

Squid sink with hot and cold pressured taps
12v Dometic CRX50 fridge freezer
2x deep draws
1x large cupboard under the sink
1x small cutlery draw with removable tray
Flip-up worktop section

Vents + Windows:
12v Maxx Air fan at the front
Dometic Mini Heki roof vent at rear
VanPimps front tinted windows both sides
Drivers side window has an opening section

Extra stuff included:
Teltonika 4G LTE Router
Omni directional 4G antenna on roof
3x LPG fill adaptors – covers all EU countries
Carbon monoxide alarm
Shaving mirror
Fire blanket and extinguisher
25 meter hook-up cable
10 litre fresh water can
Leveling ramps
Full bottle of toilet chemical
Set of cab window sun shields

Contact the Seller
Specification
Registered Vehicle Type
Panel Van (meets DVLA standards)
Fuel Type
Diesel
Transmission
Manual
Emissions Compliance
LEZ Compliant
Converter Type
Self Build - Handcrafted Start-up
Conversion Condition
Used - Excellent
Belted Seats
2 Belted Seats
Vehicle Length
6.00 meters
Vehicle Height
2.50 meters
Vehicle Width
2.00 meters
Maximum Weight (MAM or MTPLM)
3,500kg
Unladen Weight Verified?
NO - the vehicle has not been weighed since completion
Gas sign-off supplied
None
Electrics
12v Electrics
USB Sockets
Leisure Battery
Split Charge Relay
Solar Panel(s)
Inverter
240v Electrics
240v Mains Charger
