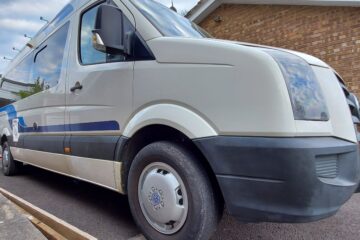

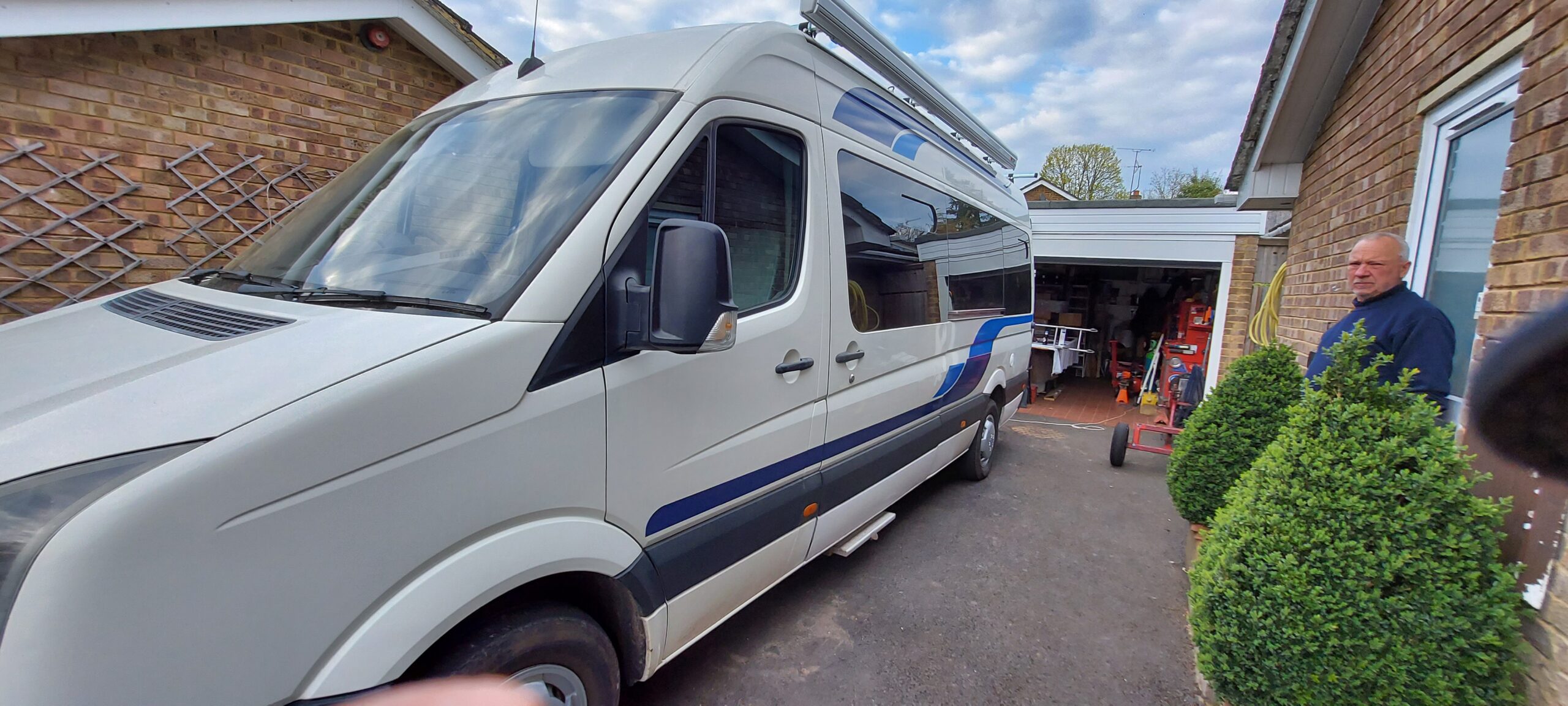

Volkswagen Crafter LWB
The base vehicle used for the conversion was a fully serviced handicapped children’s school bus. We purchased the van in 2019 with around 150.100 on the clock. The decision was made to do a complete engine strip down and total engine rebuild- All receipts available
The van has completed around 9K since rebuild in 2020, has a six speed gearbox and does around 29 MPG. Engine size:2461CC
The van is fully compliant with the DVLA campervan reclassification rules and has been successfully reregistered as a campervan by the DVLA
The bodywork is in good condition for the age of the vehicle
last serviced February 2023
MOT expiry 18th March 2024. Will have a new years MOT completed if buyer requests
Spare wheel fitted under van
Fixed ladder for accessing roof
Rhino roof bars fitted plus roof box

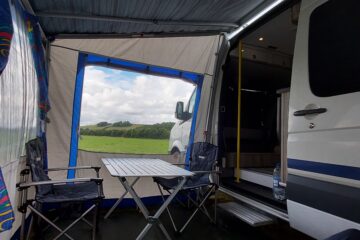

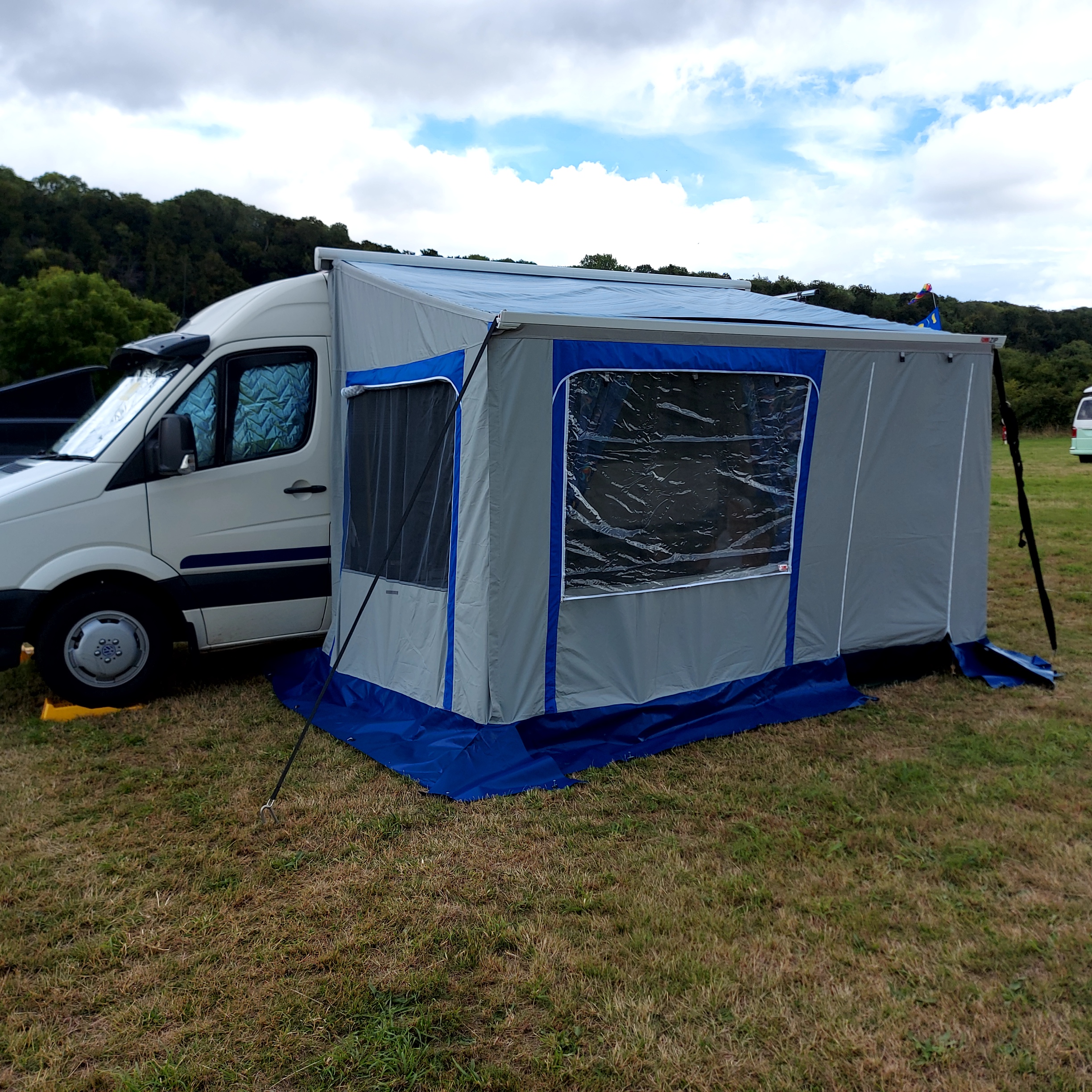

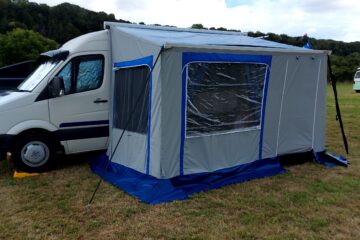

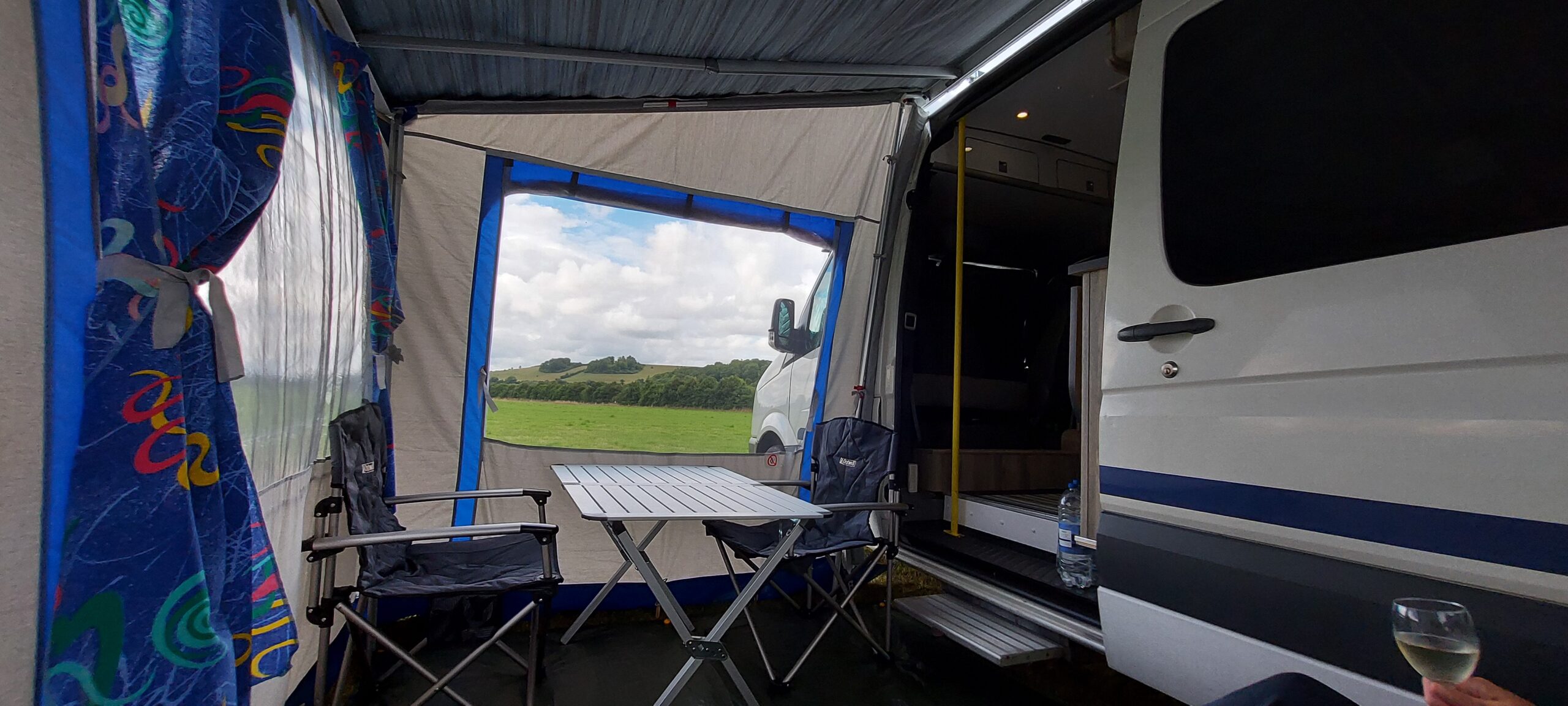

Fiamma Zip awning plus Privacy room with full curtains
GlideRite Semi Air Schrader Kit fitted to rear suspension with built in compressor to raise and lower suspension
2x 100 watt solar panels
We first fitted sound deadening panels to the van then we fully insulated with 25ml Celetex on the floor and 50ml on the roof. Recycled insulation made from plastic bottles has been used on the walls. This insulation is the most efficient way to insulate campervans at the moment as it has no risk to health or respiratory side effects, is a cleaner option and help repel rodents. Not to mention it lasts a life time. Following this a vapor barrier was fitter then the walls were lined with 9ml Ply. This was then finished with a white wall board on the walls and roof. The shower room was fully lined with a water proof wallboard. The floor was also lined with 12ml Ply and then lino was fitted which we have now coved with carpet tiles but can be removed if preferred. The van windows all have privacy tints except for the cab windows. The Roof has two Fiamma Turbo Vent fans. The van interior lights are touch light LEDs with a turn off override switch in doorway.

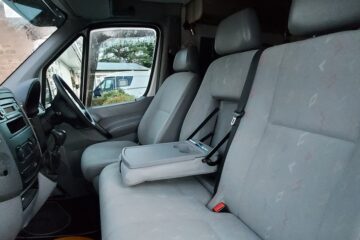

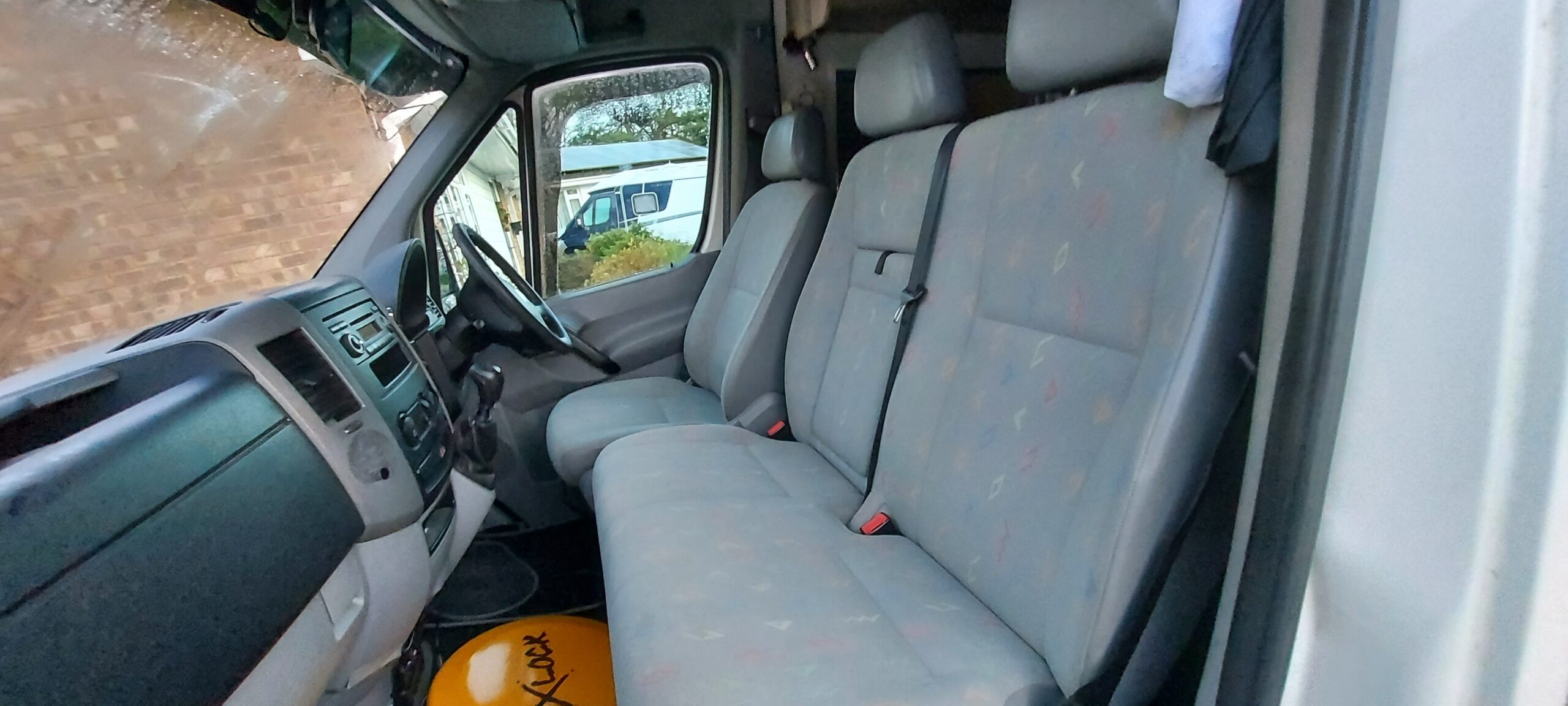

Cab

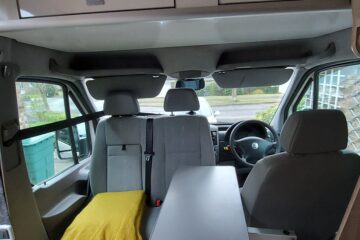

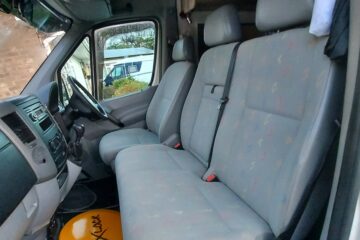

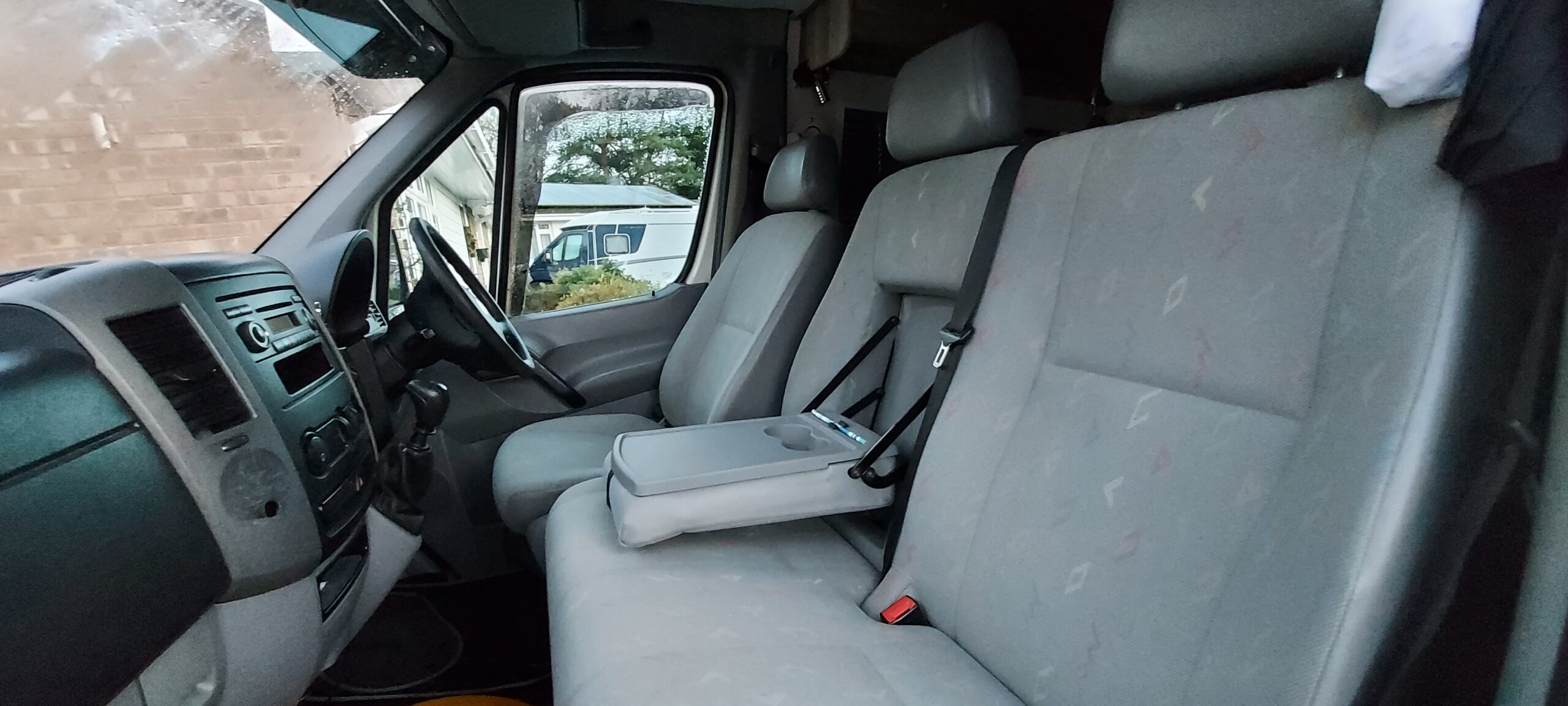

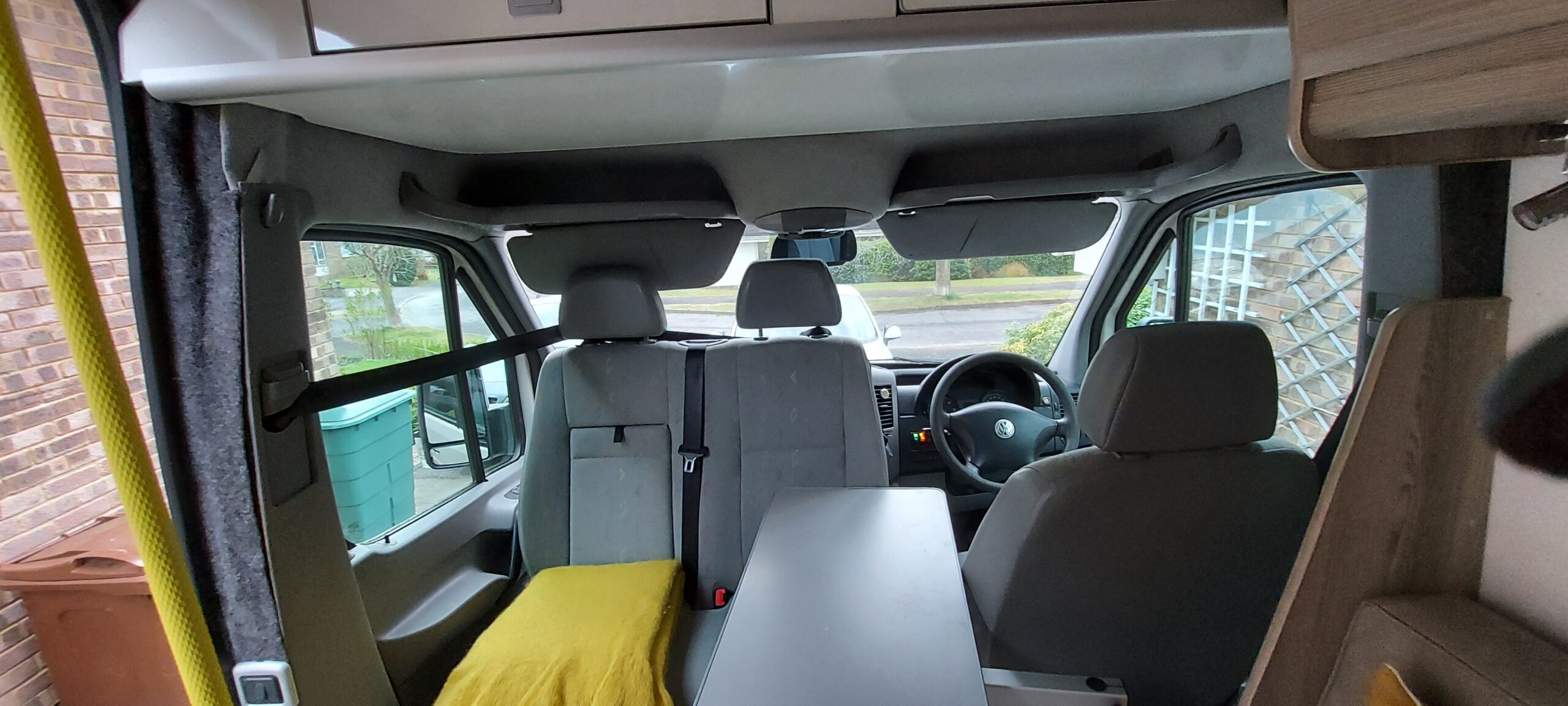

The front cab passenger double bench seat fully swivels using a swivel base that has a VOSC safety certificate.
Reversing camera
Sun visor and side window wind deflectors fitted
All cab seats are in good condition with no rips
Cab thermal blinds also included.
2 x 120amp AGM leisure batteries
Split charge electric system

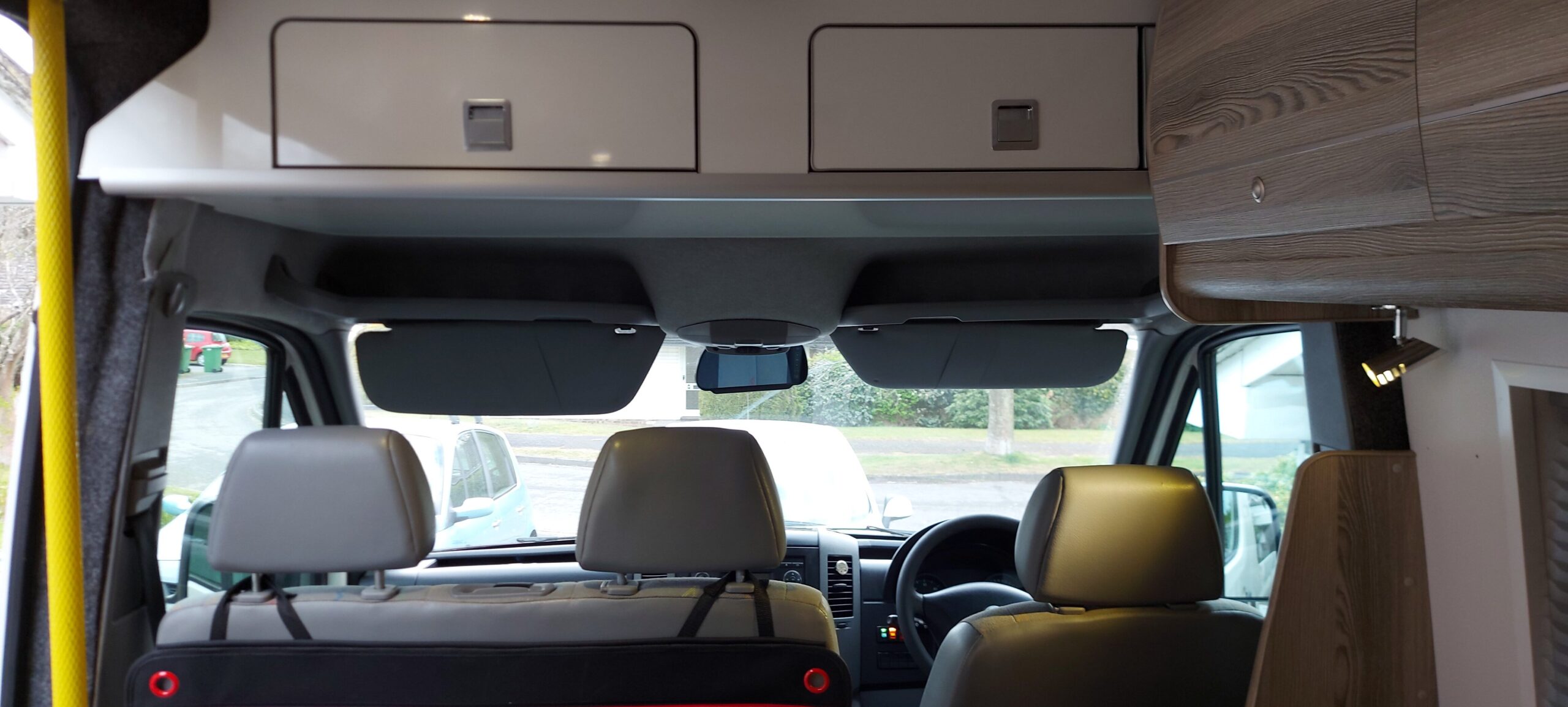

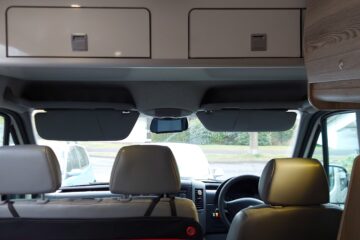

EvoDesign over cab locker
This area has a hot air blow vent which is powered by the Truma Combination boiler

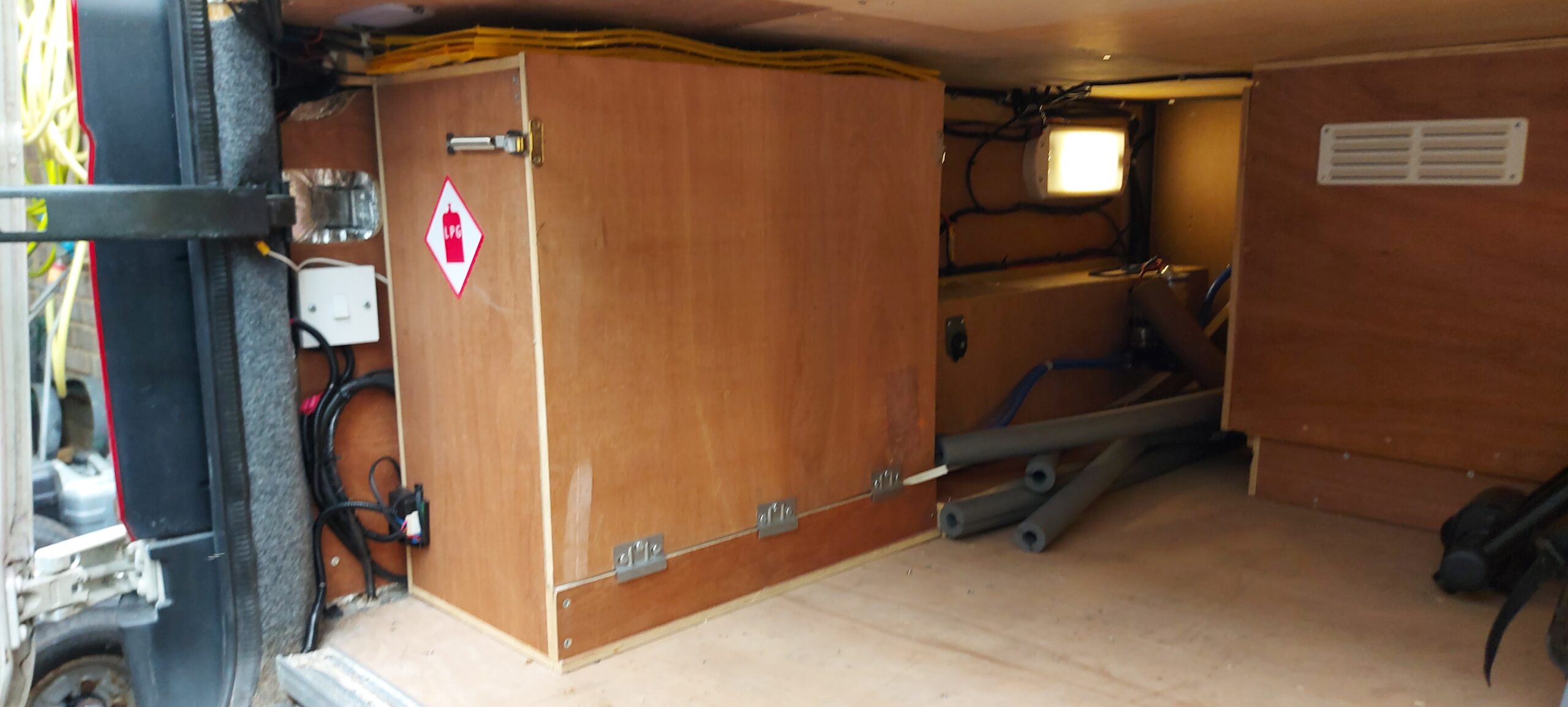

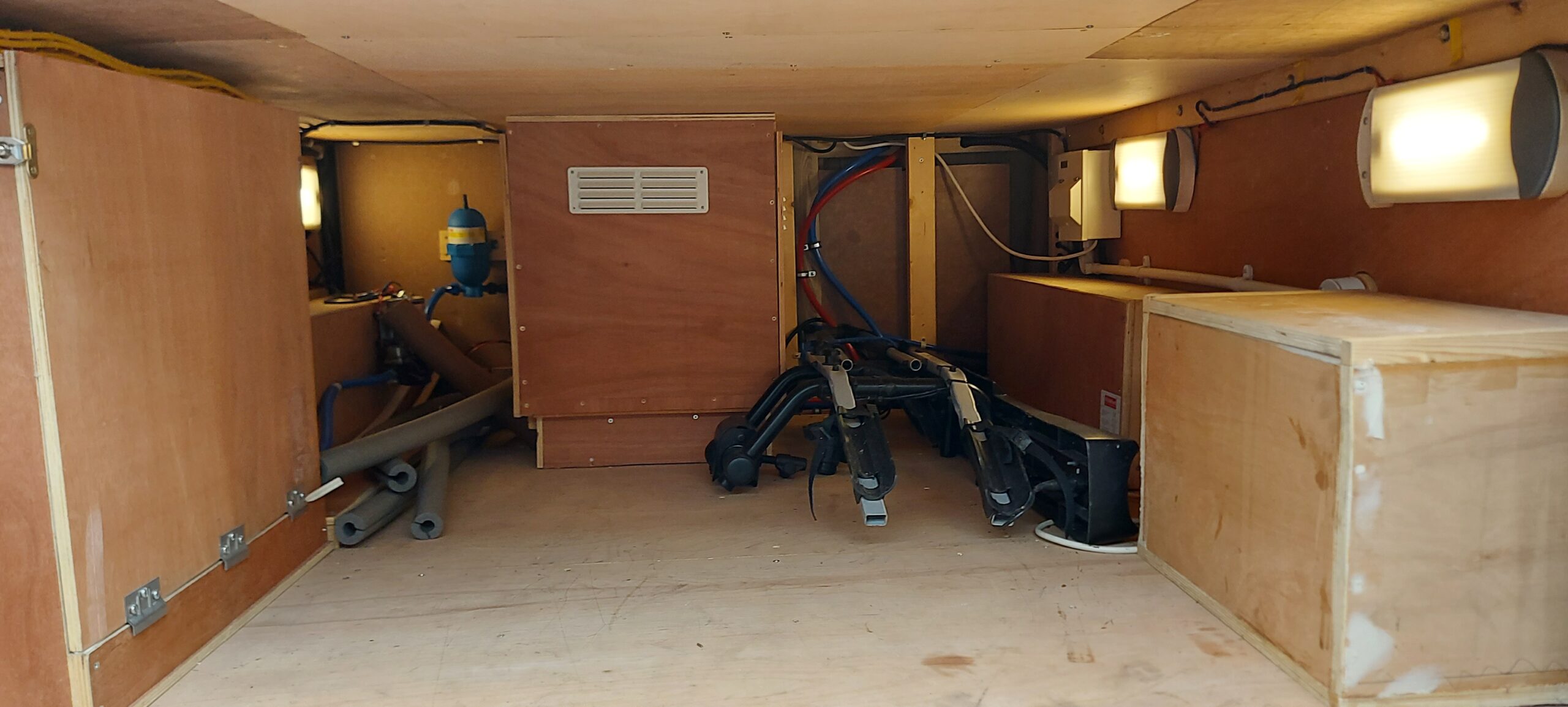

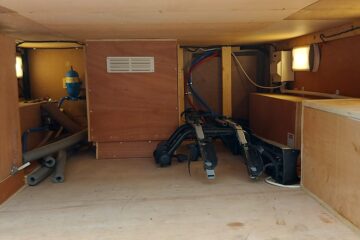

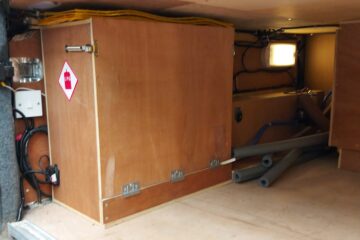

Garage Area
Gas bottle secure storage box
Air suspension compressor
240 volt consumer unit
Fuse board where all appliances are fused.
Plumbing pipe work is located here
Shurflo water pump 20psi
Accumulator unit fitted

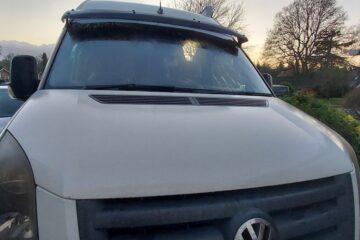

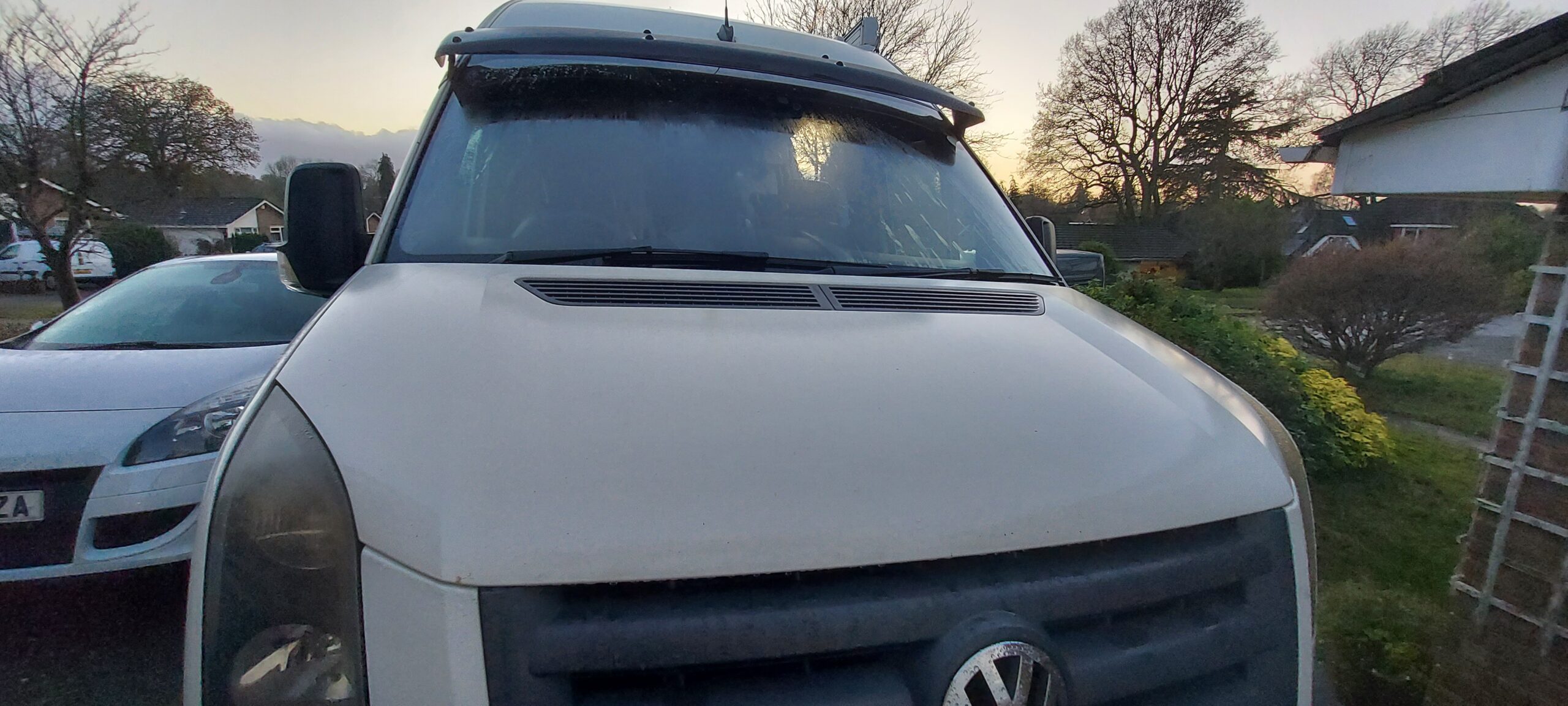

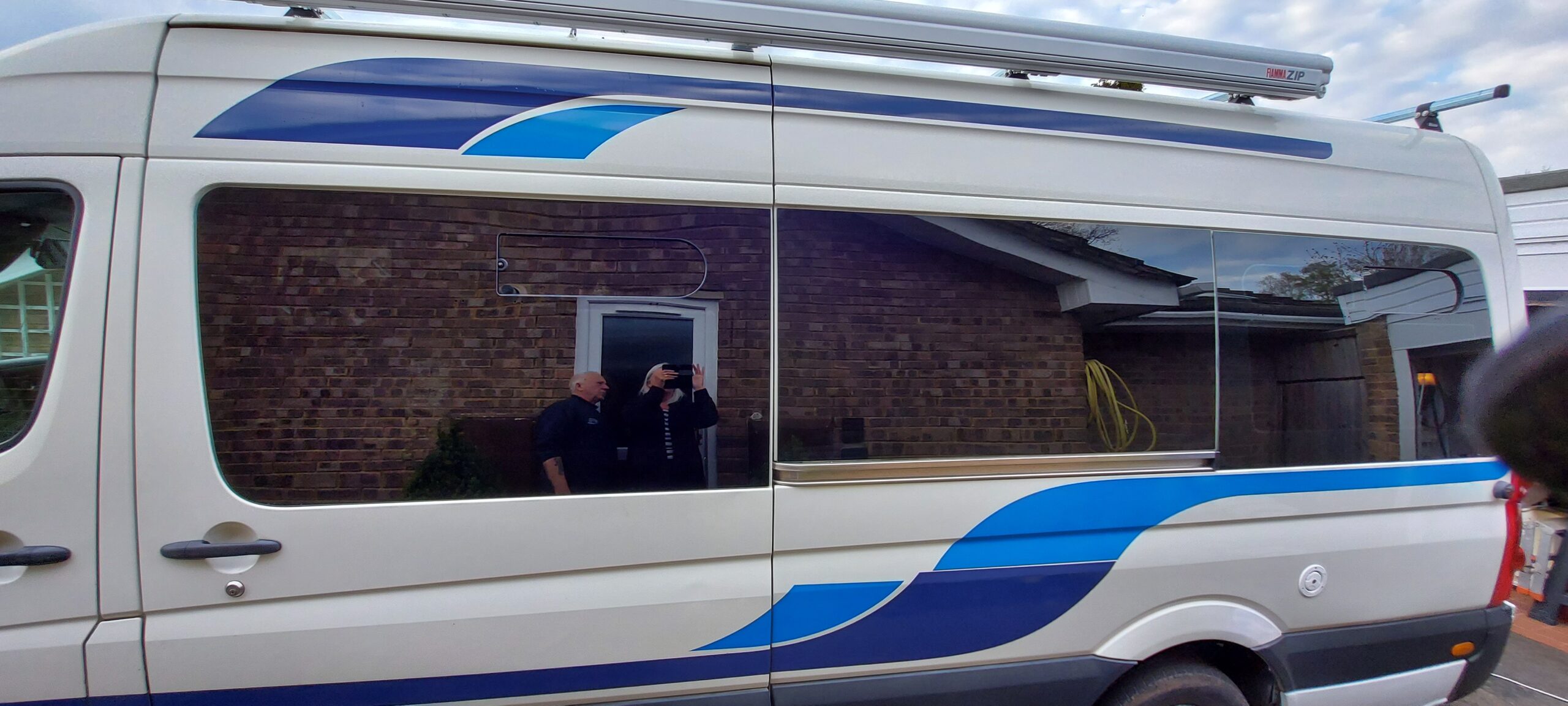

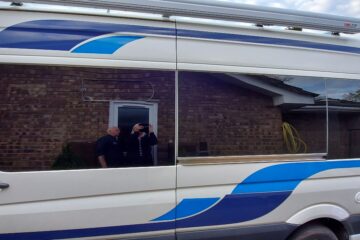

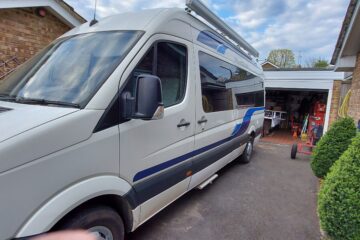

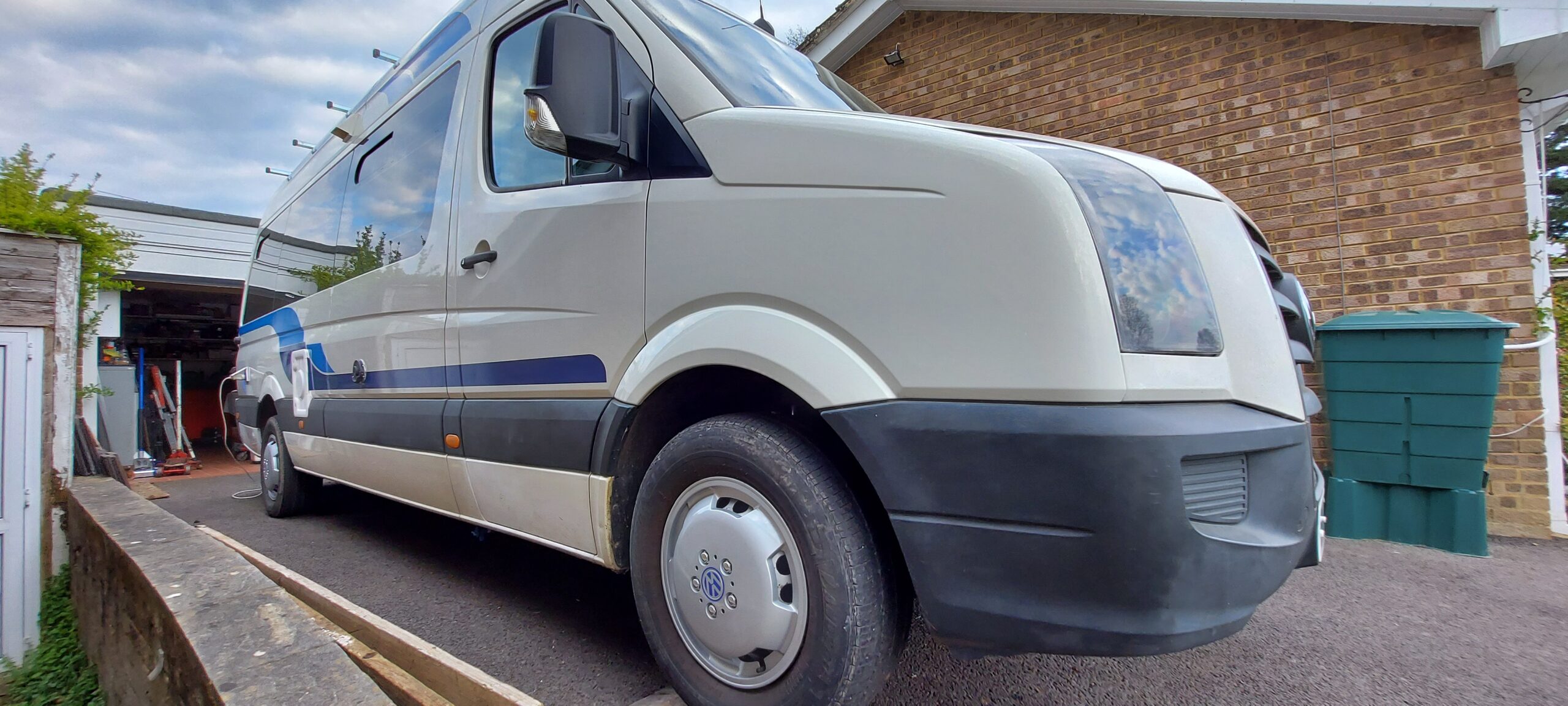

Van exterior
Underslung 70ltr fresh water tank
Underslung grey waste water tank
Underslung spare wheel
Fiamma 3.5mt wind out awning with a Fiamma LED strip light fitted to awning bar
Rhino roof bars
Roof box

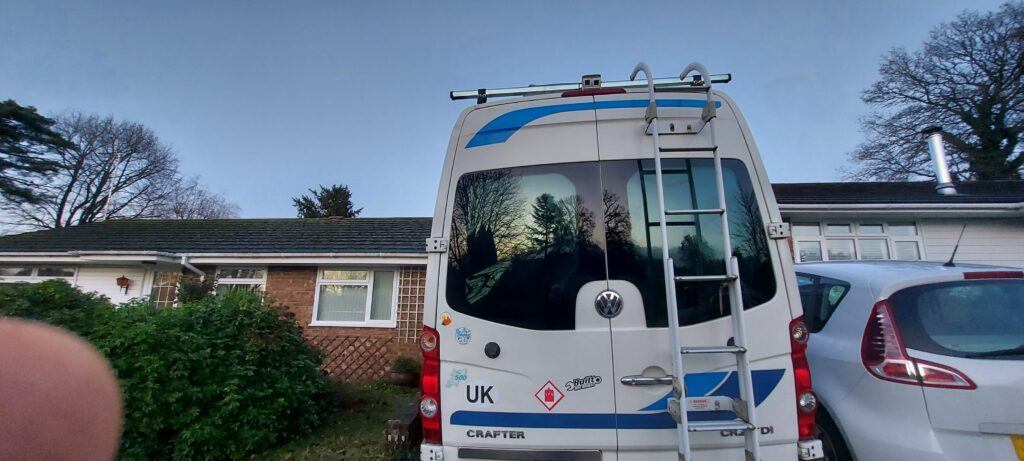

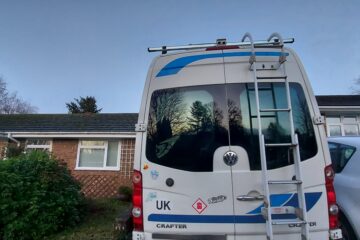

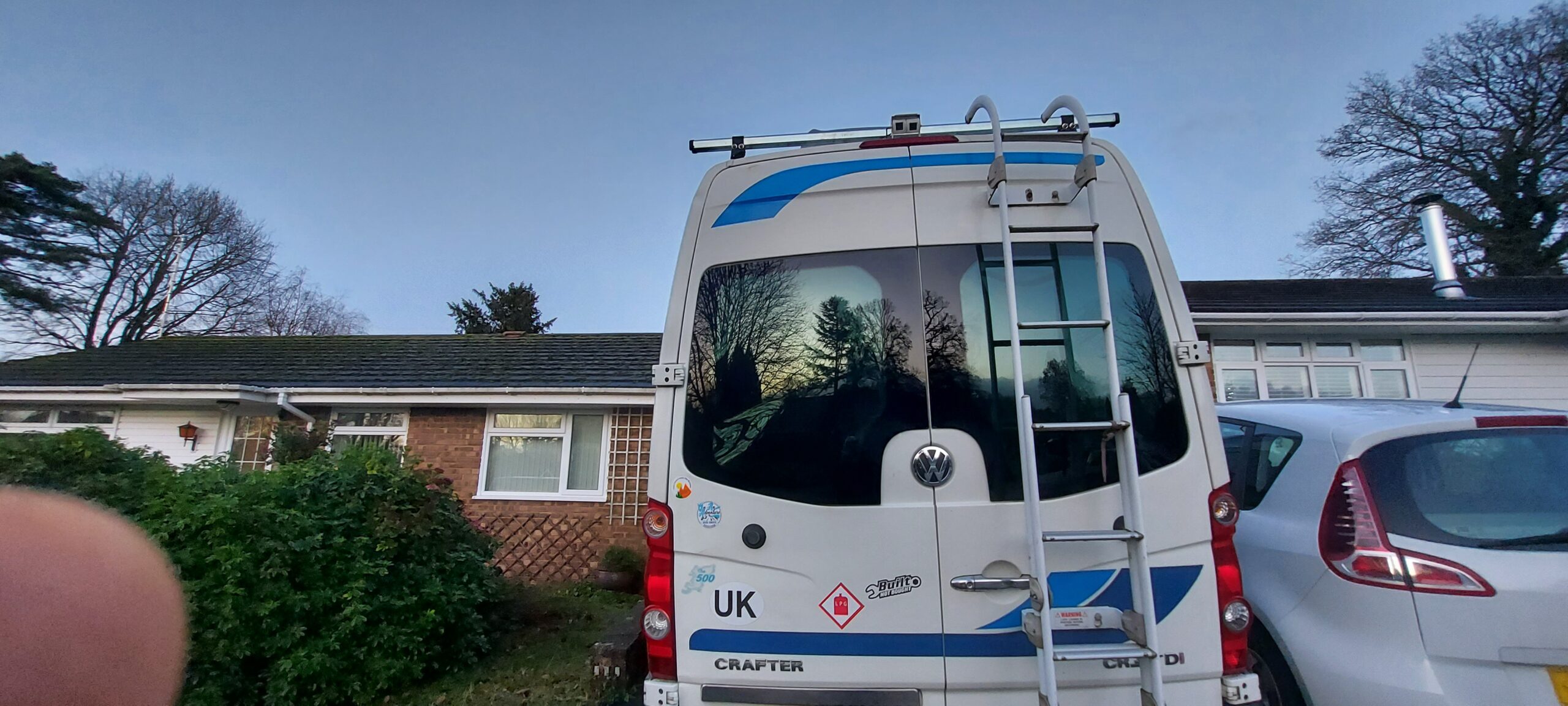

Rear fitted roof access ladder
2 x 100 watt solar panels
Slide out step

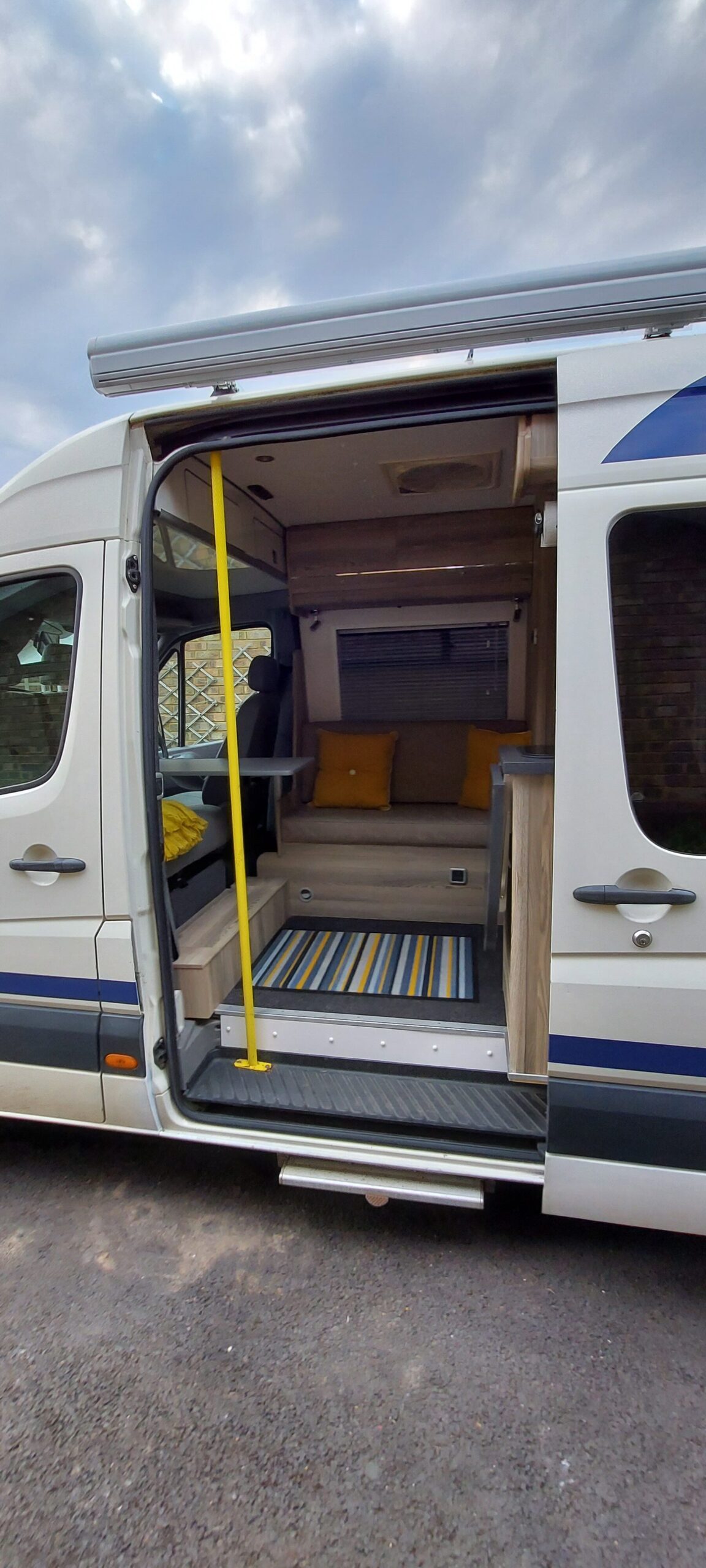

Seating Area

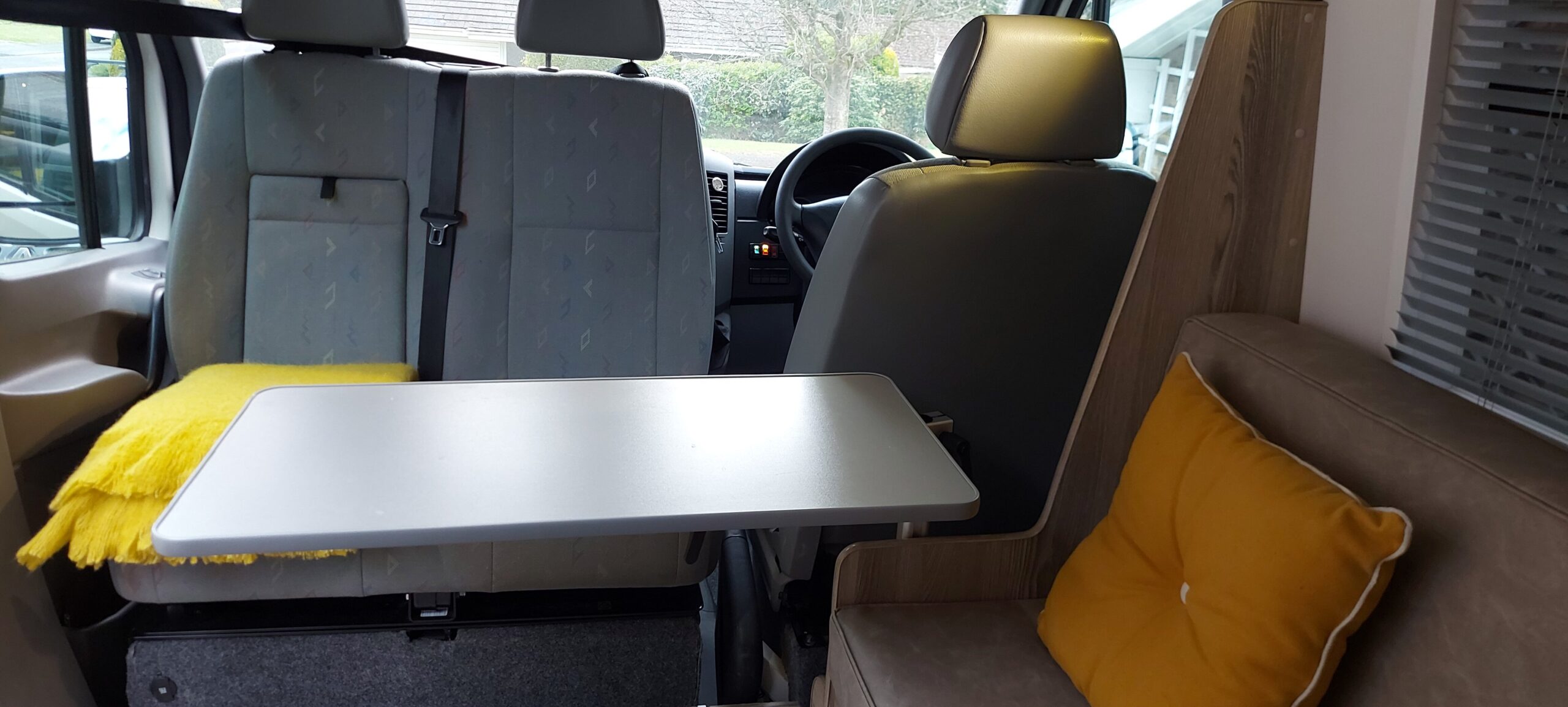

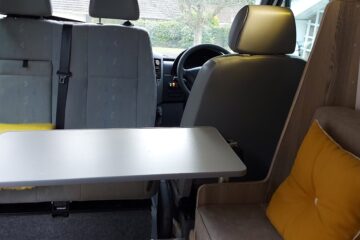

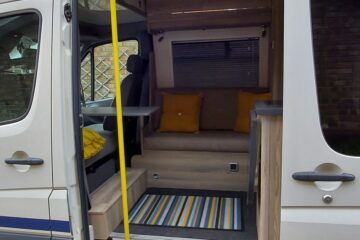

Full upholstered bench seat which makes a nice corner seating area when the cab bench seat is turned to face the back of the van. Under the upholstered bench seat is where the Truma Combination boiler is located. This piece of equipment powers all the hot water and heating requirements for the van
The dining table is a Lagun Cockpit Table Leg with fitted Table top
Window with venetian blind makes this a nice light area
This area has a hot air blow vent which is powered by the Truma Combination boiler

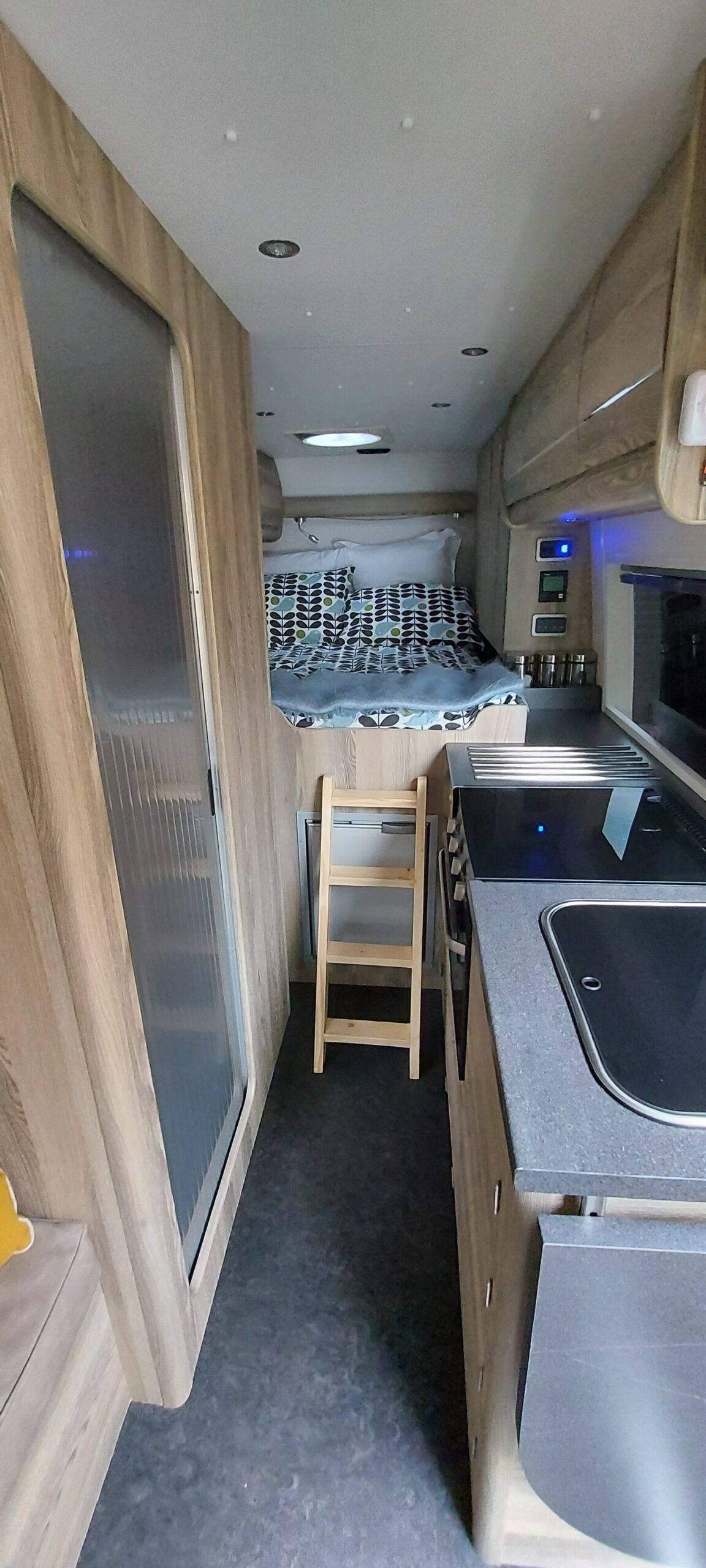

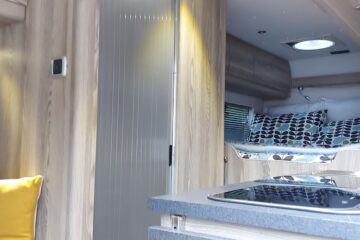

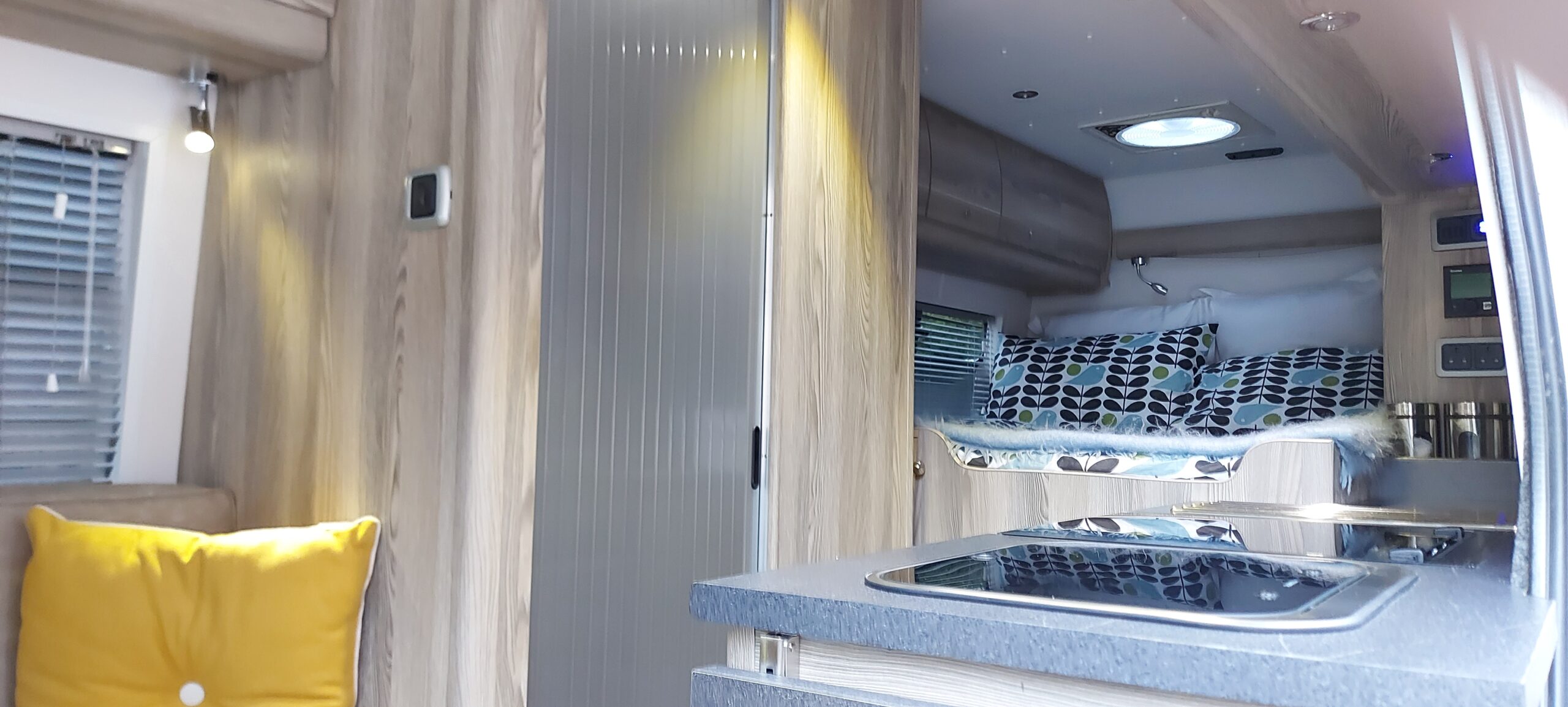

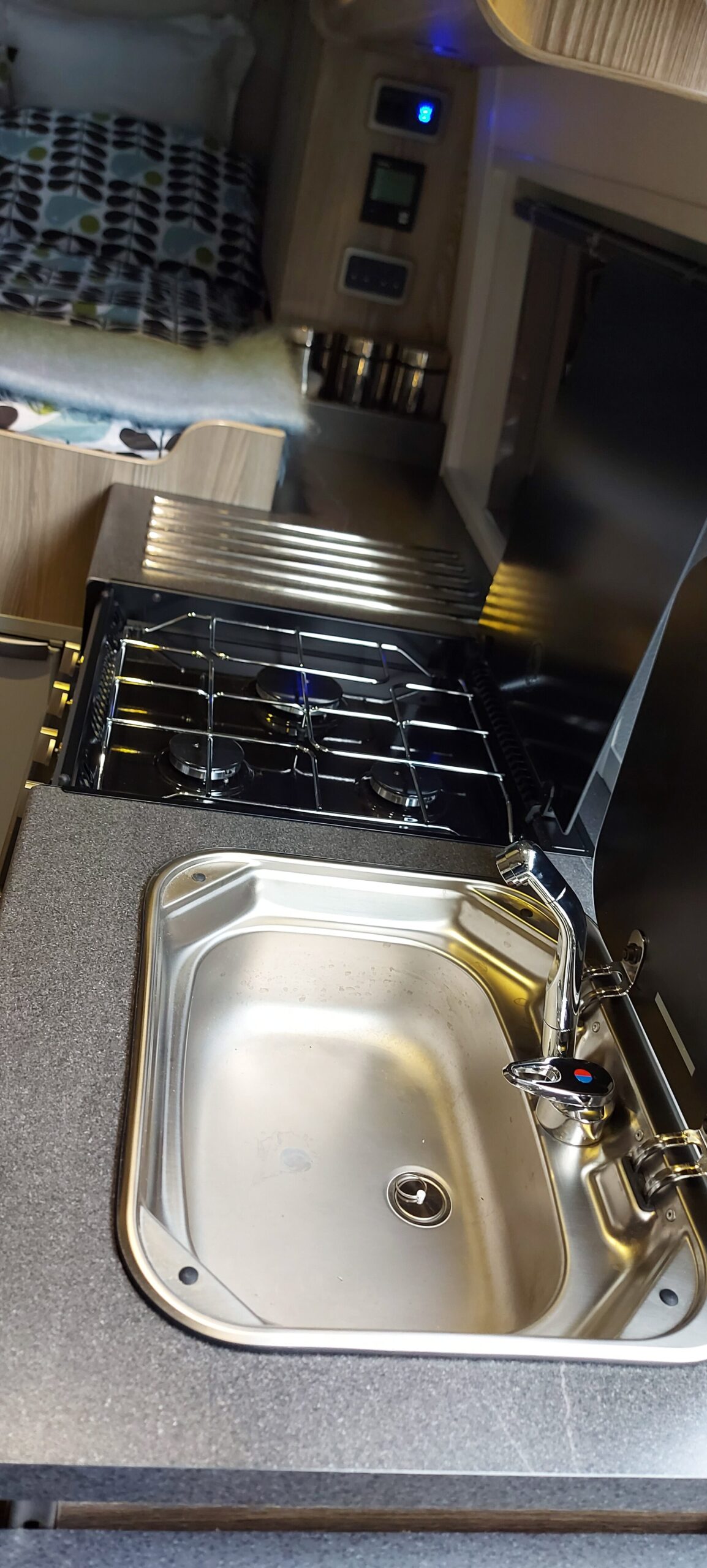

Kitchen

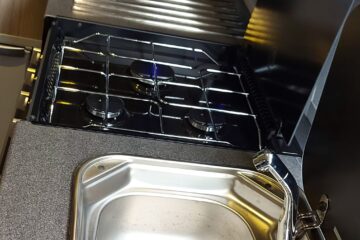

Wipe down worktop with a fitted Dometic sink with glass top

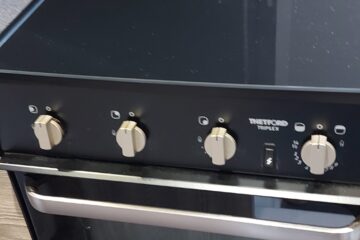

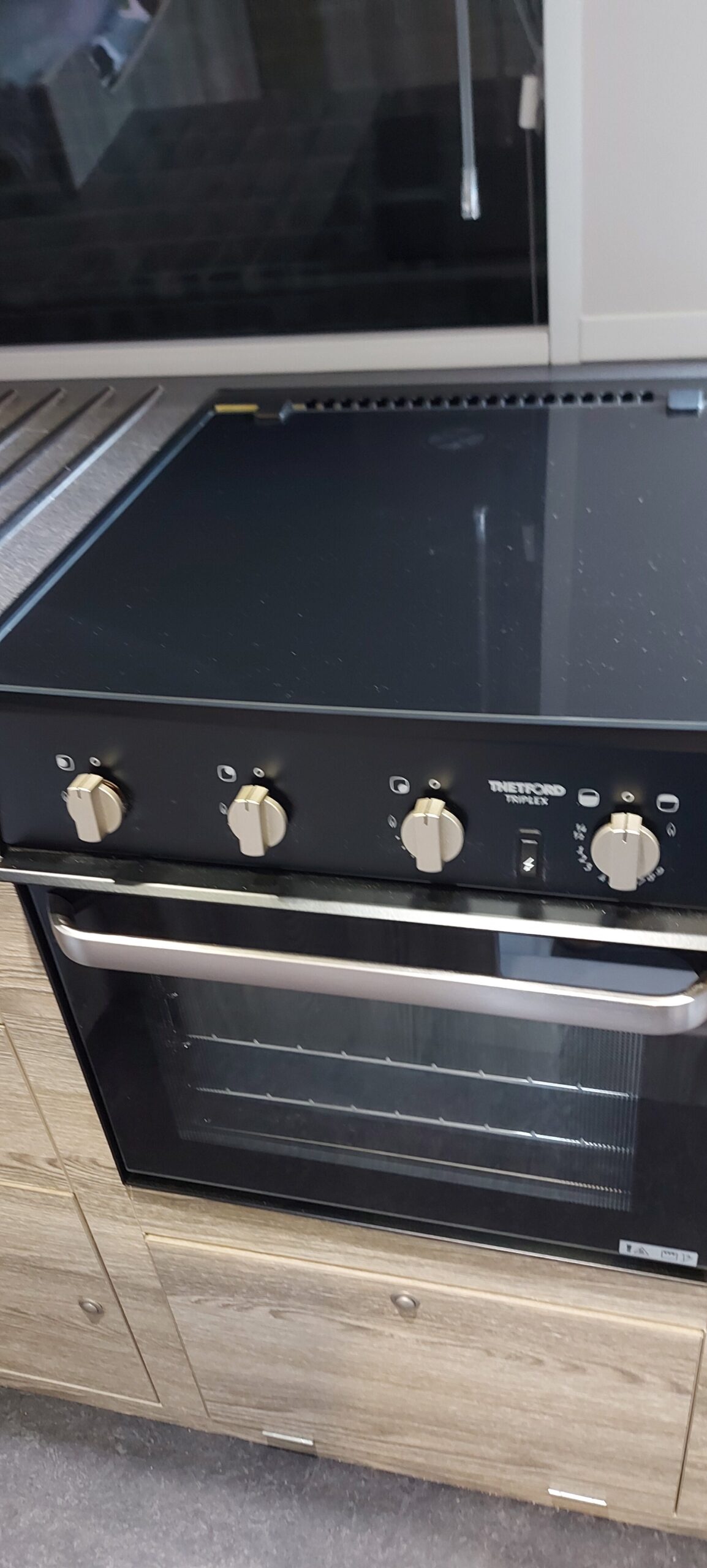

Thetford Triplex 700 Series cooker with glass lid. Three burners and Oven/Grill
Fully fitted base kitchen cupboards with pull out basket trays in larder unit. The kitchen are also has fitted top cupboards for storage with touch lighting for kitchen area.

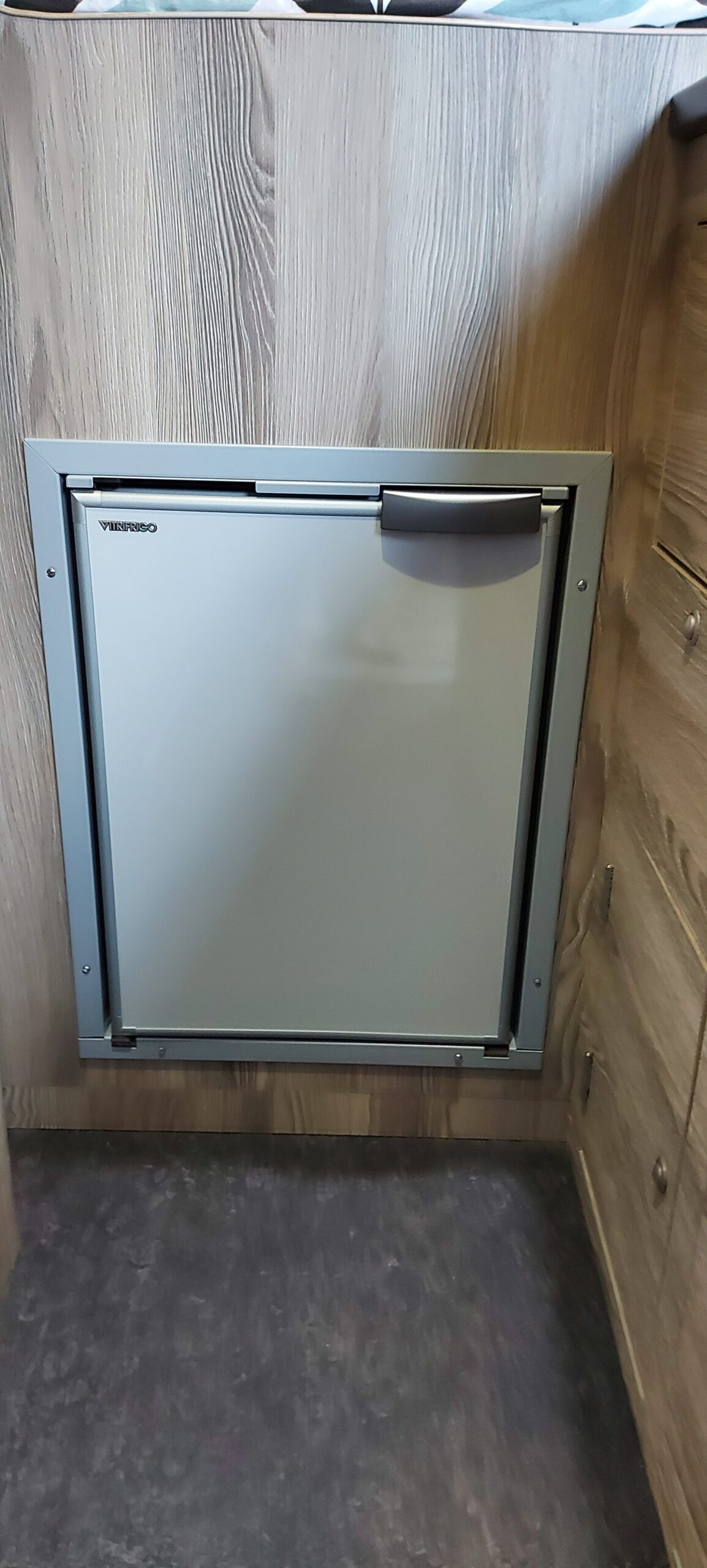

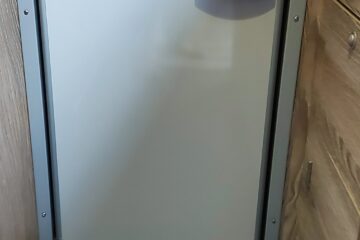

The fridge is a Vitrifrigo 12 volt 51ltr compressor fridge with freezer box.
The worktop also has an flip up extension that can be used if more worktop is required.
Window with venetian blind
Double electric socket
1 x carbon monoxide detector and a smoke detector

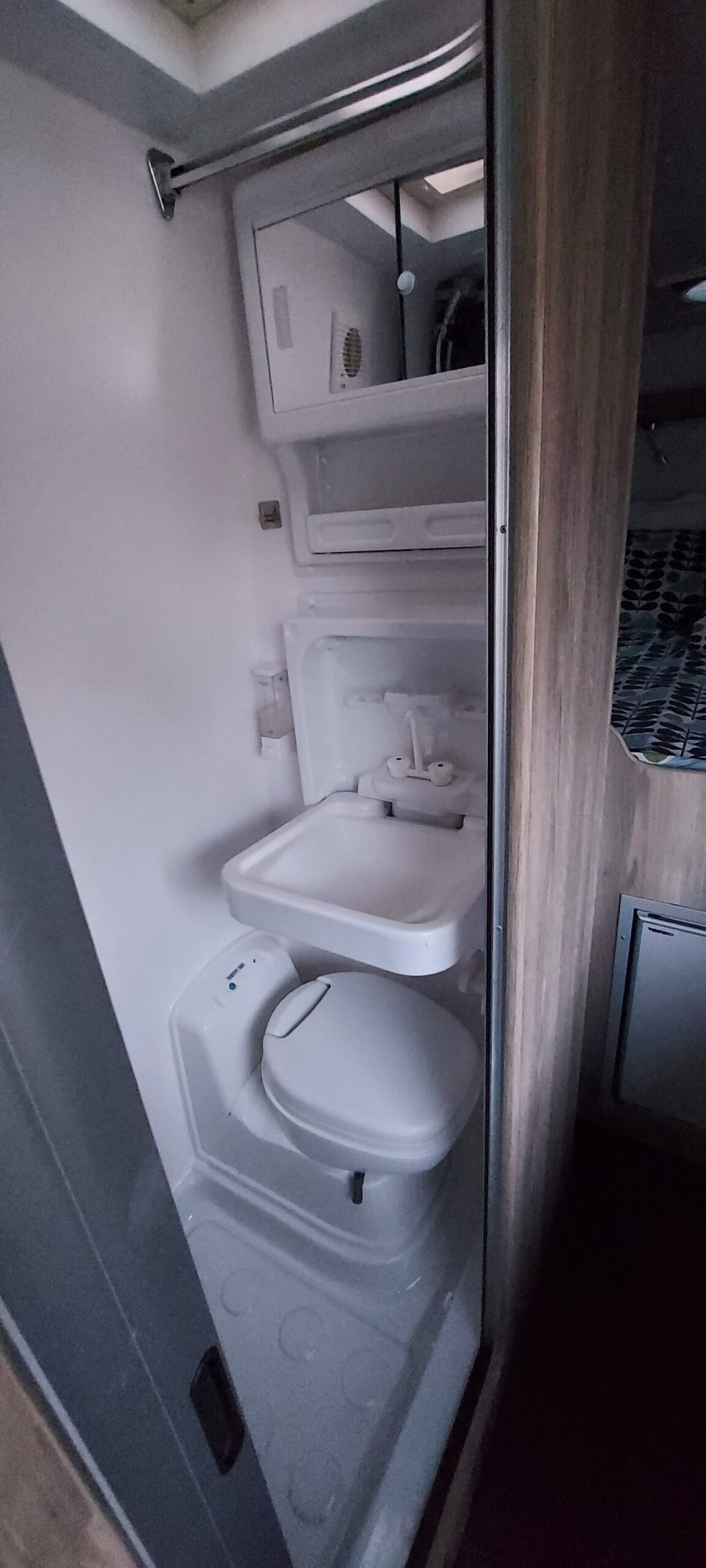

Bathroom
The bathroom is accessed by a full length tambour door in silver

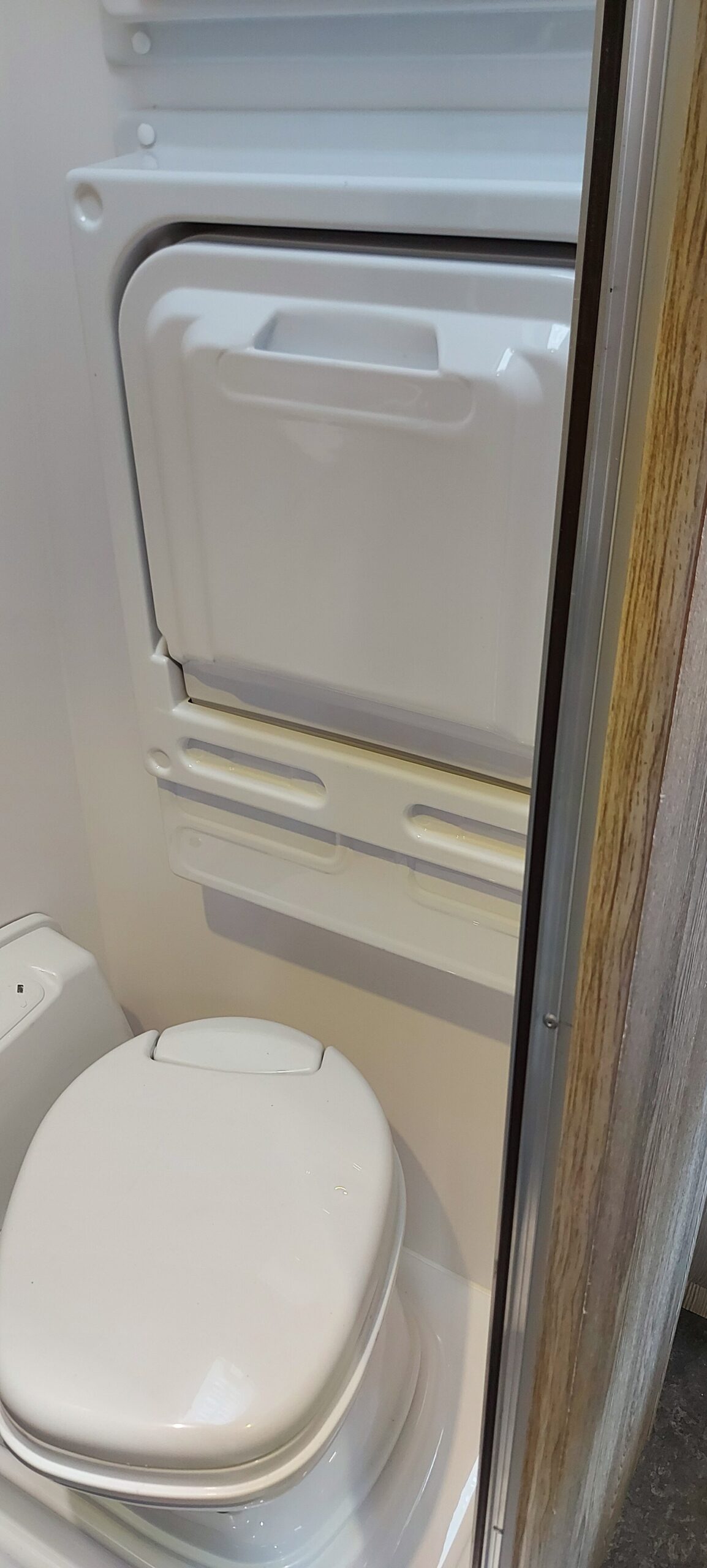

Thetford C-200 swivel cassette toilet with electric flush. Emptying cassette access is via a door on the side of the van
Roof vent
Electric fan in wall for removing moisture from bathroom

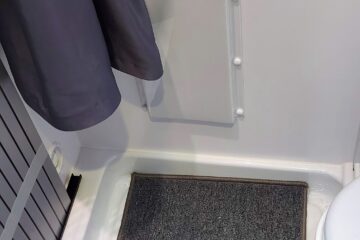

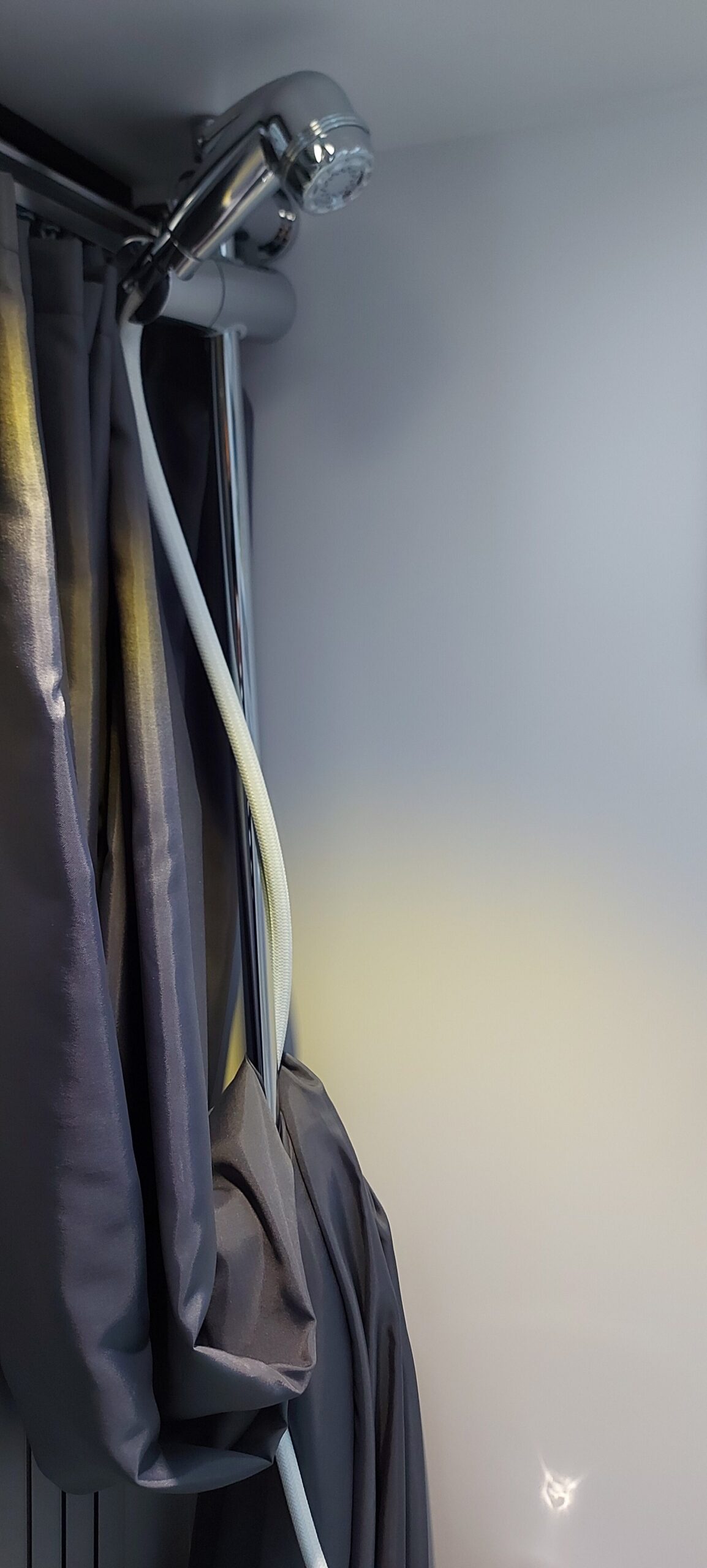

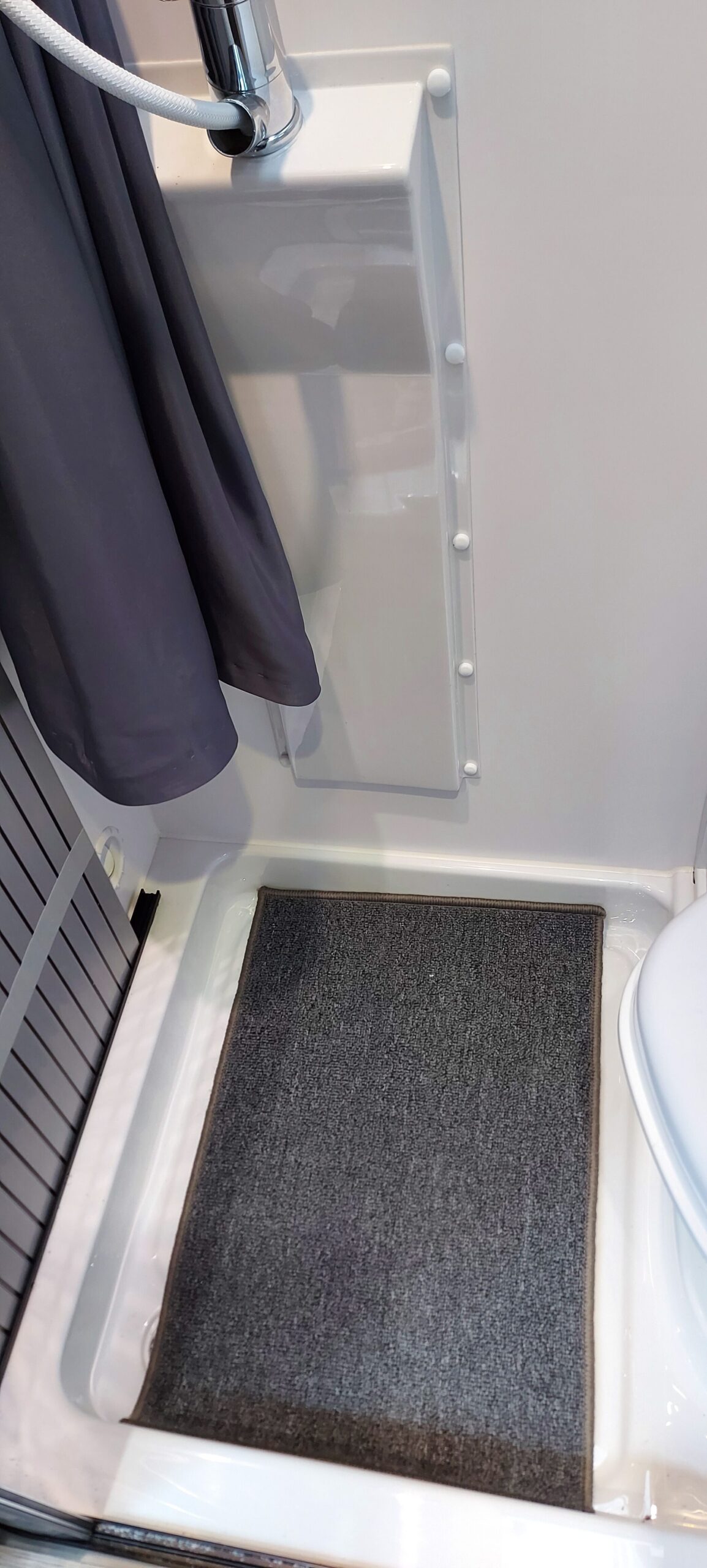

Shower tray with mixer tap. This tray has been fitted properly so will not crack.

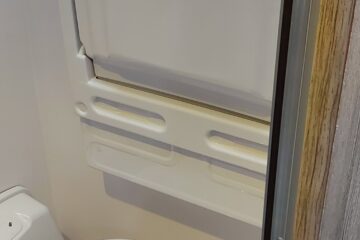

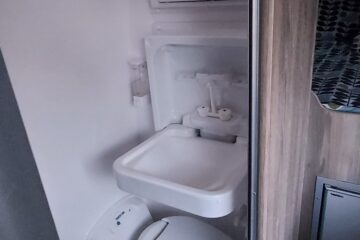

Drop down sink with hot and cold tap
Vanity wall unit with storage and mirror
Toilet paper holder
The bathroom has a hot air blow vent which is powered by the Truma Combination boiler

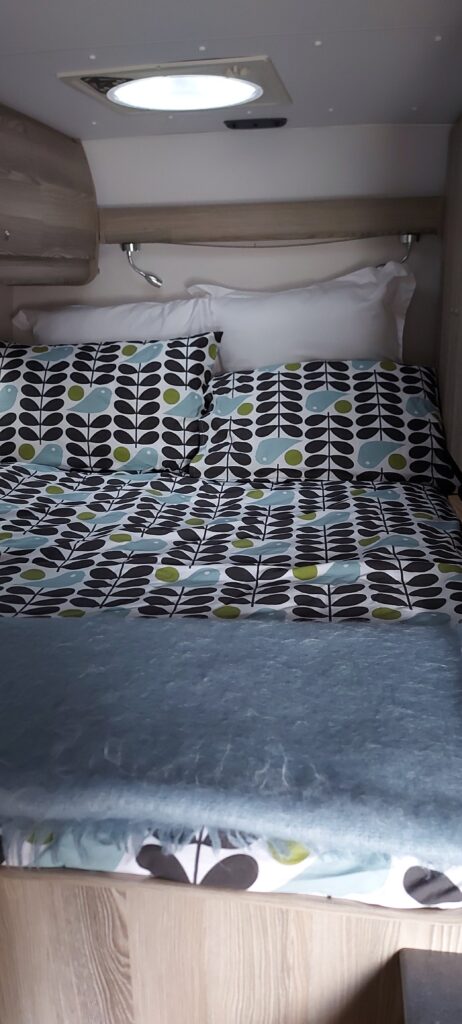

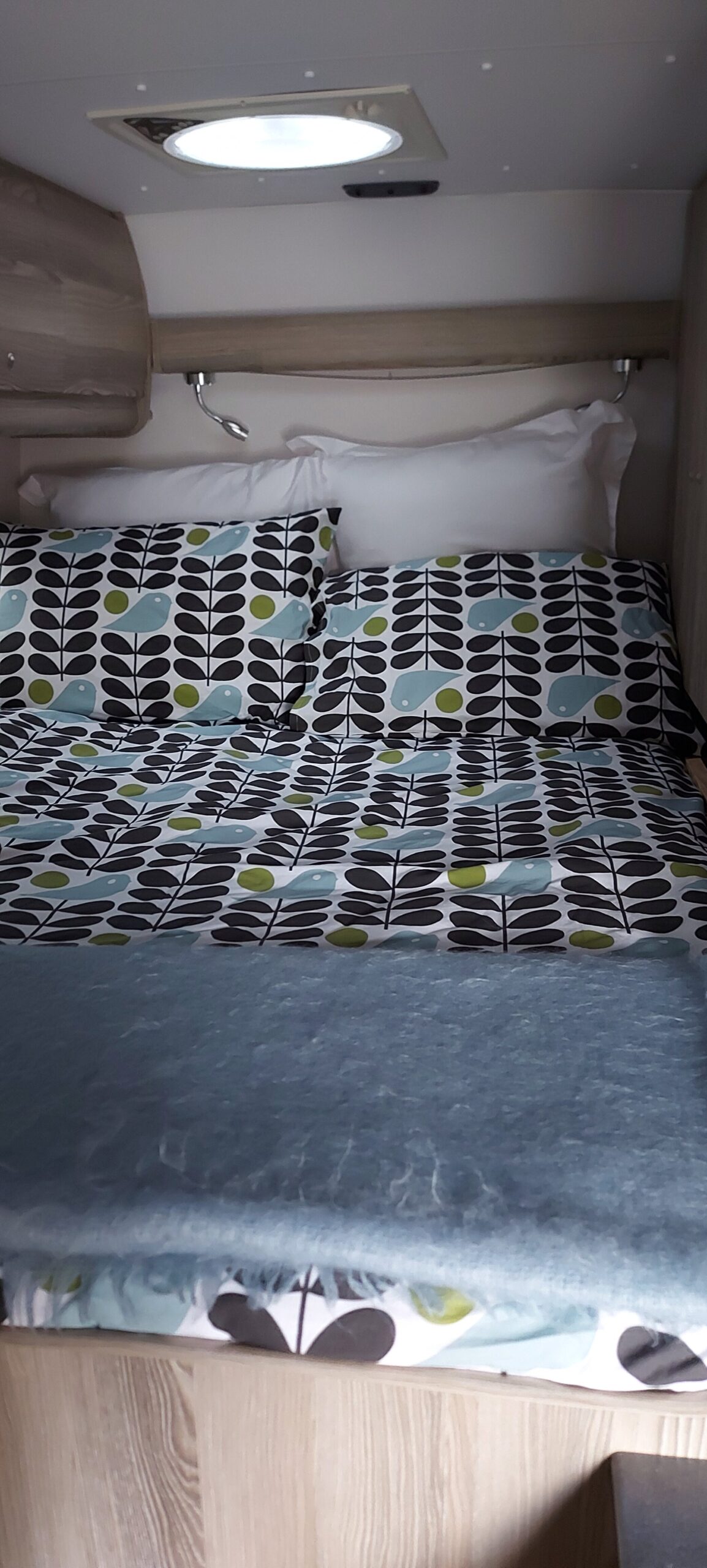

Sleeping Area
Double bed

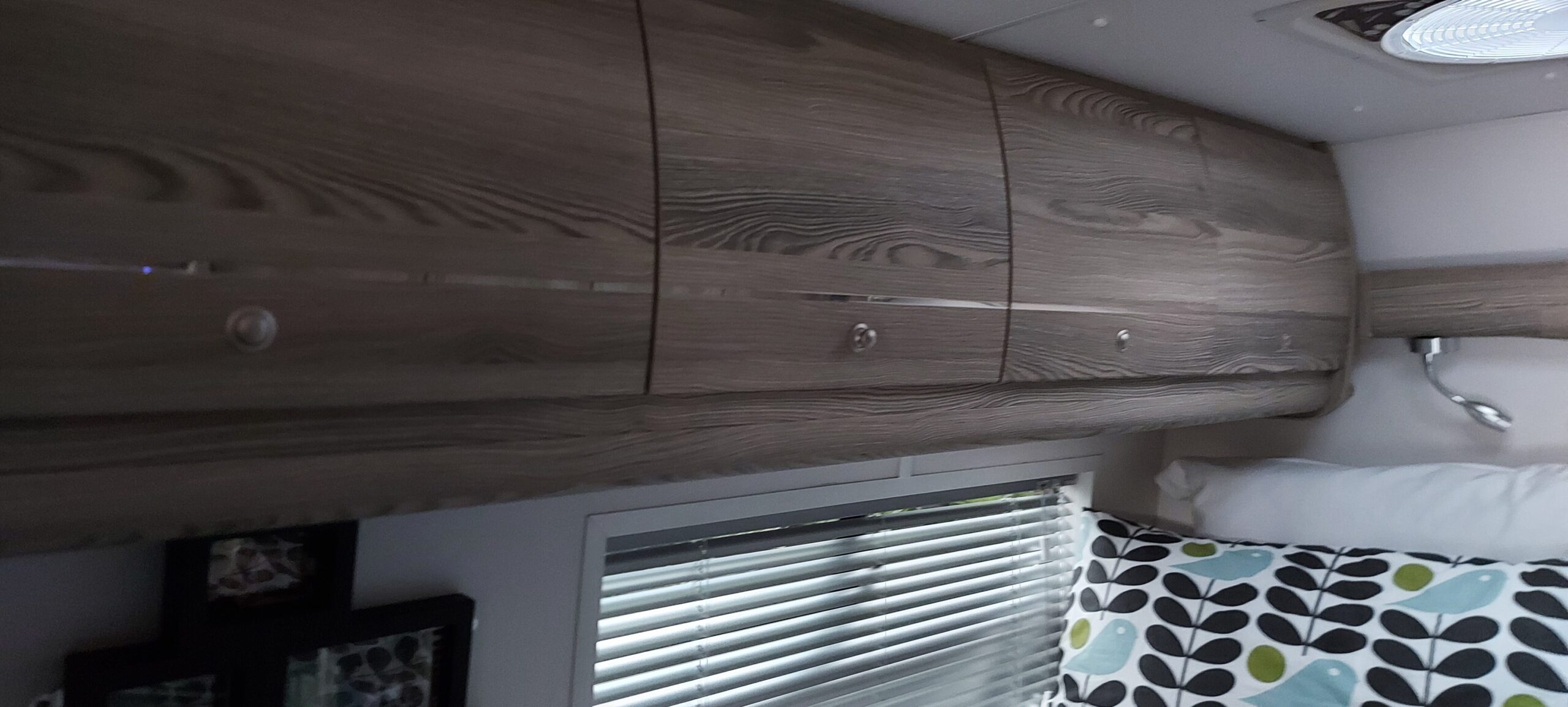

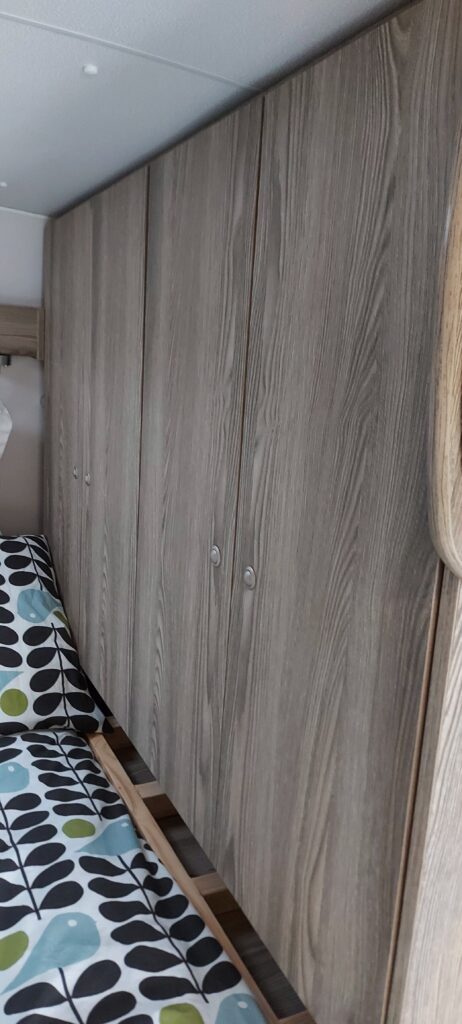

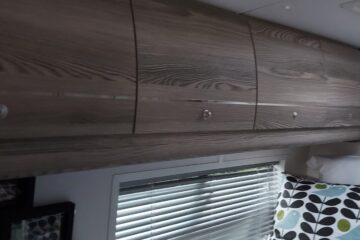

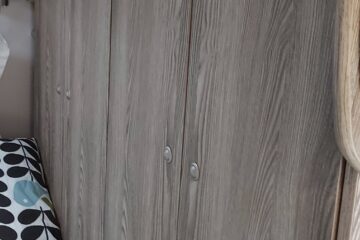

Overhead lockers on one side with longer cupboards on the other side.
Two base cupboards along side bed
Flexible reading lights
Shelf with electric socket great for a television.
12volt USB charging sockets
This area has a hot air blow vent which is powered by the Truma Combination boiler
Window with venetian blind
If you have any questions or would like to view the van please donβt hesitate to contact me
The van had a full size double bed as dictated by the DVLA when changing body type to a Motor Caravan 120x190cm
