Land Rover Defender 110 2.4 TDCi 3dr
Meet Larry the Landy. He is a 2008 2.4 TDCi Land Rover Defender 110 station wagon which has been newly converted (summer of 2023)
The conversion has been meticulously planned & completed to the highest quality with no expense spared. With countless iterations on CAD & drawings filling 2 sketchbooks, I wanted to design a bespoke, practical yet beautiful interior with a custom front cubby box. I spent hundreds of hours doing product research to create the ultimate off-grid overlander, which can take you to any place your heart desires! This defender conversion is truly one of a kind. I’ve been inspired by many other Land Rover & van builds along the way, however I found them all to be lacking in one aspect or another. Larry fulfils every expectation, leaving no box un-ticked.
Having previously converted a VW Crafter MWB during lockdown as a project, I found it somewhat limited where I travelled & I craved more freedom. I’ve always loved the classic Landy’s so after the sale of the van, I decided to take the plunge and buy this Defender… even though I’d never actually driven one myself & just turned 19 years old so it was a risk that I could even get insured on it, however, it turned into the best decision I’ve ever made!

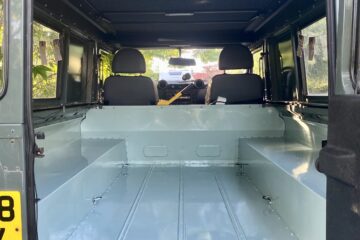

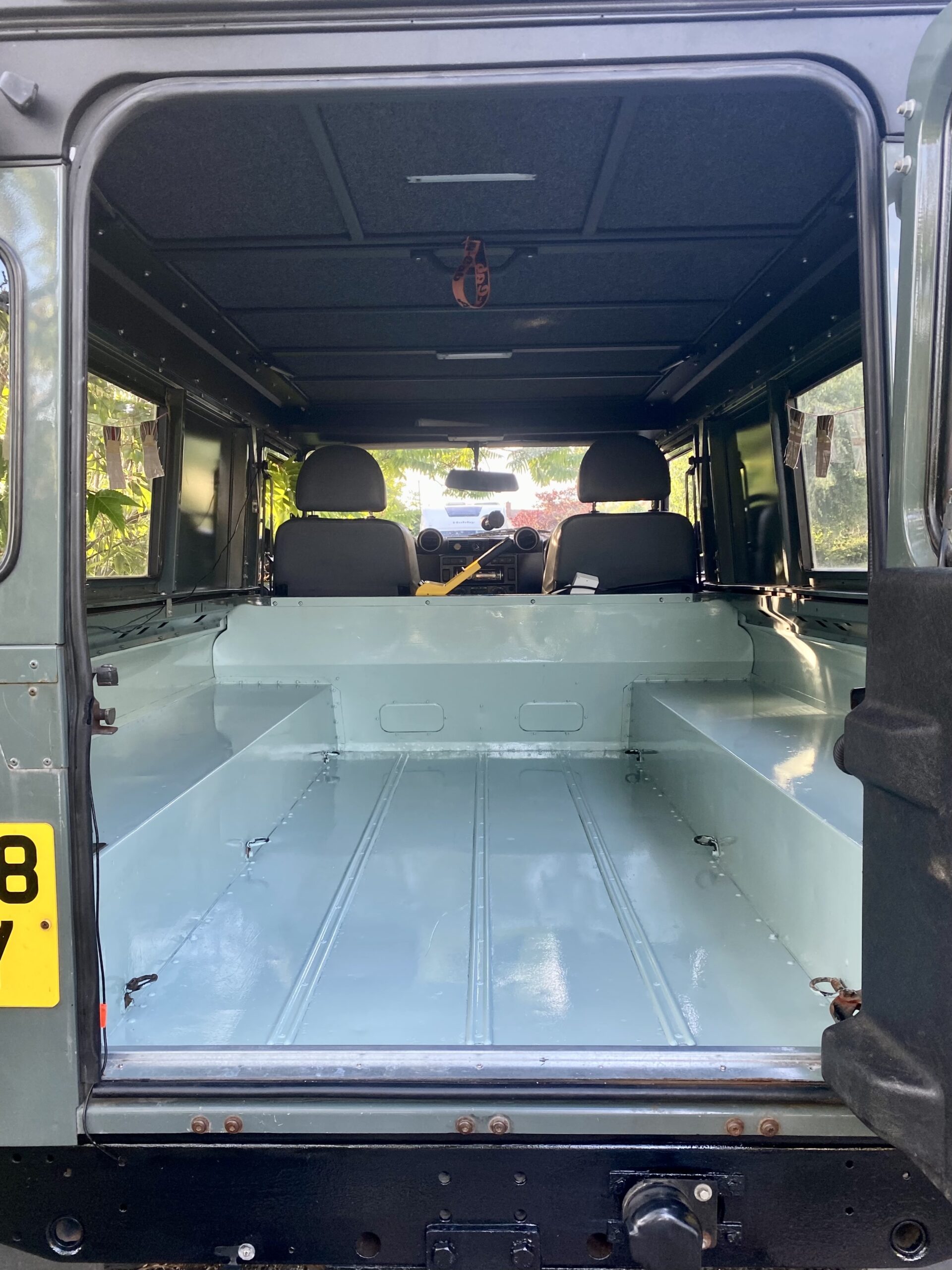

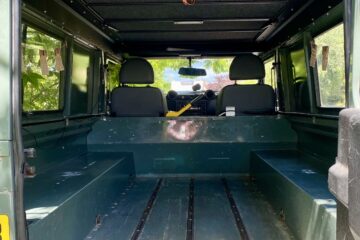

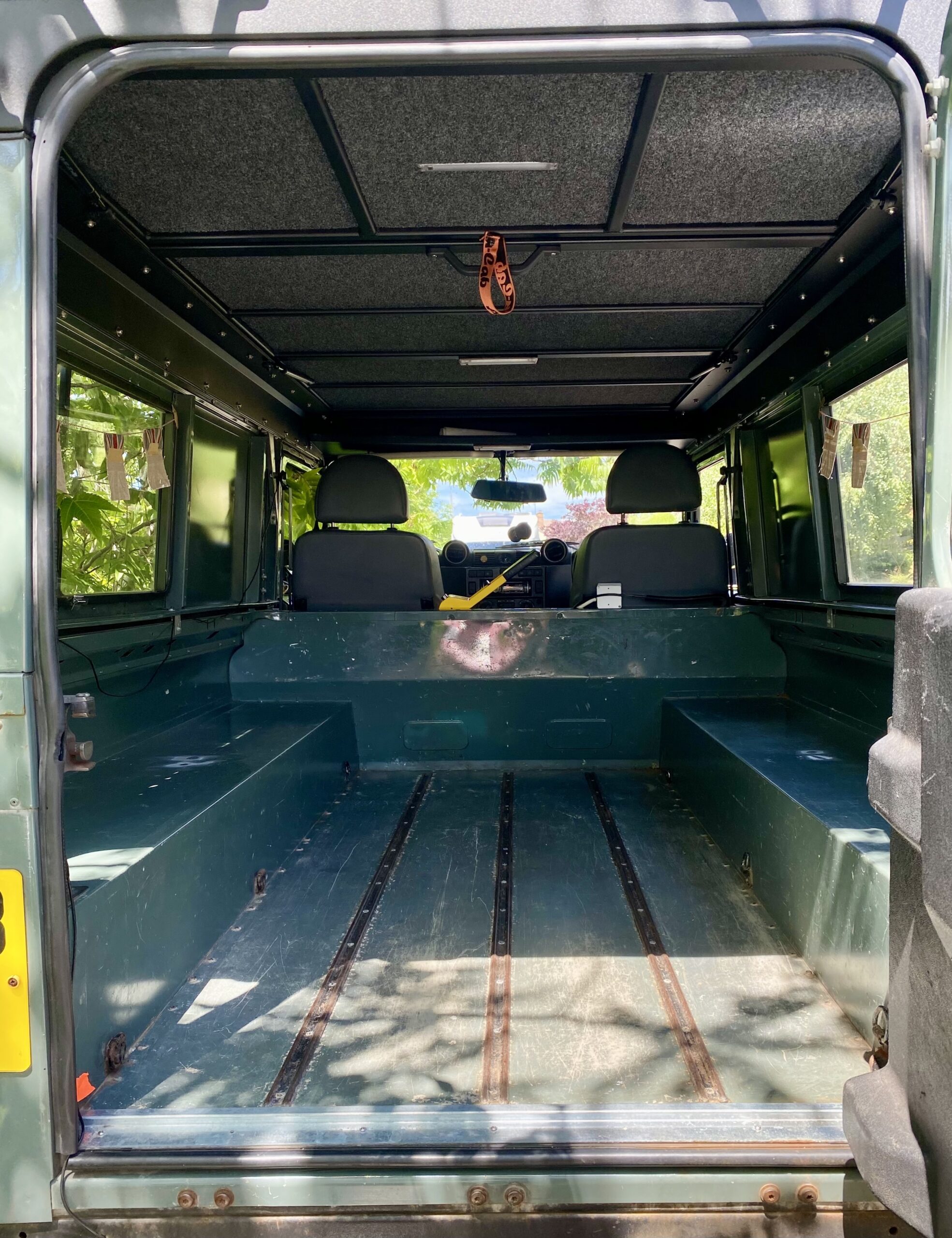

Bought from stock, it was originally used in the MOD from 2008 to 2013 when a guy from British Gas bought it & took great care with it till I bought it from him in 2022. It was stripped back to the barebones with all original LR parts, 2 side benches in the back (which were on their last legs) and some very leaky windows… let’s just say it was a character from the very beginning!
I started by making Larry mechanically sound & spent a lot of time and money on parts & repairs so it was running smoothly before I started the build itself. (mechanical works listed below)
This Defender brings together the ultimate must-haves with the luxury of an Alu-Cab Icarus pop-top camper and the 270-degree Alu-Cab shadow awning, both fitted at Nene Overland in Peterborough. Having this is an absolute game-changer, especially when you’re doing a longer road trip as it creates so much more space inside the vehicle as the whole roof lifts, allowing you to stand up the whole length of the back.
Quality and durability are hugely important to me. With flush, countersunk hinges for the under-bench storage, a beautiful oak worktop and oak details that flow continuously throughout the build, and a large gullwing window which opens right up, allowing the outside in, but still in the shelter of your own little home on wheels. It creates a light, contemporary space to be enjoyed on a chilly evening with the roof up & diesel heater on, or a warm summer day with the awning out, windows & doors open, cooking a delicious meal on your drop-down table outside!

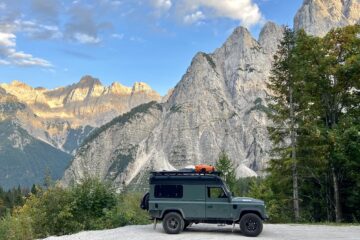

From weekend trips up to Scotland where Larry looks completely in his element, exploring off the beaten track and making even the most complex green lane sections look easy… to spending 84 days travelling through Europe, passing through 14 different countries, experiencing 4 extreme heat waves & facing zero mechanical issues the whole time we were out there… proud is an understatement!
I made sure, when designing this build, that you could live completely off-grid for 3-4 days comfortably (tried & tested in Europe). I felt this was very important as this vehicle’s sole purpose is to take you to these beautiful, remote places where no ‘normal’ vehicle can go, so I’ve equipped the rig with everything you need to do just that! And also, with the way I’ve designed the interior, it allows you to live very comfortably inside without having to put the Alu-Cab roof up if its awful weather or just too windy! This was an absolute must as I’ve seen so many Defender conversions where you can only access the worktable, cooker, or some storage units only once the roof is lifted. I also built a second bed as I felt it was important to have an option & I can happily say its (almost) as comfy as upstairs… just a little smaller! It’s also great when its very hot outside as you can lift the roof up, open all the windows and sleep below in the cooler section, whilst still getting ventilation throughout.
The layout of the build allowed us to live in ‘luxury’ as all we had to do once we arrived at a camp was to push the roof up (1 min job) and spread open the 270 awning (2 min job). Having the Lifesaver jerrycan on the side solved all of our water requirements. Even if you run out of water, you can just fill the jerry can up from your nearest water source and instantly have clean, safe drinking water. It also has a hose attachment which works perfectly for showering and washing dishes too! The 220W solar panel keeps Larry fully charged without needing to start the engine. In summary, this vehicle will not limit the time you spend completely off-grid, as long as you have food & a couple beers, Larry can supply the rest!
We’ve woken up to some of the most breathtaking views, as we were able to leave all the touristy camps behind and properly explore the landscape. This vehicle has given me more freedom & confidence than I could have ever imagined, I have truly never felt happier than behind the wheel of this Landy and I hope his new owner(s) get to feel the same!
Larry has inspired me to create my company called Liv Wilder, where I will be undertaking commissions for Defender conversions, whilst continuing to create unique and bespoke builds of my own. Sadly, this means the time has come to move on to the next project and so, with a very heavy heart, I have to say goodbye to Larry.
Love, Liv
More photos, videos on request. Happy to answer any extra questions you may have!
—-
MECHANICAL

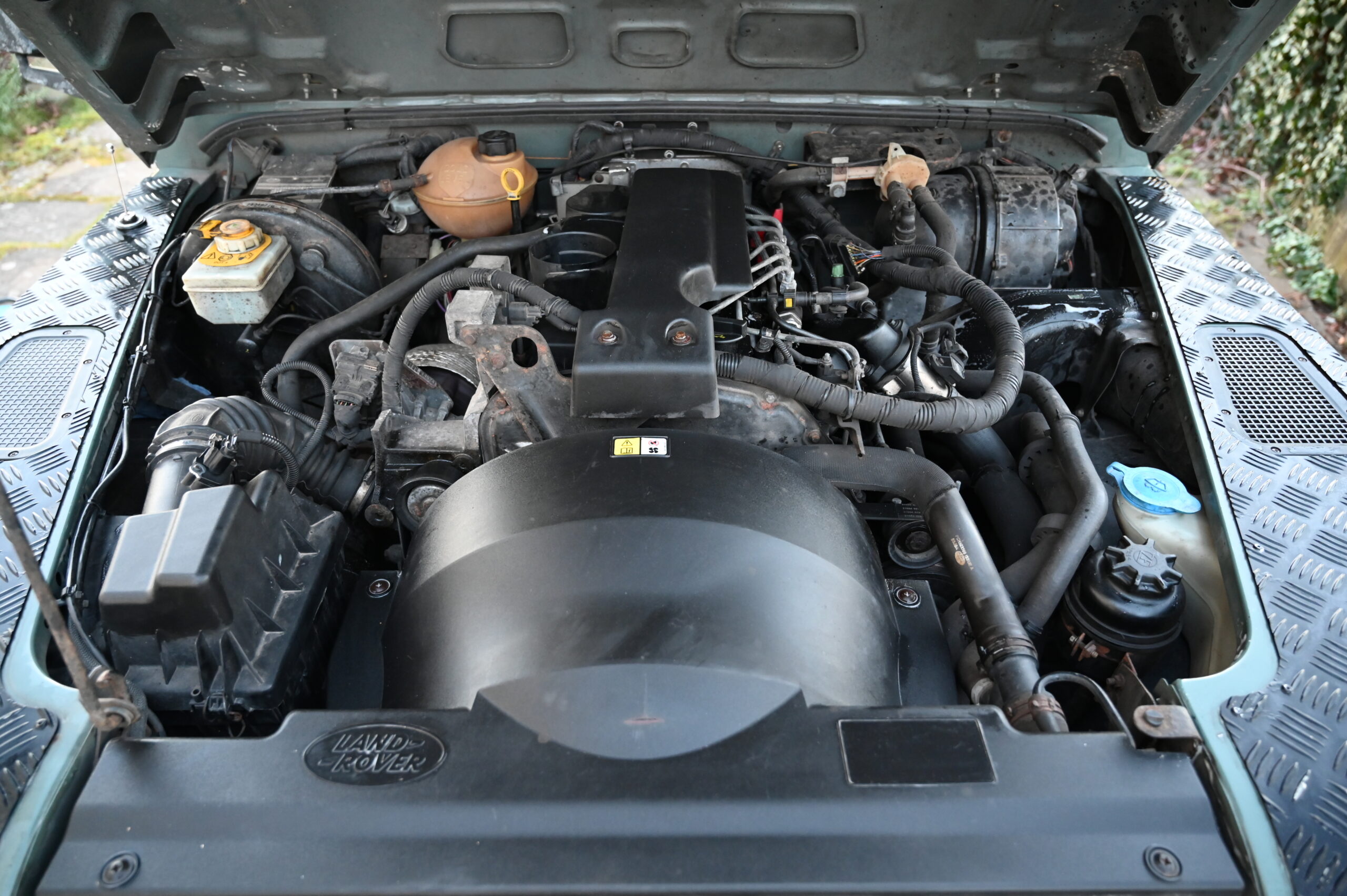

2008 2.4 TDCi Puma Land Rover Defender 110
UNGALVANISED – untreated original chassis in very good condition.
FULL-SERVICE HISTORY
3 OWNERS (INC MOD)
2 KEYS FOR VEHICLE & 2/3 KEYS FOR WINDOWS ETC.
DRIVES AND RUNS VERY SMOOTHLY
12 MONTHS MOT
FULL SERVICE – on 07/12/2023
NEW TYRES X4
Goodyear Wrangler All-Terrain Adventure.
235/85R16 12Q
NEW CAMBELT – 2023
NEW BRAKE PADS – front & rear
NEW STARTER BATTERY – 2023
NEW MASS AIR FLOW SENSOR – 2024
NEW FRONT BUSHES X4
Was tracked 24/11/23 at John Wood Tyres.
NO OIL LEAKS
—-
ACCESSORIES/OTHER
VEHICLE TRACKER BY DefenderDefender
Remote Immobiliser (cut off the fuel source anytime/ anywhere).
Brilliant tracker, has great service, well hidden, live feed, engine status alerts, and vibration alerts. This tracker has everything you could ever want – £12.99 pm
LR ALARM FITTED

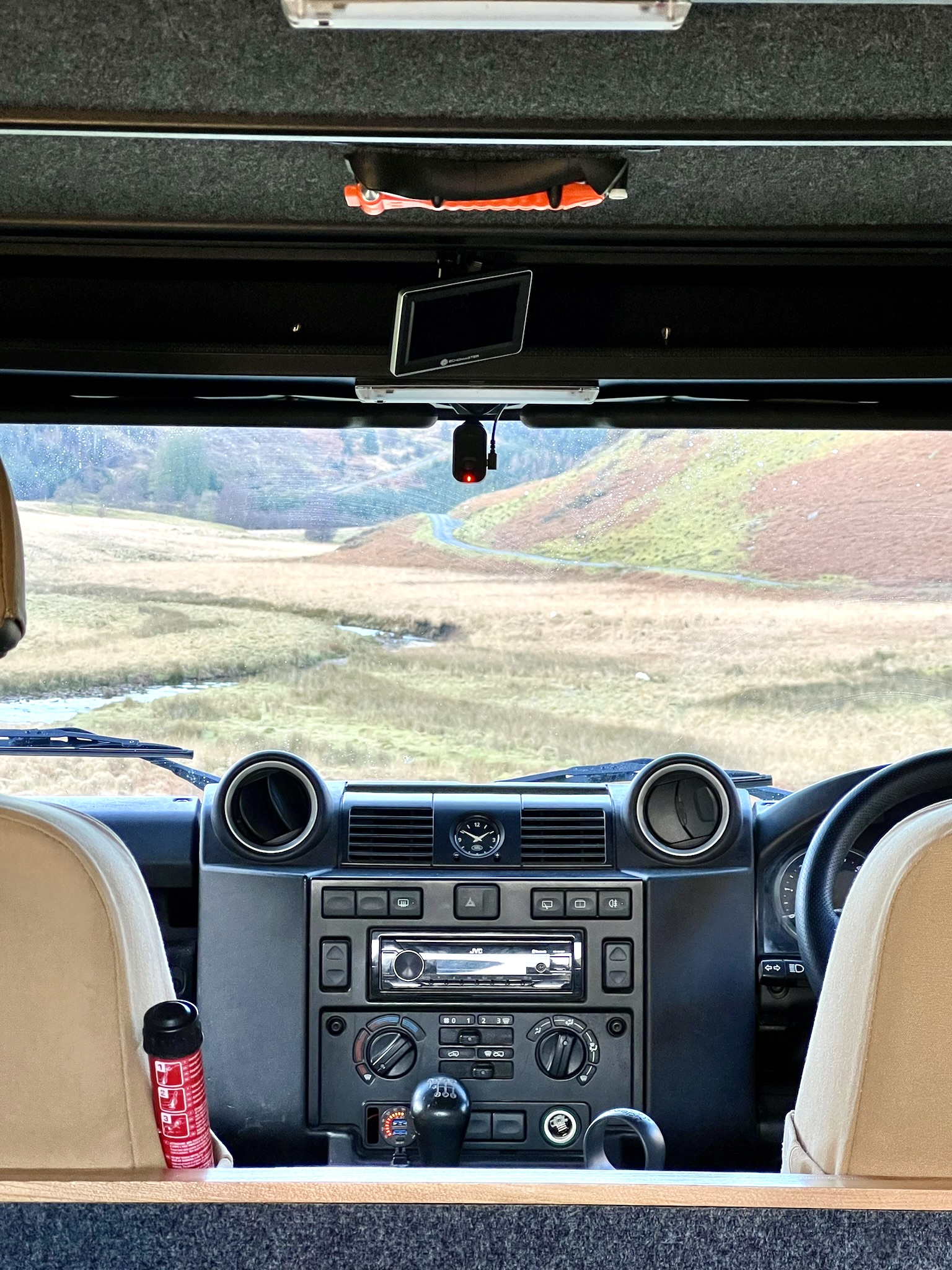

REVERSING CAMERA – (live feed)
Replaces the rear mirror to give a clear view of the windscreen.
DASH CAM – Garmin Mini 2
With Micro SD – 128GB
JUMP LEADS – LR Defender Connector
Stored behind the passenger seat.
DISK LOCK – yellow (OPTIONAL WITH SALE) £120
—-
INTERIOR CAB
SOUND DEADENED
The whole rear is fully sound-deadened, drastically reducing road noise in the cab.

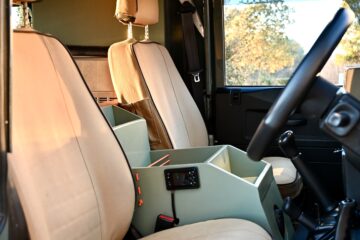

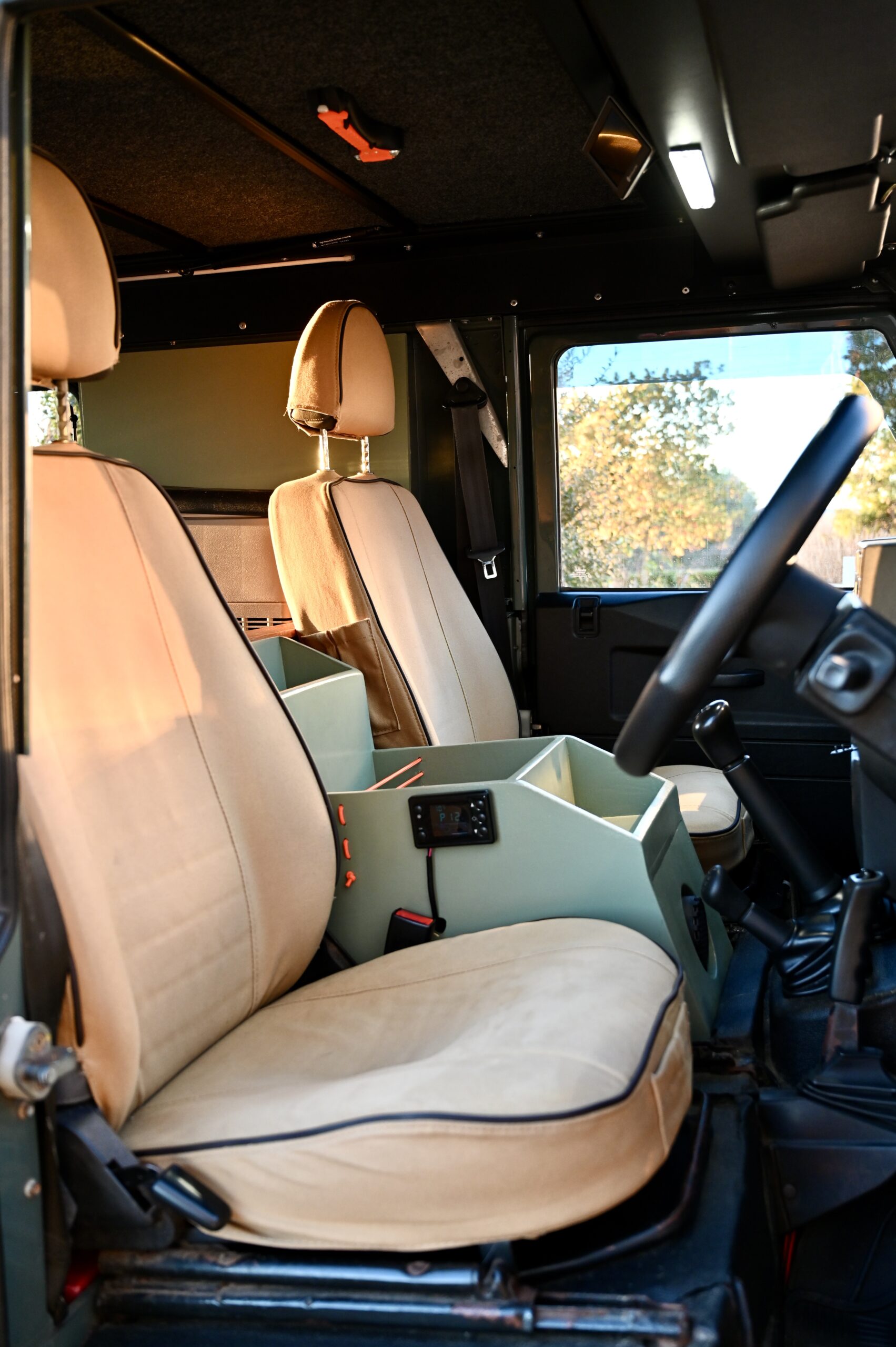

BESPOKE WOODEN CUBBY BOX
Custom-made, and matches the style/colour palette of the build.
The diesel heater monitor is attached with Velcro to the side. (Here it can pick up the remote signal from anywhere in the vehicle).
12mm birch ply & paint matching, from Lick, the interior build.
DIESEL HEATER
Mounted to the bodywork underneath the cubby box with bolts, but can be easily accessed via unplugging the diesel heater monitor and lifting the cubby.
CONTROL SWITCH
Located on the dash which controls the rear flood lights.
NEW BLUETOOTH RADIO
ORIGINAL LR SPEAKERS
EXMOOR TRIM SEAT COVERS
Puma Front pair post 2007 Canvas – Tan
VINYL/LEATHER FRONT SEATS
In very good condition.
ORIGINAL LR STEERING WHEEL
Momo steering wheel taken in AD photos NOT included.
FRONT PARCEL SHELF – with cab light
MUD STUFF FLOOR MATS
—-

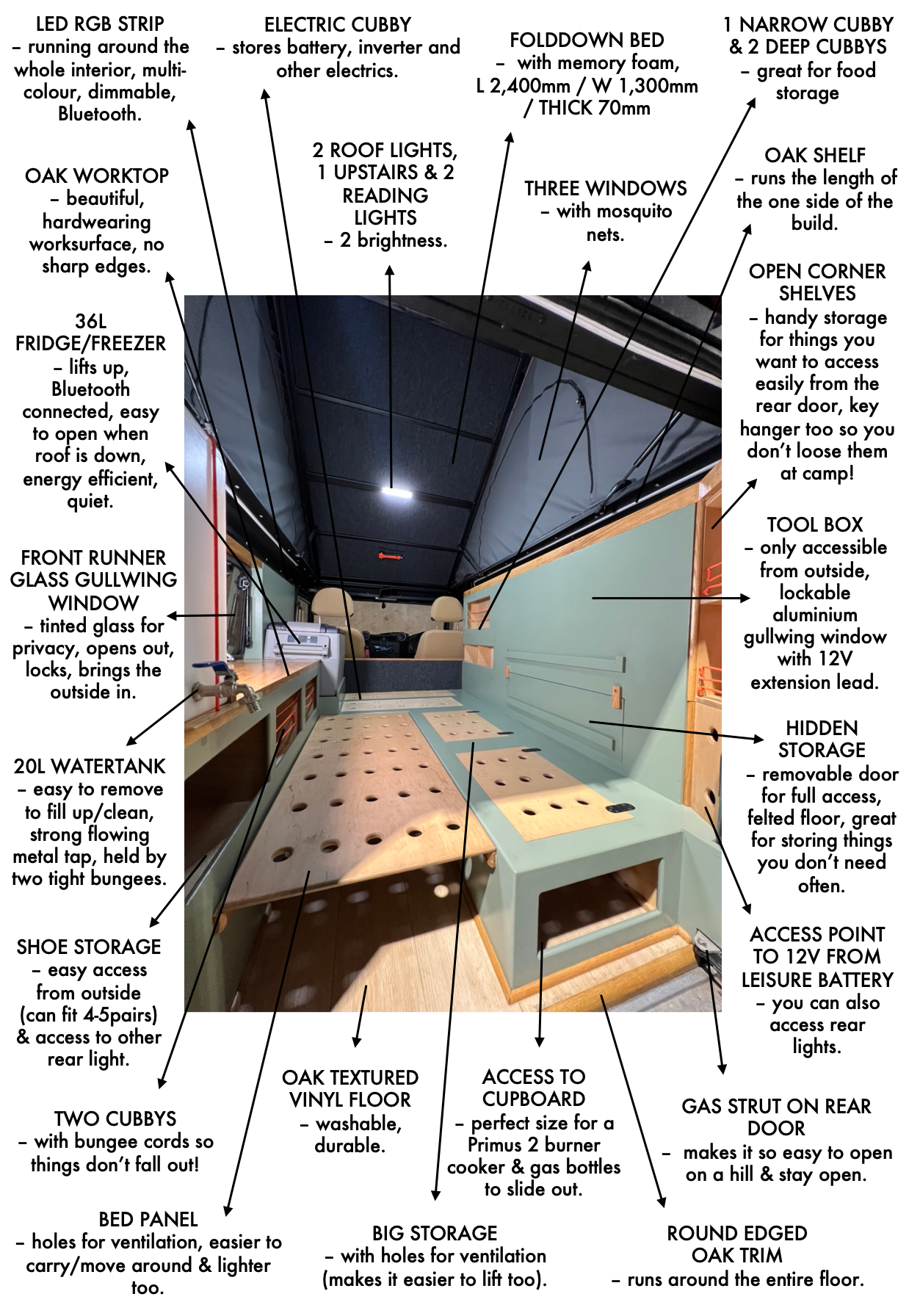

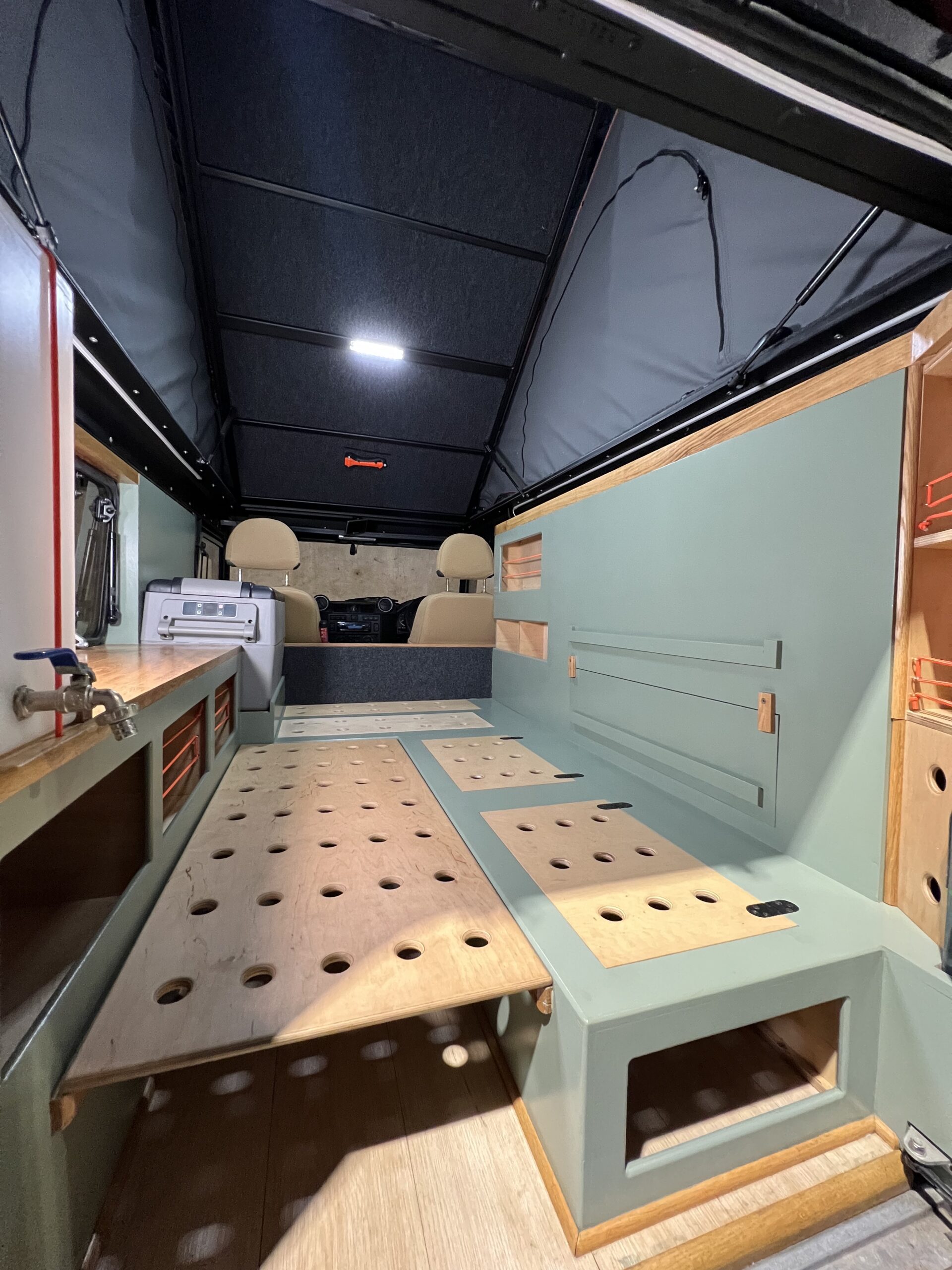

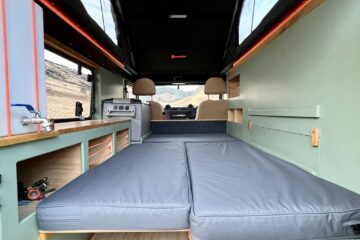

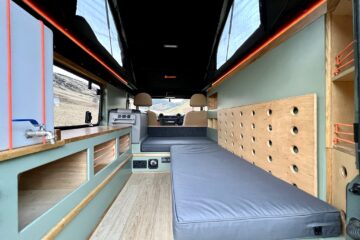

CAMPER BUILD
Designed & built by Liv Wilder Ltd in collaboration with Almasi Zolten from Apple Joinery, alongside lots of advice, help and encouragement from my Mum & friends!

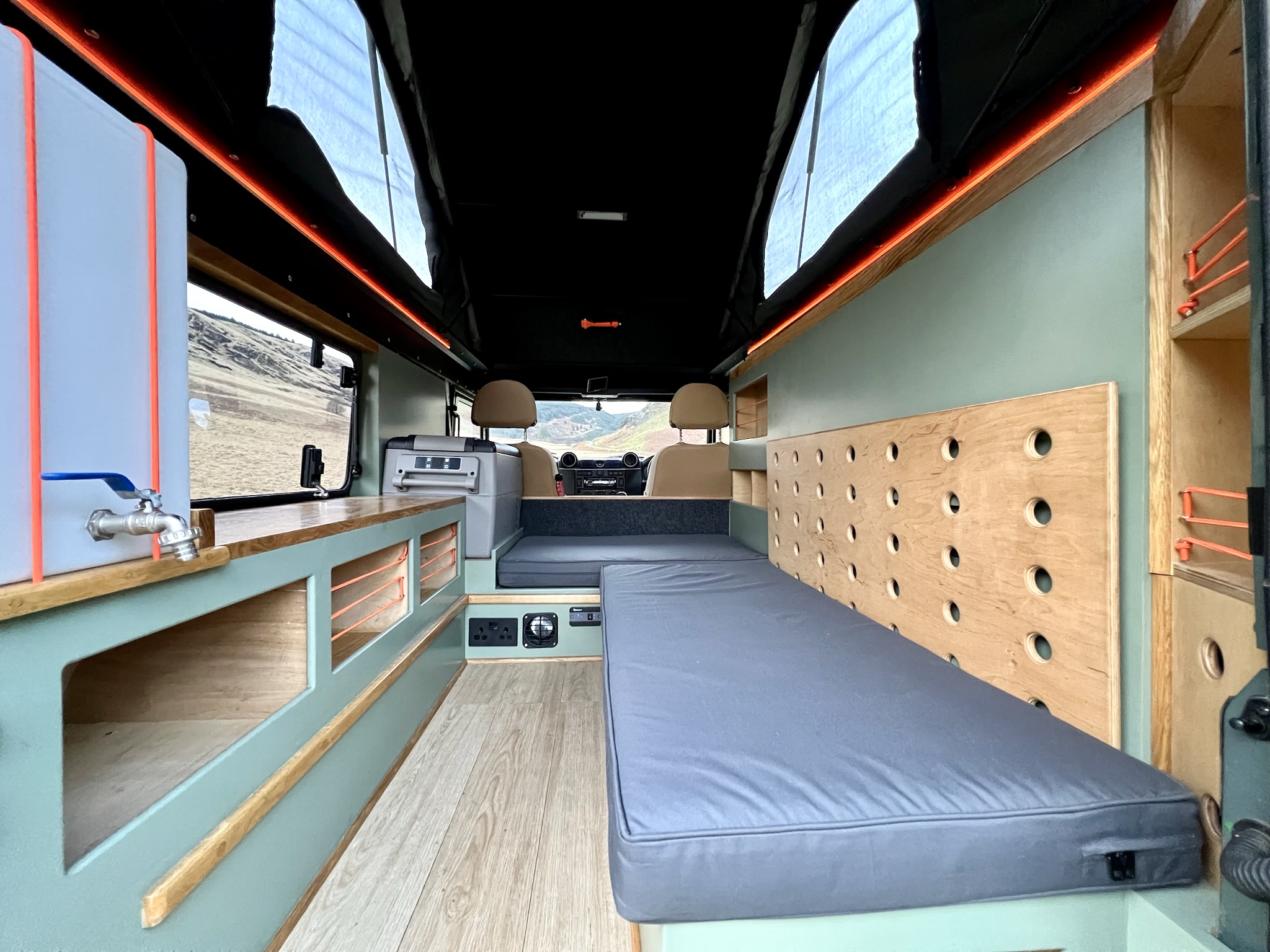

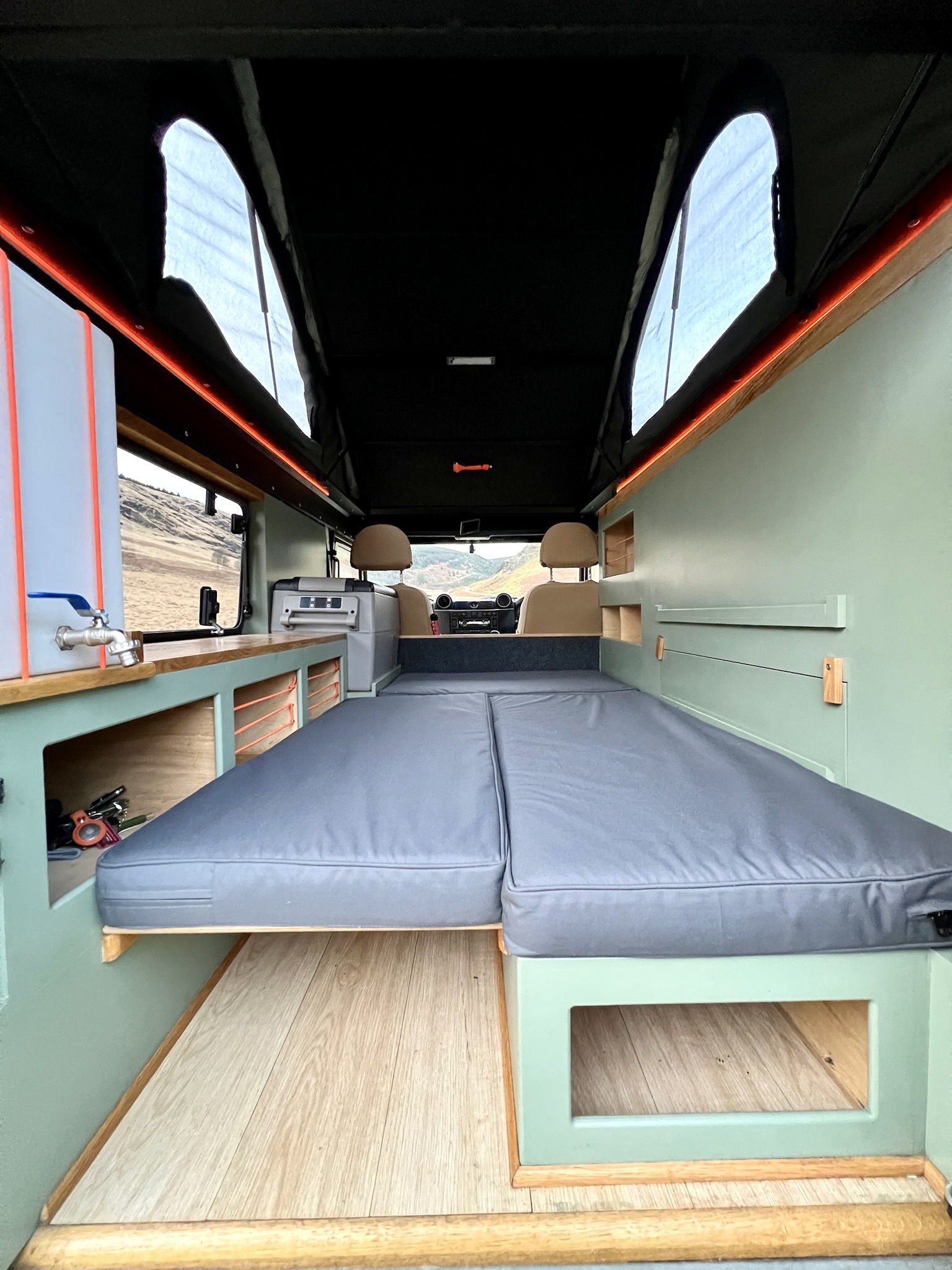

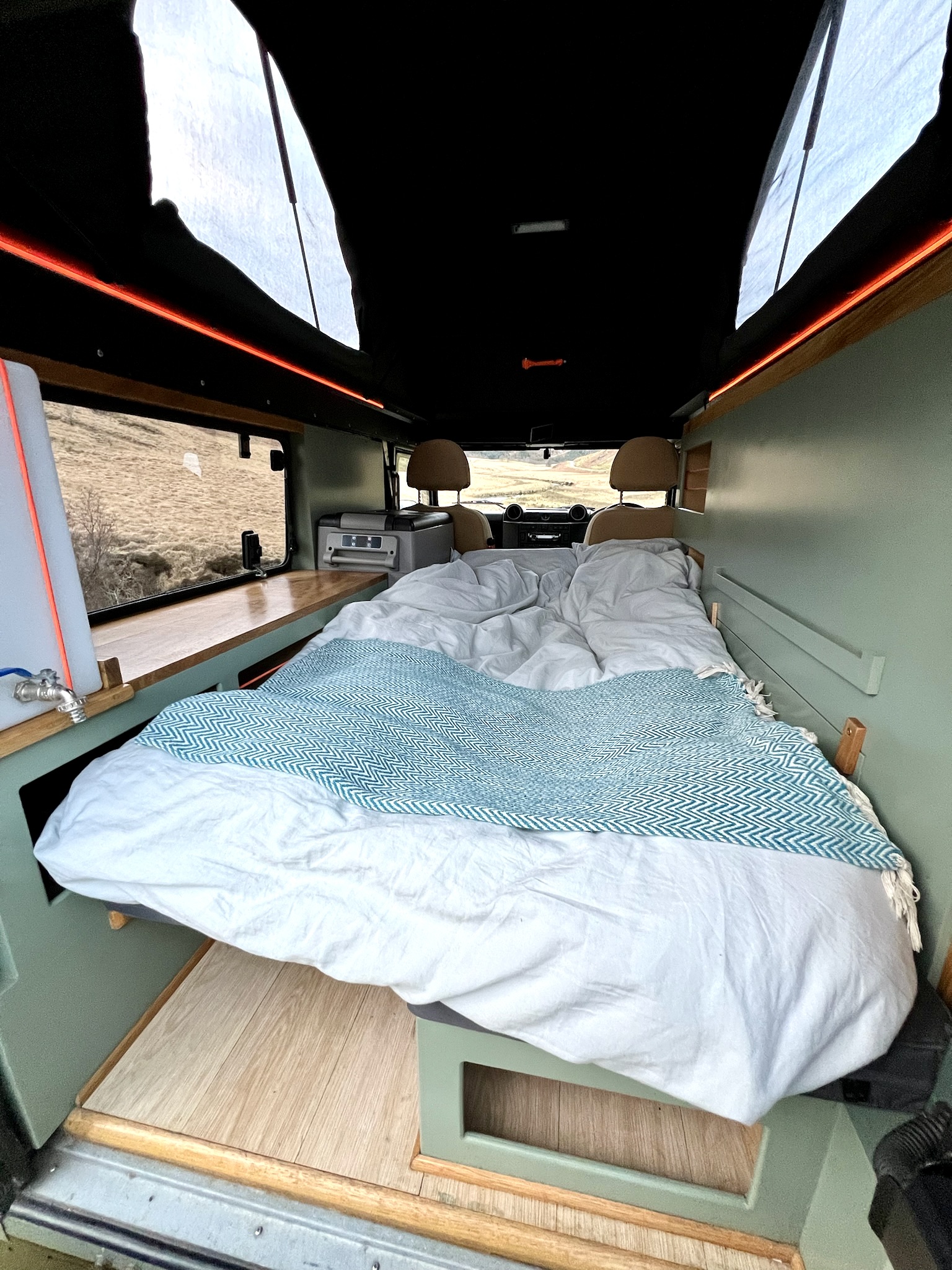

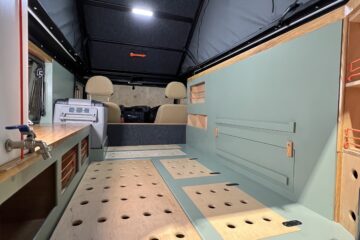

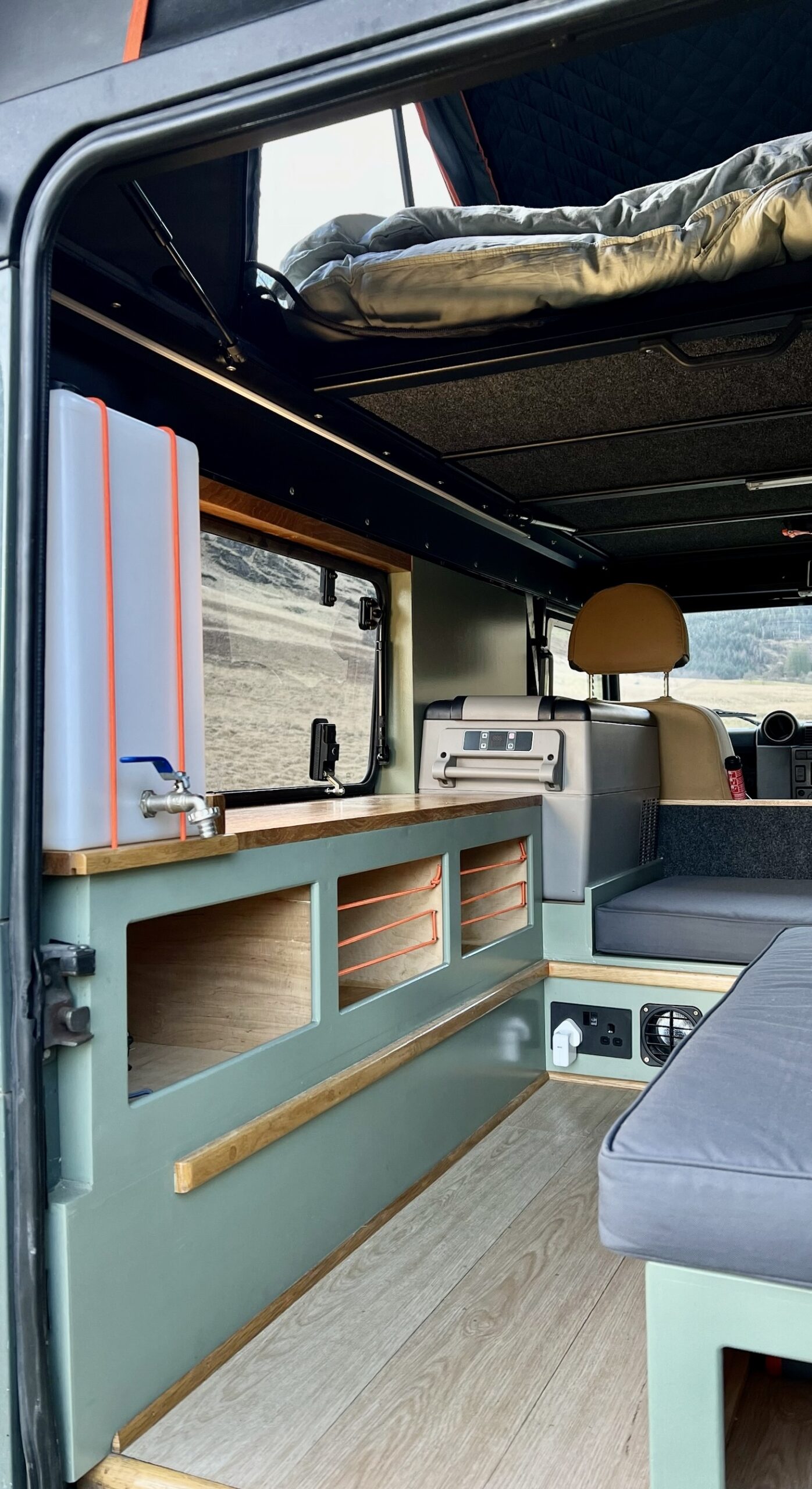

BESPOKE BUILD
Made from 12mm Birch Plywood & reclaimed Oak for the worktop and trim.
REFRESHED FOR SALE
The build has been completely sanded down & repainted since the Europe road trip so it’s spotless and in perfect condition.
SOUND DEADENED
The whole interior (inc. rear door) is completely sound deadened with Dodo Mat DEADN Hex Special Edition.
FULLY INSULATED
The whole interior is fully insulated with Dodo Super Liner 12mm.

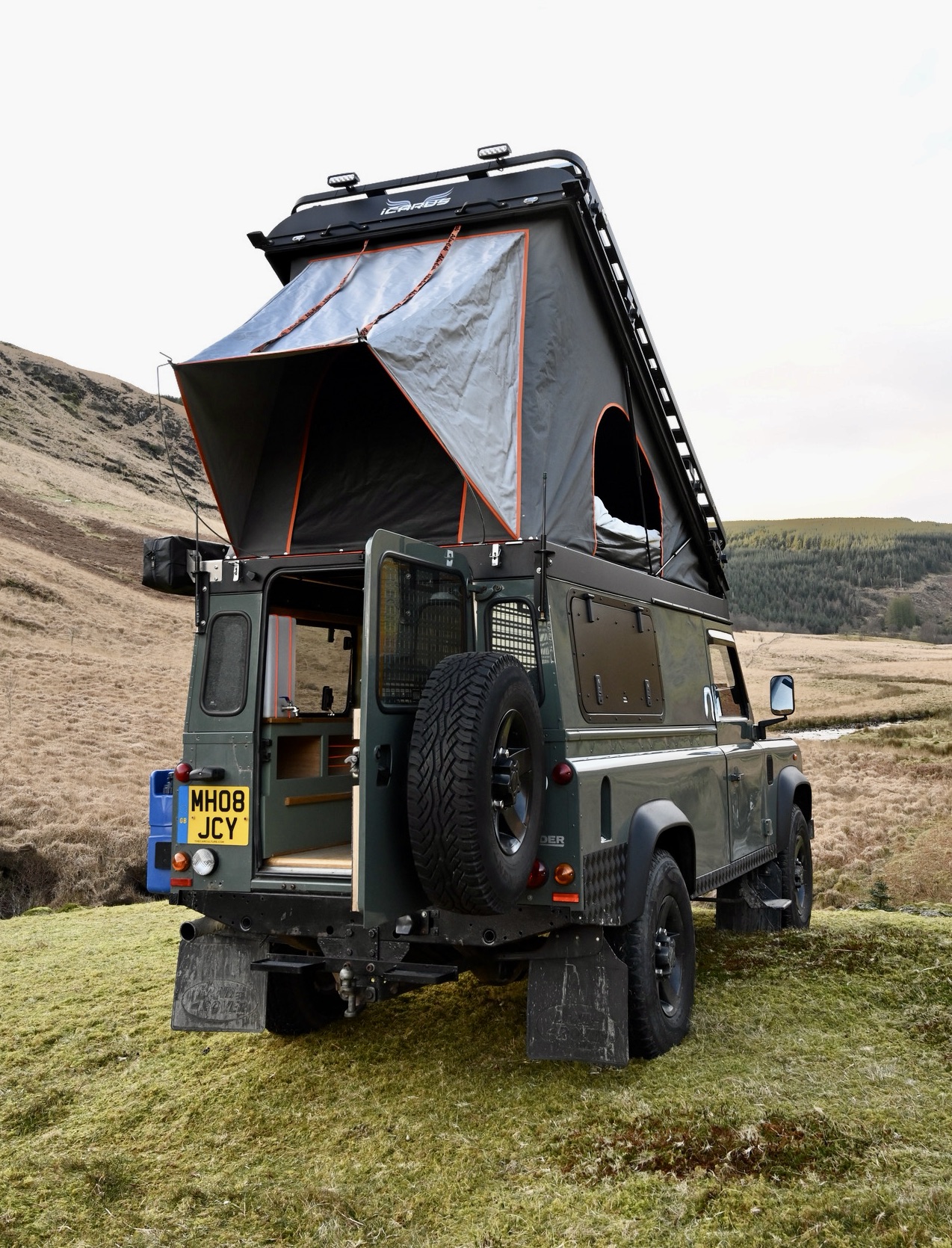

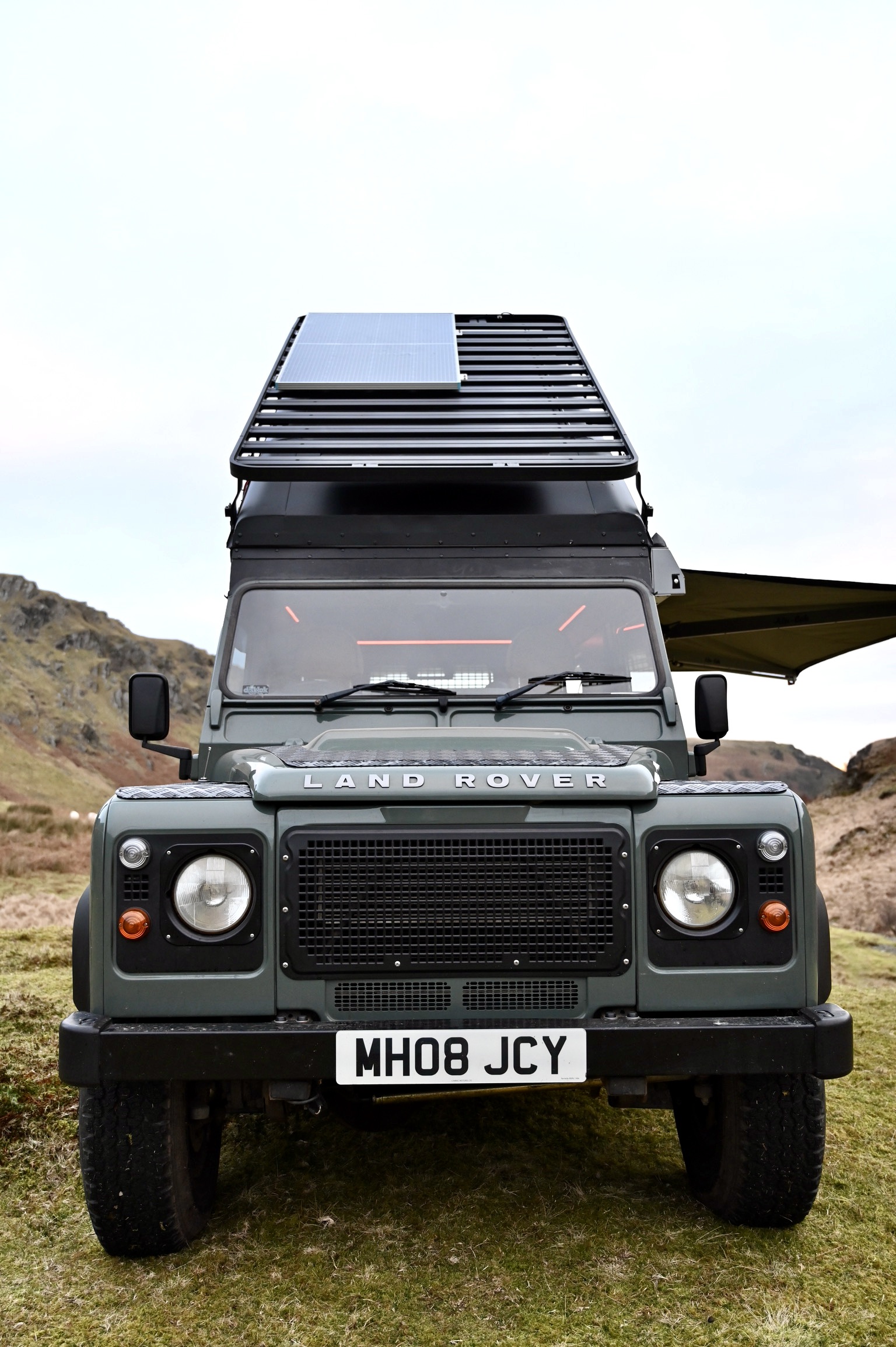

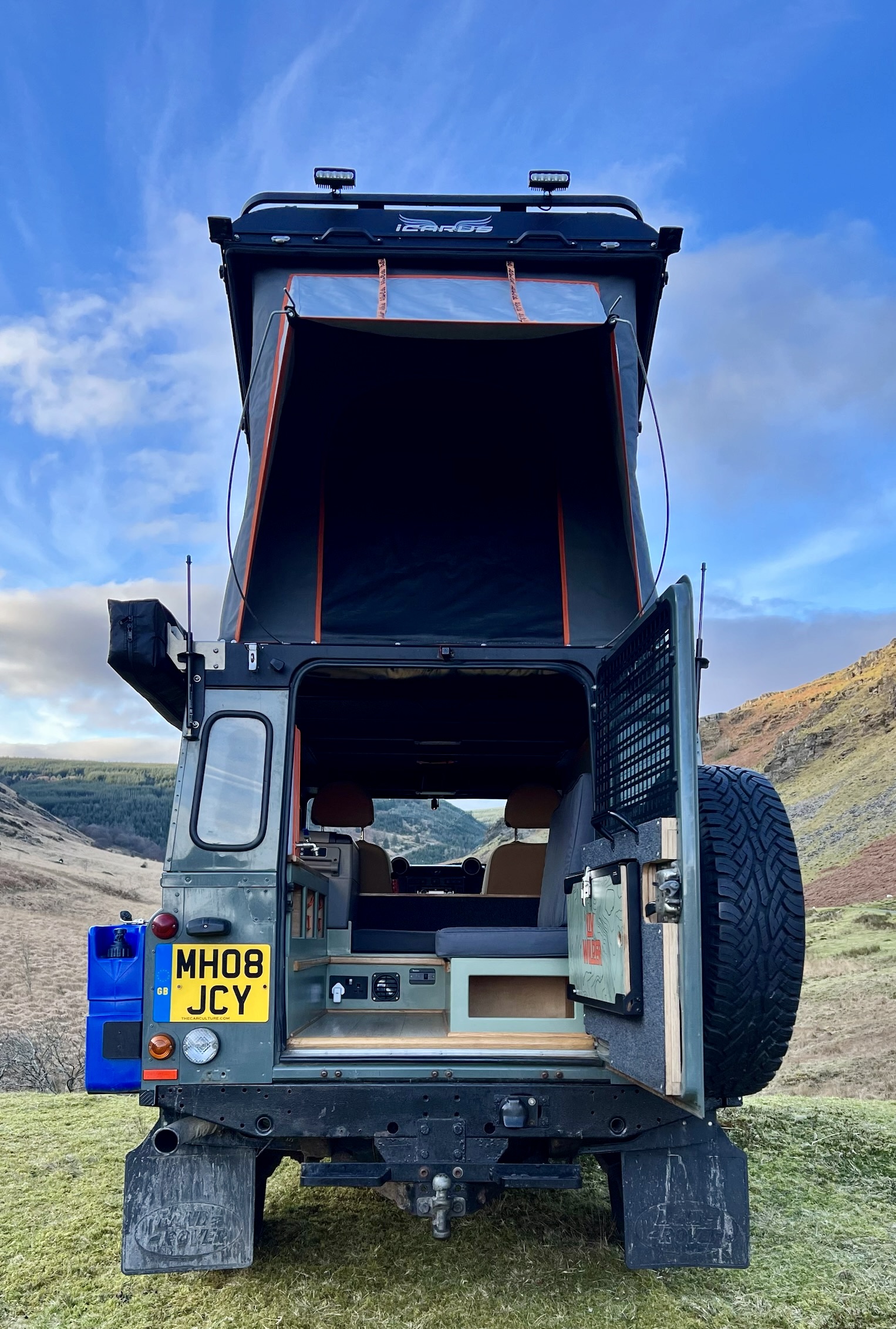

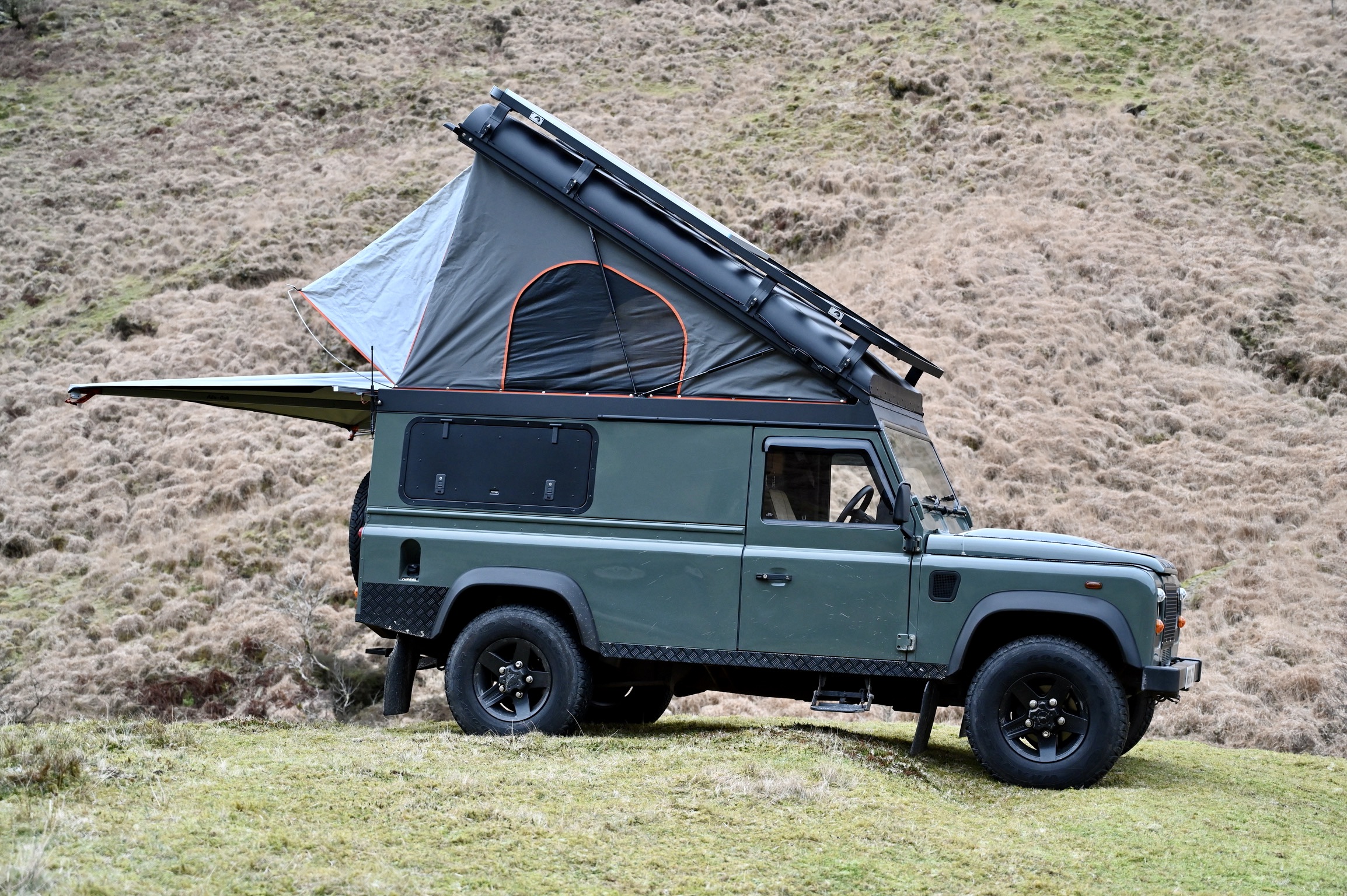

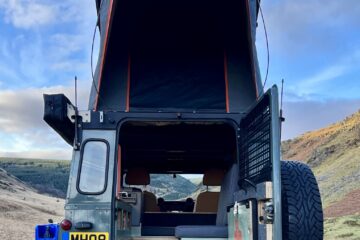

ALU-CAB ICARUS POP-TOP CAMPER CONVERSION
Fitted by Nene Overland in Peterborough.
Upgraded gas struts for extra weight from roof rack & solar.
Has a black-out cover & a fine mozzie cover over windows, or you can have them fully open.

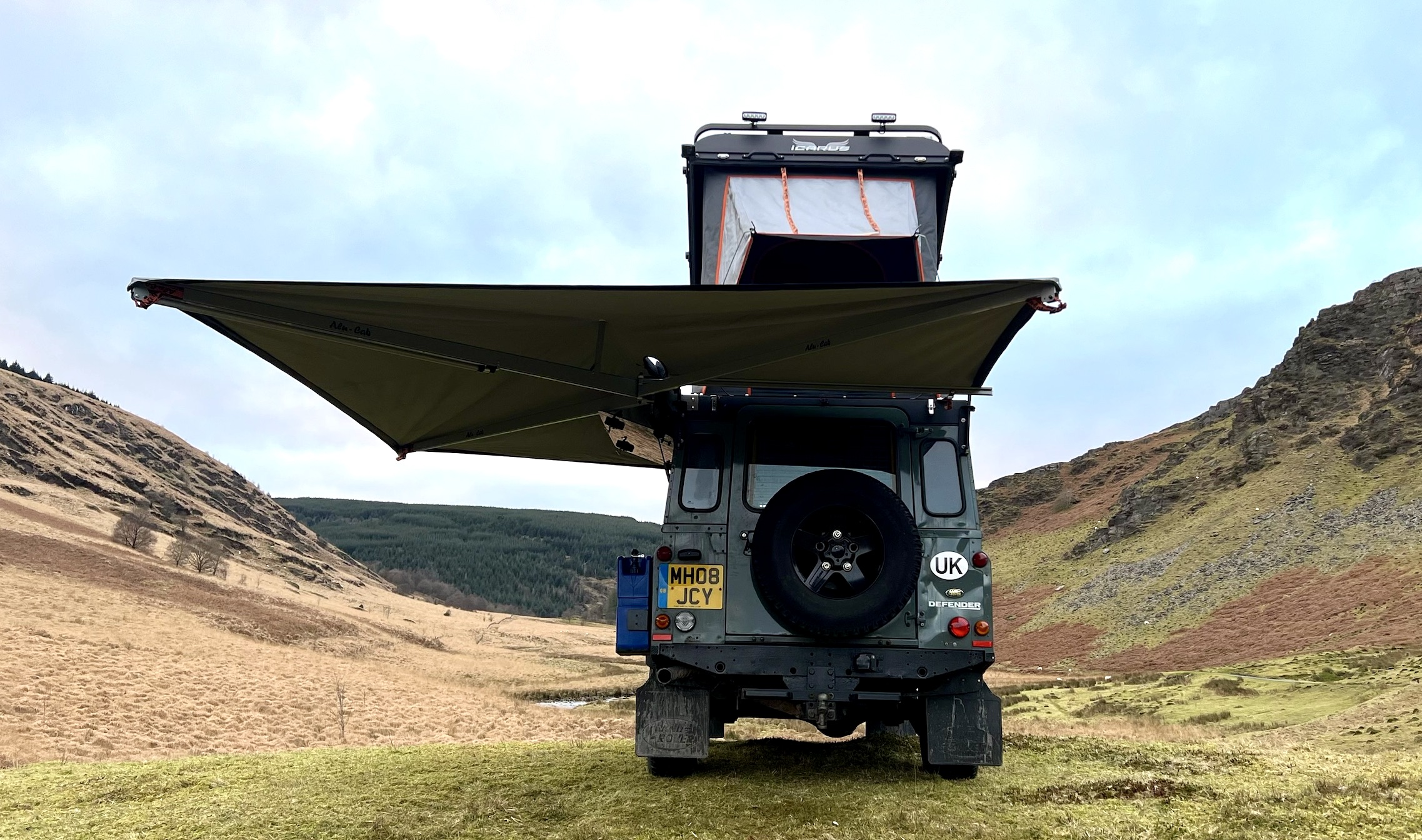

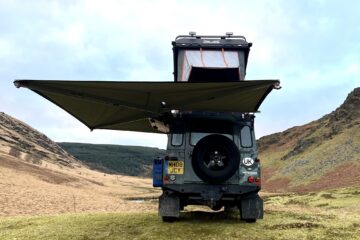

ALU-CAB 270 SHADOW AWNING
Fitted by Nene Overland in Peterborough

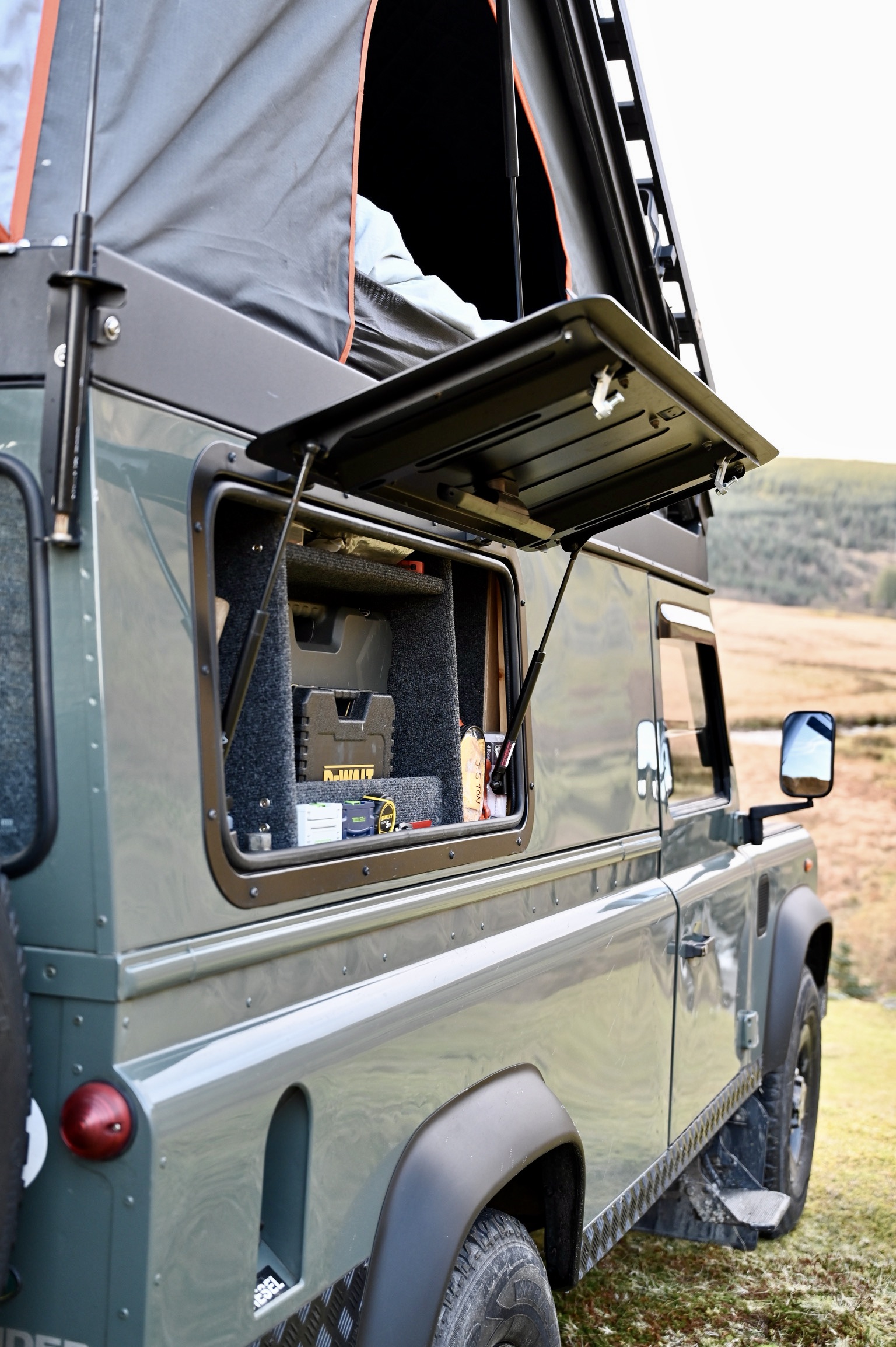

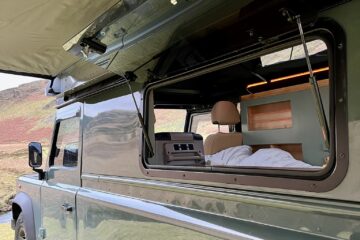

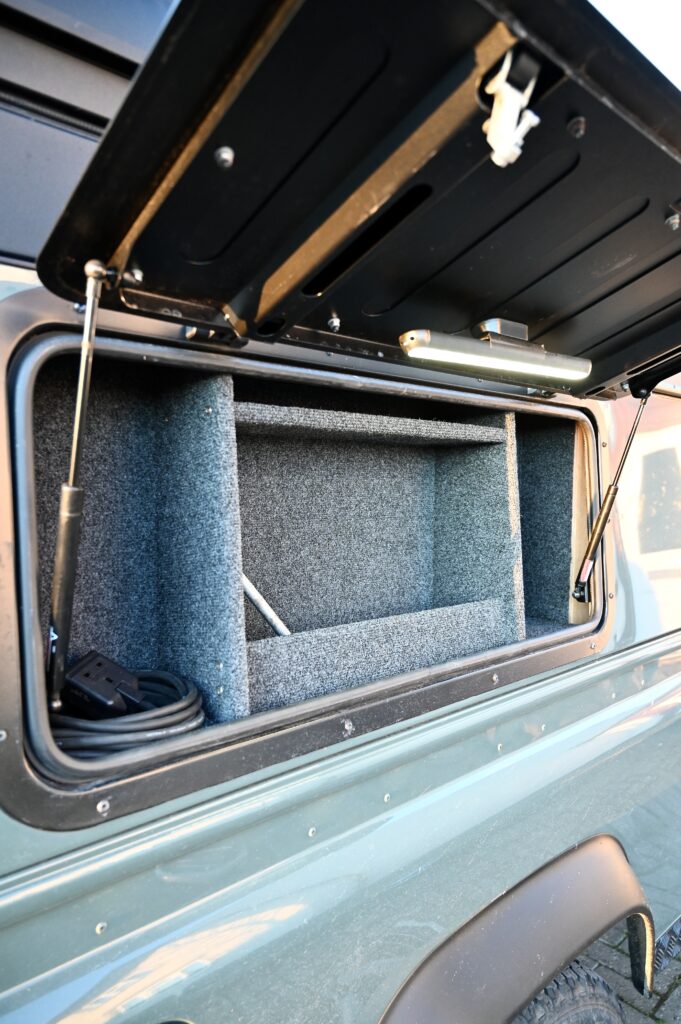

FRONT RUNNER ALUMINIUM GULL WING – black
On drivers’ side
Access to custom toolbox via window
Lockable x4 keys

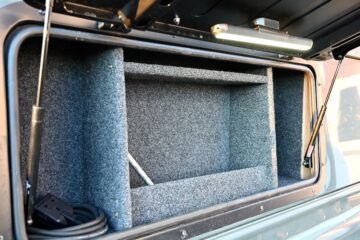

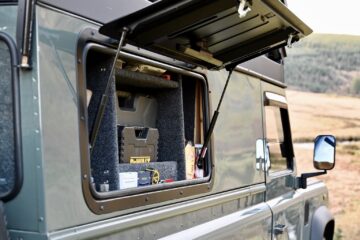

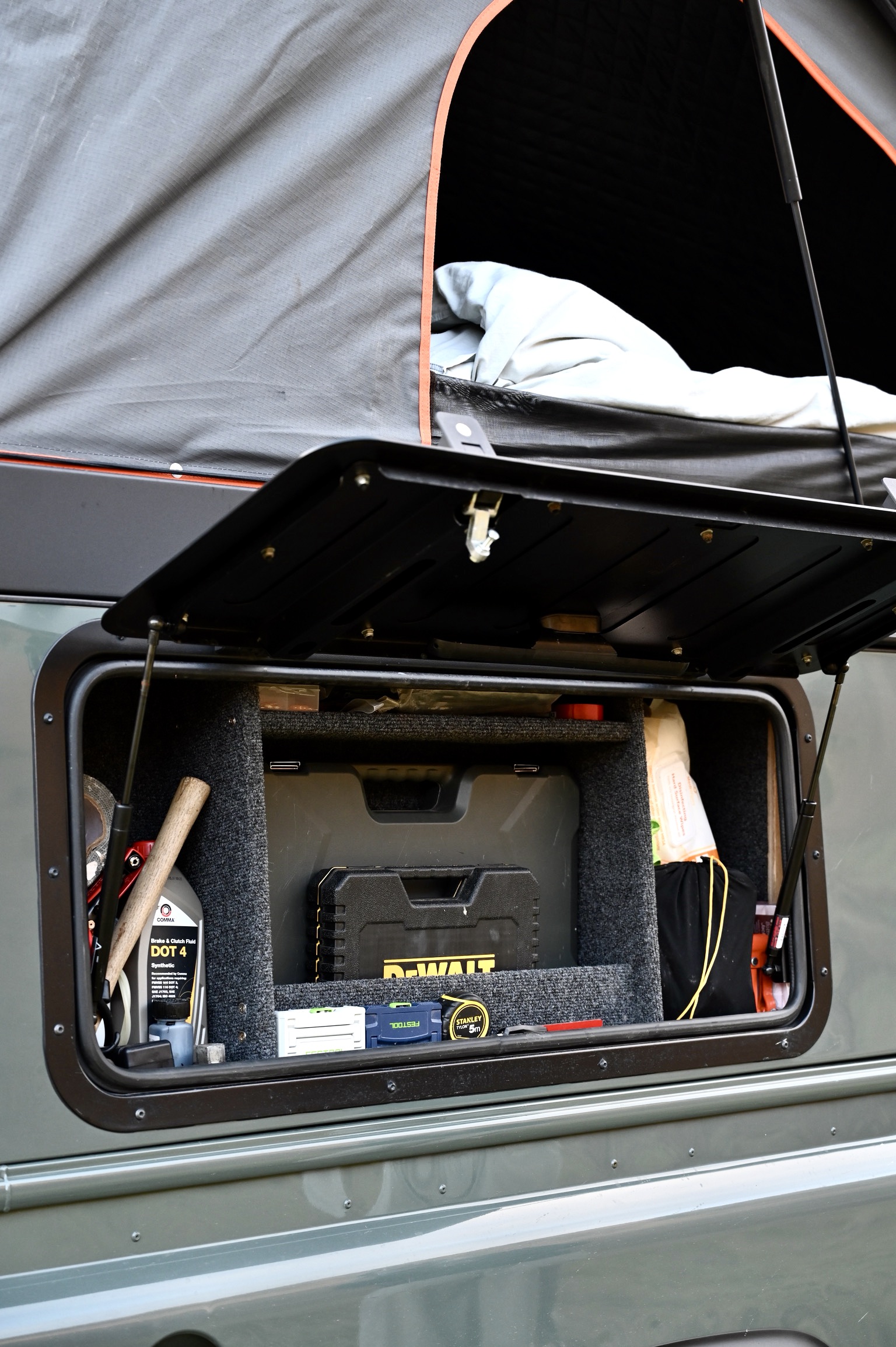

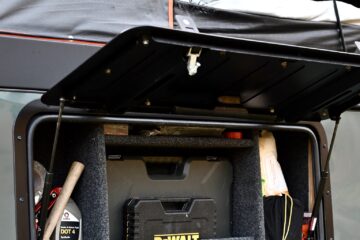

Inside the gullwing is a hidden bespoke toolbox
It’s a sturdy unit built from high-quality 12mm/15mm Birch plywood, covered in a tough, dark grey fabric which matches the Alu-Cab roof inside perfectly.

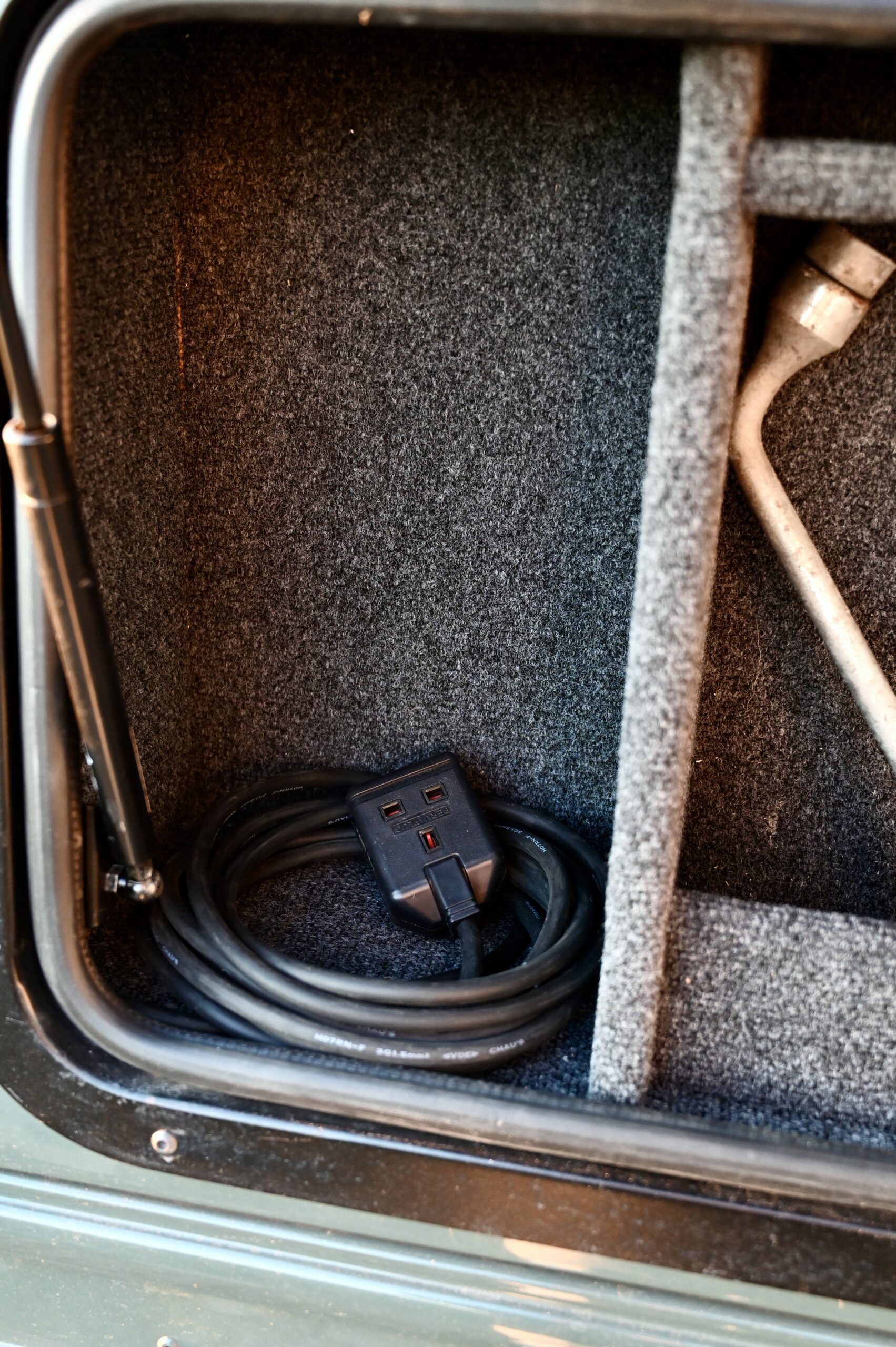

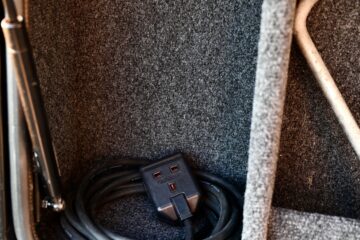

Includes a 230V 3-meter extension cable which tucks away neatly in the corner.
Perfect for storing tools/expensive gear as it’s lockable and hidden out of view and also away from your ‘home’ where you won’t get oil/grime on your things as it’s not inside the actual living space but still very easy to access & use.
Rechargeable Magnetic LED work light to illuminate toolbox

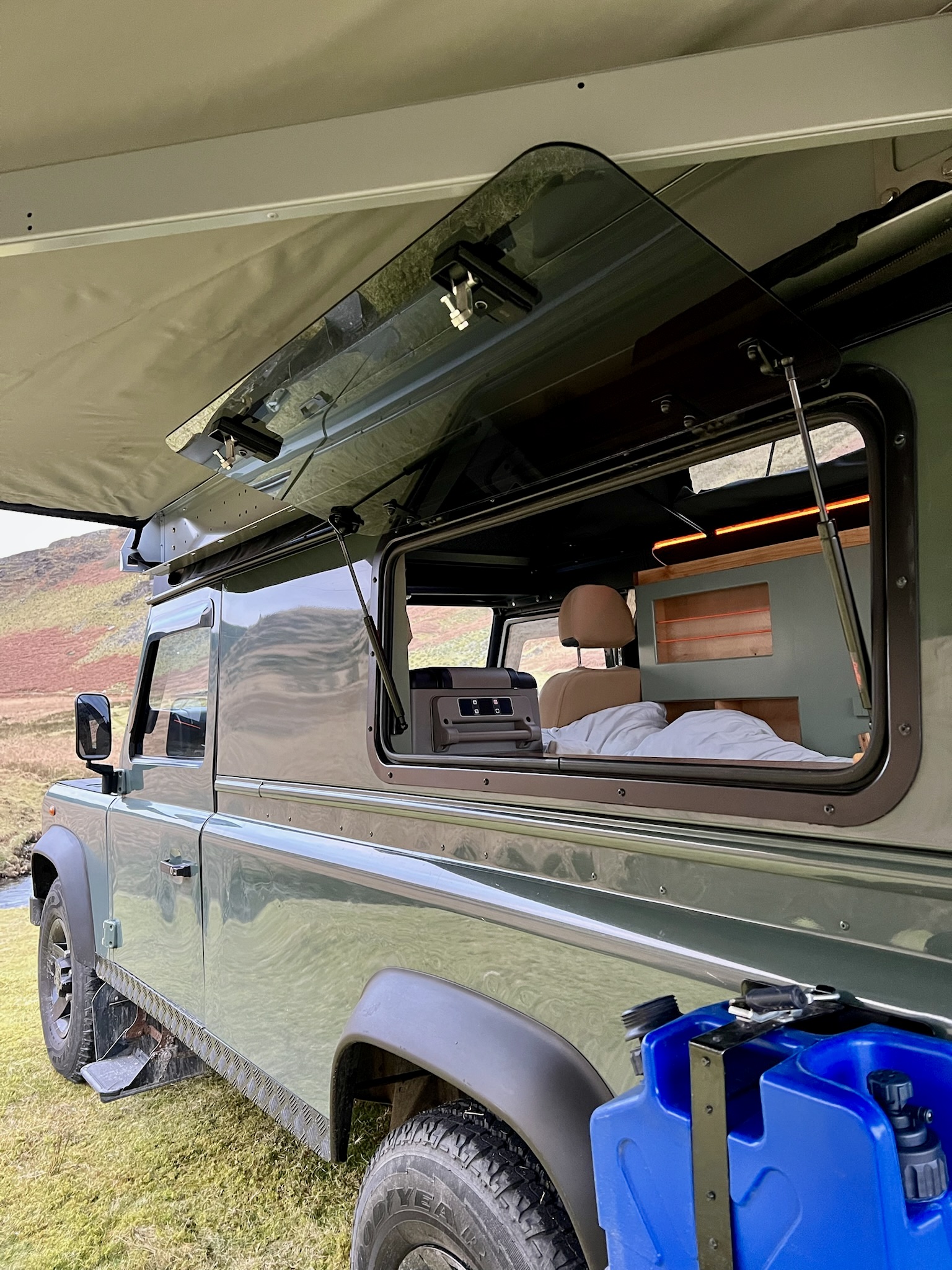

FRONT RUNNER TINTED GLASS GULL WING
On passengers’ side
Lockable x4 keys
LIFESAVER JERRYCAN
18.5L with black mount outside on passenger side
Purifies up to 20,000L of clean, safe drinking water.
Holds up to 18.5L of water at one time.
Removes 99.99% of viruses and bacteria.
Includes activated carbon filter to remove chlorine, taste and odour from water.
Includes LifeSaver Jerrycan Shower Attachment for washing or cooking.
FailSafe technology: No water will pass through once the filter service life has been fulfilled.

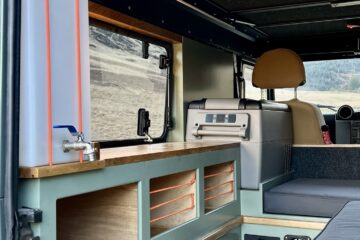

20L CLEAR INTERNAL WATER TANK
With durable metal tap.
Easily accessible from both inside and outside the vehicle.
Can be removed in seconds to fill as it is held in place with tight bungee cords.

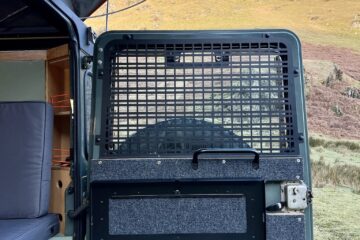

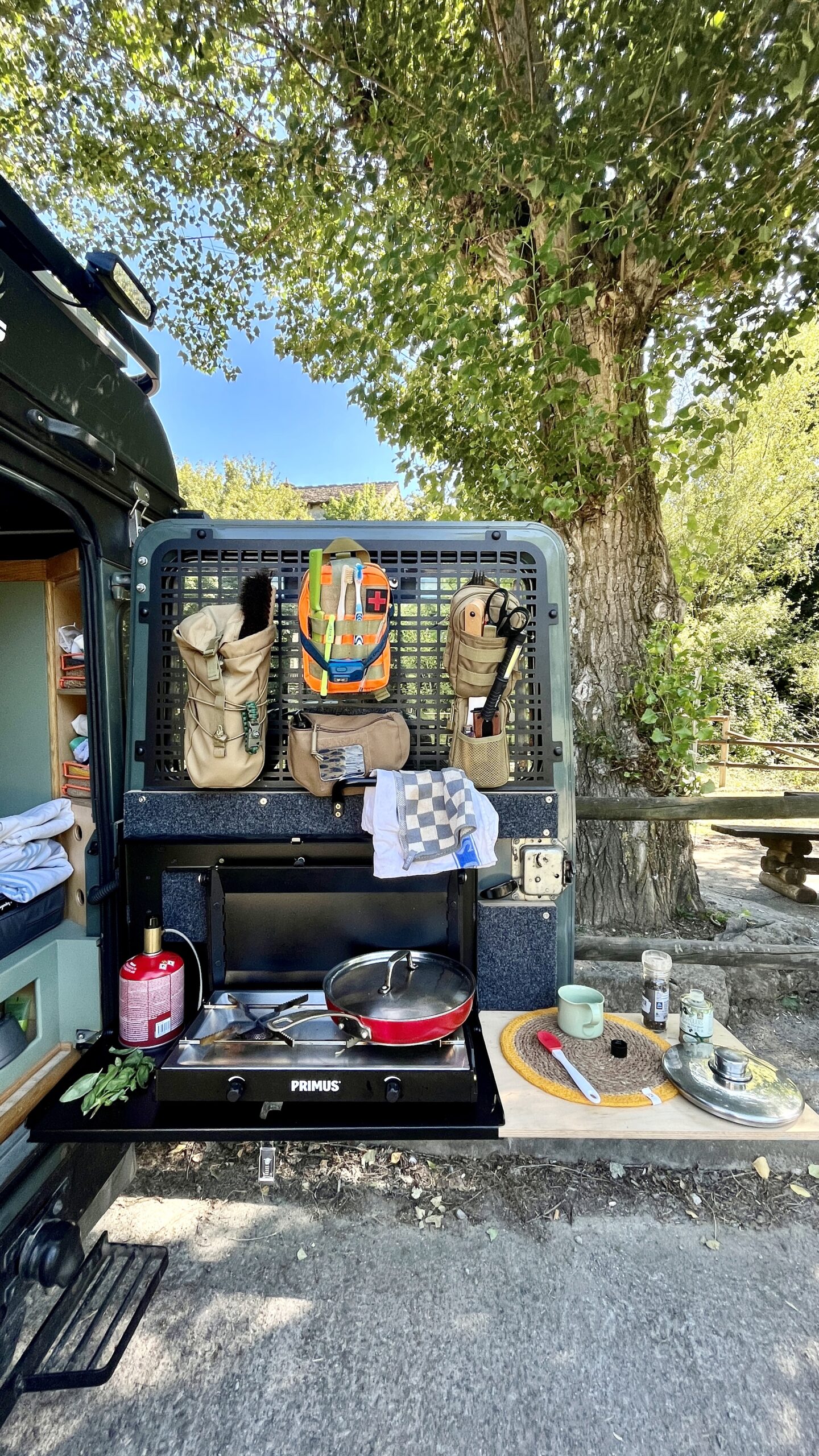

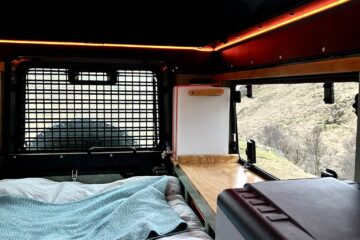

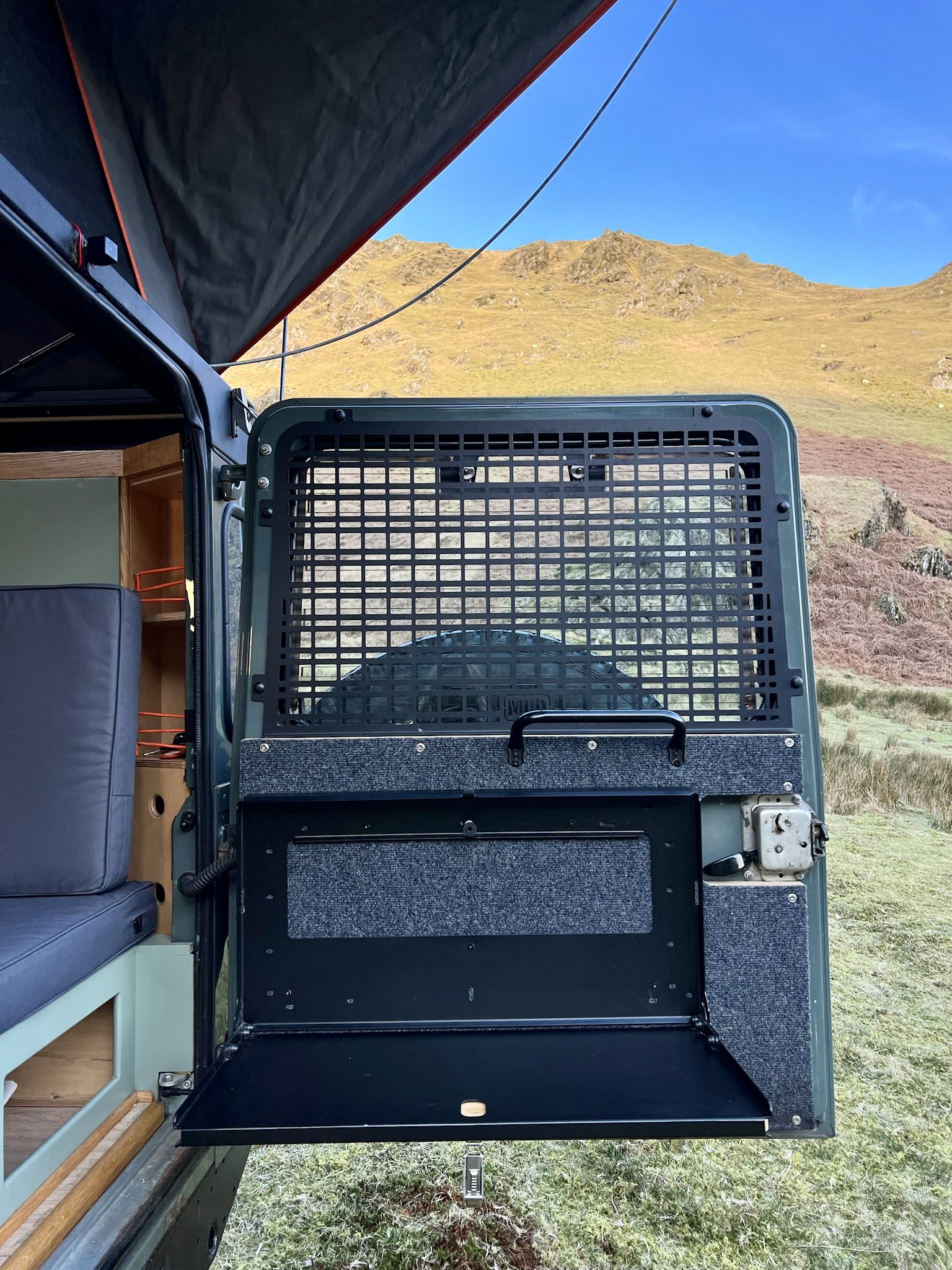

MUD PALS PANEL
Rear Door Window.
Great for attaching Mollie bags to it for extra storage.

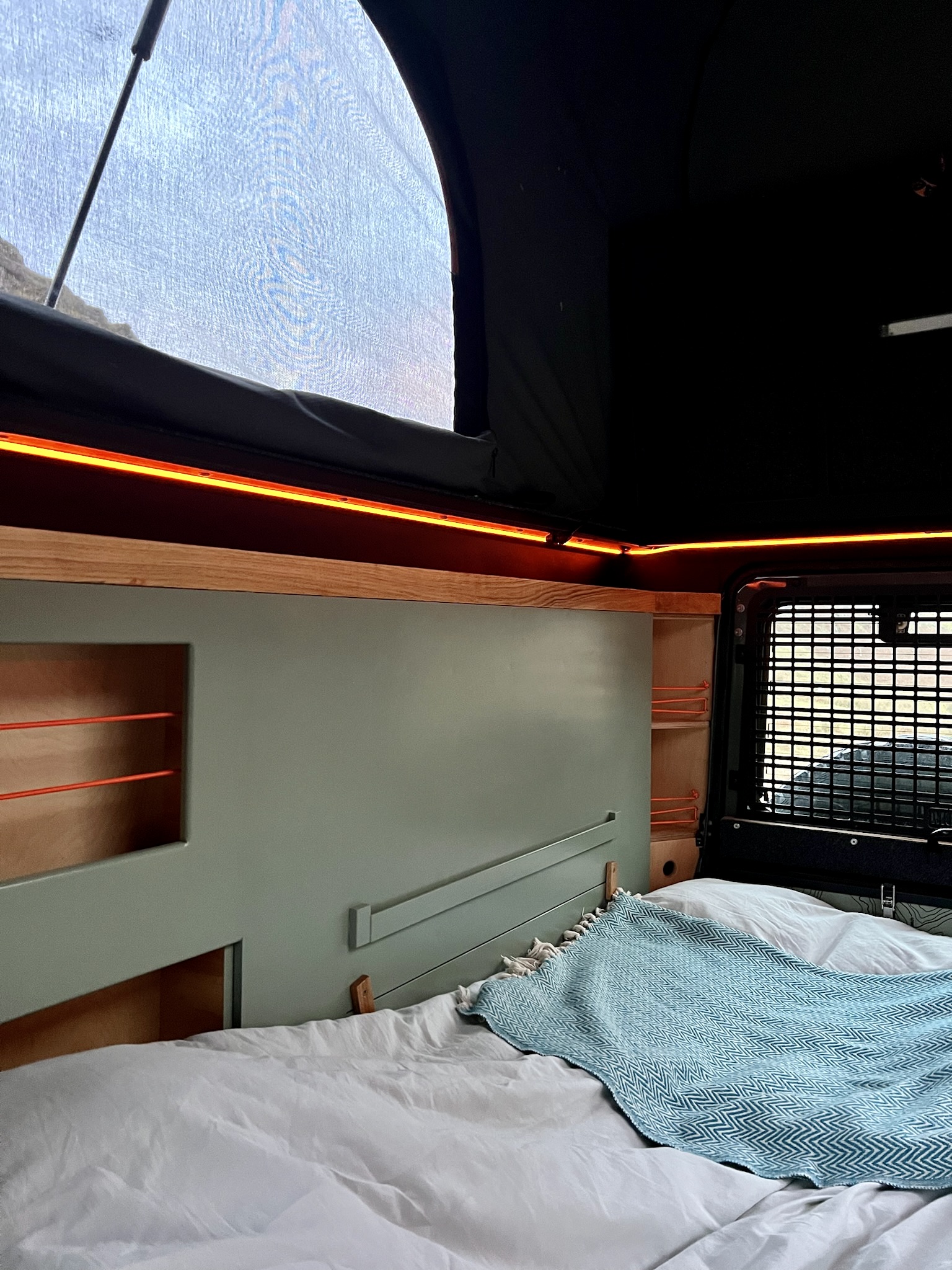

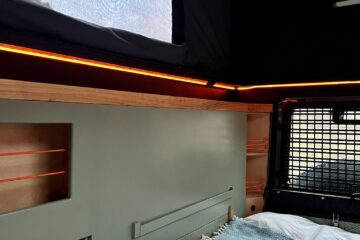

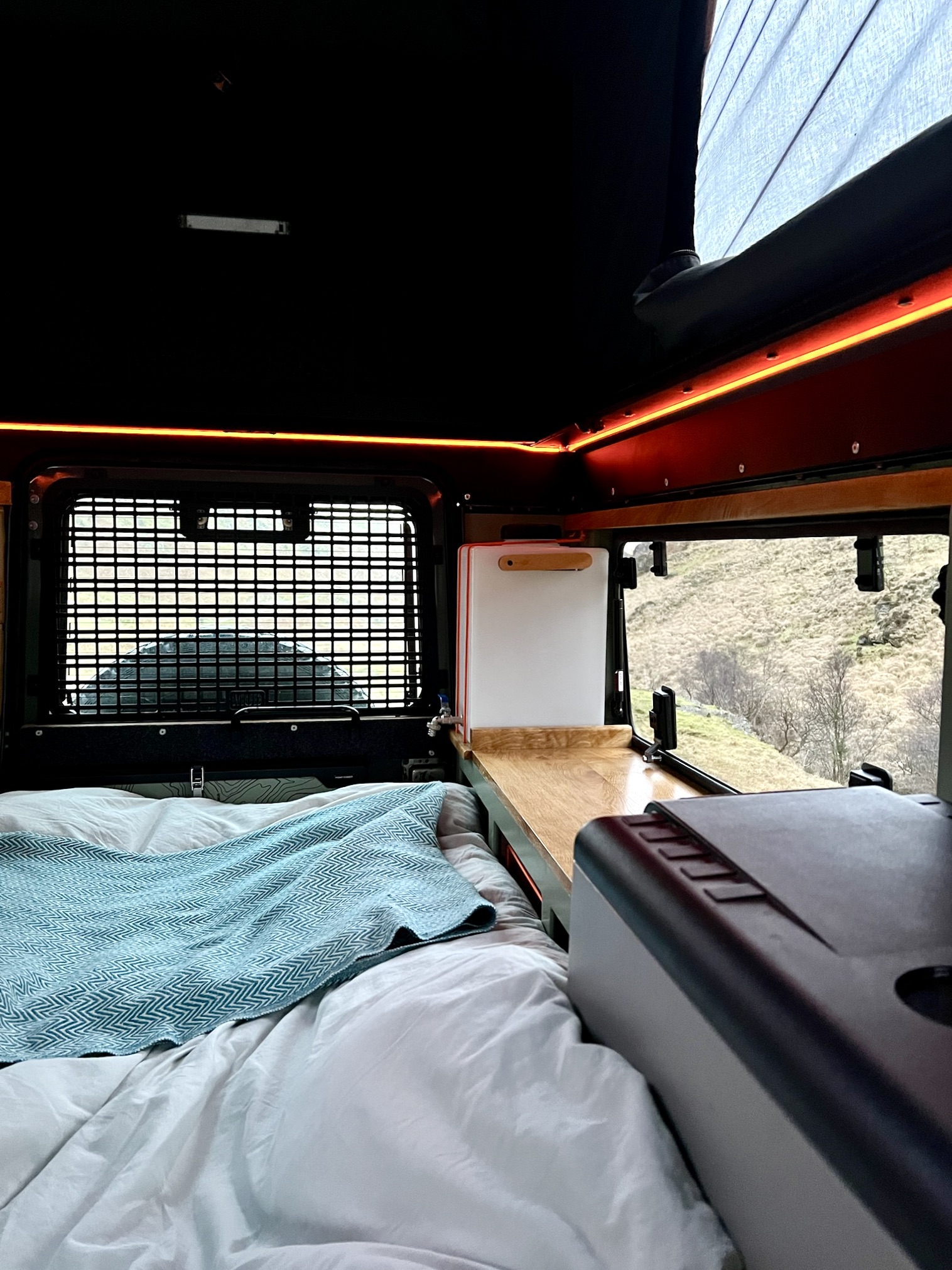

LED RGB LIGHT STRIP
Runs around the whole interior along the black Alu-Cab trim.
Controlled via an app on your phone or the controller, you can change the colour & brightness of the strip. Great when you’re camped around mosquitos as you can turn on a red light and attract far less attention from them!
VELCRO MOSQUITO NET
Attached above the rear door.
Has a magnetic opening, great for keeping bugs and mozzies out!
PAINTED
With durable Lick paint, the colour compliments the exterior perfectly!
BESPOKE REAR DOOR CARD – made from 12mm Birch Plywood.
FRONT RUNNER DROP-DOWN TABLE – with custom extension board saying
‘Liv Wilder’

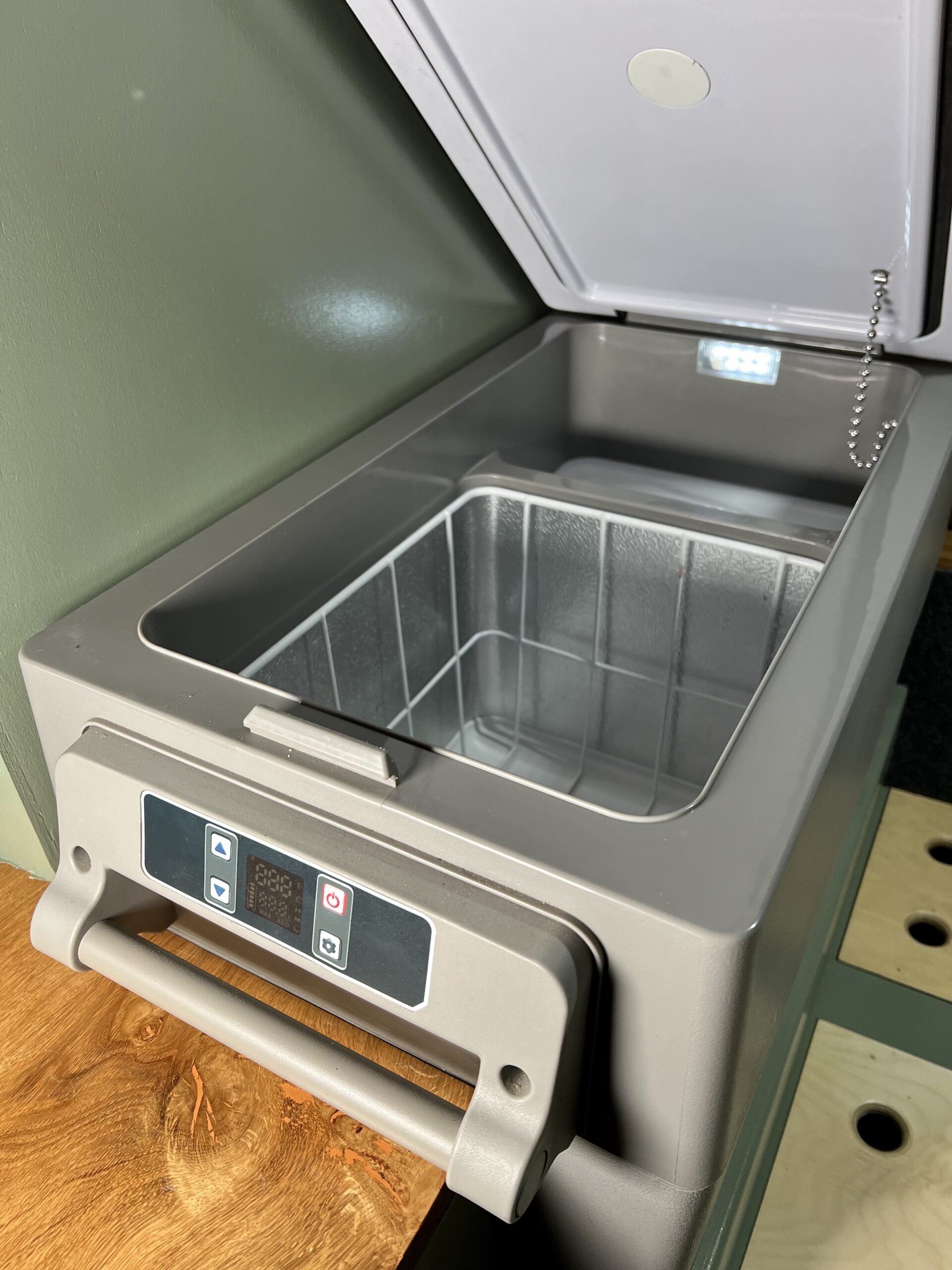

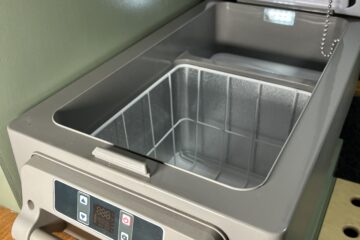

35L FRIDGE
12/24V compressor with motion-censored light inside.
Bluetooth temp control.

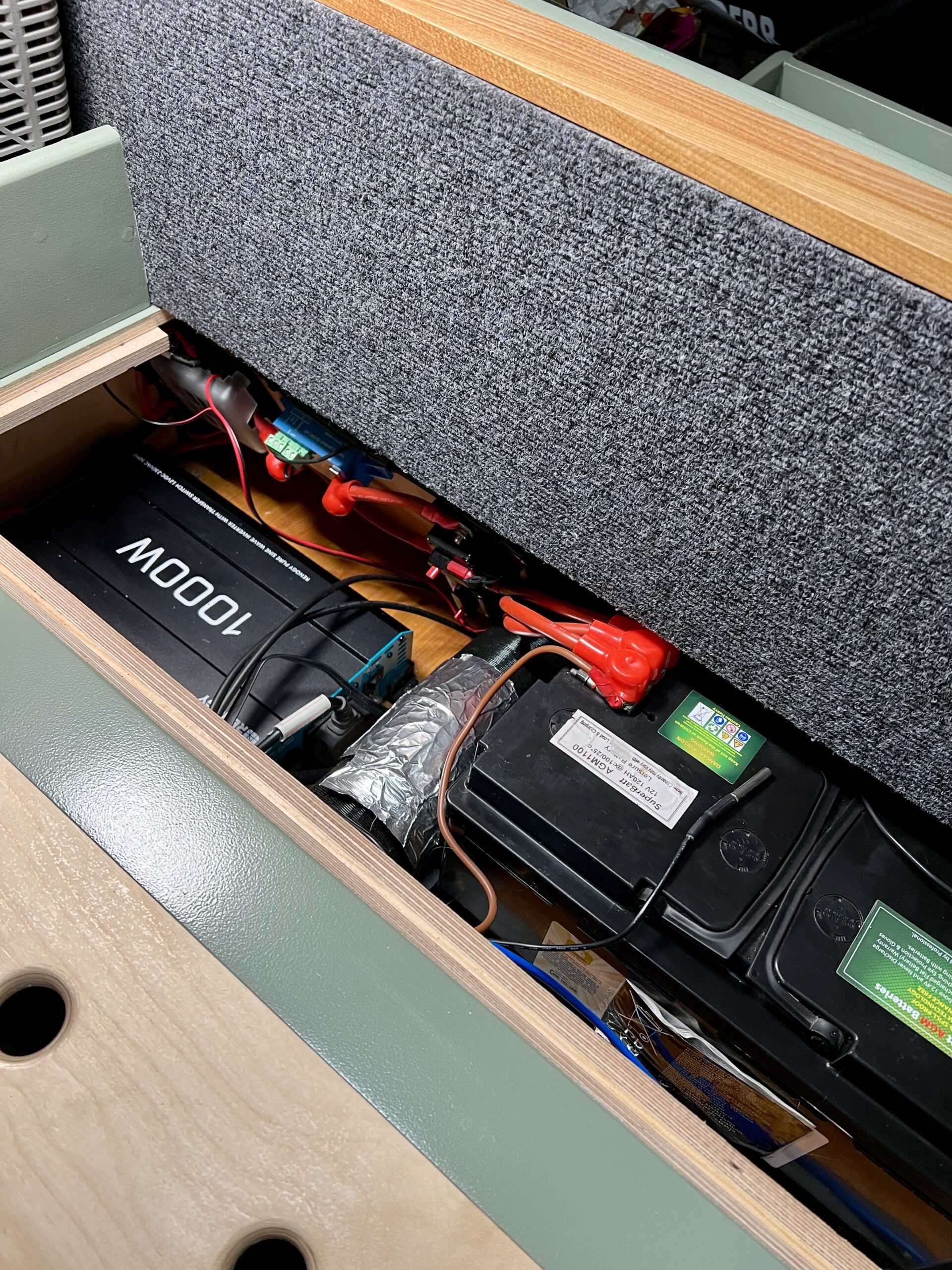

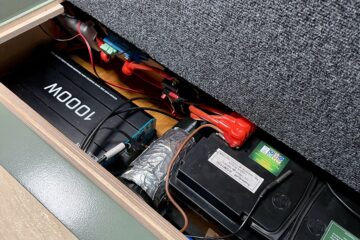

PURE SINE WAVE INVERTER 1000W
12V to 230V/240V with English Standard Socket (with UPS Function).

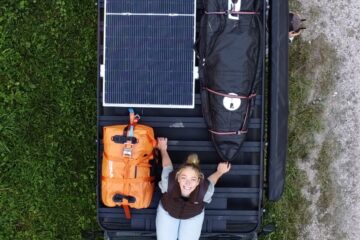

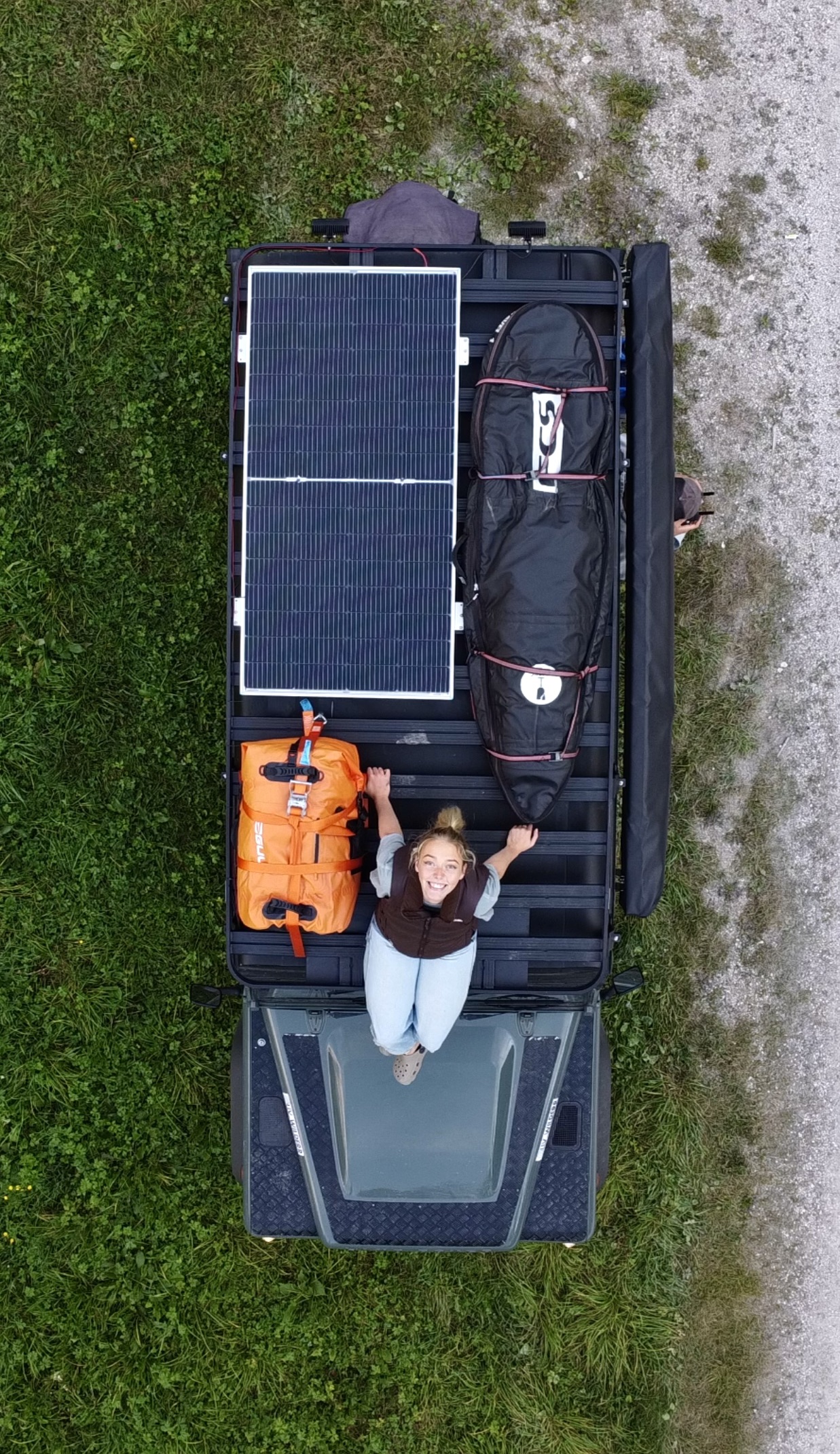

RENOGY BIFACIAL 220-WATT 12 VOLT MONOCRYSTALLINE SOLAR PANEL
Renogy’s latest innovative 220W bifacial solar panel, offers up to 30% higher energy output than traditional solar panels thanks to its bifacial design that captures sunlight from both sides.

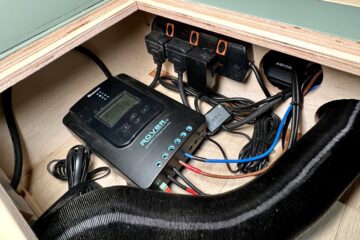

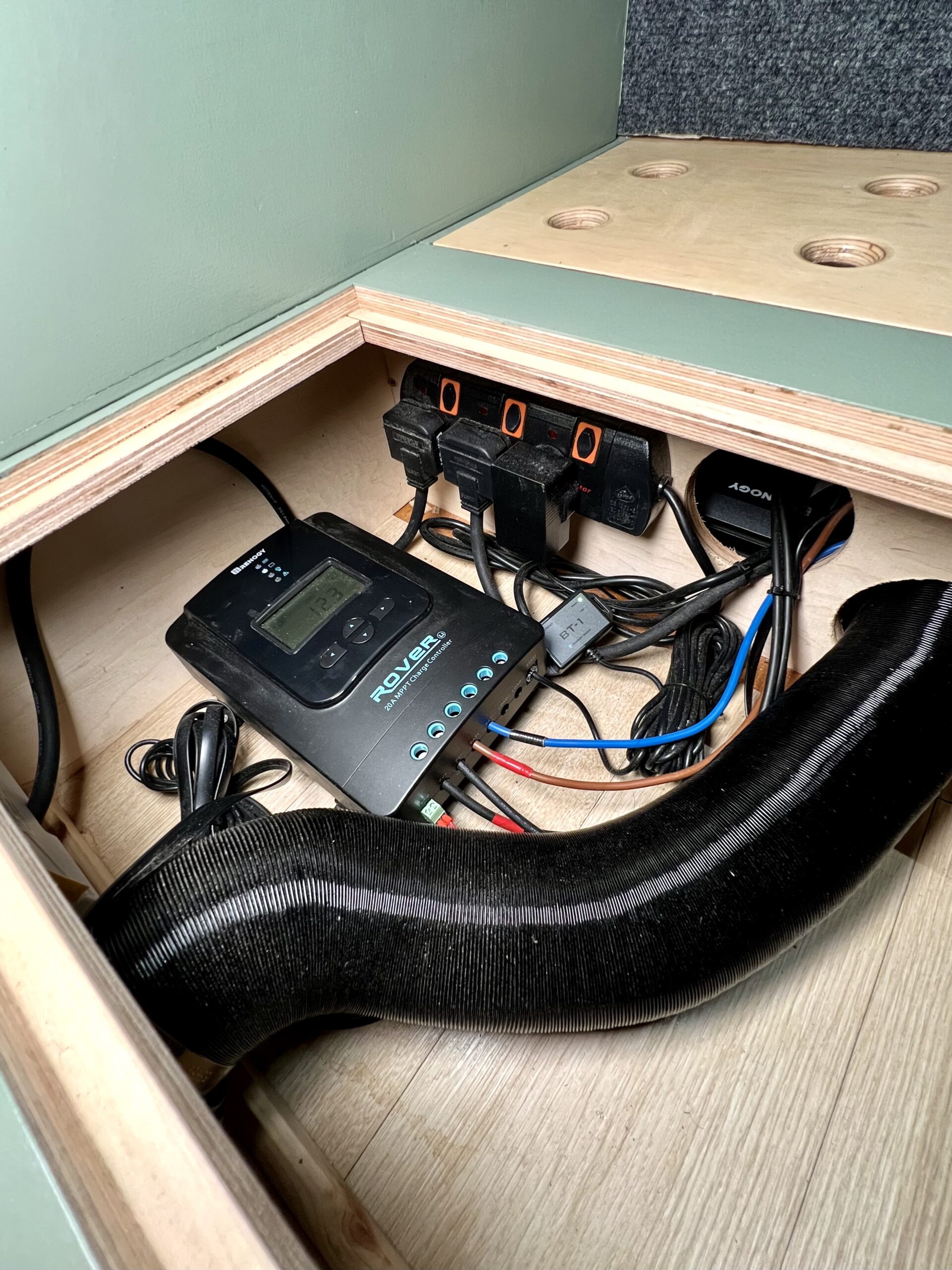

SOLAR CHARGE CONTROLLER – Renogy Li 20 Amp MPPT.
LEISURE BATTERY 12V 120AH
SuperBatt AGM1100 12V 120AH VRLA AGM Ultra Deep Cycle Battery.
Fully Sealed.
No Spill.
ALTERNATOR AUTO-SWITCH
BATTERY UNDER VOLTAGE PROTECTION
Victron battery protector.
DOUBLE 230V PLUG SOCKET
—-

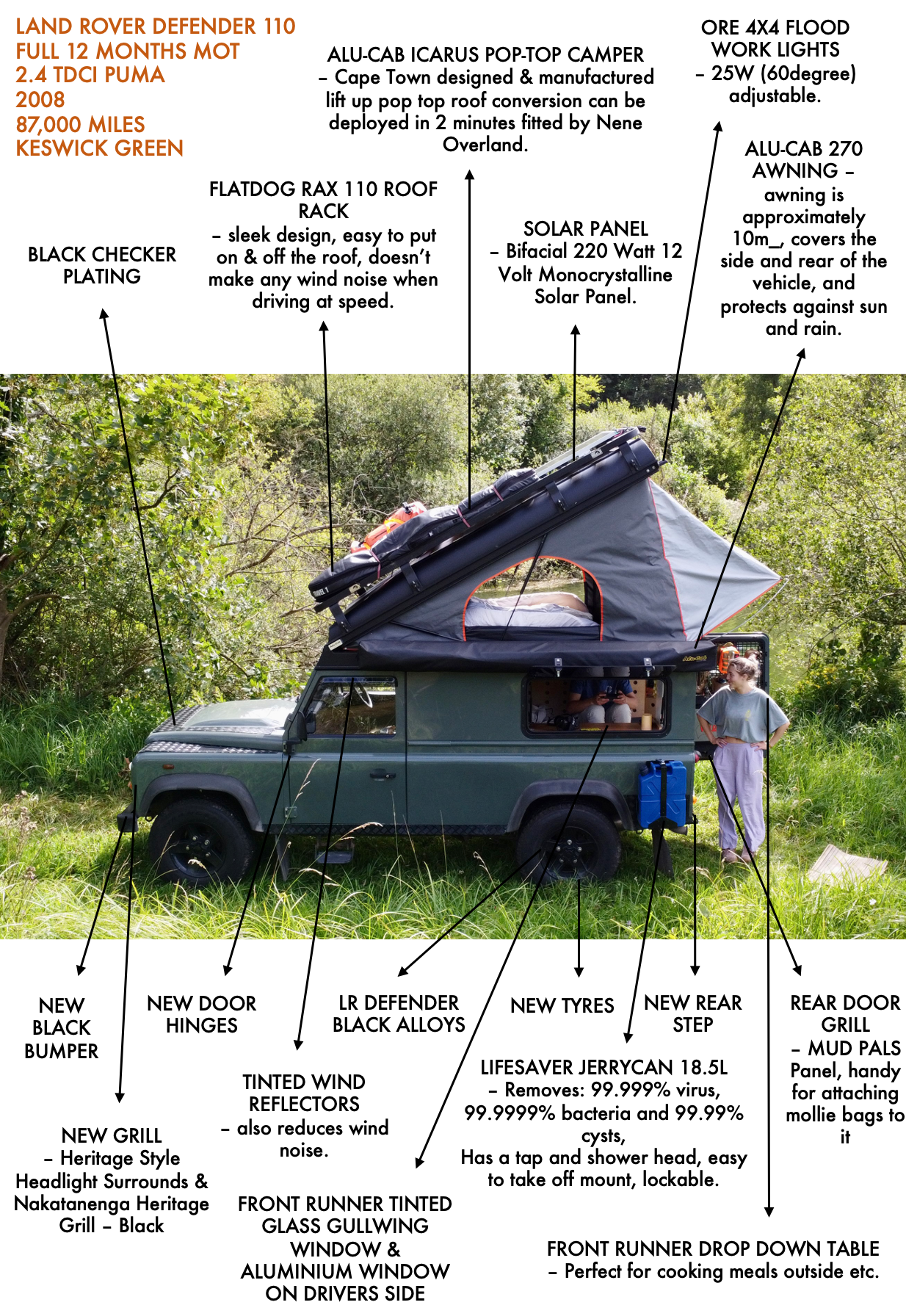

EXTERIOR

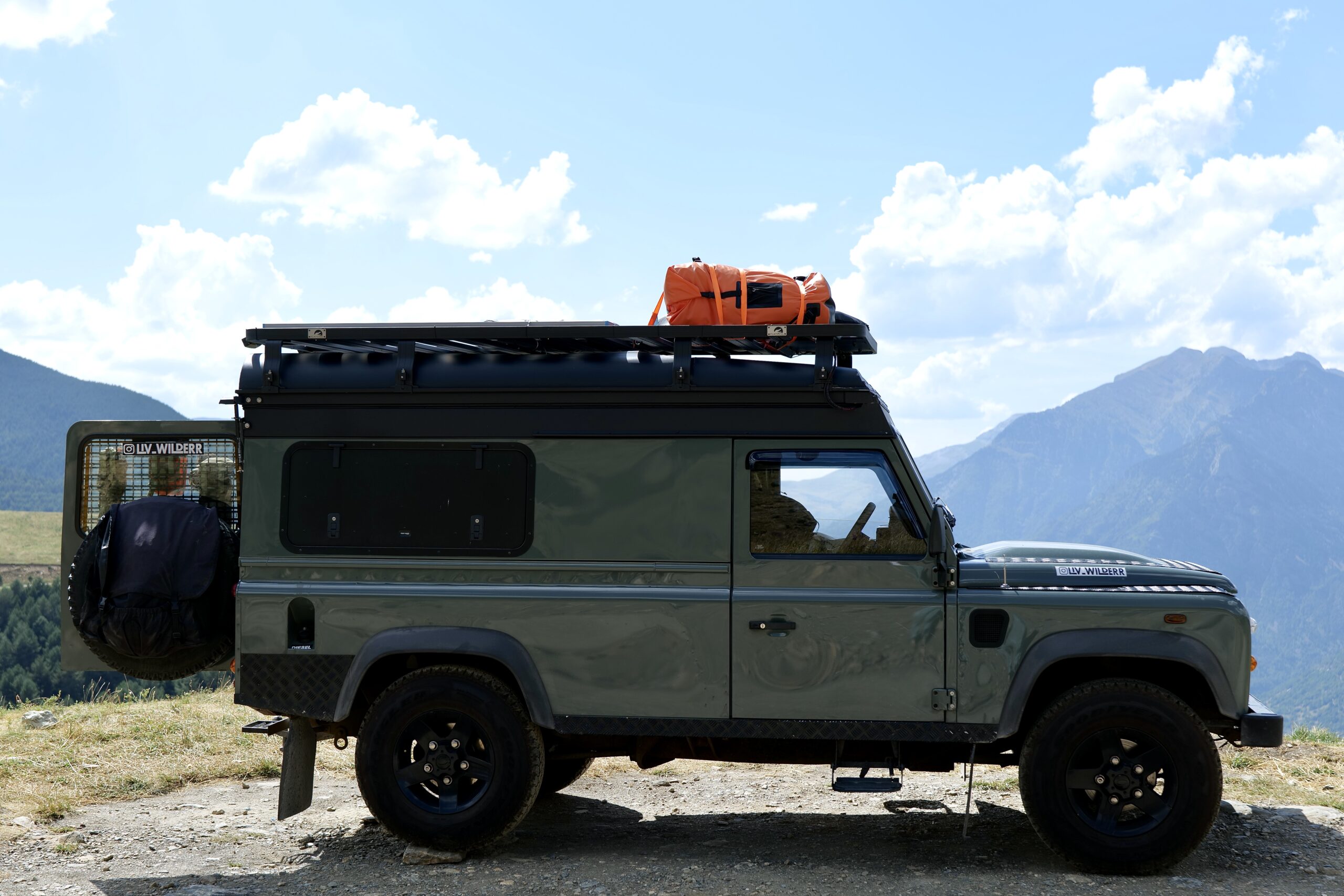

FLAT DOG ROOF RACK – RAX 110

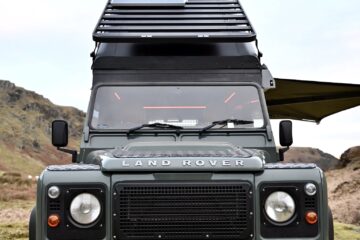

NEW HERITAGE STYLE HEADLIGHT SURROUNDS – Black
NEW NAKATANENGA HERITAGE GRILL – Black

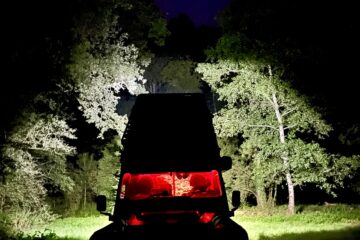

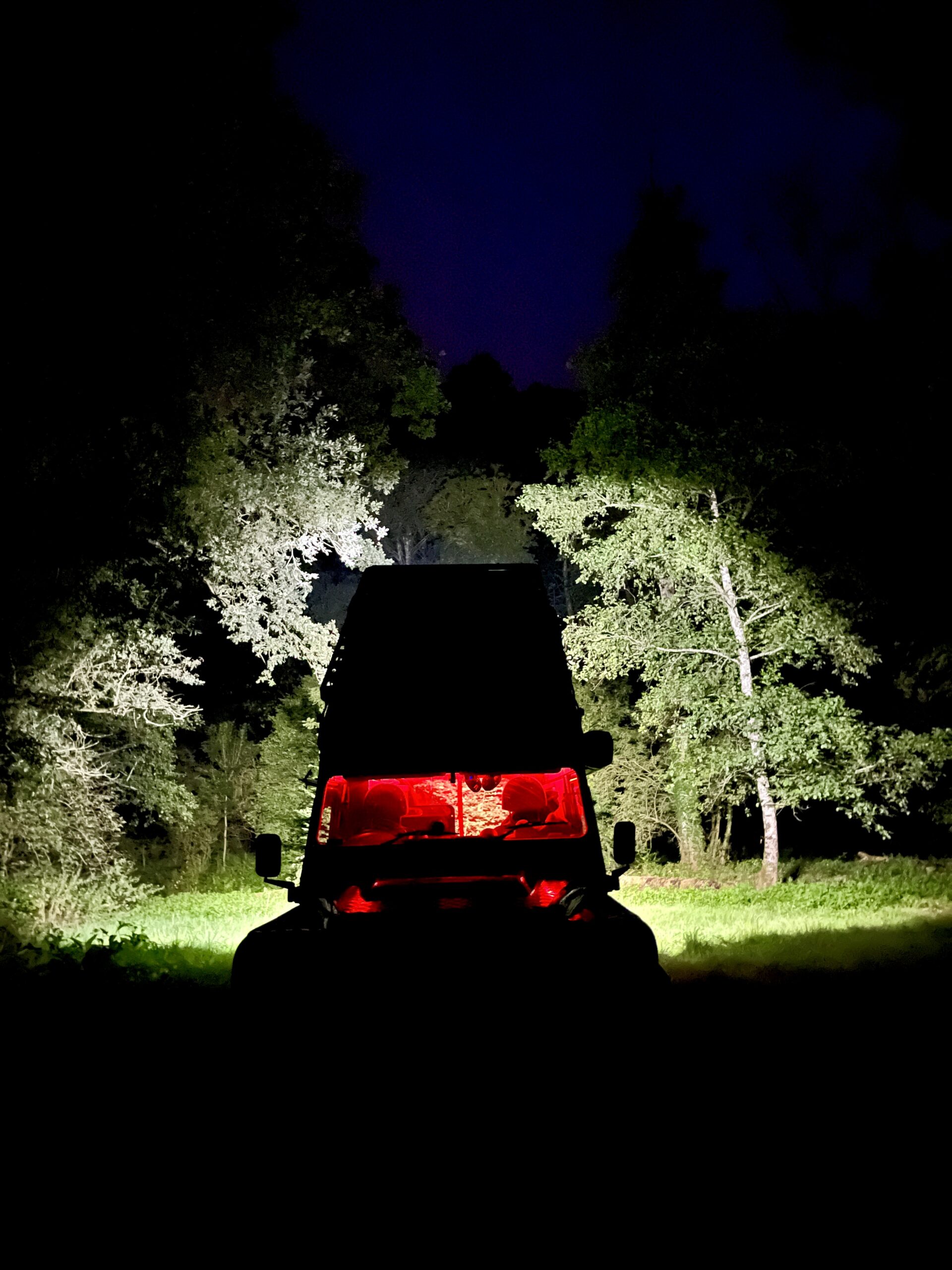

REAR FLOOD WORK LIGHT – ORE 4×4 25W LED Flood
TINTED WIND DEFLECTORS
BLACK CHECKER PLATING
LR DEFENDER ALLOYS – Black
NEW REAR DOOR SEAL, 2 REAR SMALL WINDOW SEALS & BOTH FRONT DOOR SEALS
NEW DOOR HINGES X2
NEW BLACK WING MIRRORS
