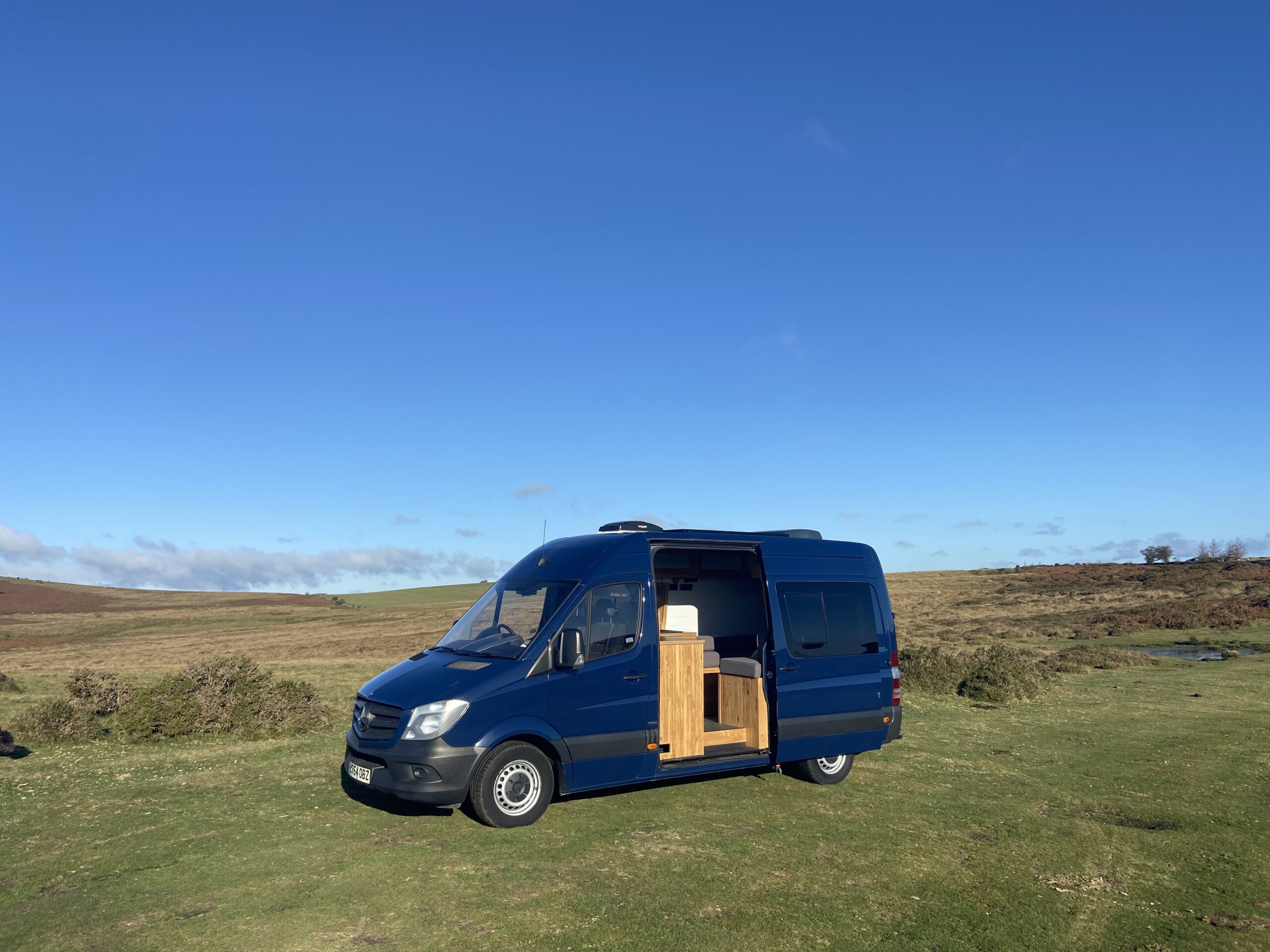

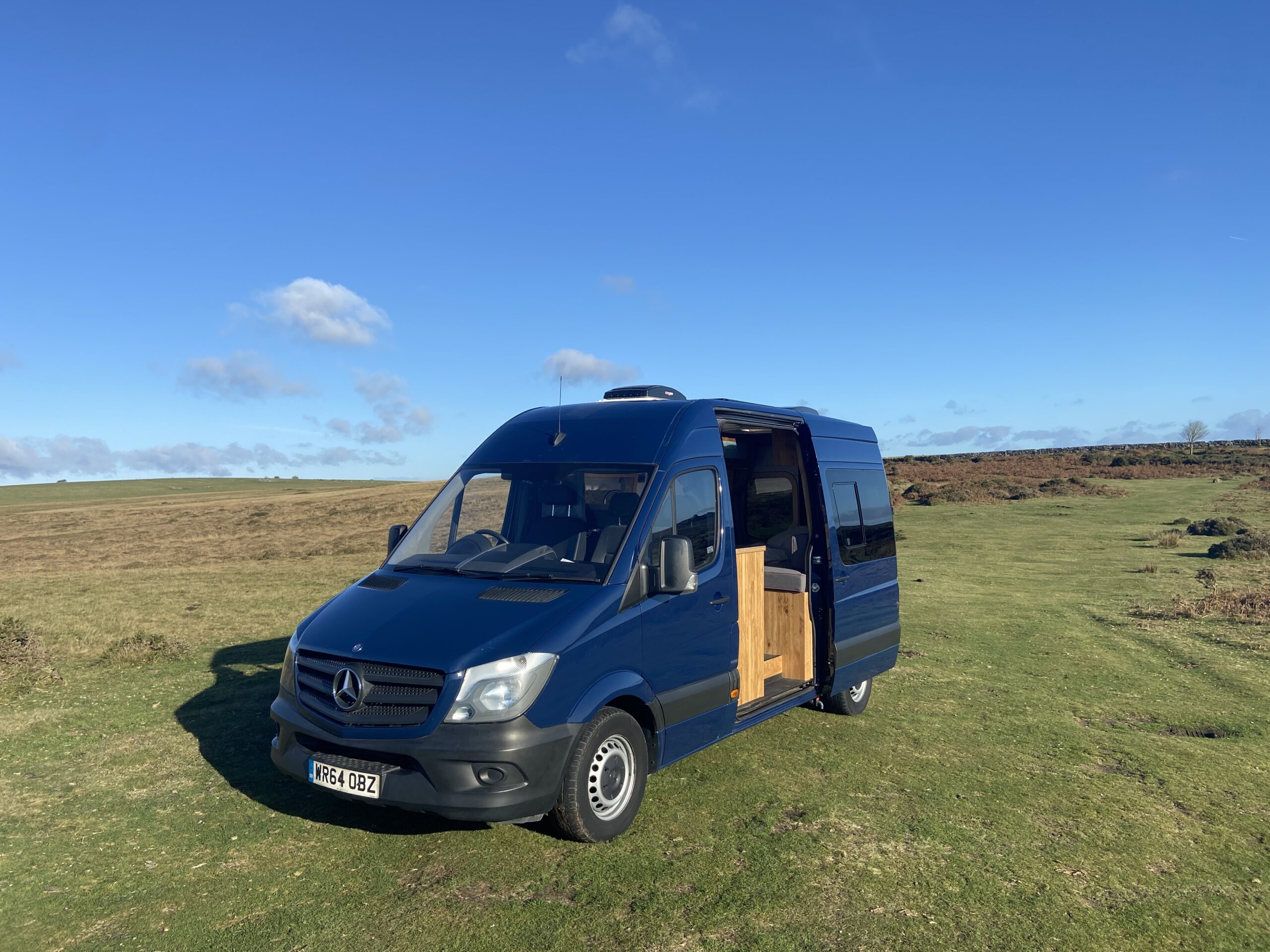

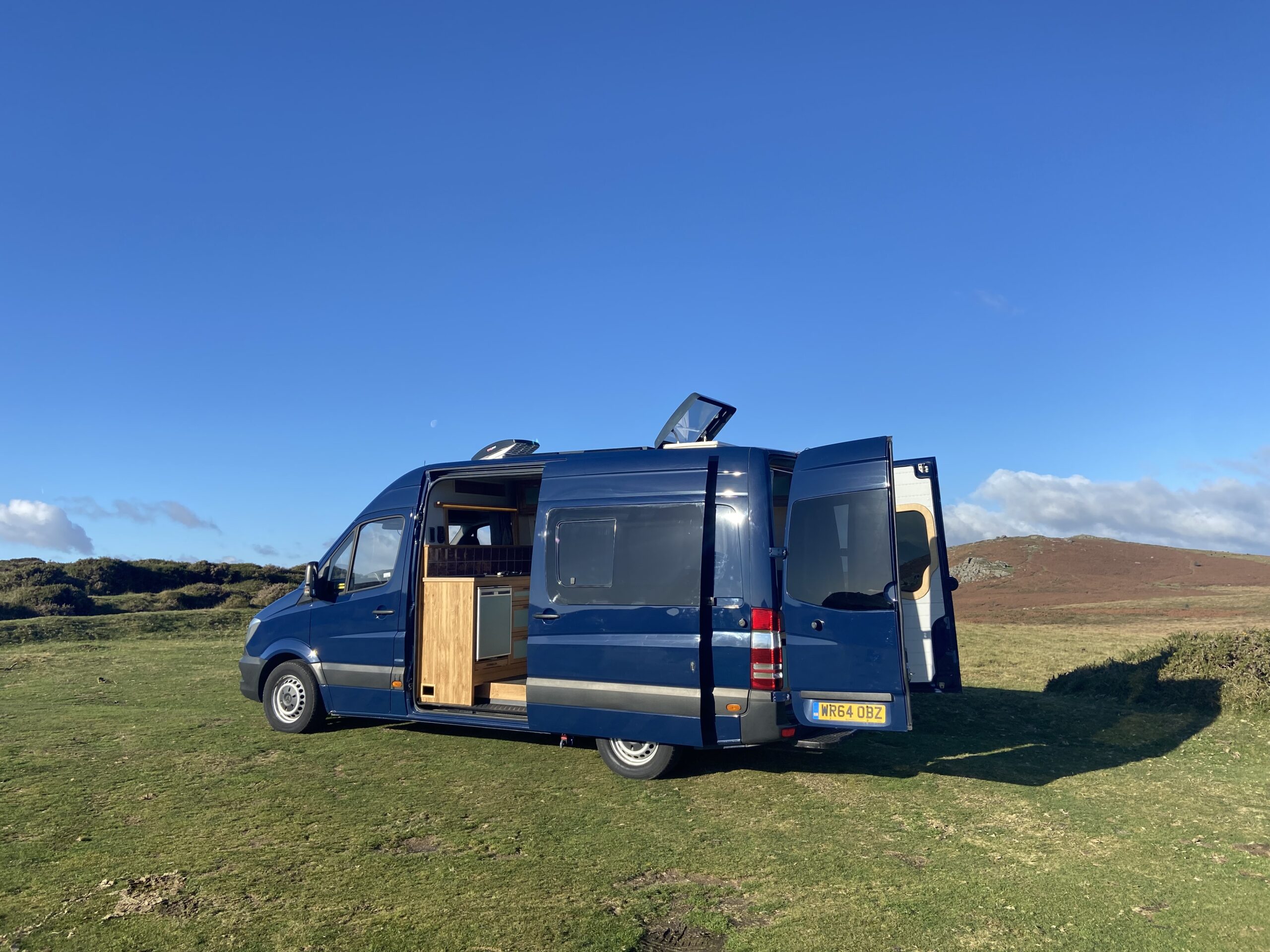

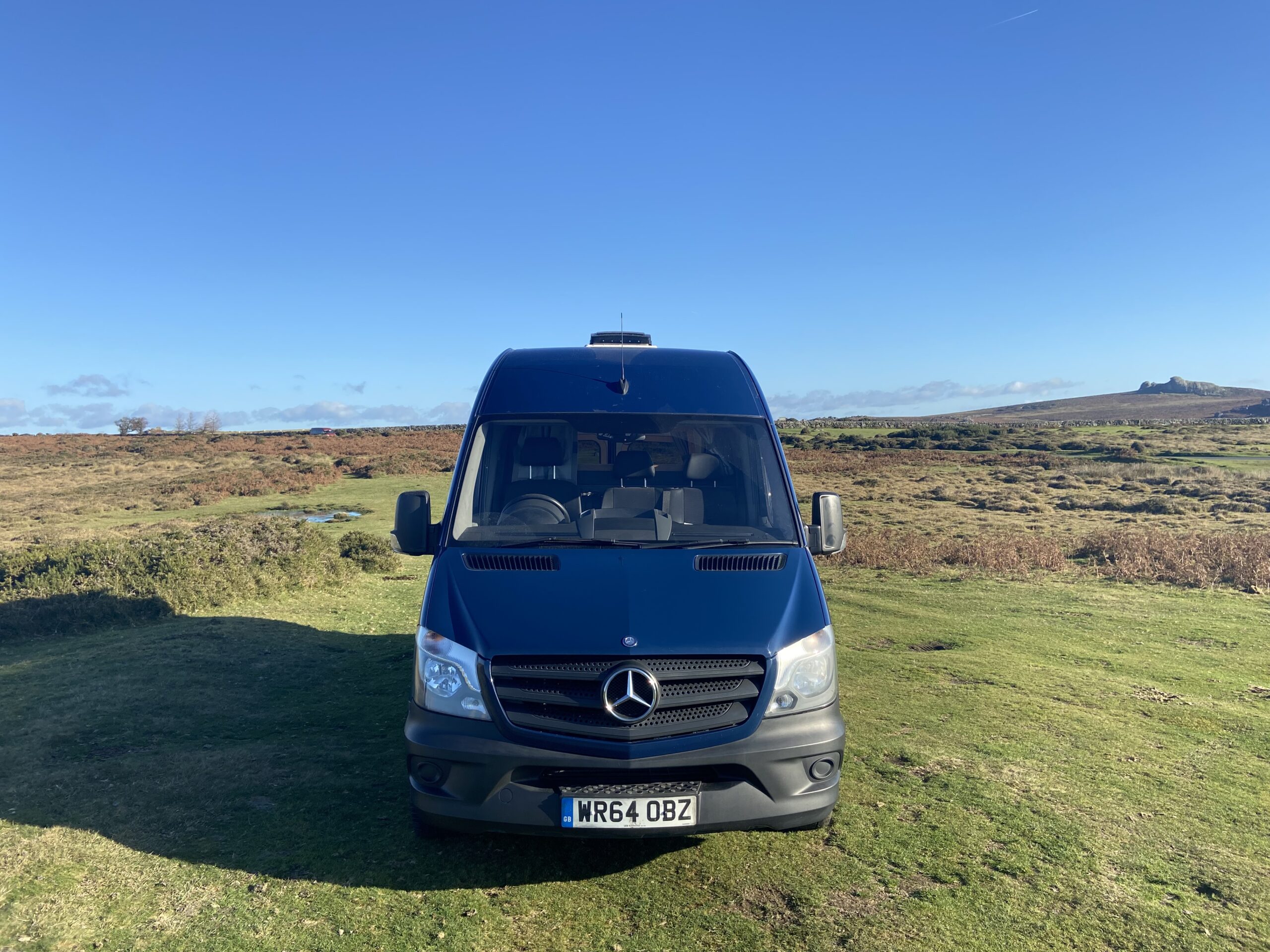

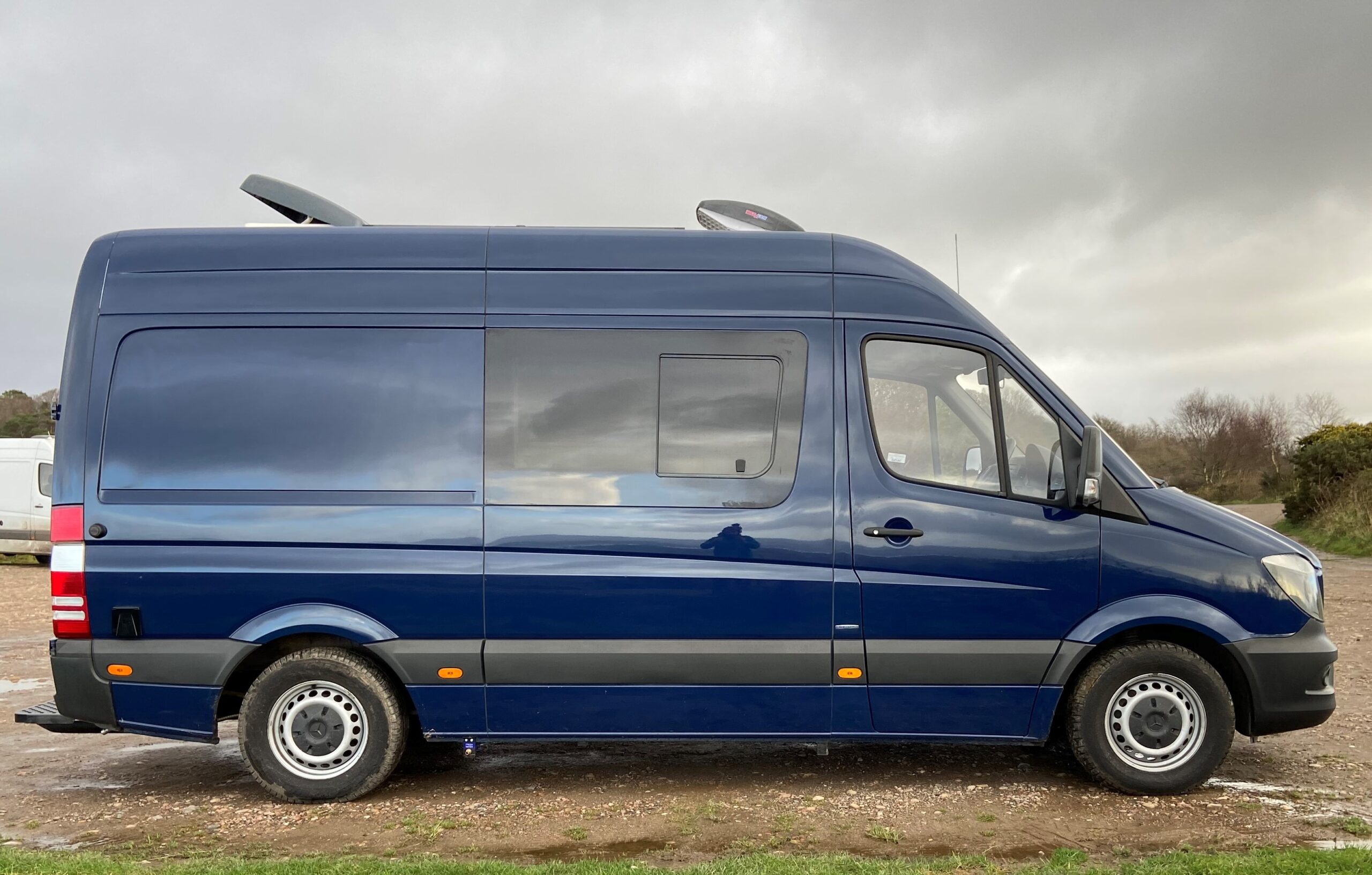

Mercedes Sprinter 2 berth off-grid Handcrafted Campervan

This Sprinter has a brand new conversion completed to a very high standard using quality products throughout
Comfortable living for 2 people with a warm clean feeling

Exterior:
MaxxAir Maxxfan deluxe remote controlled smoked roof window at front
Grey Midi Heki Rooflight at rear with flyscreen/blackout blind
Tinted sliding opening side windows

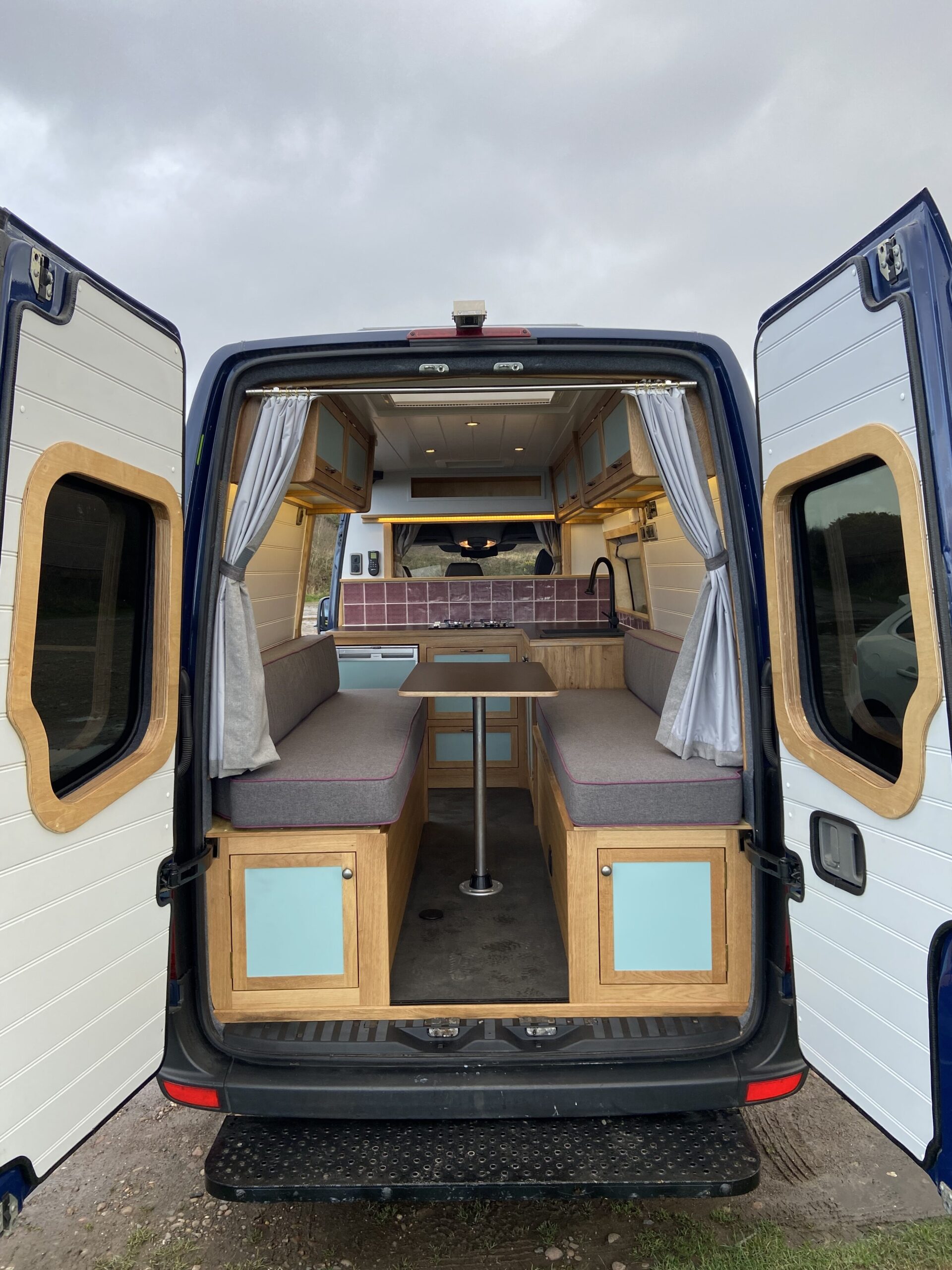

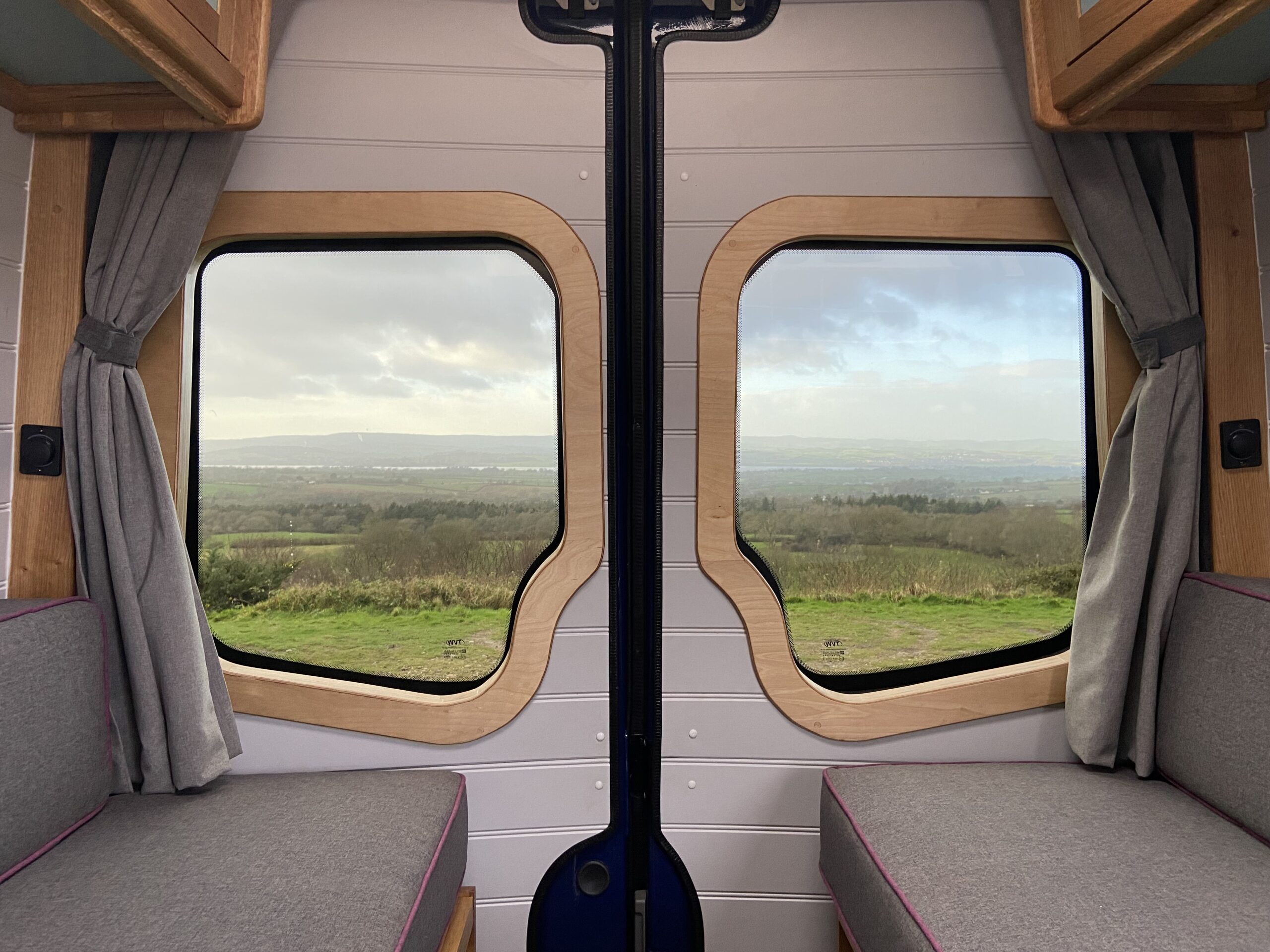

Tinted rear windows
270w Black Solar Panel
Underslung custom made 80 litre Fresh water tank and fill point
Underslung custom made 50 litre Grey water tank and drain point
Electric hook up
Gas fill point

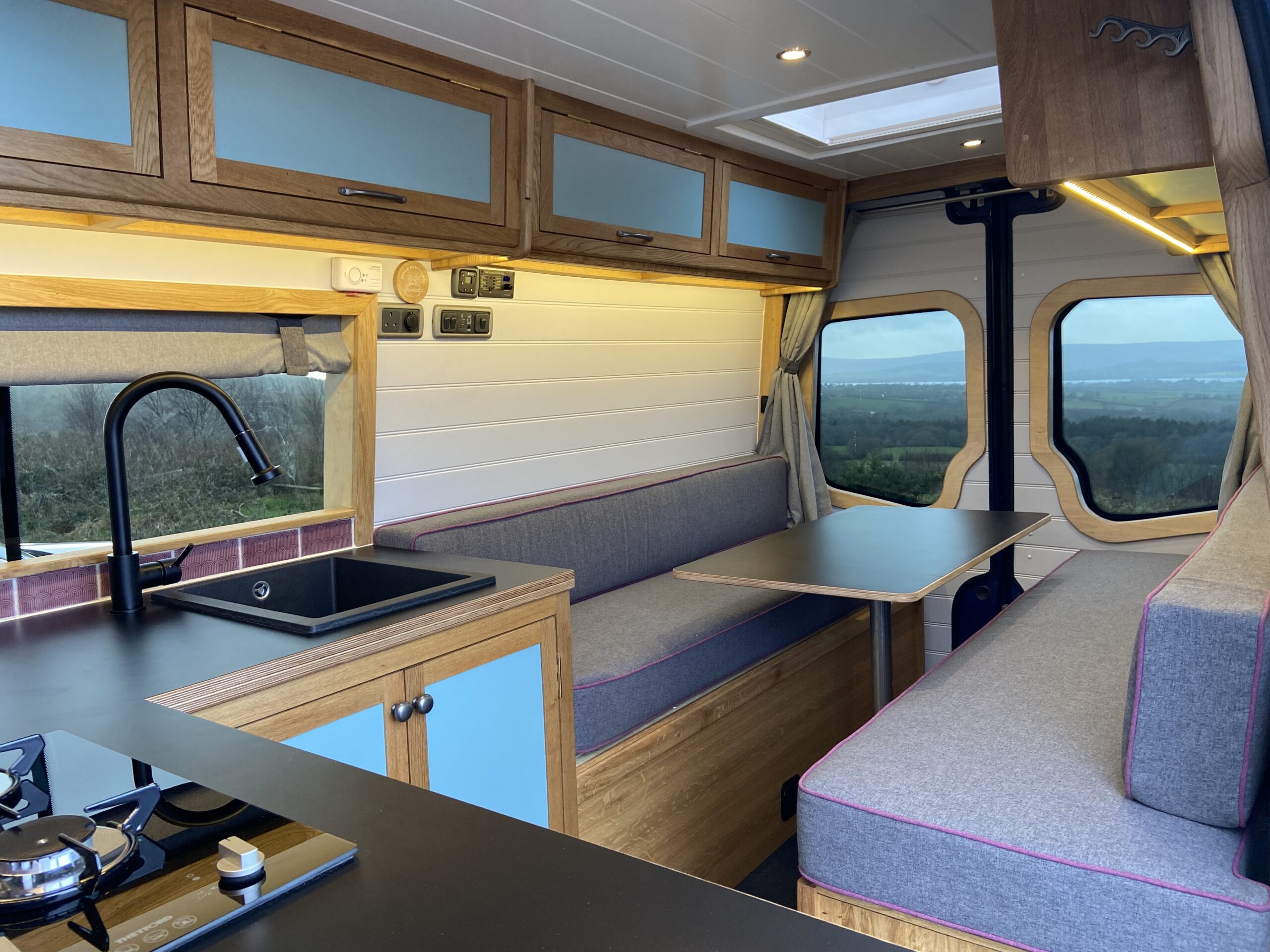

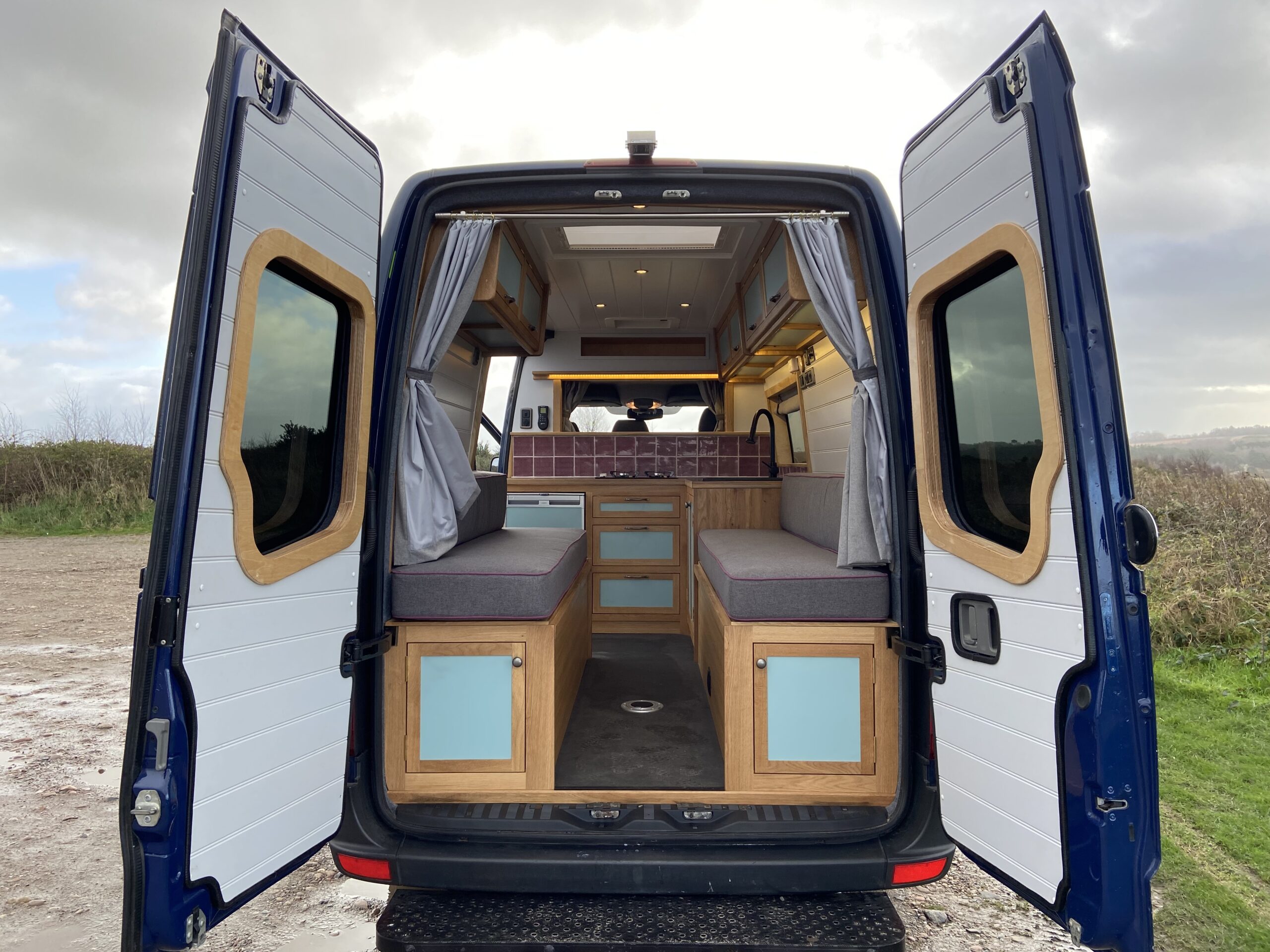

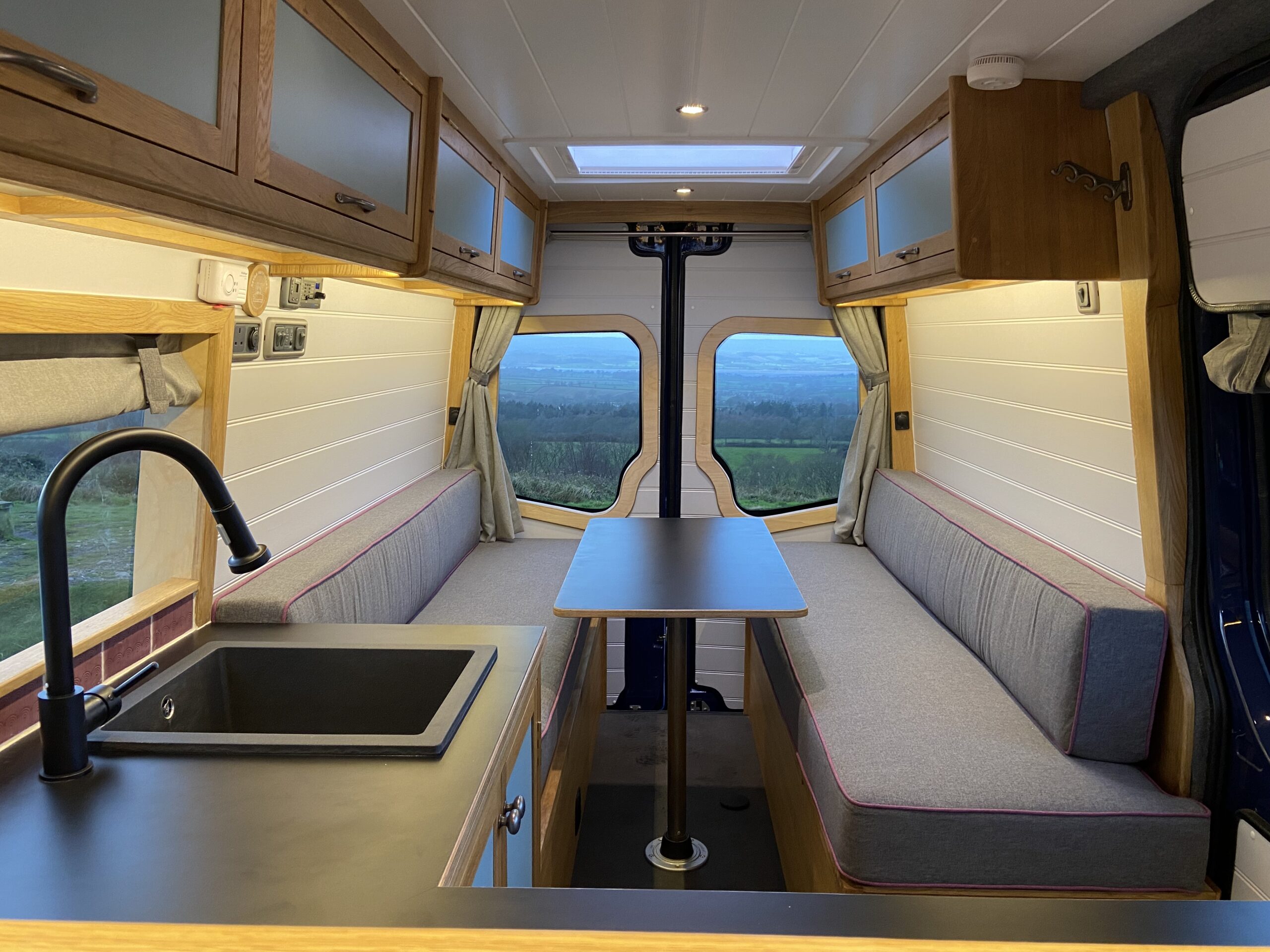

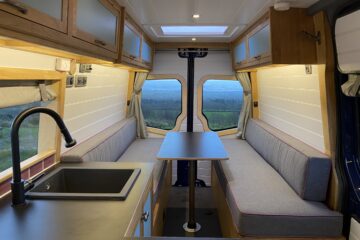

Interior:
Insulated with 50mm Celotex boards in walls and Ceiling 25mm on floor with foil vapour barrier throughout
Dodo mat sound deadening on each panel
Solid redwood tongue and groove ceiling made by me. (No B&Q rubbish here)
Moisture resistant Bead and Butt T&G wall boards
Dulux Paints used & Finished to a high professional standard
Heavy duty contractors grade vinyl floor
Blinds and curtains made professionally by seamstress
Cushion covers made as above, fully removable for washing

Joinery:

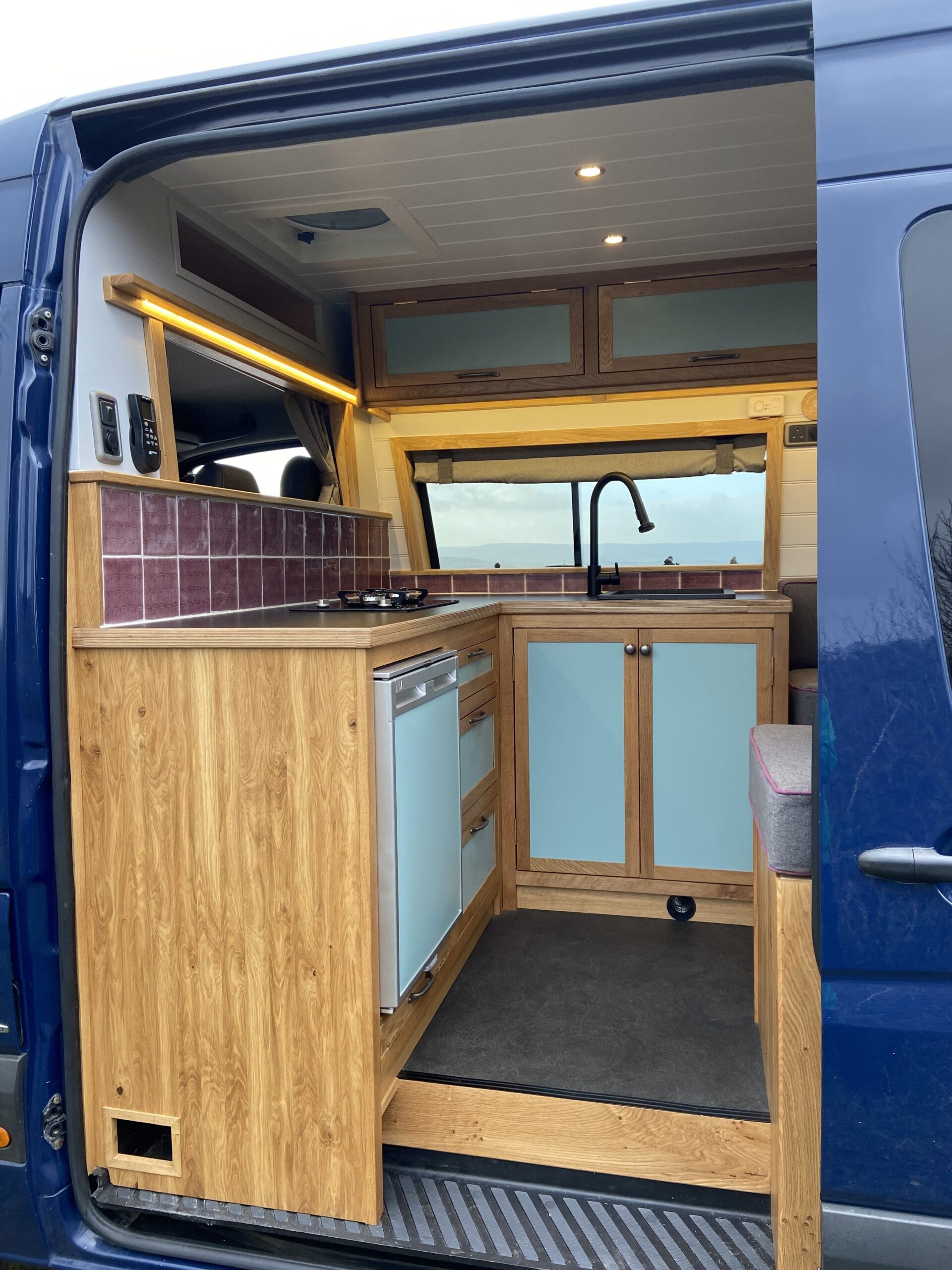

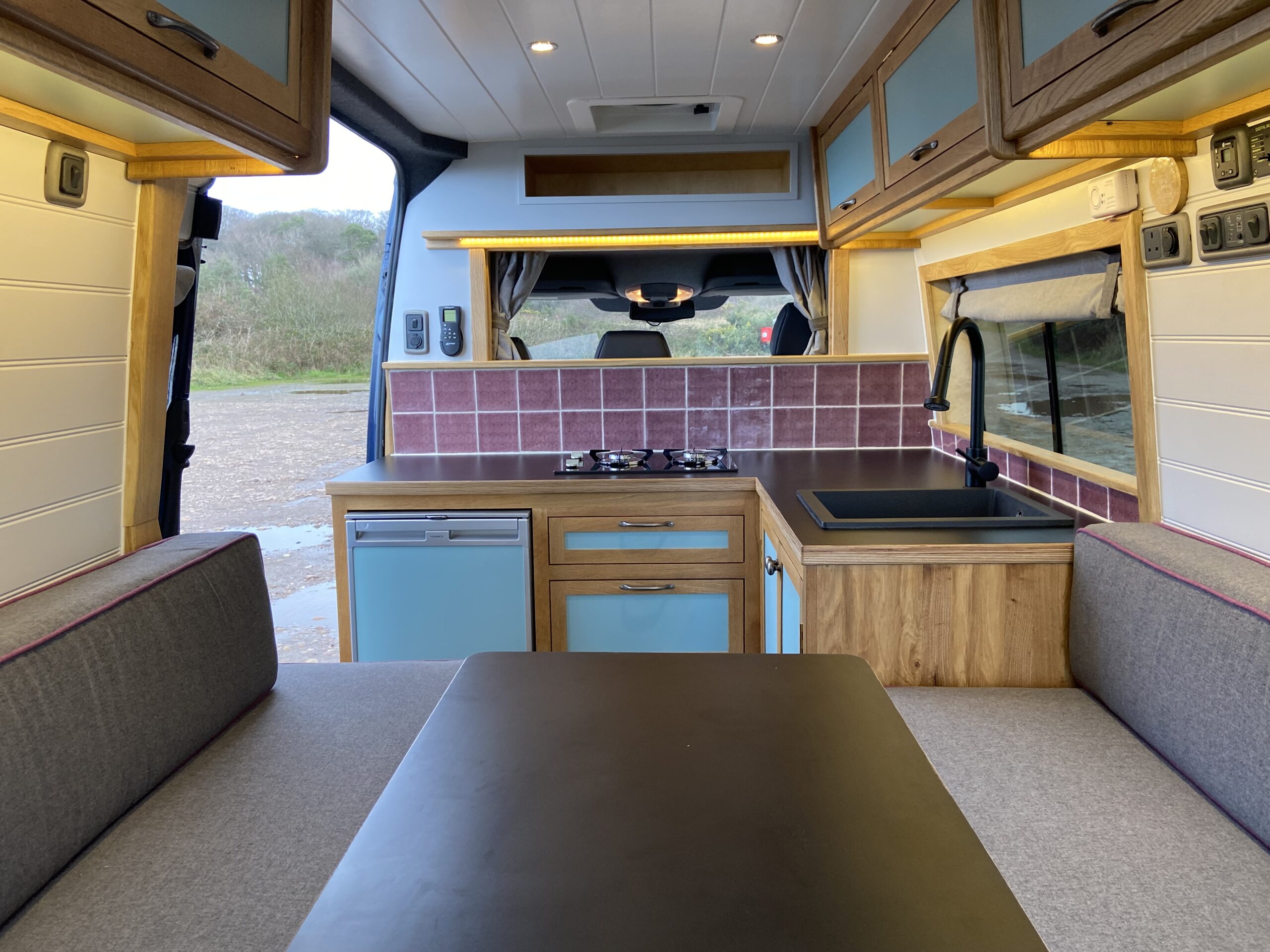

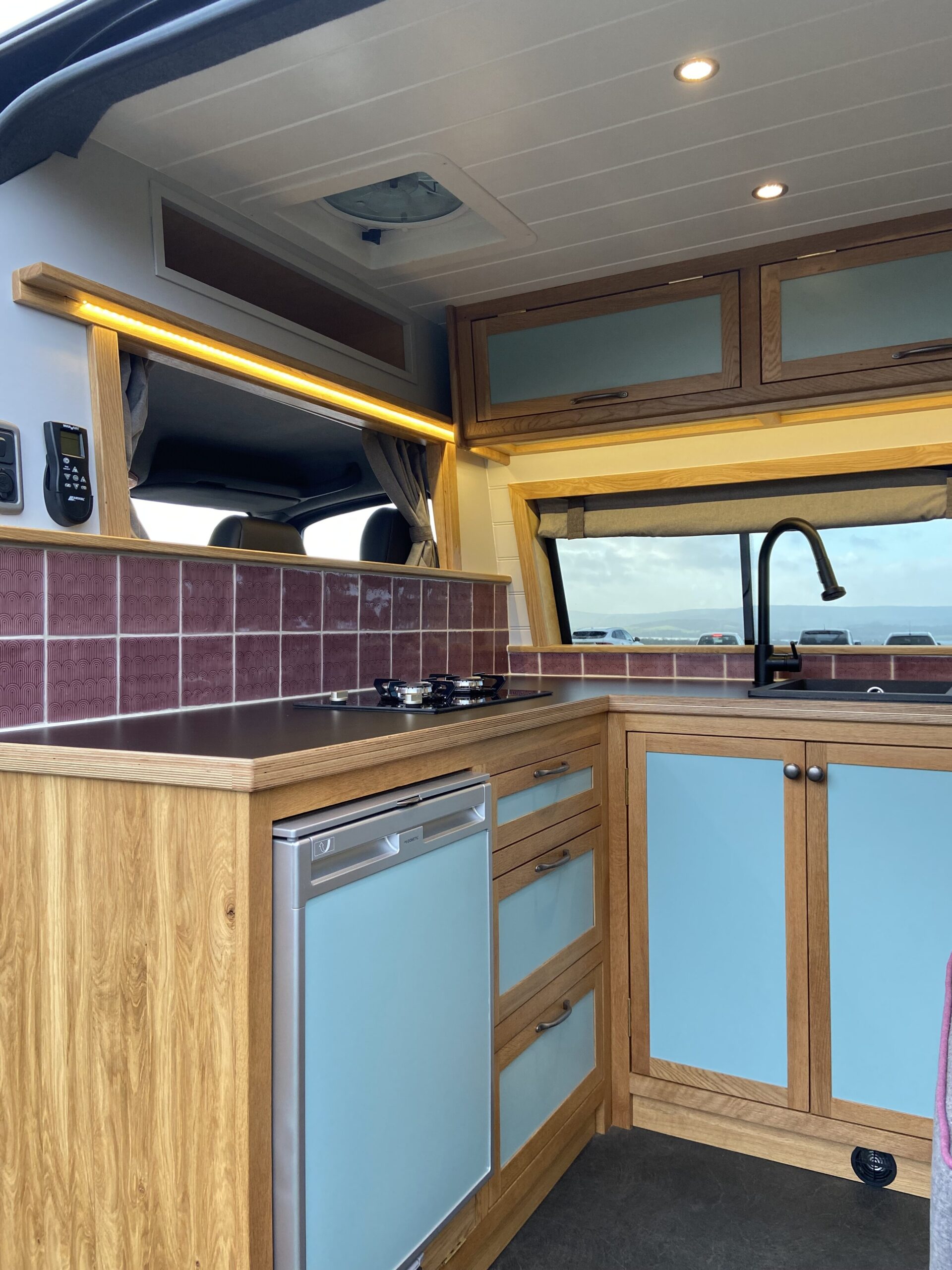

Hand made oak framed corner kitchen. All cupboards with lightweight ply carcasses

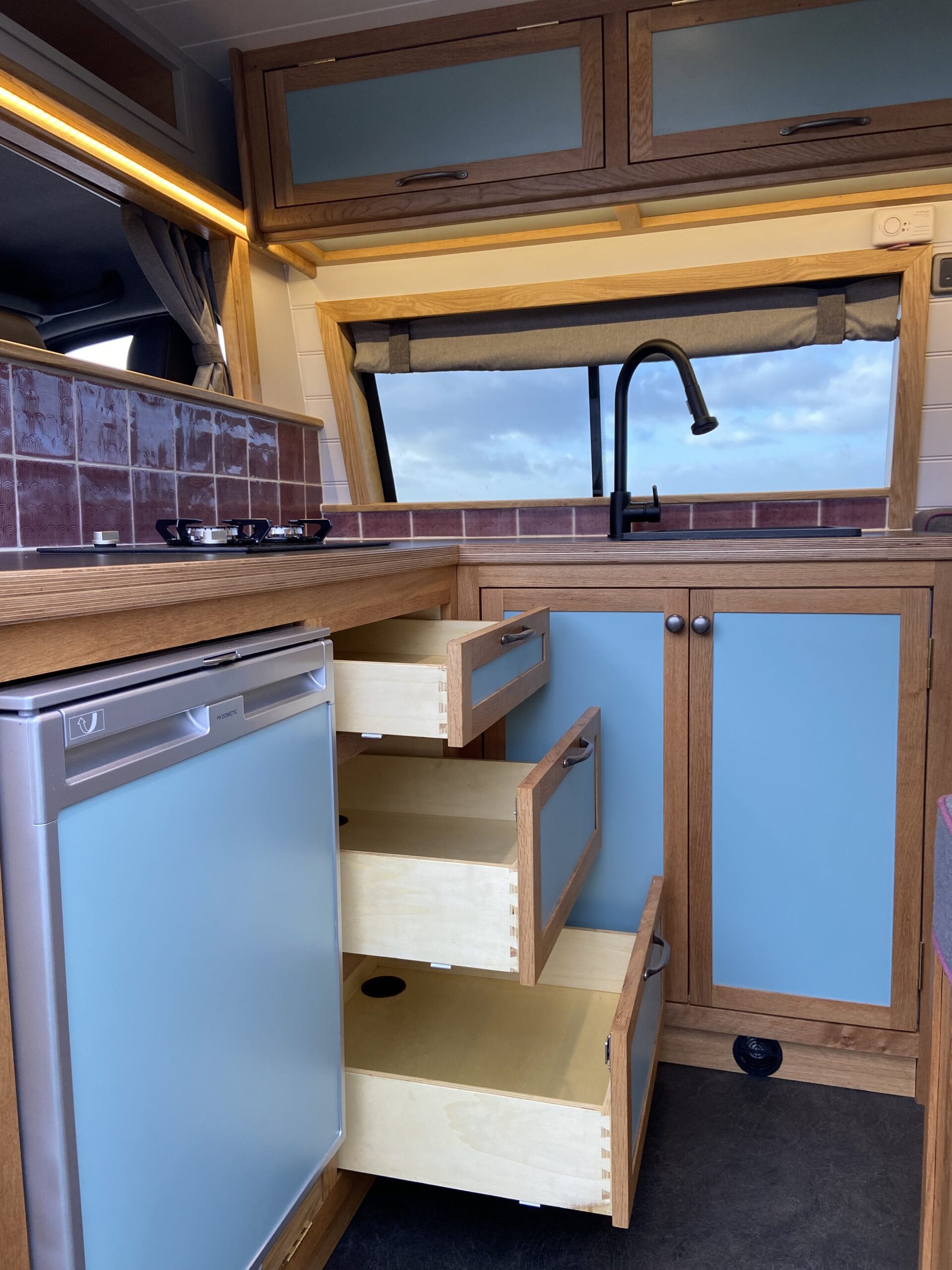

3 Dovetailed drawers on Blum soft close runners. All with magnets

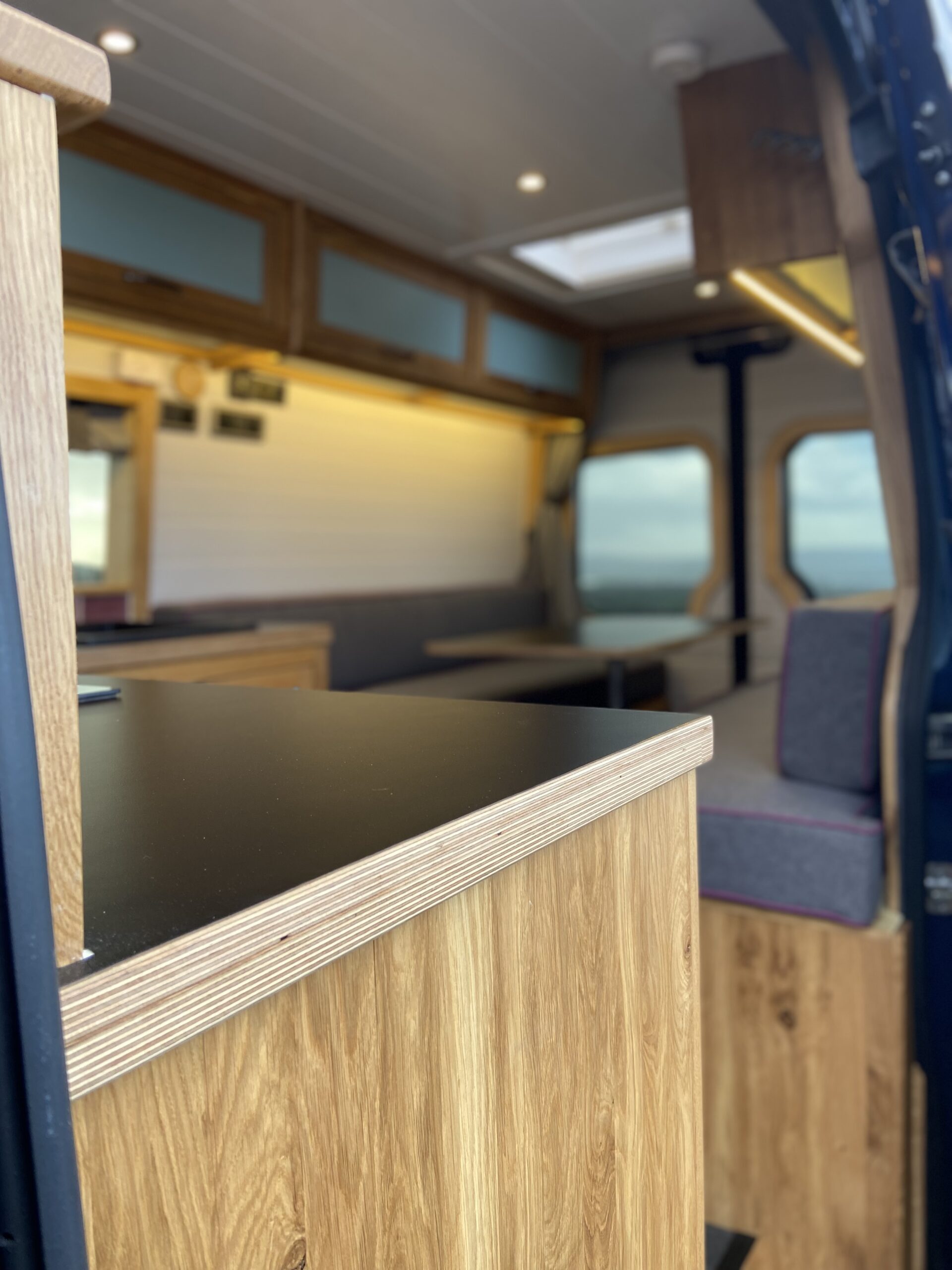

Birch ply worktop with Black Formica laminated on top
Rustic Original Style Tiles ‘Deco Tayberry’ splashback
Overhead lockers made from reclaimed solid oak with lightweight ply panels
Cupboard and drawer panels laminated with Formica ‘Dusty Jade’
Carlisle brass magnets and hand made cast iron handles used throughout

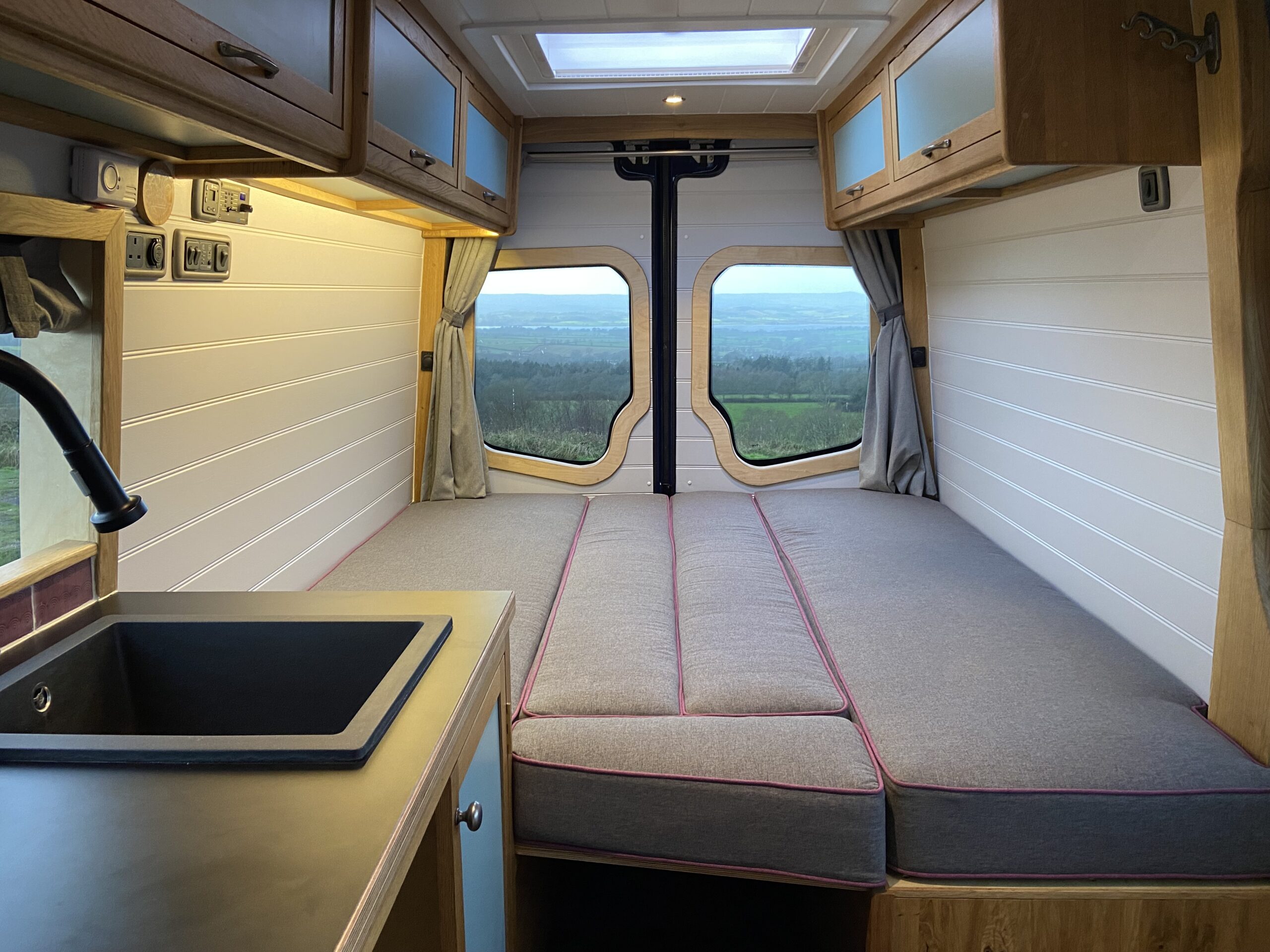

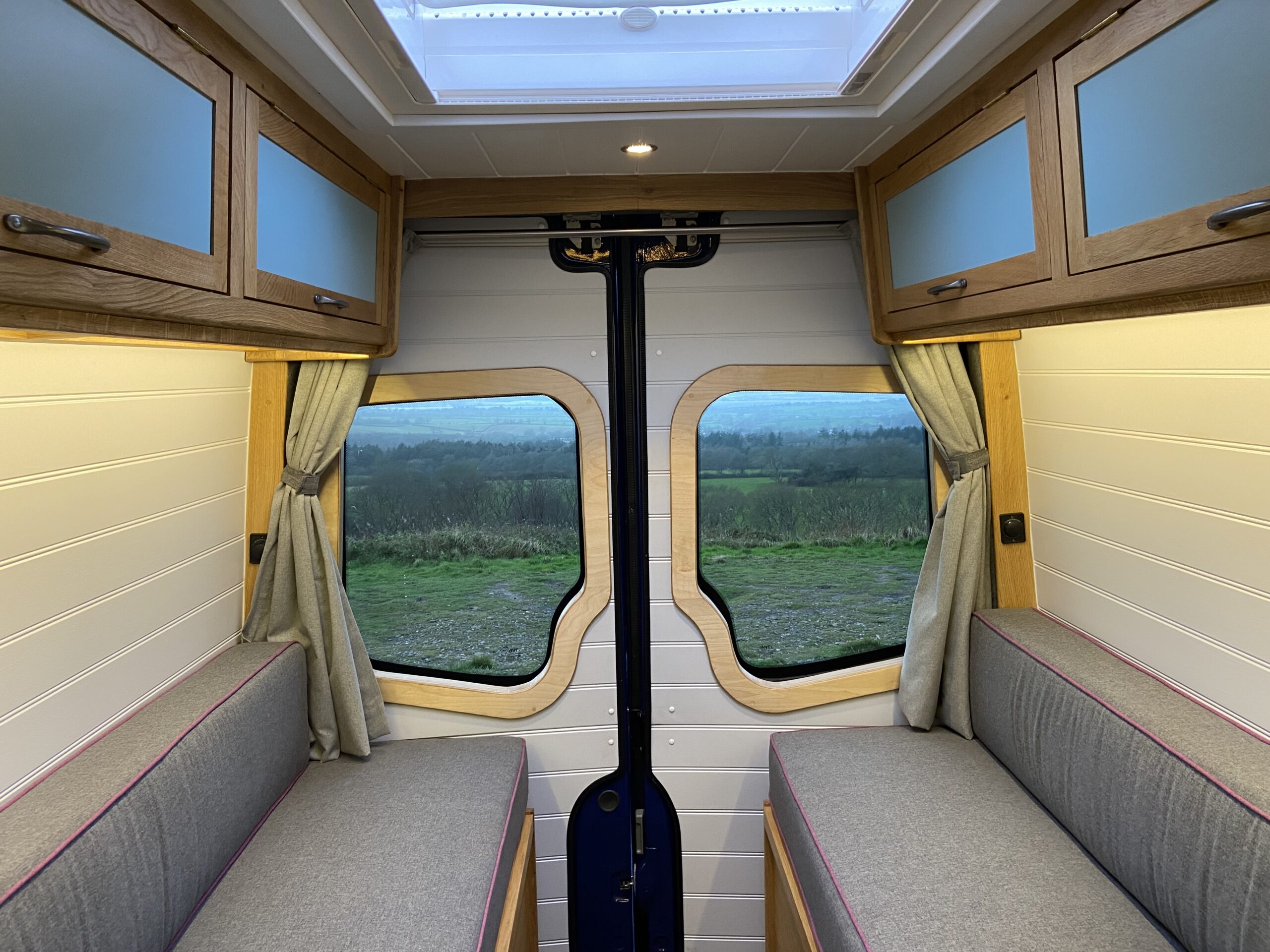

Seats / Beds are constructed of lightweight Ply with real oak faced boards
Pull out cassette toilet in drawer, dovetail construction with Blum runners
Solid Oak shelves and trims throughout
Birch ply over cab storage area
Storage under sink and also slim drawer beneath fridge
Everything finished with 3 coats of Treatex hard wax oil

Appliances/ Equipment:
Dometic Waeco CRX80 Compressor 12v Fridge

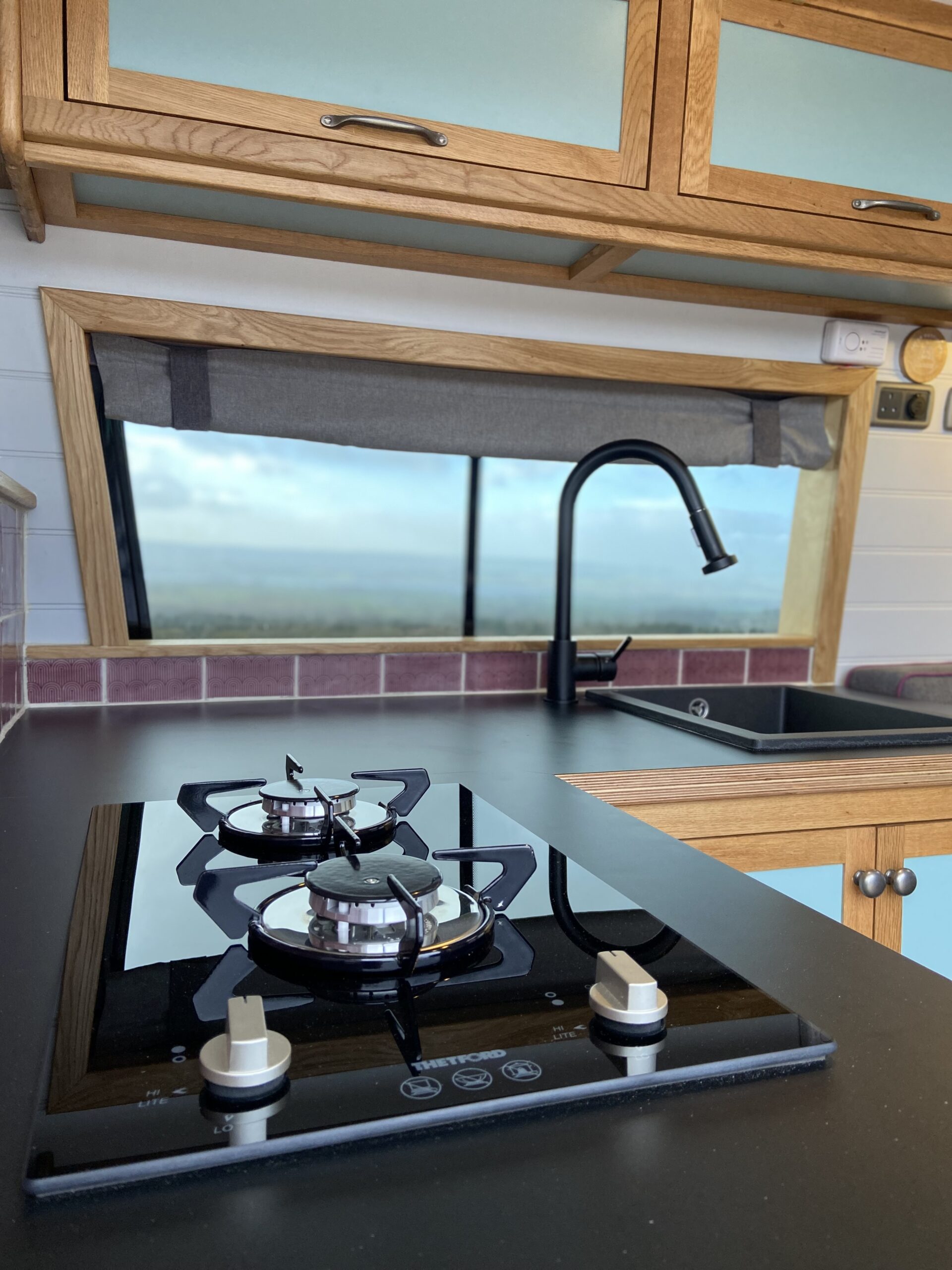

Thetford topline gas hob
Propex HS2000 air heater with digital display and Timer

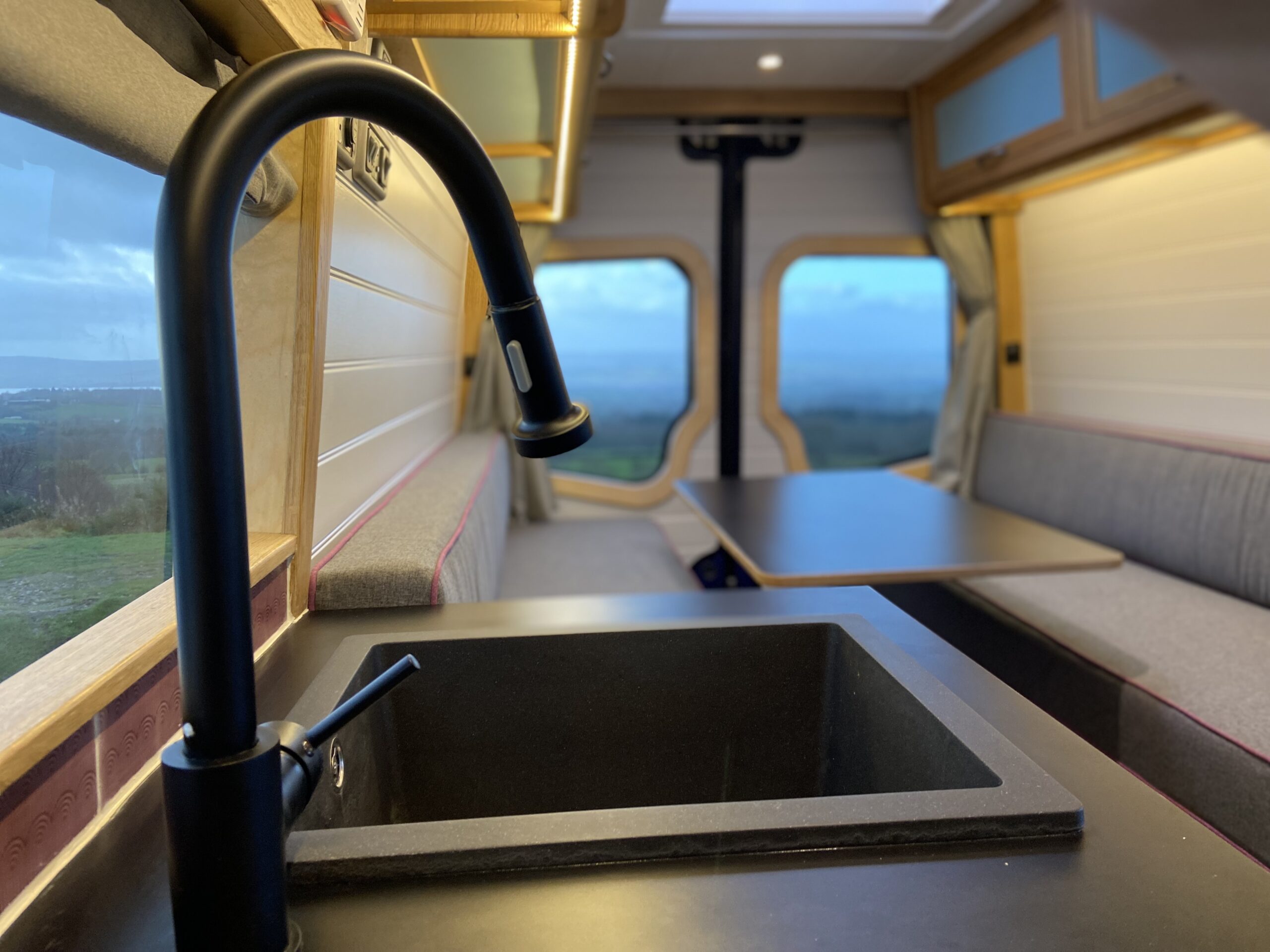

Deep resin sink with pull out spray and swivel spout
CBE water gauges inside the van
Shurflo pump and Fiamma expension tank
Thetford Porta Potti 165 cleverly stowed away under the bench seat

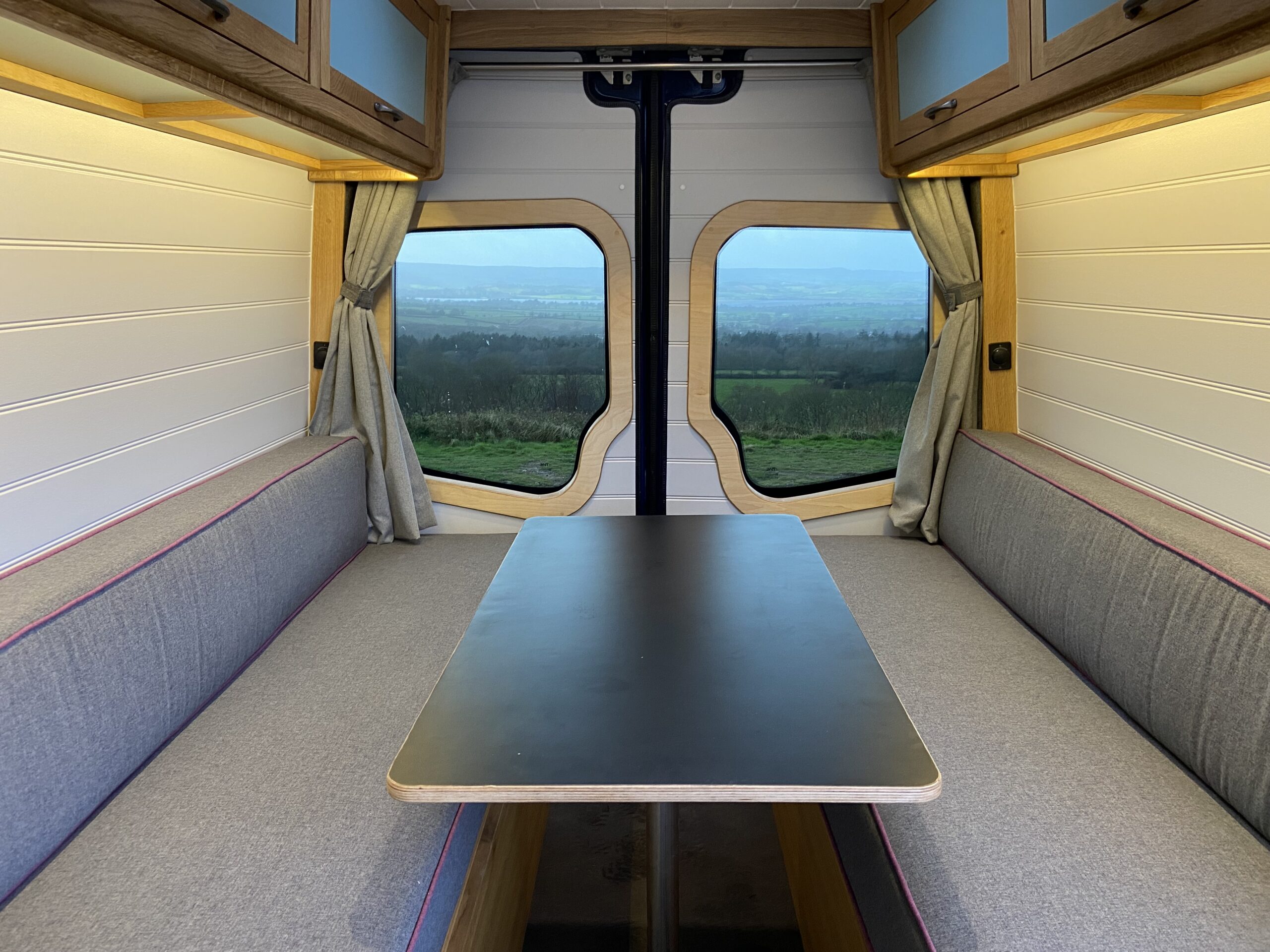

Birch Ply Table top with black Formica laminate – This has a removable leg and is very easy to install and remove

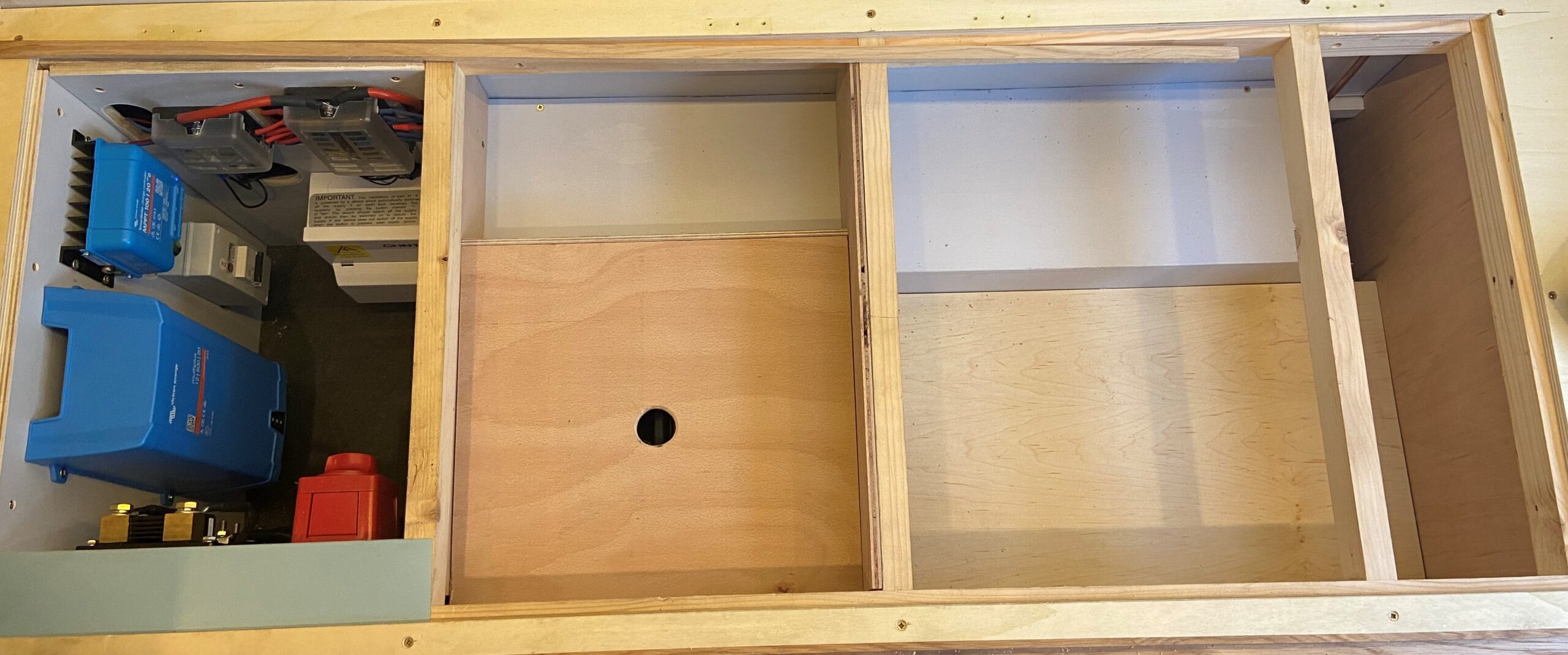

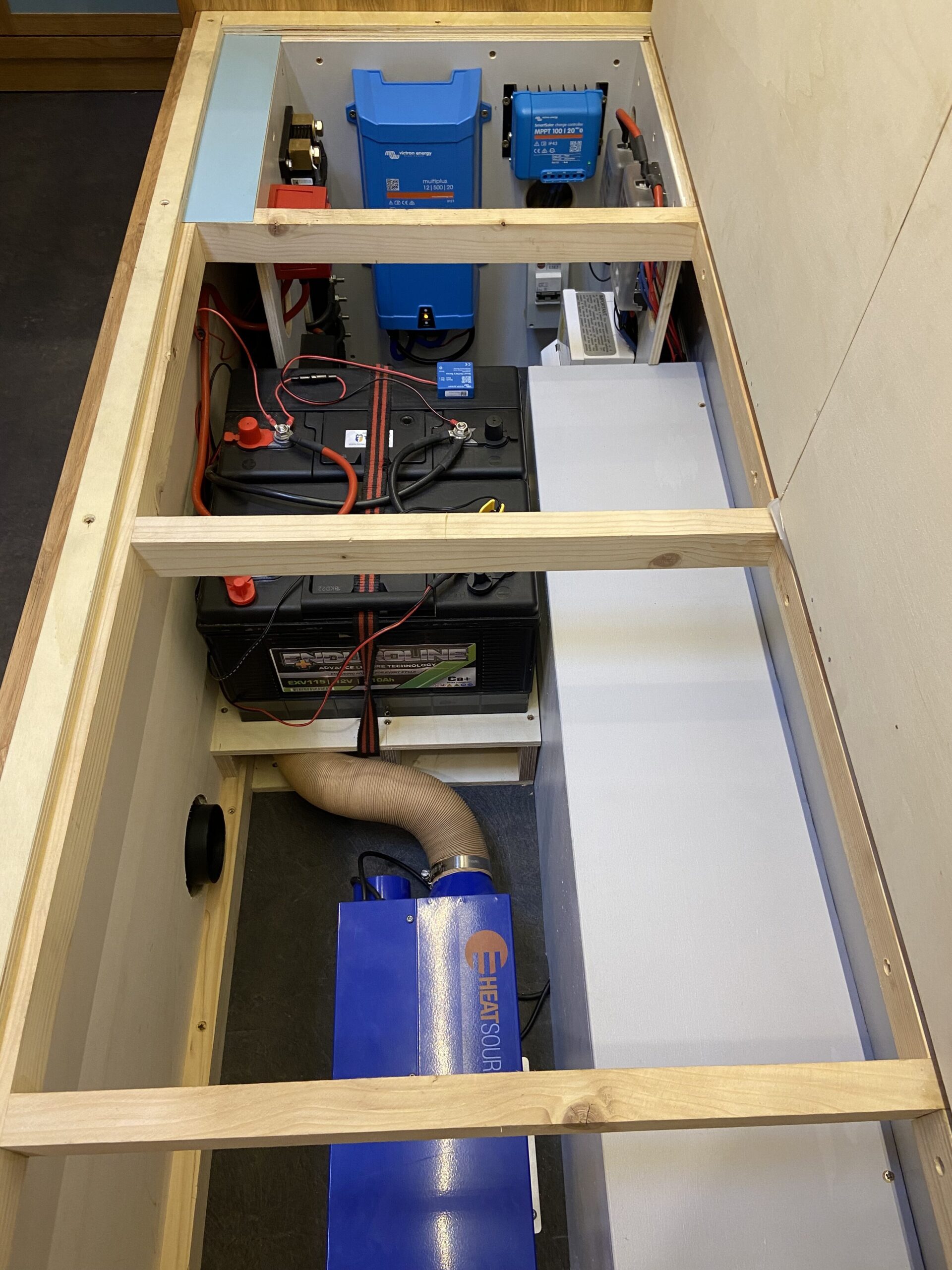

Electrics:
All professionally designed and supplied by Tom @ tinybuildelectrics

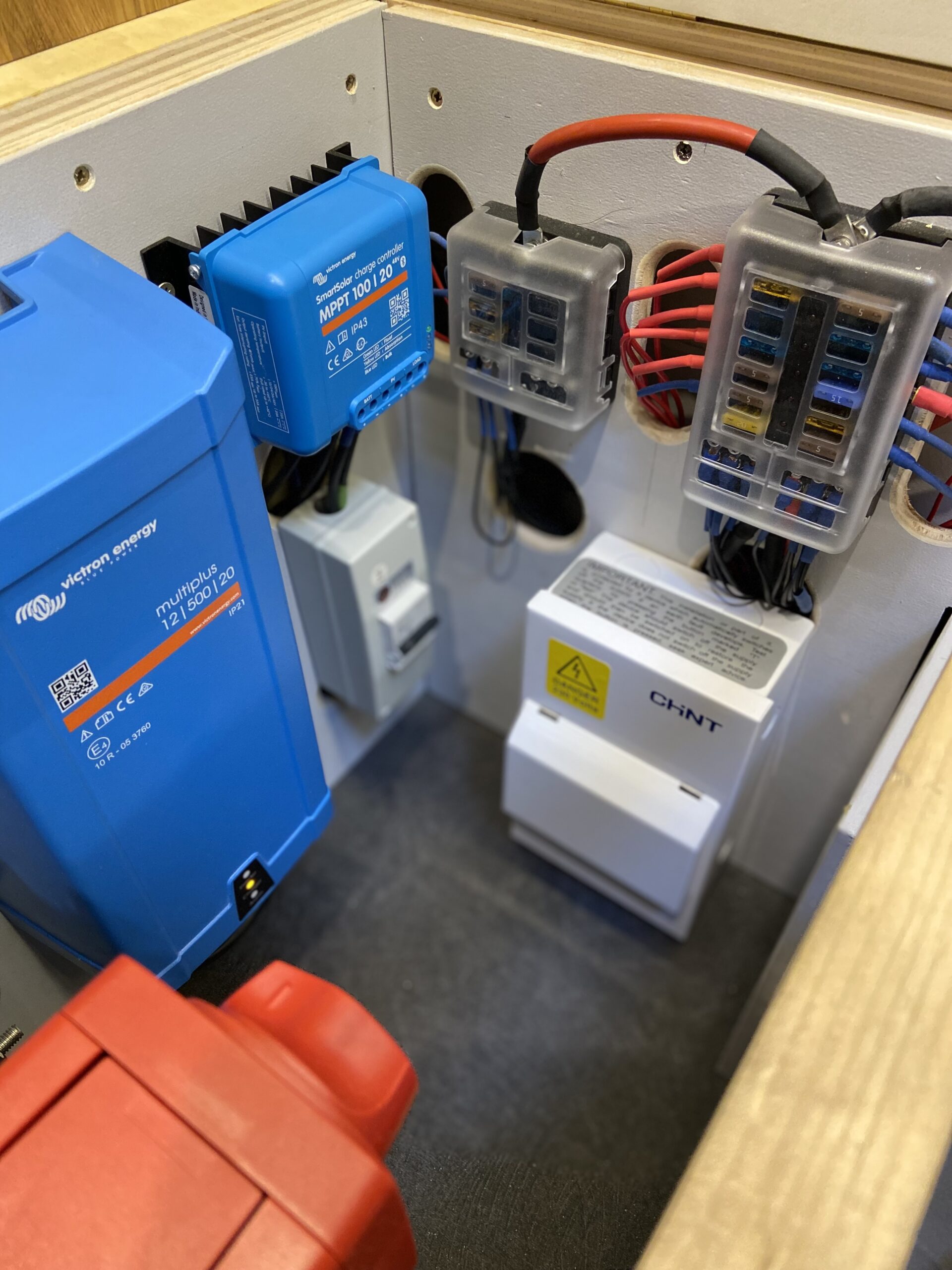

Victron Multiplus 500w Inverter and Mains charger
Victron MPPT Smart solar 100-20 controller
Victron Smart shunt 500A
Victron Smart battery sense
Victron Digital multi control
Sterling BB1230
2 x Brand new 115ah Enduroline Leisure Battery

Victron is arguably the best manufacturer, paired with the Sterling Battery to Battery charger
The electrics take care of themselves, so you don’t need to worry about them
The Victron is a ‘Smart’ set up. Download the app, and you can get a lot of information, but simply, it tells you the voltage, and how long you have left before you need to charge
The solar keeps things working all year round
There are independent 12v and 230v fuse boxes
And of course there is shore power to plug in at campsites or home.
There is plenty of lighting throughout the van, independently switched, so you van set the mood
Plenty of USB sockets and a mains 230v socket that runs up to 500w (TV, Blender, Laptop etc) off grid via the inverter
Full mains power when plugged in to power higher rated appliances(Hair dryer, Electric space heater, Microwave)

Gas
A full kit from ‘Gas-It’ supplied and fitted.
11kg bottle with regulator and manifold to isolate appliances individually
Fill up externally with LPG from a petrol station for a small fraction of the cost of Calor bottles. This can easily be refilled all over the world
An independent gas engineer has tested and signed off all of this.
The Gas Tank has a Bluetooth gauge and sends this to your smart phone in seconds. No more guess work!

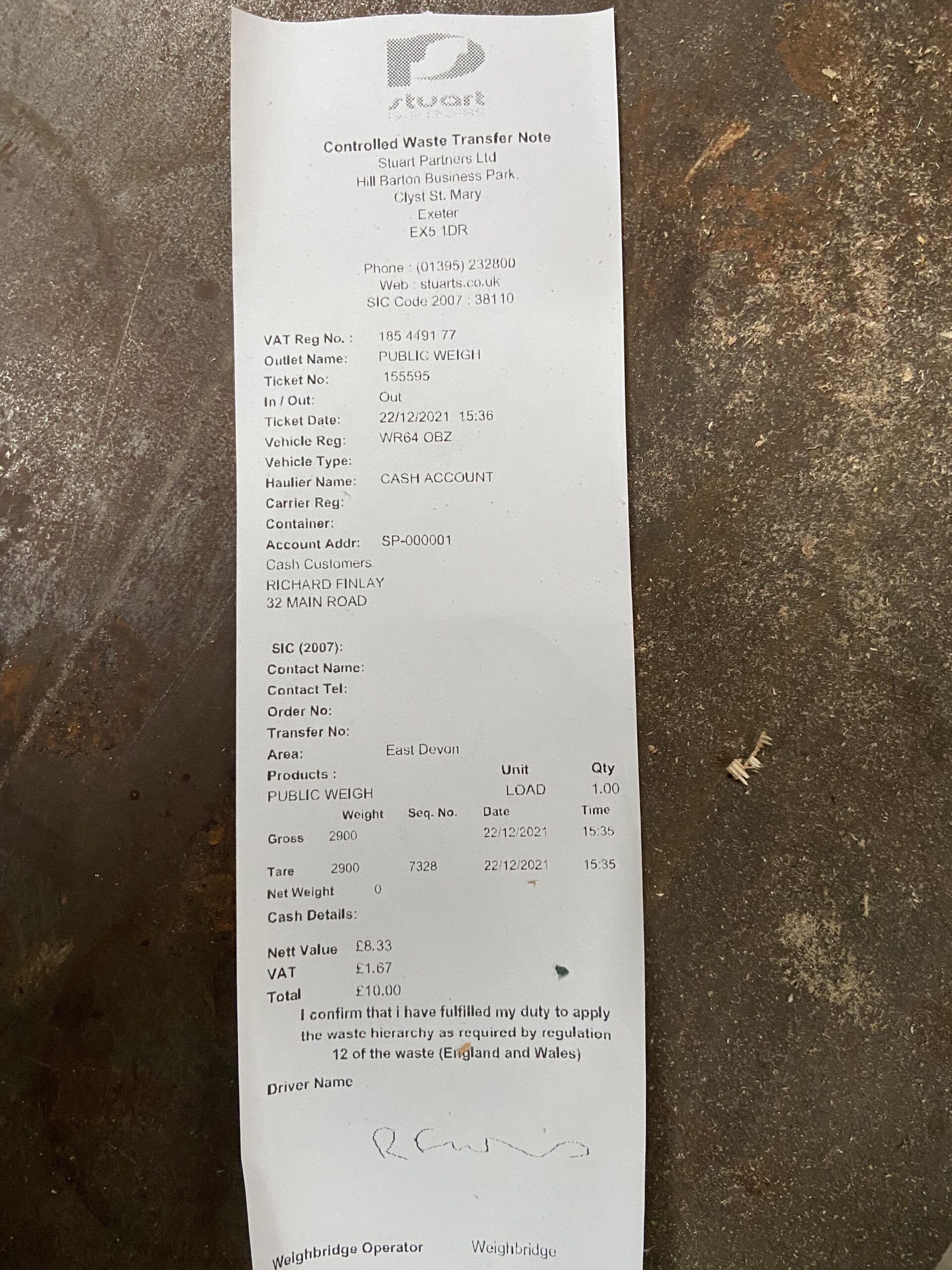

The van weighs in at 2900kg, leaving a cool 600kg spare
