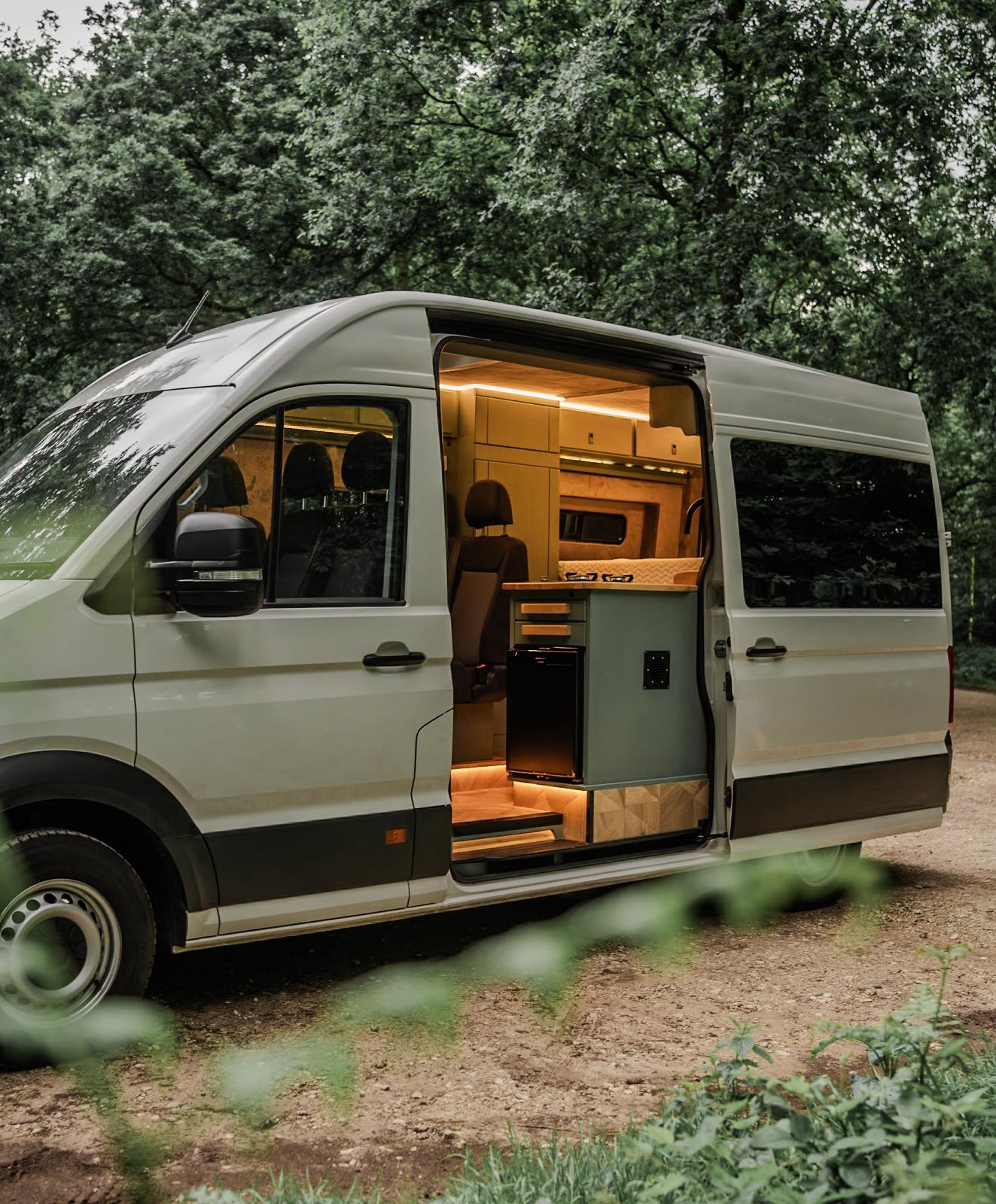

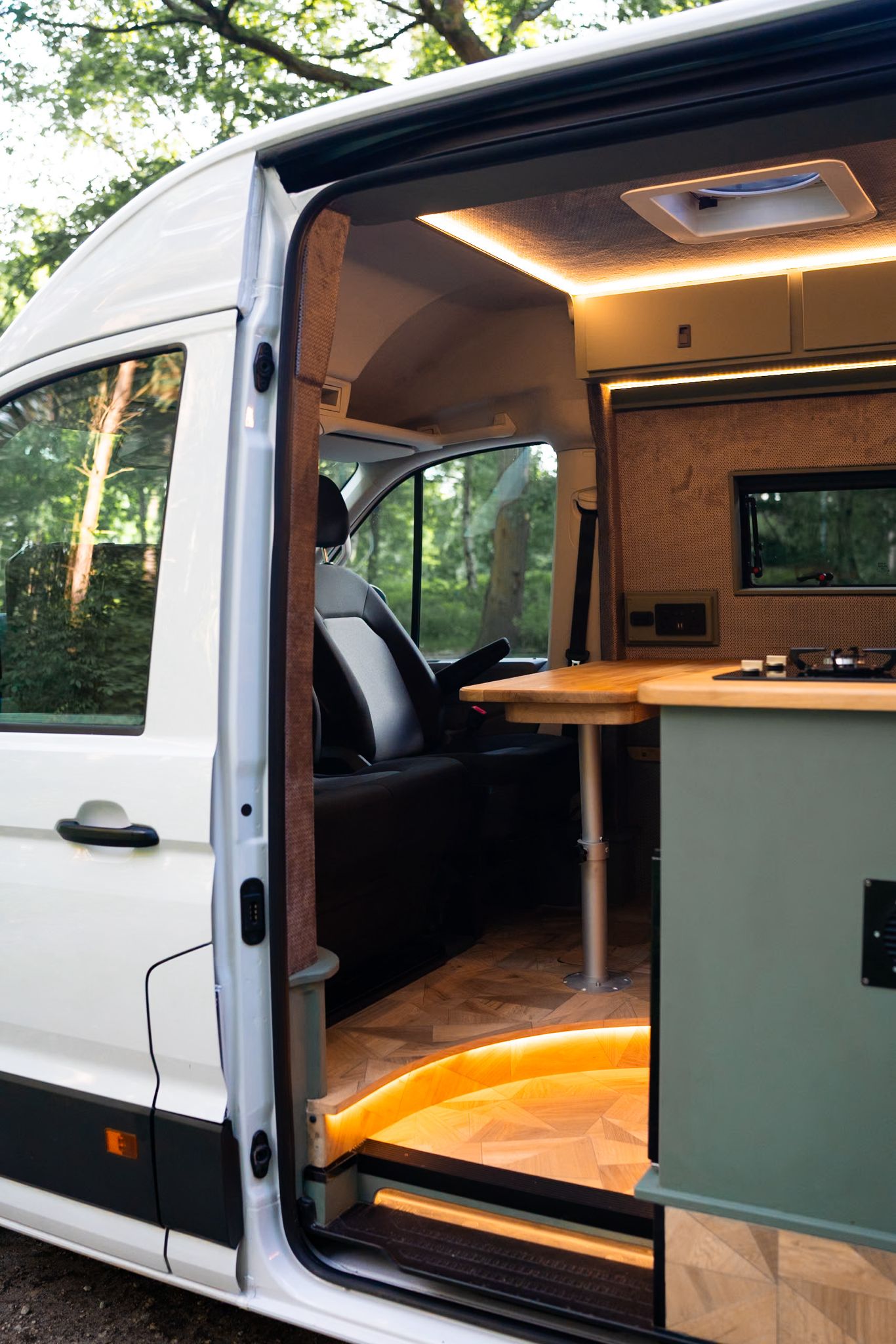

New off grid campervan conversion by Ride and Wild

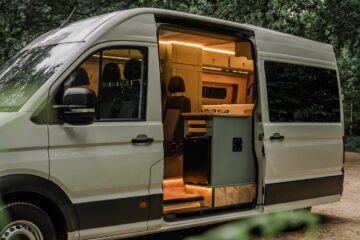

Newly converted Custom off grid campervan conversion built by Ride & Wild.
Sleeps 3 adults or 2 adults and 2 children
No VAT!

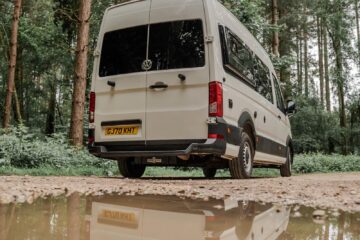

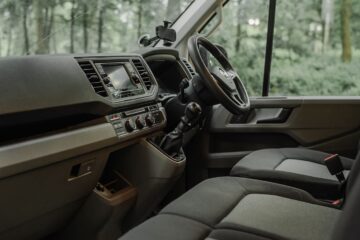

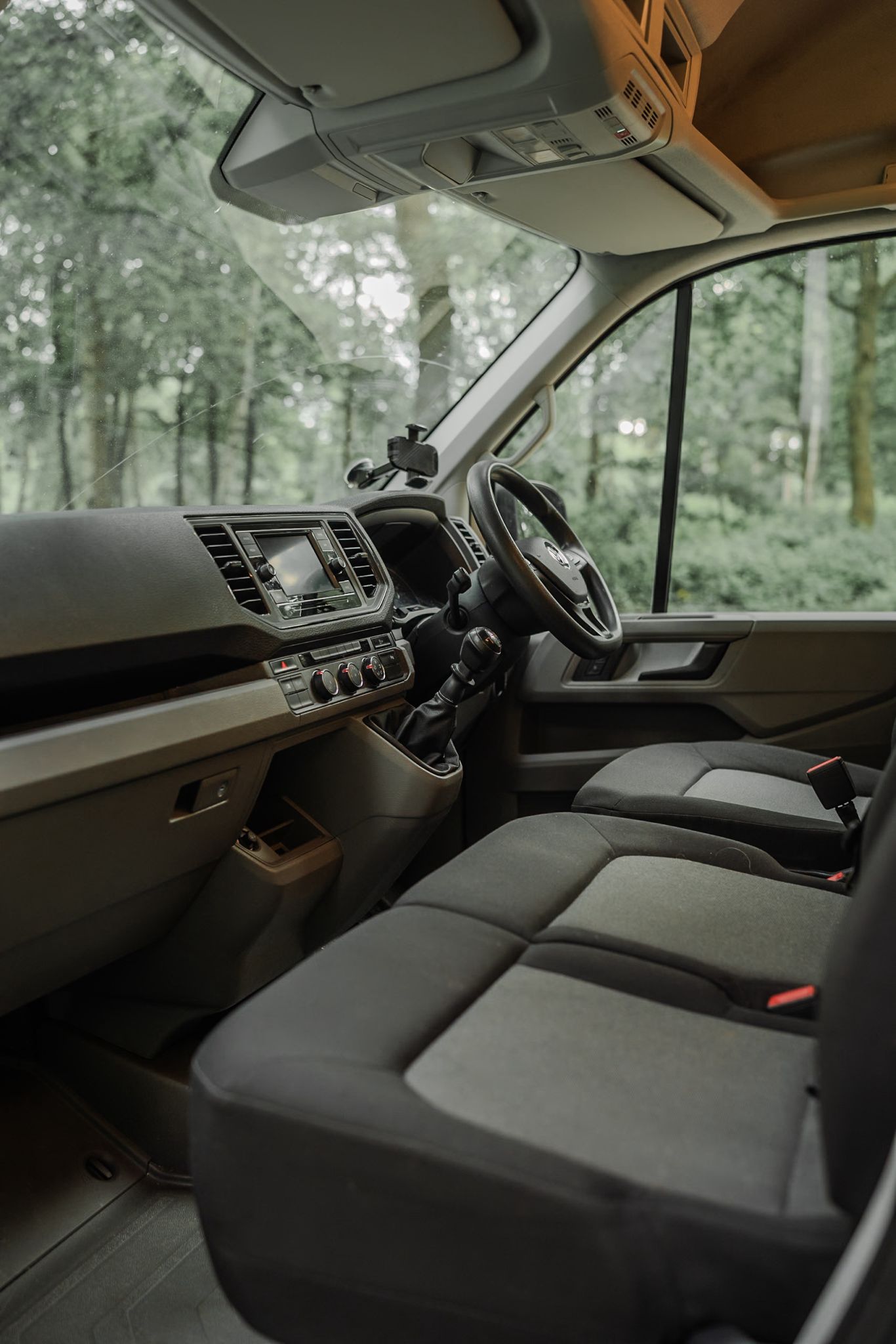

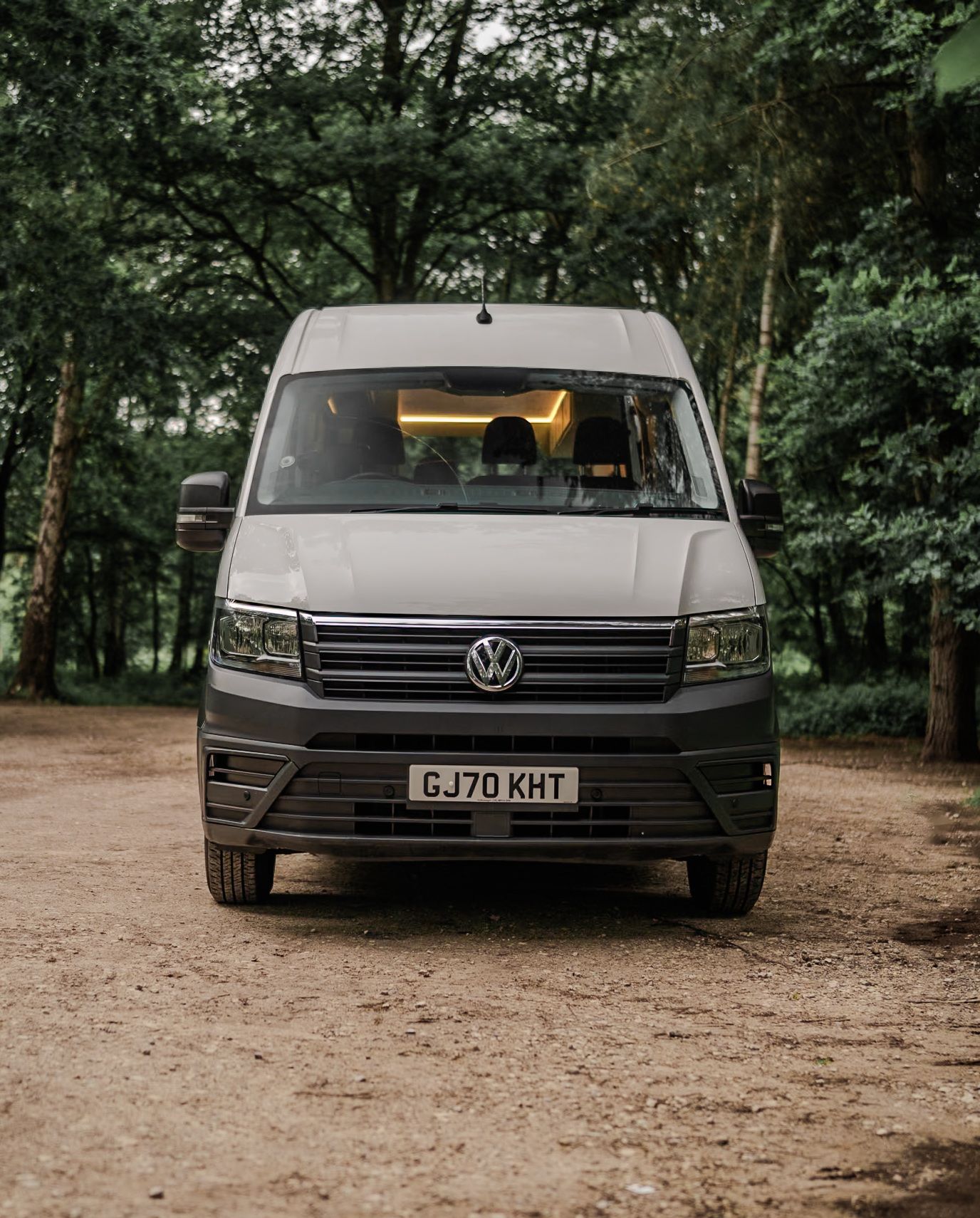

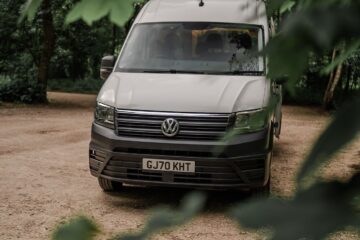

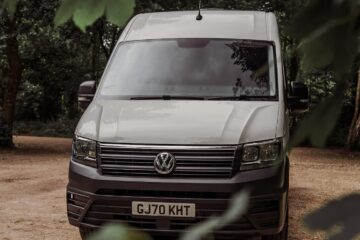

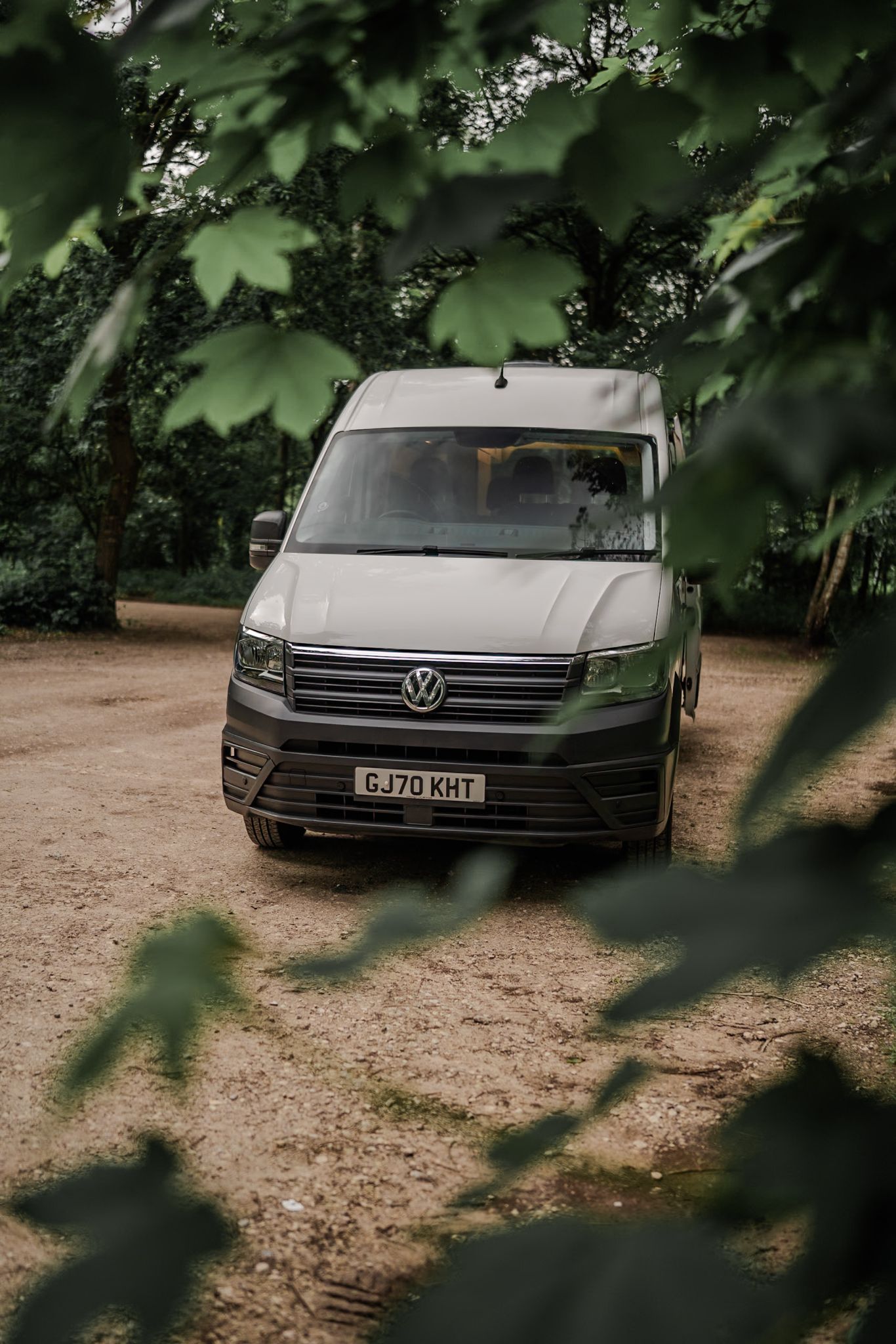

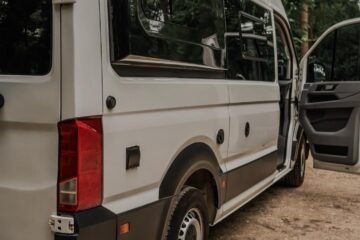

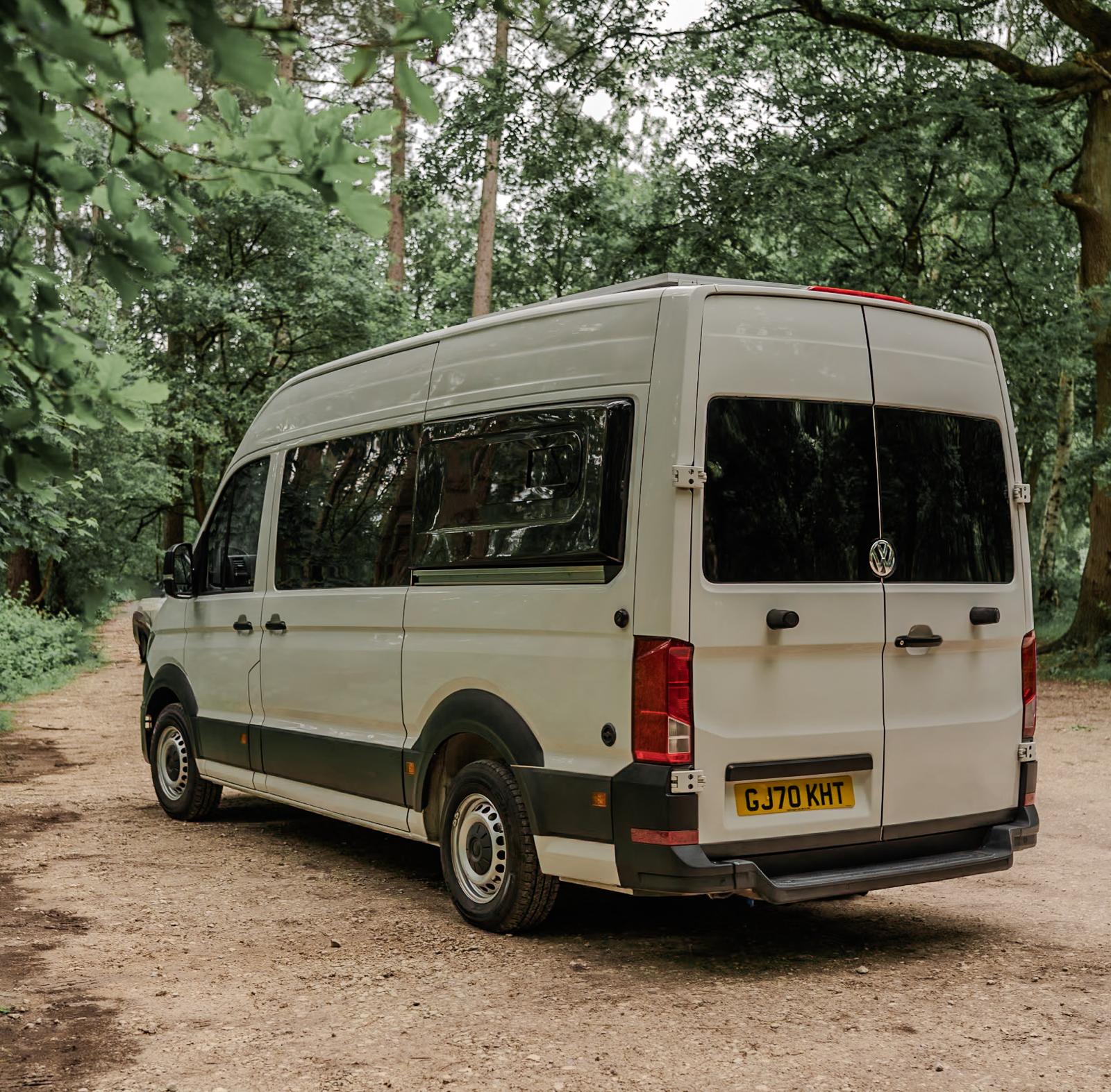

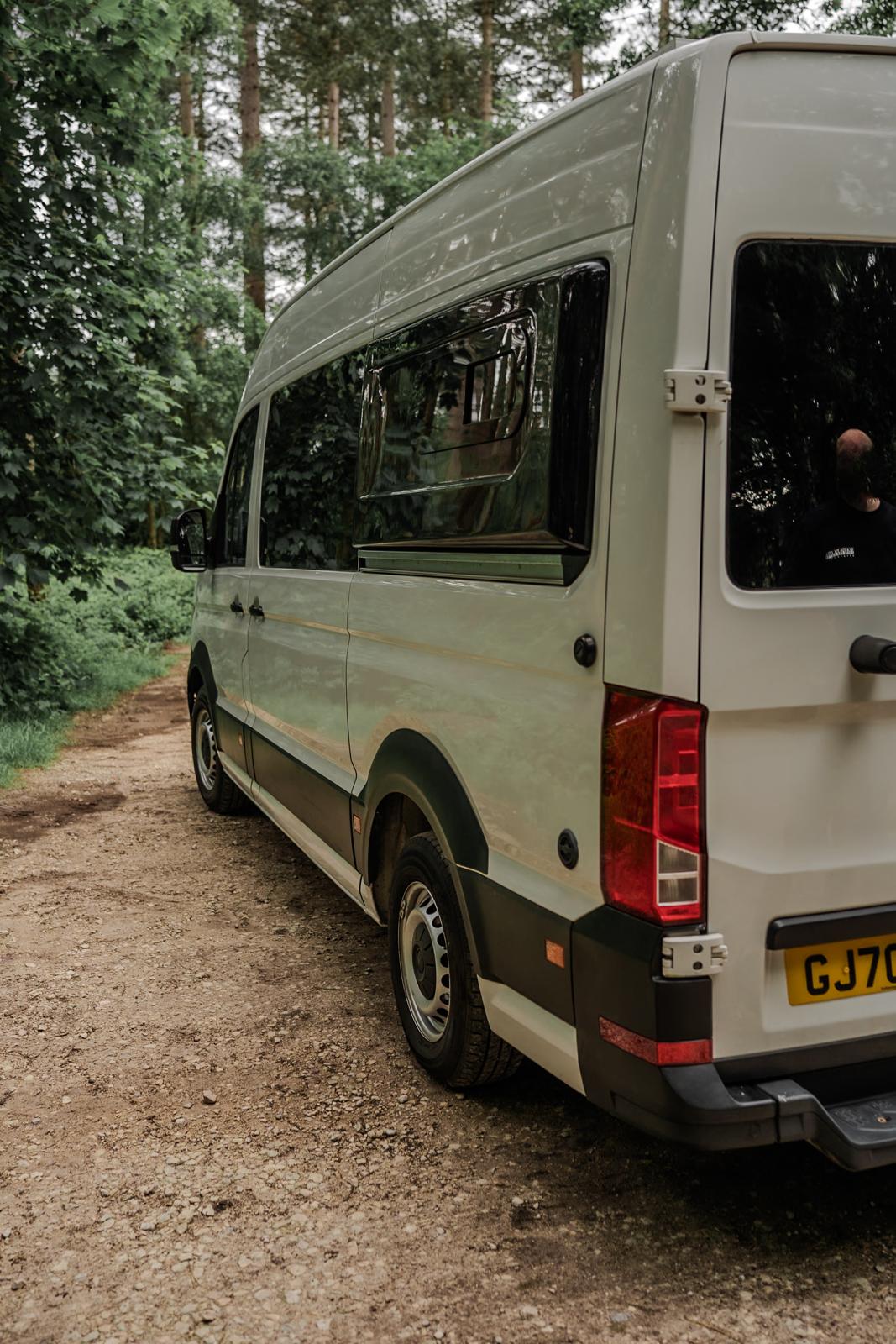

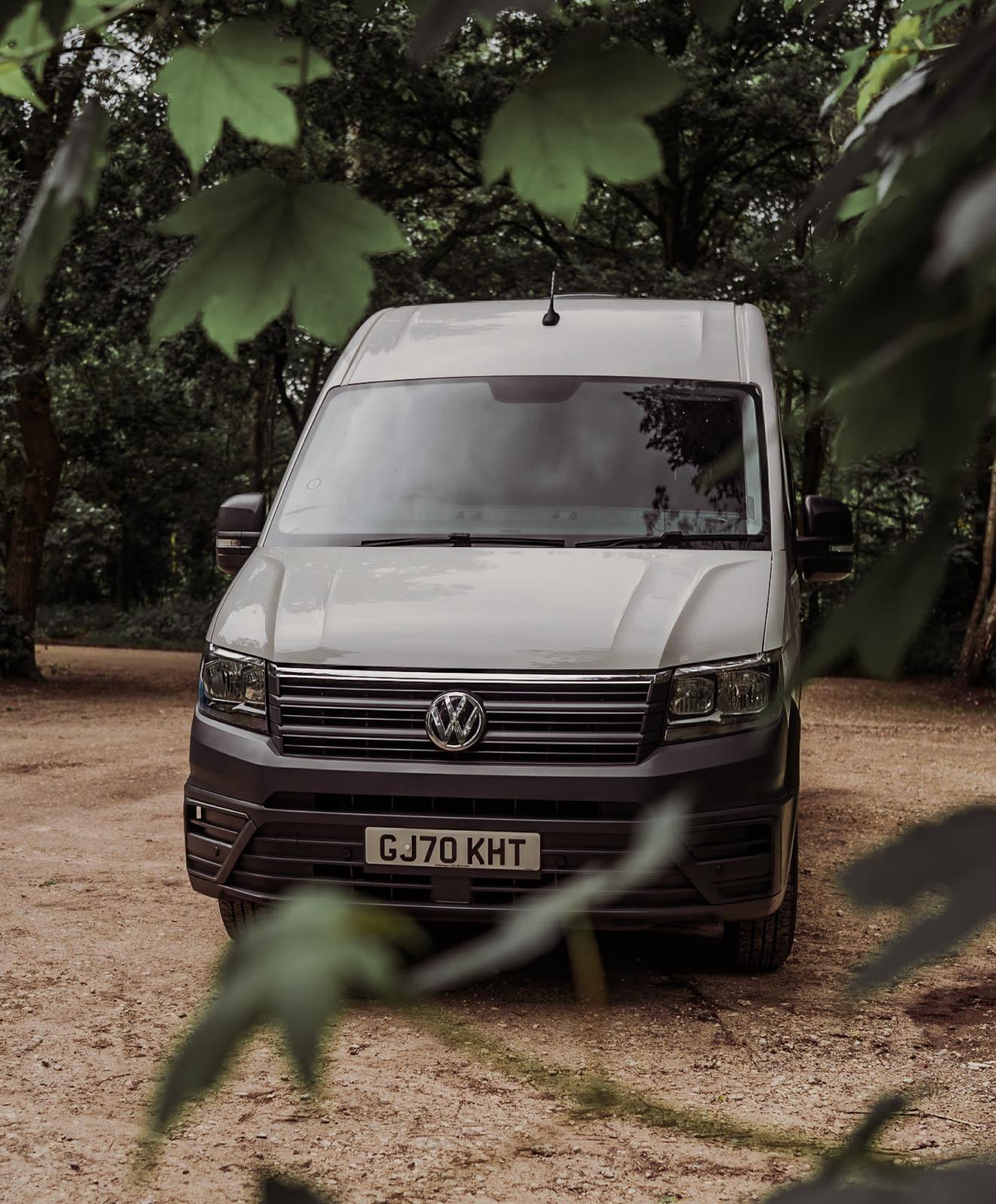

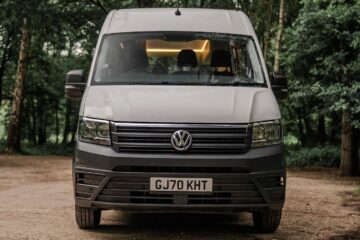

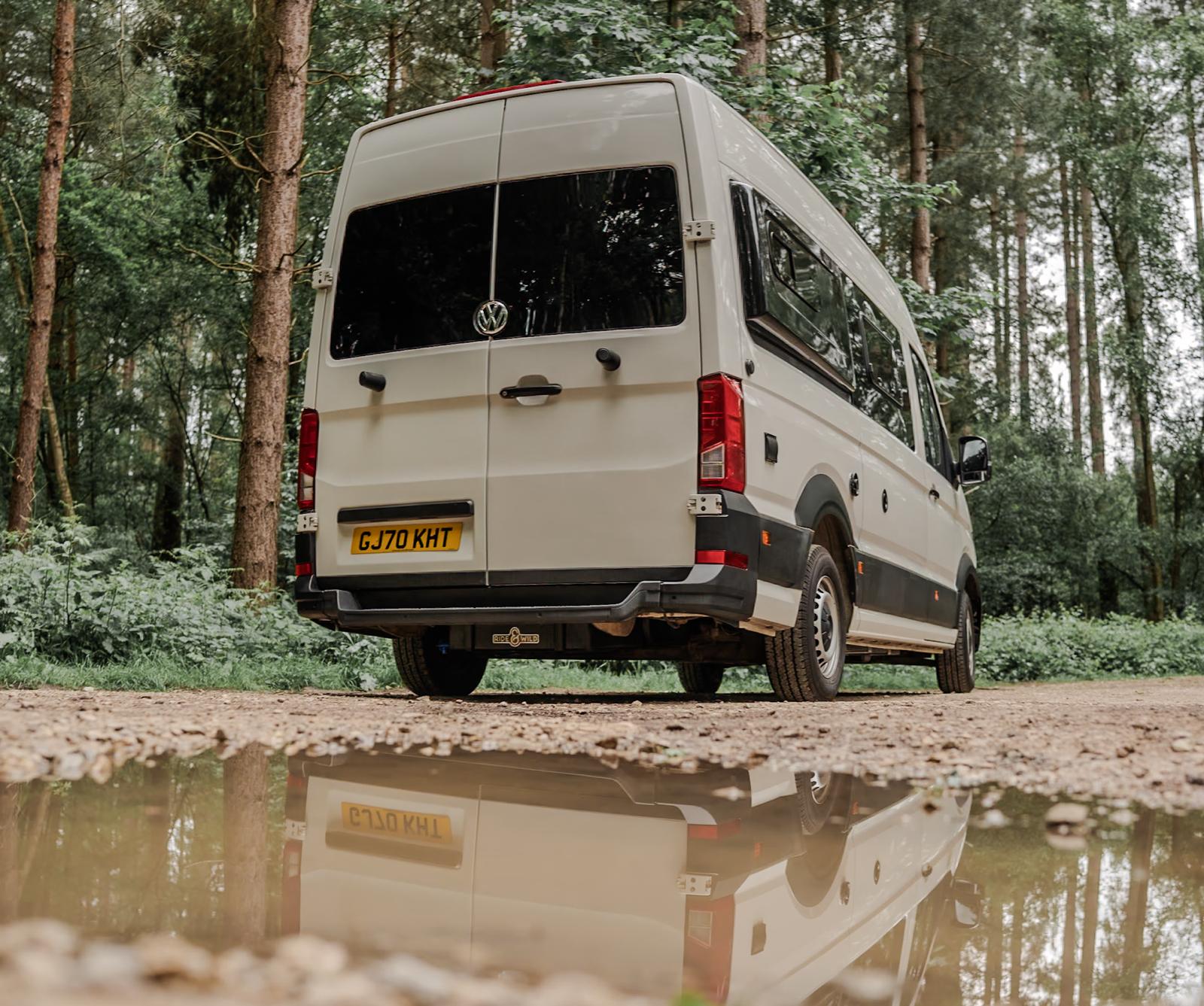

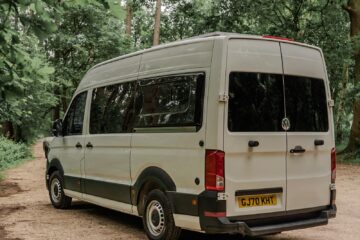

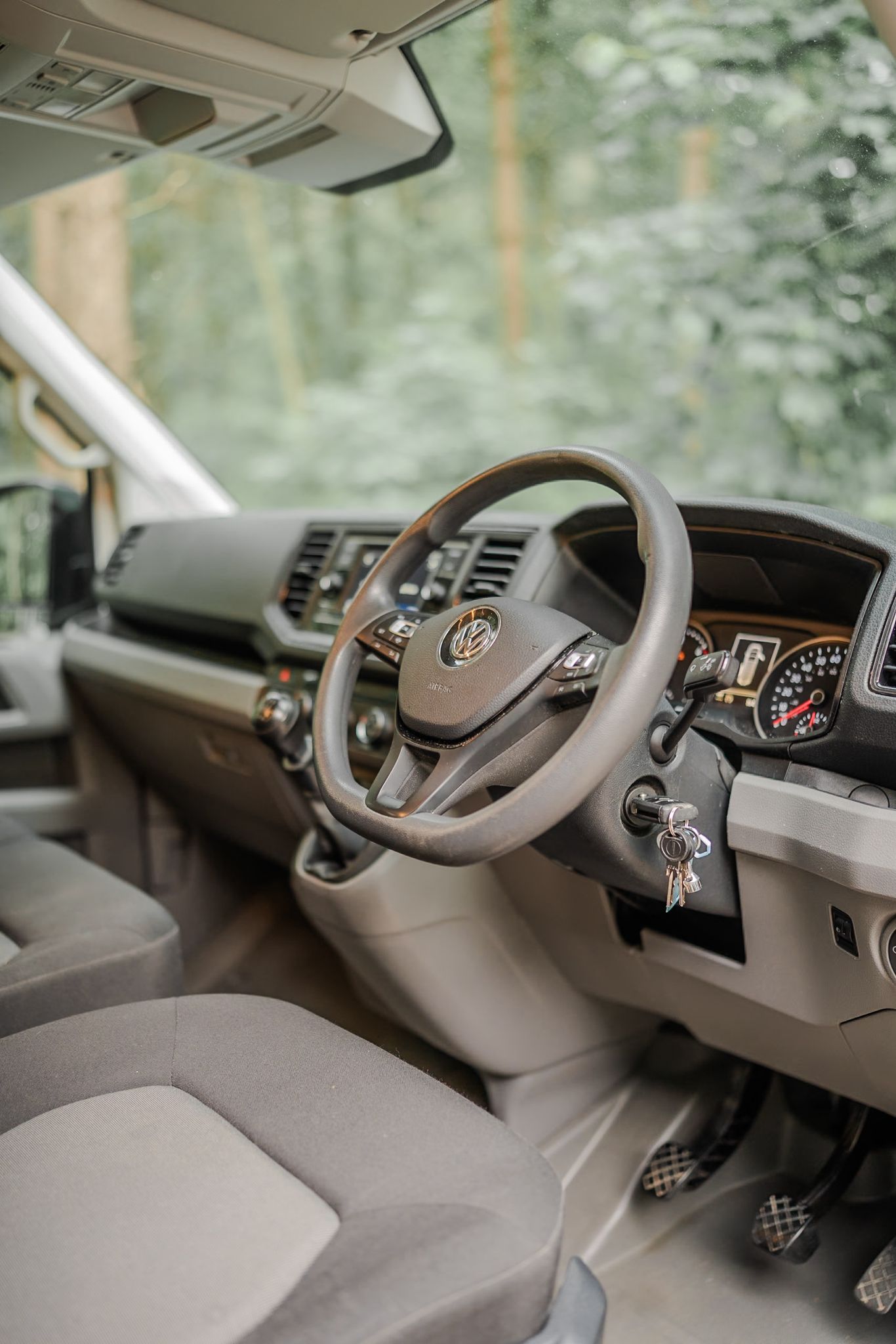

Van details – 2020 Crafter CR35 2ltr TDi 140bhp
Trendline with AC and parking sensors.
Euro 6 Ulez compliant
64400 miles covered with 1 previous owner.
Full VW service history.
2 keys.
Taxed until November 2024
MOT until November 2024

High spec conversion with off grid systems including solar and LPG.
Heating and hot water

1 / 2

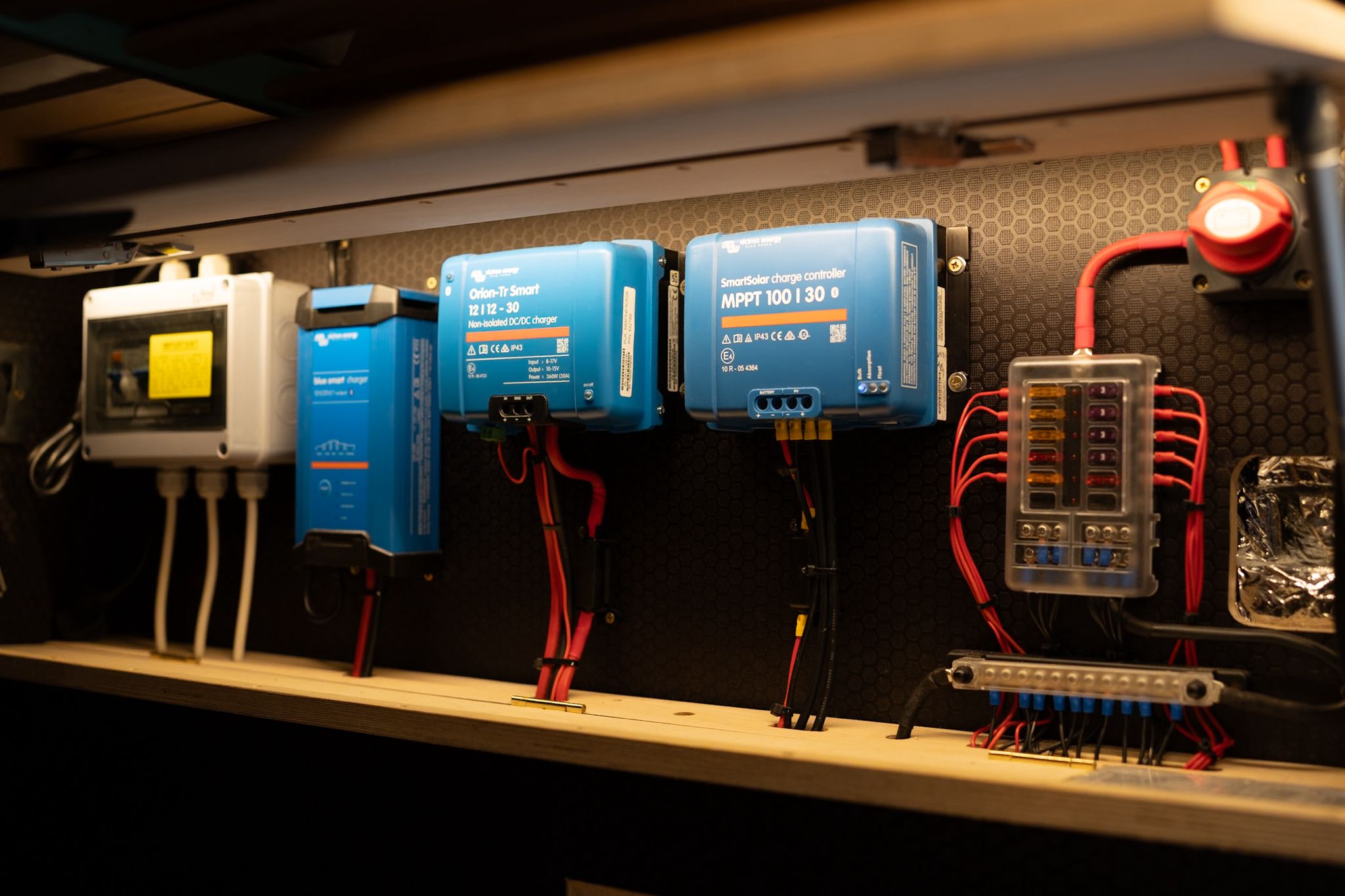

JB Van system details

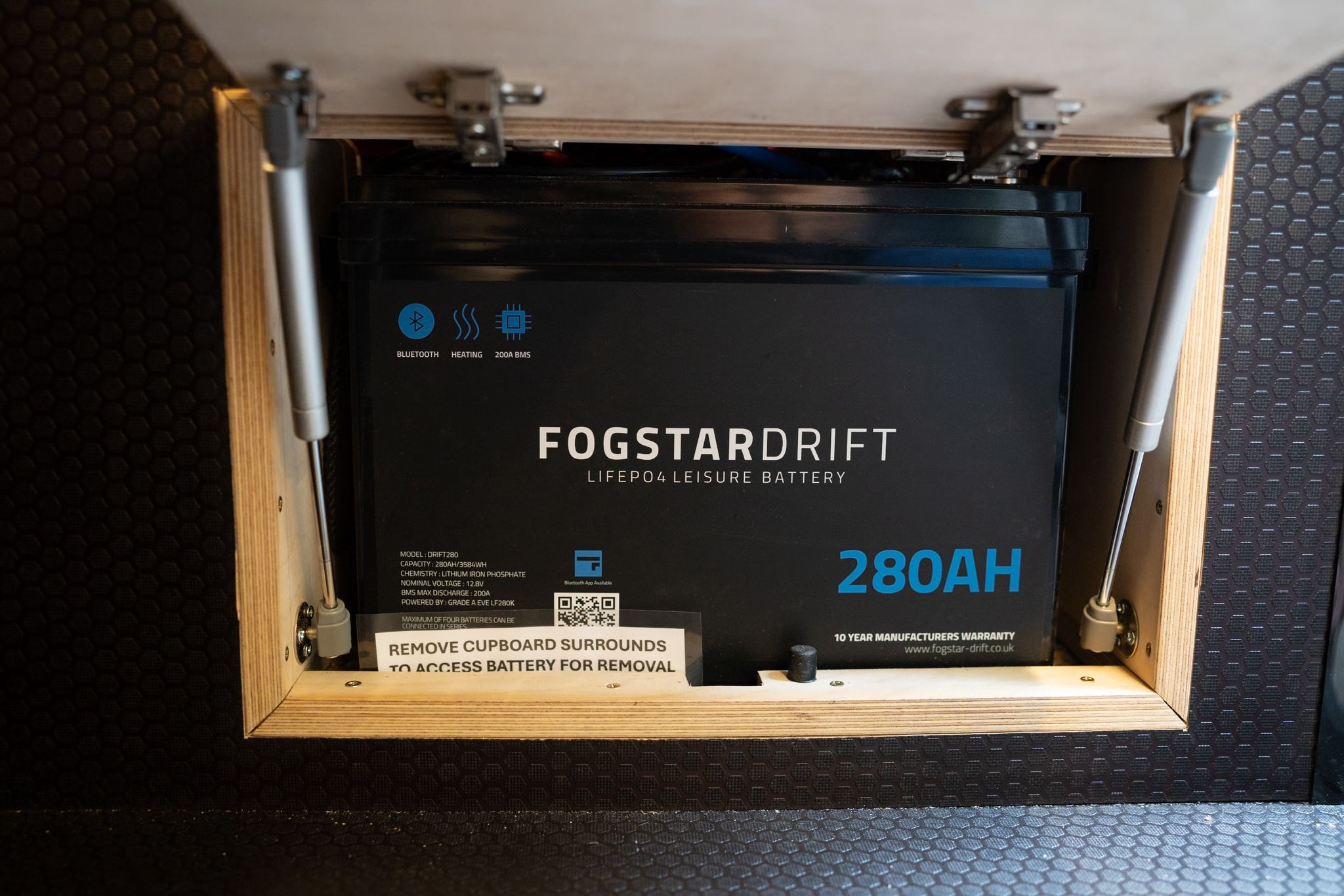

· Fogstar lithium 280ah leisure battery
· Victron 12v 30amp non-isolated dc-dc battery charger – thin red wire is the switched live and runs to the fuse box under the passenger seat
· Victron solar controller 100/30 (mppt maximum power point tracking)
· 2 x Victron 175W solar panels (350W).
· Victron 12/20 mains powered battery charger.
· 12 way 12v usb fuse board
· 12 way negative bus bar
· 600amp isolator (isolates battery from 12v fuse board and main touch panel)
· 3 x double usb sockets (each has 1 x usb and 1 x usb – c)

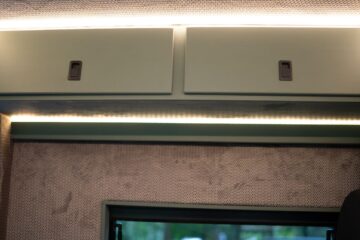

· 12v led lighting

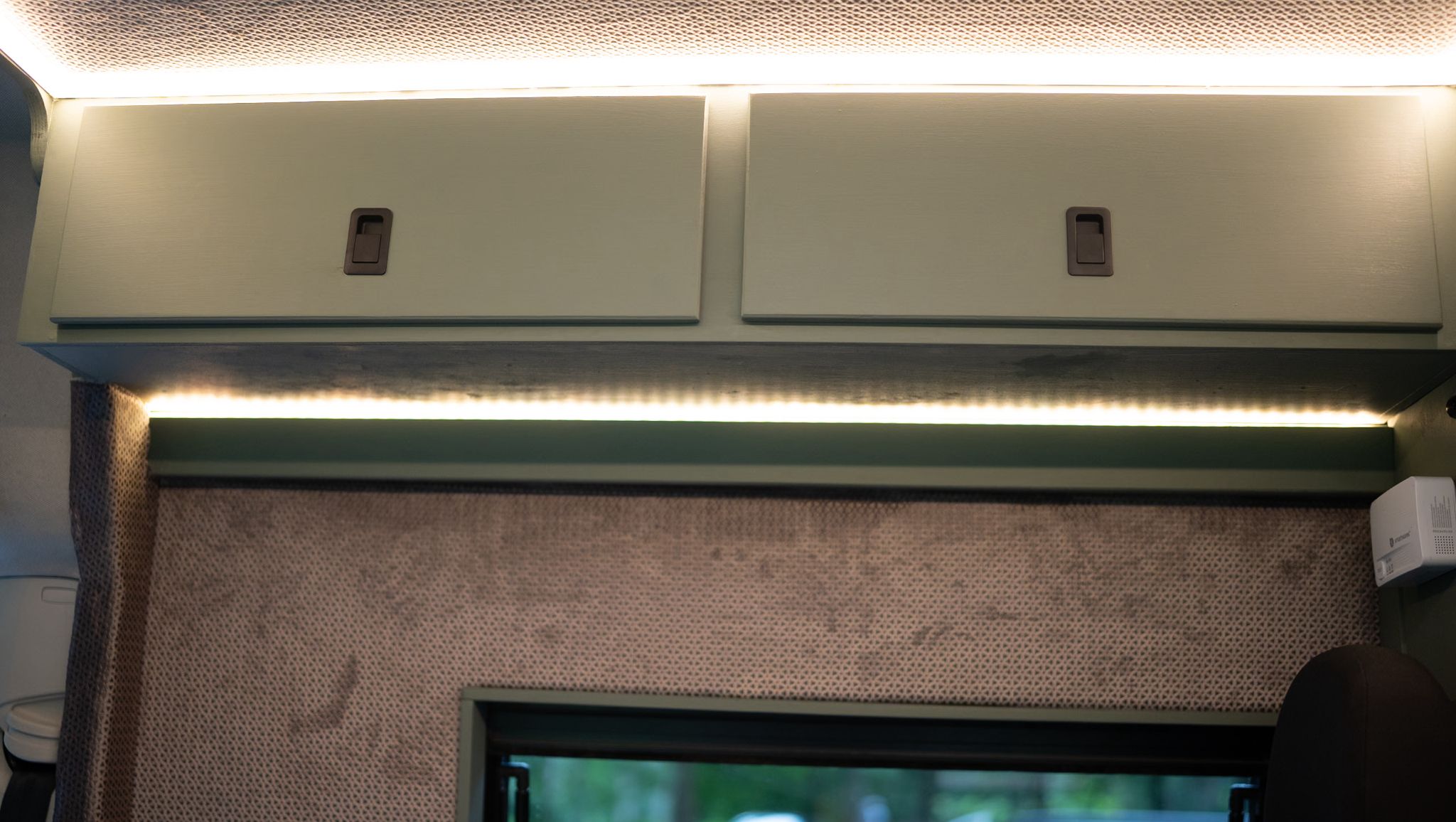

· 12v led accent lights
· 12v under plinth lights
· 12v led lighting in garage, electrical cupboard and water cupboard (independently switched)
· 240v wired campers fuse box

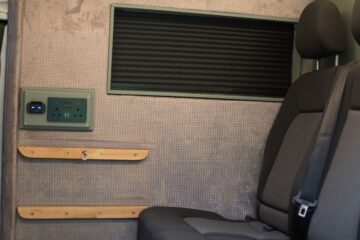

· 2 x 240v double sockets with integral usb connections
· 1 x single socket mounted in garage area electrical cupboard (for use by either truma boiler or mains battery charger).
· 12v dometic CRX50 compressor fridge

· Truma 4e inet X boiler for hot water and heating (gas fed)
· Shurflo water pump (12 volt powered)
· Expansion vessel for water system – valve on the top must be set at 30psi.
· 25L underslung LPG tank which has also been stonechip protected (note: when filling it will only fill to 80% to allow for expansion)
· 64L underslung clean water tank
· 73L underslung rear mounted waste water tank
· Bullfinch external shower point located in garage area
· All water pipe work carried out with John Guest 12mm push fittings and red/blue pipes.
· All gas pipe work from tank to manifold and manifold to appliances in copper pipe with compression fittings (flexi pipe from lpg filler point to tank – as supplied in kit).

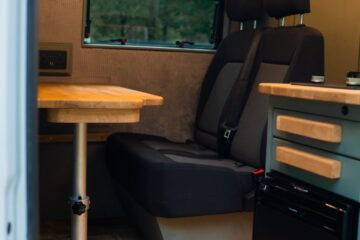

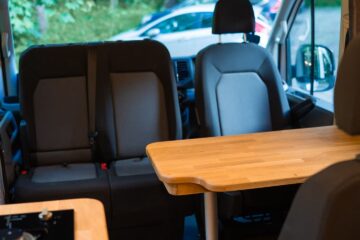

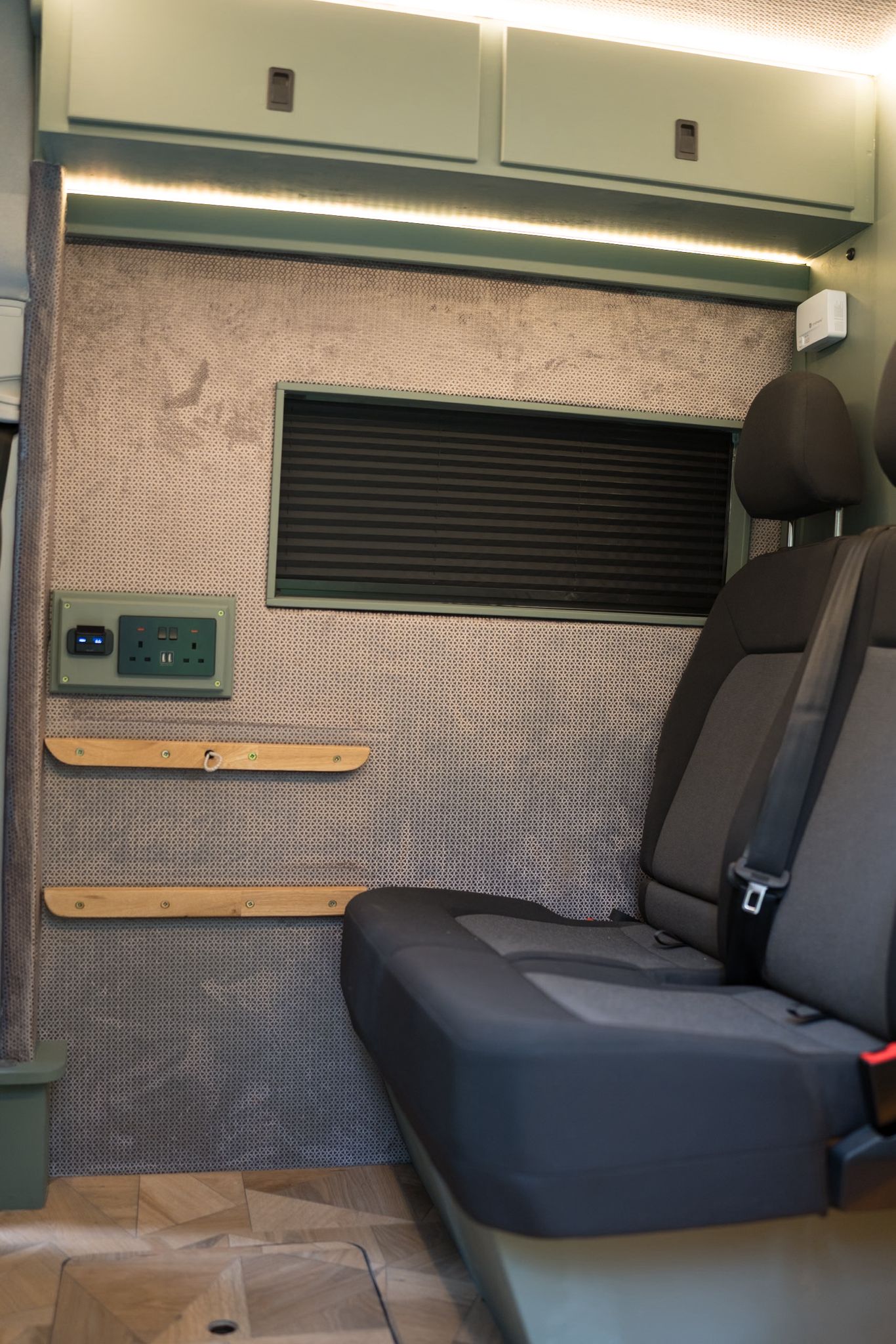

· Additional VW crafter bench seat (taken from 2023 van) fitted in the rear with seat belts – mounted to vehicle floor with 8.8 M12 bolts and spreader plates

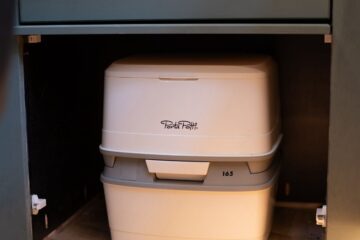

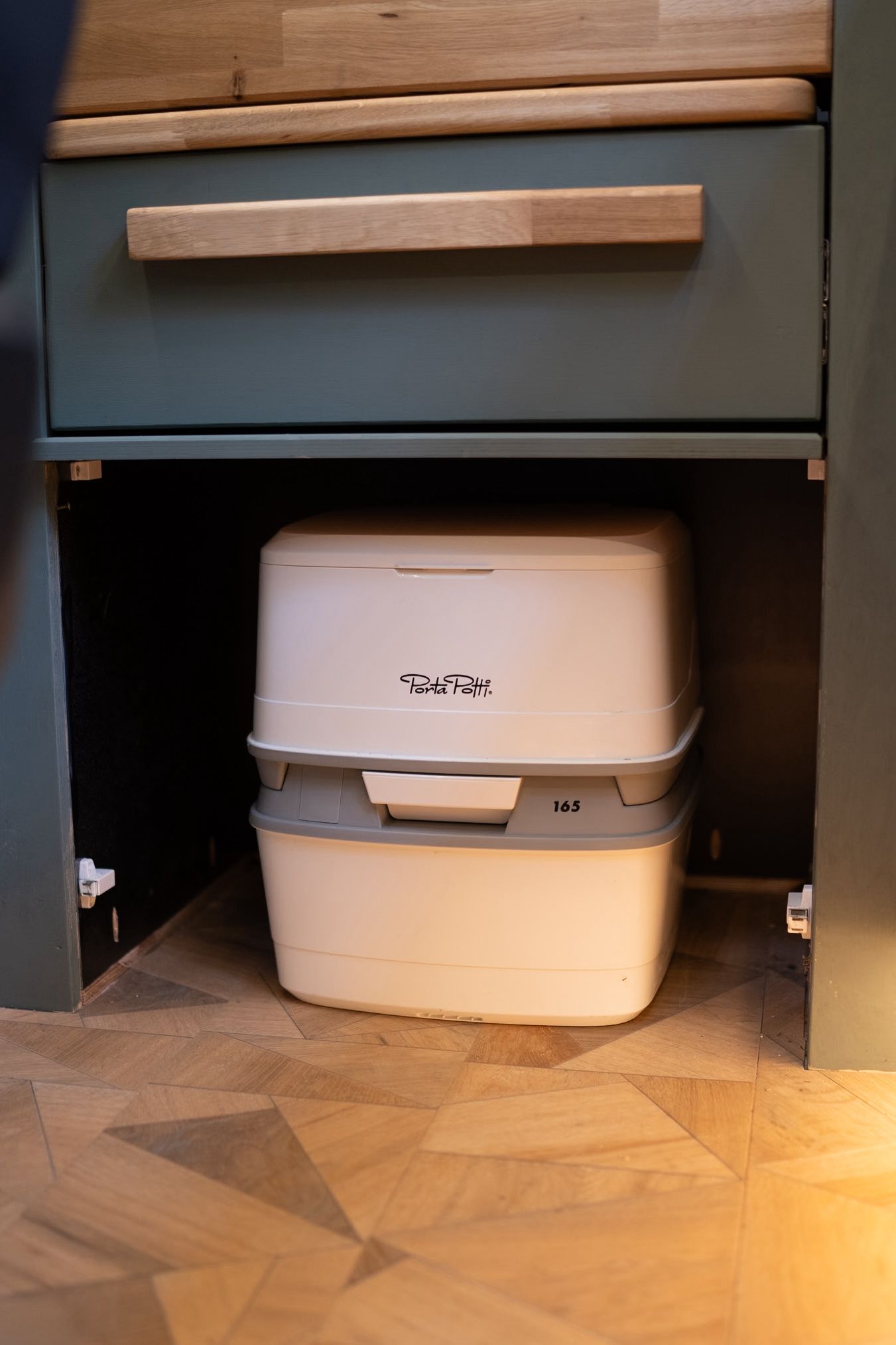

· Thetford porta potti 165 cassette toilet

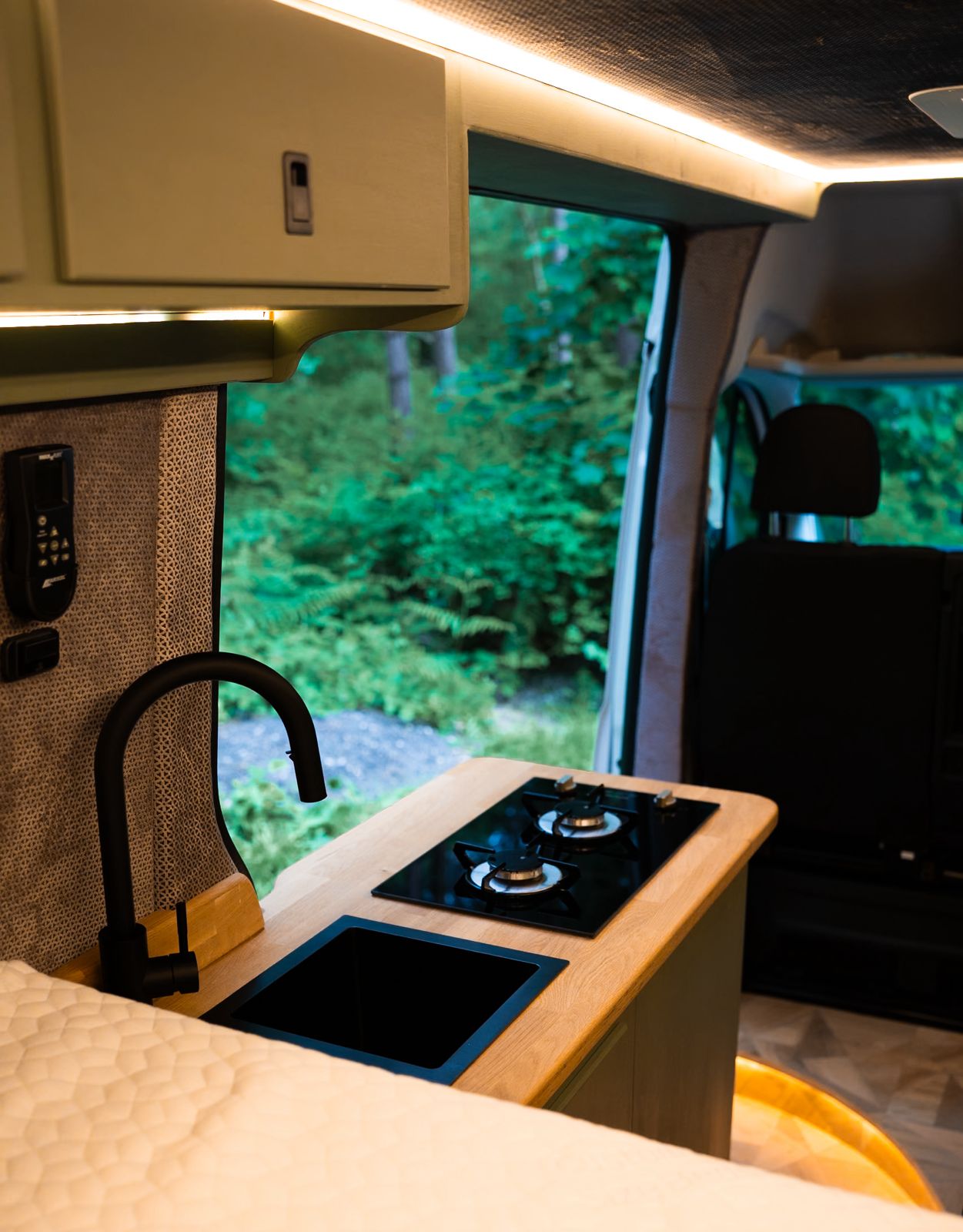

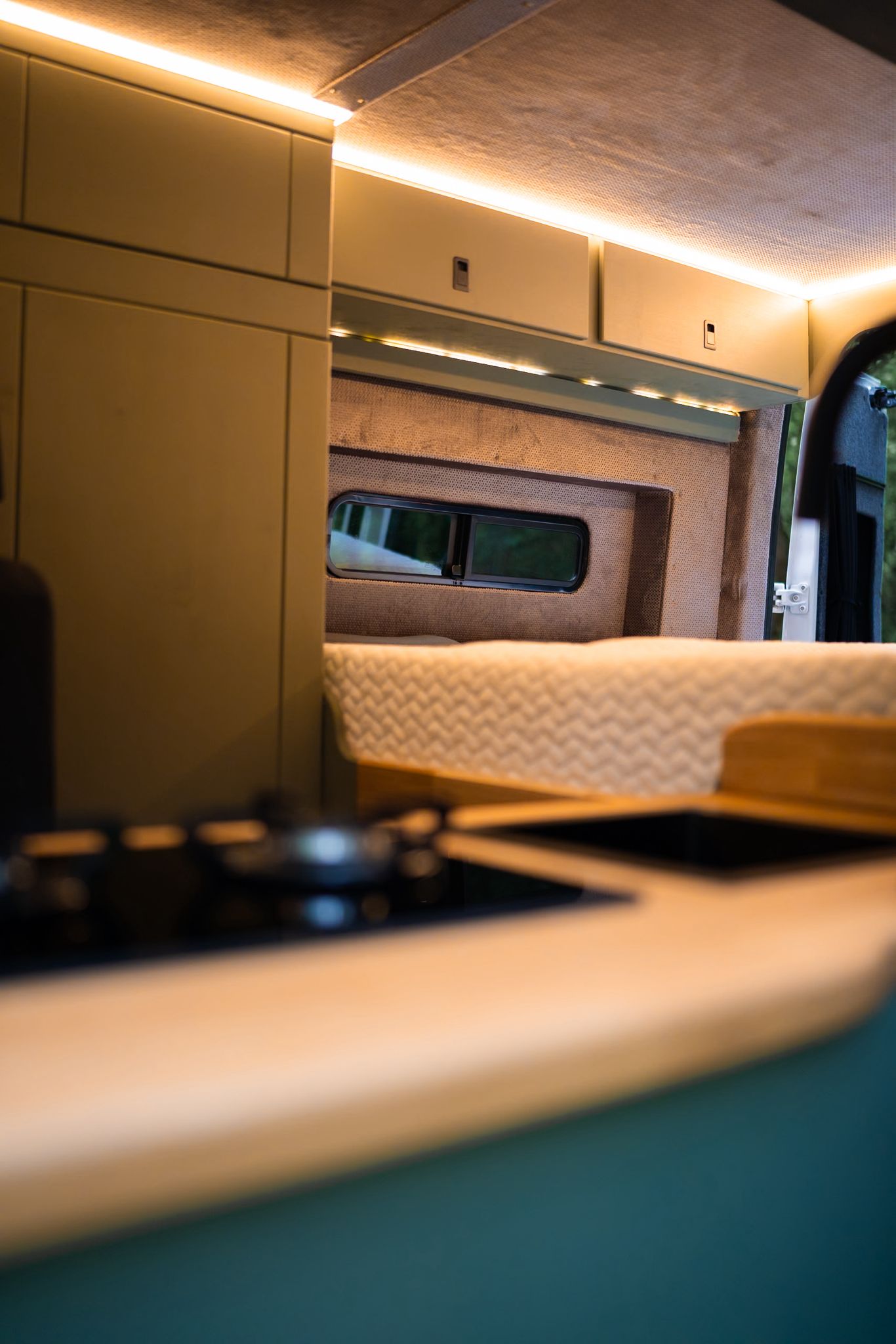

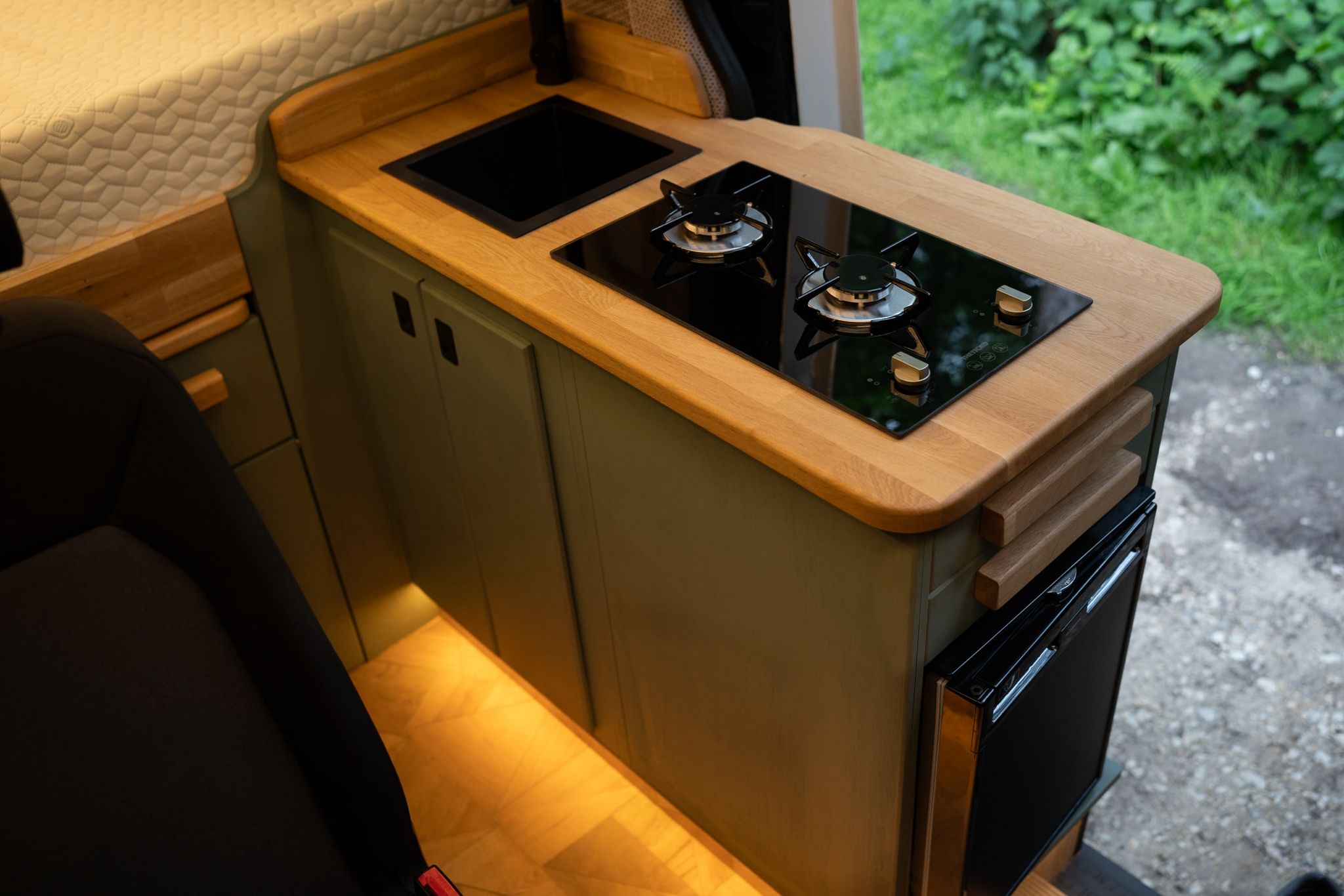

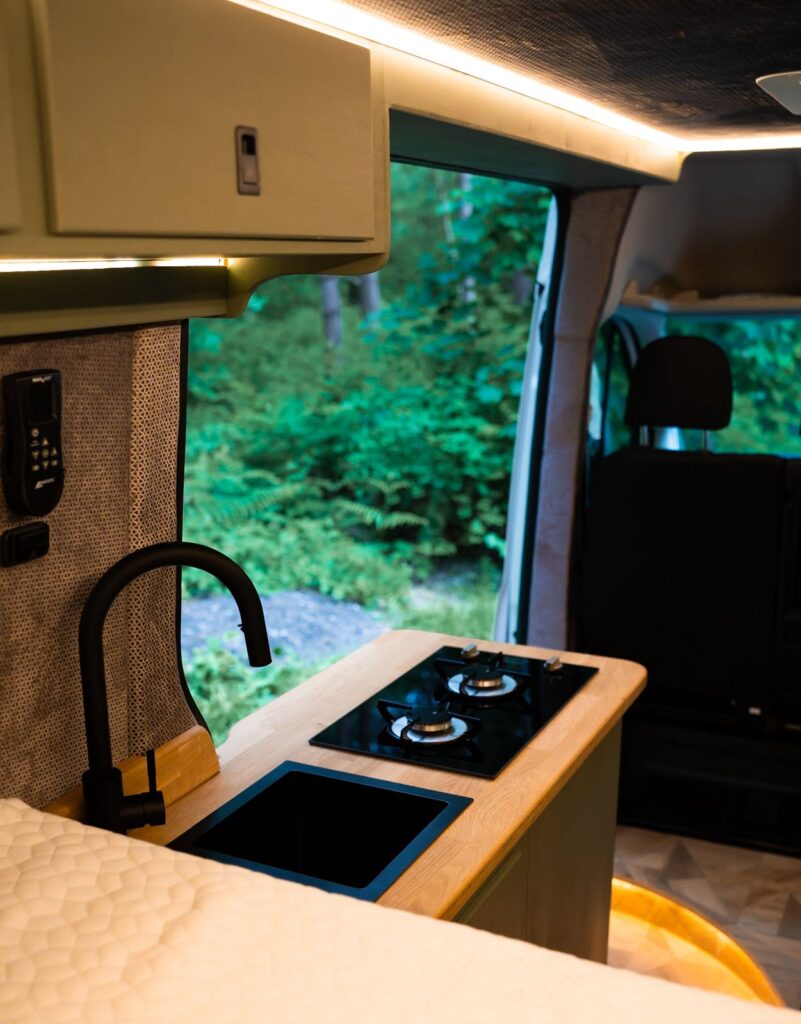

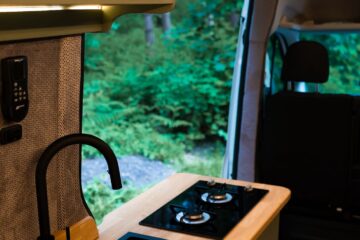

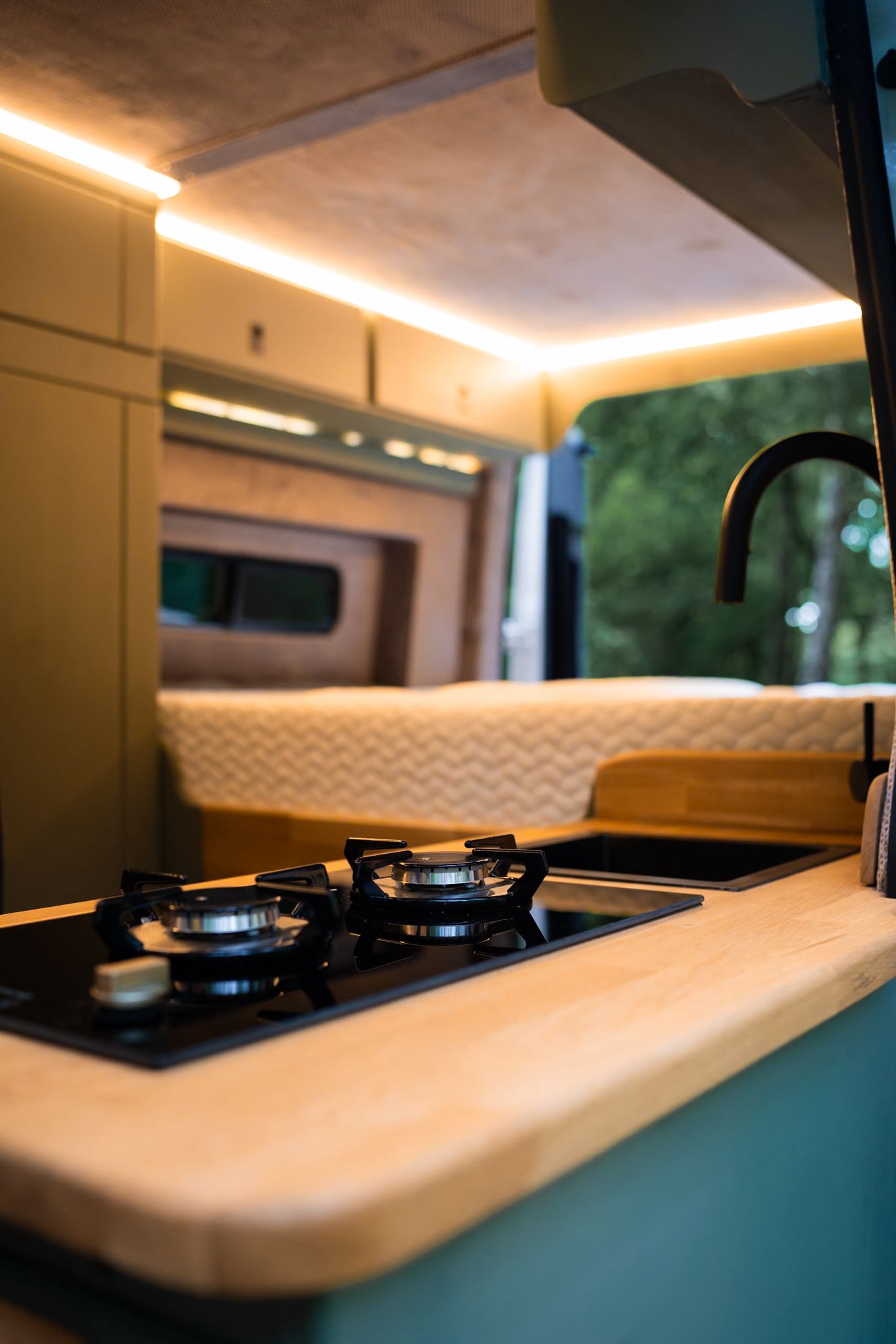

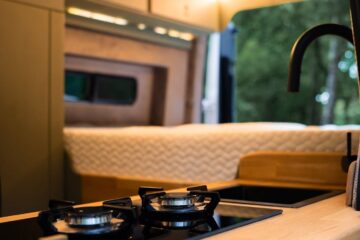

· Thetford 229 double gas burner hob – runs off lpg tank via manifold in maintenance cupboard

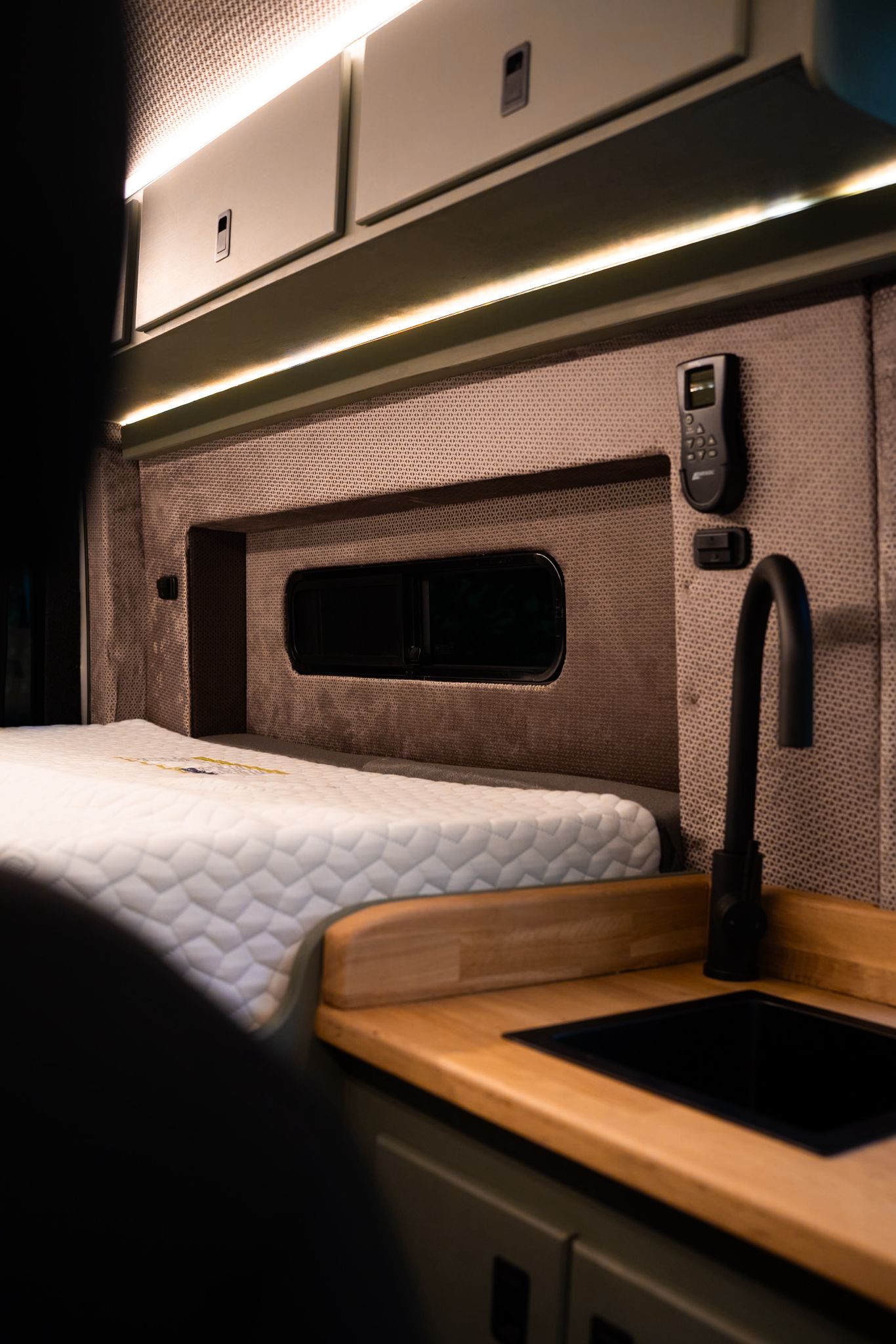

· Retractable black kitchen tap

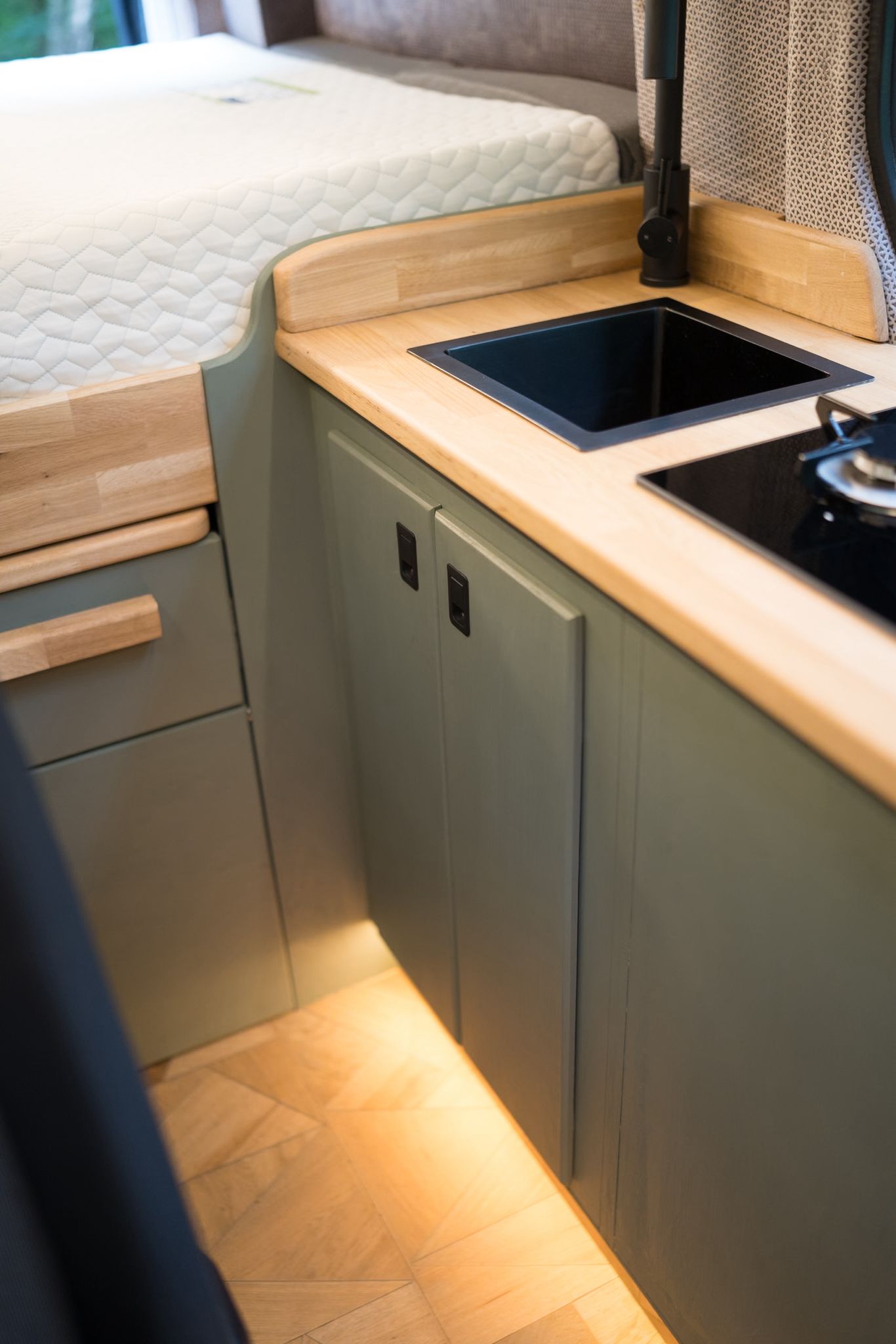

· Sink
2 / 2

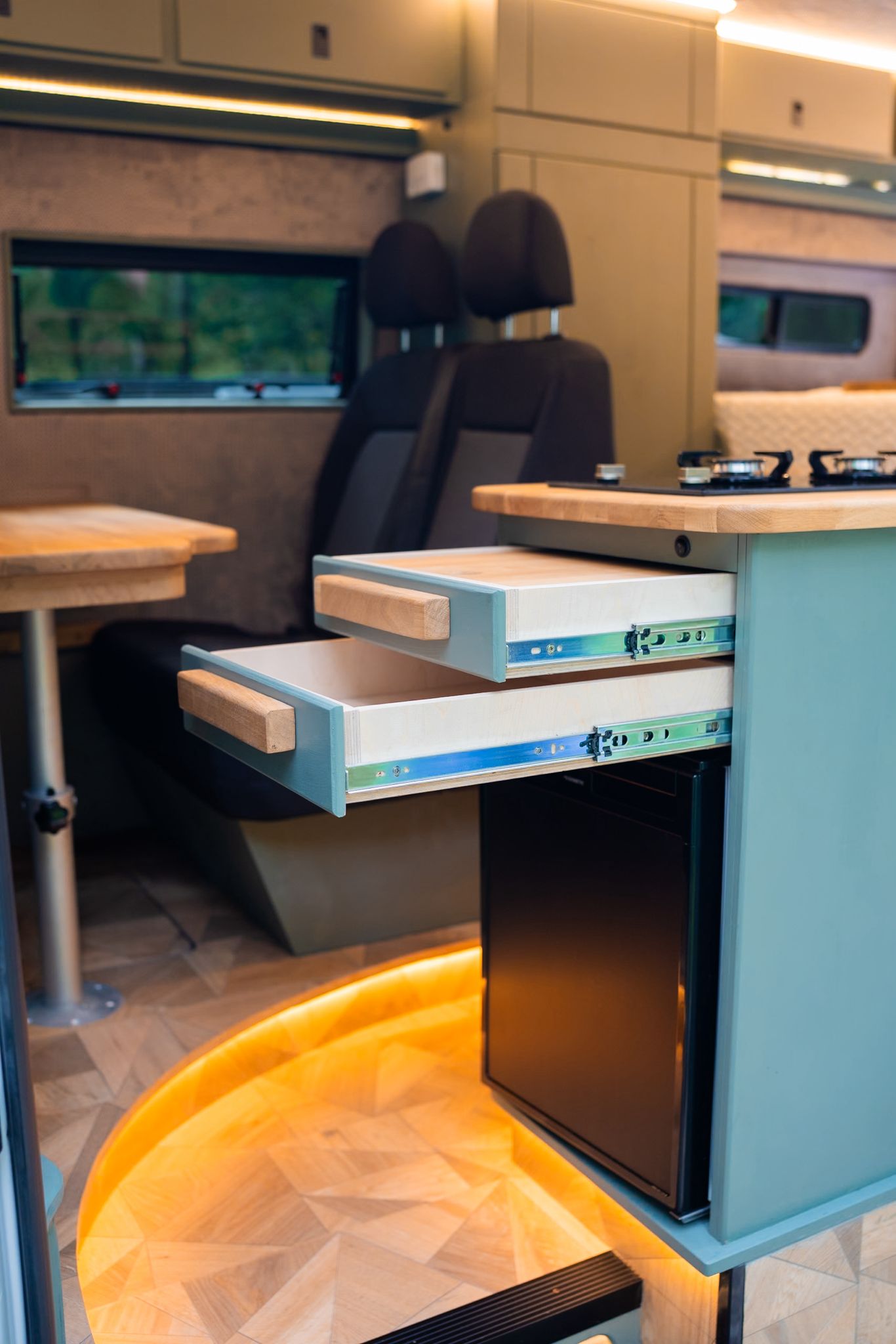

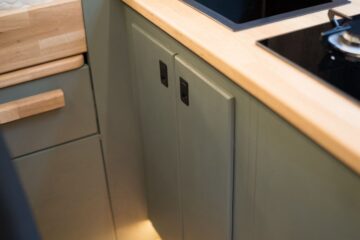

· 27mm solid oak worktop with additional worktop sections

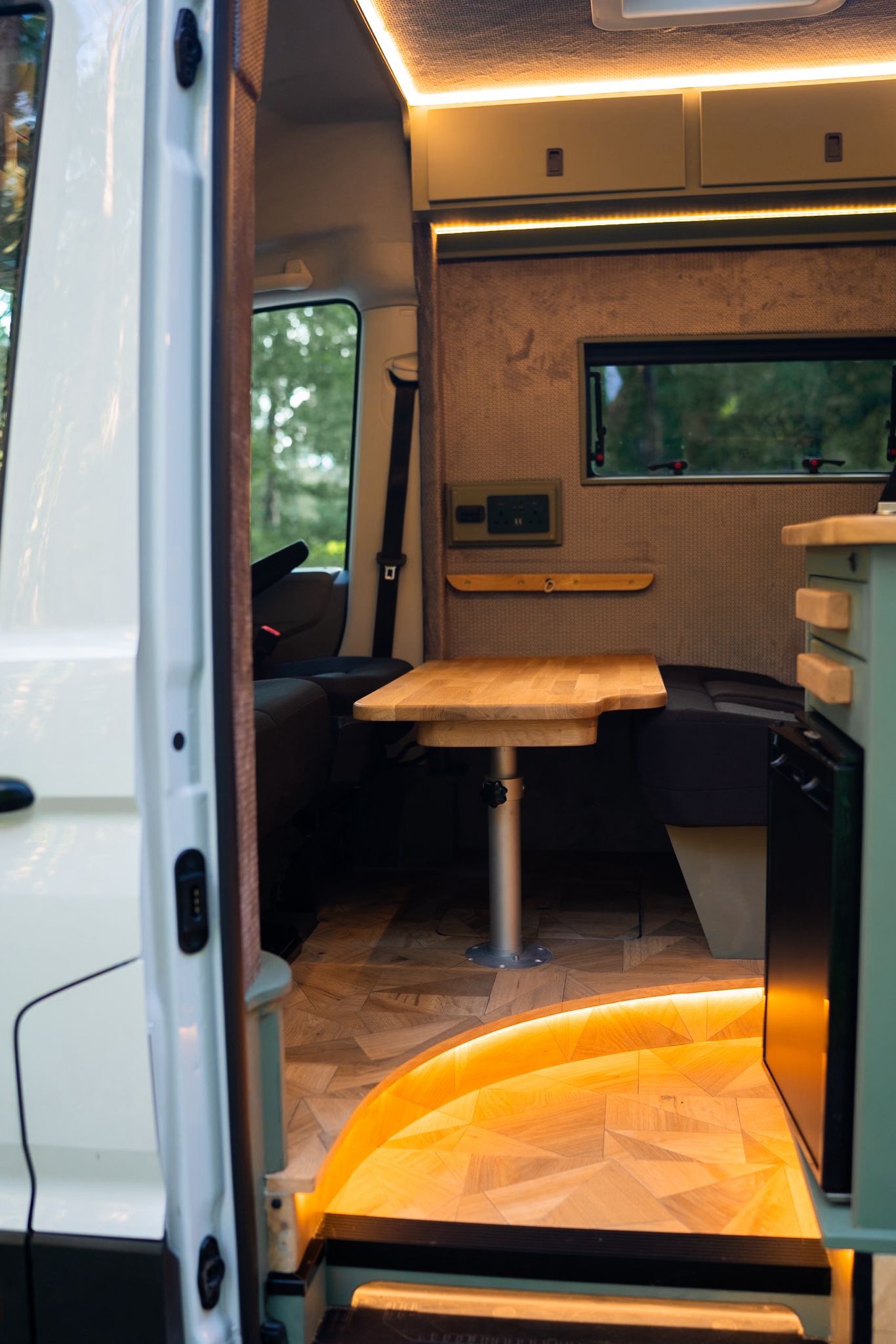

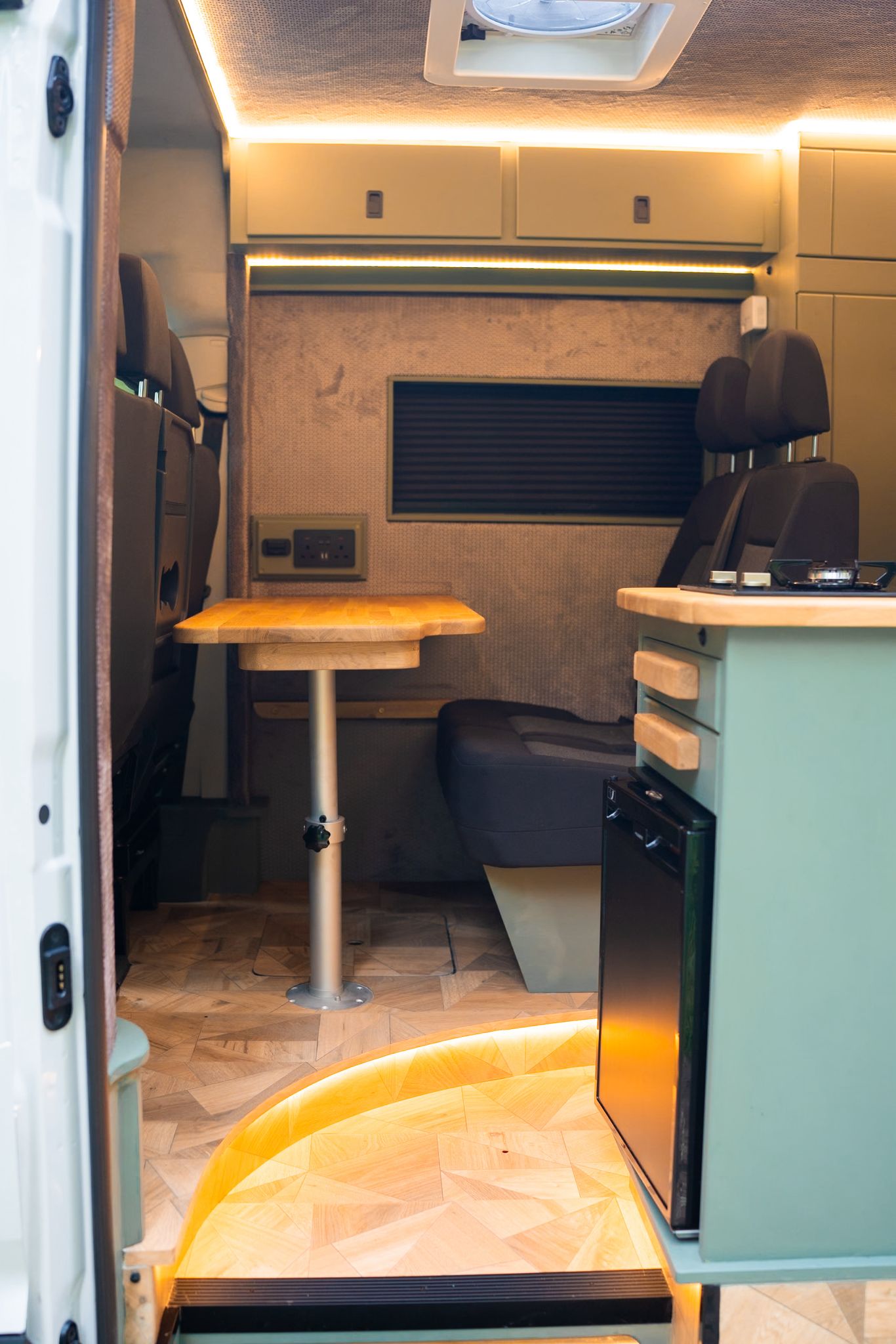

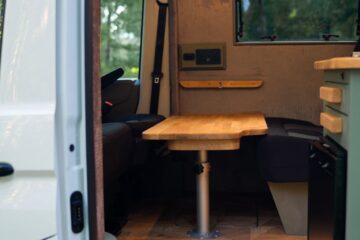

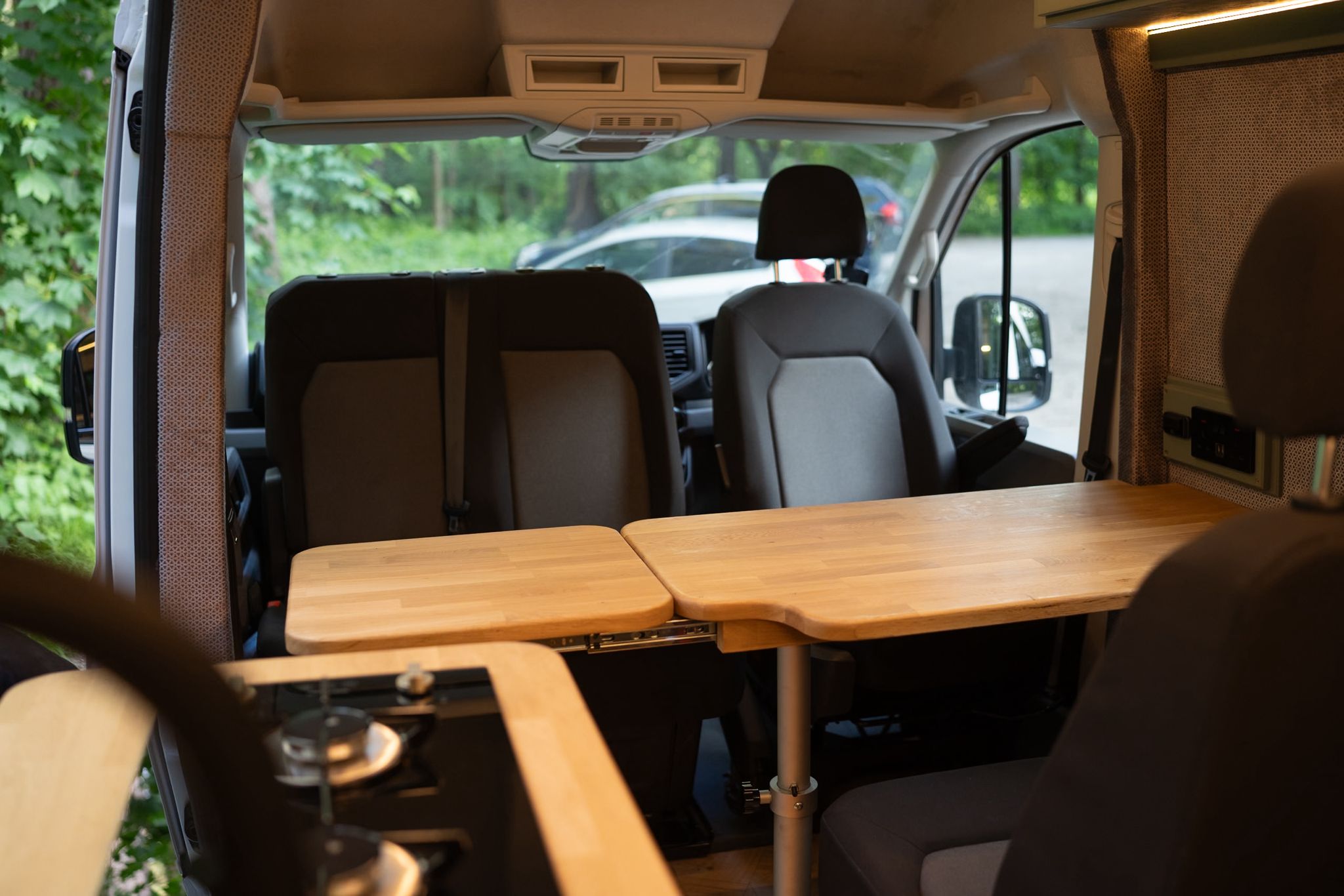

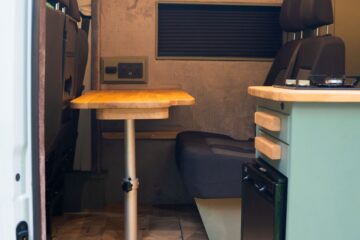

· 27mm solid oak dining table with extension to allow 5 people to eat at the table (table also has a lower setting so that it can create a base for an airbed to span across the seats and dining table).

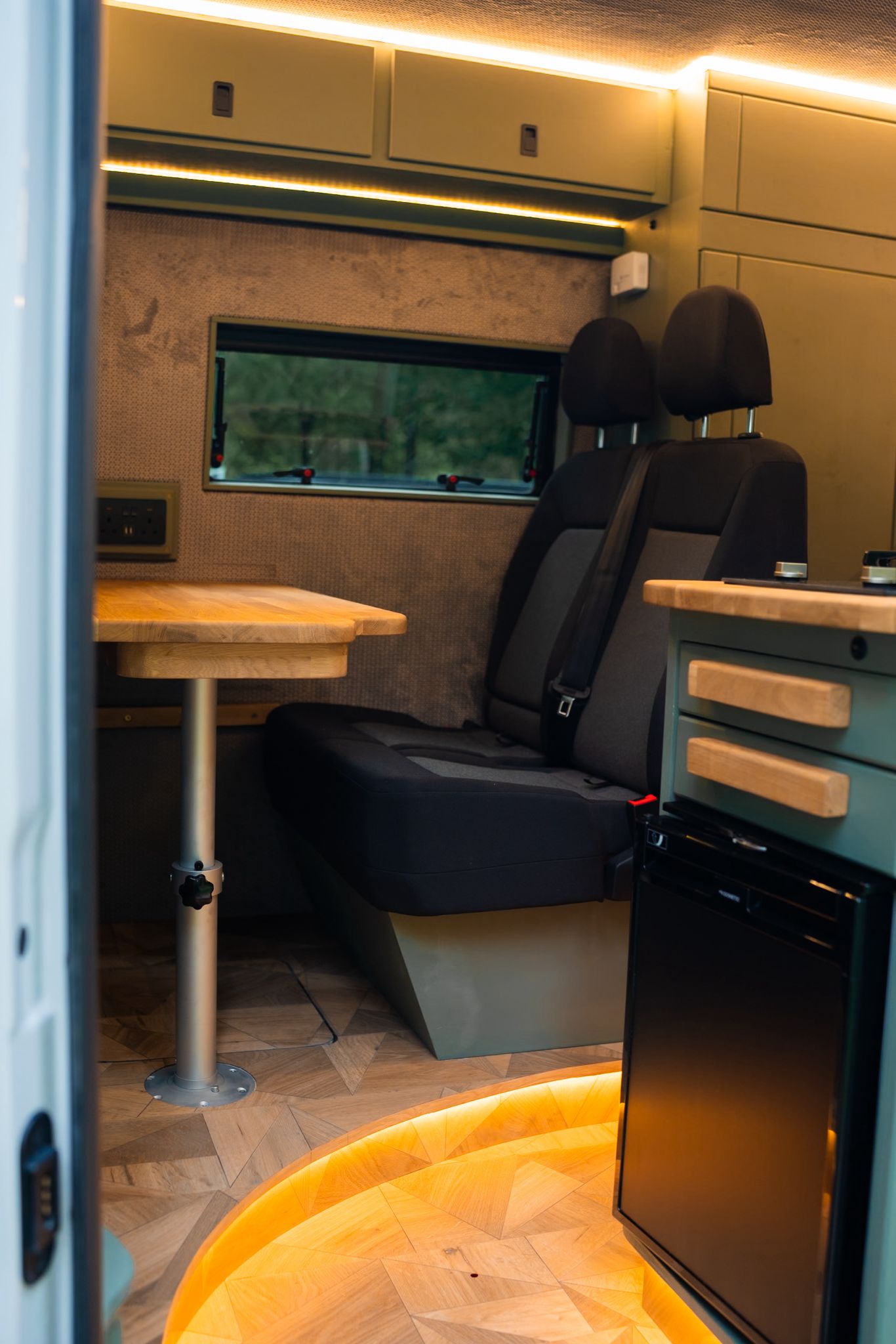

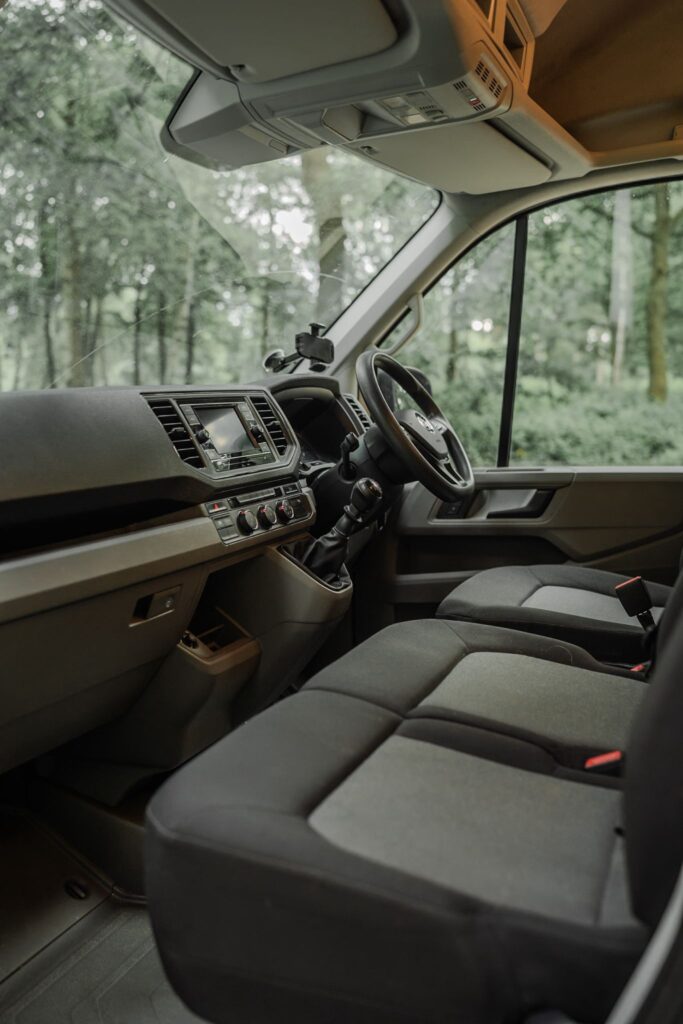

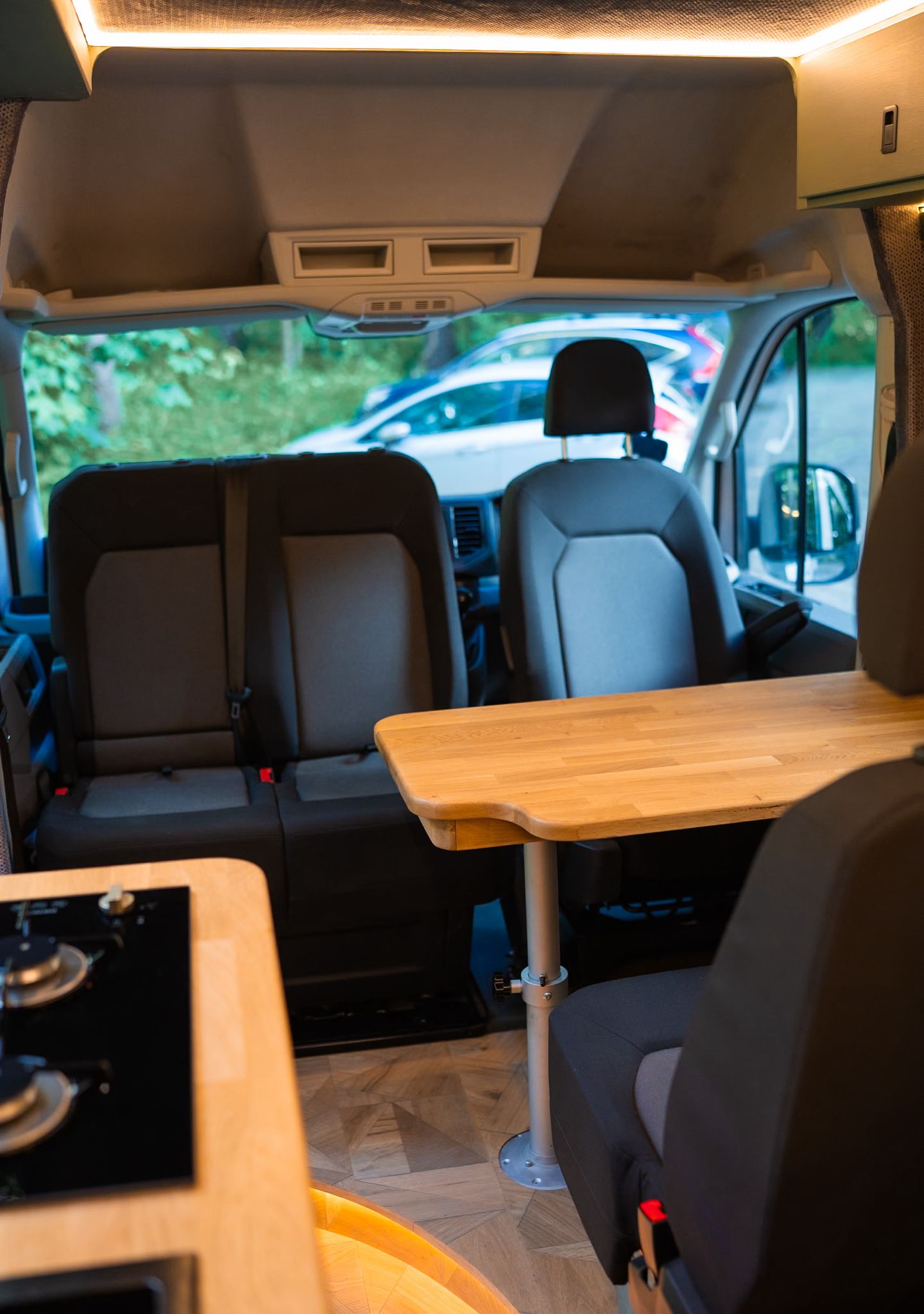

· R&J campers swivel seats for passenger bench seat and drivers seat
· Maxxair fan with remote
· Carbon monoxide detector
· Windscreen cover
· Blackout curtains

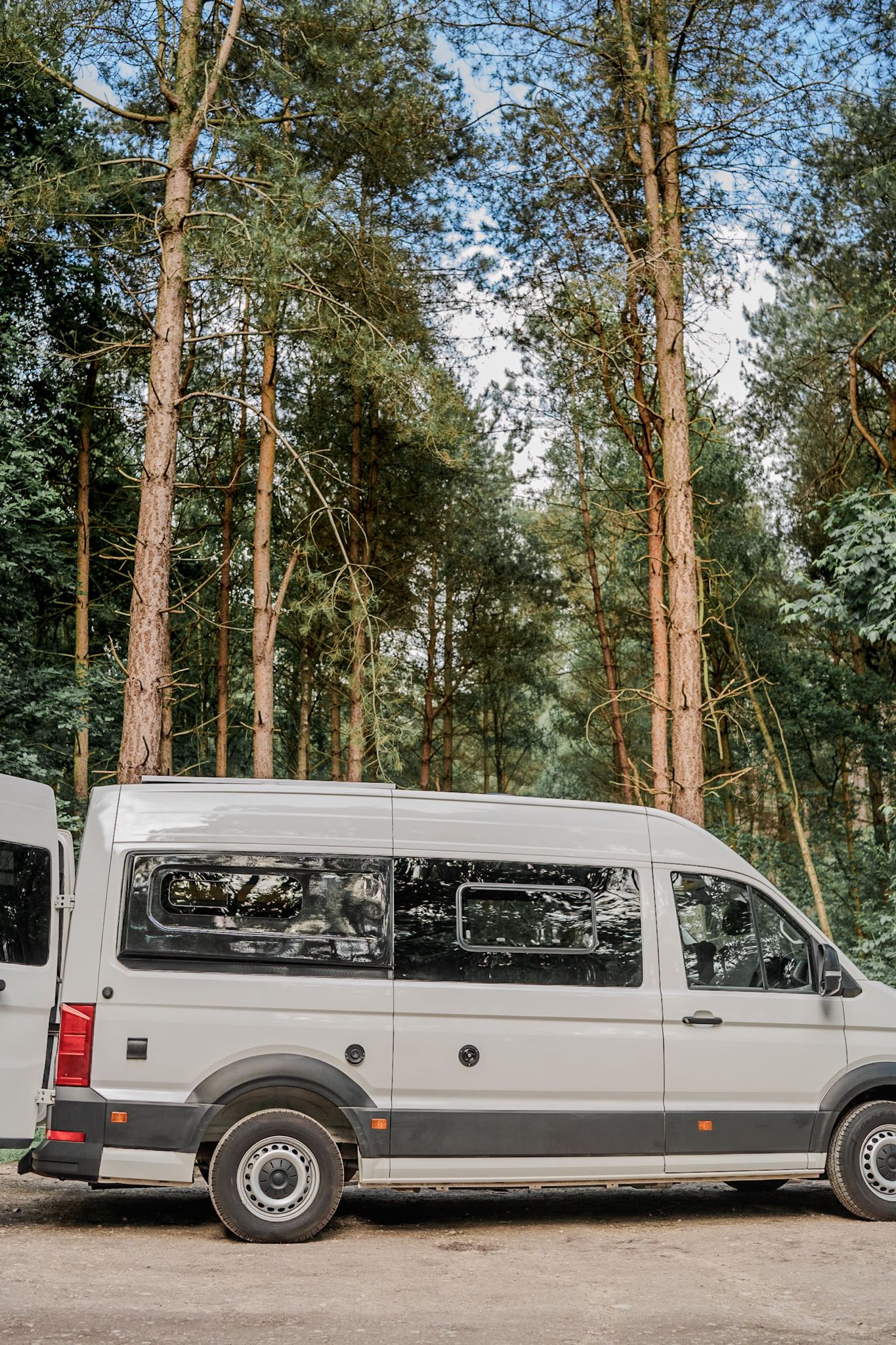

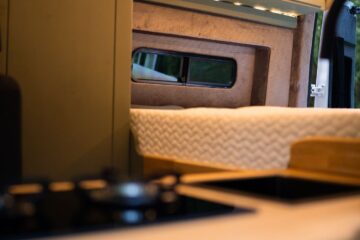

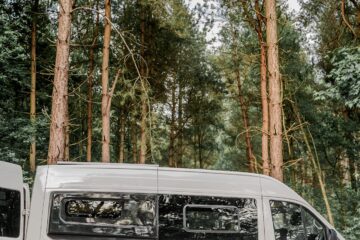

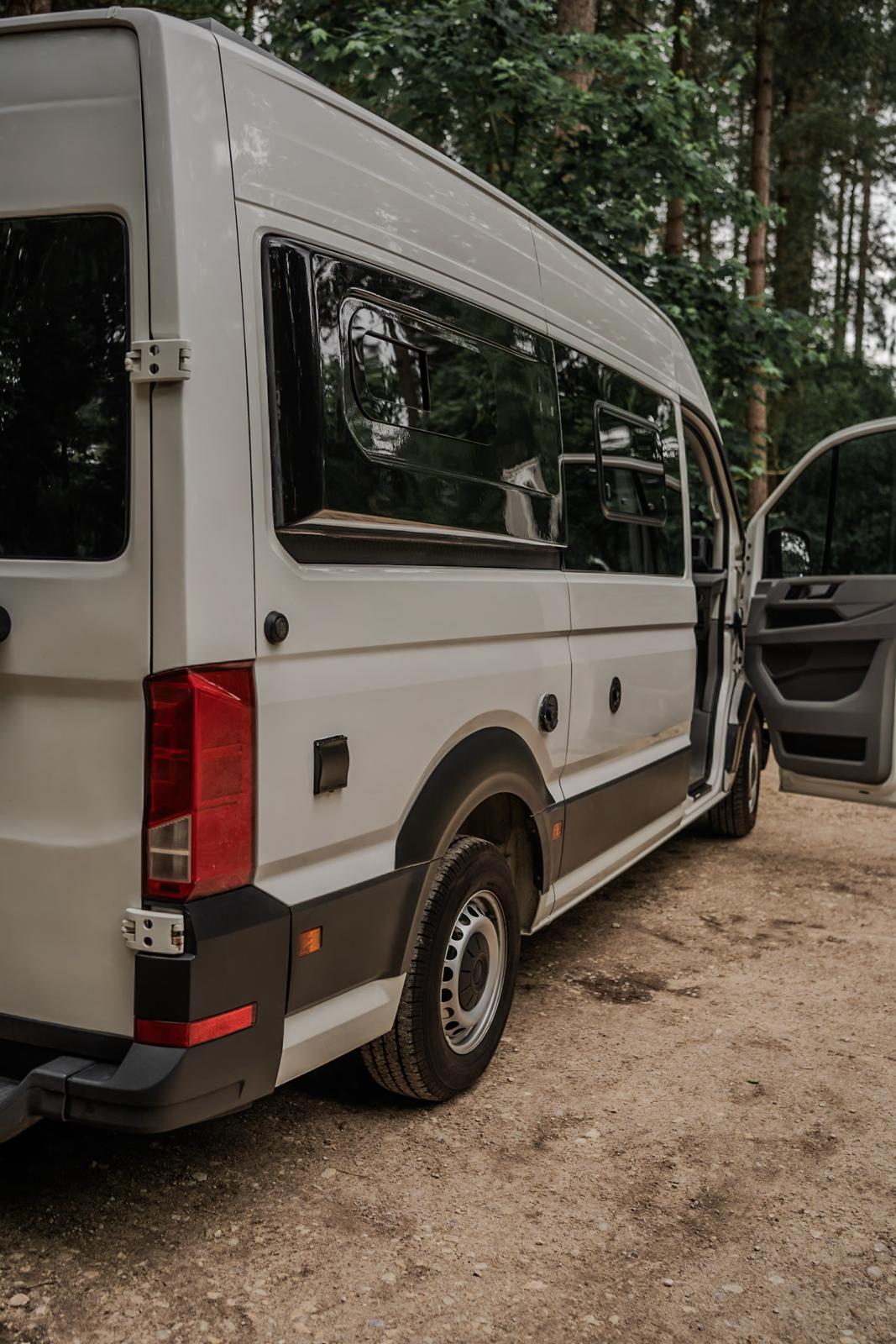

· A2B side pods with letterbox windows (with built in flyscreens)
· Maintenance access points at various locations
· Finished in Clarke & Clarke “LORETO” fabric in Taupe
· Woodwork painted using slightly thinned Fusion Mineral Paint in “Carriage House” colour
· Oak worktops oiled with OSMO food safe oil

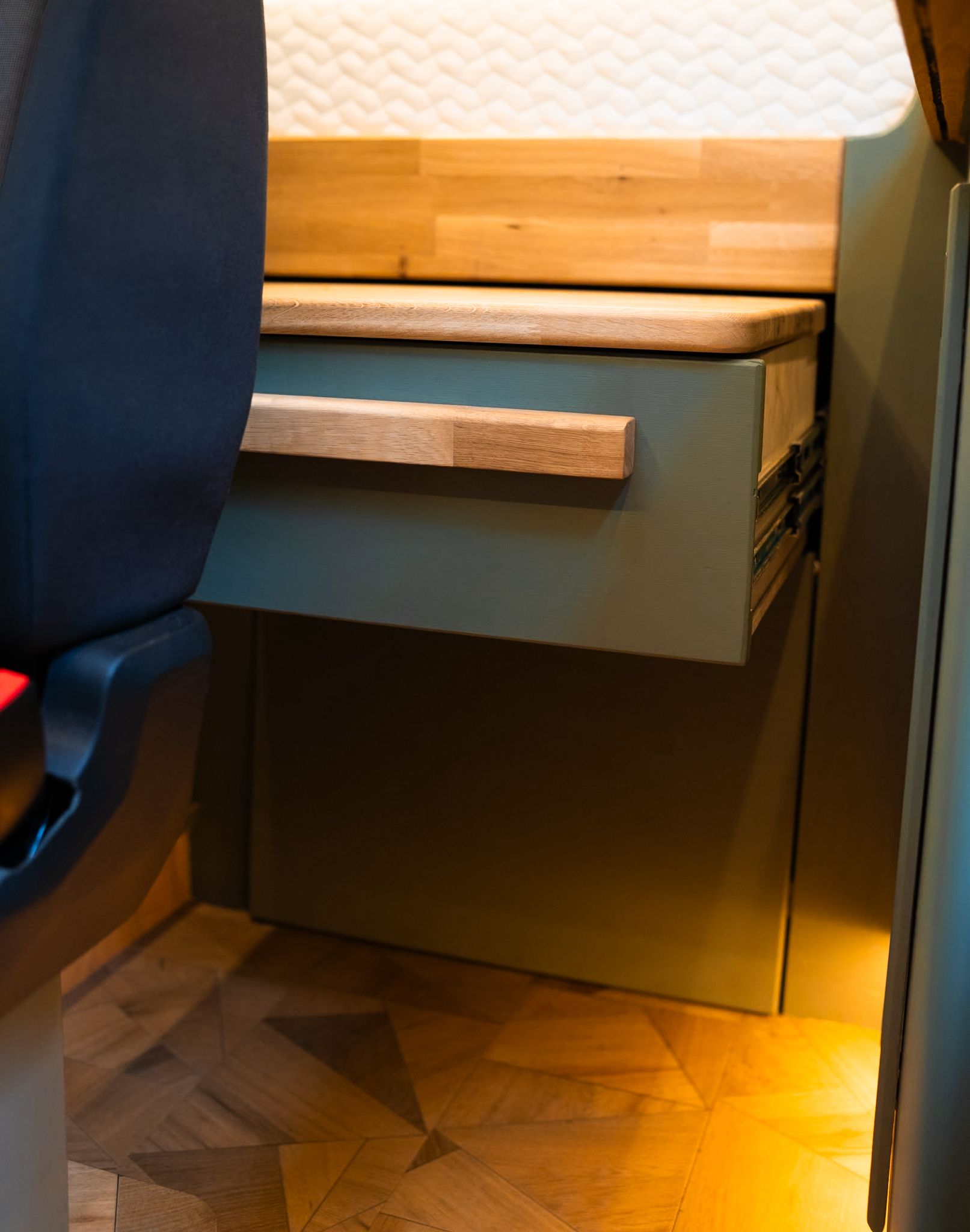

· Flooring is lifestyle floorspalace dryback lvt planks “offcut art” – supplied by Remland Carpets
· Fully sound deadened and insulated including moisture barrier
· Weighbridge certificate stating full loaded weight (not including driver or passengers) of 3100KG.
· Gas installation and appliance test certificate
