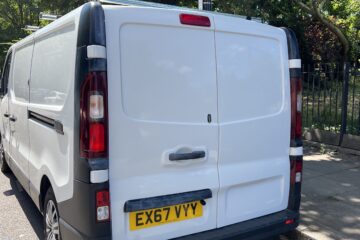

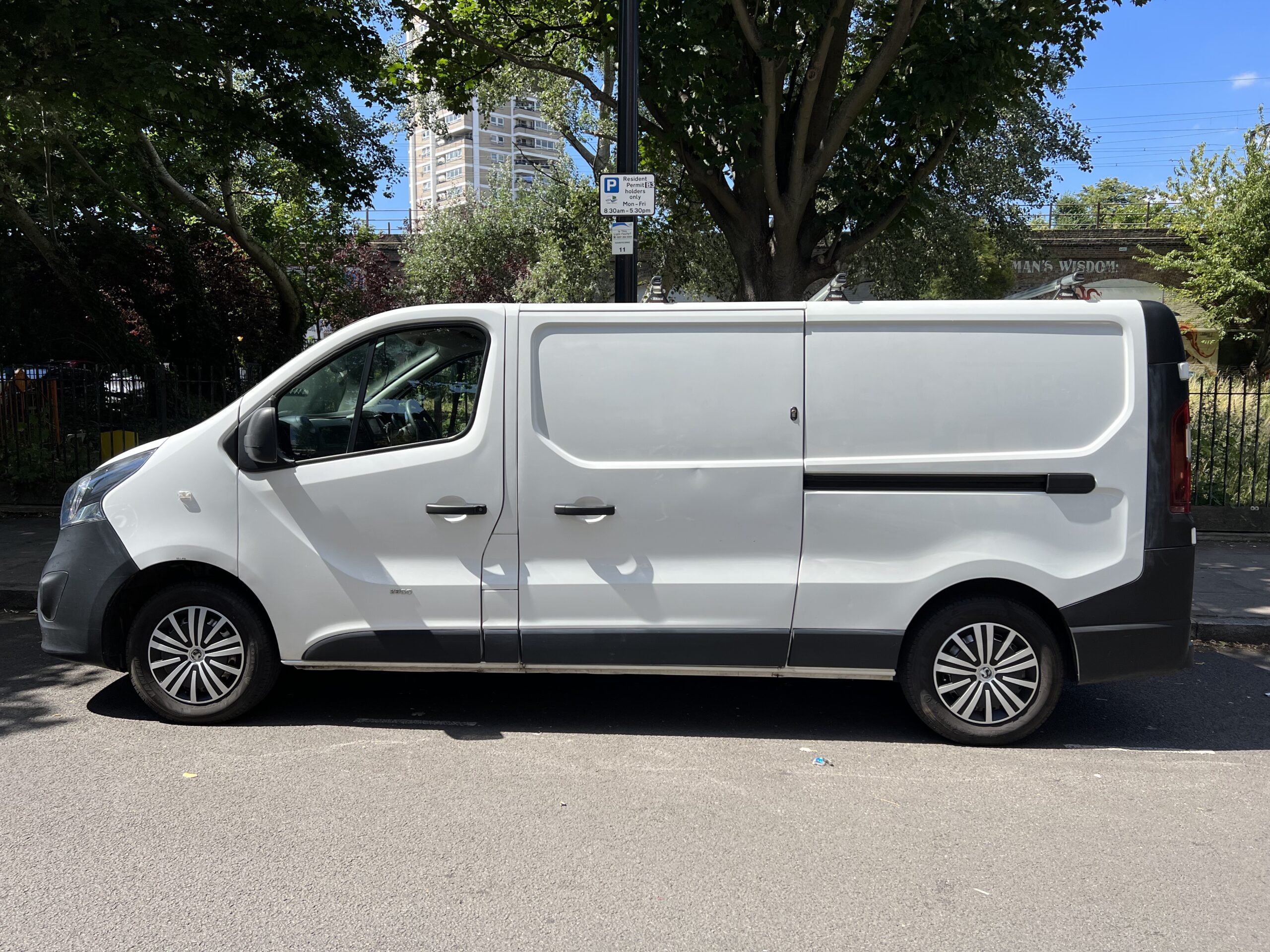

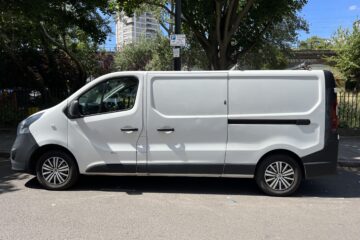

Vauxhall Vivaro 2900 Cdti
1.6 litre diesel, meets EURO6 requirements and therefore exempt from ULEZ / clean air restrictions
6 gear manual gearbox
Achieves 40-45MPG in motorway conditions, 35-40MPG urban (dependent on driving style etc)

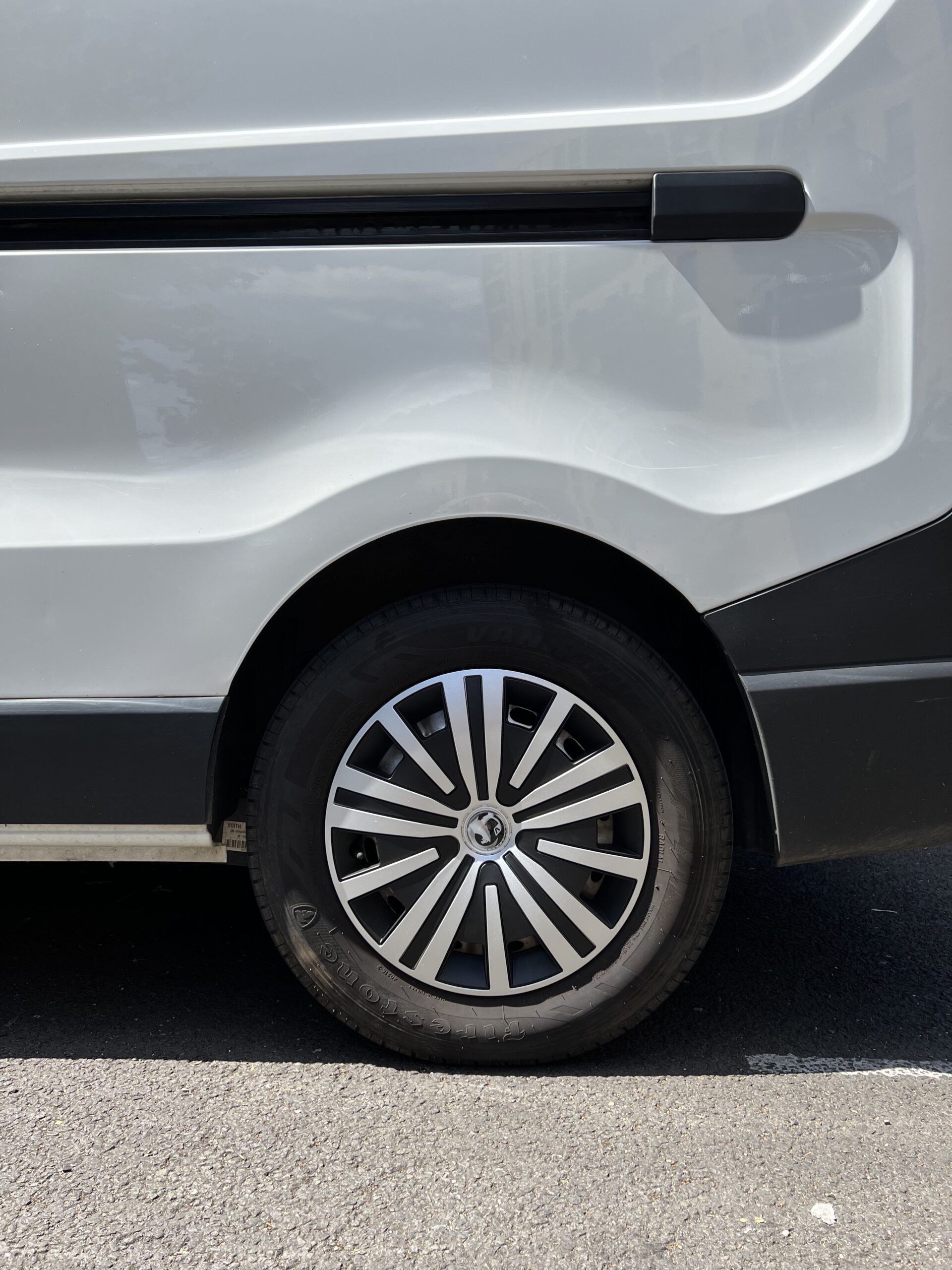

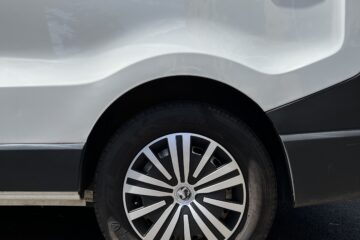

Bodywork in good condition, minor evidence of wear and tear
MOT will be renewed to full 12months (ie July 2023)
No issues to date
A carefully converted camper perfect for sunny days at the beach – premium material used throughout. In immaculate condition – reluctantly selling due to change of circumstances.
Base conversion
– Dodo Dead Mat Hex Sound Deadening and Knauf Eko Roll Loft insulation
– Aluminium reflective insulation roll used as vapour barrier, aluminium tape used to seal seams
– Premium plywood used throughout – all exposed areas are marine grade, thicknesses vary 6-12mm
– Plywood finished with Zinsser primer and Laura Ashley matt emulsion paint
– 4way stretch carpet to driver side wall, high heat resistant glue

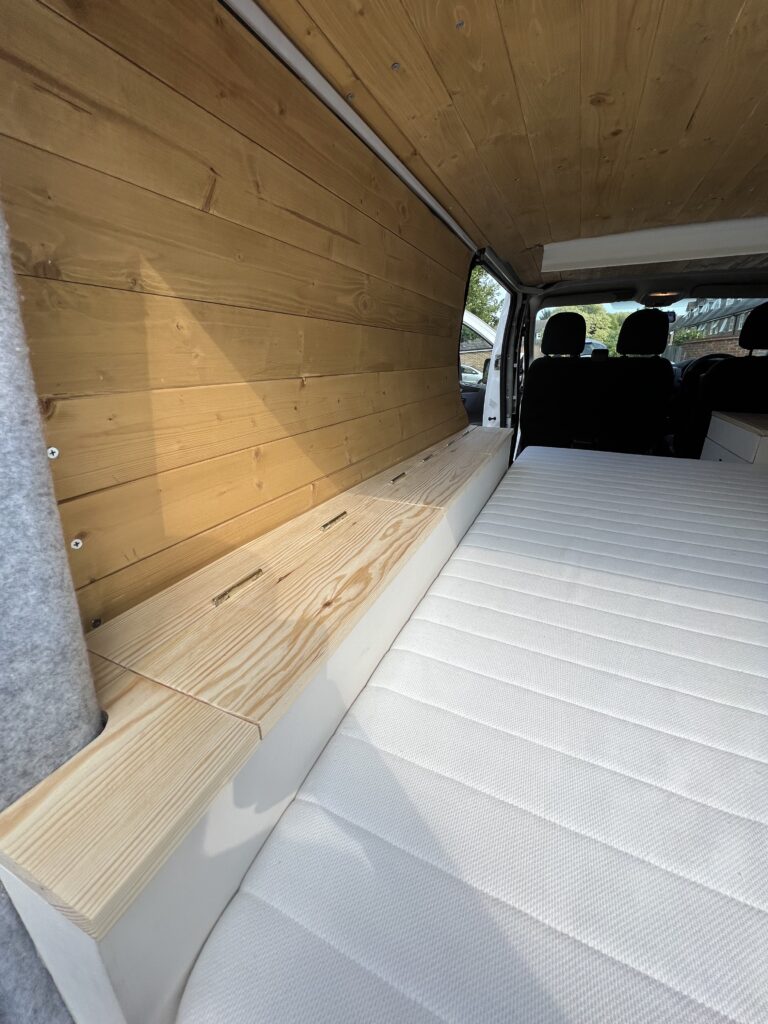

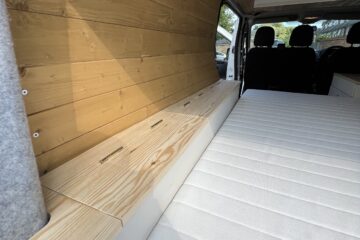

– Tongue and groove to ceiling and passenger wall

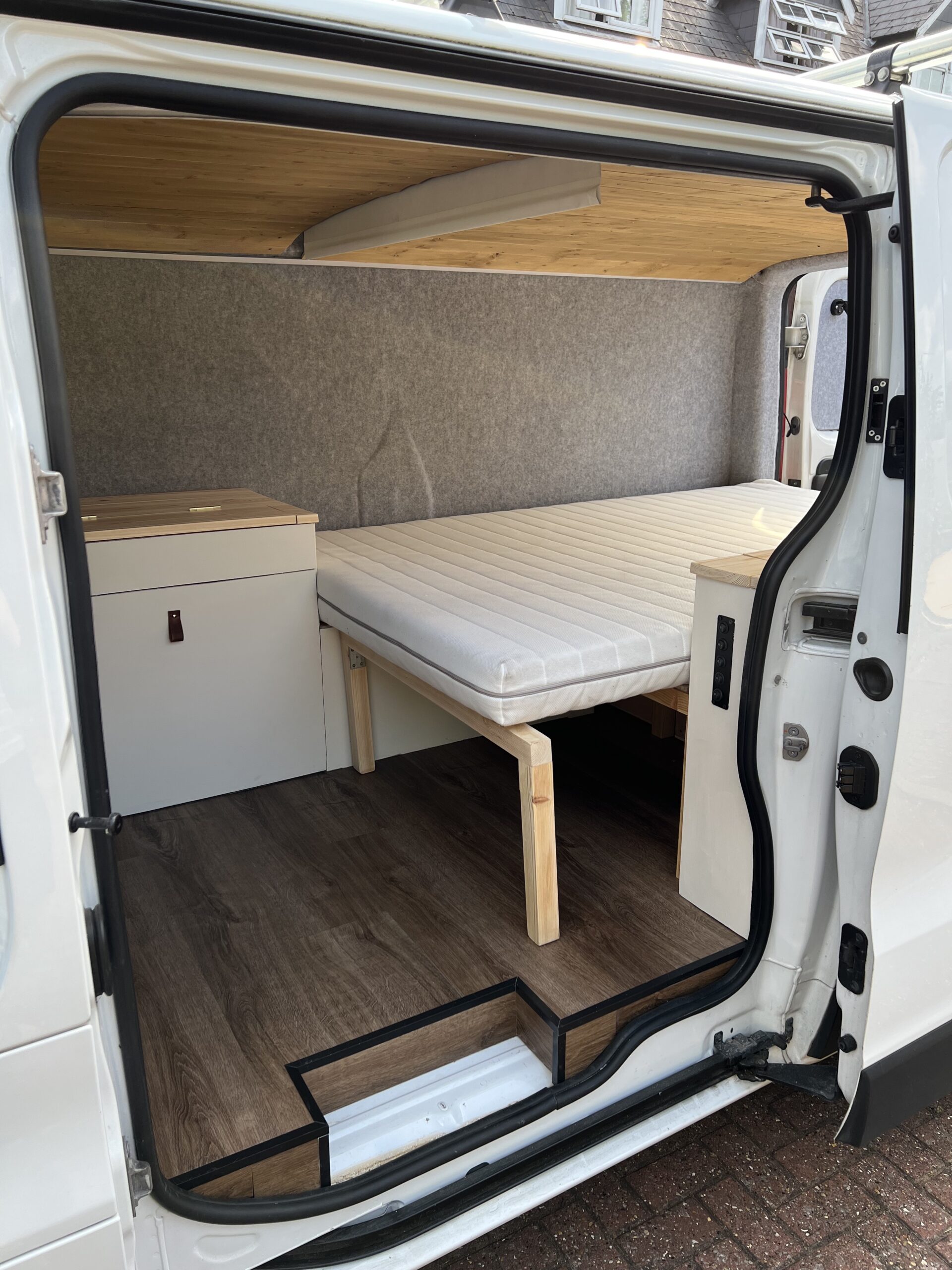

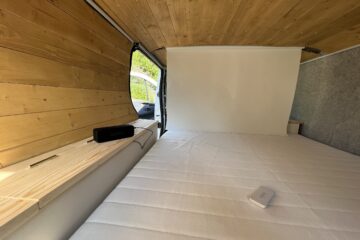

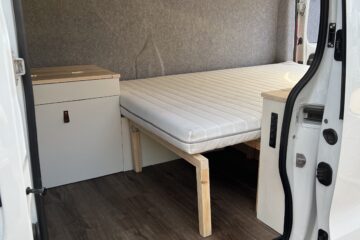

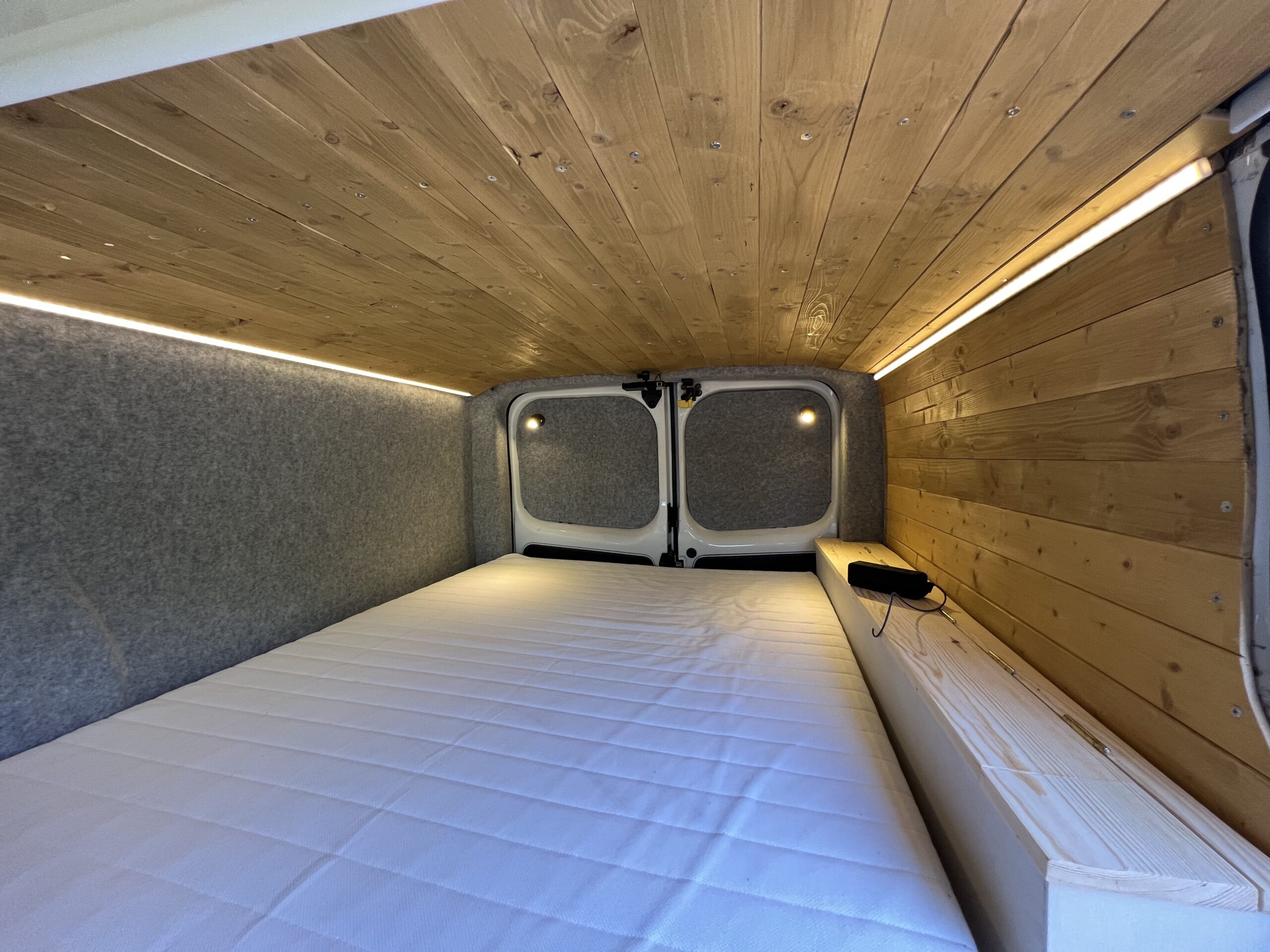

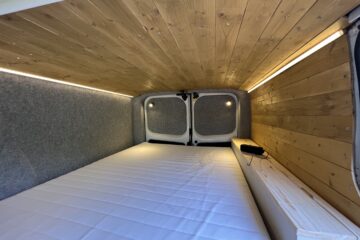

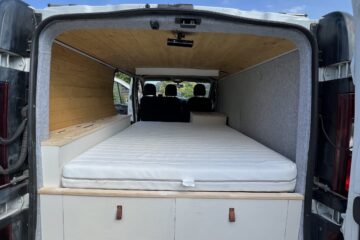

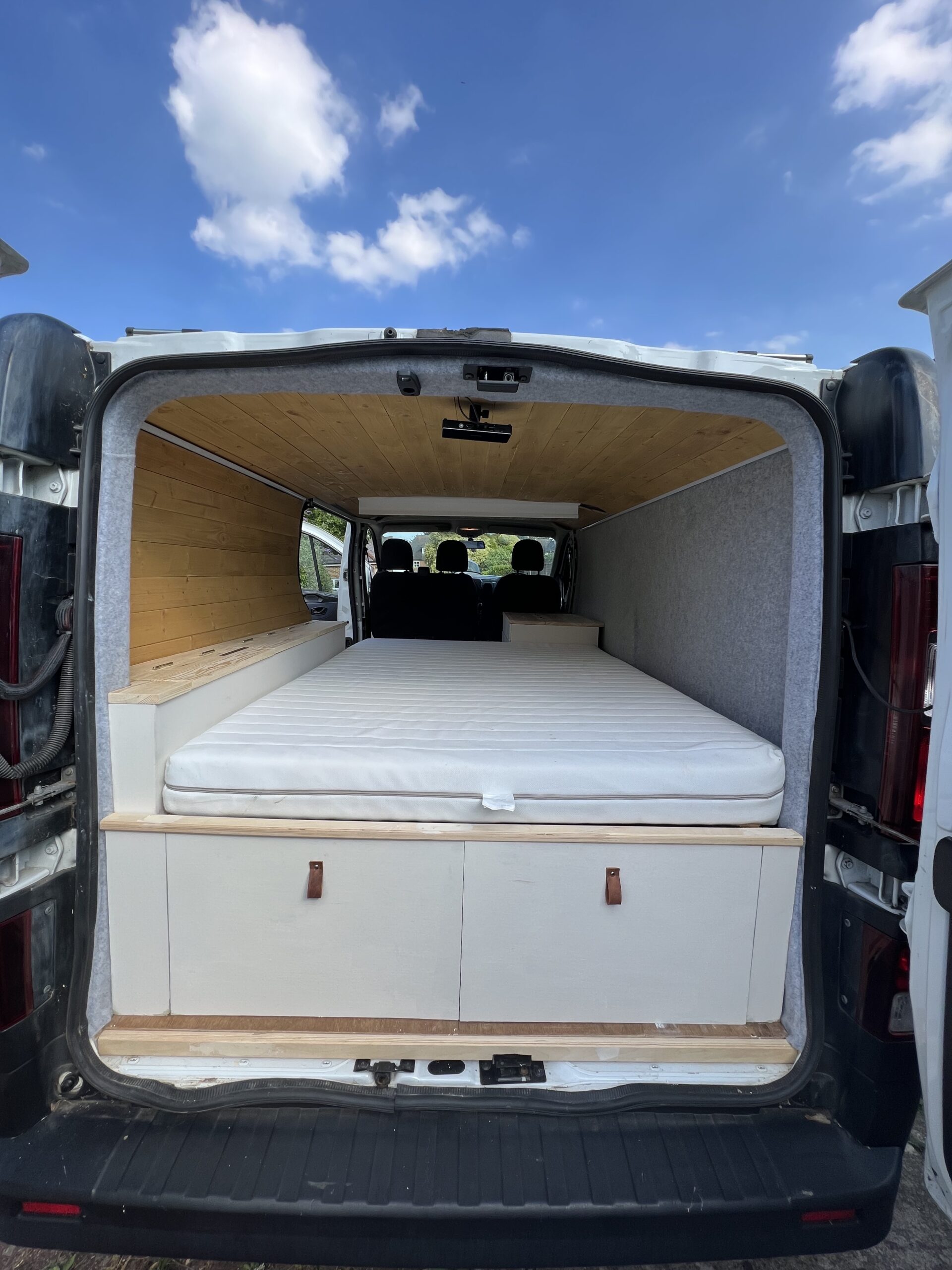

Bed

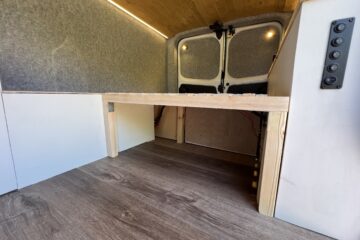

– Very sturdy frame in pine, secured in corners and to floor with aluminium L brackets

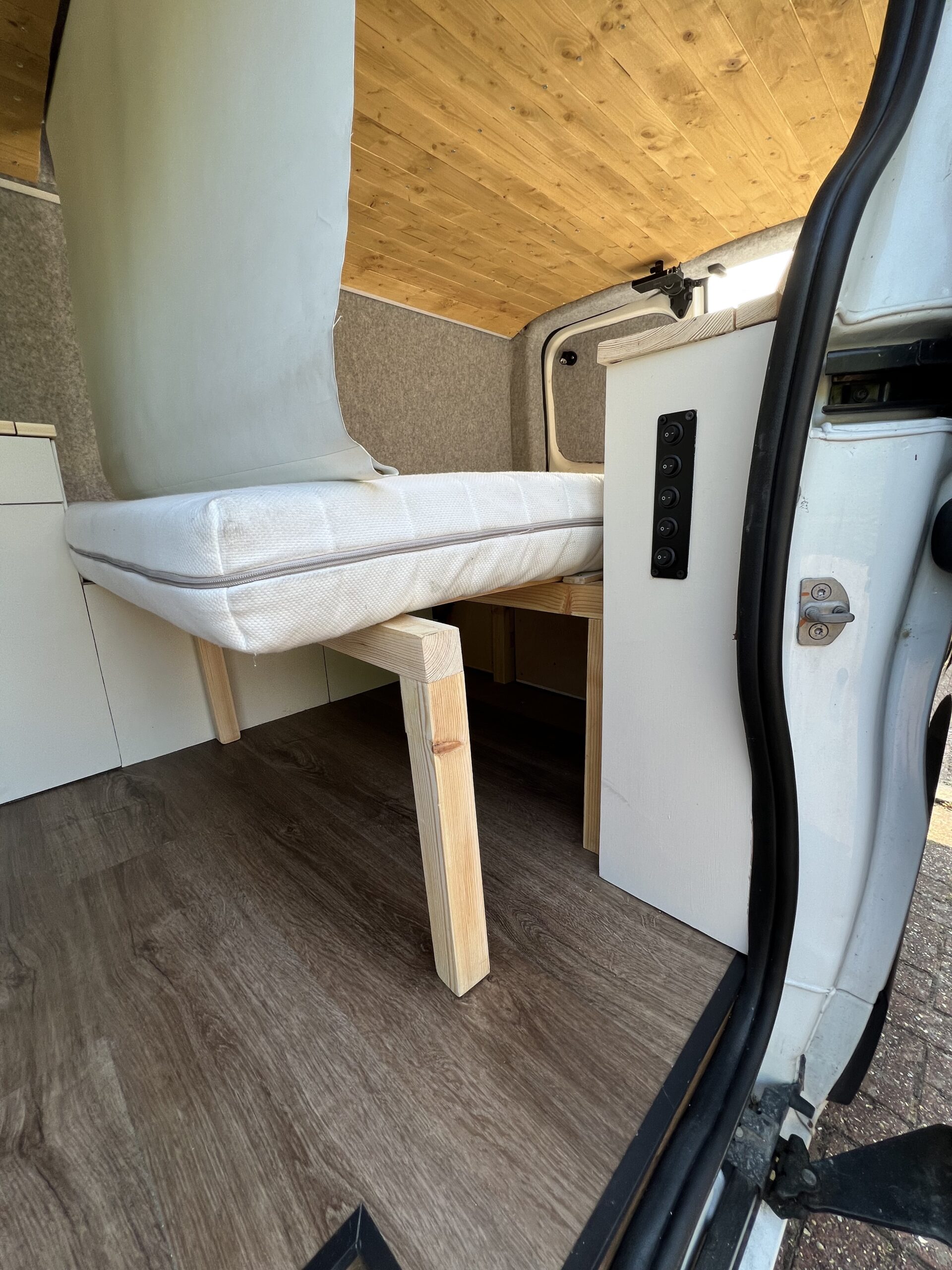

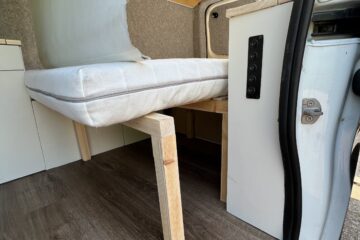

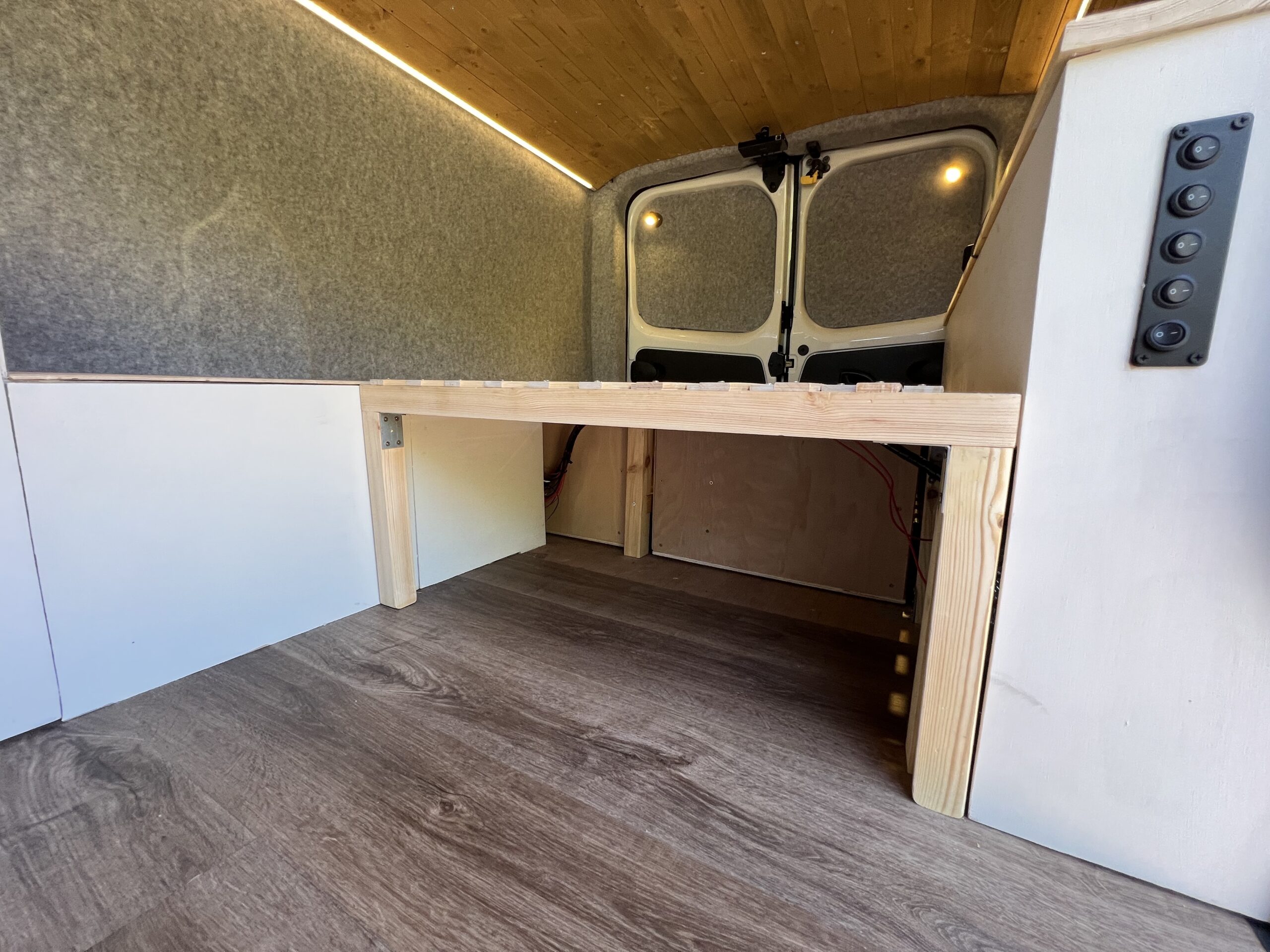

– Section at foot end slides in/out to turn the large sofa into a complete bed
– 140 x 200cm total bed size

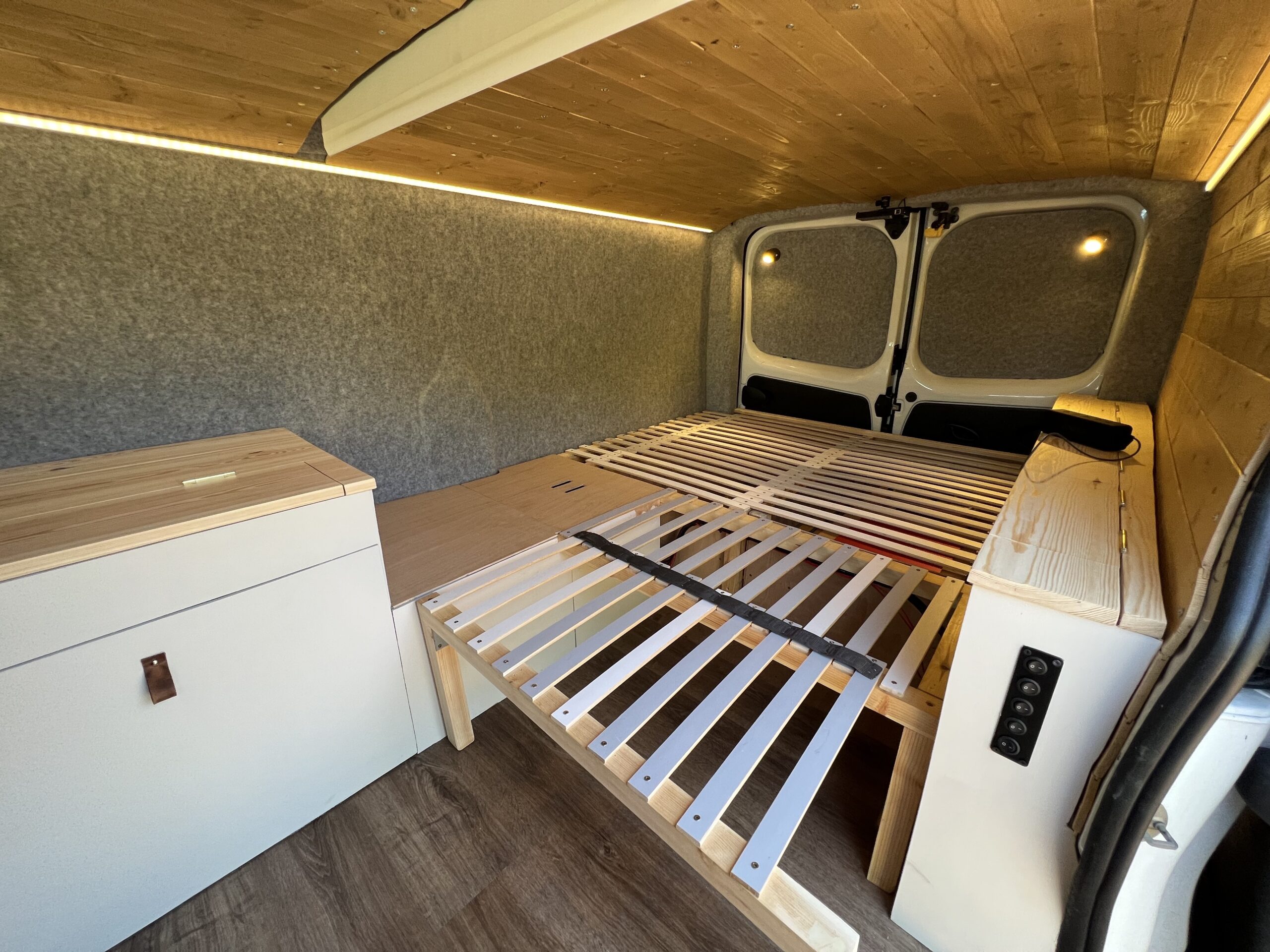

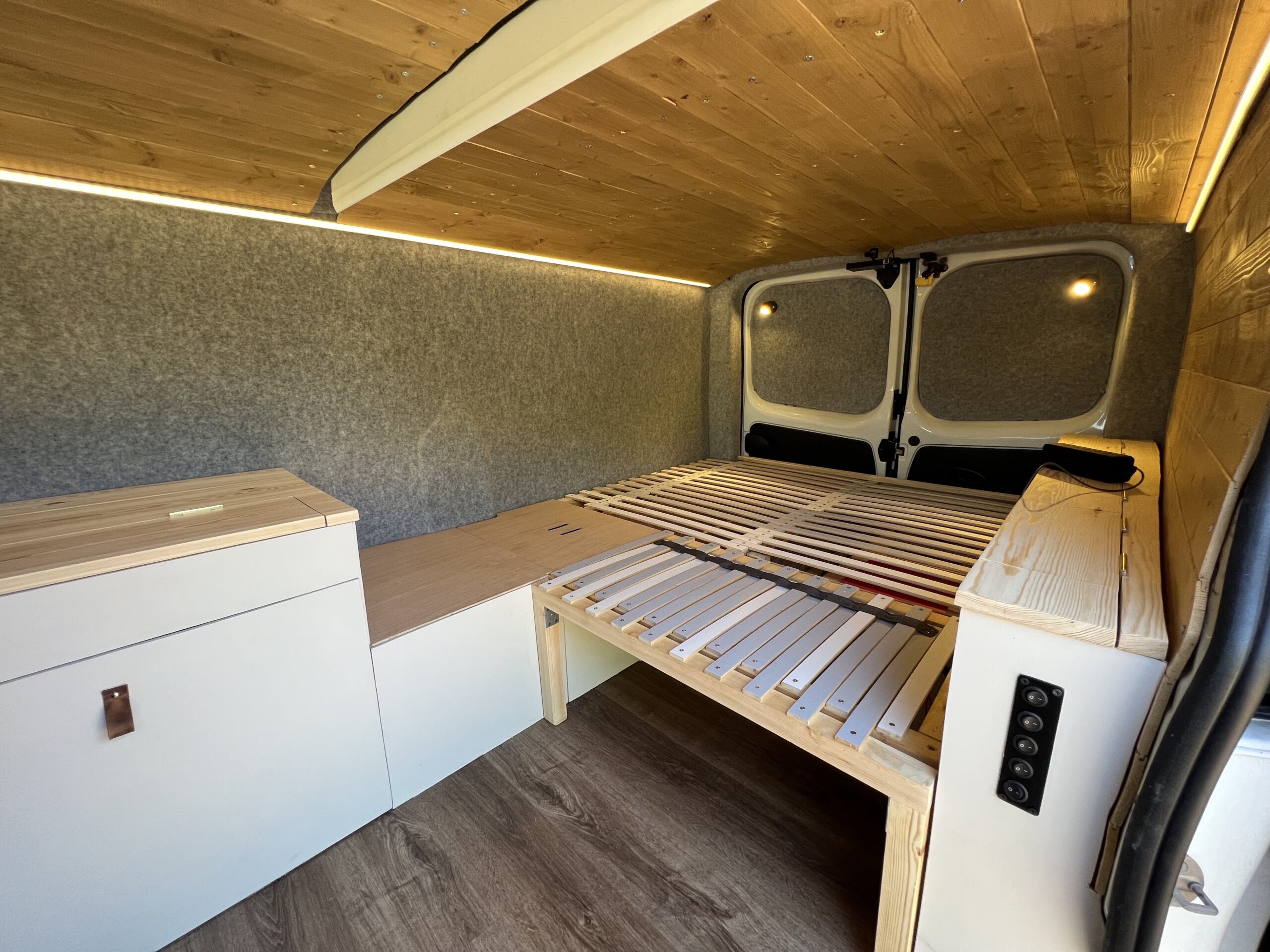

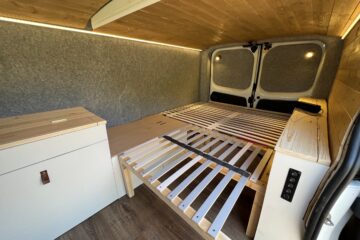

– IKEA bed frame slats used to create a comfortable bed base
– IKEA foam mattress (12cm thickness) is in immaculate condition and has never been used without a cover
Storage

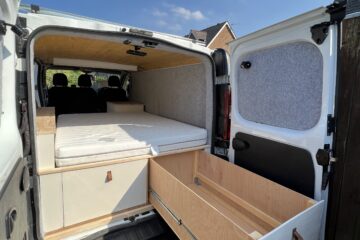

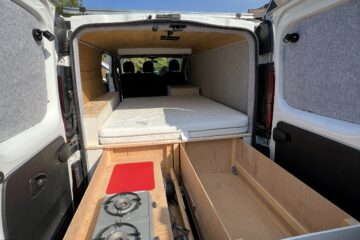

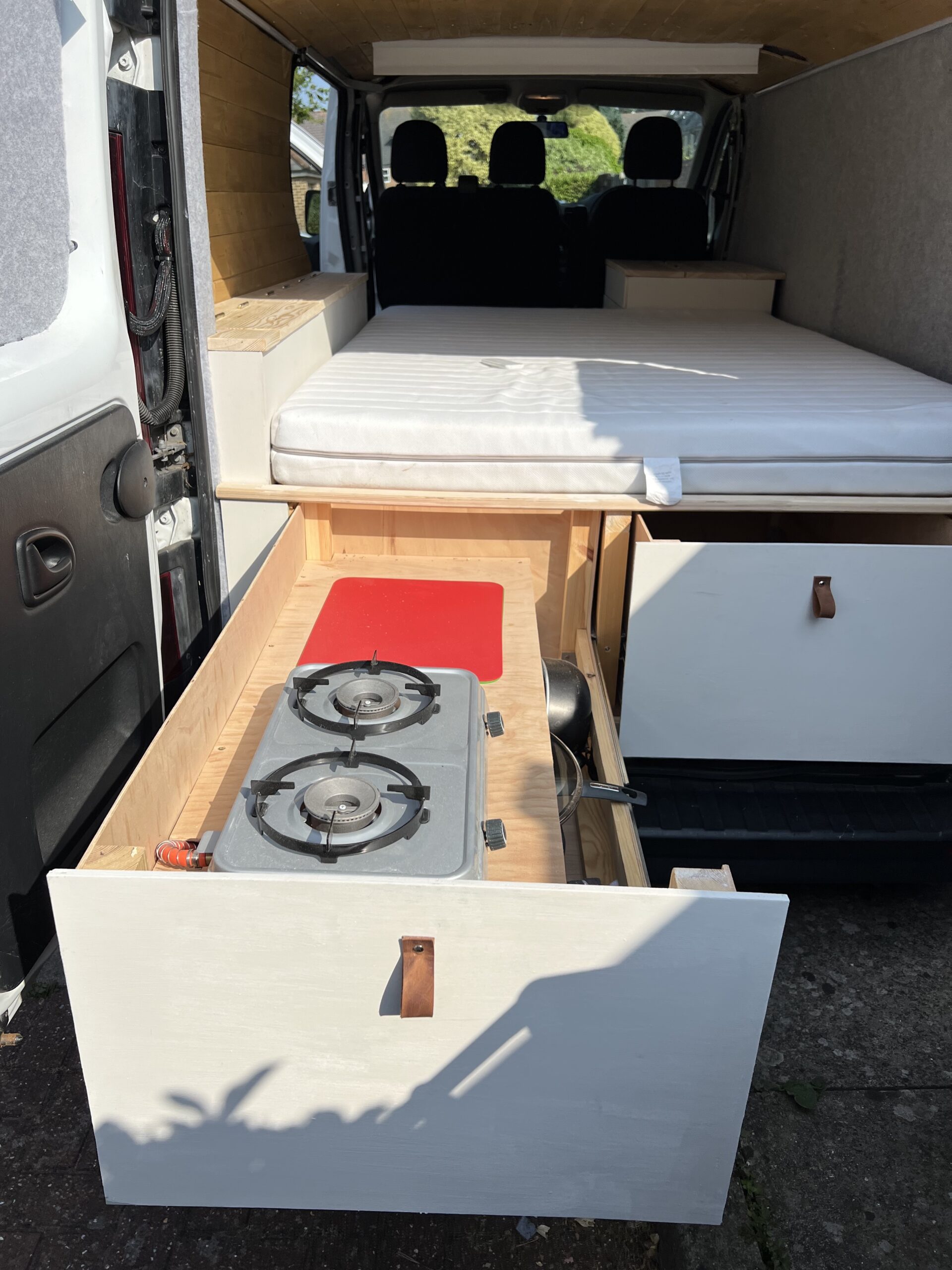

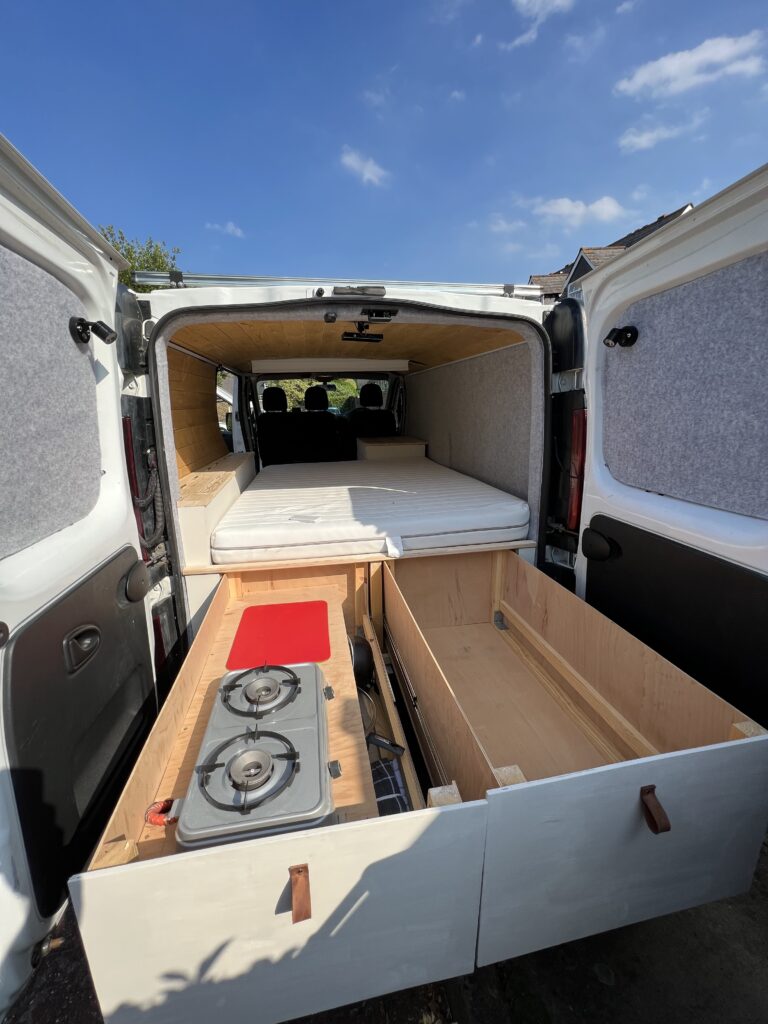

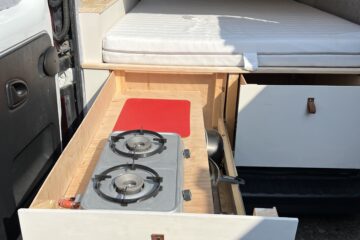

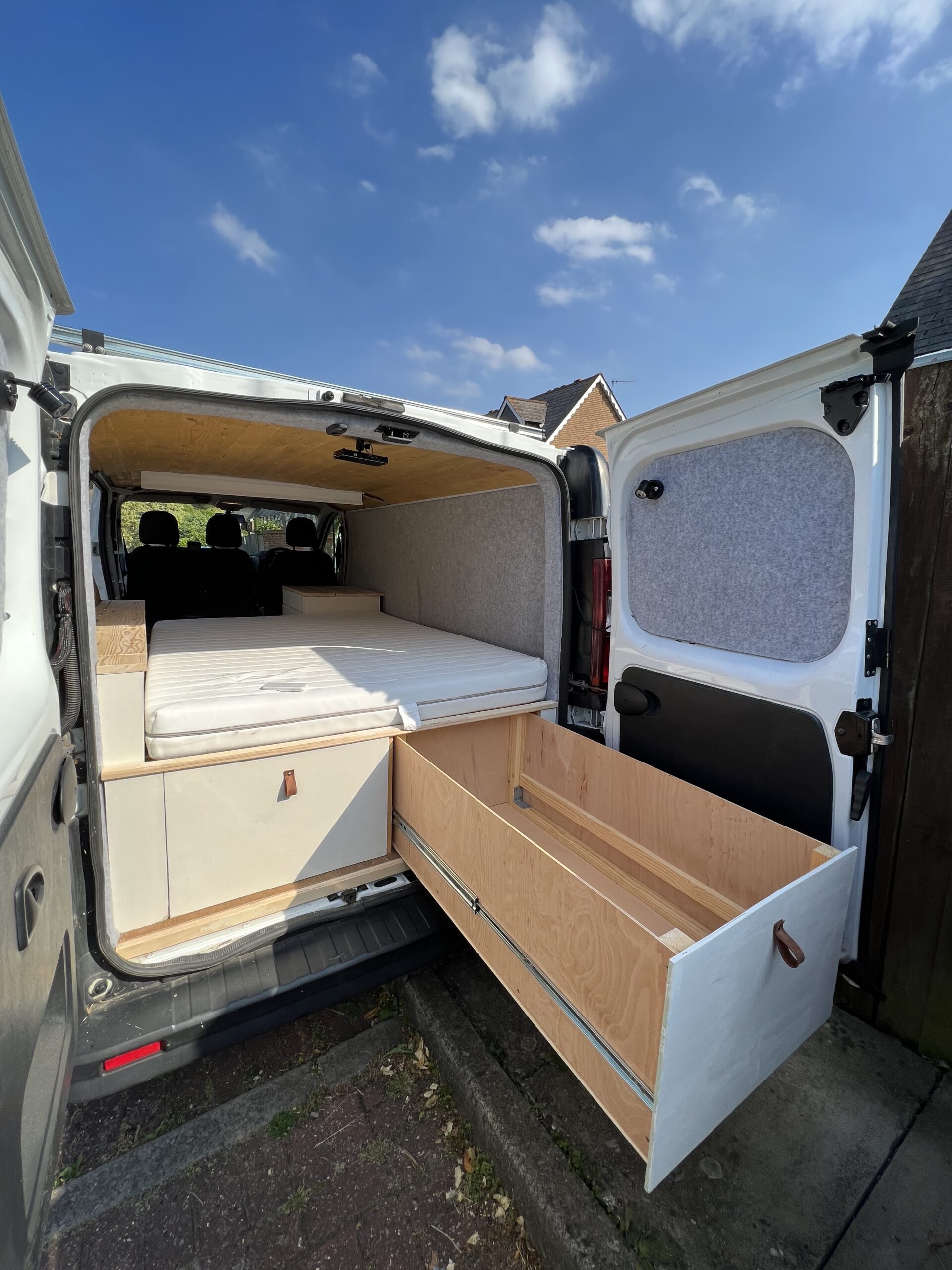

– Two 1m x 60cm drawers under the bed, brown leather pull handles. Passenger side drawer set up as a kitchen / cooking drawer with an additional shelf for a Campingaz CV stove and space for preparation of food. Additional storage for pots / pans / plates / cutlery etc underneath shelf. Driver side drawer currently undivided but allows flexibility to store larger items such as wetsuits in dry bags etc
– Heavy duty ball bearing drawer slides with maximum weight of 50kg when fully extended
– 3 x cupboards along passenger side of van, deep enough to hold items such as magazines or laptops. One cupboard contains the USB charging station (pictured) – details in ‘Electrics’ section

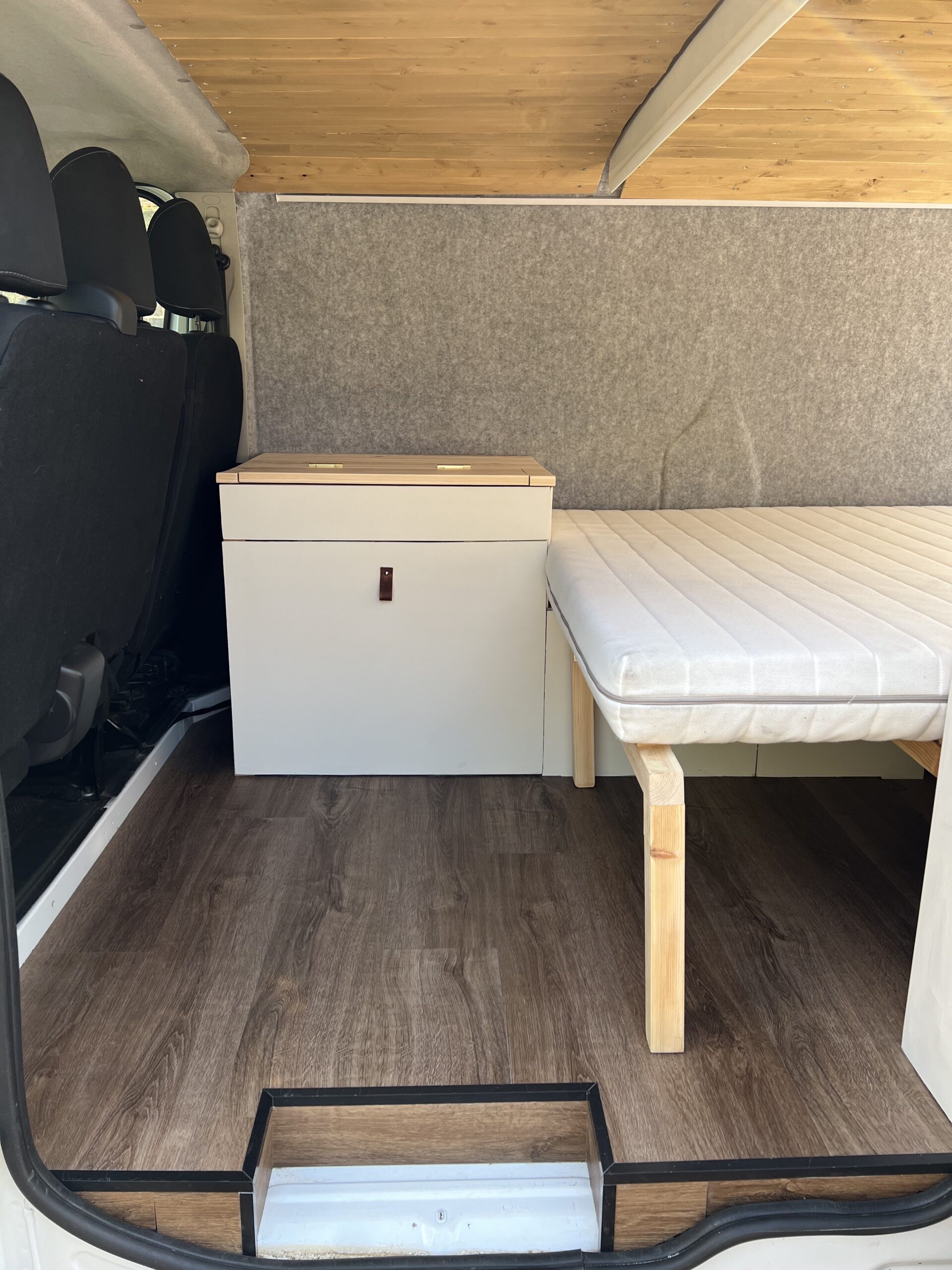

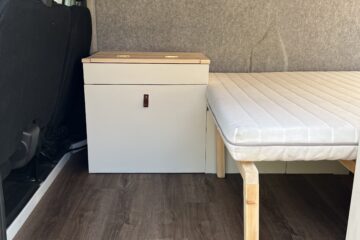

– Cupboard above fridge

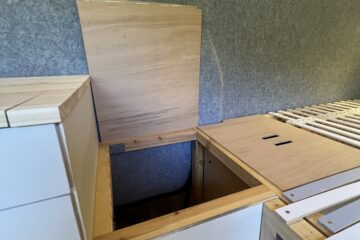

– Deep storage at food end of bed, perfect for items in bags

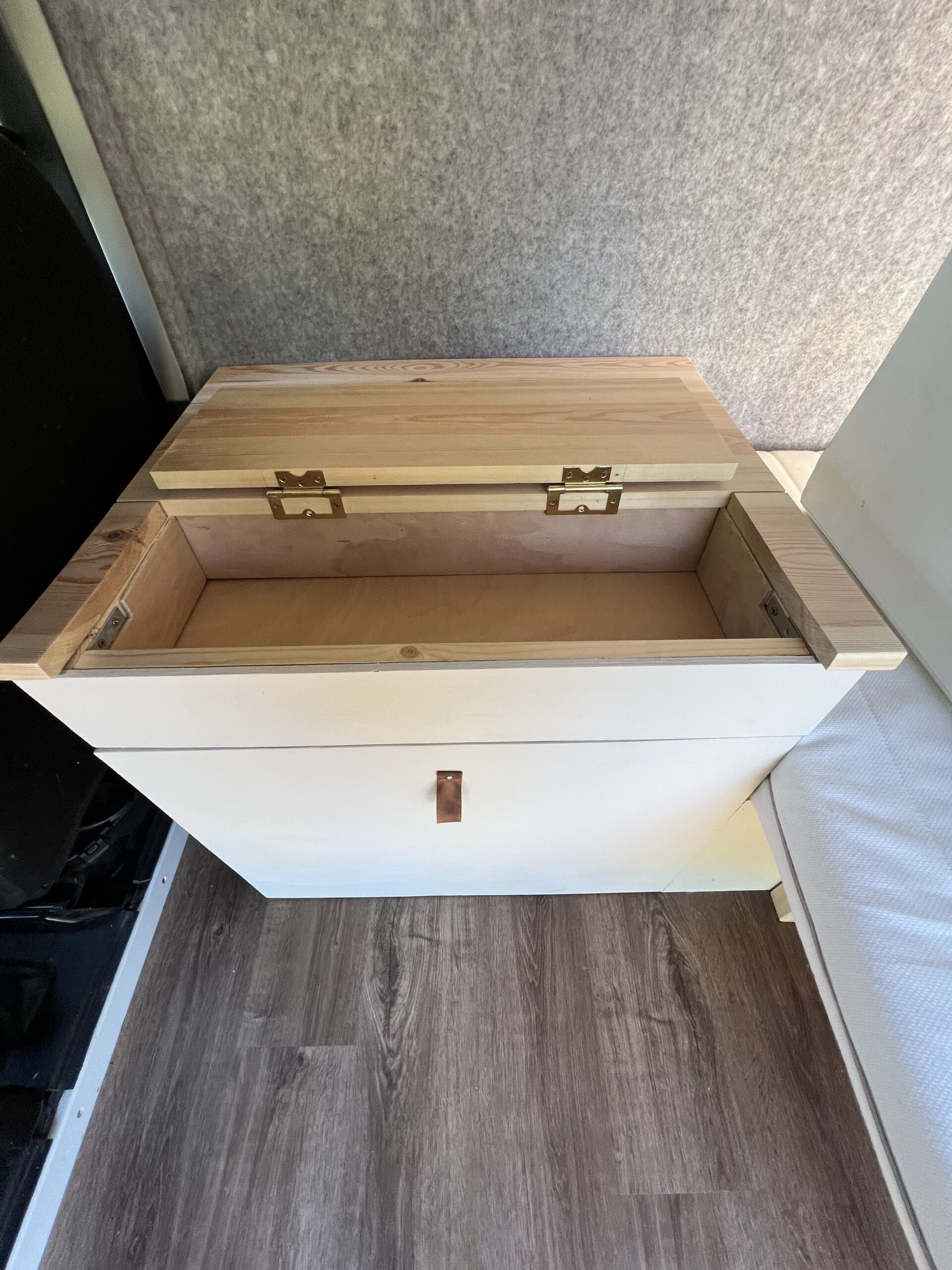

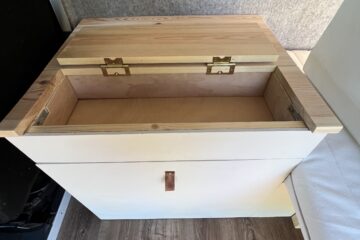

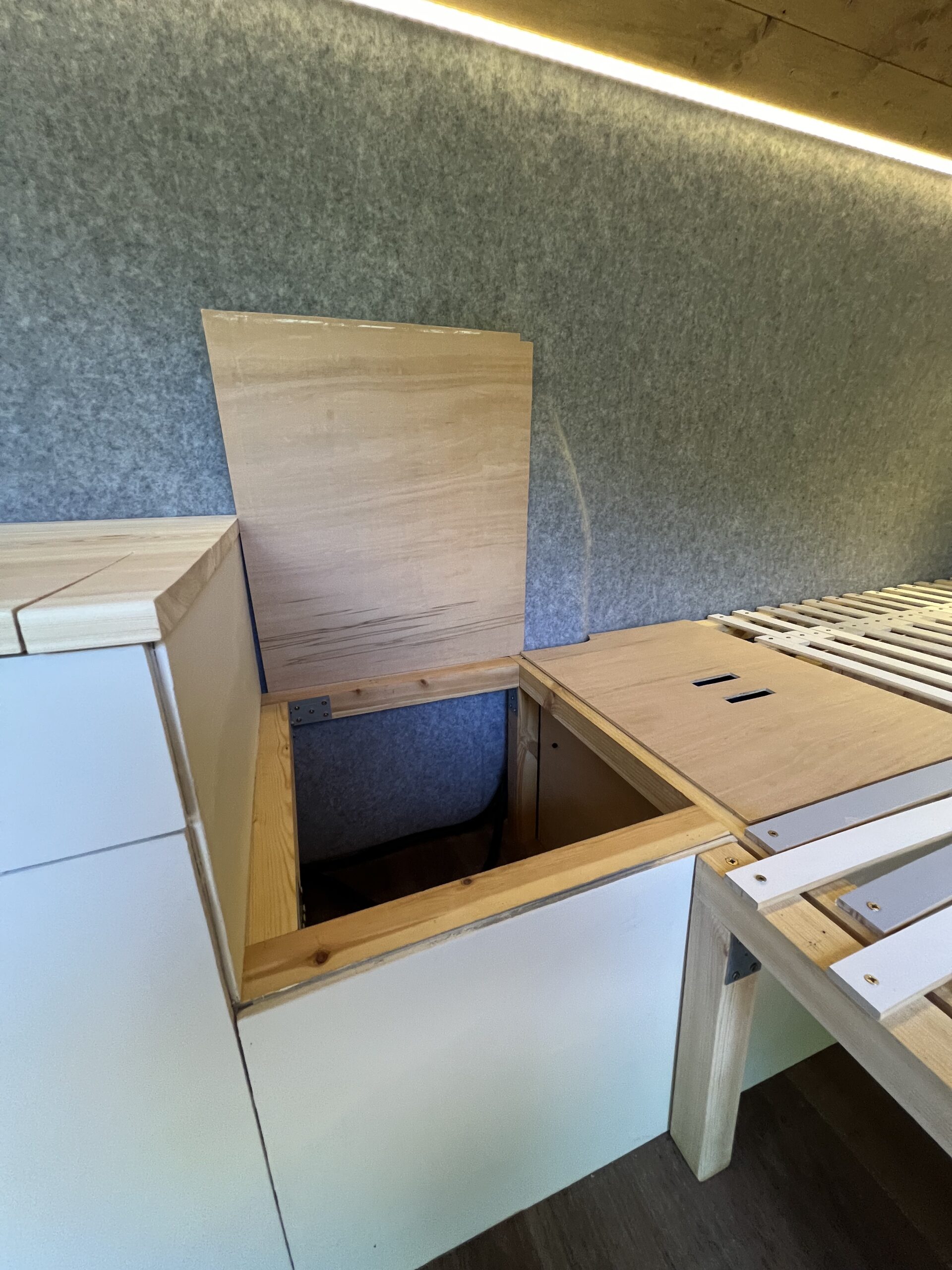

– Storage cupboard beneath foot end of bed (pull off lid)

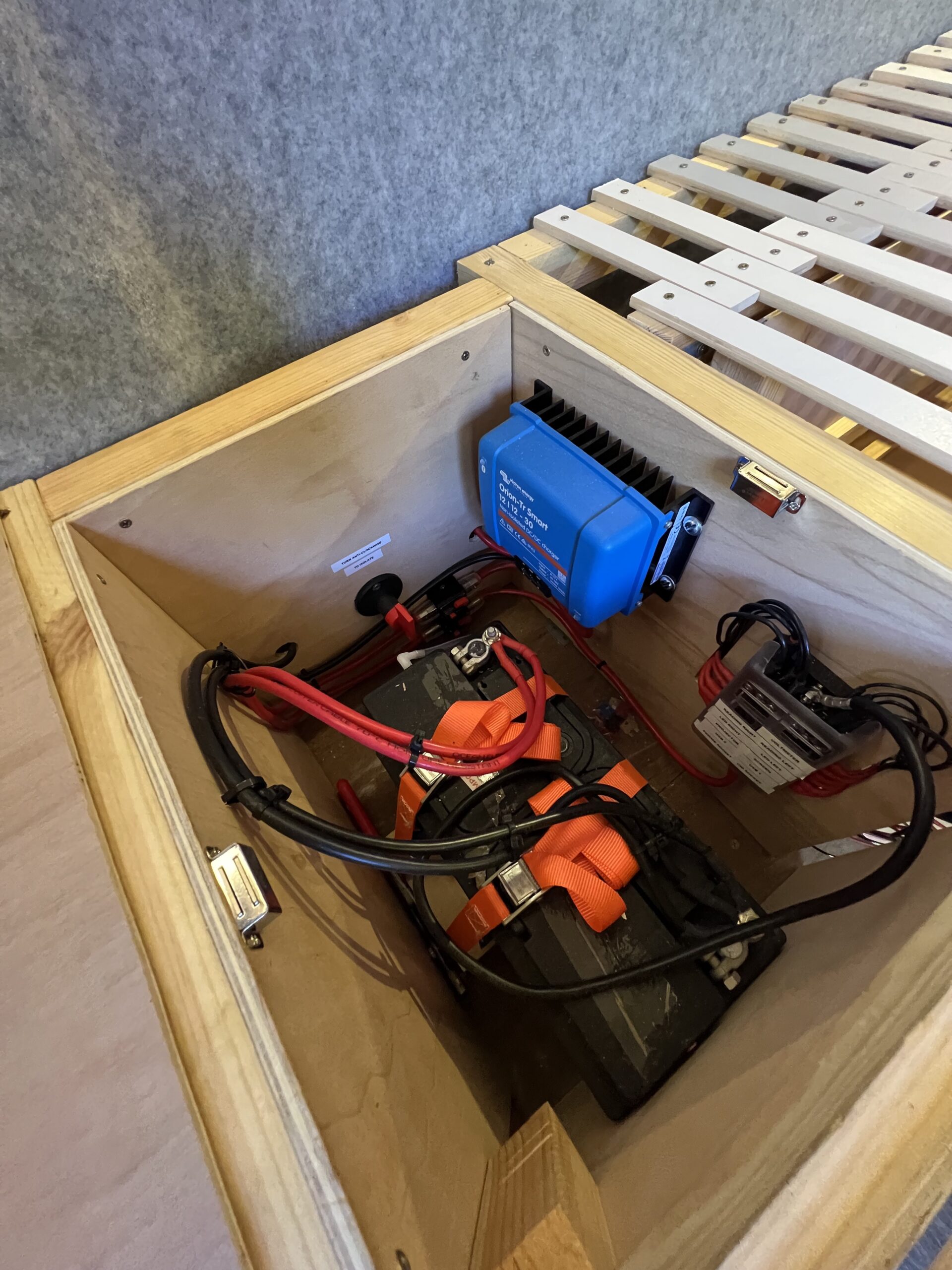

Electrics

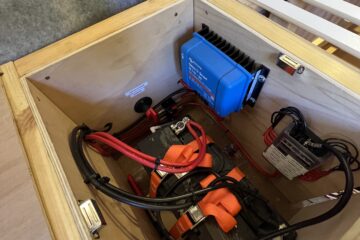

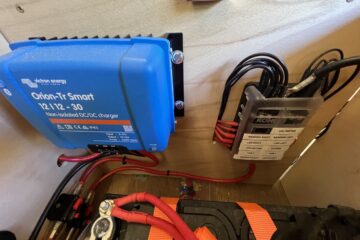

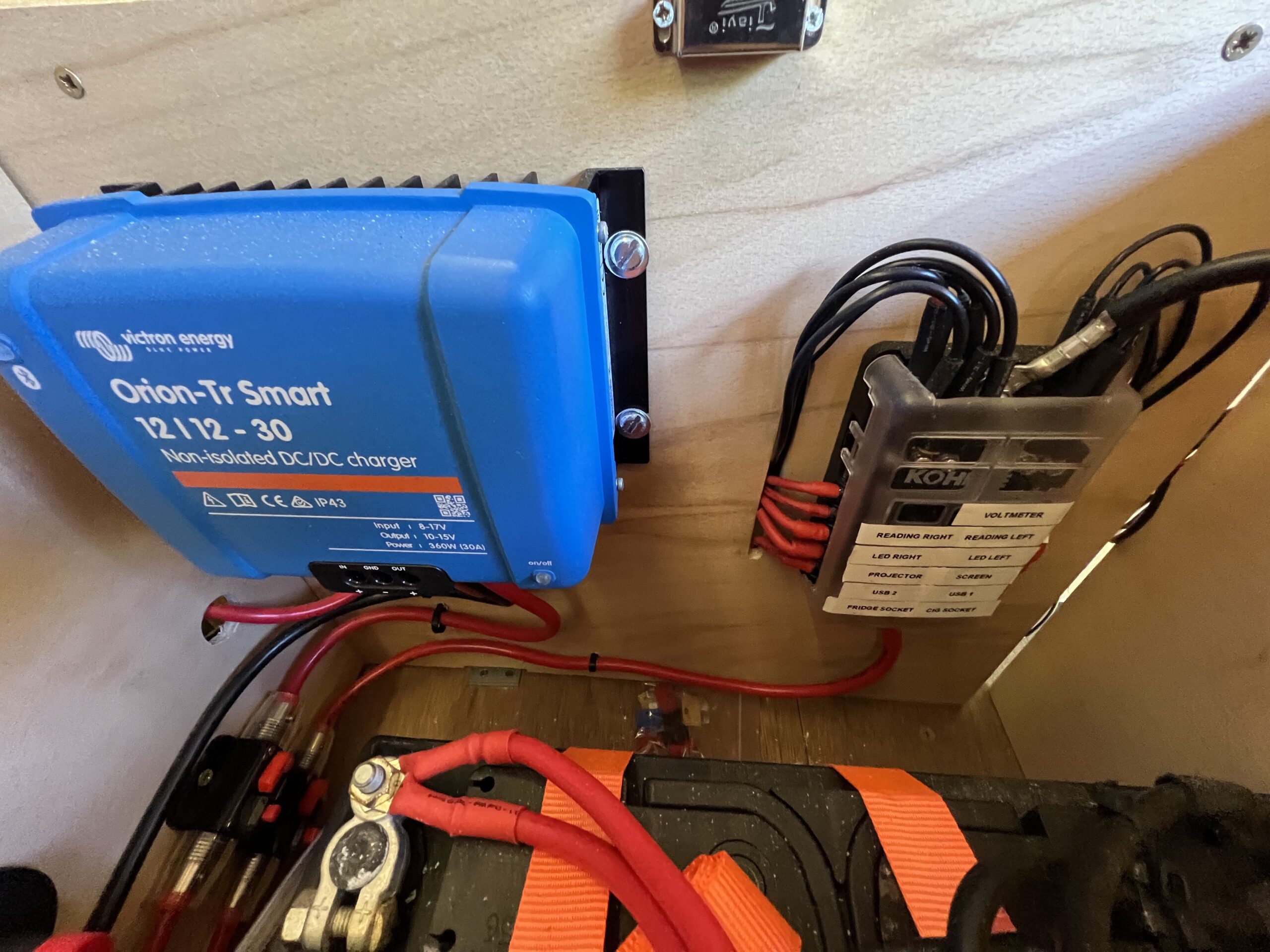

– Victron Orion DC-DC Converter / Charger 12/12-30A Non-Isolated
– EXV110 Enduroline Calcium Leisure Battery 12V (110Ah)
– Battery isolation switch
– Individual ability to isolate circuits with 60amp circuit breakers
– 60amp main fuse
– 16mm Oceanflex extra flexible tinned battery cable, earth for leisure battery sent back to main van battery, routed under the van

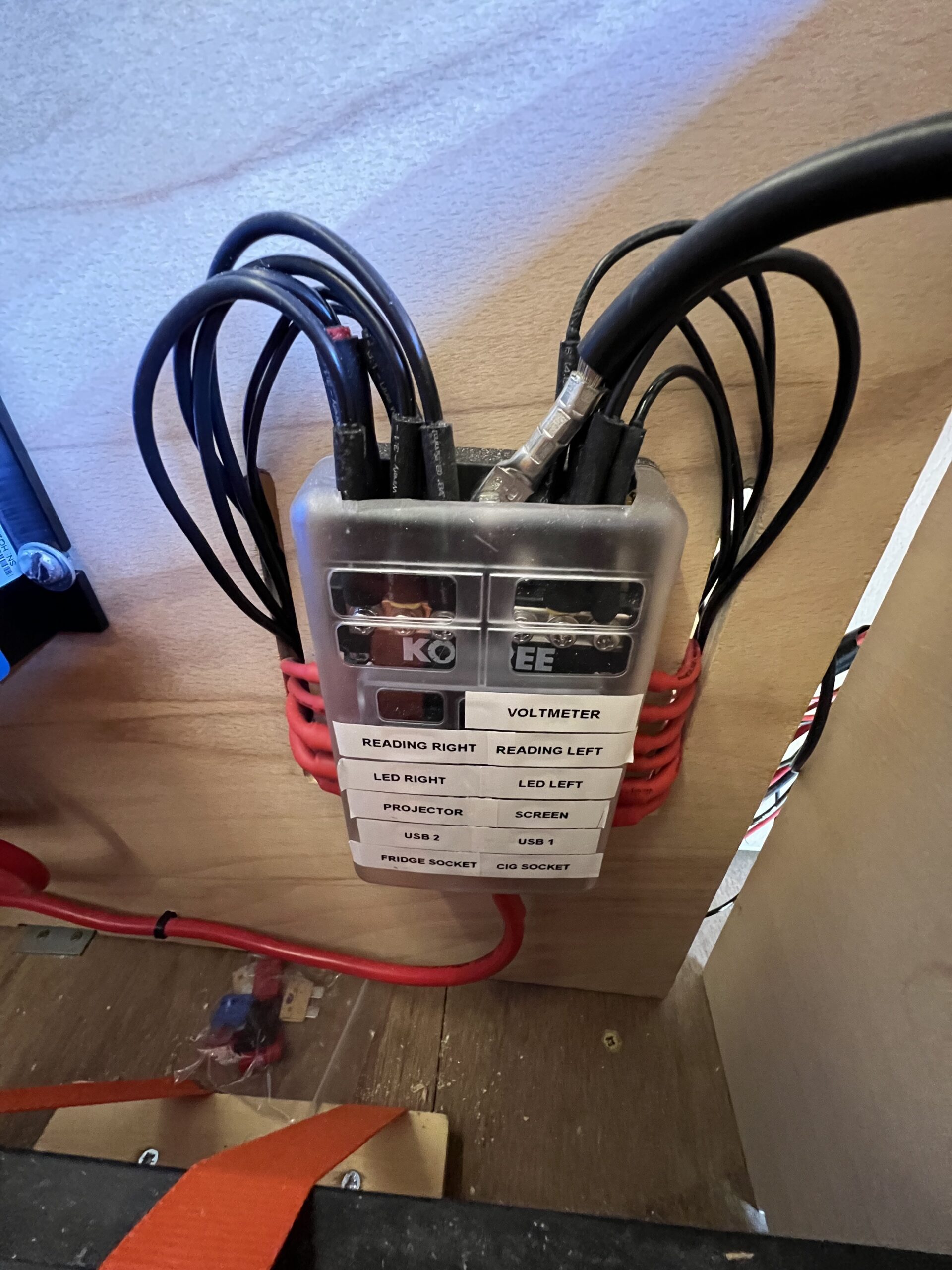

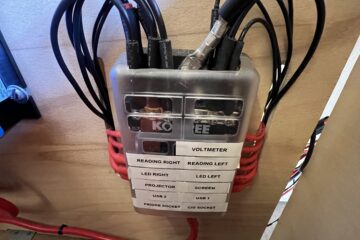

– 12way blade fuse box, LED indicator
– Oceanflex stranded single core tinned copper cable used throughout, 1.5mm used on low amp circuits (LED lights, electric screen motor) and 4.5mm for USBs, chargers (each USB charger / cigarette socket charger is on an individual circuit).
– All cabling crimped using high quality insulated crimp terminals and then sealed with heat shrink for extra protection. Cable routed via convoluted sleeving where there was any risk of abrasion.

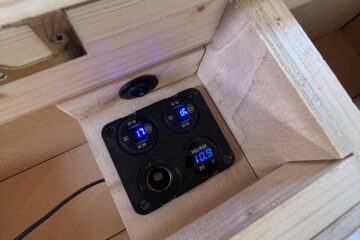

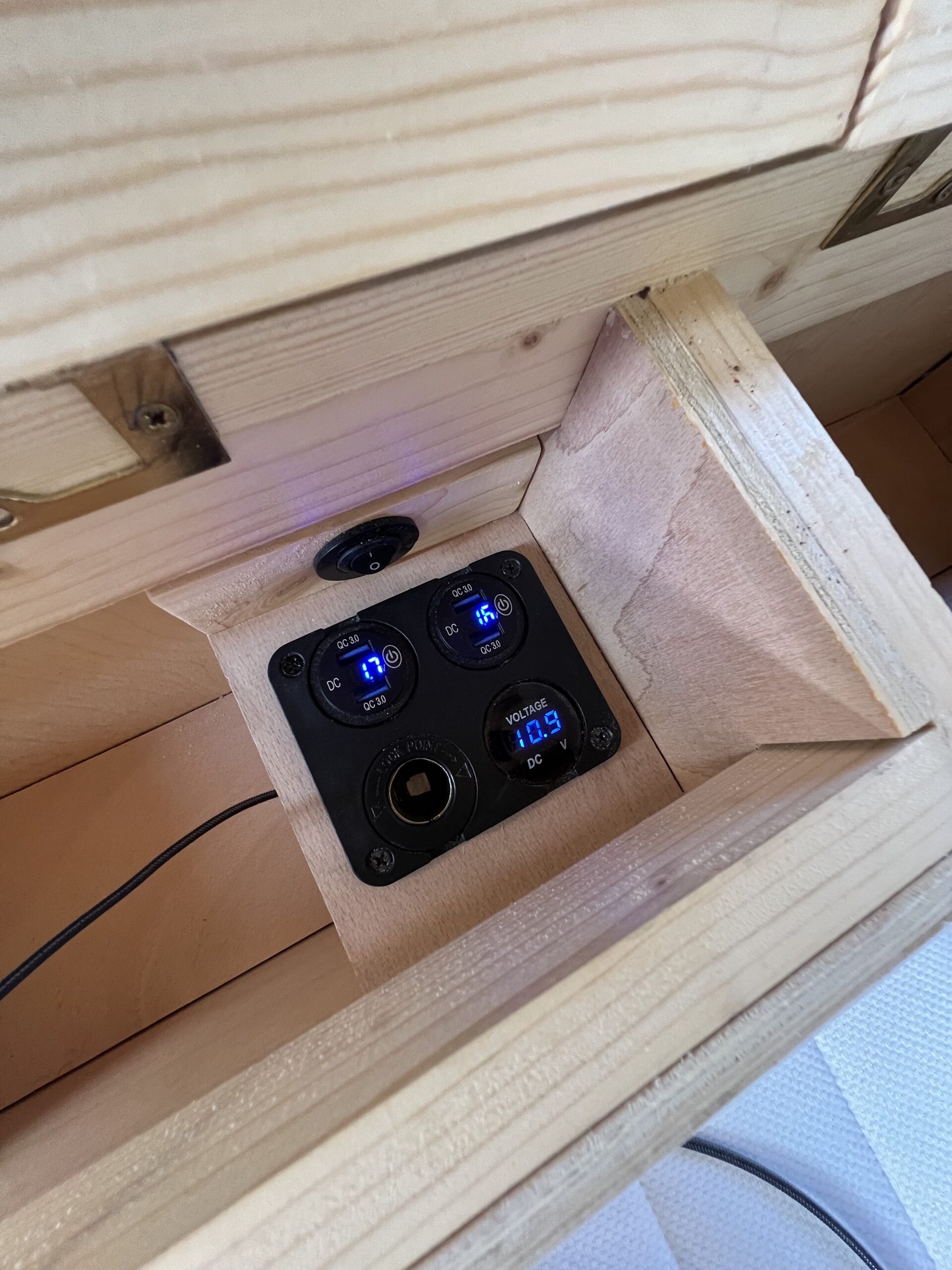

– USB charging station in centre cupboard of ‘sideboard’ – contains 2 x double USB socks (ie 4 total USB sockets) with Quick Charge 3.0 function, cigarette plug charger, voltmeter, switch to turn projector charging on/off, 3.5mm audio jack for projector audio output to external speaker
Projector and screen

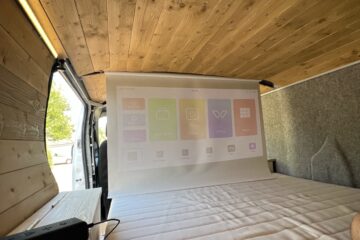

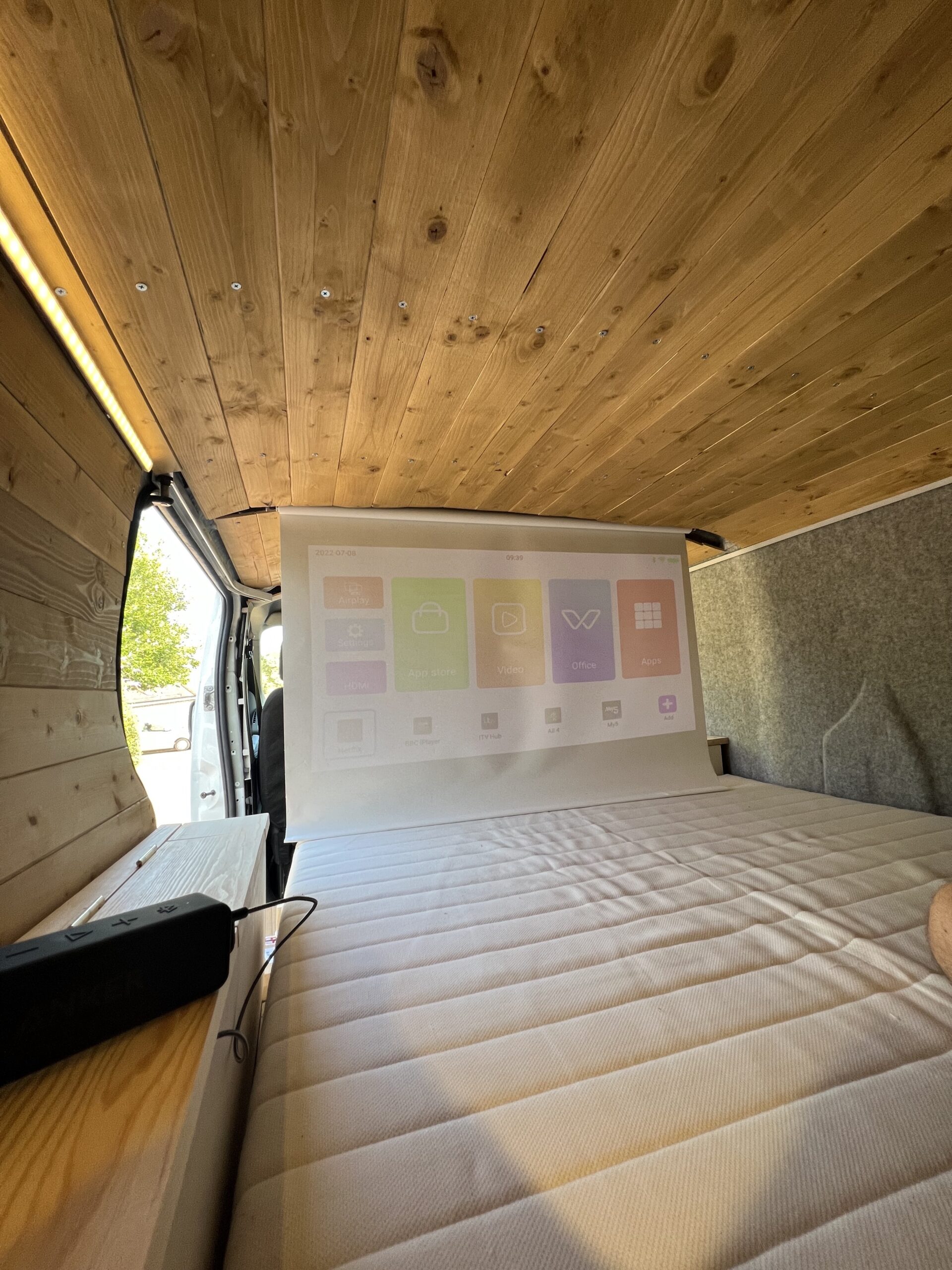

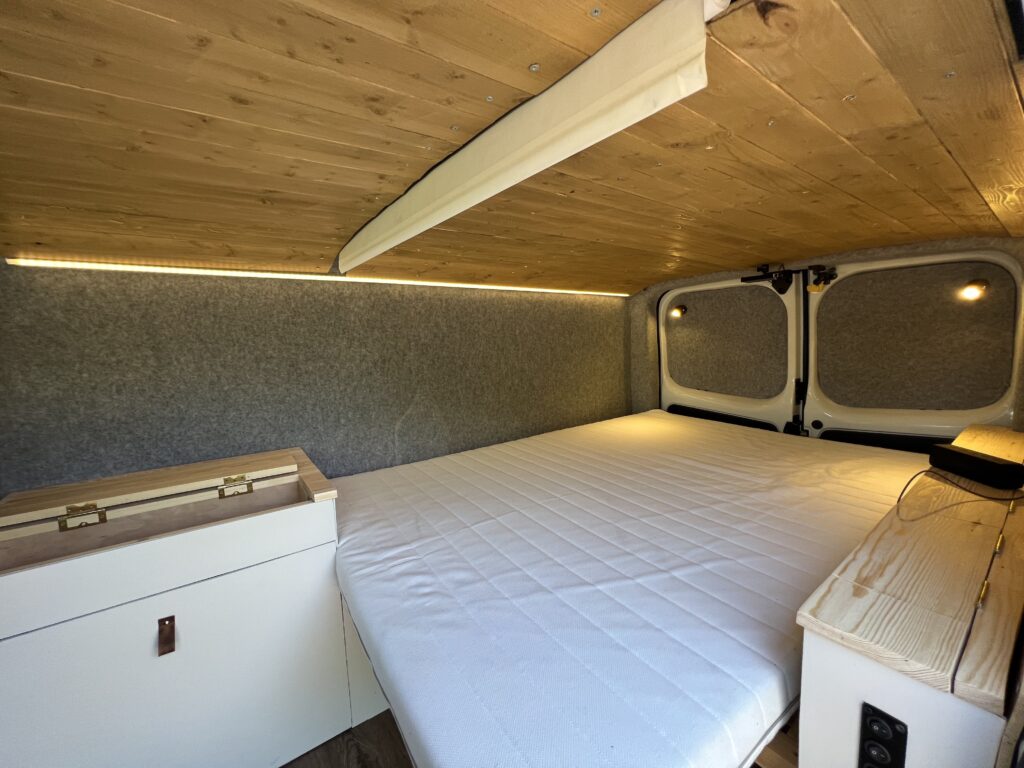

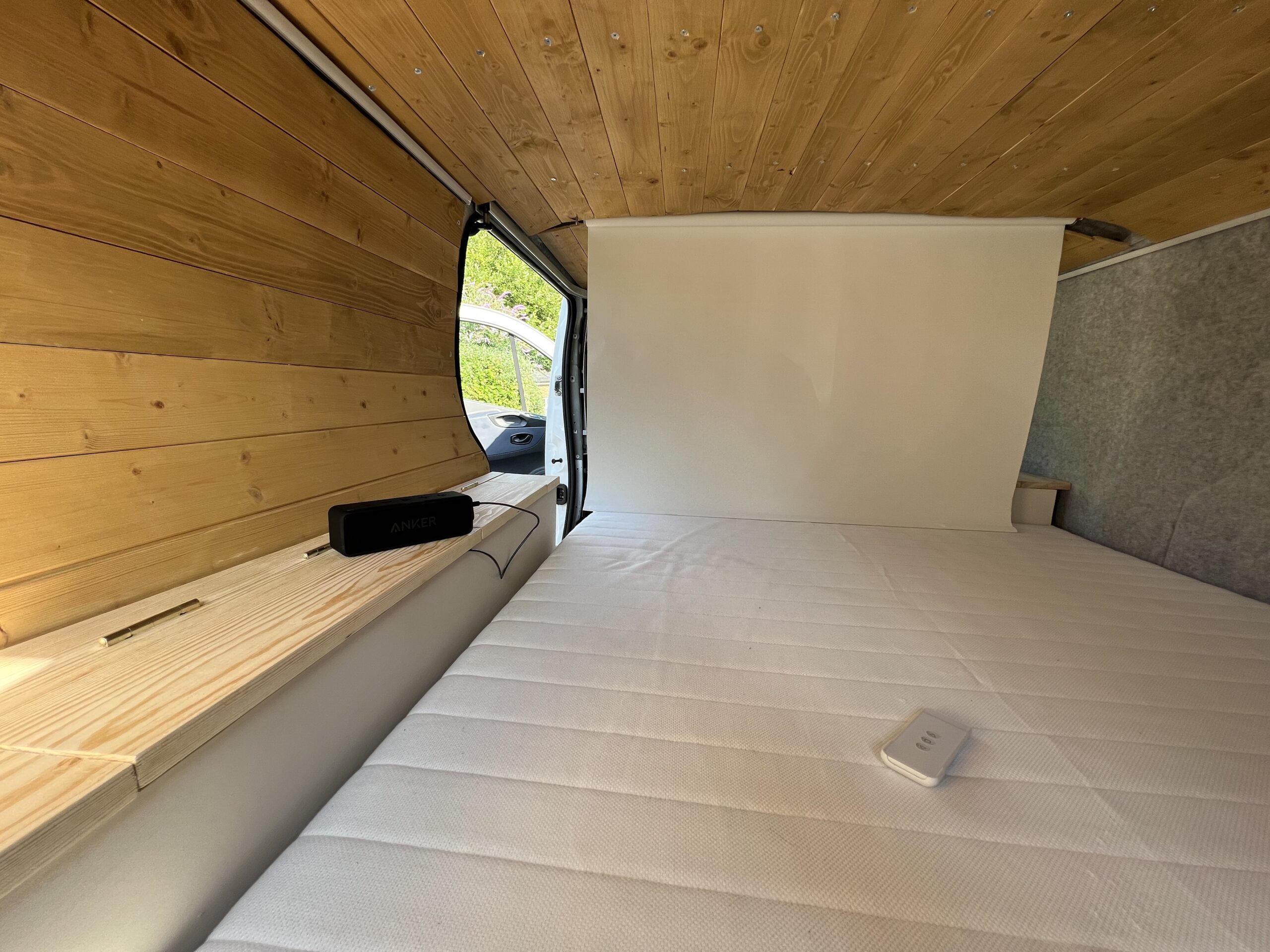

– Projector screen is hidden within ceiling, able to raise and lower at the touch of a button via the wireless remote
– Yaufey mini projector – runs off an Android operating system to allow a ‘SmartTV’ style experience, apps available include Netflix, iPlayer, ITV, Channel4, Channel 5 etc etc. USB thumb drive allows expandable storage to download selected episodes or films. Can also connect via WiFi to a phone or laptop to mirror the display.
– Projector wired into a charging cable powered by the leisure battery, charging can be turned on / off via a switch in the central cupboard of the ‘sideboard’ that runs alongside the bed
– A 3.5mm audio cable is routed within the walls of the van from the projector to the same central cupboard to allow a high quality portable speaker to be used for the full cinema experience!
Lighting

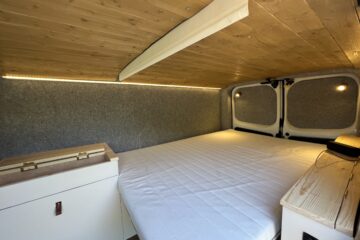

– LED strips in run lengthwise in the corners of the ceiling, aluminium profile and diffusion cover for a soft light

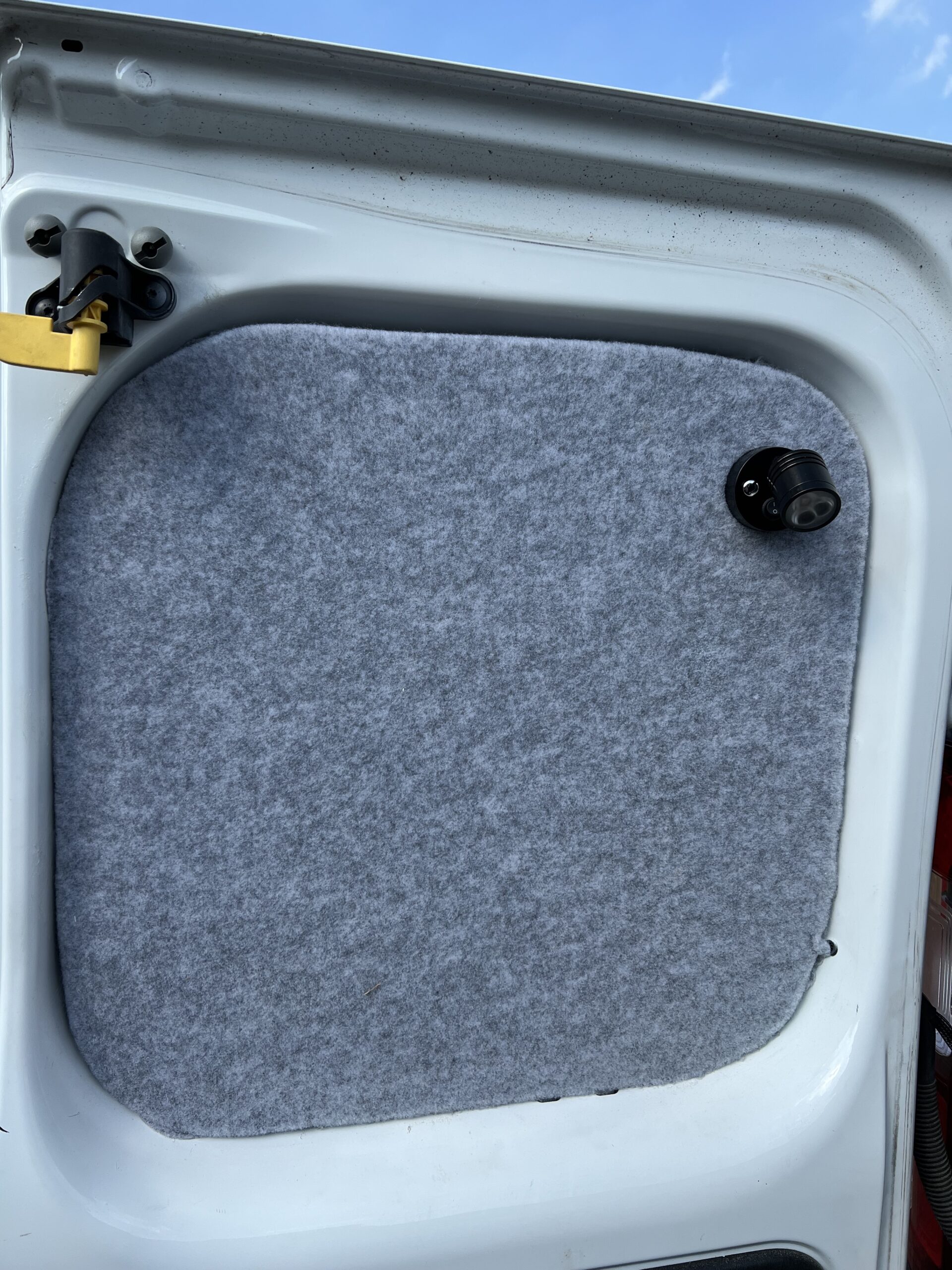

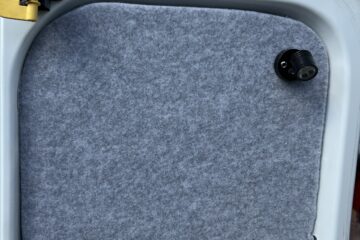

– Reading lights built into both rear doors to allow focused lighting, also perfect to direct towards the stove when cooking or searching the drawers

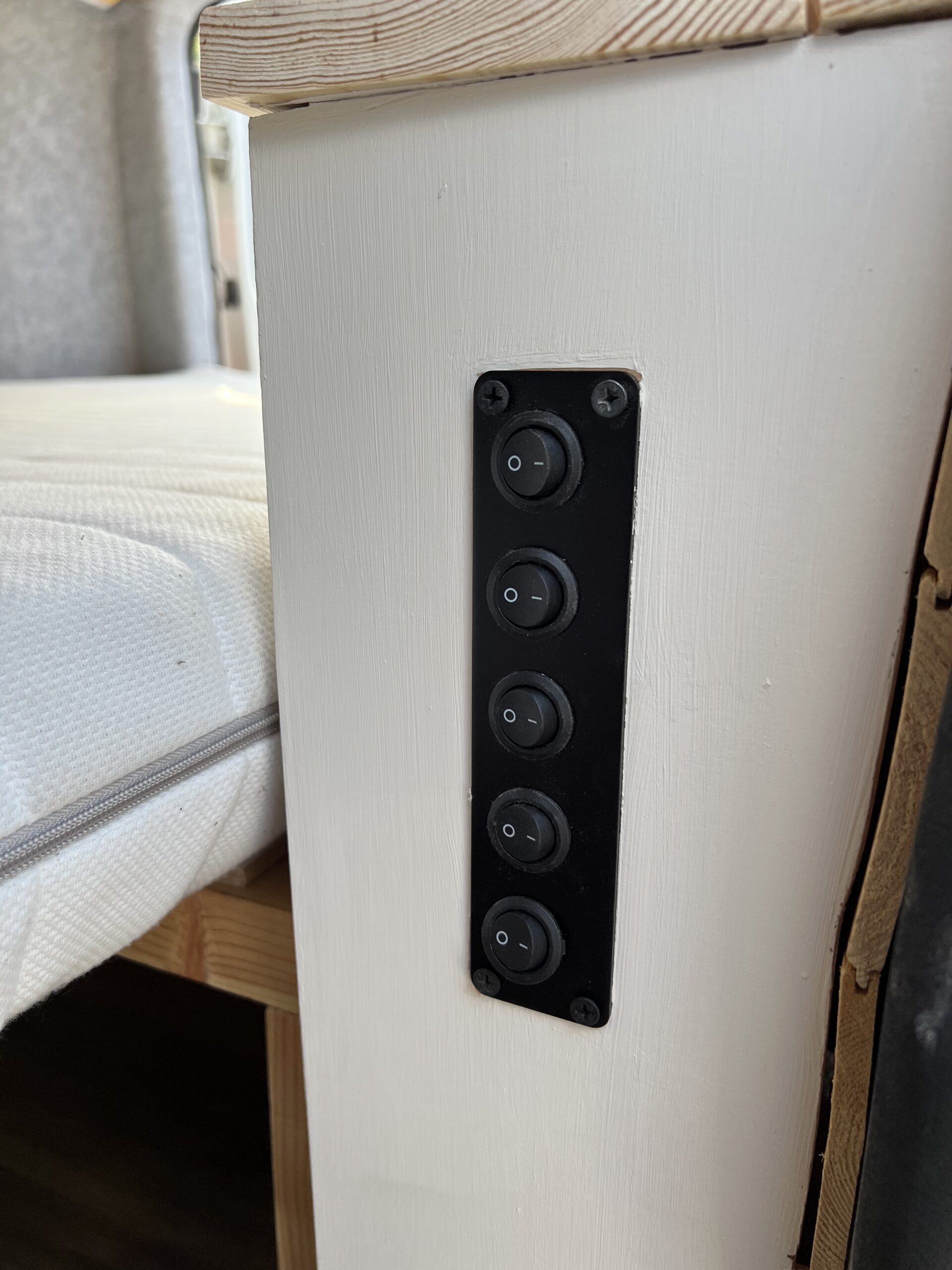

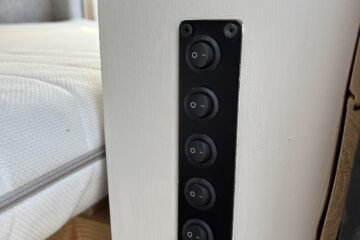

– Lighting controlled via main switch panel, individual switched built into reading lights

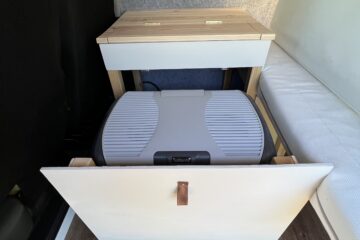

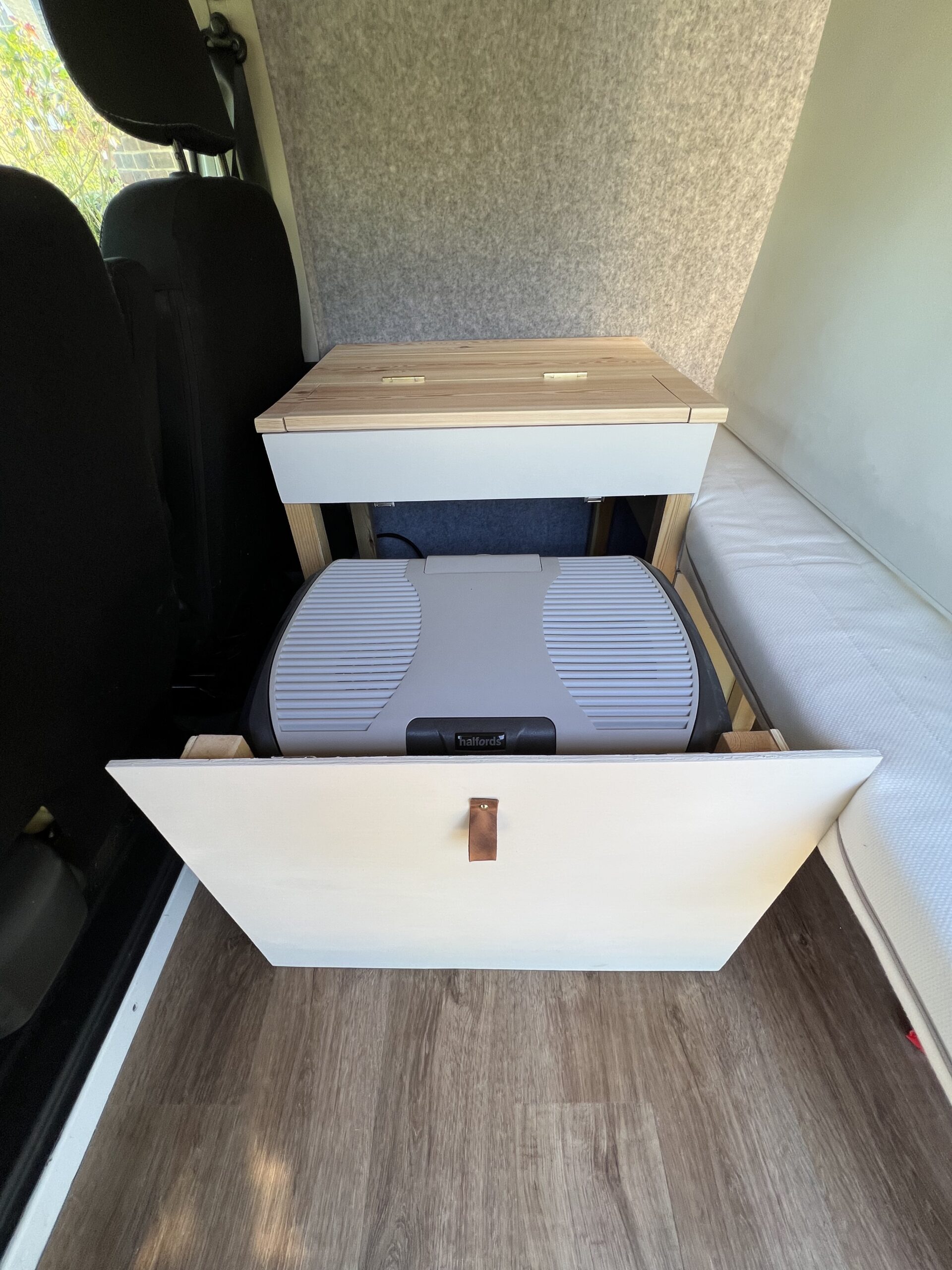

Fridge
– Halfords 40litre 12V fridge with mains adapator, allows the fridge to be brought down to temperature using mains electricity before connecting to the 12V system in the van to maintain
– Runs on heavy duty drawers slides to allow easy access
– Charger built into fridge cabinet, can be turned on / off via main switch panel
Reversing Camera

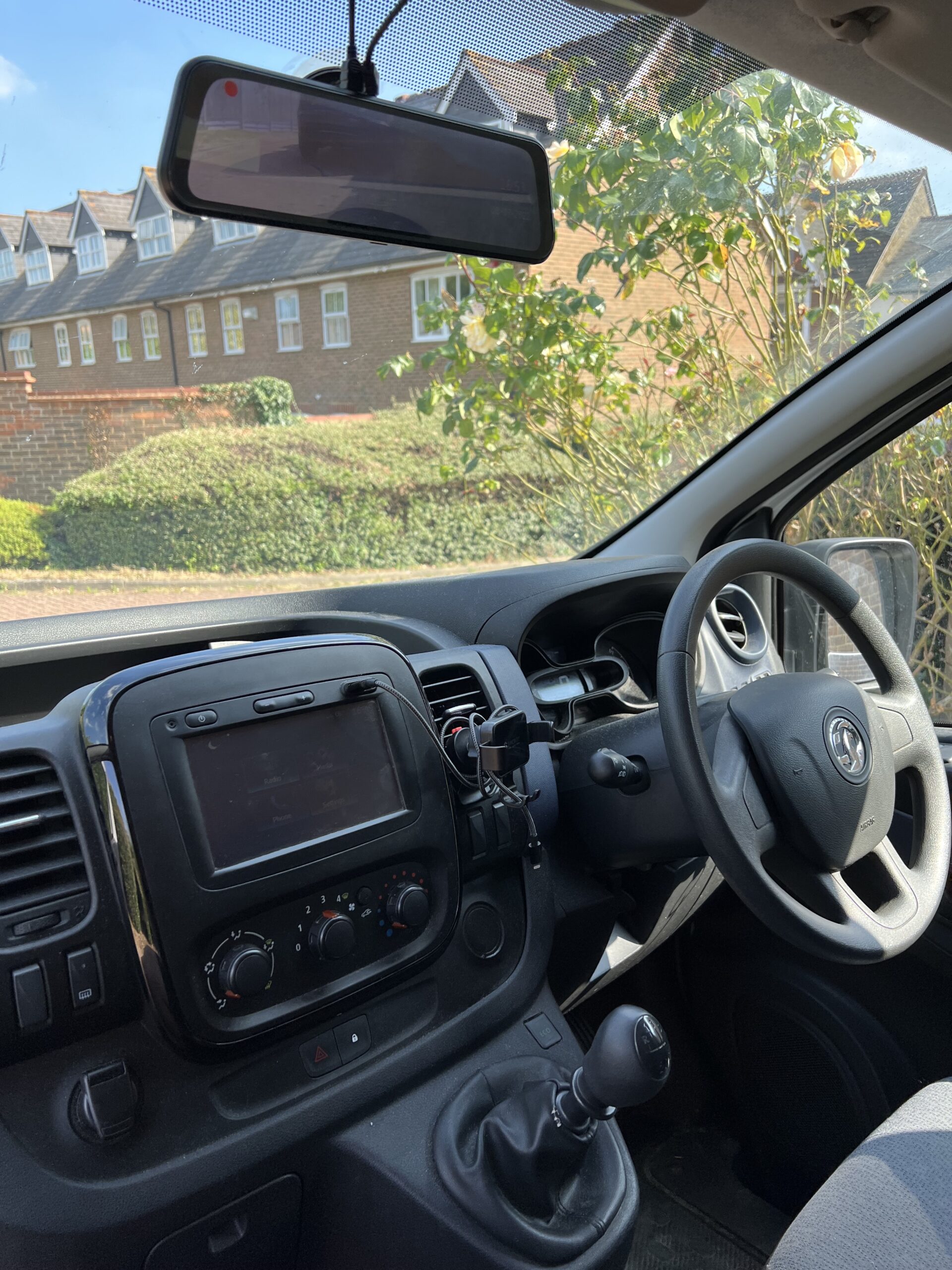

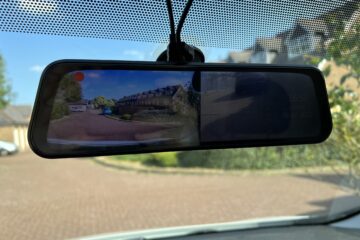

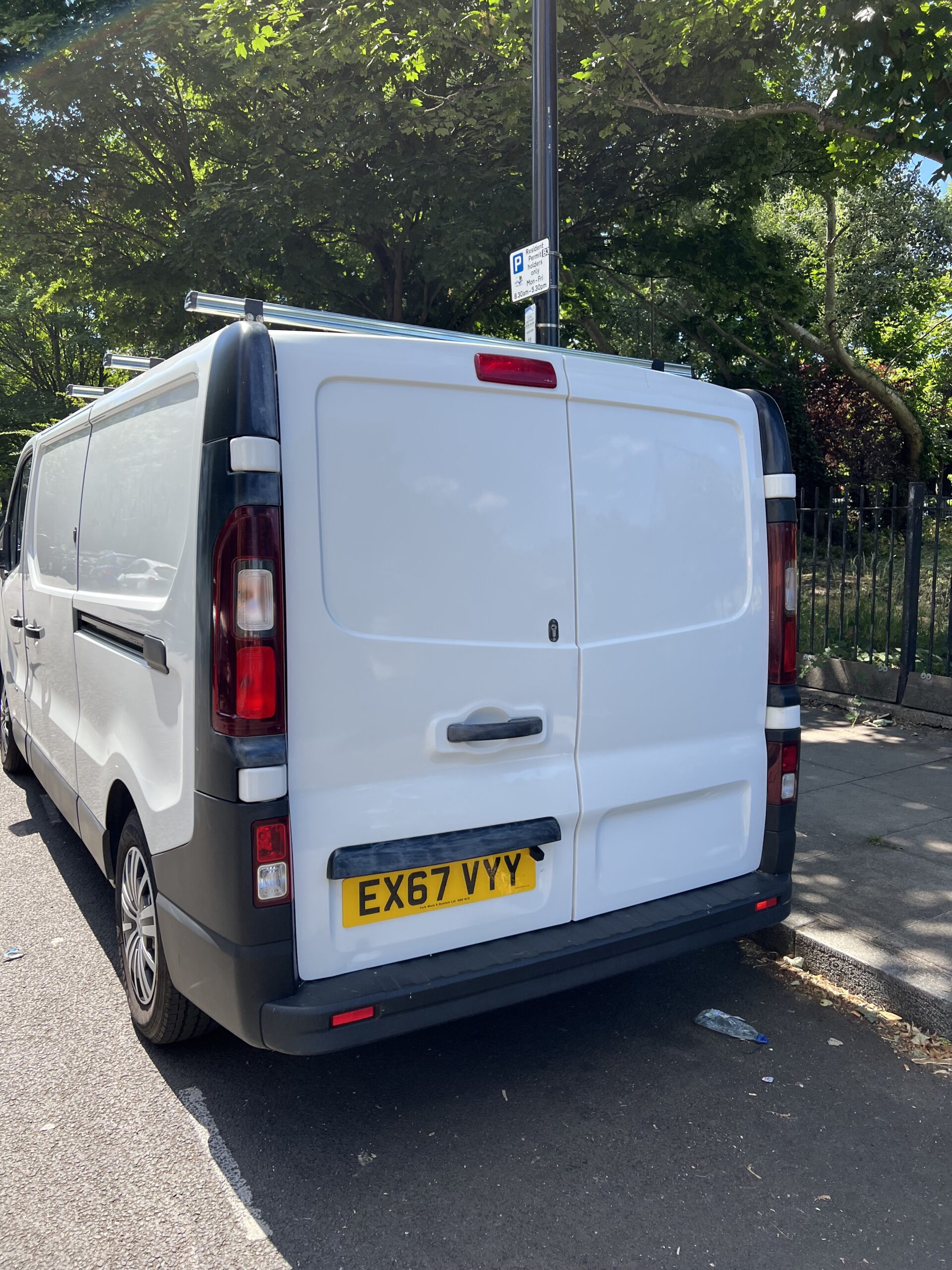

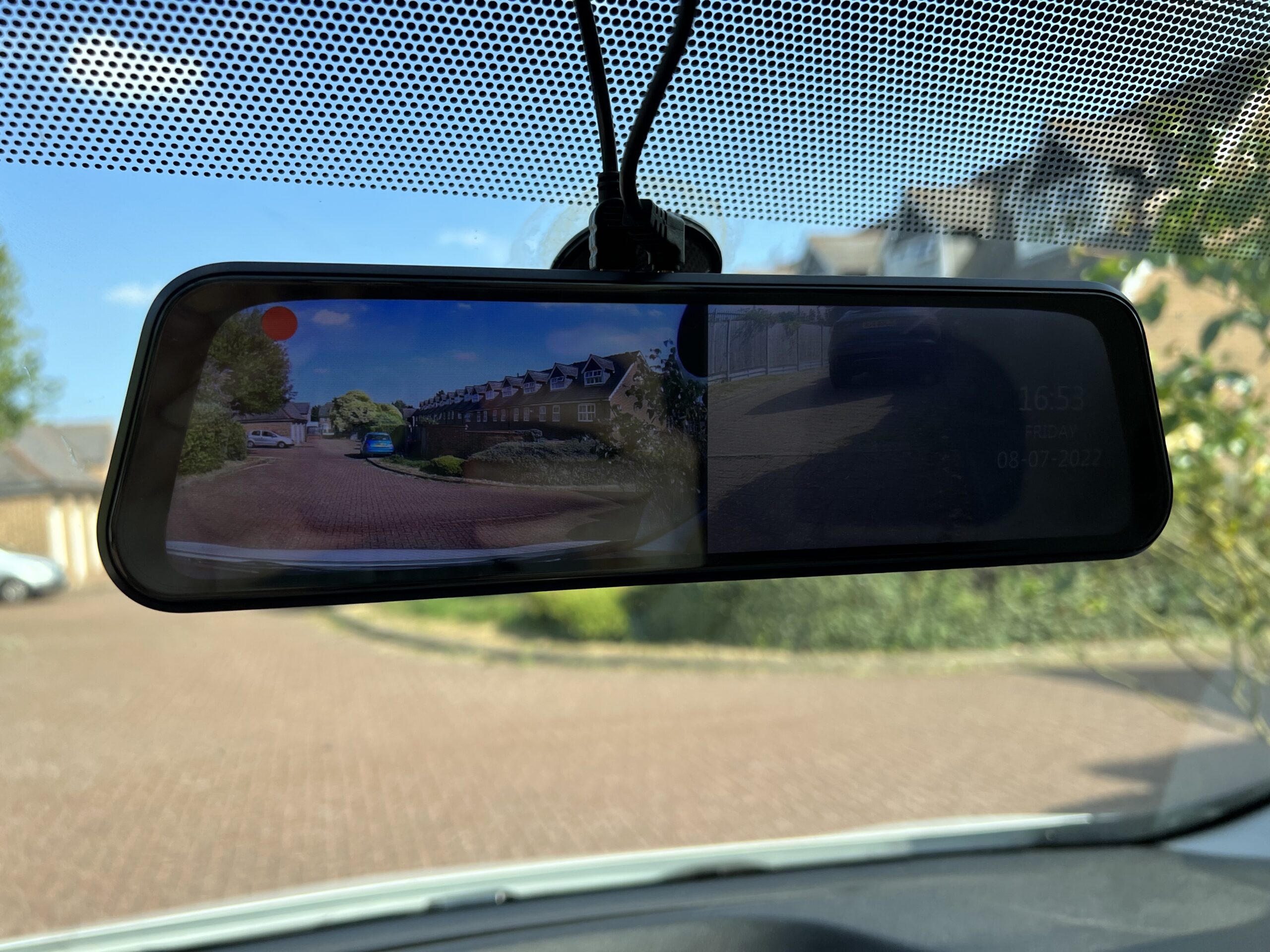

– 10″ mirror combined dash camera and reversing camera, can be used to record as a dash cam and will automatically switch to display the view from the reversing camera subtly attached above the rear number plate when reverse gear is selected
– Hardwire into fuse box to allow constant power supply
– Direct wire connection hidden in van walls between camera and screen – no problems with wireless connectivity
140 x 200cm (nearly king size) double bed to comfortably sleep two adults
IKEA foam mattress used (12cm) – in immaculate condition, never used without cover
Lower part of bed is extendible / retracts to complete full size bed as required
