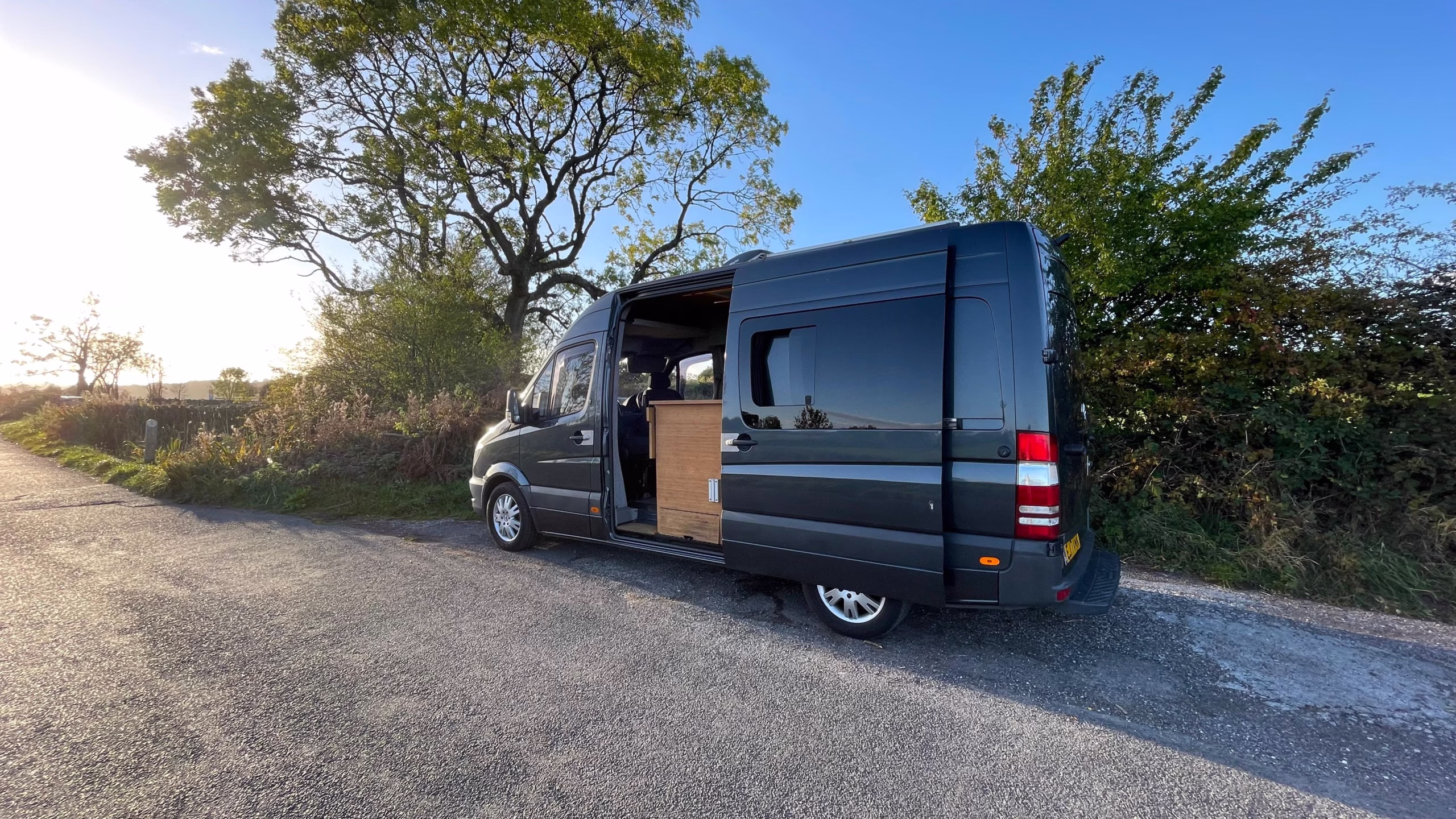

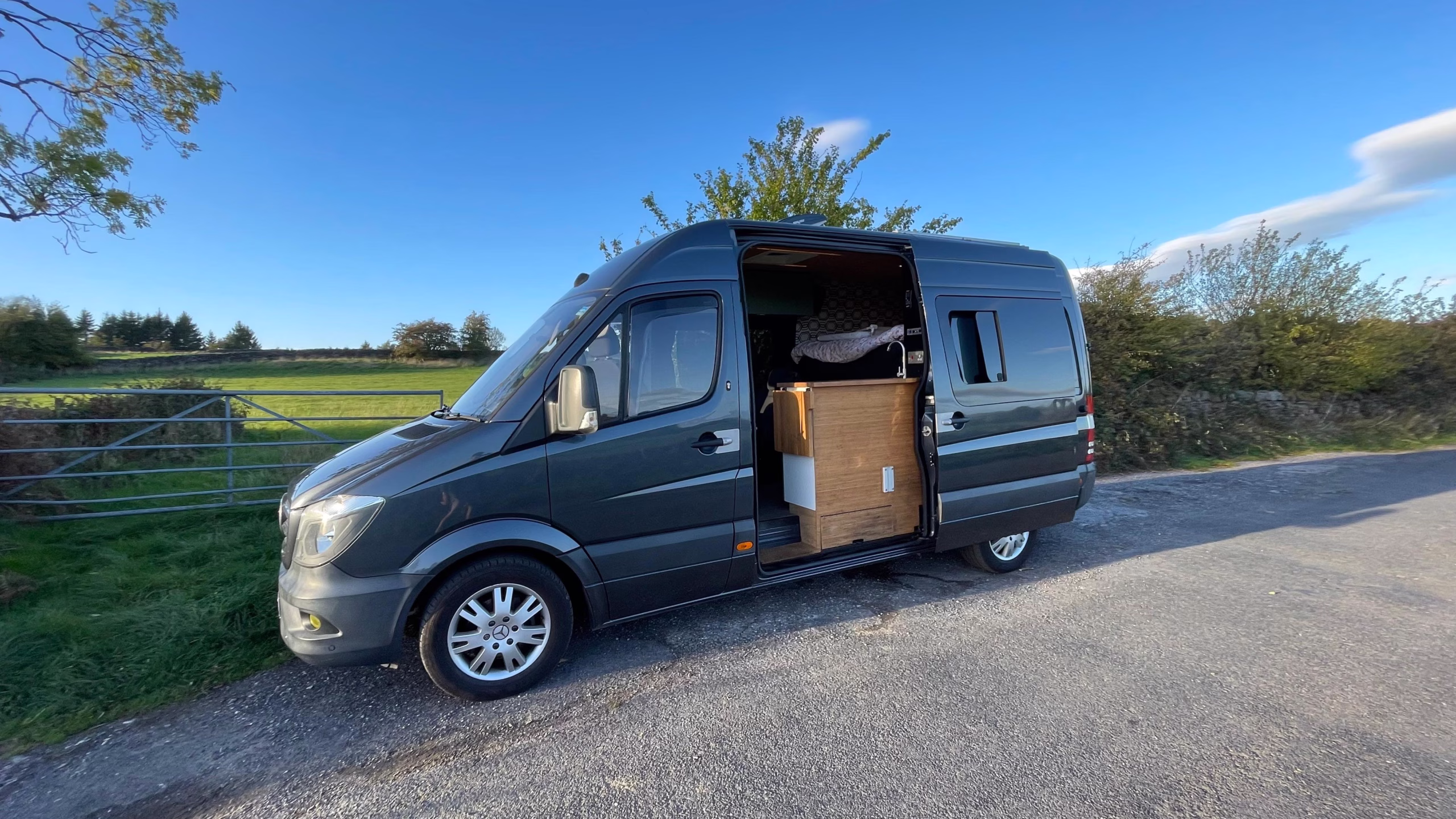

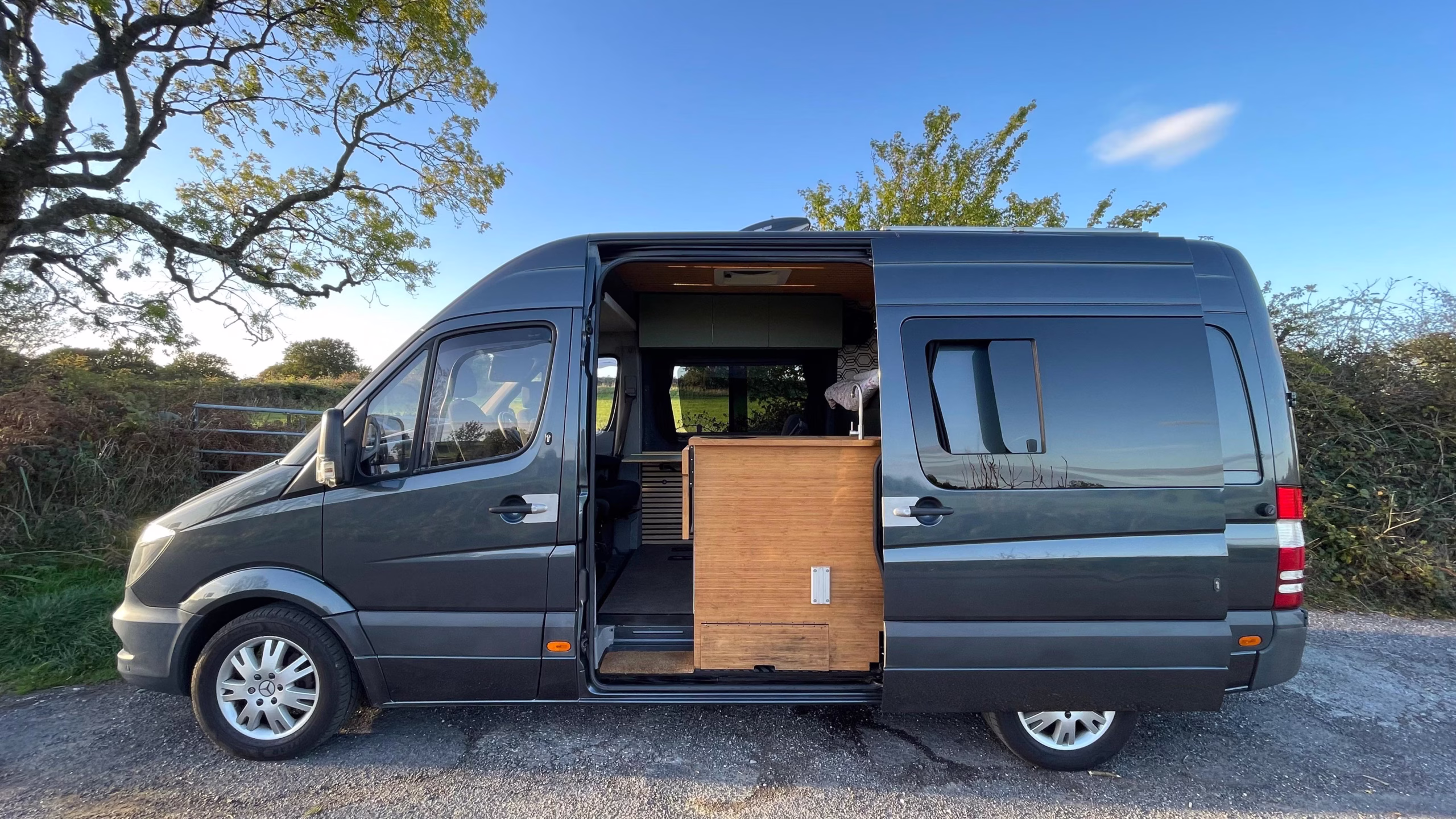

Mwb Auto Sprinter off-grid

Apologies pictures aren’t working for now!
Insta @justanothersprintervan

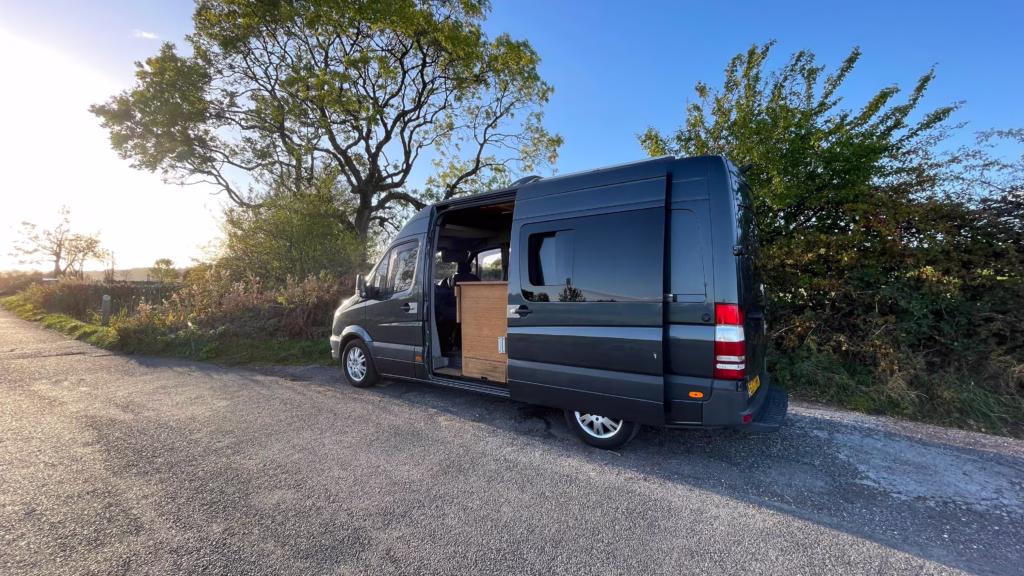

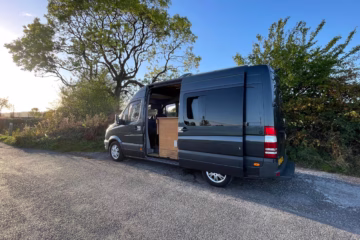

This van is fully off grid and ready to go!
Was built to carry 3 passengers and plenty of kit including bikes.

I have done multiple family trips and bike trips both home and abroad and it’s versatility is fantastic.

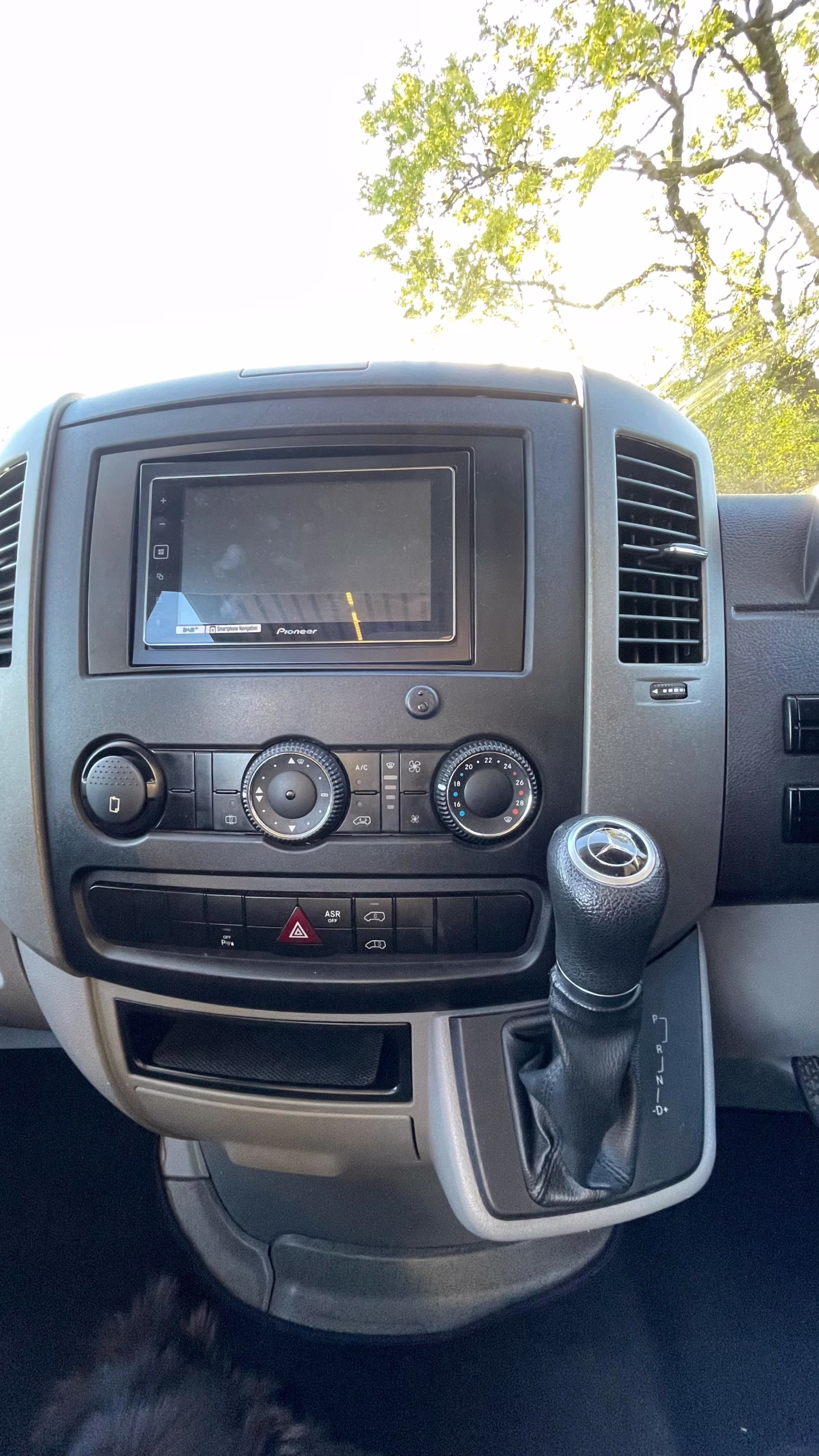

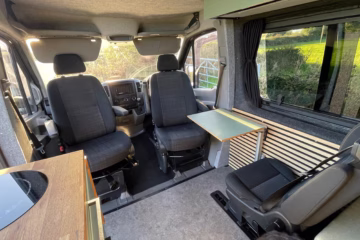

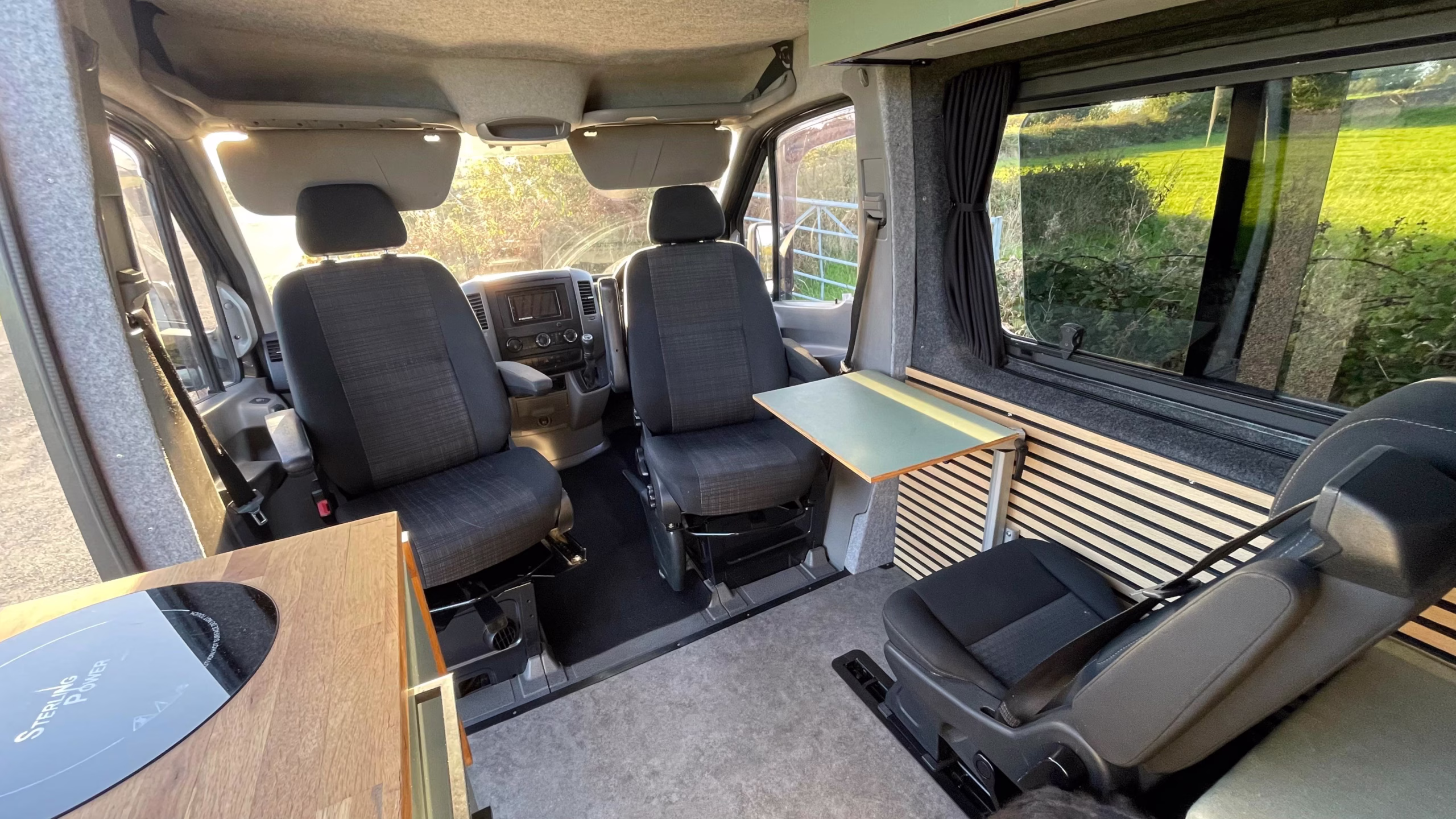

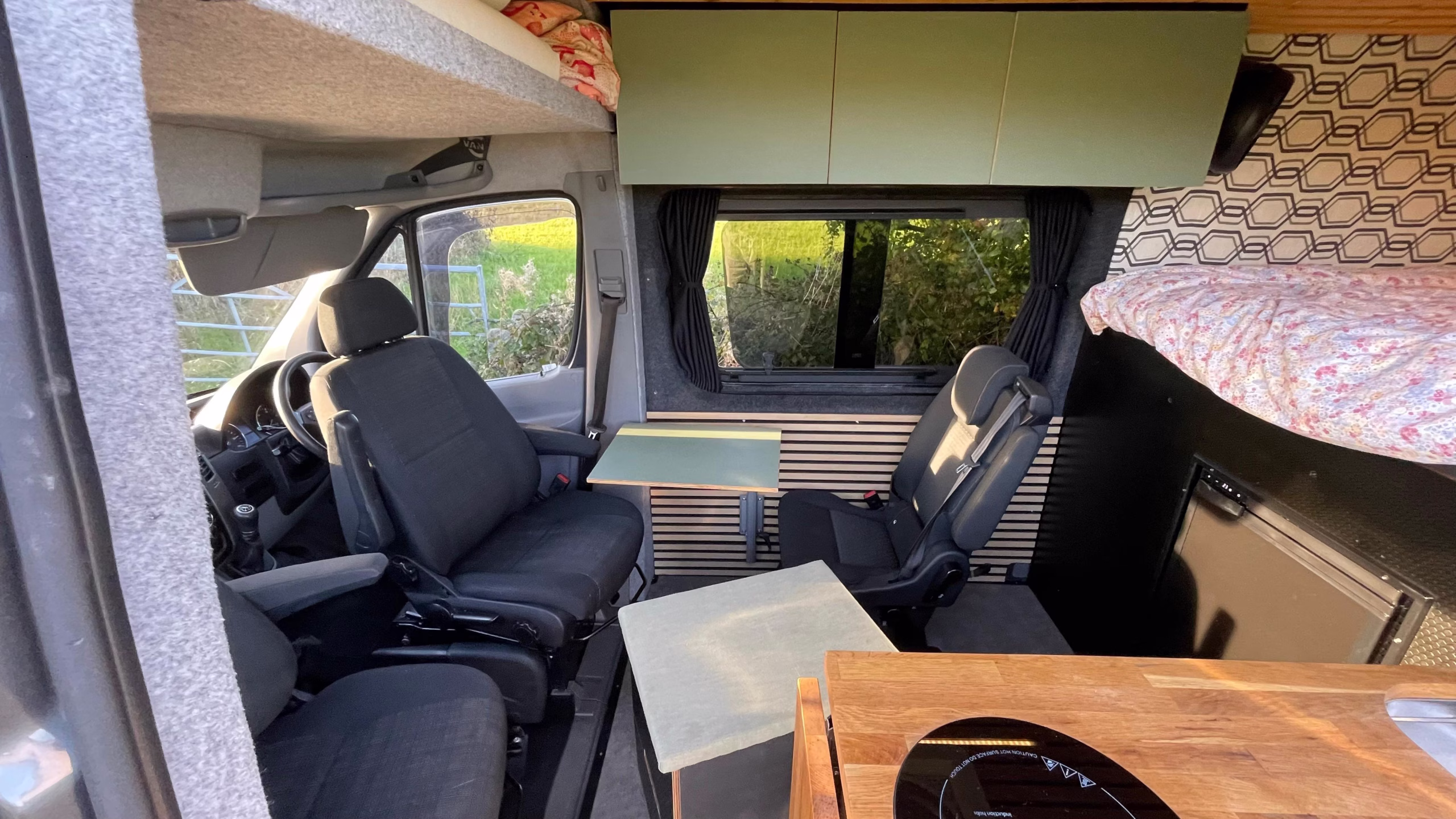

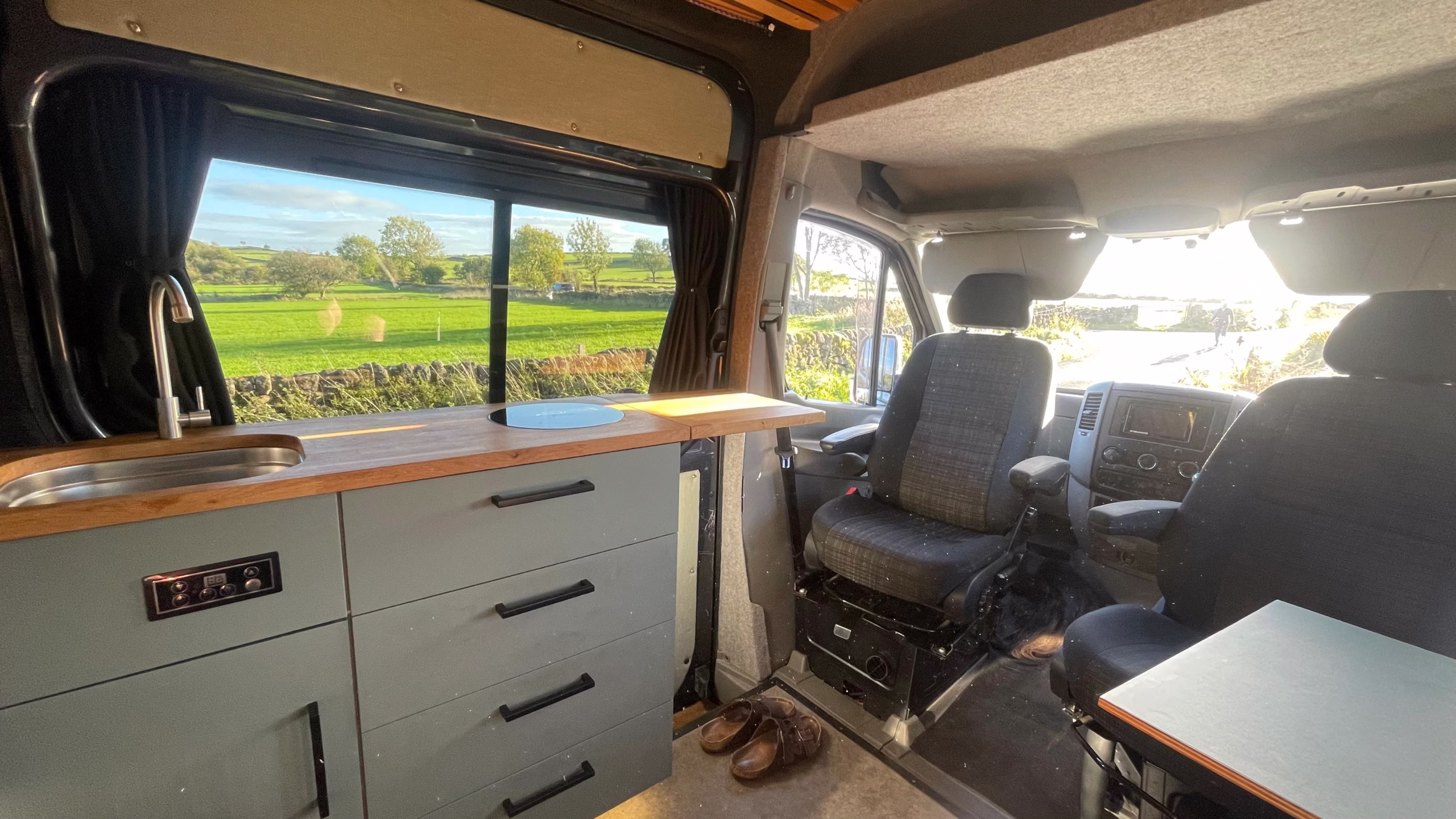

The front:

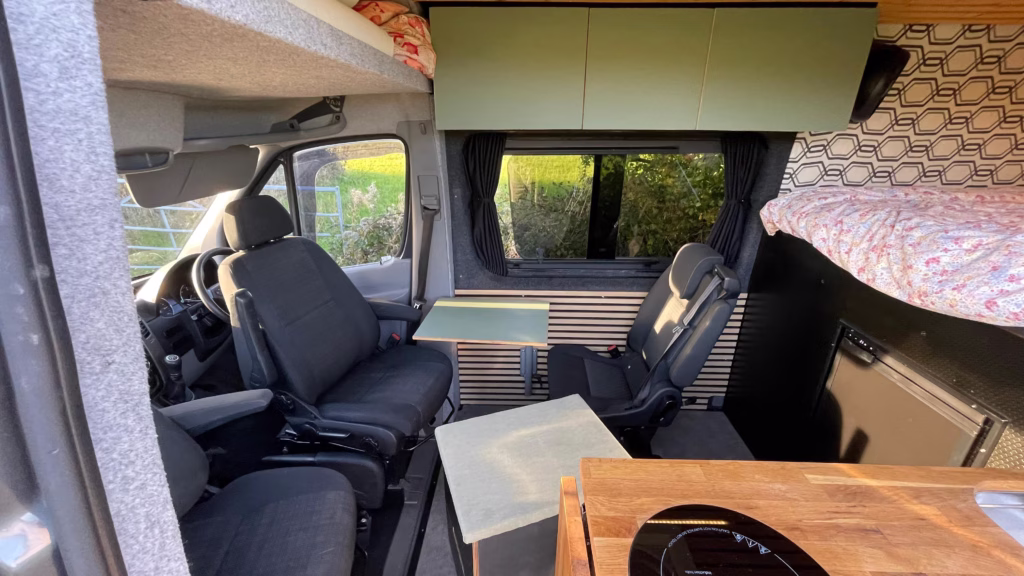

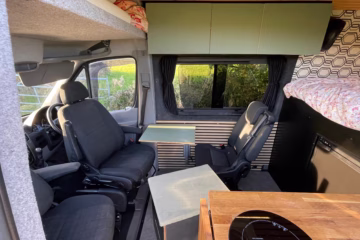

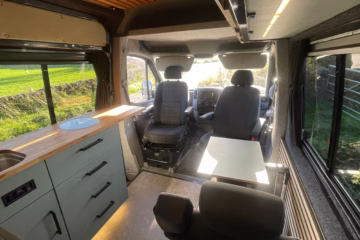

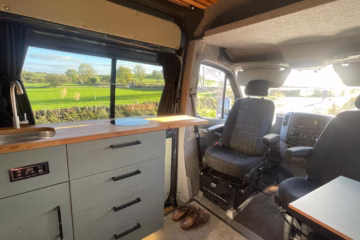

Twin captains comfort seats on Sportscraft heavy duty swivel bases. Double arm rests on each seat.

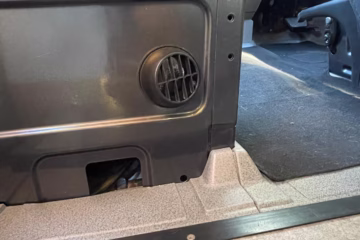

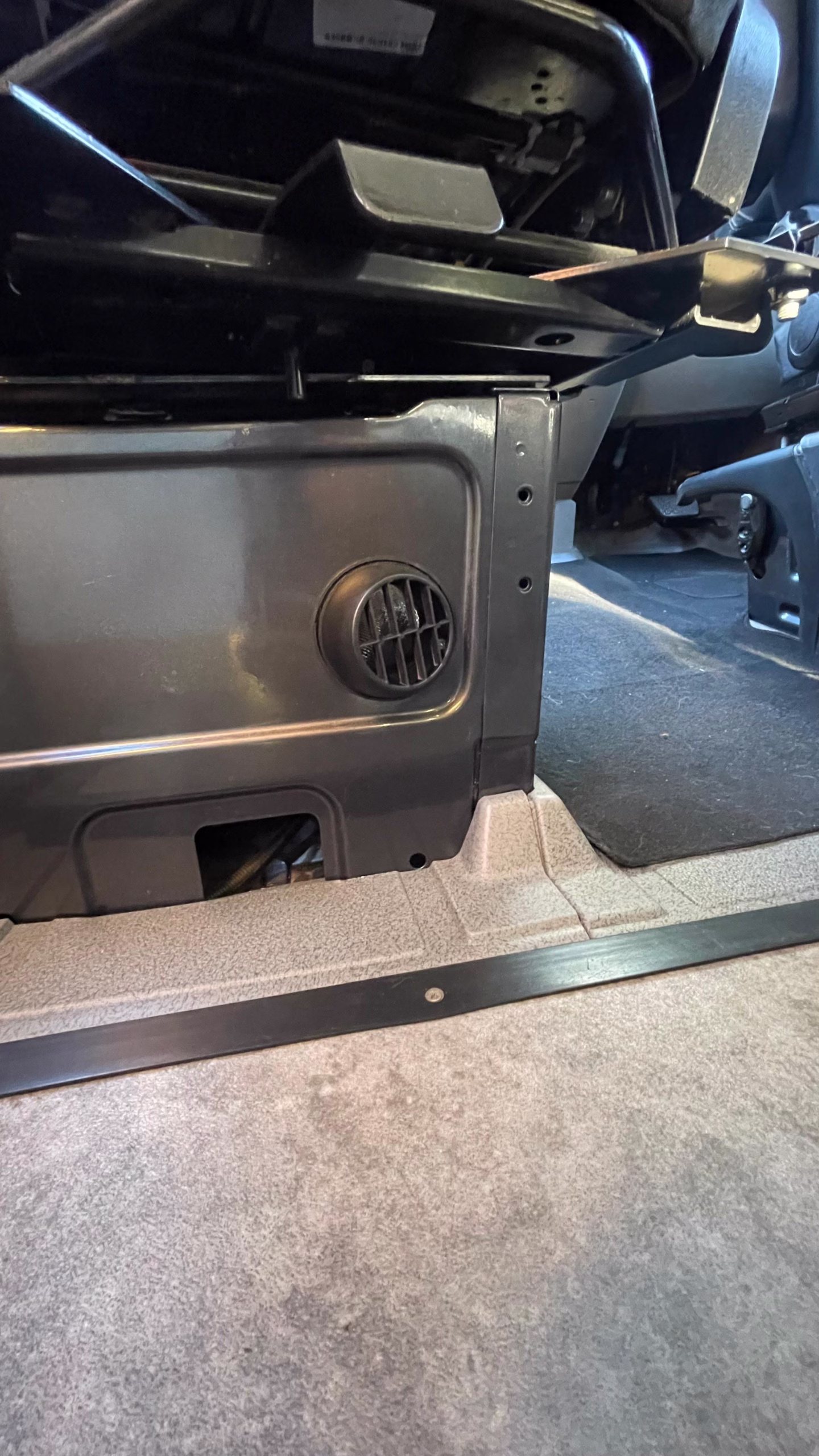

2kw Diesel heater installed below the passenger seat base out of sight and plumbed in to the vehicles tank using oem pickup.
Subtle 8” subwoofer under the driver seat base.
Thermal blinds included.
Vanconcept cab shelf for lots of overhead storage.

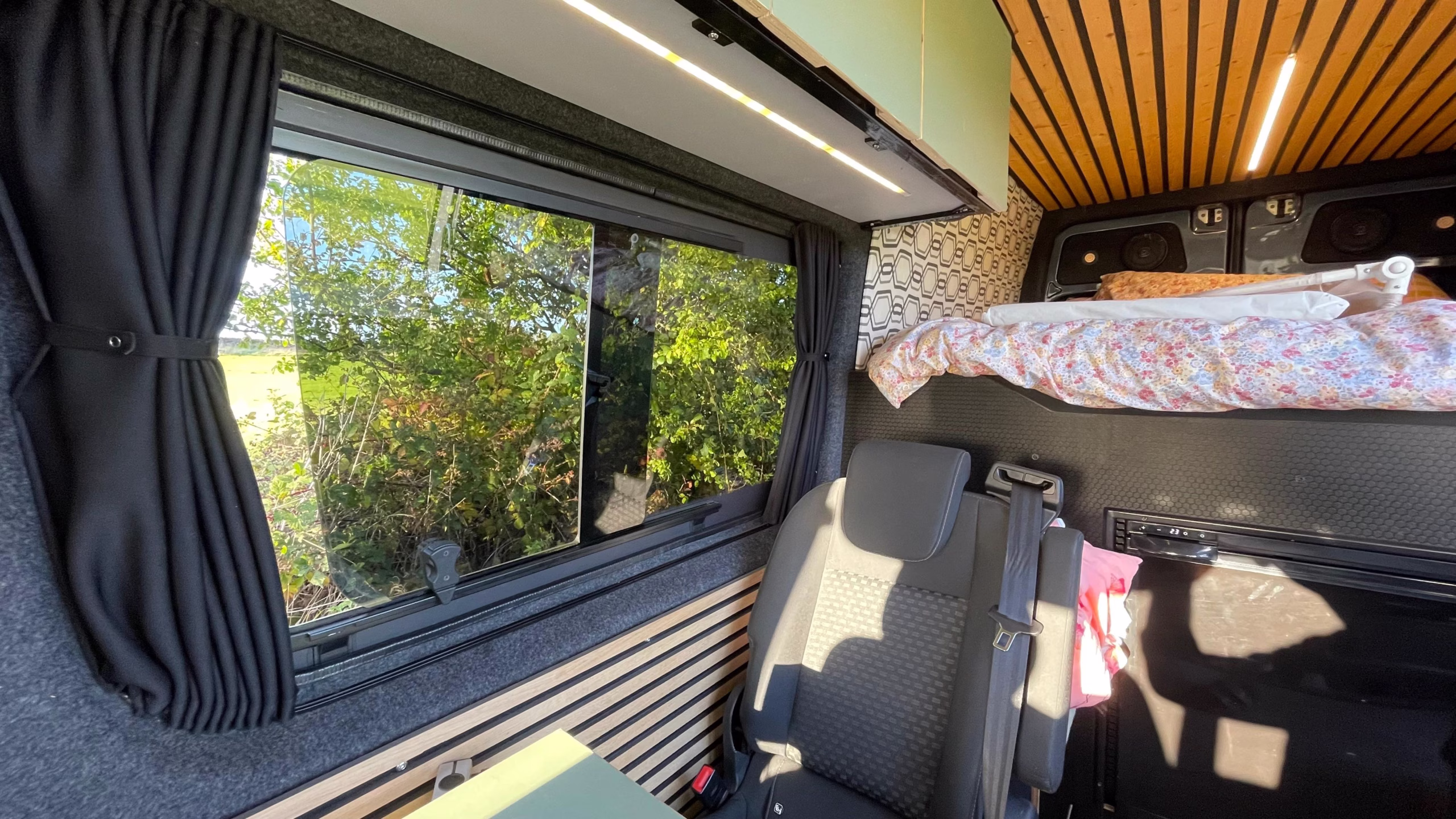

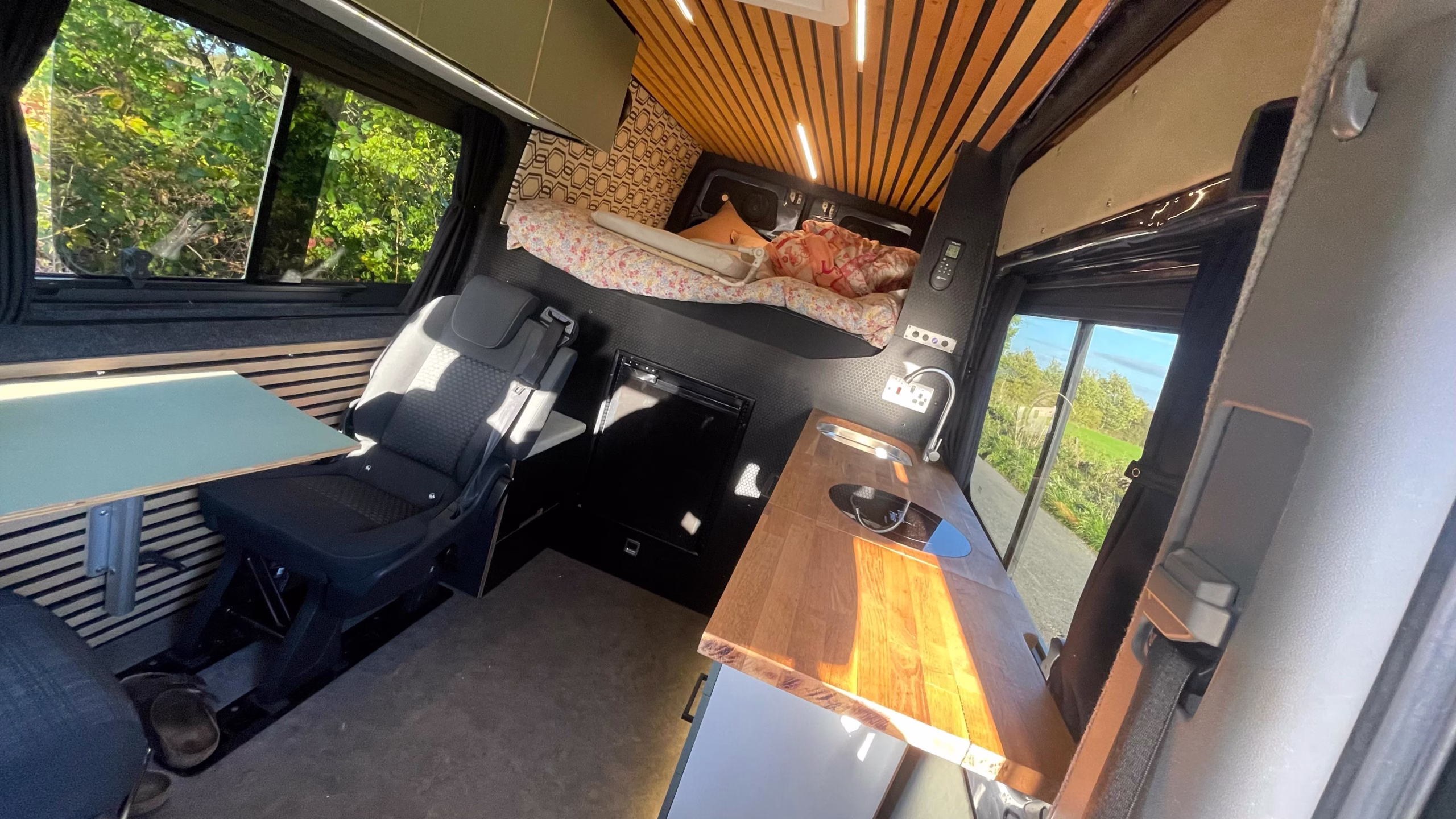

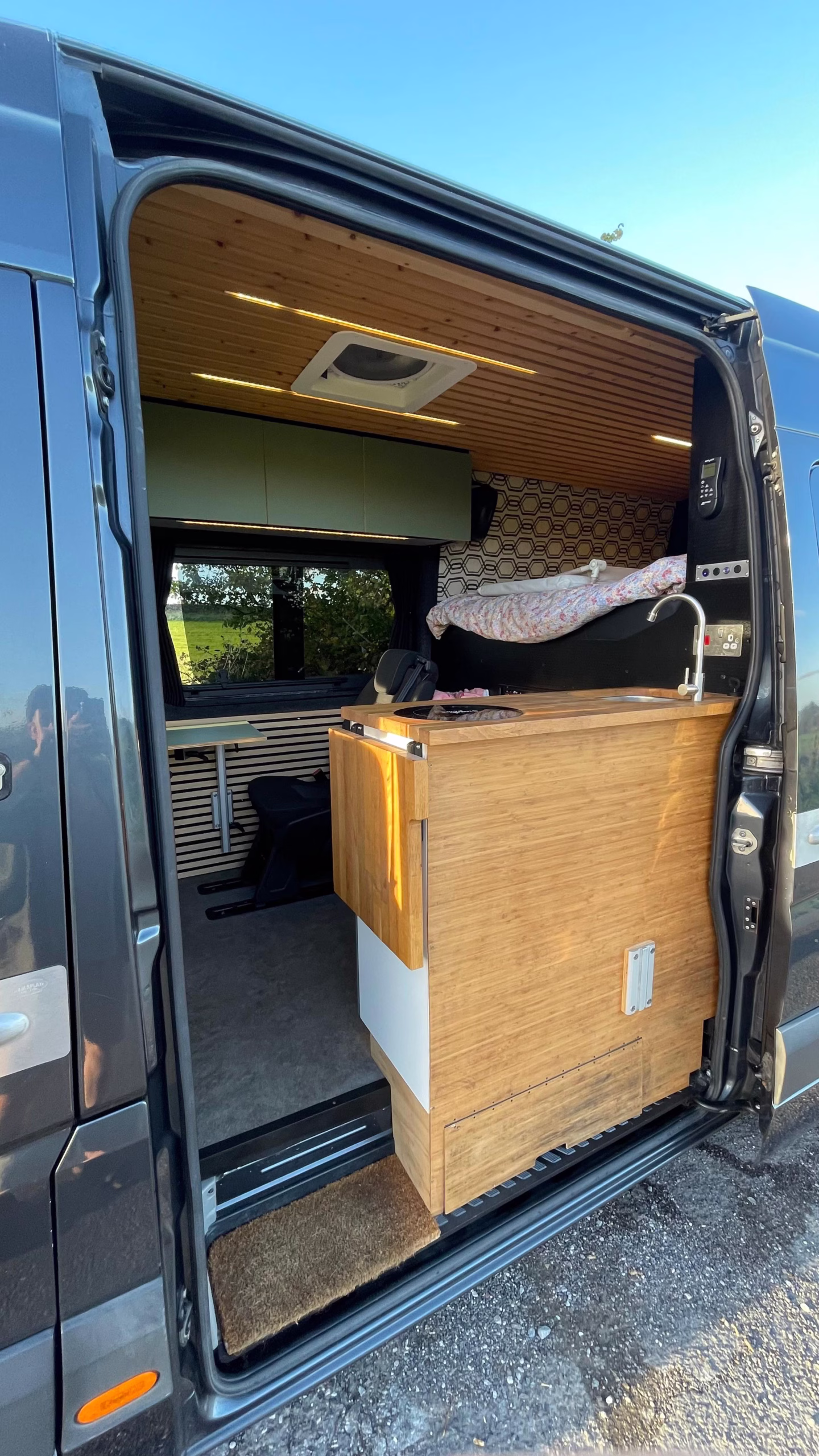

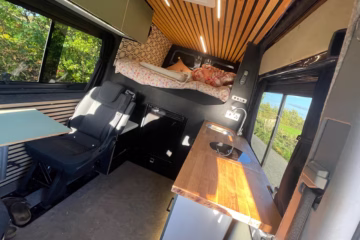

The middle:

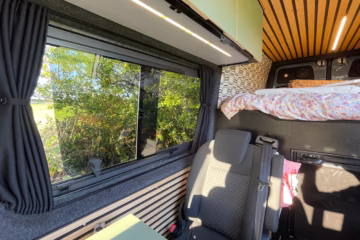

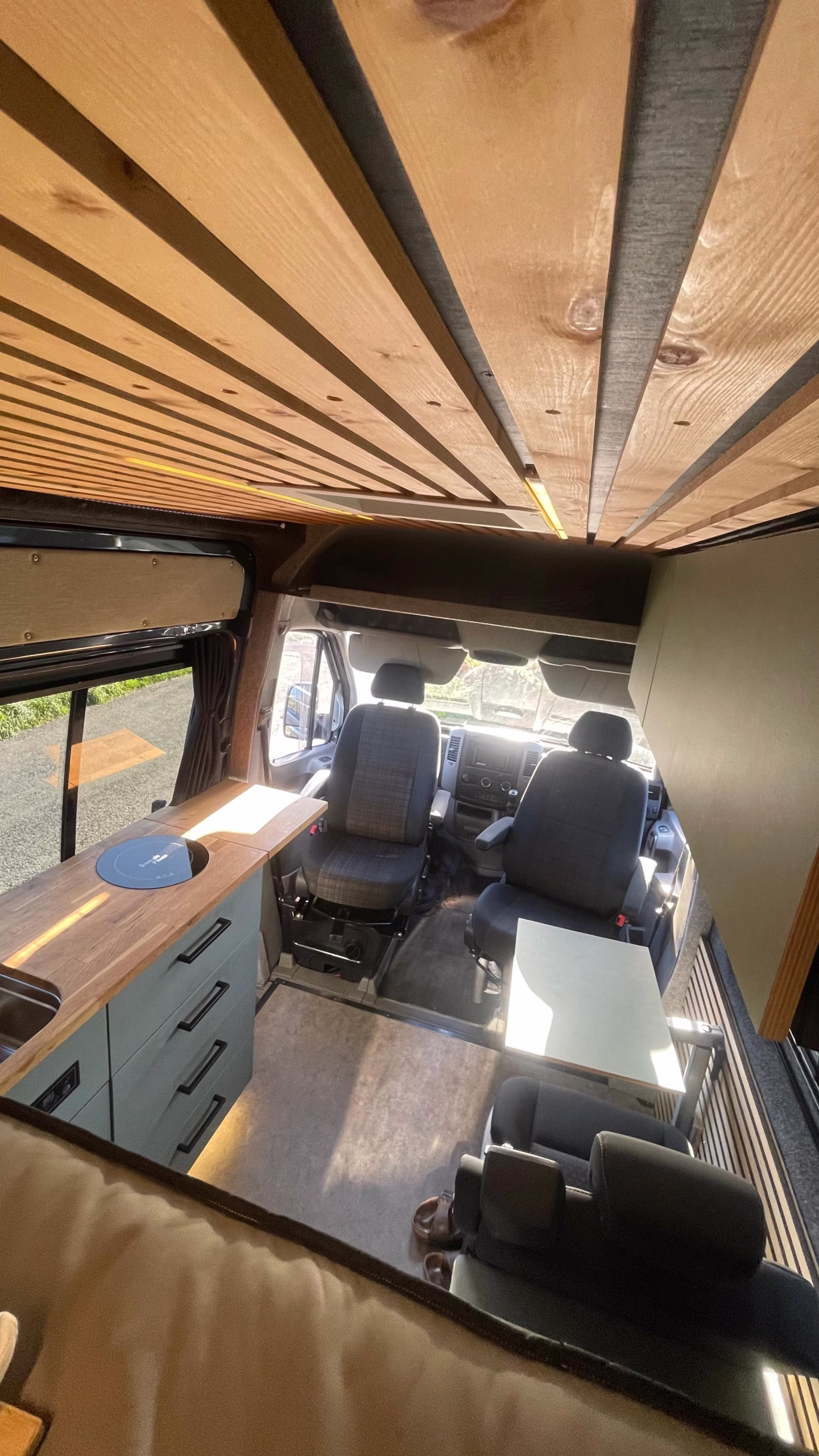

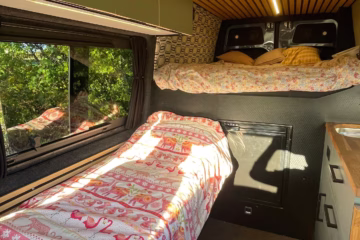

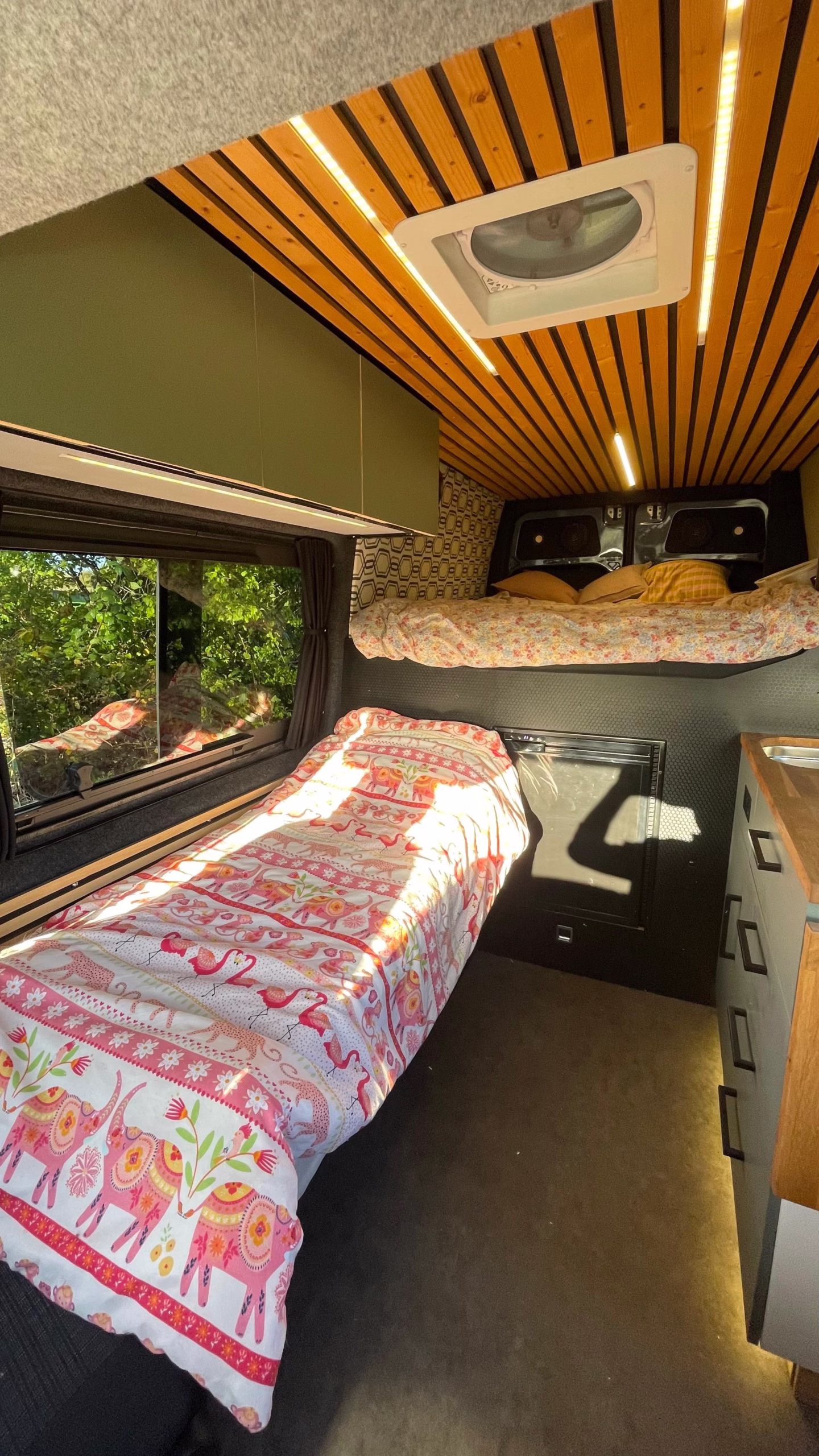

The living bit! There is a third rear seat with isofix points and an arm rest. This also forms the second bed. It can also be removed from the flush seat rails in the floor.

Lots of insulation/sound deadening throughout.

Lagun table mounts (2) for multiple options
Maxxfan deluxe

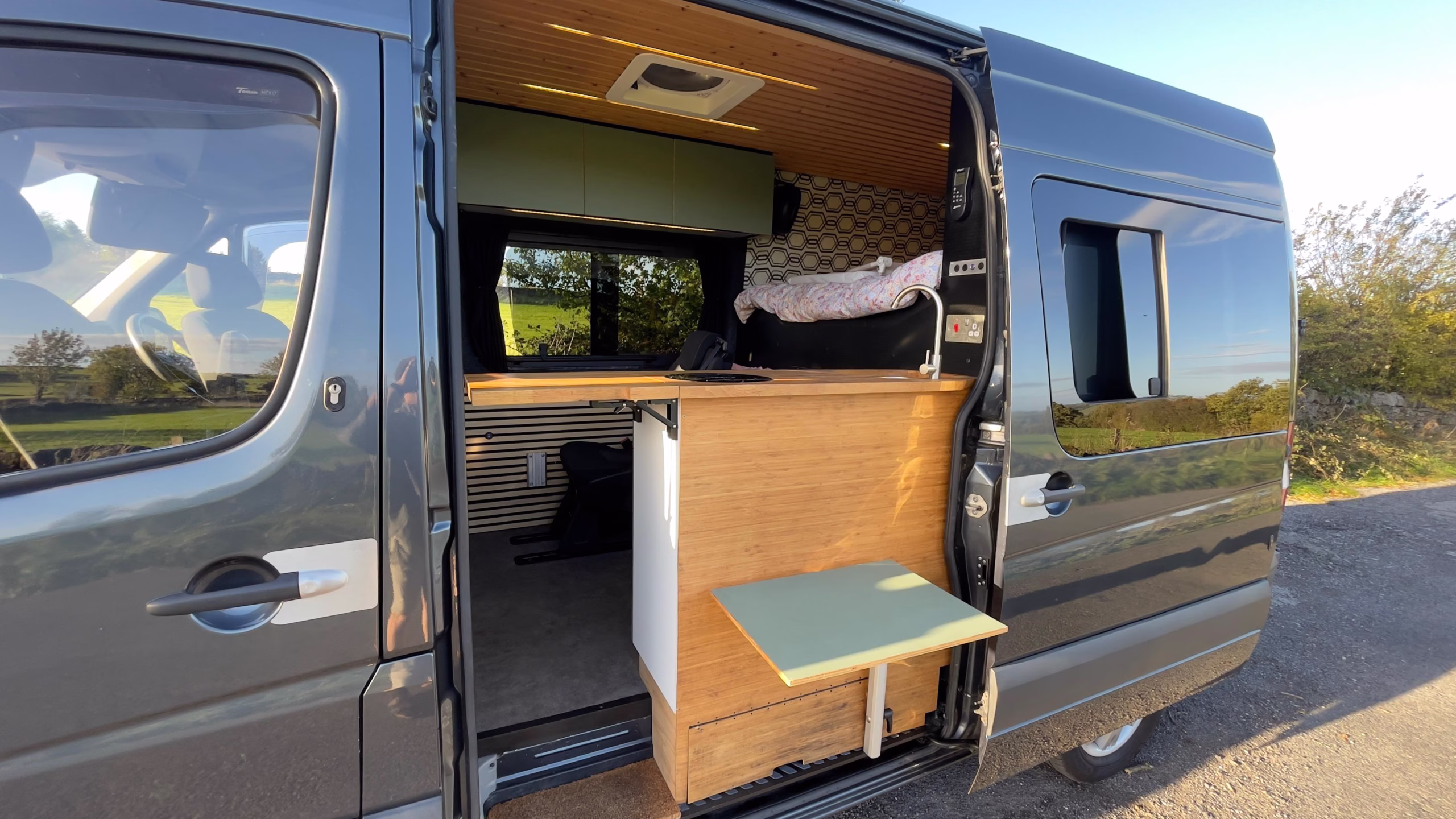

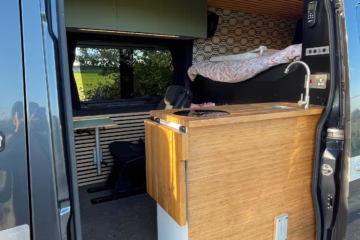

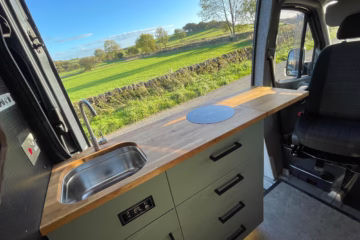

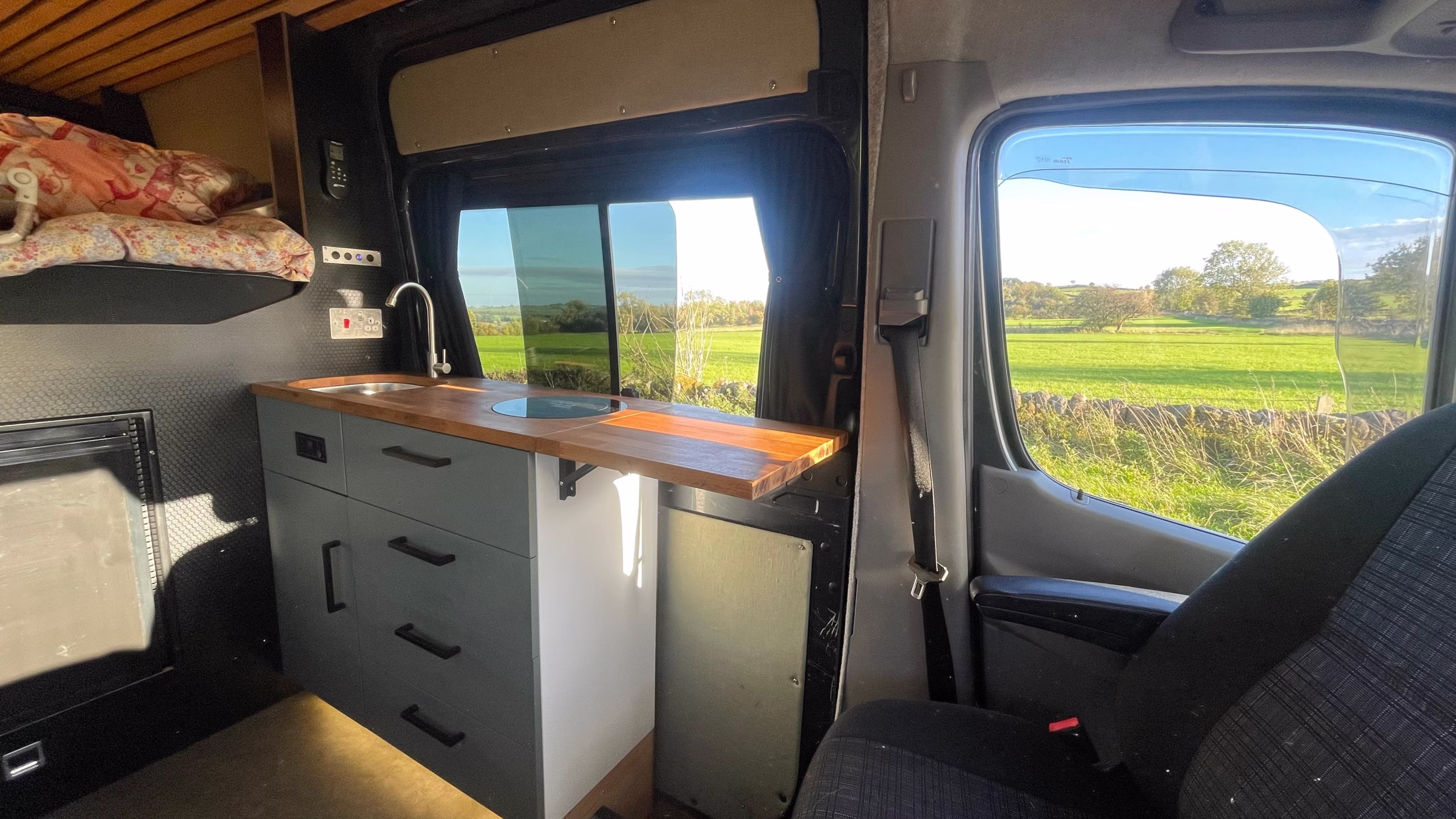

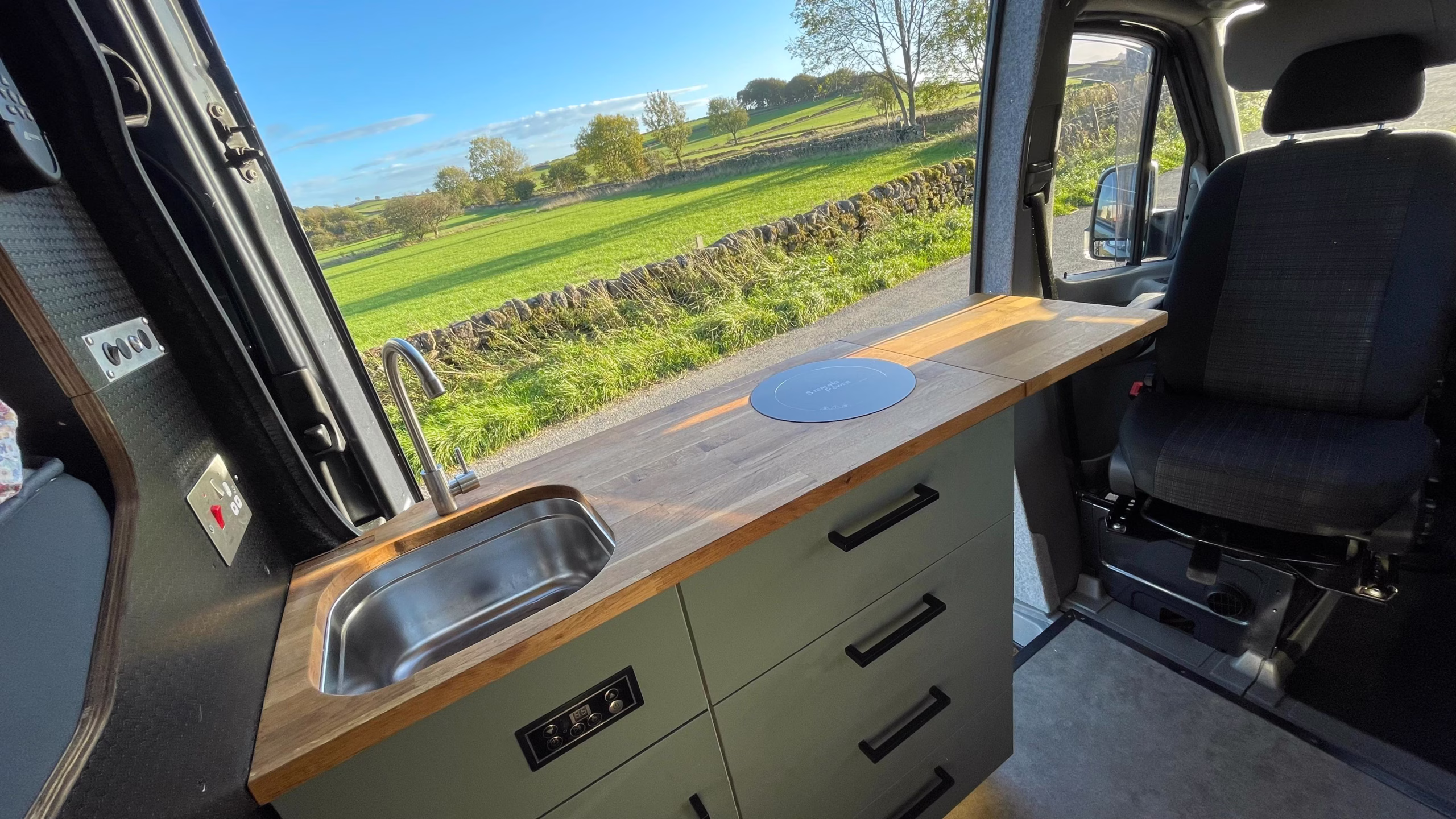

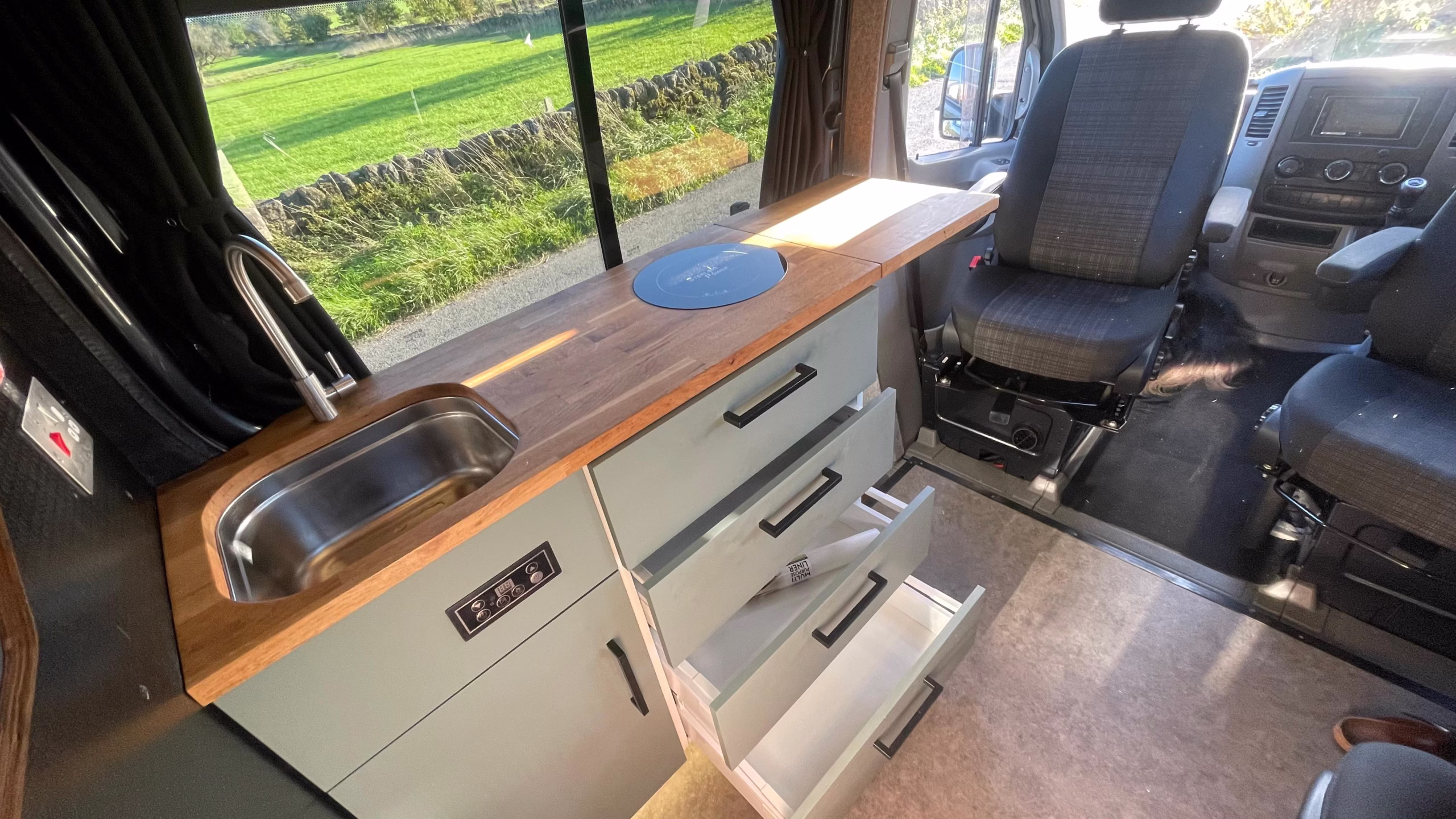

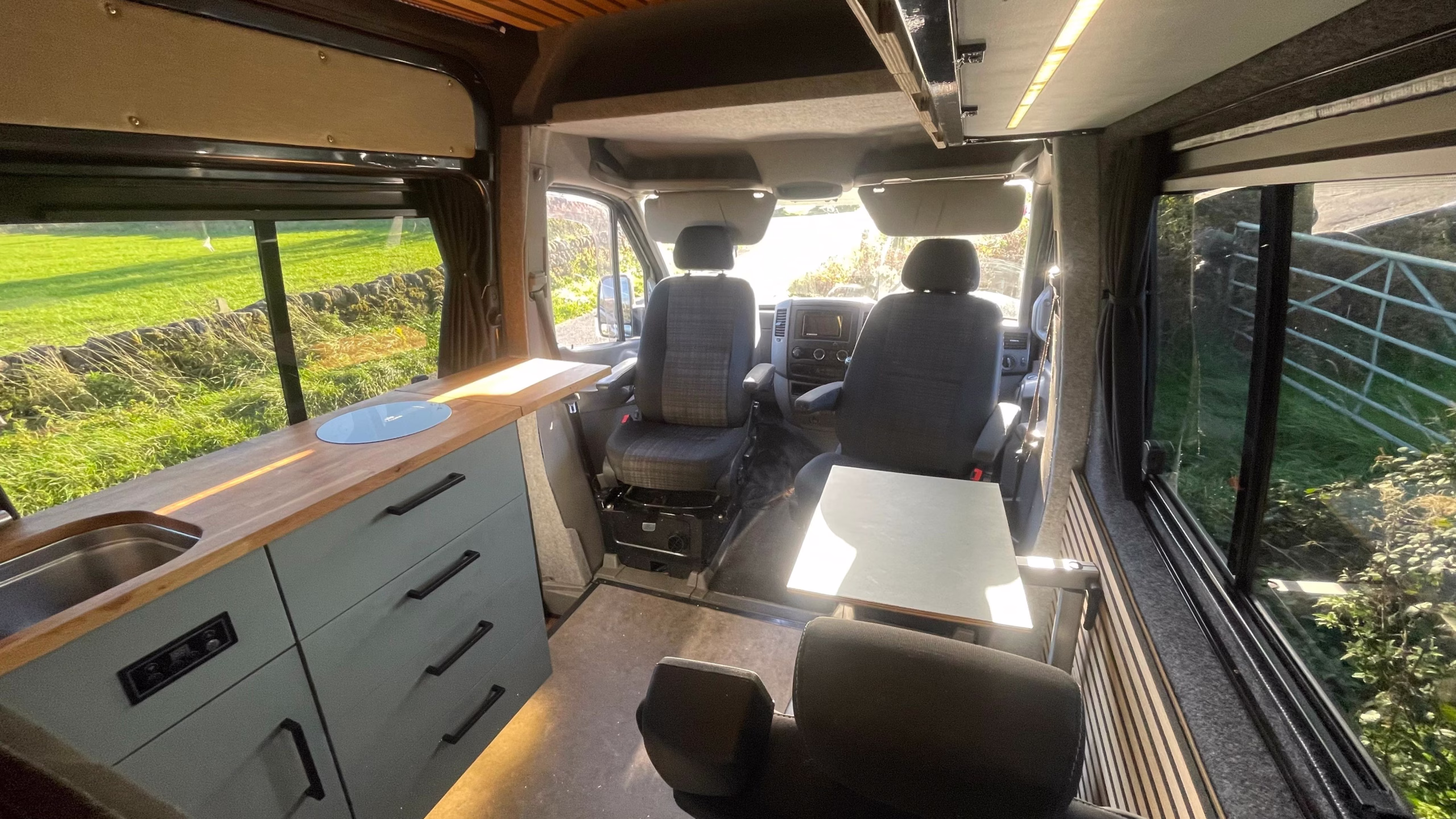

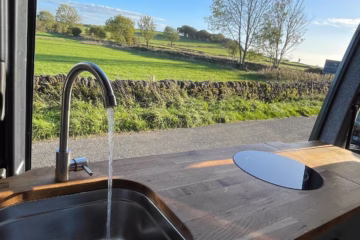

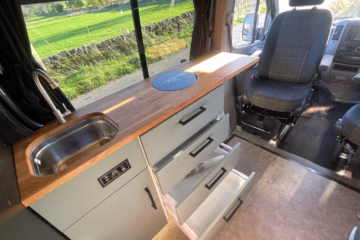

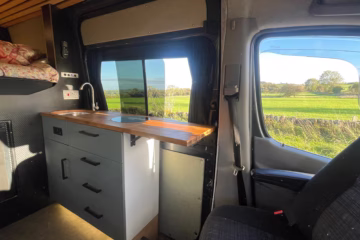

140cm worktop in total including flip up end. 27mm Oak worktop with under mount sink, flush mounted induction hob, plenty of drawers/storage and 25L of onboard drinking water.
3 zones of touch dimmable lighting.
Slide opening windows on both sides.

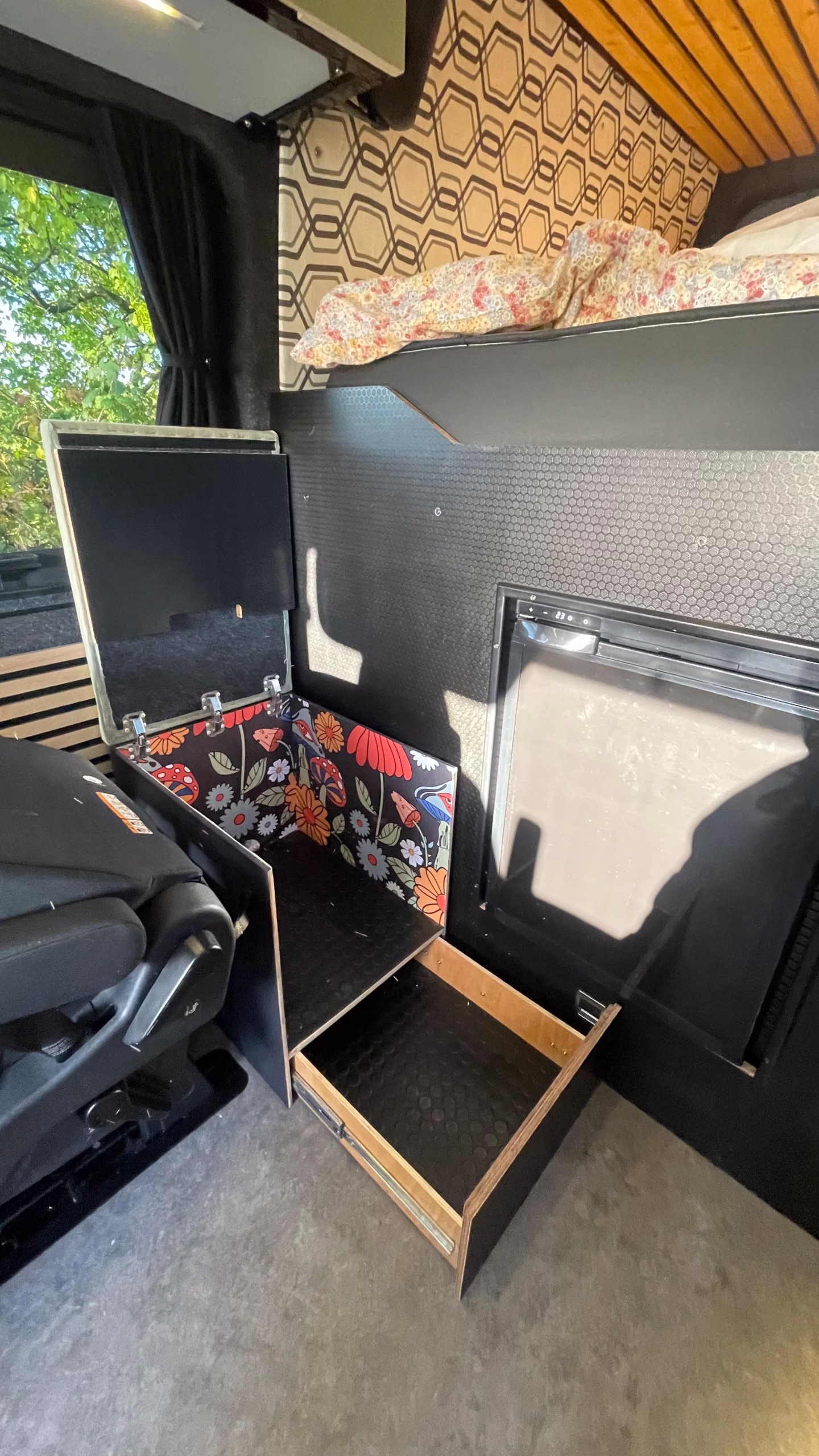

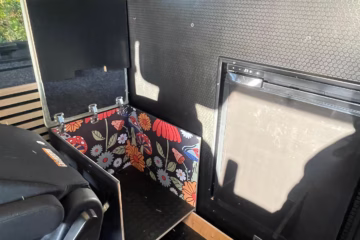

Toilet box with integrated draw (loo rolls, chemical storage etc) also forms part of the second bed. Is used as the step to get in to the double bed.

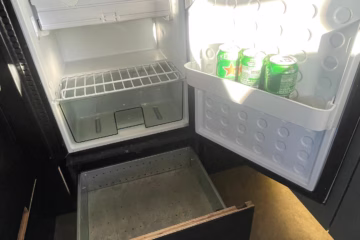

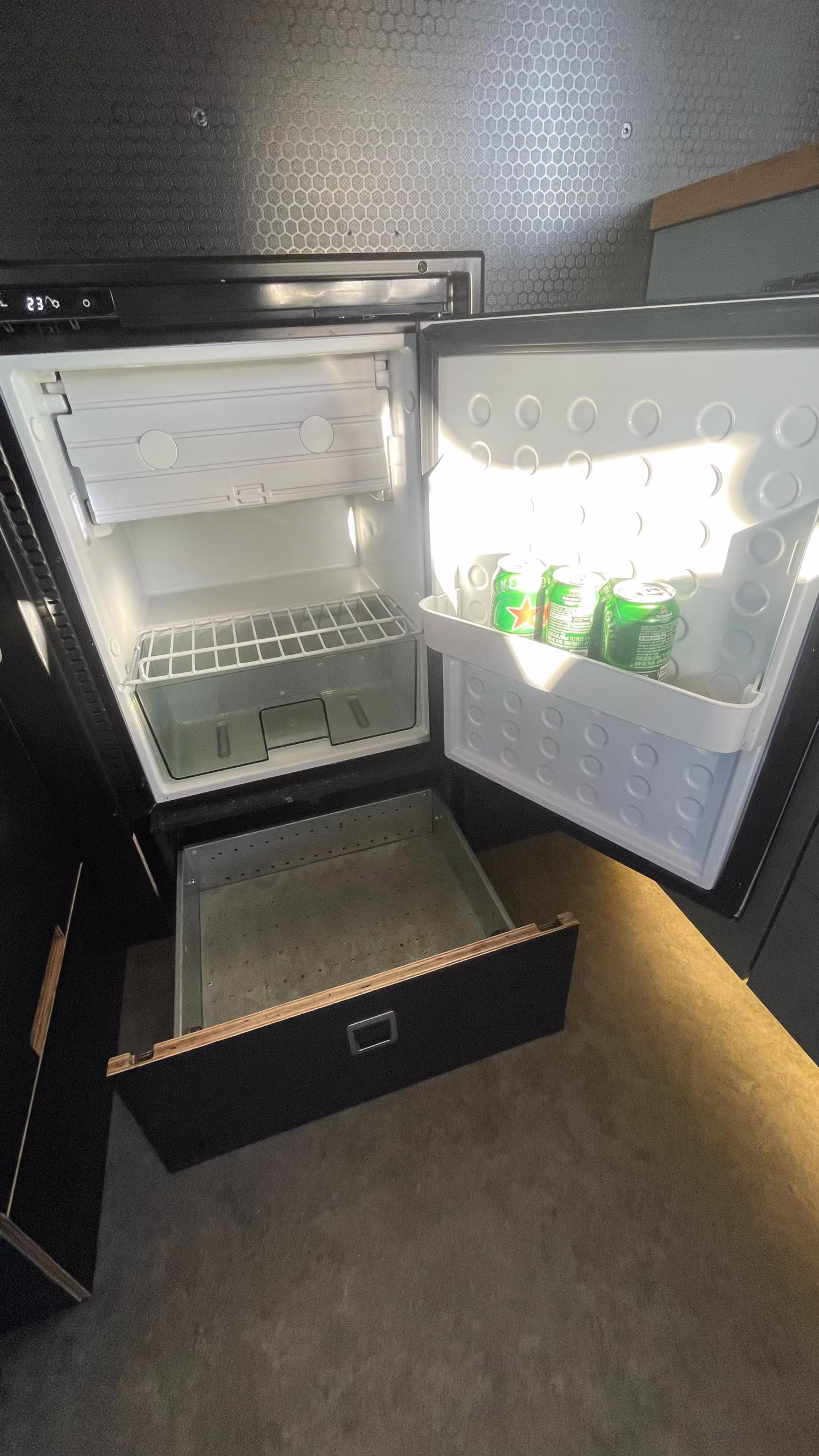

65L 12v alpicool compressor fridge flush mounted into the garage bulkhead.
Additional shoe storage under fridge in metal (mud resistant!) drawer.

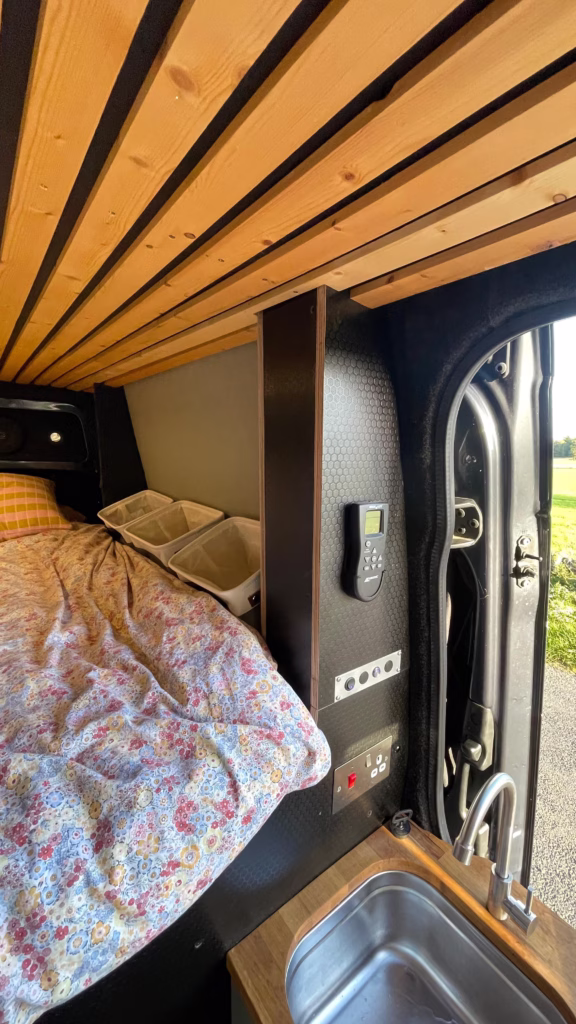

240v power and remote inverter switch
Multiple usb points.

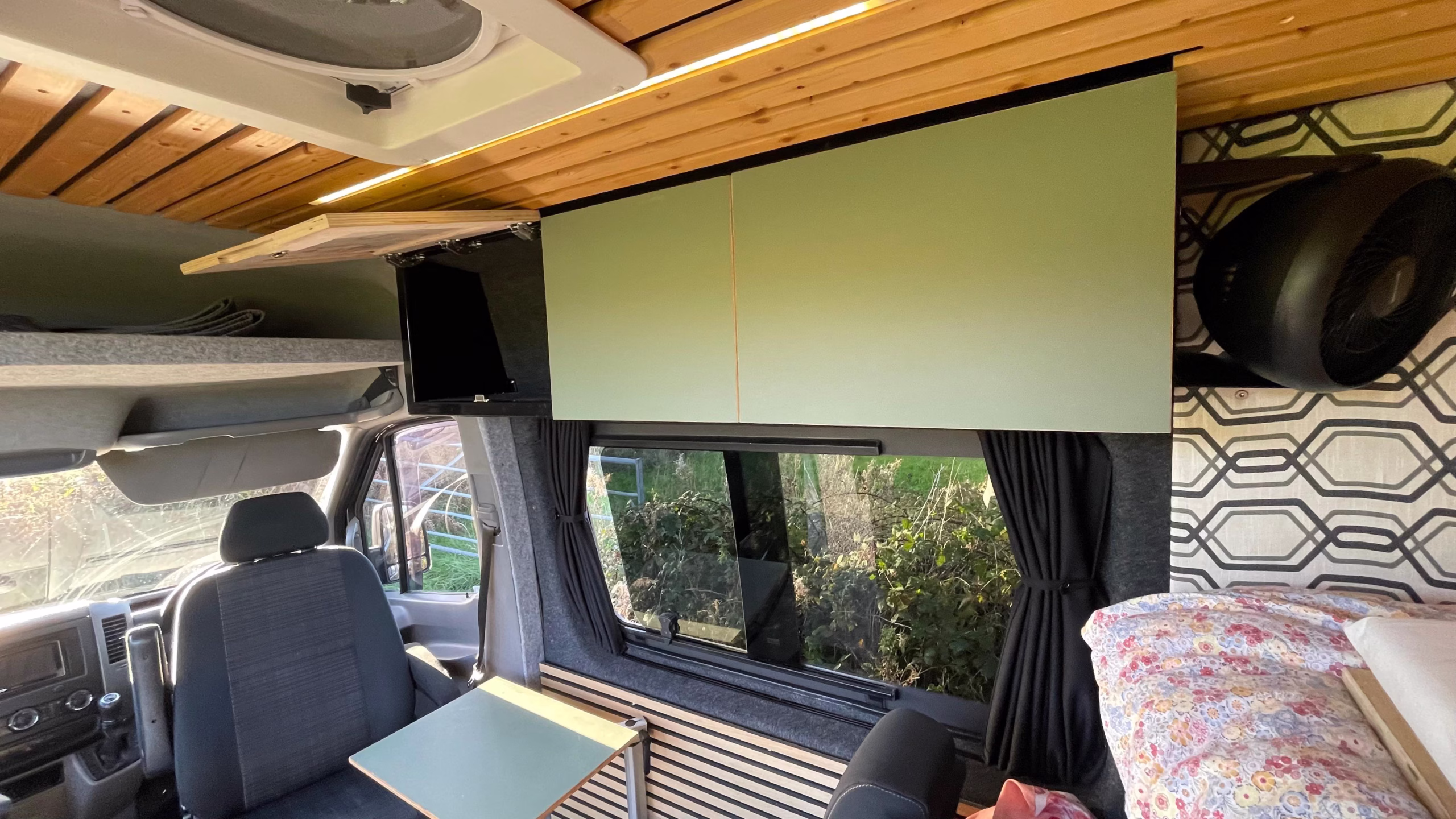

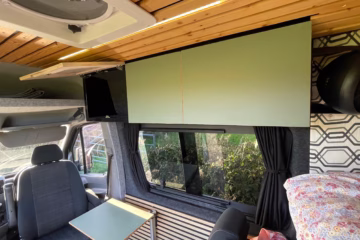

Capacious overhead lockers.

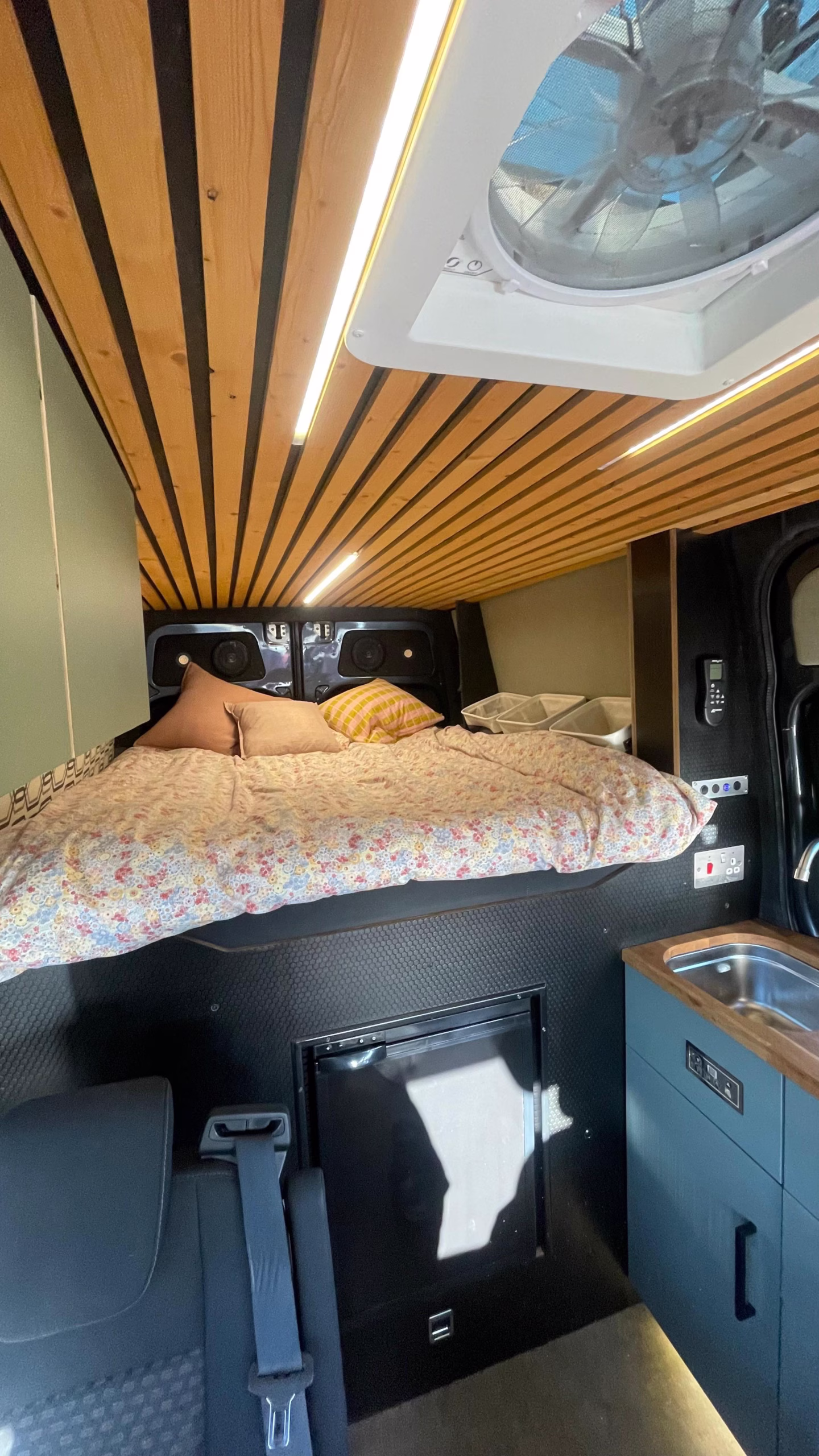

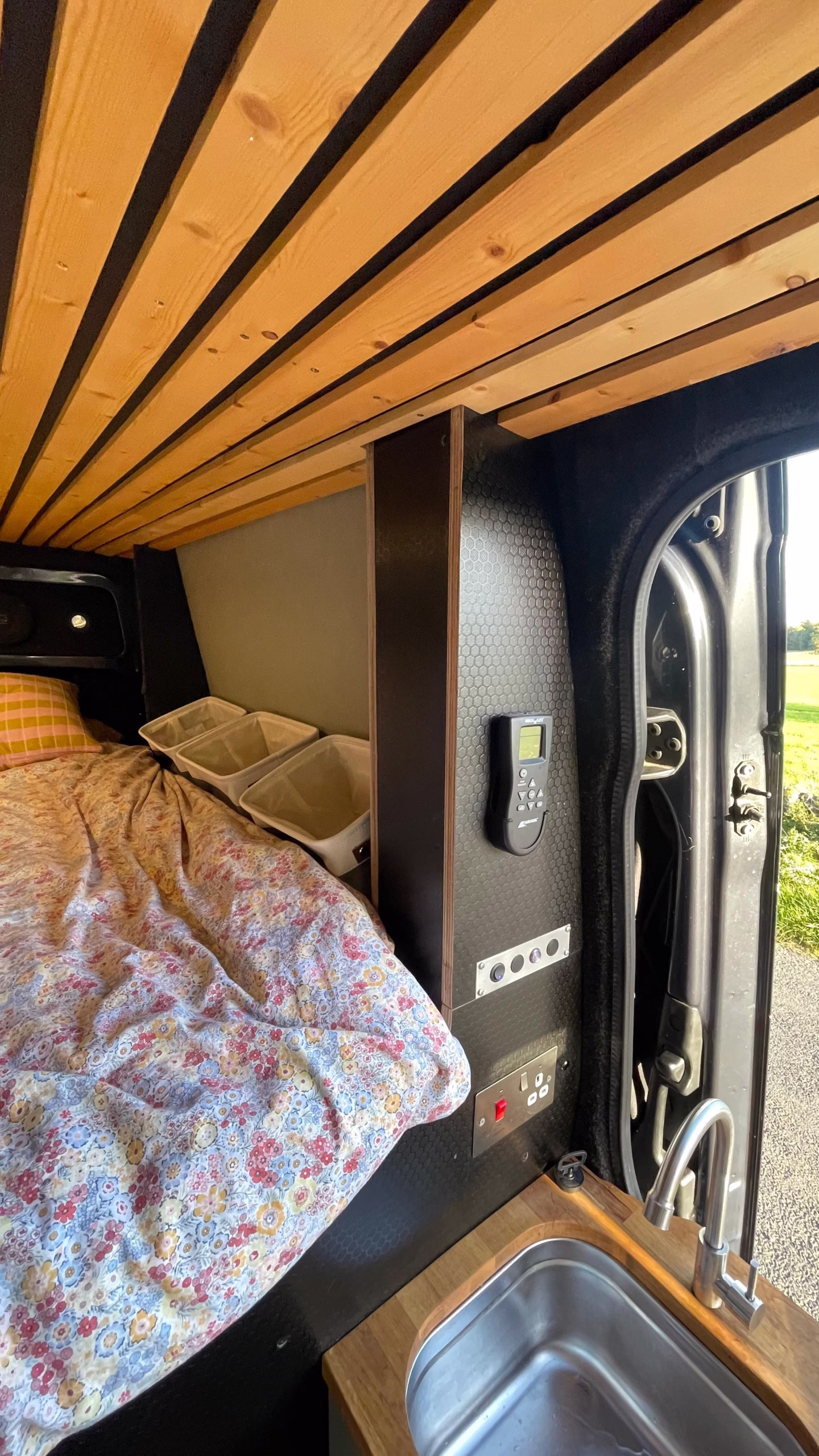

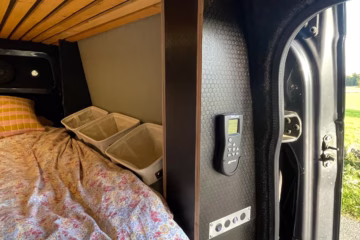

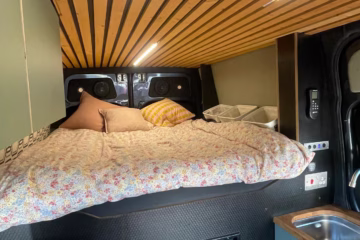

Full width double elevating bed with additional side storage and a hidden “laundry chute”.
Touch dimmable reading lights.

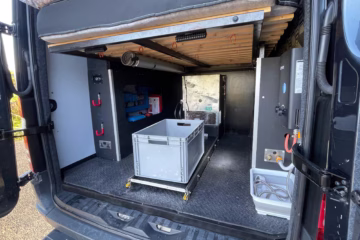

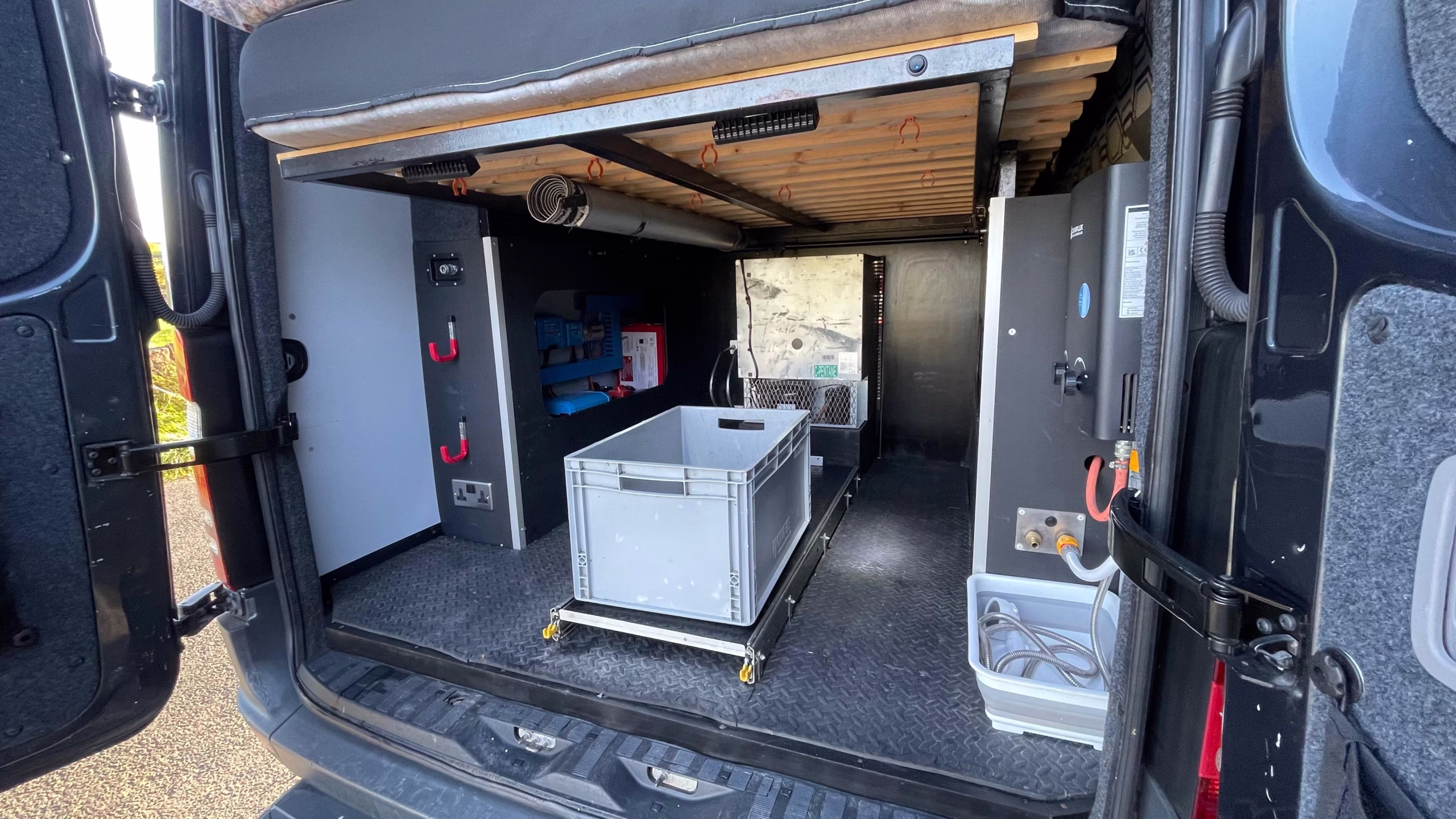

The back:

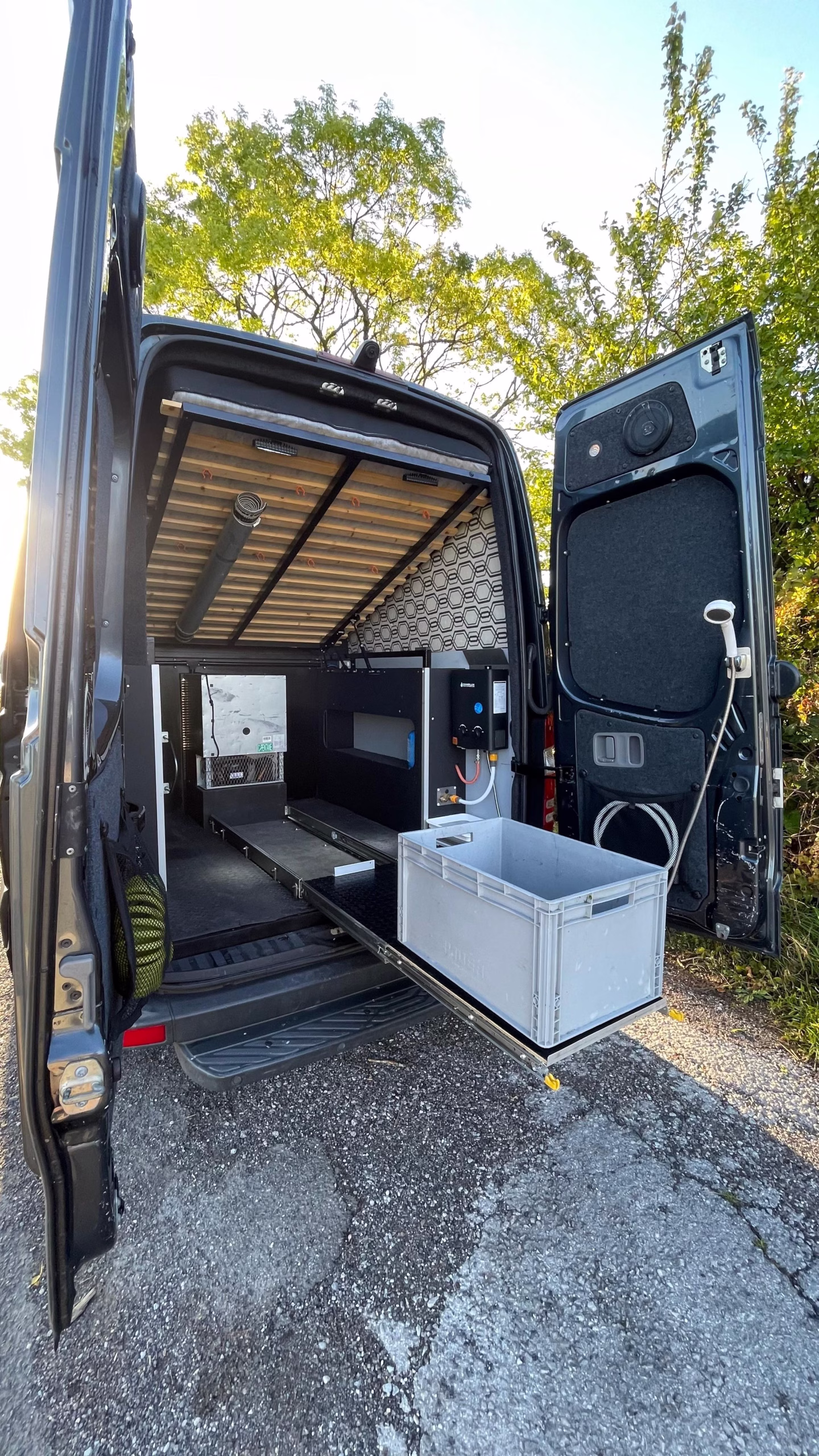

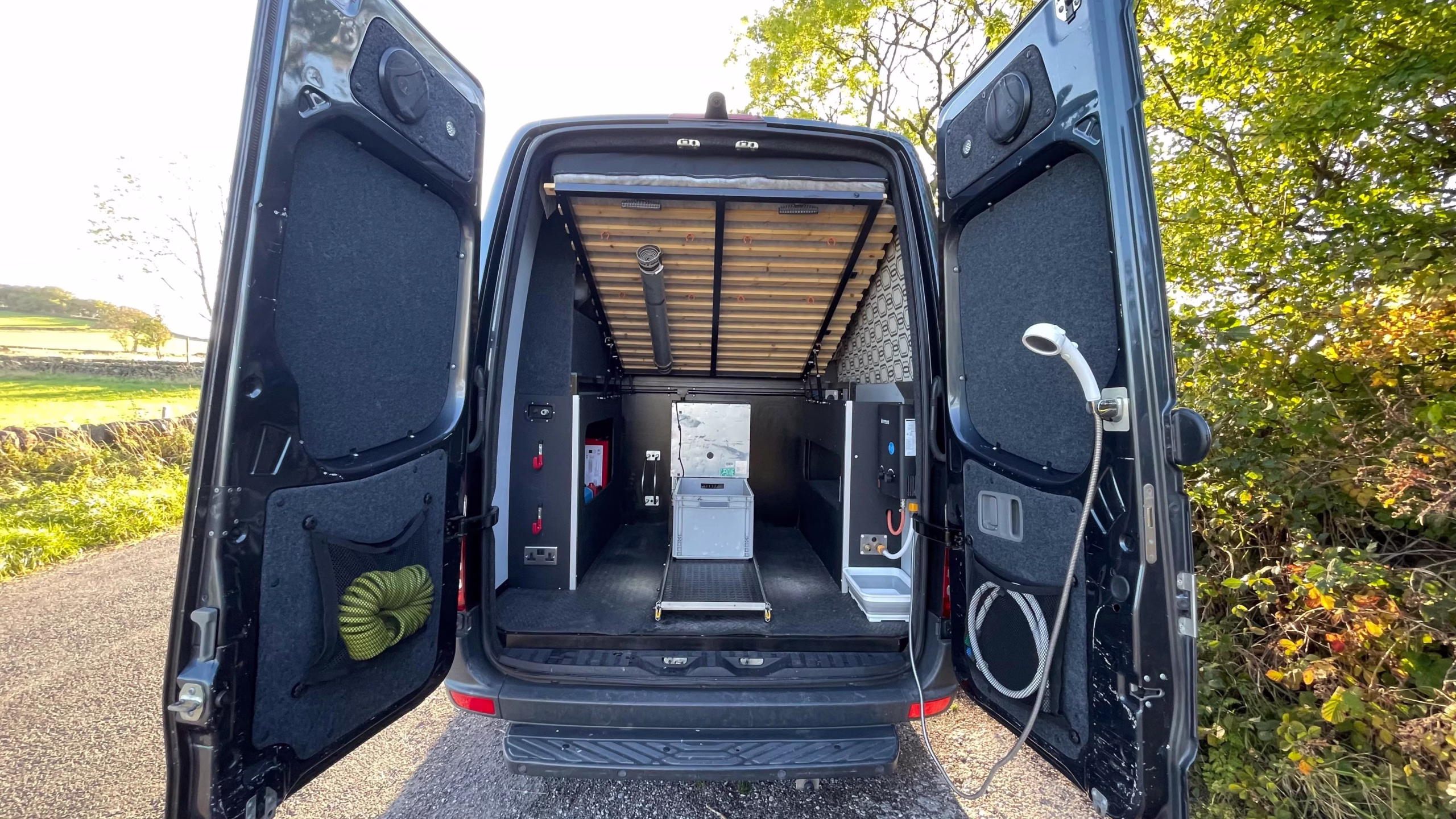

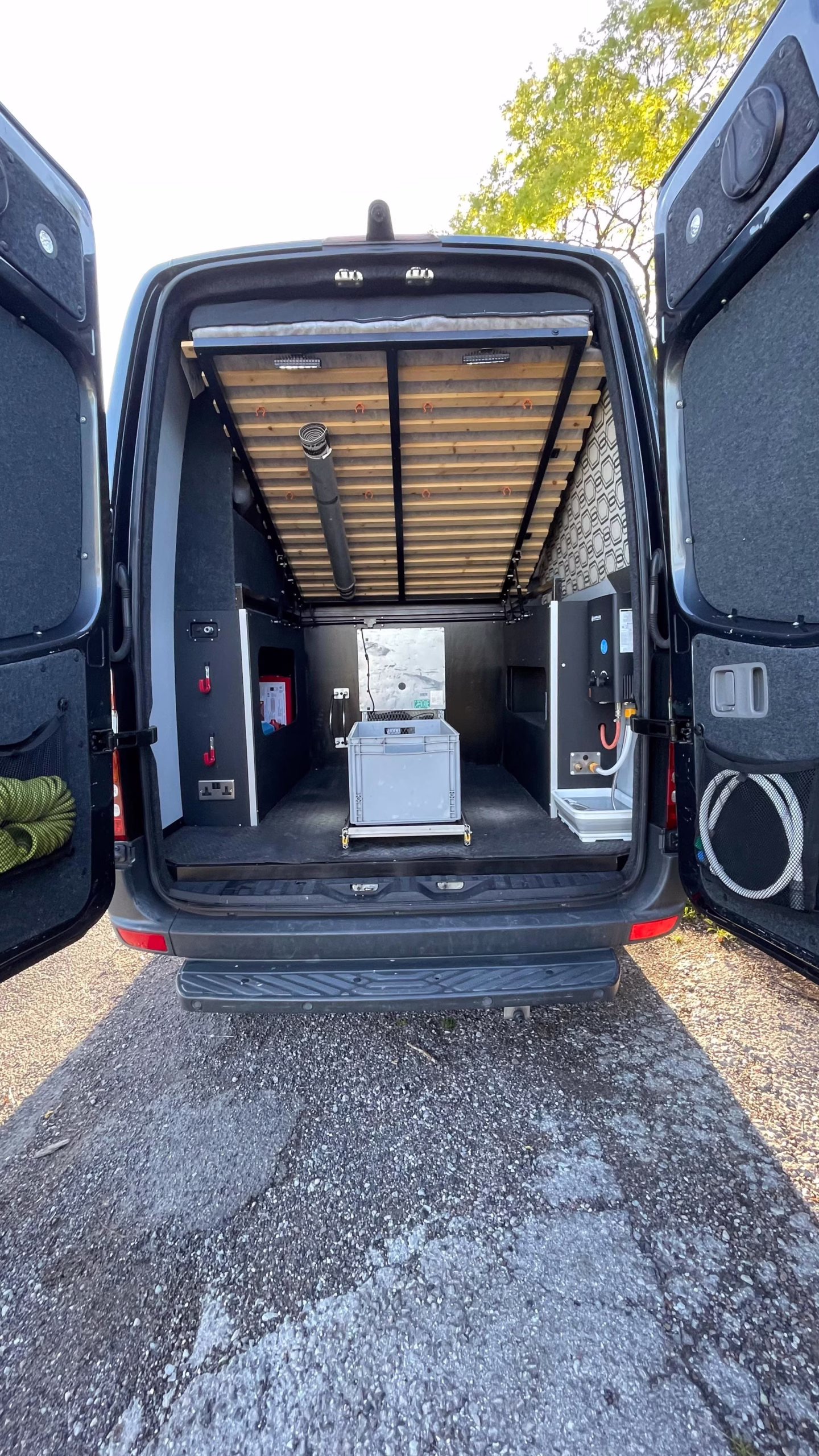

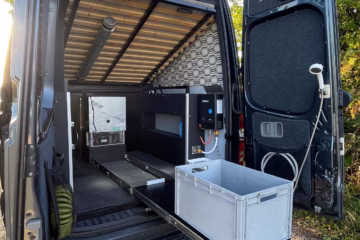

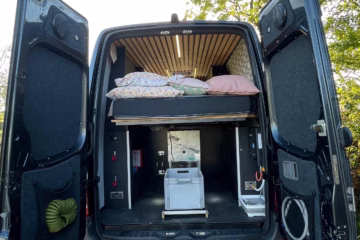

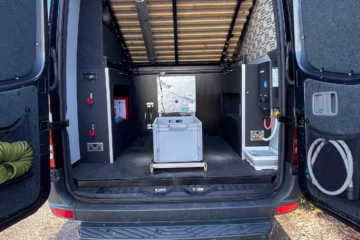

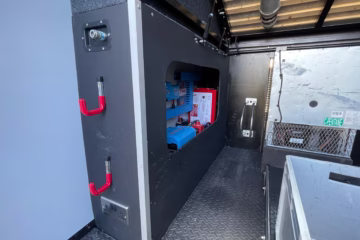

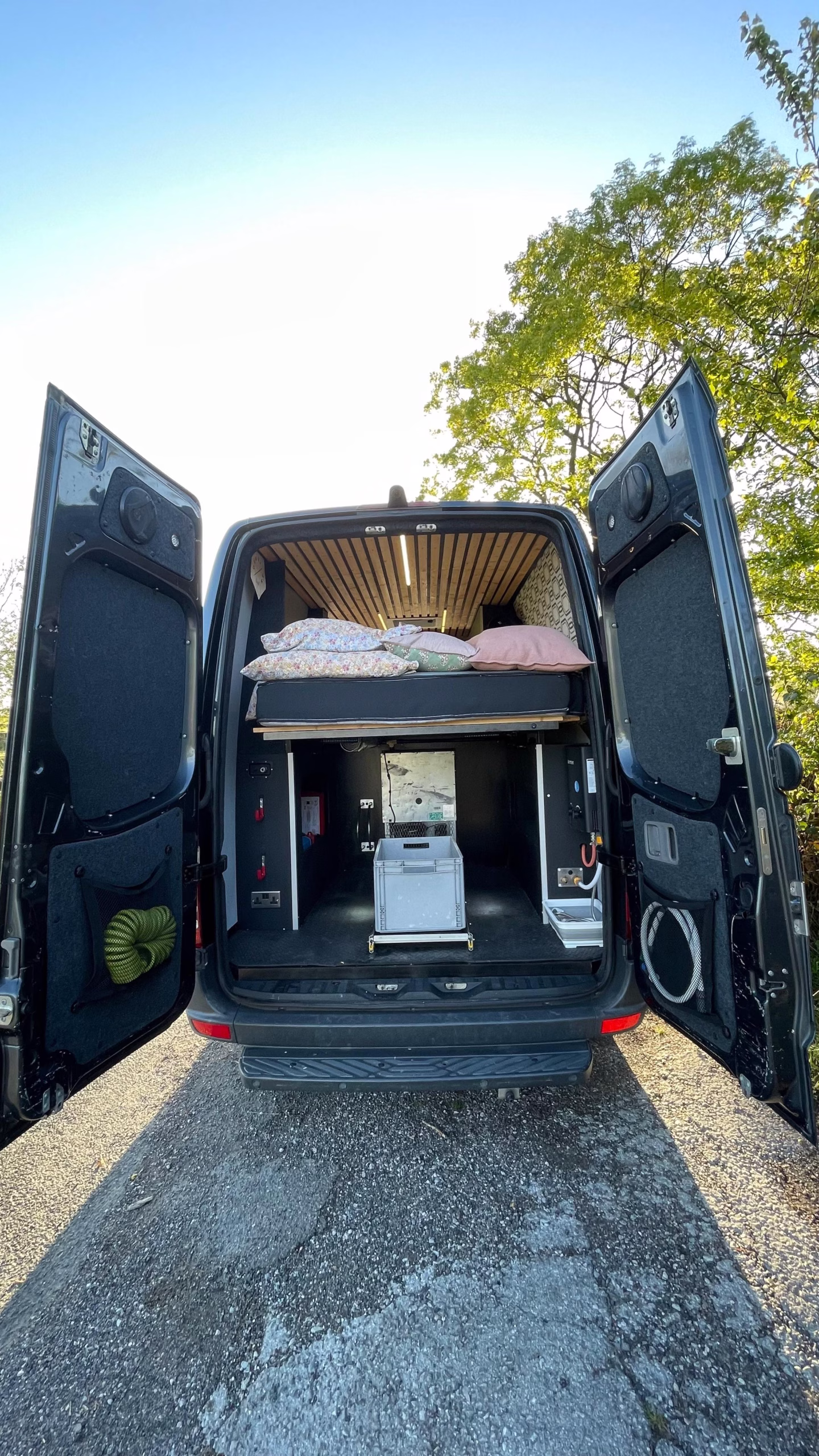

The custom metal framed bed can easily be elevated to the ceiling to allow room for fully built bikes (including a motorbike) and more gear than you can think of. Combined with a heavy duty slide out draw which is 1200mm deep (2 euro crates) and rated to take 200kg.
There are additional side storage compartments for camping chairs etc.

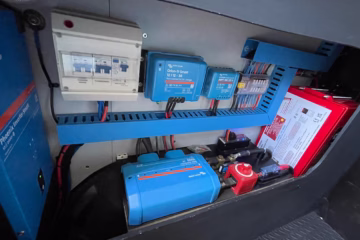

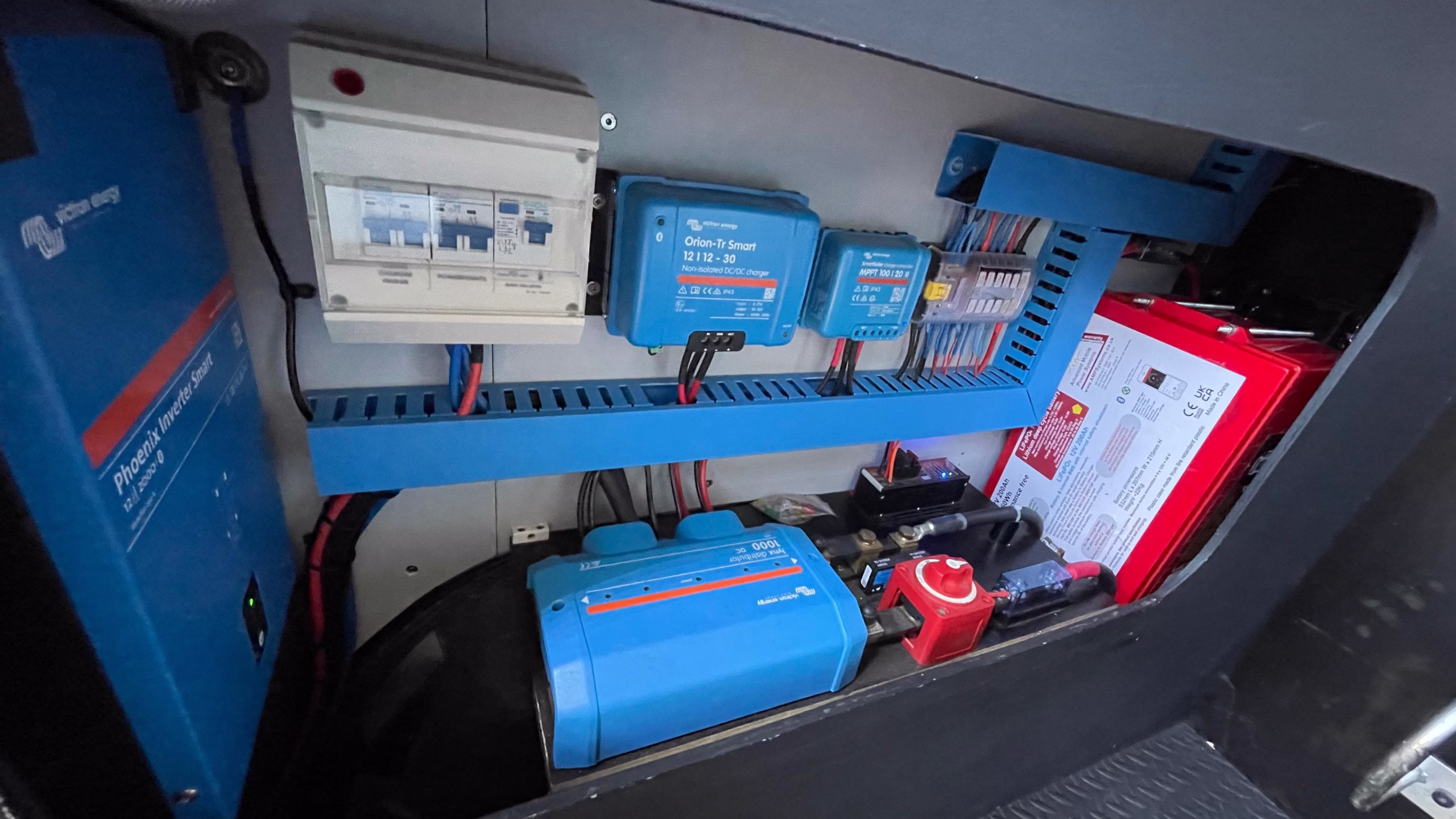

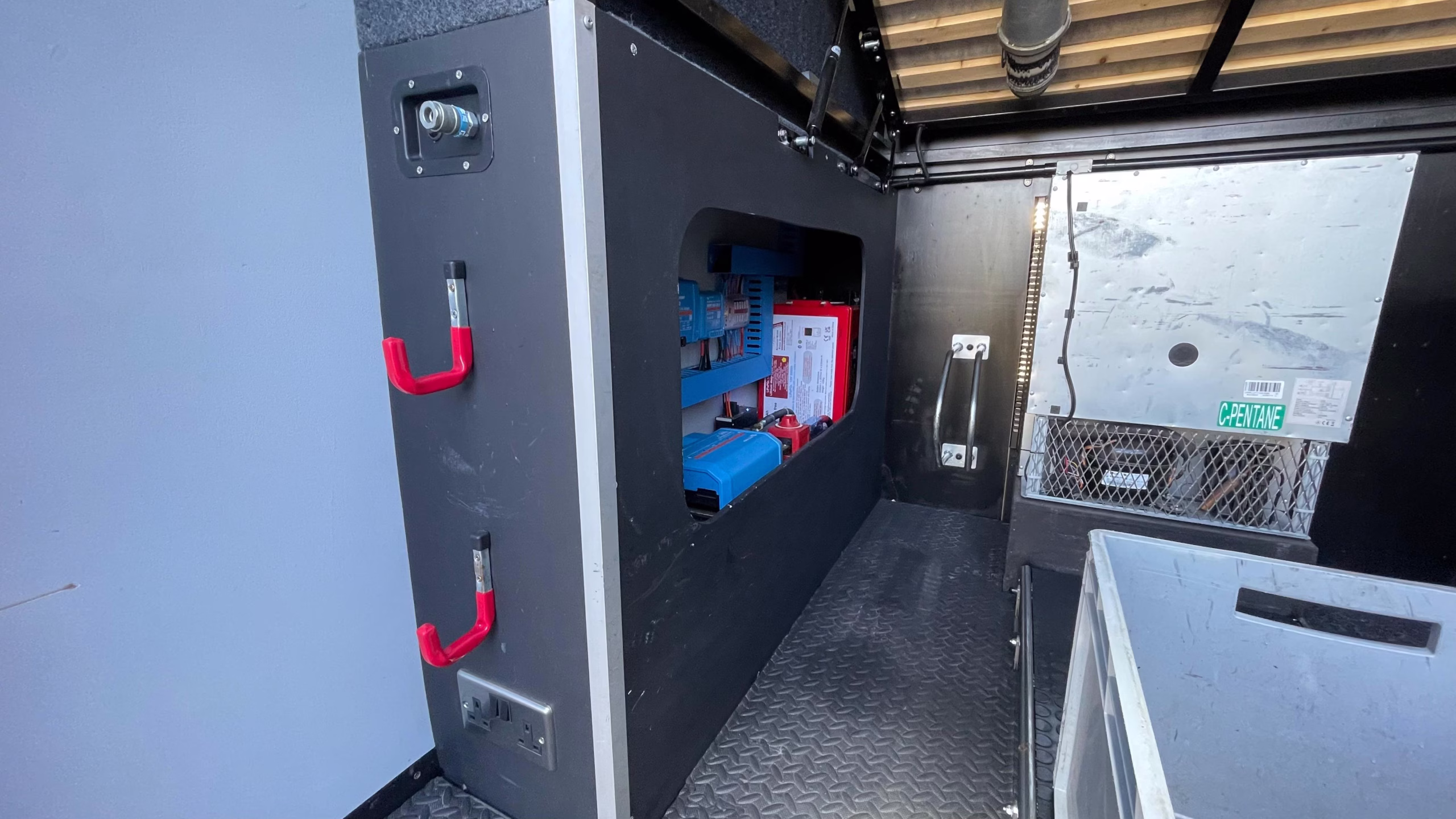

Victron electrical cabinet with a 200ah lithium battery (Sterling) and a 1600w Victron inverter, Victron Orion dc charger and a Victron mppt charge controller for the 280w Victron panels on the roof. Victron smart shunt for monitoring the system.

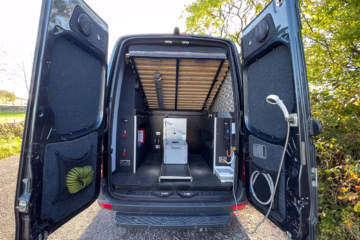

The shureflo pump is concealed in the back; which powers the lpg external shower (runs on campingaz). It draws water from the 68L underslung tank. The pump can also be used to backfill the tank.

There are led lights which can illuminate the garage space or be swivelled to illuminate outside.

There is also an external 240v power outlet which I predominantly use for jetwashing muddy bikes before they’re allowed back in the van!
