New camper van build slots from May 2025 book quick before the summer ends . Built to suit different budgets but not compromising on quality

|
2394 | 9

Β£25,000
Campervan

Citroen Relay

Used
0 miles
2 Berths

Essential Information
Hob
Fridge
Kitchen Sink
Dining Table
Heater
Ceiling Fan/Vent
Shower - Internal
Toilet - Cassette
Pet Bed/Pet Friendly
DAB Radio
Extra Storage

Detailed Information
Vehicle Description

Vehicle is for reference only its one of our conversions but its not currently for sale . We have build slots available from March 2025 .

Conversion Description

We are the Scandinavian Campervan Company based in the valley of the race horse Lambourn Berkshire . A little bit about us – We are two long term friends who have been in the industry for well over 40 year combined, both of us are fully trained Motorhome / caravan engineers with lots of qualifications and certificates .

We Convert a lot of Citroen relays / Fiat Ducato / Peugeot Boxer . We do convert other vans but these are our main vans of choice.

Our conversions are based around using natural timbers and light but cozy spaces to travel and explore in . We use only the best electrical items Victron and Roamer along with the best appliances – Truma – Dometic – Thetford to name a few .

Discover out set layouts or a totally bespoke design with endless choices.

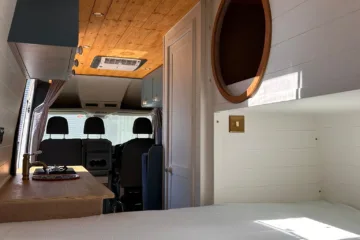

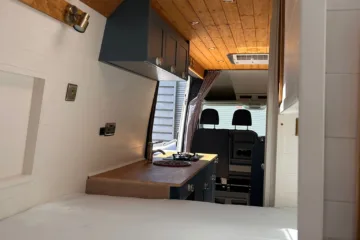

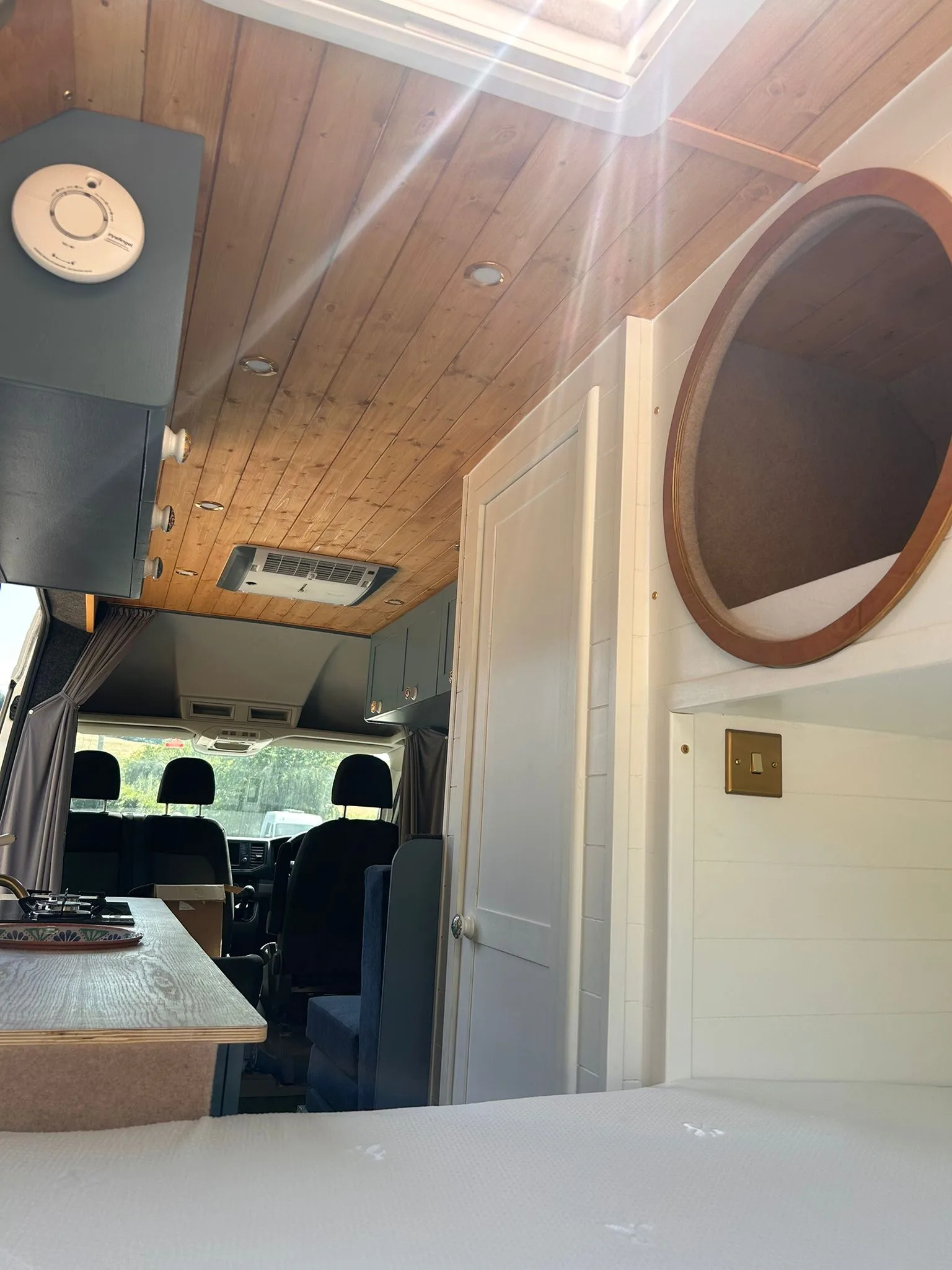

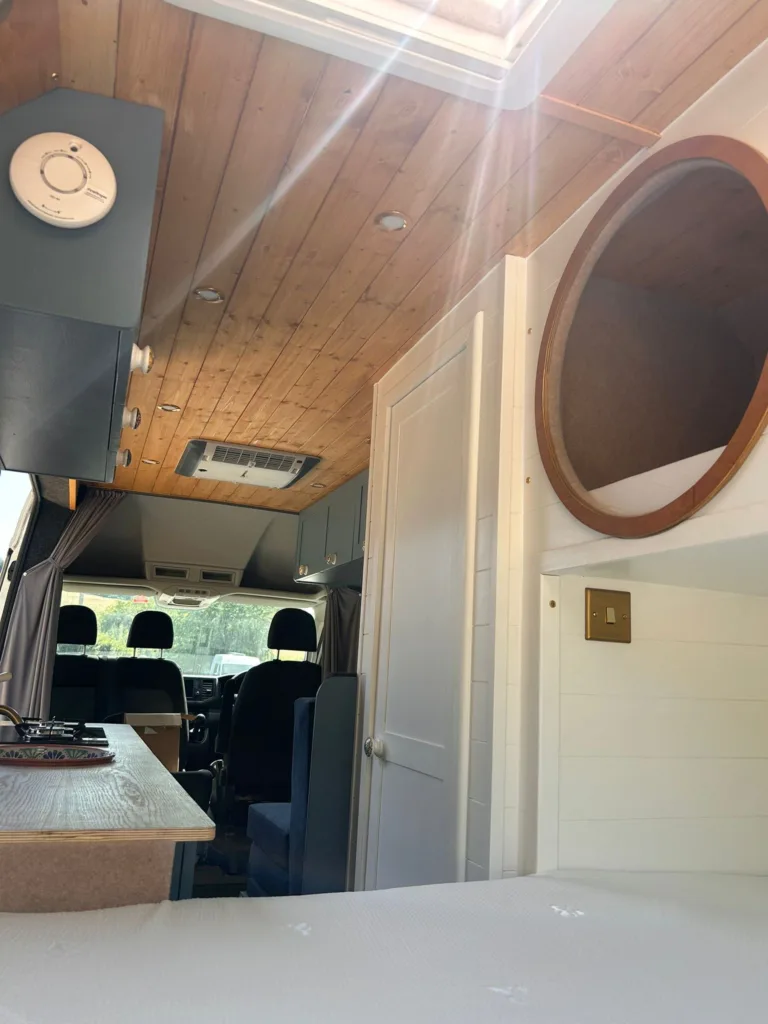

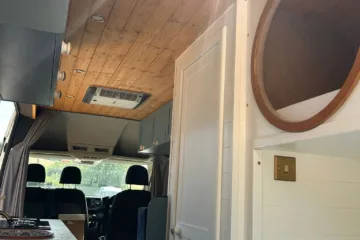

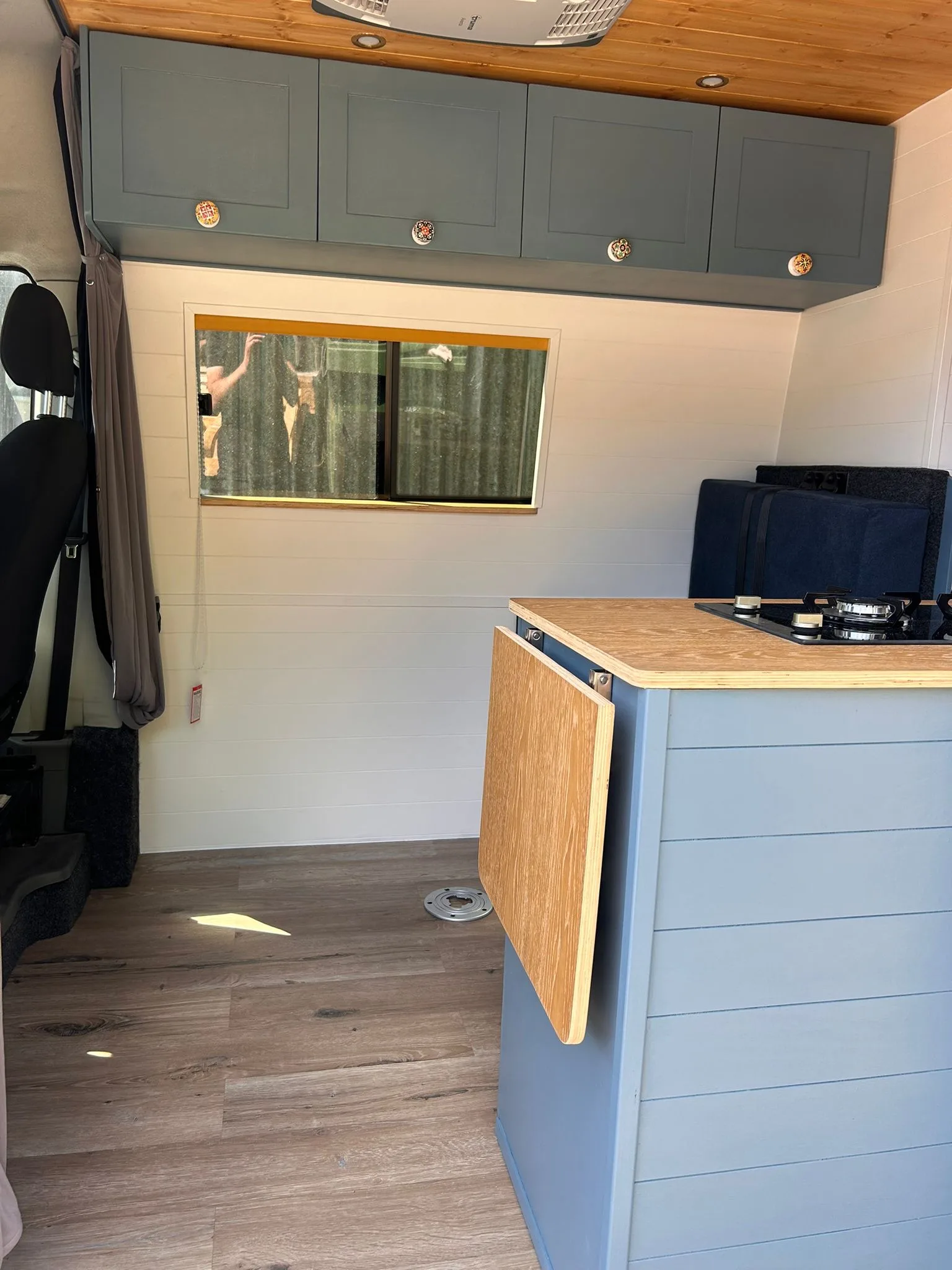

Below is a list of items in our Oasis conversion very similar to the photos above .

Cab

● 1x single standard drivers seat
● 1x double standard passenger seat ( Can be changed to a single passenger seat at extra cost)

Exterior

● 1x privacy bonded tinted opening window to the sliding door ( this can be changed to a fixed window or different style prices vary)

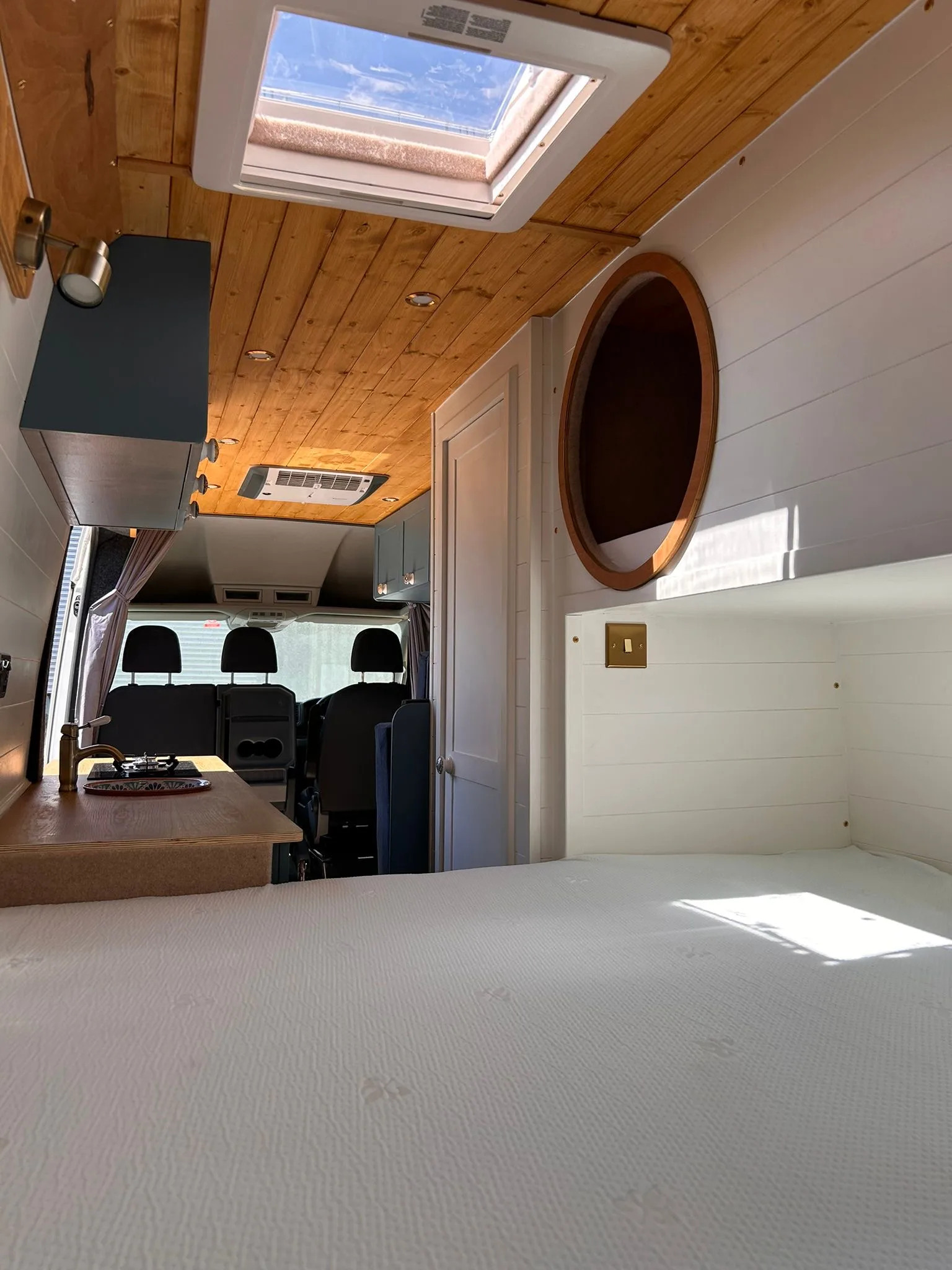

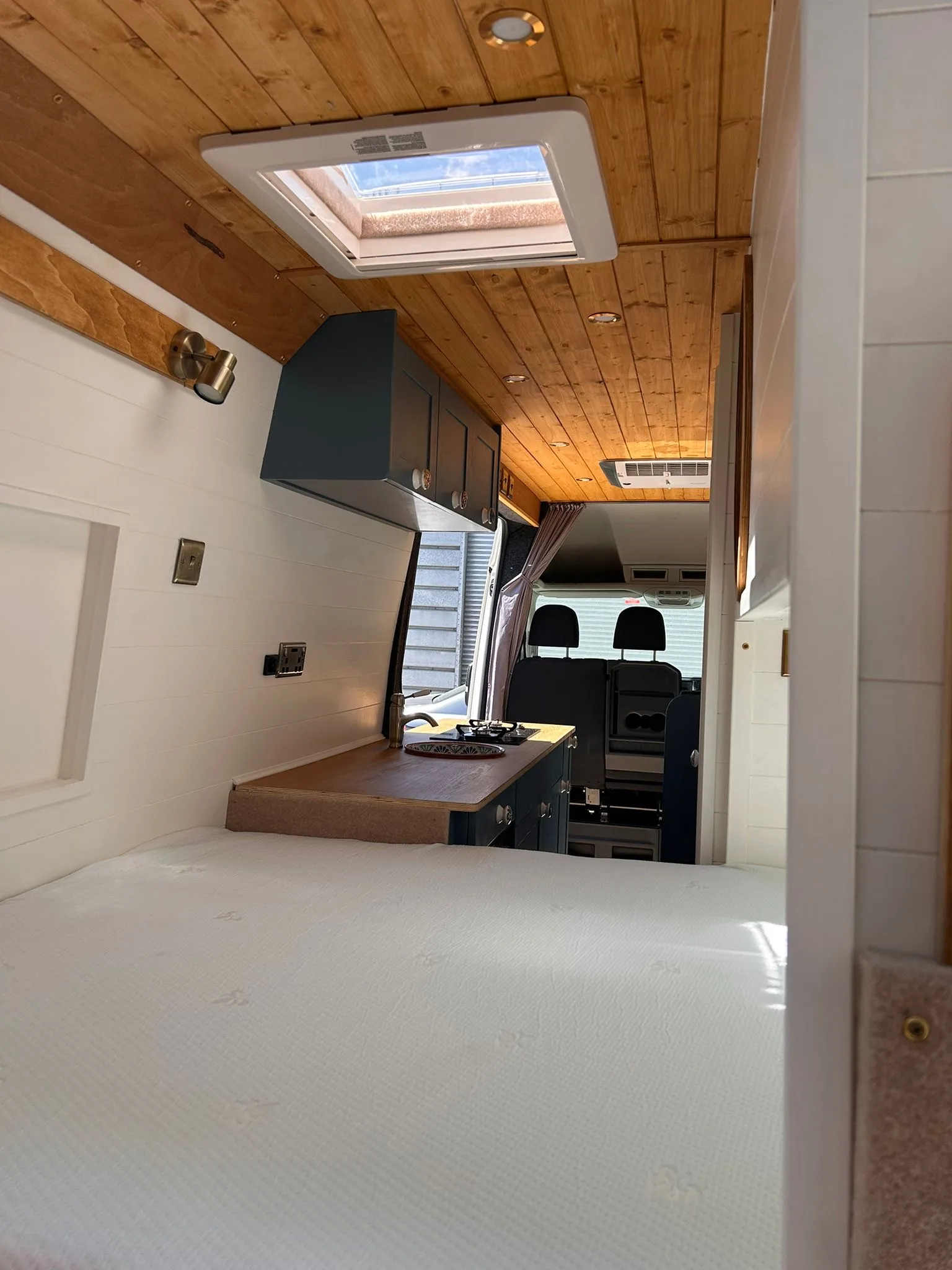

● 2x 400×400 roof lights clear, opening with integrated blind and flynet’s . Located at the front and rear of the van . ( can be changed to a fan or larger roof lights or no roof lights prices vary)

Insulation & lining

● Dodo sound deadening ● Silver Foil insulation
● Glass Mineral wool Insulation ( insulation can be changed if required prices vary)
● Spruce Cladding on walls and ceiling treated with Danish oil to keep the natural colour of the wood . ( Wall and ceiling covering can be changed for something else or painted / stained prices vary )
● Vinyl Roll Flooring ( 100’s of Choices )

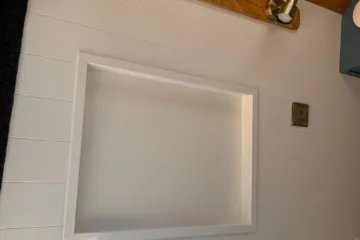

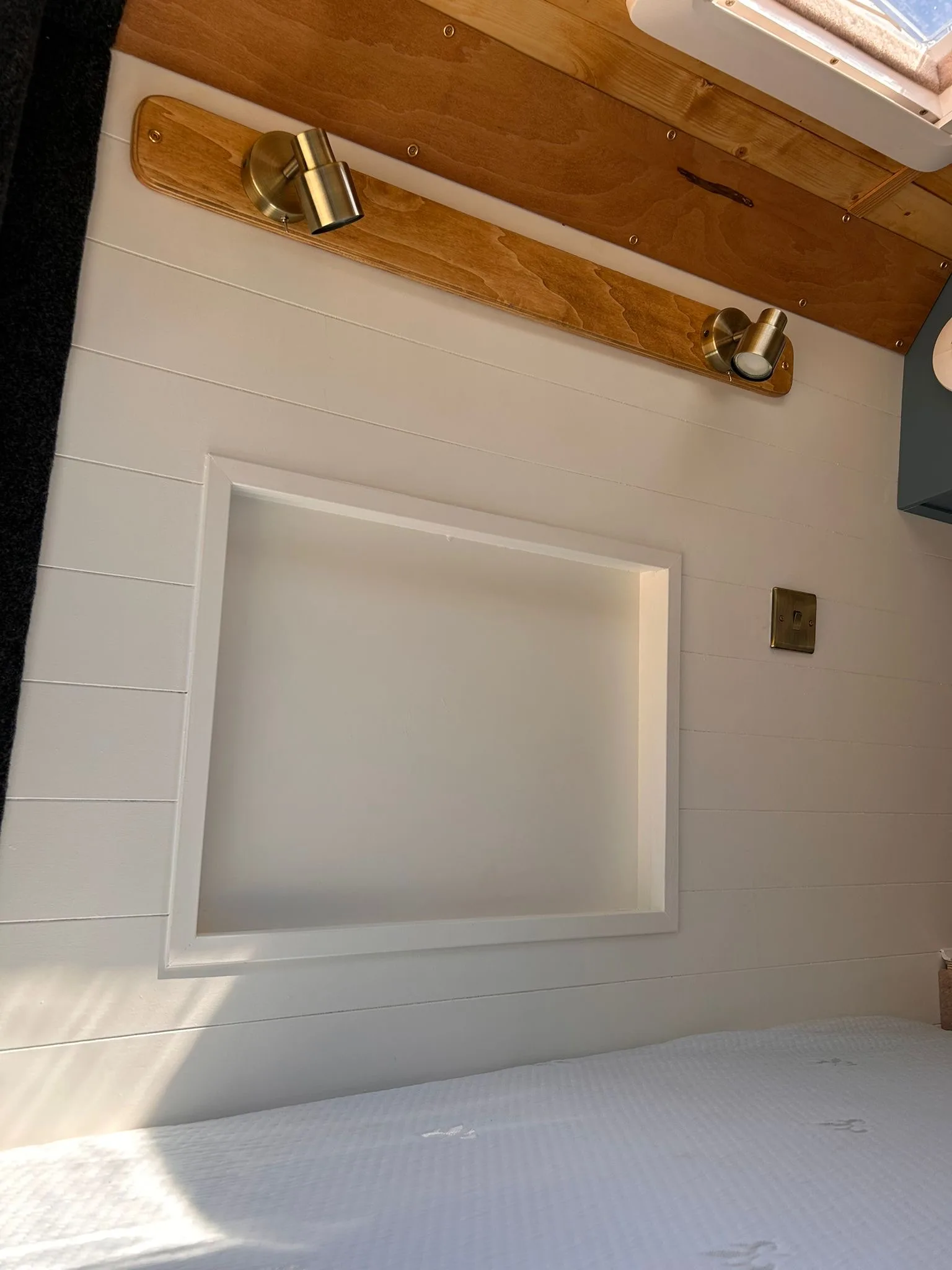

● Recesses at the head and foot of the bed to give roughly 6ft 3” ● Garage space with storage floor and wheel arch boxed finished with black rubber chequer plate effect. Walls and underside of bed in 4 way stretch Anthracite carpet .

Water System

● Underslung pressure fill 66L fresh water tank and 50L waste water tank with exterior drain down hose .
● Domestic sink in Stainless steel / Black Composite / White Composite ( A different style of sink can be fitted prices may vary)
● Domestic Kitchen tap ( 100’s of choices ) ● 12V water pump, filter and accumulator
● Shower mixer tap in chrome / Shower hose in chrome / Mineral bead shower head.
● Shower mixer tap in chrome / mineral beads shower head / chrome shower hose / chrome suction cup shower head holder . ( All can be changed to suit customers taste at extra cost )

Heating / Water heating

● Truma combi D4E Diesel and 240v heater that heats the water and living space . Touch screen control panel . In our opinion the best heater money can buy currently . ( can be changed if required but costs vary )

Gas System

● Gas Locker situated in the garage area for a 2.75kg bottle . Bulkhead regulator / gas hose and adaptor . ( This can be changed for a larger locker or an underslung gas tank prices vary )

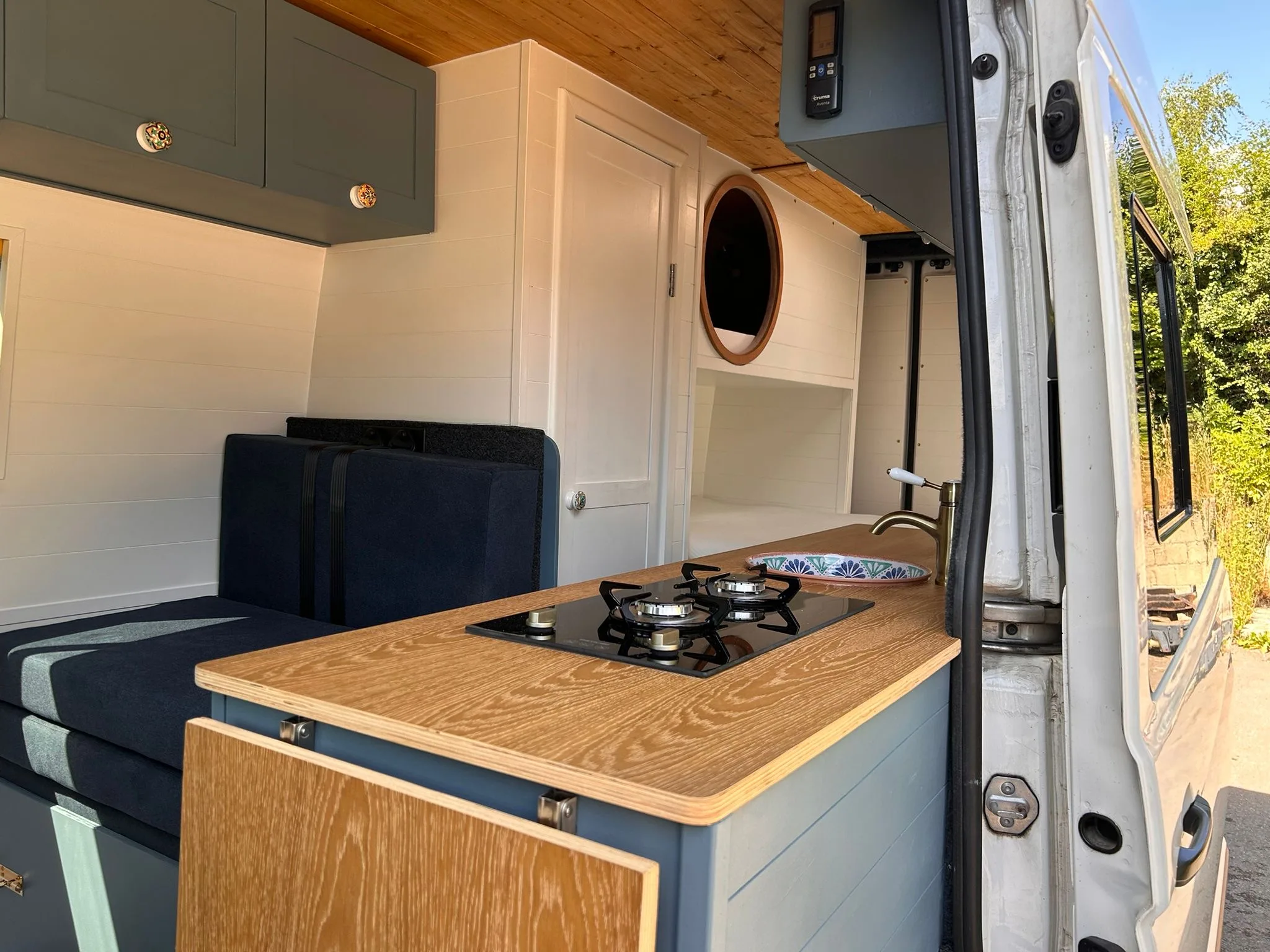

● Thetford Topline 922 2 burner hob ( this can be changed for a different gas hob or electric . or perhaps an oven at extra cost ) ● Carbon monoxide alarm and smoke alarm ( LPG alarm can be added at extra cost )

Electrical System

● 130ah AGM Leisure battery ( this can be changed or upgraded to a Lithium battery in various sizes or a larger AGM battery at
extra cost )
● 30 Amp Victron Orion DC-DC charger ( this can be upgraded to a 50 amp charger at extra cost )
● Victron 30 amp blue smart mains charger to keep your leisure battery charged when plugged into a campsite or at home.
● Victron 500A Bluetooth shunt to monitor your leisure battery from your phone.
● Electrical hook-up point ( in either black or white van colour dependent)
● 8x silver surround 12V warm white ceiling spotlights ( These can be changed for something different if required prices may vary)
2x reading lights ( colour to suit customer preference prices may vary )
● 50-litre Dometic 12v compressor fridge / freezer in silver ( this can be changed or upgraded to a larger fridge at extra cost )
● 2x 240v double sockets with usb’s one located over the kitchen area and one located under the bench seat. ( socket location can be changed or additional sockets fitted at extra cost . Socket colour to suit client )
● 2x twin 12v USB sockets . one fitted in the bed area and one fitted in the seating area. ( locations can be changed and additional sockets can be fitted at extra cost)
● 1x RCD consumer unit ● 1x 12v Fuse board

● 1x Ceiling lights dimmer switch located over top of sliding door ( choice of dimmer switches and choice of switch location )
● 1x Ceiling light switch in bed area ( choice of switches and location to suit the client )

Furniture

● Fixed double bed with memory foam 4” mattress ( This can be changed for a thicker or different mattress to suit the client at extra cost)
● 1x Overhead cupboards above bench seat ( Additional cupboards can be fitted or removed prices vary)
● 1x Overhead cupboards above foot end of bed Additional cupboards can be fitted or removed prices vary)

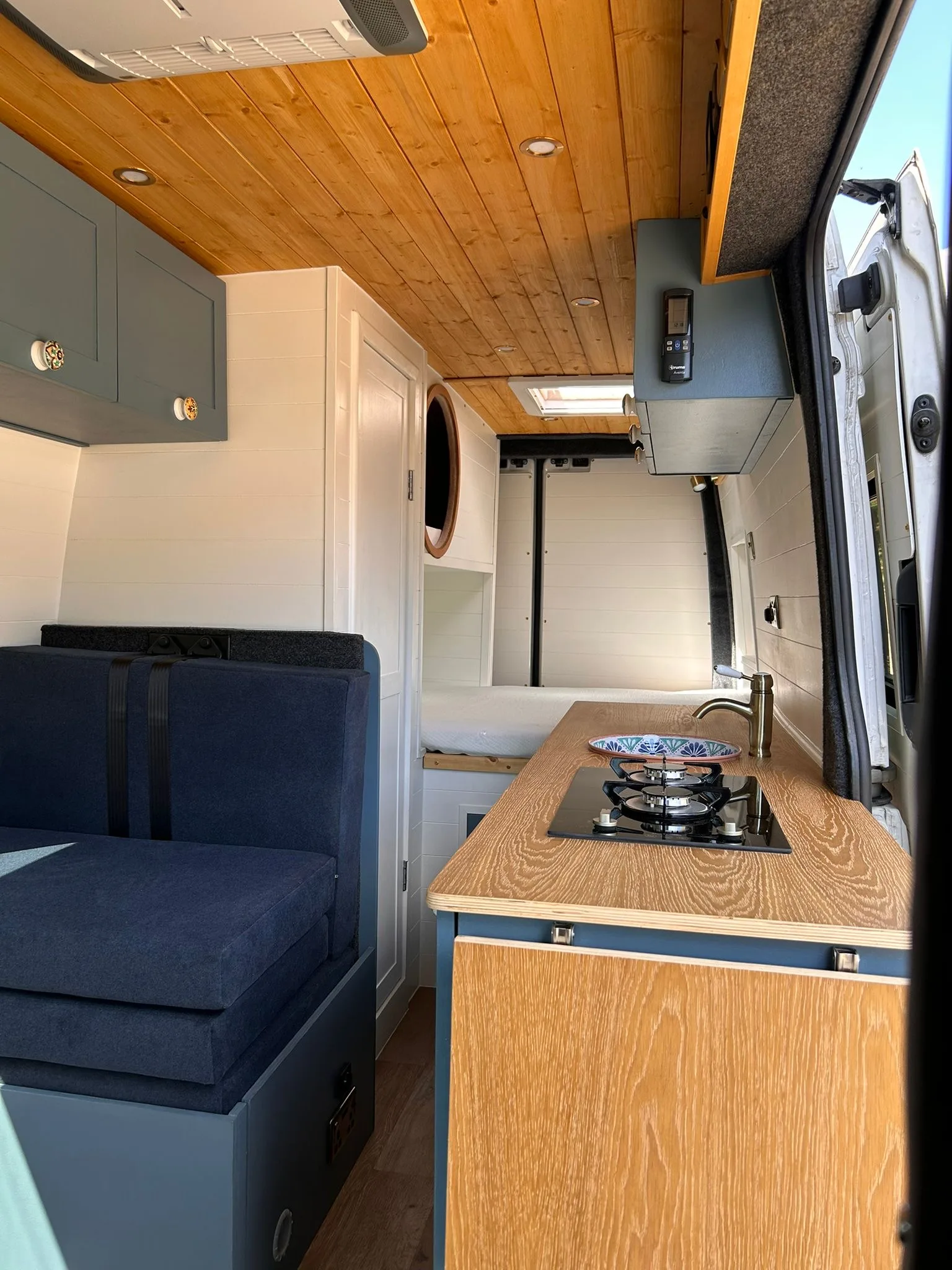

● 1x Bench seat drivers side. Cladded to match walls and ceiling . Access doors to the front and access hatch from the top for storage . ( size can be altered or a pull out can be added to make a bed if required prices vary)
● Table top to match worktop on a Lagun leg mounted on a bench seat .

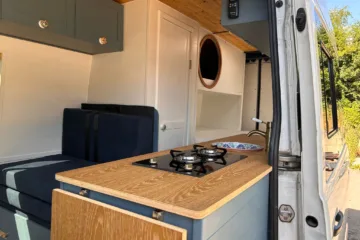

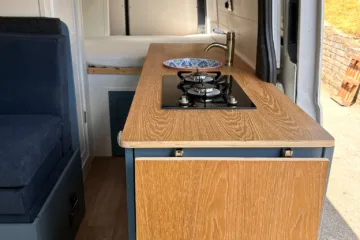

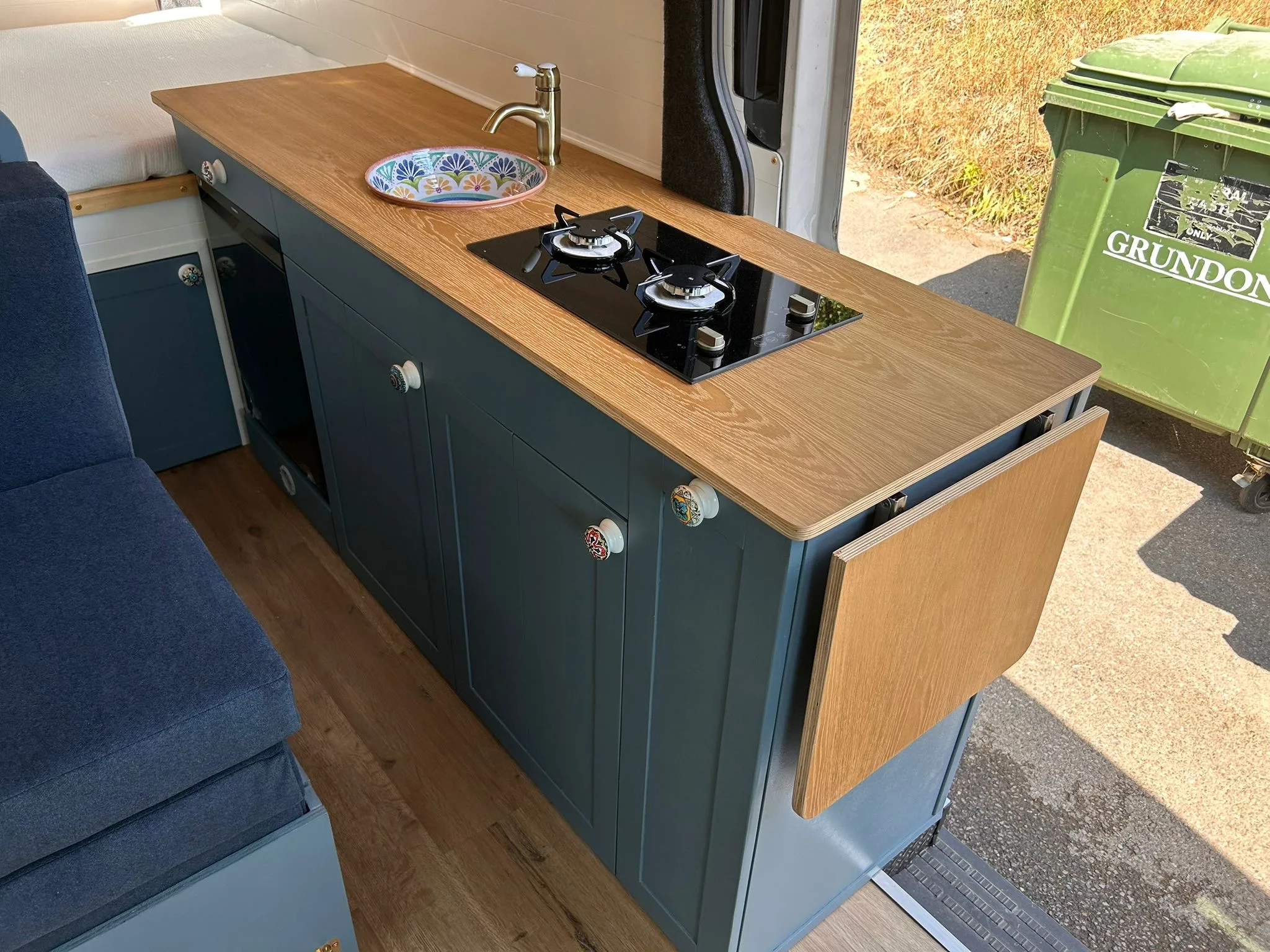

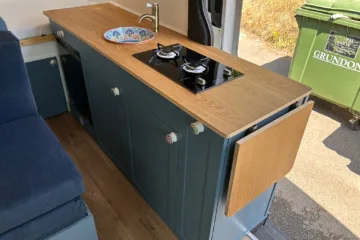

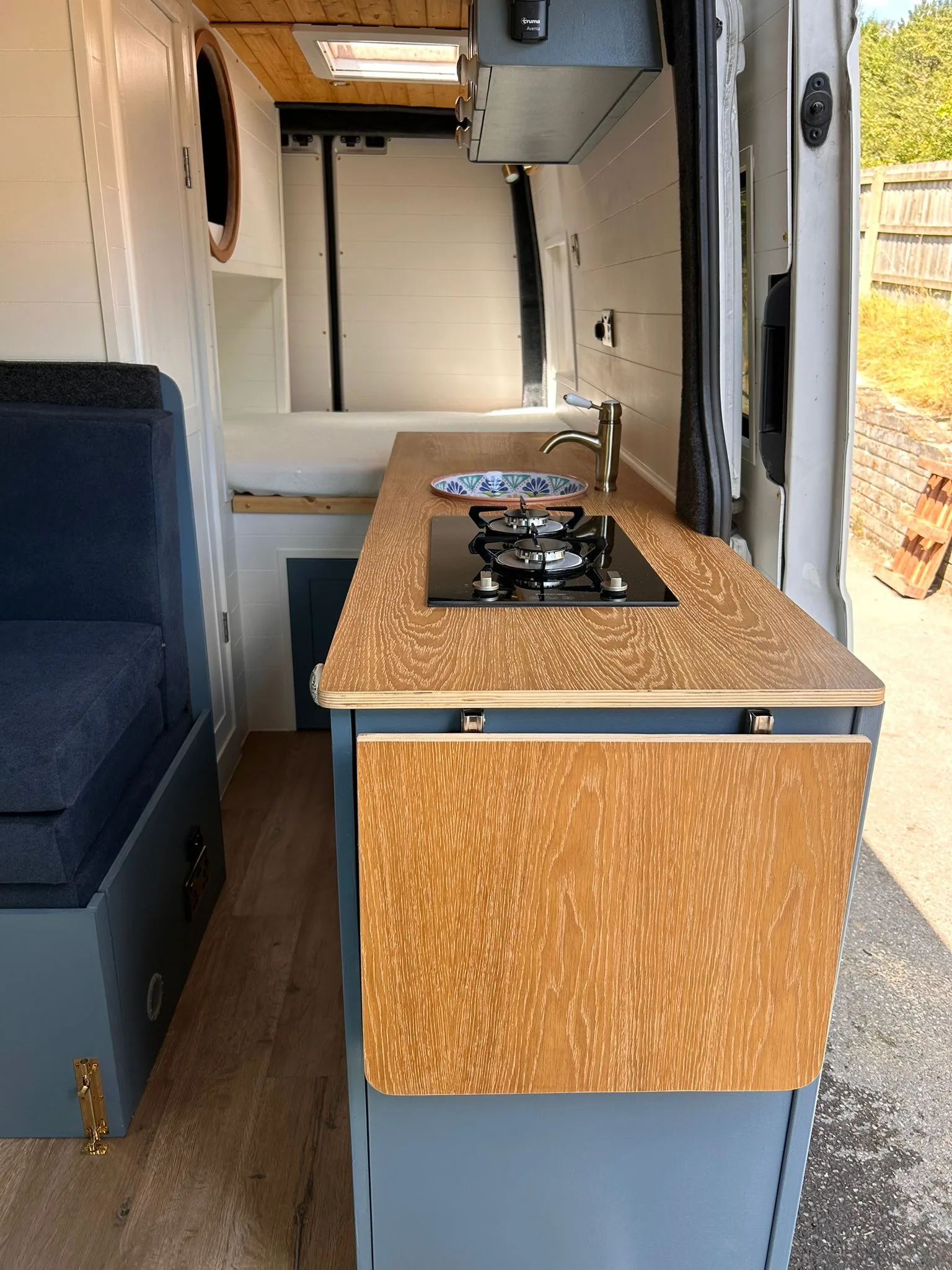

● Kitchen worktop in 22mm Oak with double sink insert ( Worktop material can be changed prices vary )
● Tiled Metro plastic tile backsplash (Can be changed or removed to suit the client prices vary)
● 1x draw above fridge which can be used for cutlery . ● 1x Cupboard below sink with shelf .
● 1x Cupboard below hob with shelf . ( Can be changed to draws or something to suit the client prices vary)
● Bedside floor cupboard with top matching worktop . with a shelf. ( Can be altered or changed to draws or what suits the client prices vary) .

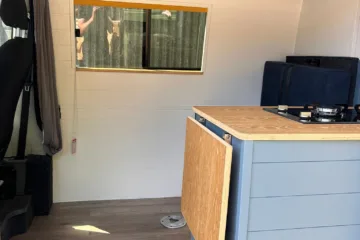

● 1x Lift up worktop end flap in Oak 22mm . ( Can be changed to a different material / material dependent prices vary )
● Kitchen unit carcasses / overhead cupboard carcasses made from lightweight plywood finished in white . ( colour can be changed to suit the client at extra cost.
● Door and draw front made from birch plywood painted . 100’s of colour choices . ( door style / colour / material can be altered to suit client prices vary )
● Access door from the front of the bed into the garage area.

Shower / Toilet cubicle

● Cubicle size – Length – 1m x width 700 cm measurements are approximate. ( Cubicle size can be made smaller if required ) .

● Exterior clad to match walls and ceiling . White acrylic capped shower tray not flimsy plastic . Walls & ceiling finished in white gloss hygiene board. ( Shower wall finish can be changed at extra cost )
● Tambour shower door in silver ( colour of door or style of door can be changed at extra cost.
● Wall extractor fan exterior in either black or white van colour dependent . ● Thetford Porta potti removable ( Can be changed for a chemical toilet or
composite toilet at extra cost .

Soft Furnishings

● Blackout curtain to separate the cab from the living in black ( colour can be changed prices vary )
● 4” back and base foam cushions with dacron . ( Density to suit customer / Thickness can be altered prices vary )
● Cushion covers with 100’s of fabric choices.
● Sliding door curtain set in to window recess in black or grey ( colour can be changed or a blind added prices vary )
● Drivers side window black out roller blind in various colours. ( Can be changed for a different style blind or curtains prices vary)

Certification
● Landlords Gas Certificate ● Weighbridge Certificate
● 1 yr Conversion Warranty see terms and conditions

Customizable Options ( Prices vary on options below )

● Bed length
● Cupboard front style – (plain flat / shaker style / or something else … )
● Shower door colour and style
● Shower mixer tap style and colour
● Shower head holder style and colour ● Shower wall style and colour
● Shower head and hose style and colour ● Cupboard front colour
● Cupboard / draw knobs or handles ● Worktop material / colour / style
● Floor colour / Floor material / style ● Kitchen splash back
● Ceiling colour / material / style ● Cushion fabric colour / material ● Curtain colour / material

● Blind colour / material
● Fridge colour – (black / Silver) ● Sink colour / style / material ● Tap colour / style
● Reading lights colour / style
● Sockets and light switch colour / style ● Appliances
● Electricals ● Hooks
● Dog tie points ● Cab seat colour

If there’s something you want to change or add that’s not listed here Just ask us, we’d be happy to accommodate your requirements .

This conversions depending on final configuration is Β£26,150 plus vat so Β£31,380 including vat .

Beds Description

Fixed bed at rear of van sleeps 2

Main Bed Length
190cm

Contact the Seller

The contact details for this vehicle are no longer available because it has either sold or the listing has expired.

Vehicle Spec
Fuel Type:
Diesel
Transmission:
Manual
Belted Seats:
3 Belts
Driving Side:
Right-Hand Drive
Vehicle Length:
6.00 meters
Emissions Compliance:
ULEZ Compliant
Registered Vehicle Type:
Panel Van (does not meet DVLA standards)

Conversion Spec
Conversion Condition:
New
Converter Type:
Professional - Handcrafted
Gas Sign-off:
Landlords Gas Safe Certificate
Max Weight (MAM/GVW/MTPLM):
3,500kg
Unladen Weight:
3,100kg
Unladen Weight Verified:
Yes - the vehicle has been weighed since completion
