The Brief
– All year round usage.
– Lots of power! 12v, USB and 240v mains without needing to plug into a campsite.
– Be able to know how much power you have left via phone.
– Gas Free heating and cooking
– Lots of water.
– Fixed bed.
– Space for pets.

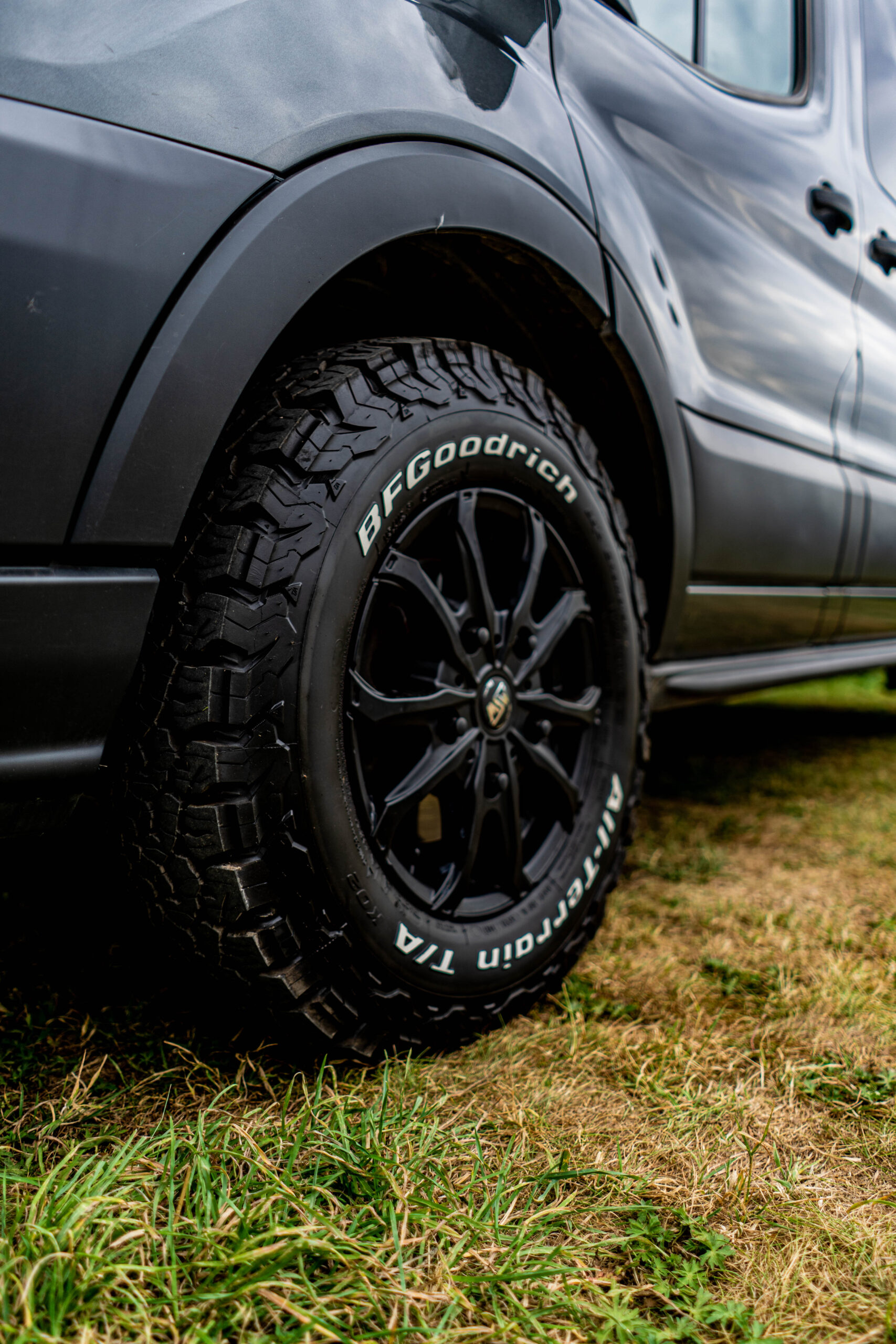

– Be able to tackle light/medium terrain.
– Feel like a home away from home.

The Spec

Electrical System
● Photonic Universe 360 Watt Solar Panel
● Victron Smart MPPT 100|30 (Controlled & monitored via phone)
● 3x 1100AH Deep Cycle Battery (330AH total!!!)
● Victron Lynx Power In
● Victron DC-DC Charger Orion-Tr Smart 12/12-30 (Controlled & monitored via phone)
● Victron Multiplus 12|1200|50-16 230V
● Victron SmartShunt 500 amp Battery Monitor (Controlled & monitored via phone)
● 12v Distribution Board with Spare slots for expansion
● Victron Smart Battery Sense – Battery Voltage and Temperature Sensor (Controlled & monitored via phone)
● Blue Seas Battery Isolator
● Solar Isolator

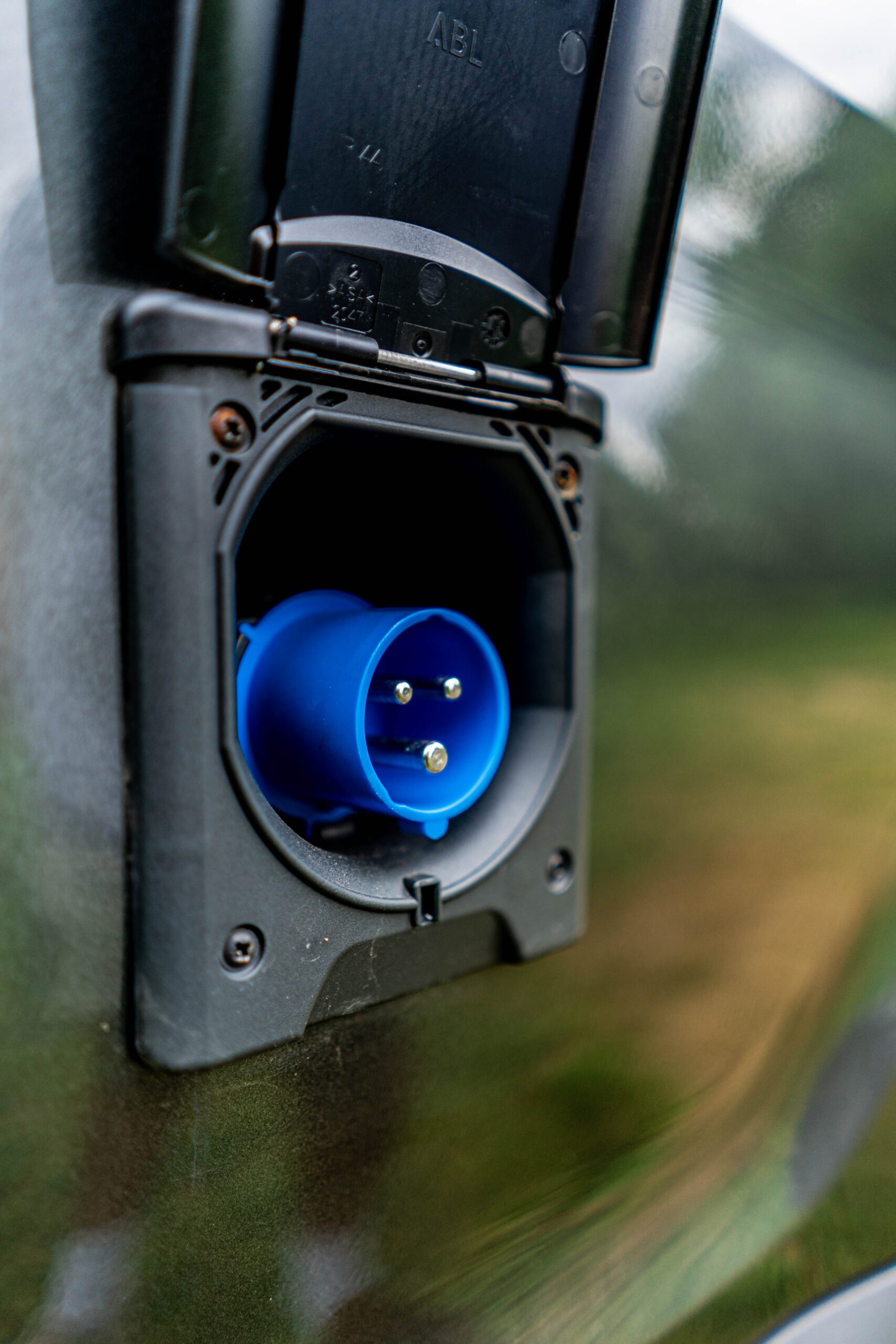

● 230V External hook up point

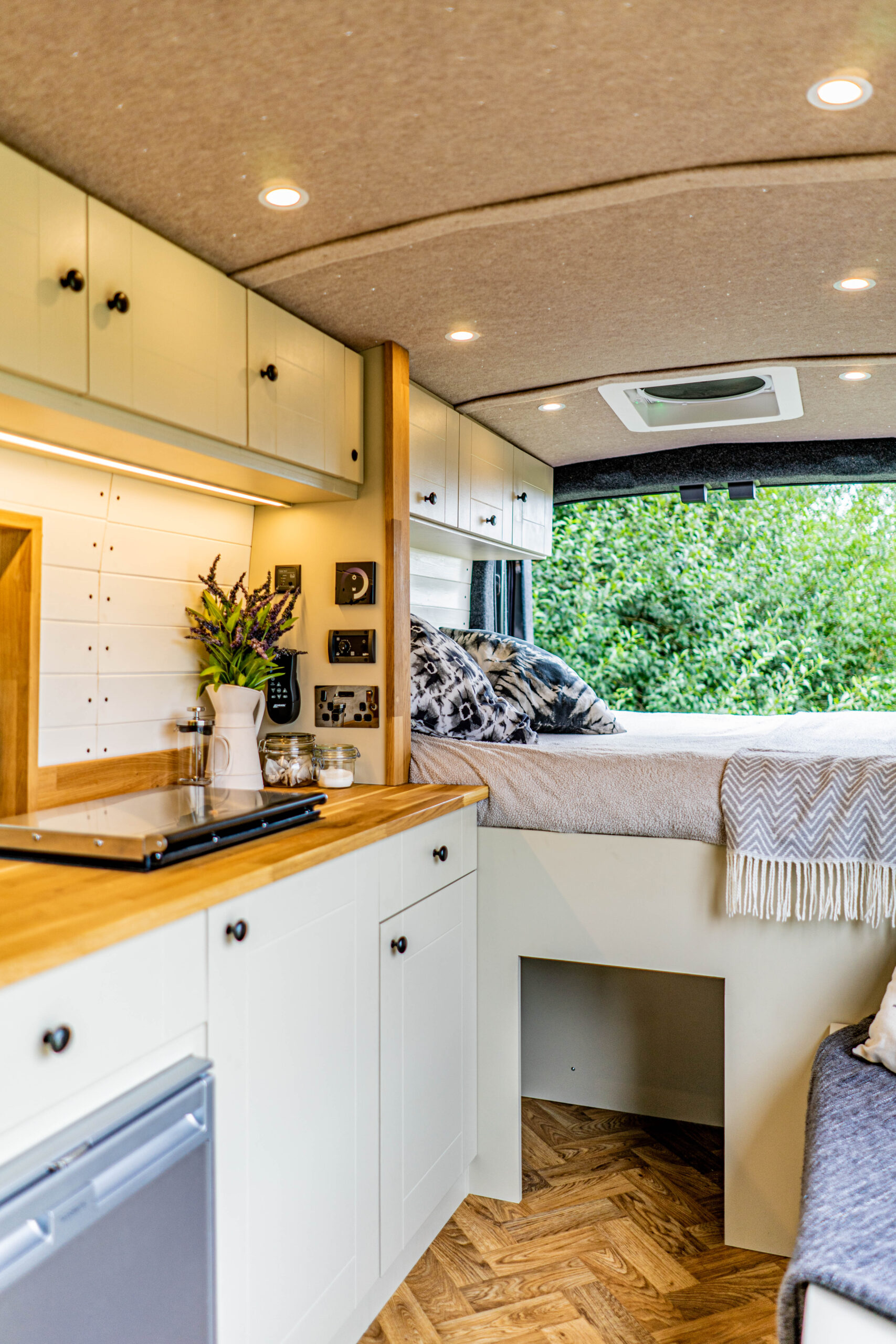

● 8 Dimmable internal spot lights
● Kitchen LED Lighting

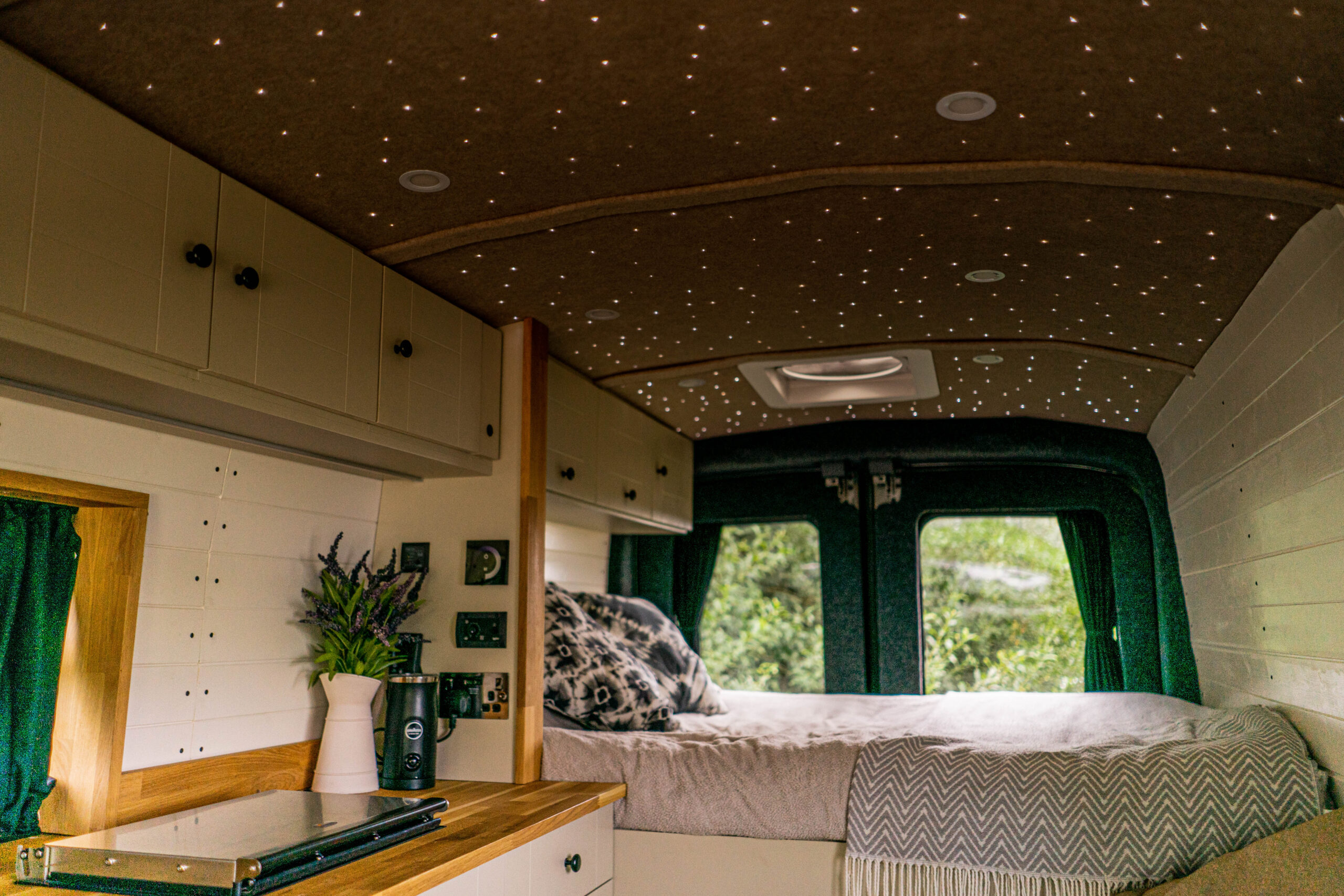

● Starry Night Effect Ceiling. Colour Changing.

● 2x Dual 2.1A USB sockets (4 Charge points total – Not including front cab)
● 2x 12v Aux Sockets (Cigar lighter style – Not including front cab)

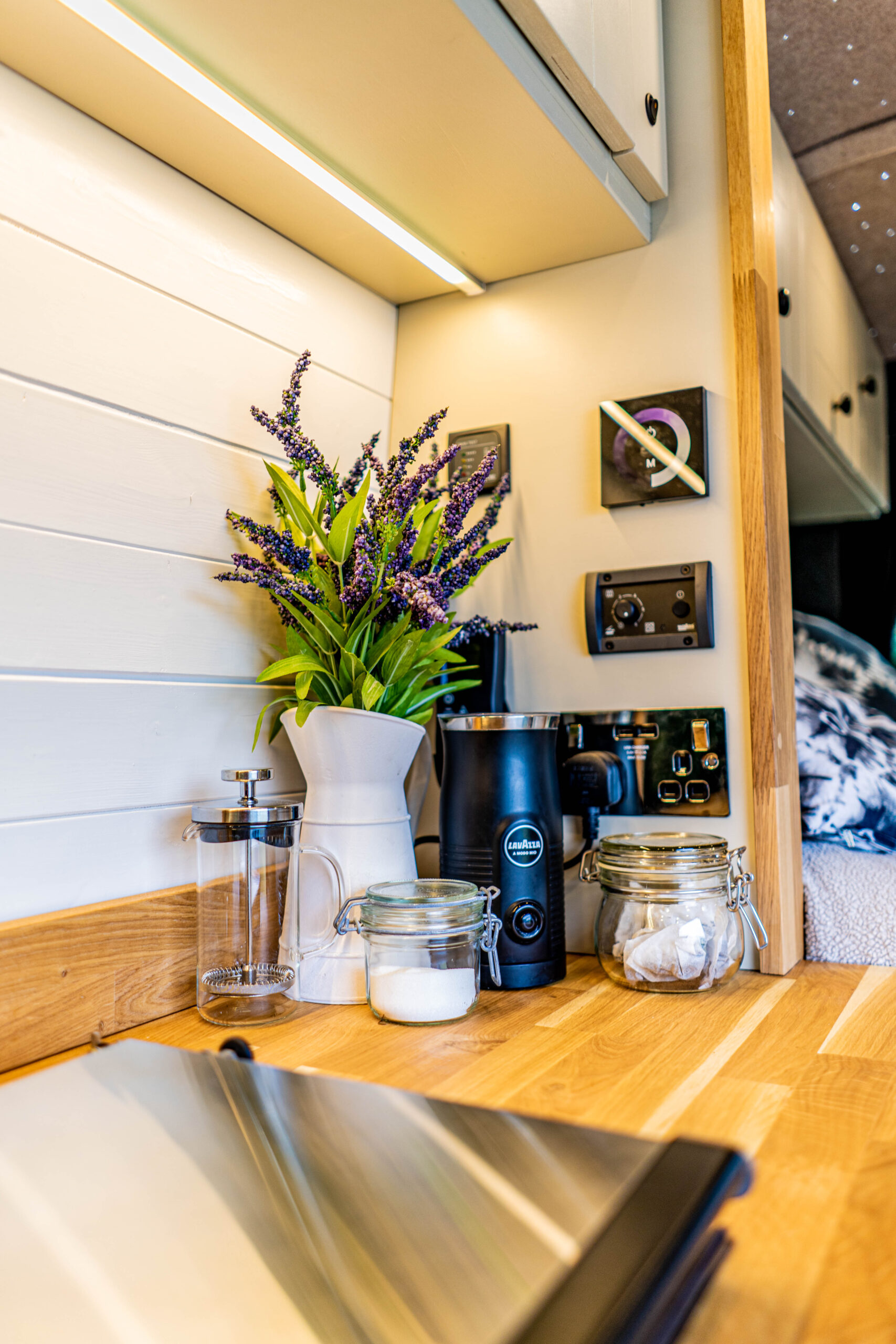

● 2x Double 240v Sockets with USB (Do not need to be hooked up at campsite to use) (Making Total USB sockets to 8)

● Dometic CRX 85L Fridge including freezer

● MaxxFan Deluxe (Remote controlled) can be used whilst driving & when raining. Has
multiple modes including extract air and intake air. Thermostatic mode

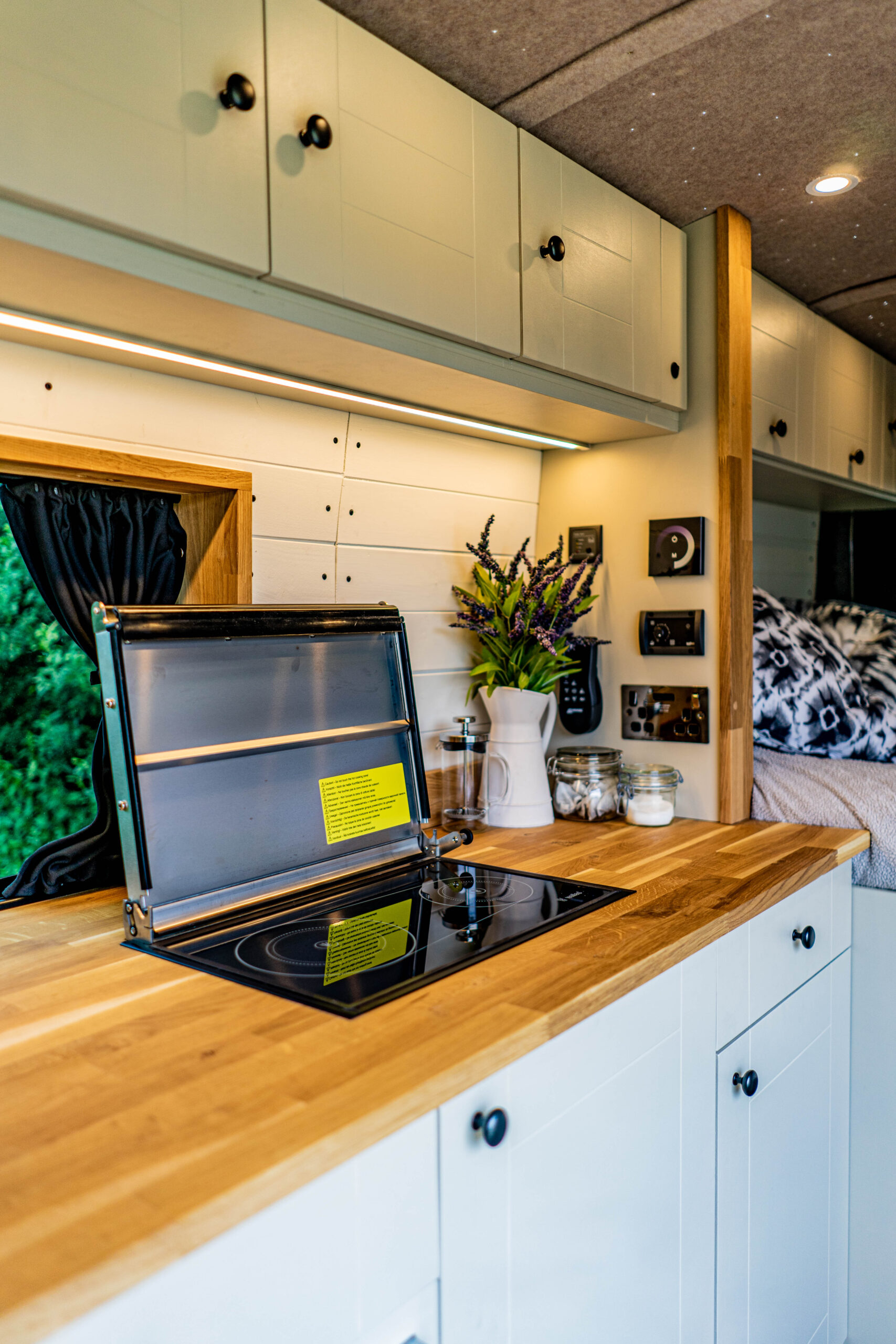

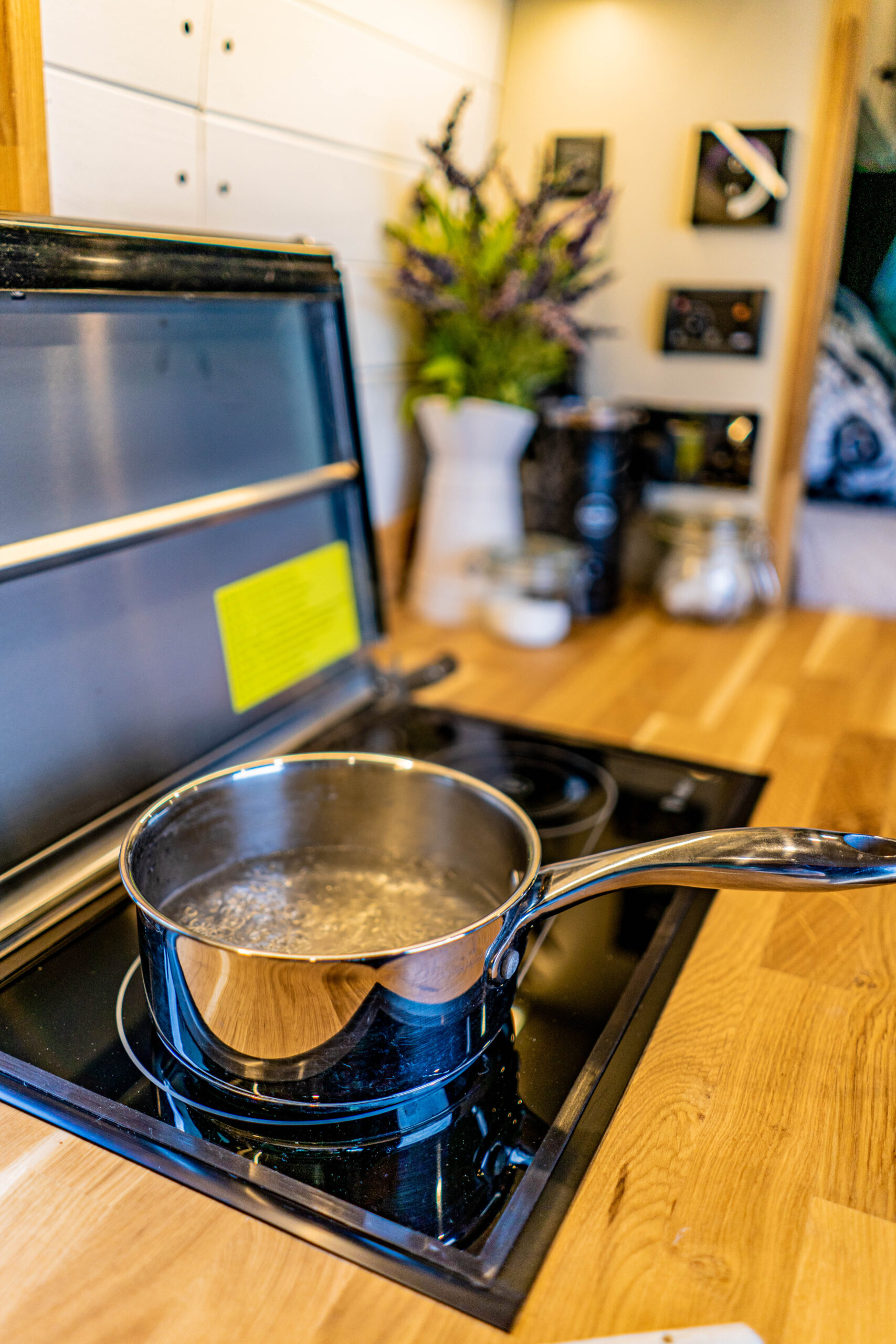

● Wallas Duo XC 2in1 Diesel Heater and Cooker. No gas, No internal flame, Very Safe.

● Electrical sign off (EICR) – TBC Awaiting Date

Water System
● 57 Litre water tank internally fitted (to prevent from freezing)
● Tap and space designed so a hot water feed can be fitted relatively easy at a later date. (Optional extra)
● Kitchen area switched Shurflo Pump with automatic pressure cut off
● CBE Water Tank Level Sensor
● Matt Black Mixer Tap
● Matt Black Push button plug

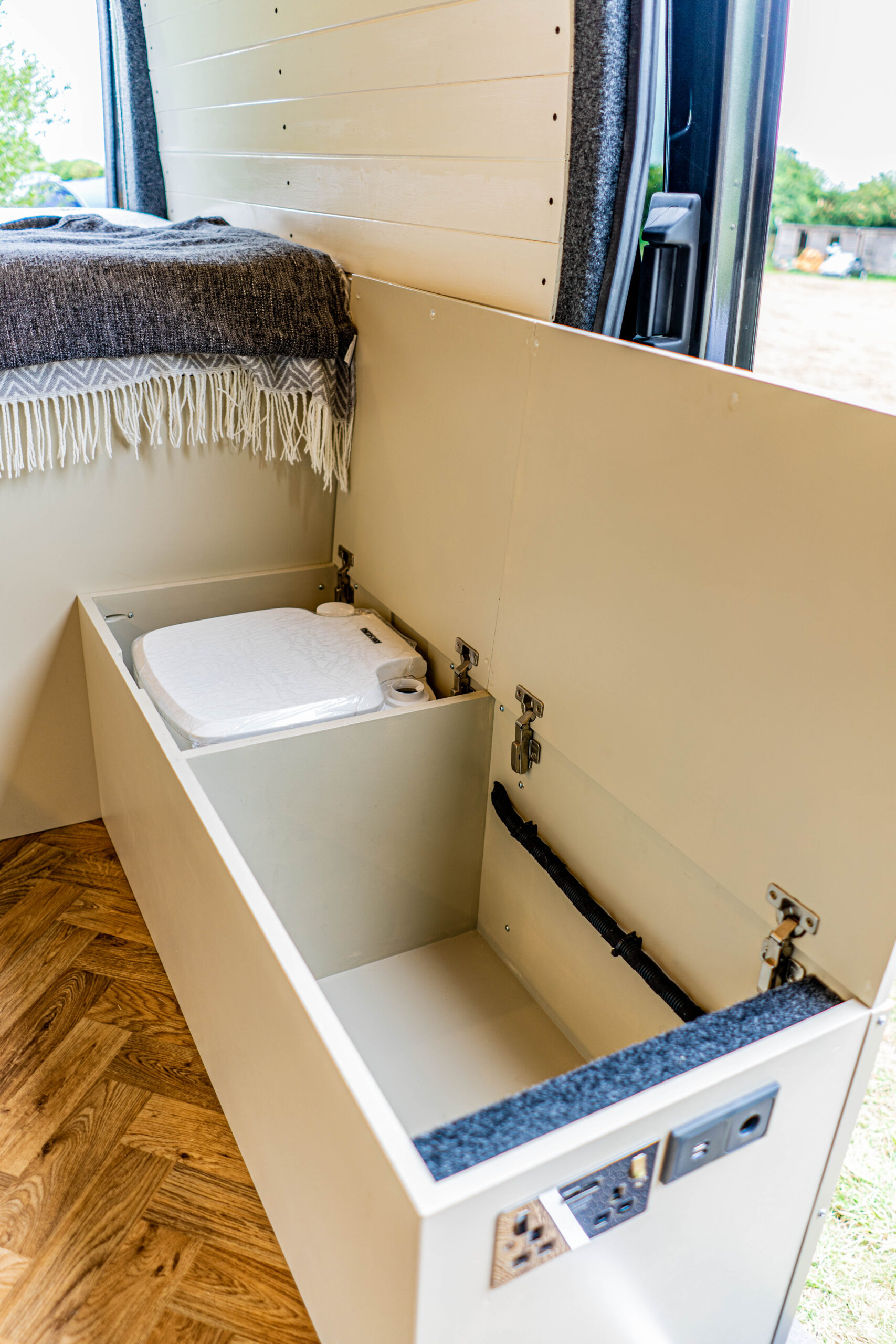

● Portapotti Toilet

Storage & Seating
● 11 Cupboards (8 overhead, 3 lower)
● 2 Drawers
● High Quality Farrow & Ball Furniture Paint
● Double Swivel Seat

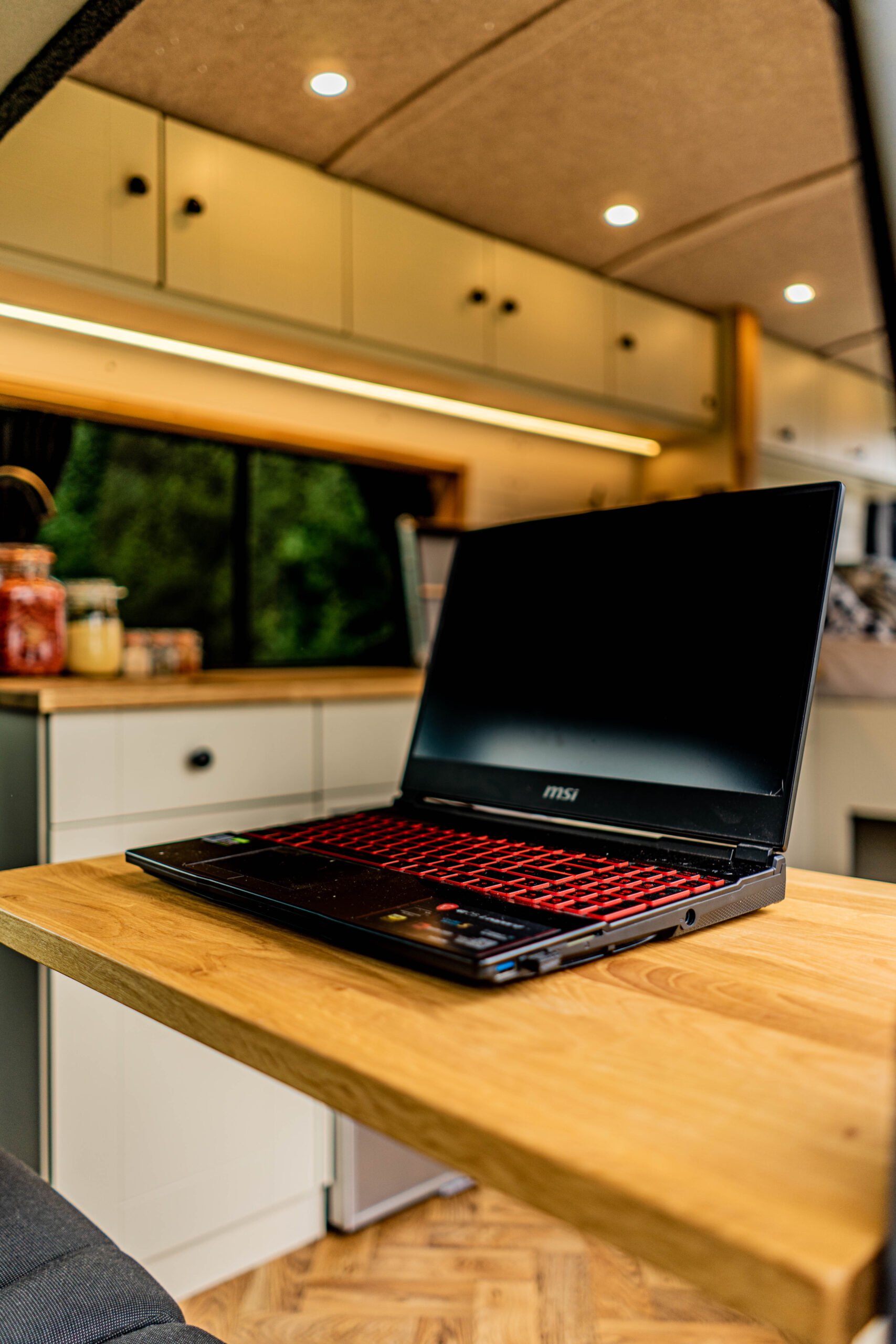

● Swing Out OAK Table

Windows

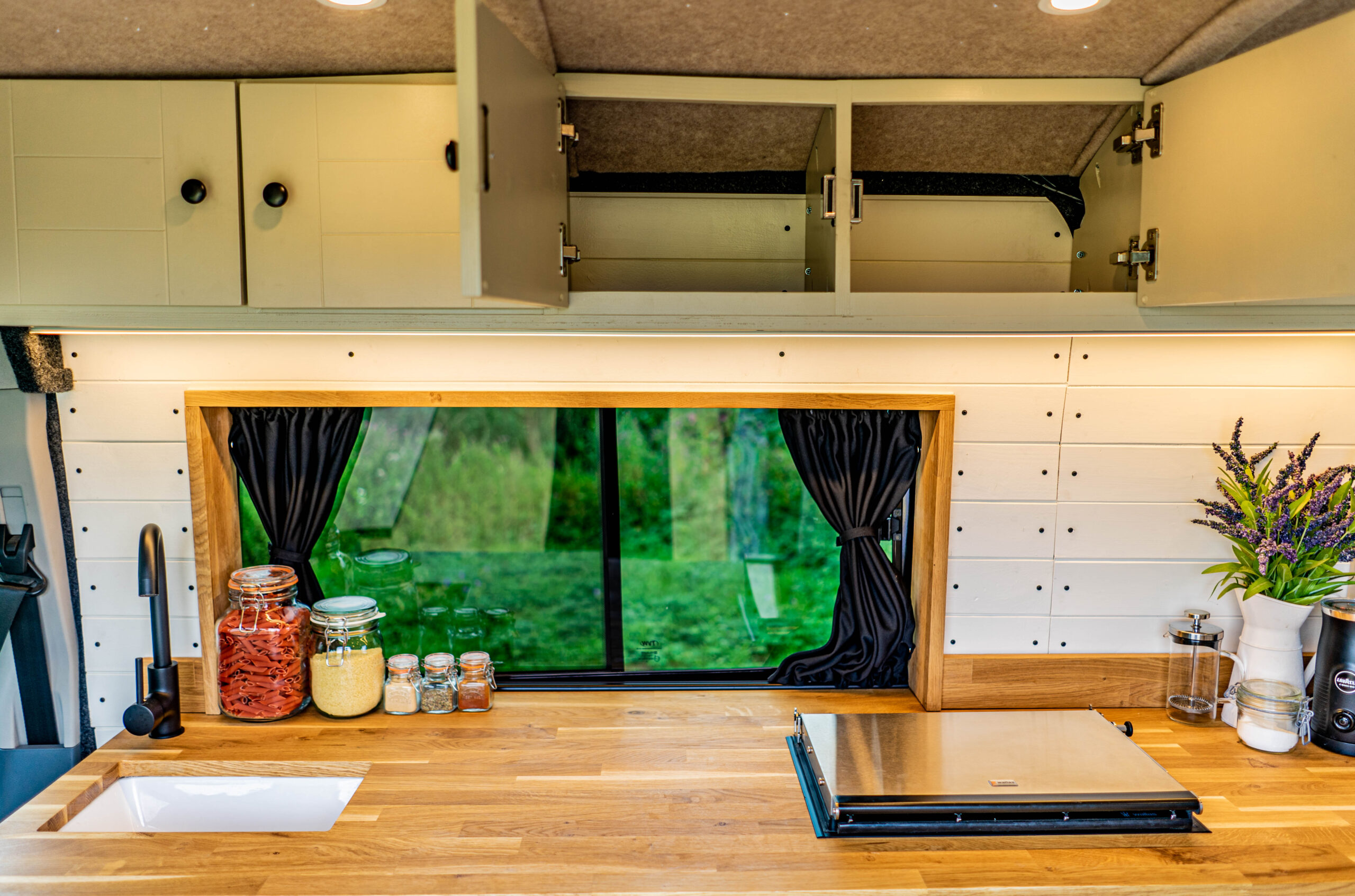

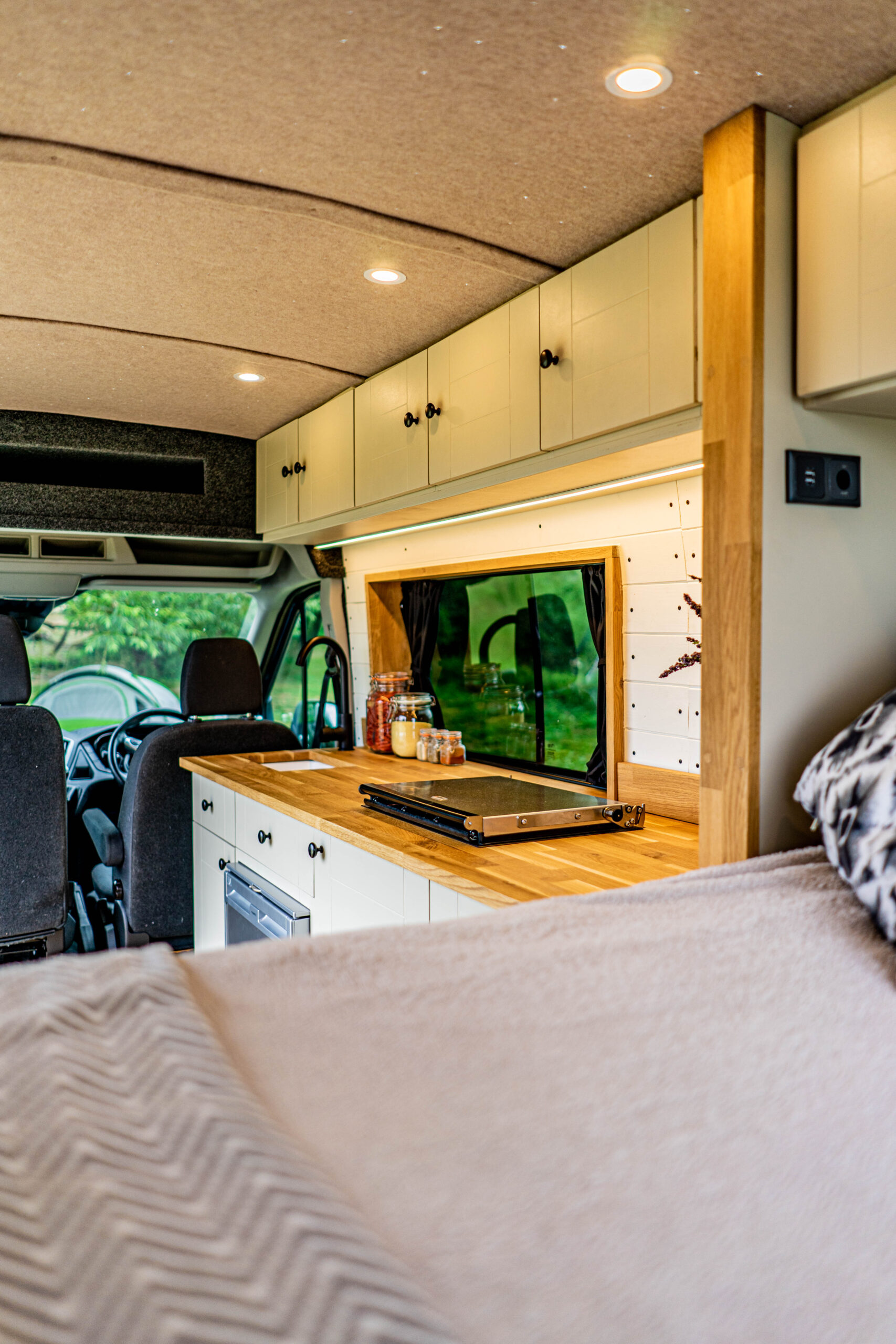

● Kitchen Opening bonded window
● Sliding Door Opening Bonded Window
● Barn Doors Fixed Bonded

Insulation
● Recycled Plastic
● PIR Boards
● Therma Foil
