Off grid Sprinter campervan with shower, heating, king size bed, 280AH lithium, 600W solar, Victron system, underslung LPG etc ... very extensive specification

***Highlights***

Victron electrical system designed for off grid functionality
38L underslung LPG tank supplying Truma 4E combi boiler and hob/oven/grill
Dedicated internal shower
King size memory foam mattress (full width)
65L Dometic compressor fridge
External 4G antenna with powerful WiFi router
Fully insulated

***Textual description***

This meticulously self-converted campervan is built with true off-grid capability and comfort in mind. Powered by a robust 280Ah LiFePO4 battery system, 600W of solar, and a 1000W Victron inverter/charger, it offers full energy independence backed by premium Victron components and shore power hook-up. The intelligent system is controlled via Venus OS with touchscreen and remote access.

I designed for long-term travel or full-time van life; it includes a powerful 4G internet setup with an external antenna and Huawei router, keeping you connected wherever you go. The custom-built kitchen features a real walnut veneer worktop, Dometic fridge/freezer, and Spinflo oven/hob/grill (we have never used the oven/grill portion, so as new!).

Enjoy year-round comfort with a Truma Combi 4E providing heating and hot water, a thermostatic shower, and a heated towel rail. Water is handled via high-capacity fresh and grey tanks, a Shurflo pump system, and proper fittings using John Guest components throughout.

A 38L underslung LPG tank fuels all appliances safely, with internal shut-off valves and drop-out vents. Ventilation is handled by Maxxfan and Skymaxx rooflights, plus custom magnetic screens and insulated window covers.

Sleep soundly on a full-width Nectar memory foam mattress over a curved slatted base, with USB-A and USB-C charging at hand. The van is fully insulated with rigid PIR panels, a vapour barrier, and even sealed trim clips to prevent water ingress—a detail many overlook.

Finished in high-quality Mylands paint and lined with durable flooring and carpeting, this van is a rare find: a thoughtfully executed, truly off-grid camper built with care, quality, and attention to detail.

***Full specification list***

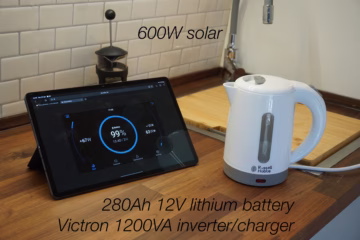

Electrical system:
– 280AH 12V lithium battery (LiFePO4) with JBD BMS
– 600W rack mounted solar panels
– 1000W Victron MultiPlus Compact 12/1200/50-16 (Inverter and charger)
– Victron Smart Shunt 500A
– Victron SmartSolar 100/30 (Solar controller)
– Victron Orion TR-Smart 12/12-18 (Alternator charging)
– Meanwell 100W 12V regulated supply (for voltage sensitive items, i.e. lights)
– Electrical hook up for shore power
– Wired with CBE modular switch and socket system
– System controlled by Venus OS with touch screen and remote access

Internet/4G/WiFi:
– Poynting 4G XPOL Cross polarised 4G Omni antenna (external)
– Huawei 600mbps 4G router CPE-PRO WiFi router

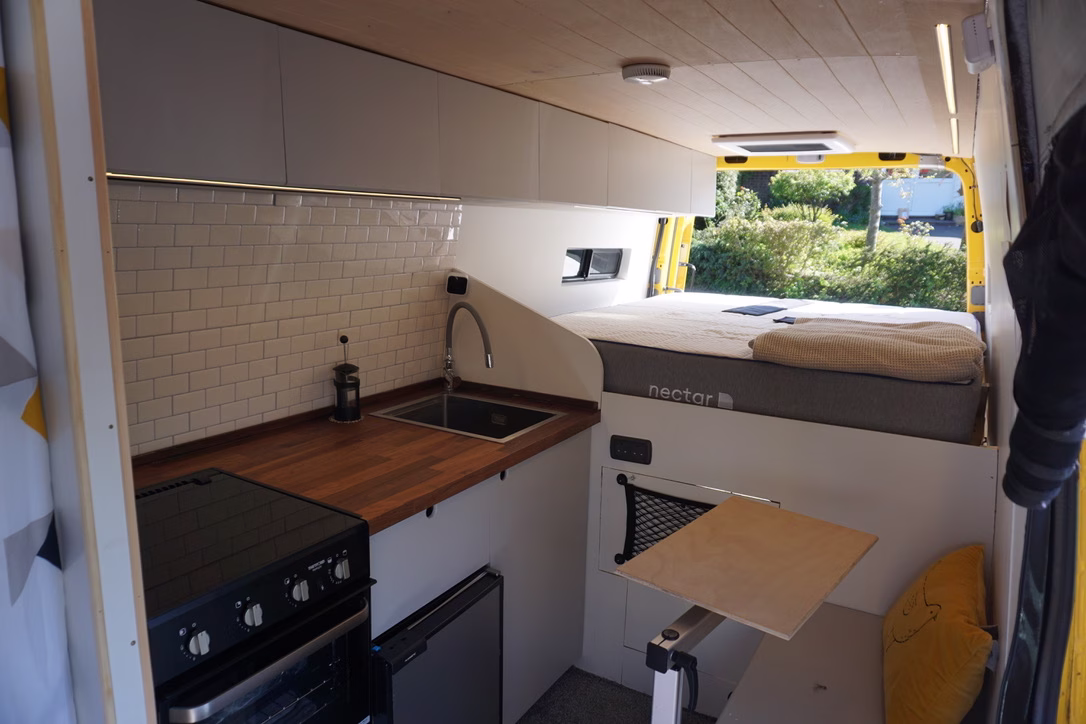

Kitchen:
– Dometic CRE65 fridge/freezer
– Spinflo Triplex 3 burner hob, oven and grill (with lid gas shut off)
– Real walnut veneer worktop
– All cabinets are custom made with heavy duty runners and magnetic latches fitted to draws
– Mixer tap with flexible neck
– Stainless steel sink
– Additional LED lighting installed over worktop area
– Electric kettle appropriately sized for inverter included

Heating/Hot water/Shower:
– Truma Combi 4E (Heating, hot water, shower)
– Truma digital control panel
– Truma heated towel rail (one of my favourite features)

Water:
– 70L underslung custom CAK grey (waste) water tank
– 132L internal CAK Sierra 073 fresh water tank
– Shurflo Trail King 7L/min 30PSI pump
– Fiamma A20 expansion tank
– Shurflo strainer
– Plumbed with genuine John Guest 12mm pipe

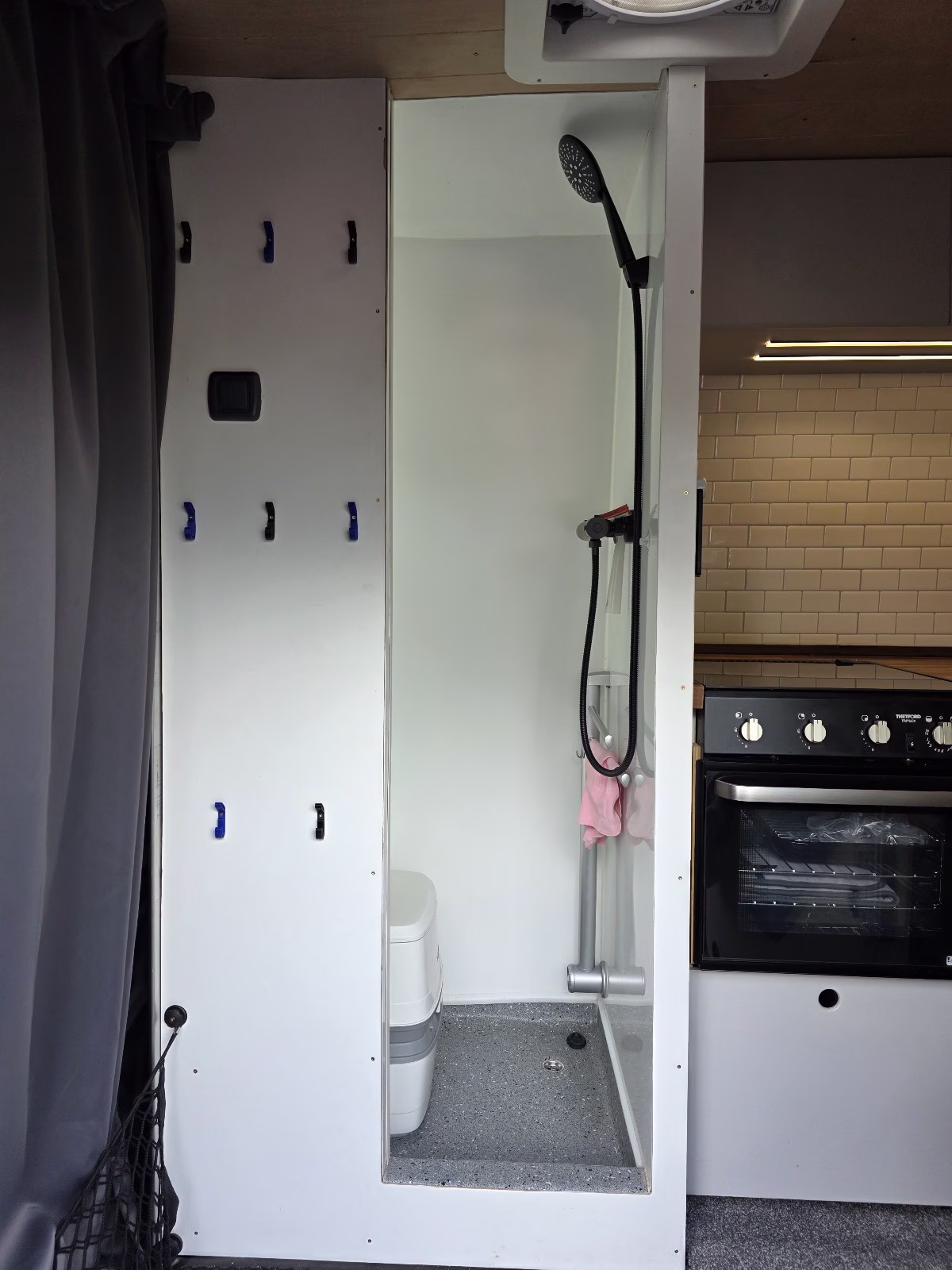

Shower/toilet:
– Black thermostatic mixer shower
– Whale Gulper 220 shower drain pump
– Waterproofed with Aquaseal tanking compound
– Altro safety floor
– Saniclad hygienic wall cladding
– Fits Thetford Porta Potti 365 Qube

LPG:
– 38L GAS IT underslung LPG tank with fill point (euro adapters included)
– Internal level indicator
– 30mb regulator
– Internal manifold with shut off valves per appliance
– Gas drop out vents fitted

Ventilation:
– Maxxfan Deluxe with remote
– Maxxair Skymaxx Plus rooflight/vent with LED lights

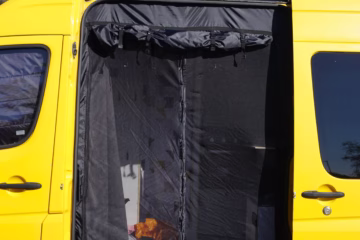

– Custom dual purpose fly screen / cover for the sliding door

Windows:
– Half slider window with fly screen (sliding door)
– Bunk sliding windows with fly screen (both sides in line with bed)
– Custom magnetic window inserts with insulation and black out nylon fabric

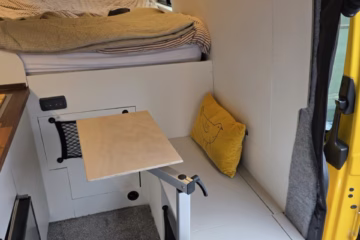

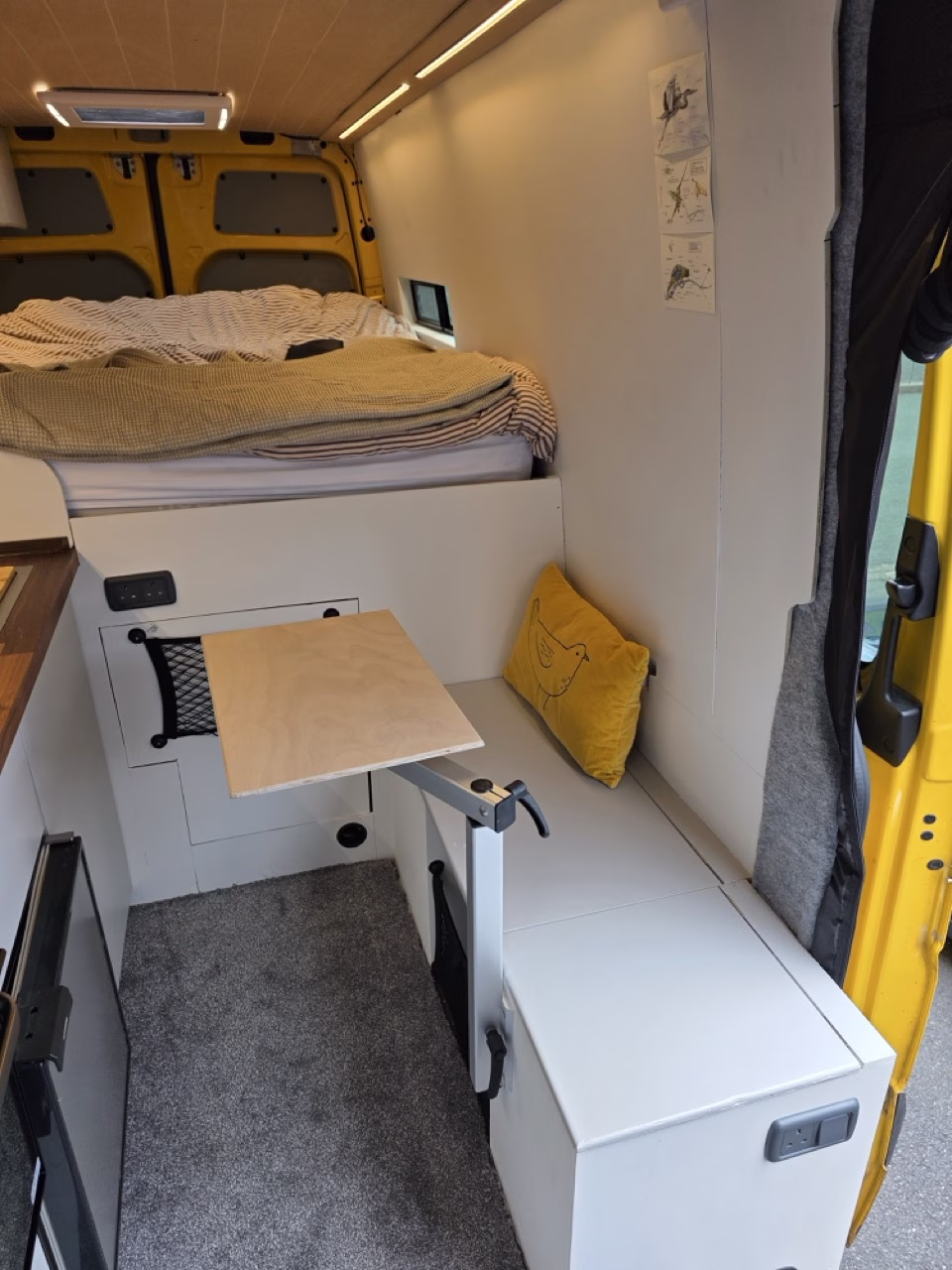

Bed area:
– Nectar premium memory foam mattress king size width
– Curved, slatted bed base (very comfortable and allows ventilation)
– 2x USB-A and 2x USB-C fast charge sockets
– Wireless charger

Paint:
– Mylands Chambers Gate No 85
– Mylands Charterhouse No 4
– Mylands wood primer and undercoat

Flooring:
– Currently carpeted with grey synthetic medium pile carpet
– Entrance finished with a durable washable non-slip mat
– Subfloor is high quality plywood custom cut for the van – any flooring can be installed on top if you don’t like the current combination

Insulation
– Rigid PIR insulation installed in the floor, ceiling and walls
– Vapour barrier
– External trim clips sealed to prevent water ingress (commonly missed)
