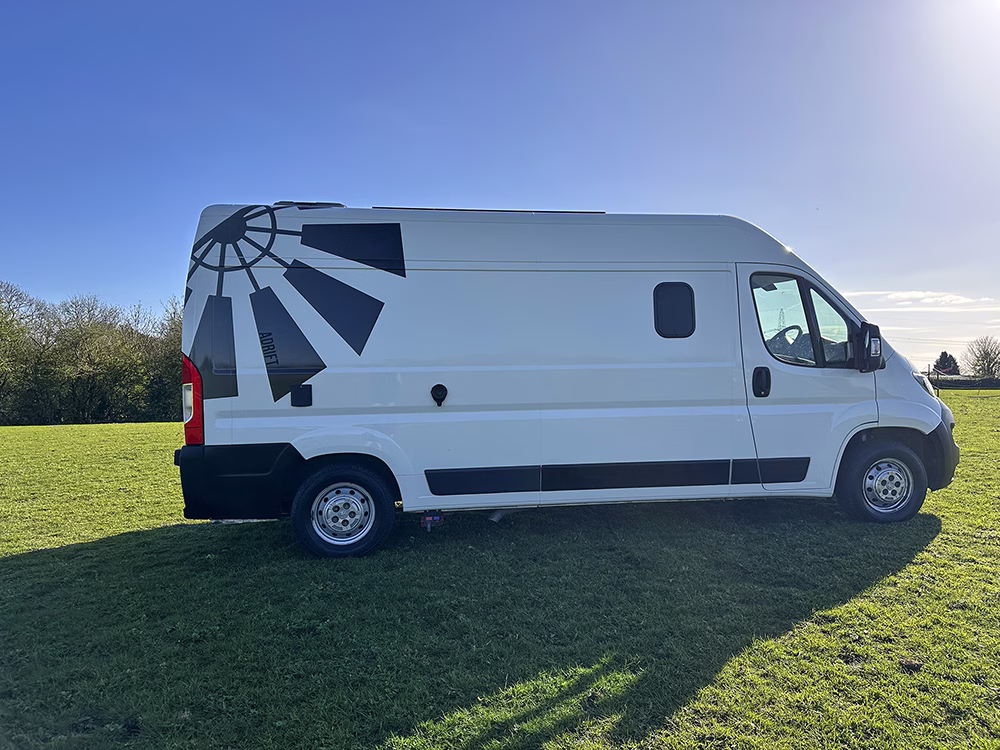

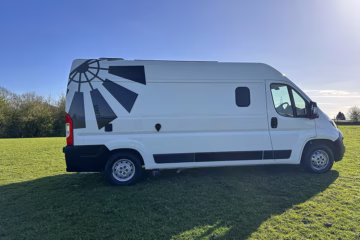

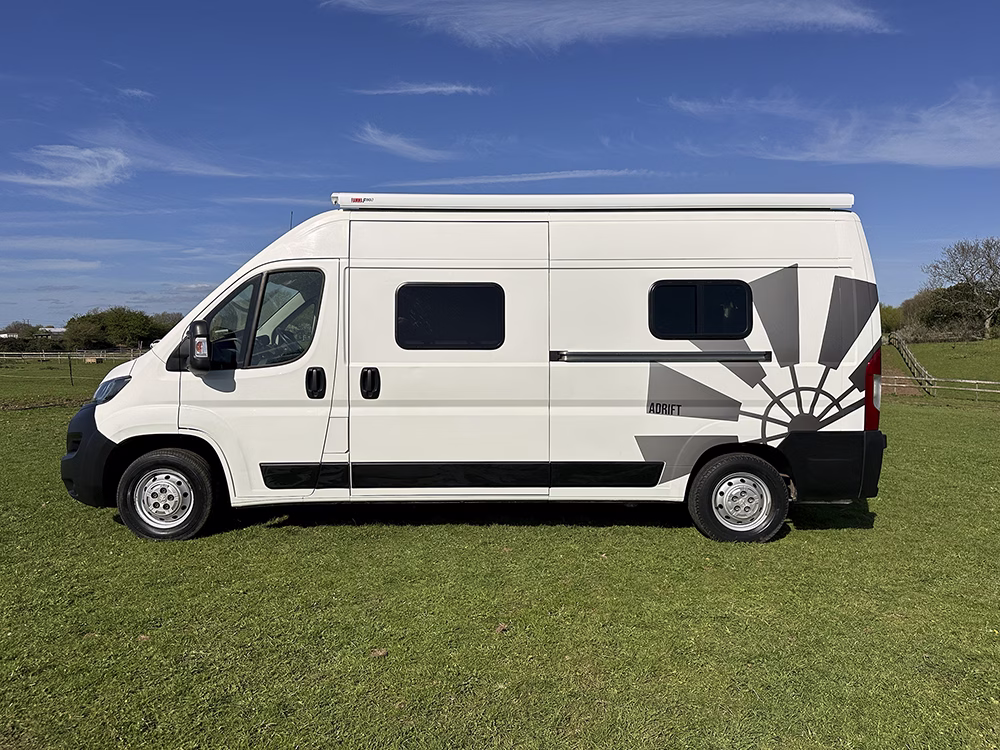

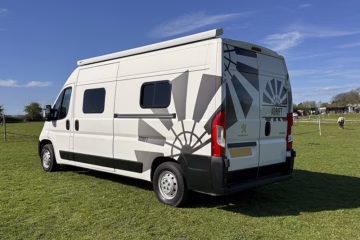

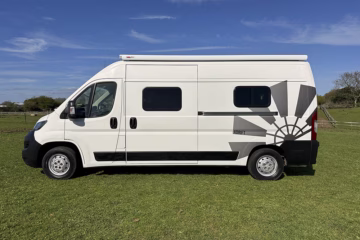

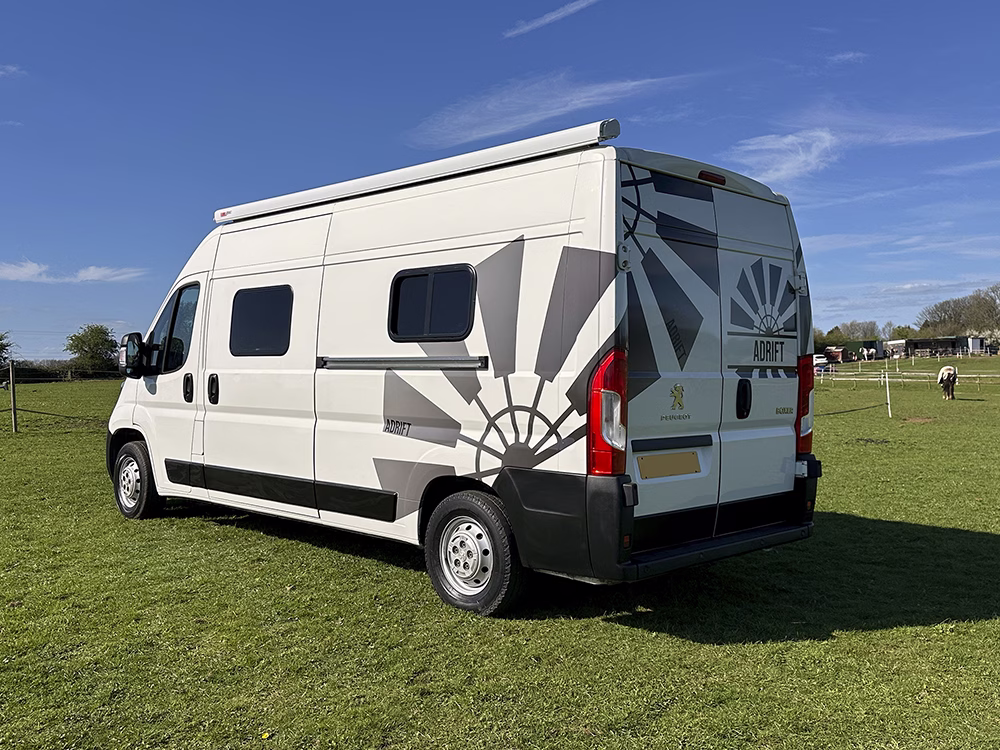

Make: PEUGOUT BOXER
Model:BOXER pro 335 L3 H2
🛠️ Vehicle Condition
The van is in excellent condition and well-maintained
Timing belt and associated components recently replaced its had a service
No oil leaks detected
Comprehensive checks carried out by mechanic
Full breakdown available upon request
🪑 Furniture, Materials & Layout
🏗️ Build Quality & Construction
All Adrift builds use premium materials throughout, carefully selected for durability and weight efficiency
Designed to keep weight down while still providing excellent storage for personal belongings
🧱 Insulation & Soundproofing
Walls insulated with 50mm insulation board plus recycled plastic insulation in tighter areas
Ceiling and floor insulated with 25mm insulation board
Full sound deadening layer installed to reduce road noise
Entire living space wrapped in a vapour barrier (best practice for moisture control)
🔧 Structural Approach
Internal timber framework installed for wall mounting
Avoids fixing directly into the van’s metal structure
Reduces thermal bridging and improves overall insulation performance

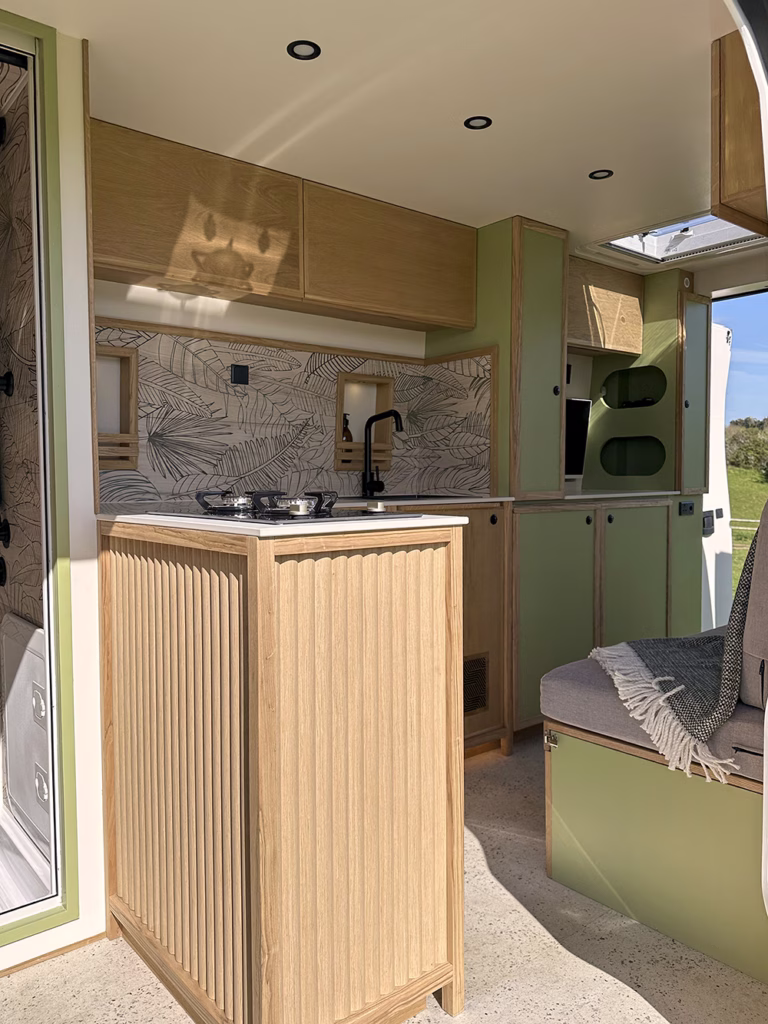

🌿 Materials & Finish
Walls and floor constructed from lightweight poplar plywood (low-VOC, higher quality than cheaper imports)

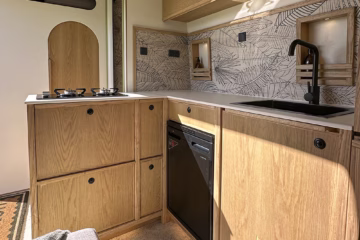

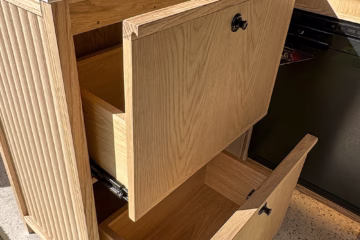

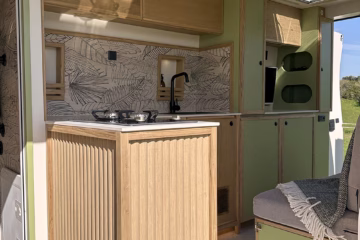

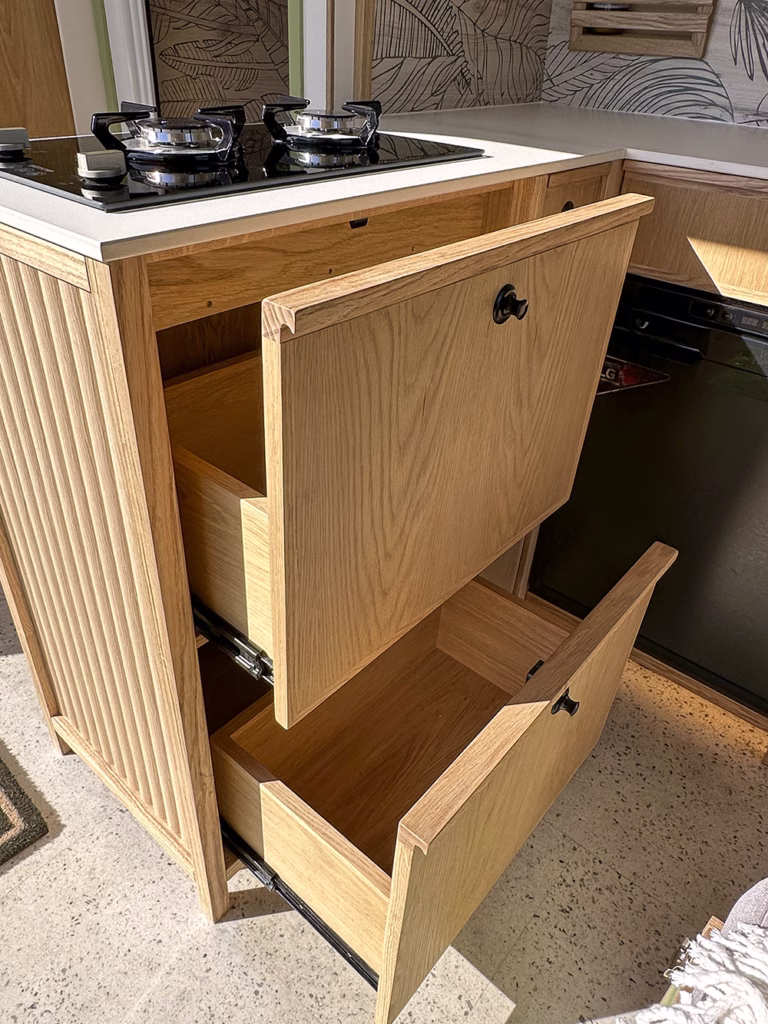

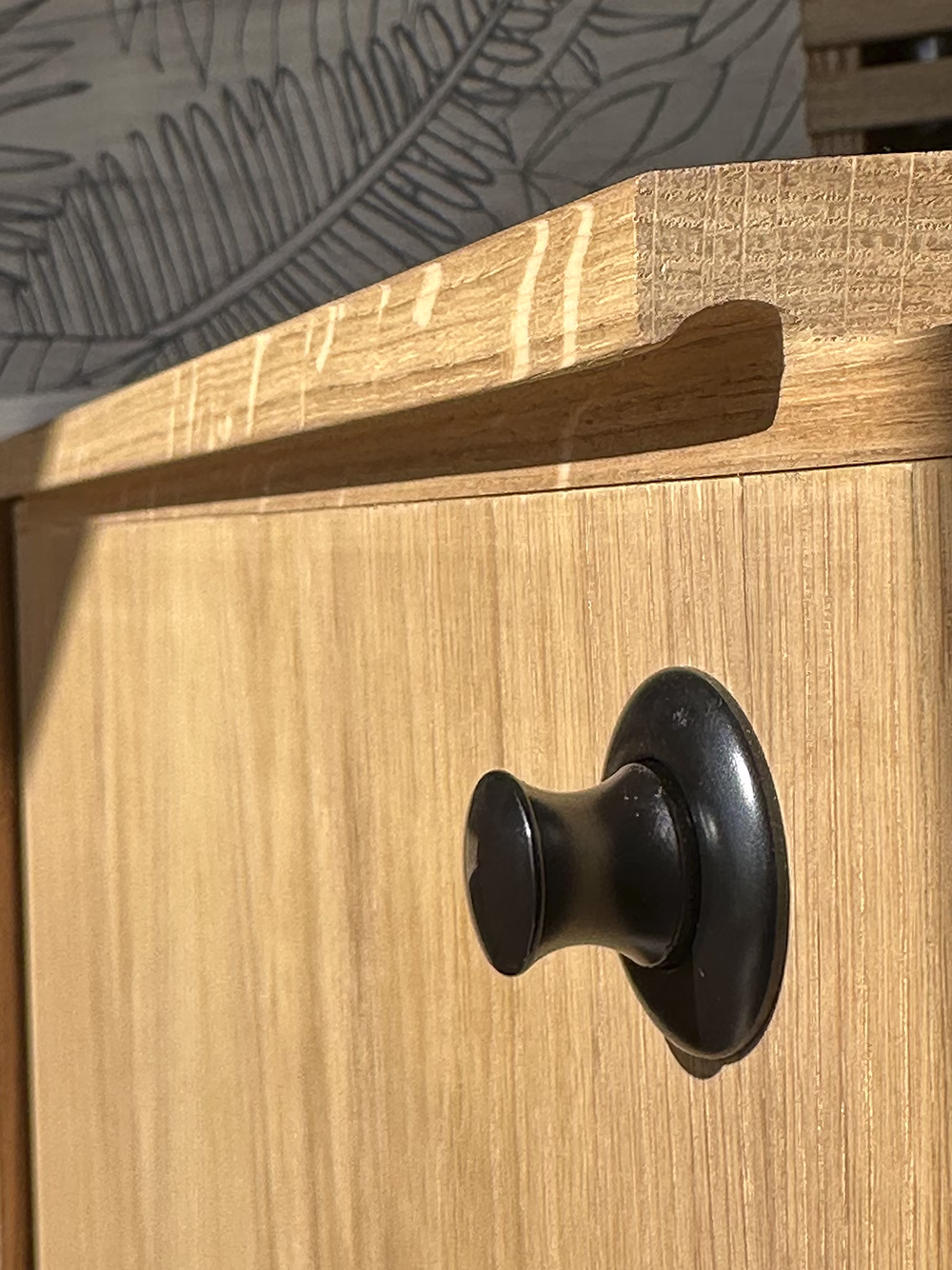

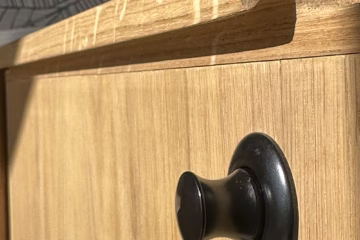

Cabinetry built from oak-veneered poplar ply with real oak edging

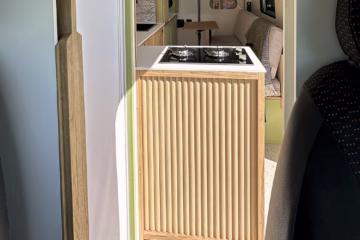

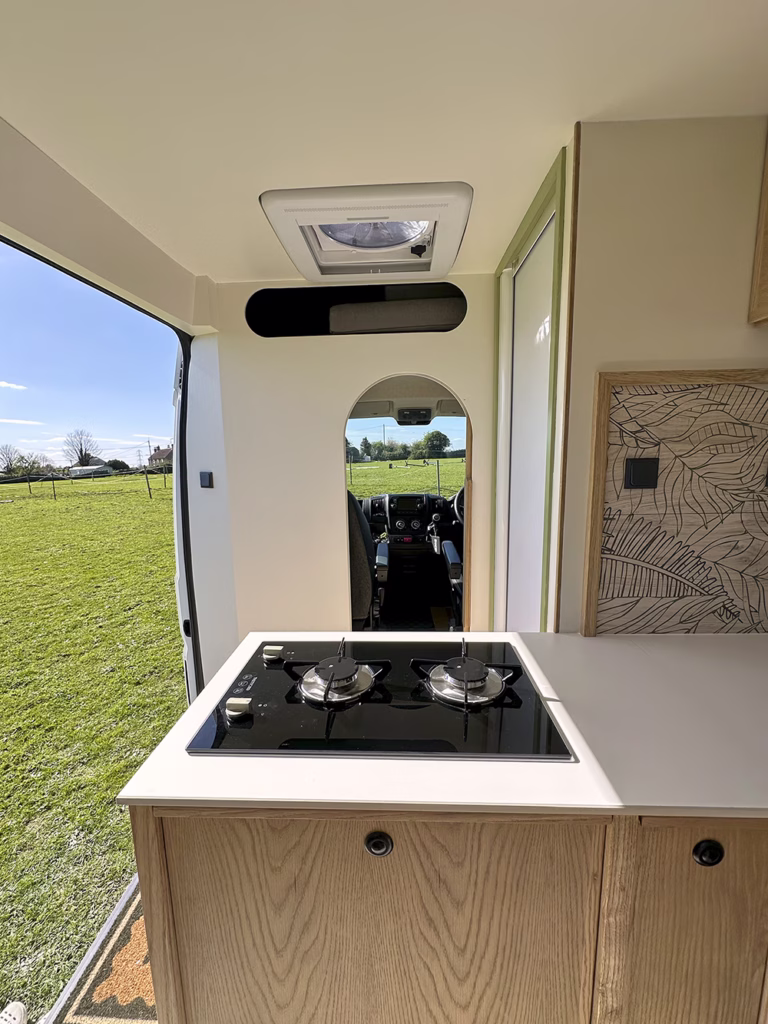

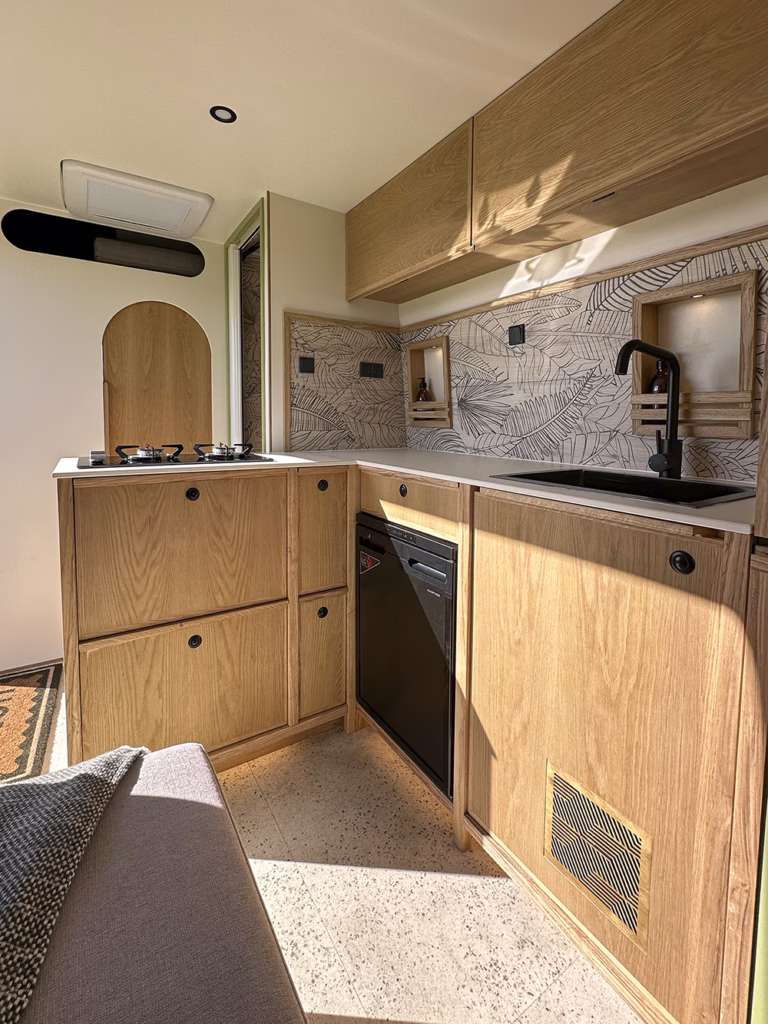

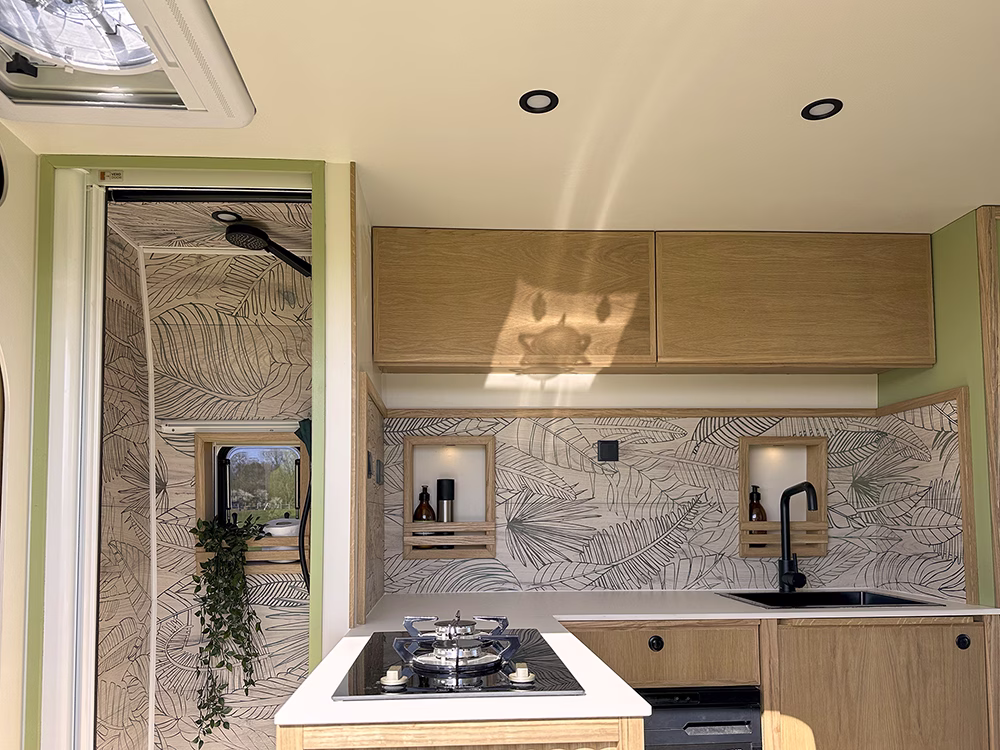

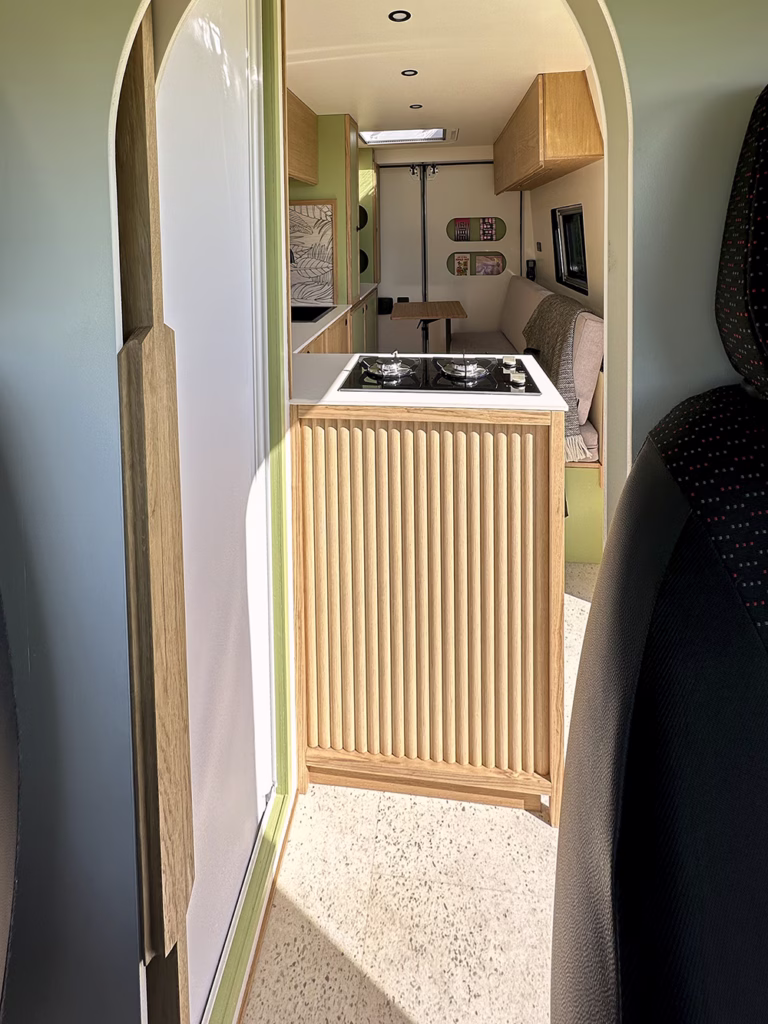

Solid oak framing in the kitchen area for a premium, contemporary finish
🚪 Practical Living Features

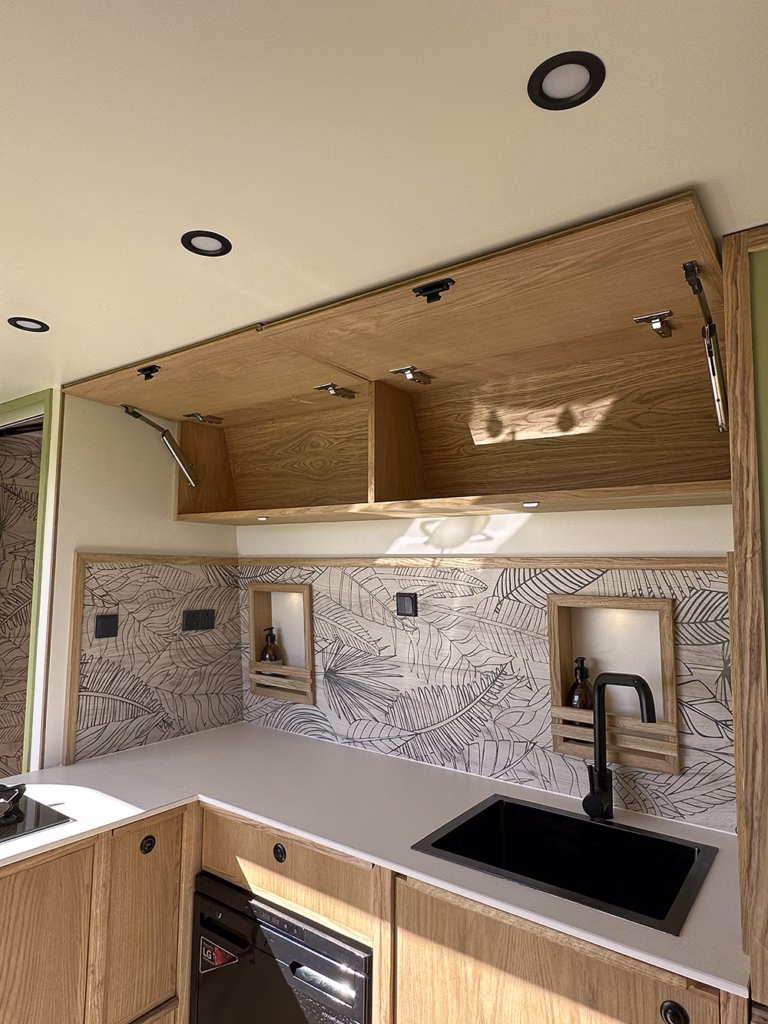

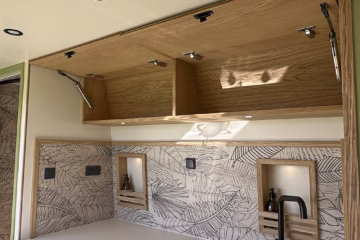

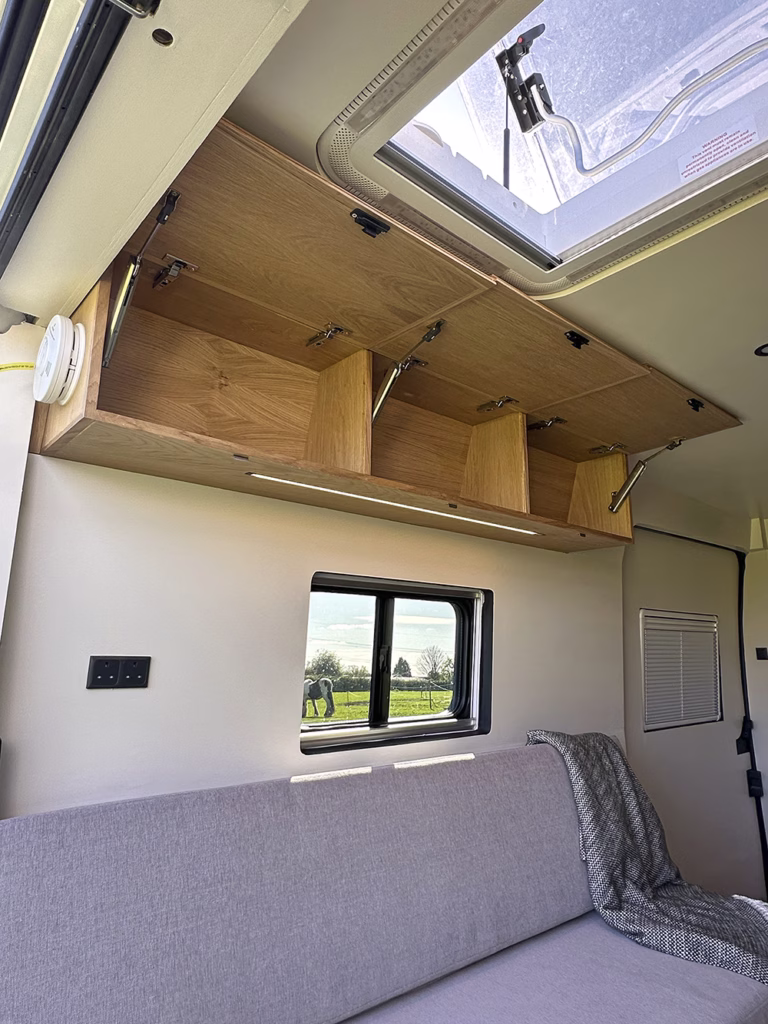

Lockable cabinet latches throughout – no movement or opening while driving
Durable solid laminate worktop – long-lasting and low maintenance (unlike solid wood)

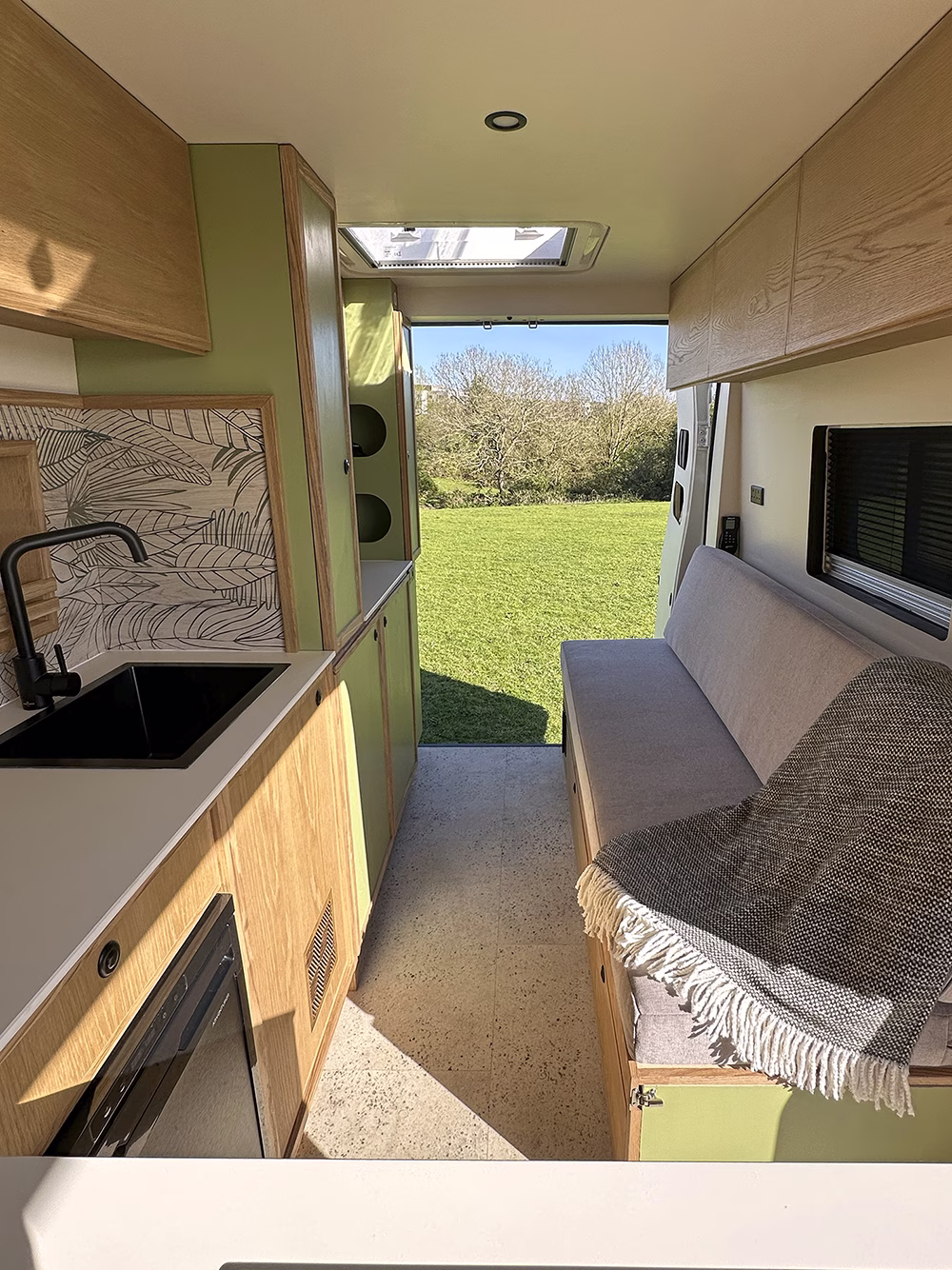

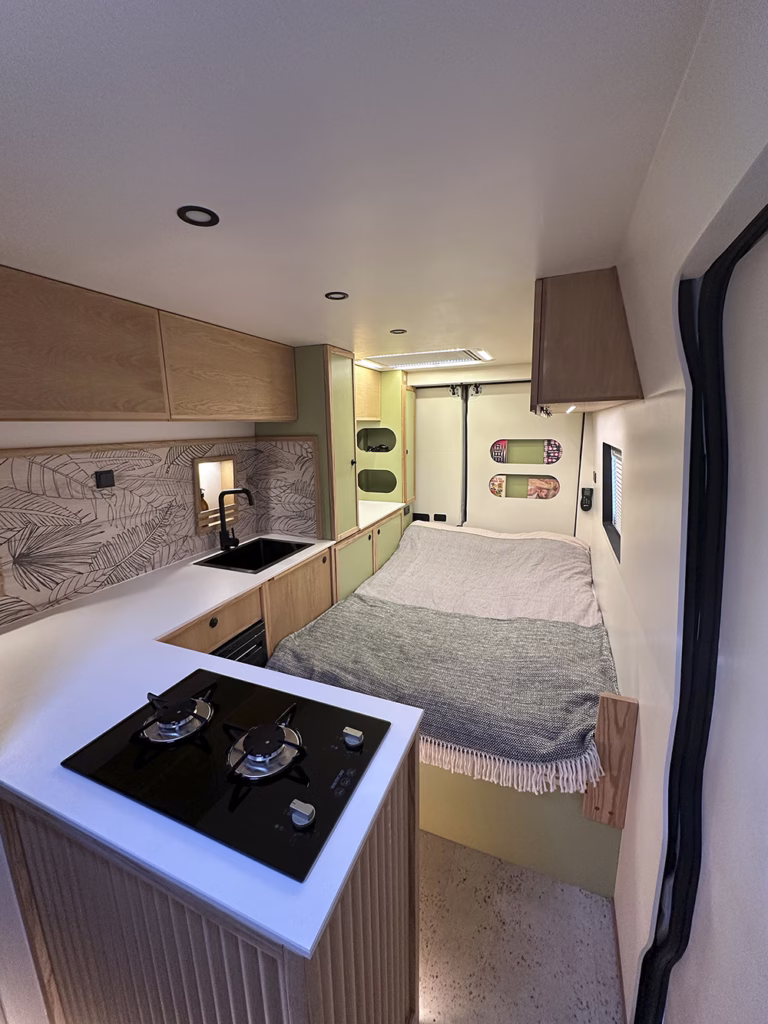

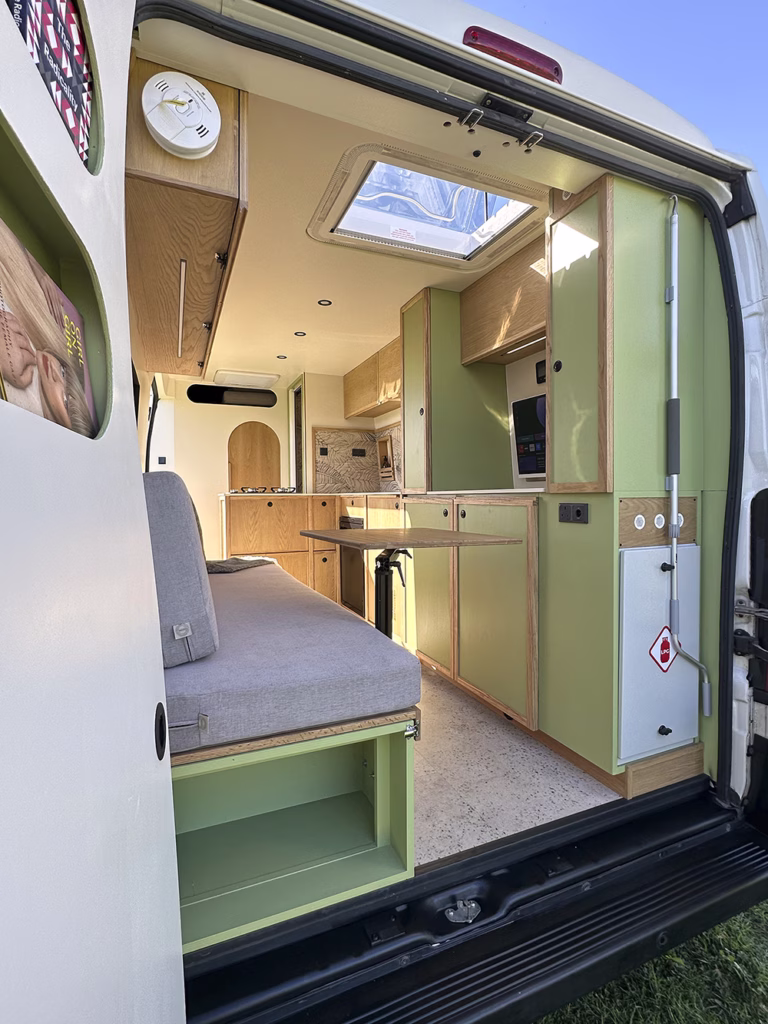

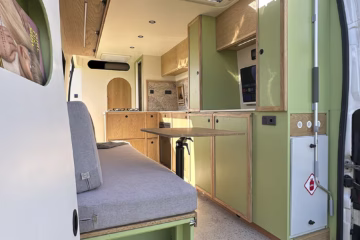

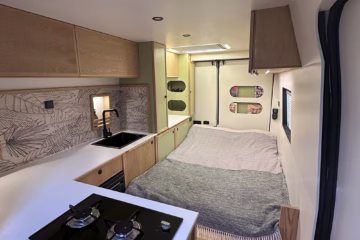

Spacious layout with room to move freely inside the van

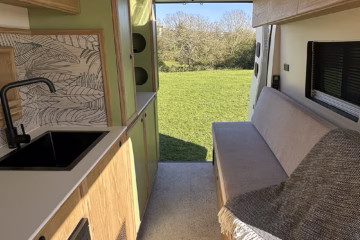

Generous seating area, perfect for relaxing and taking in the views with the rear doors open

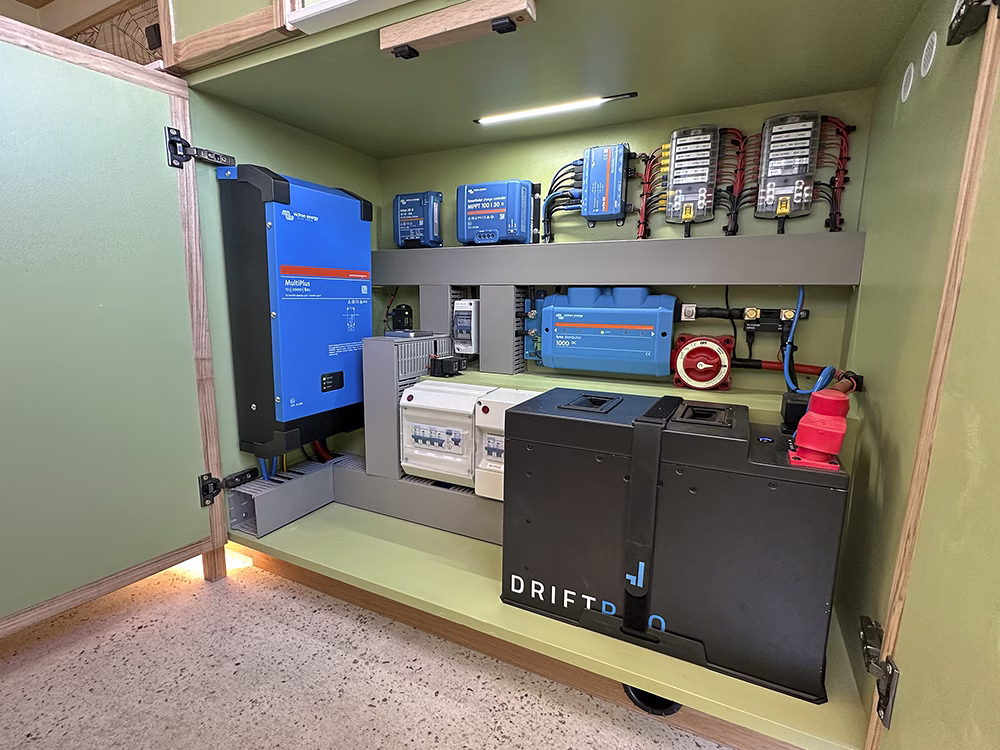

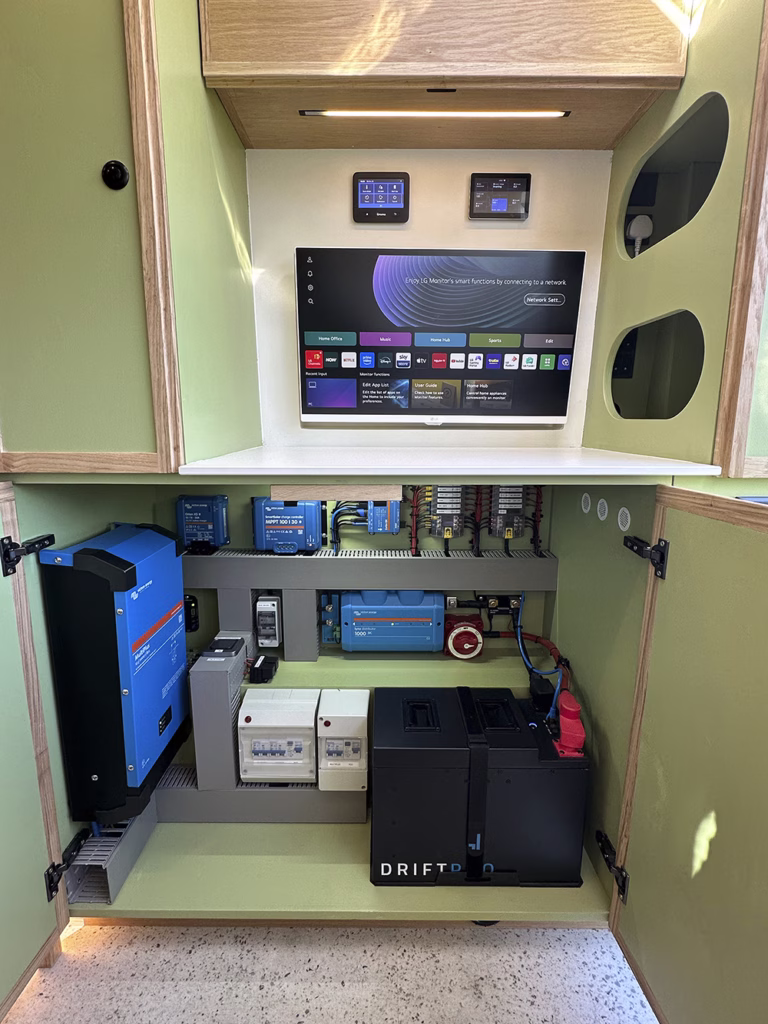

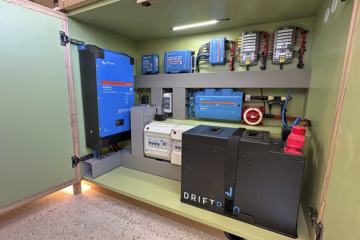

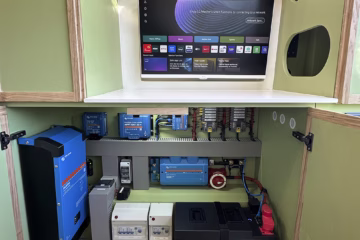

⚡ Electrical System
⚡ Full Professional Electrical System by JC Auto Electrical , tested, and certified leisure electrical system
Stress-tested + full mains electrical test with certificate
Professionally built with premium Victron & Fogstar components
🔋 Power & Battery System
280Ah Fogstar Drift PRO LiFePO4 (Gen2) leisure battery
Battery tray + full heavy-duty cabling & protection
MRBF fuse protection system
Split charge system via Victron Orion XS 50A
B2B maintainer (keeps starter battery topped up)
🔌 Inverter & 240V System
Victron Multiplus 2 (2000VA / 1600W) inverter/charger
Full 240V hook-up system
Twin consumer units with MCB protection
16A hook-up inlet
Fully compliant mains installation with certification
☀️ Solar Setup
440W roof-mounted solar panel
Victron SmartSolar MPPT controller
🧠 Smart Control System (Victron Cerbo GX)

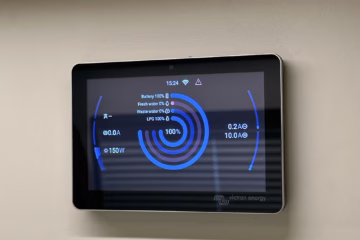

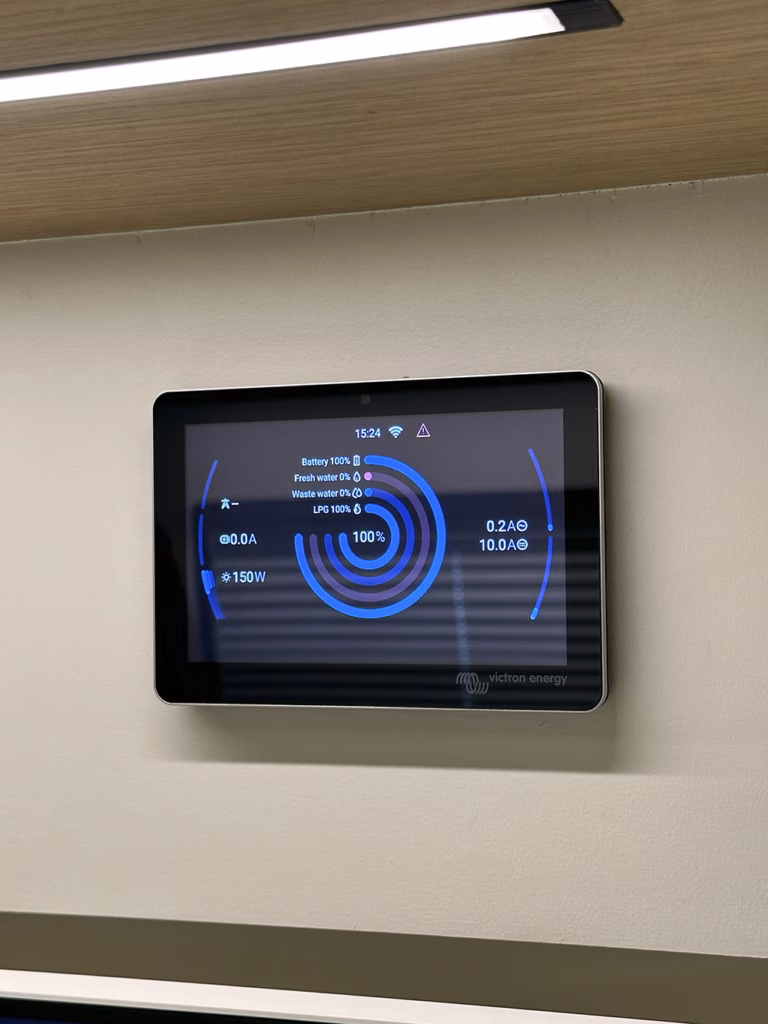

Victron Cerbo GX with Touch 50 display (central control hub)
Full system monitoring from one screen, including:
Battery performance & usage
Solar input & charging
Power consumption
⭐ Advanced Monitoring Features
Fresh water tank levels monitored via Cerbo screen
Waste water tank levels monitored via Cerbo screen
Gas levels monitored via Cerbo system
Fresh water tank heat pad connected to Cerbo – monitor & control directly from the display
(This is a premium, fully integrated smart van system—rare in most builds.)
🔧 Power Distribution & Protection
Victron Lynx Distributor system
Victron Smart Shunt (precise battery monitoring)
Victron Battery Protect
Mega fuses + holders throughout
Blue Sea:
12-way fuse boxes (x2)
Isolator switch
Bus bars, relays & full circuit protection
💡 Lighting & Accessories
Warm white LED down lights
HDMI + USB extension ports
Ruuvi Tag Pro (environment monitoring)
🛠️ Build Quality & Installation
Fully loomed cabling with conduit & trunking
High-quality connectors, eyelets & consumables
Professionally installed with attention to safety & longevity
💧 Water System
High-quality fresh and waste water tanks by Barrett Tanks
Tanks fully insulated with Armaflex and wrapped in a vapour barrier for improved temperature control
Fresh water tank fitted with a heat pad for reliable winter use
🧠 Smart Monitoring
Both fresh and waste tanks fitted with Wema heavy-duty sensors
Tank levels can be monitored via the Victron Cerbo GX display
🚰 Filling & Drainage
External filling point with hose connector for easy refilling
Simple, user-friendly waste water valve for quick and clean drainage
🔥 Heating System – Truma Combi 4D
Truma Combi 4D diesel heater – provides both warm air heating and hot water from one compact, efficient unit
Powerful, reliable and ideal for all-season use, keeping the van comfortable in cold conditions
Runs directly from the vehicle’s diesel tank for convenience when travelling and staying off grid
240V hook-up option – allows heating and hot water to run on mains electric when plugged in
🎛️ Easy-to-Use Control Panel
Simple, intuitive digital control panel
Set temperature, hot water and heating modes with ease
Quick adjustment for day/night comfort
📱 iNet Ready (Smart Control)
Truma iNet ready – can be upgraded for app control
Monitor and control heating remotely via smartphone (with iNet system installed)
Perfect for pre-heating the van before you arrive
🚿 Shower & Toilet

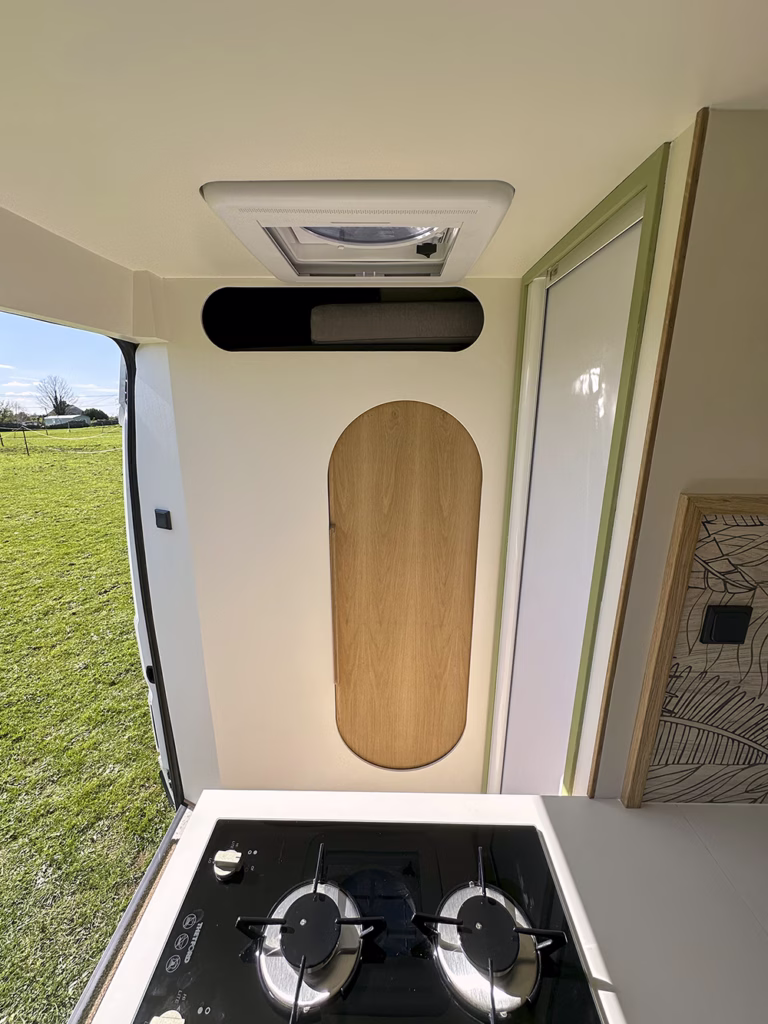

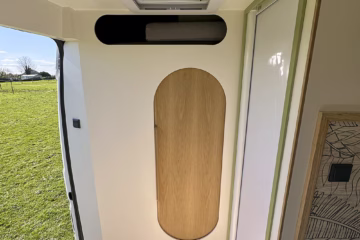

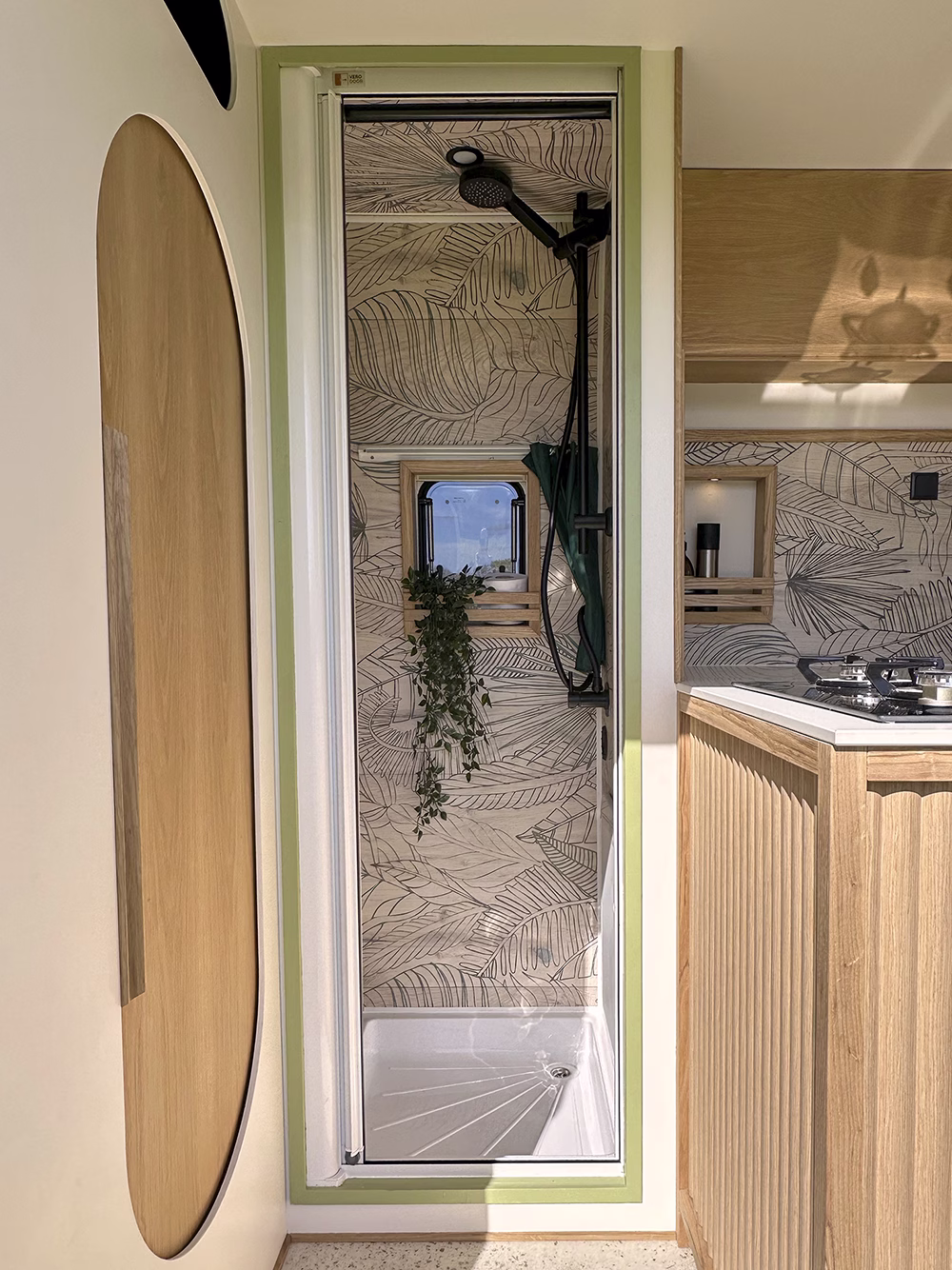

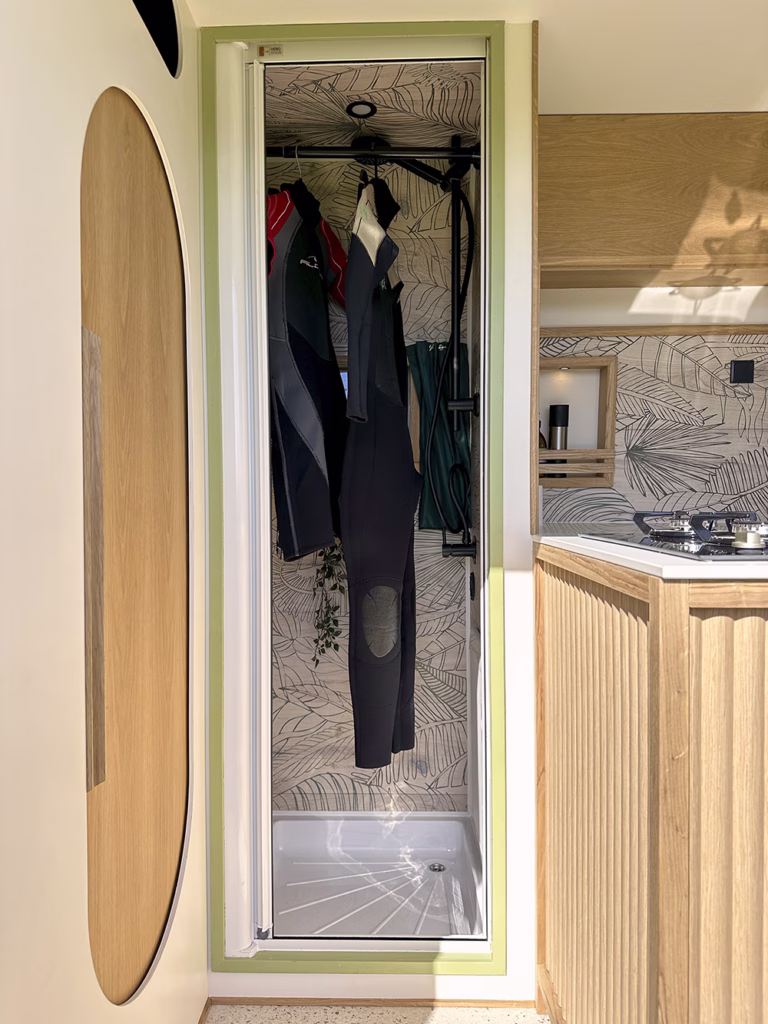

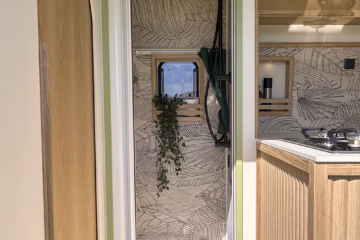

Fully lined shower using Tragwall shower panel system – waterproof, durable, and easy to maintain

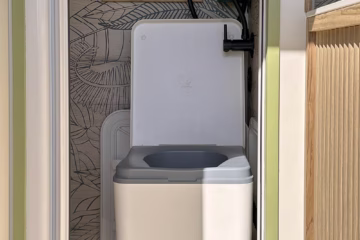

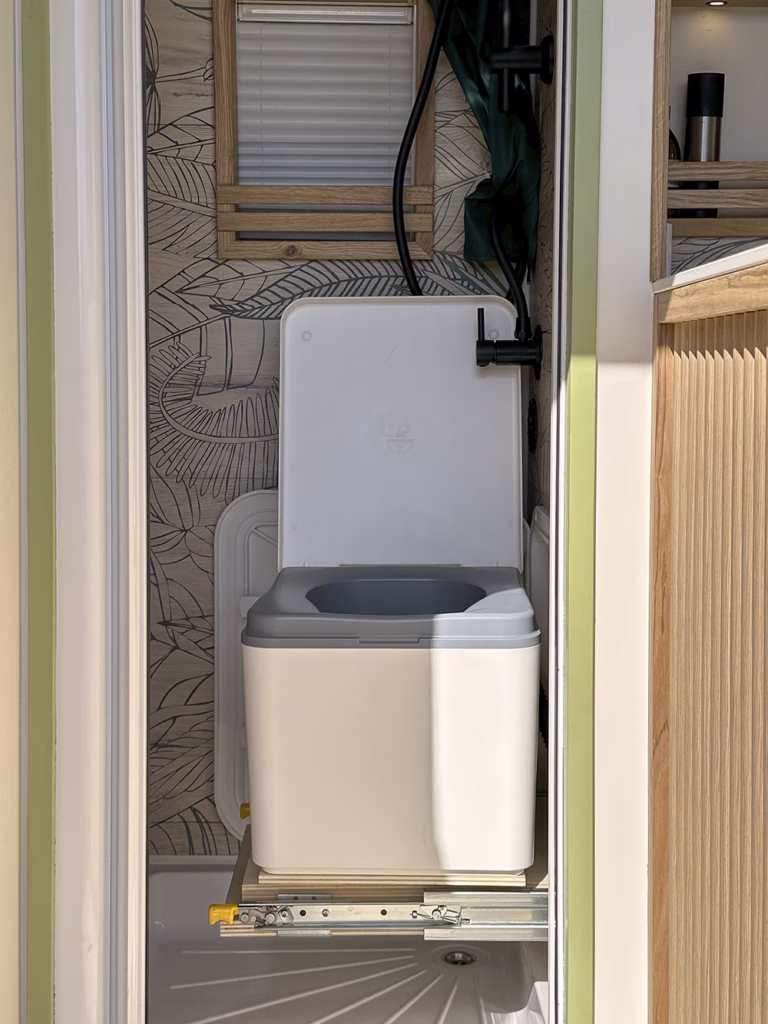

Trelino® Evo S composting toilet – eco-friendly and ideal for off-grid use
Fitted with a SOG ventilation system to effectively remove unwanted odours
🧠 Smart Space-Saving Design
Clever pull-out toilet system
Toilet neatly stores behind a waterproof hatch when not in use
Creates a compact yet highly practical shower space

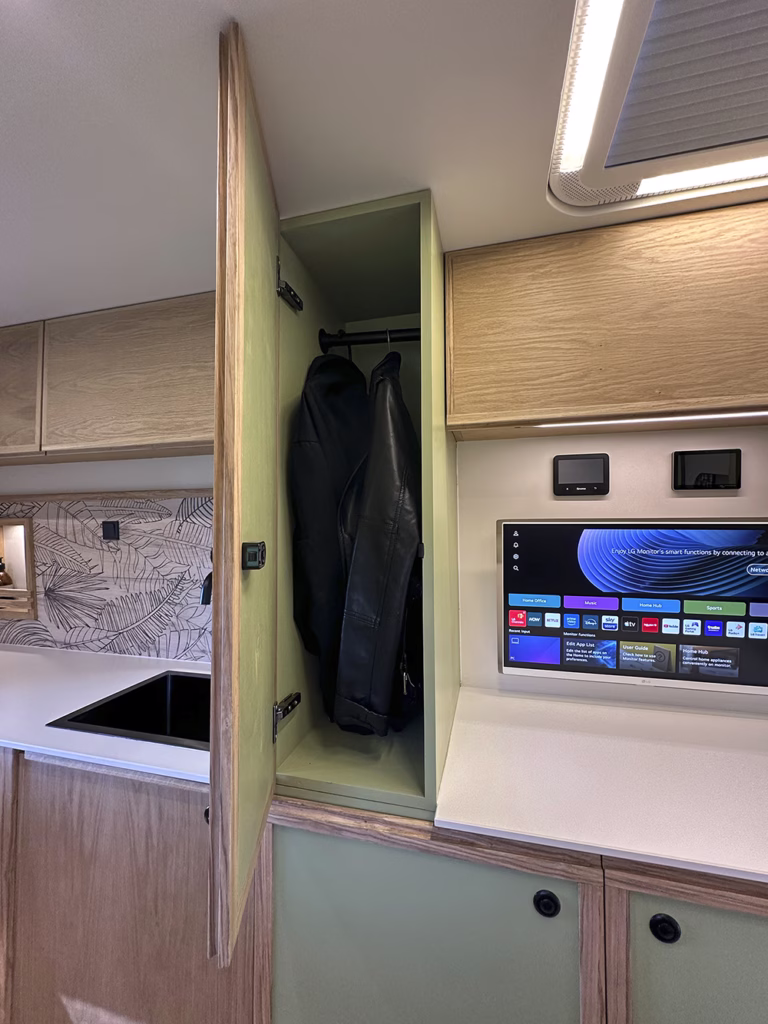

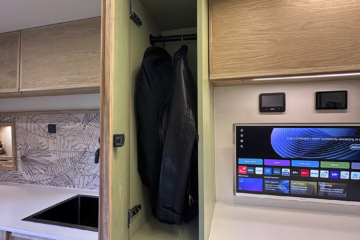

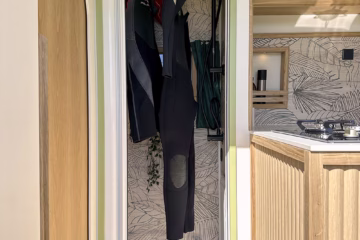

Perfect for hanging wet gear, which—thanks to the Truma heating vent—can also be used as a practical drying room.
💡 Lighting

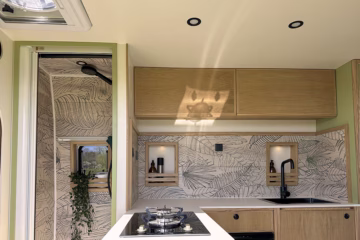

Ceiling spotlights throughout the main living area
Kick board lighting for a modern ambient glow
Alcove feature lighting to enhance the interior feel

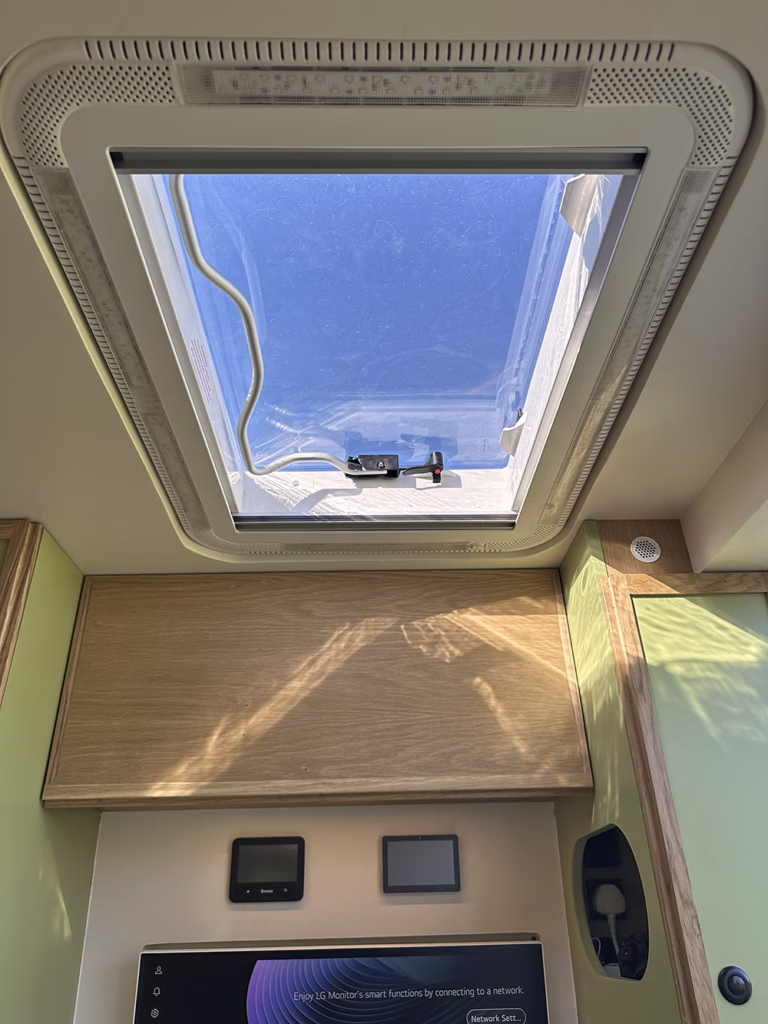

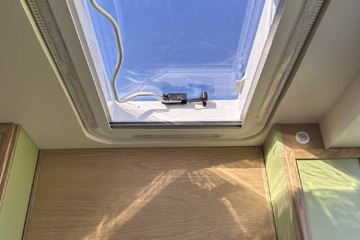

Large skylight with integrated lighting
Under-cupboard lighting
🎛️ Control & Ambience
Touch-controlled, dimmable lighting system
Multiple lighting zones to suit different needs
Easily adjust brightness to create the perfect mood, day or night
🪵 Flooring
Quick-Step Illume Stone Effect LVT Click Vinyl – stylish and practical flooring solution
Realistic stone patterns and textures for a sophisticated, contemporary look
Durable and resilient – resistant to scratches, daily wear, and water damage
Comfortable underfoot and easy to maintain, combining the beauty of stone with the convenience of vinyl
✨ Extras

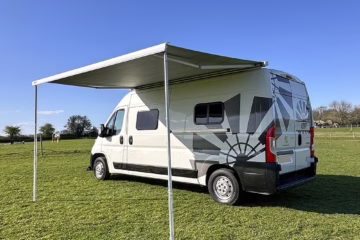

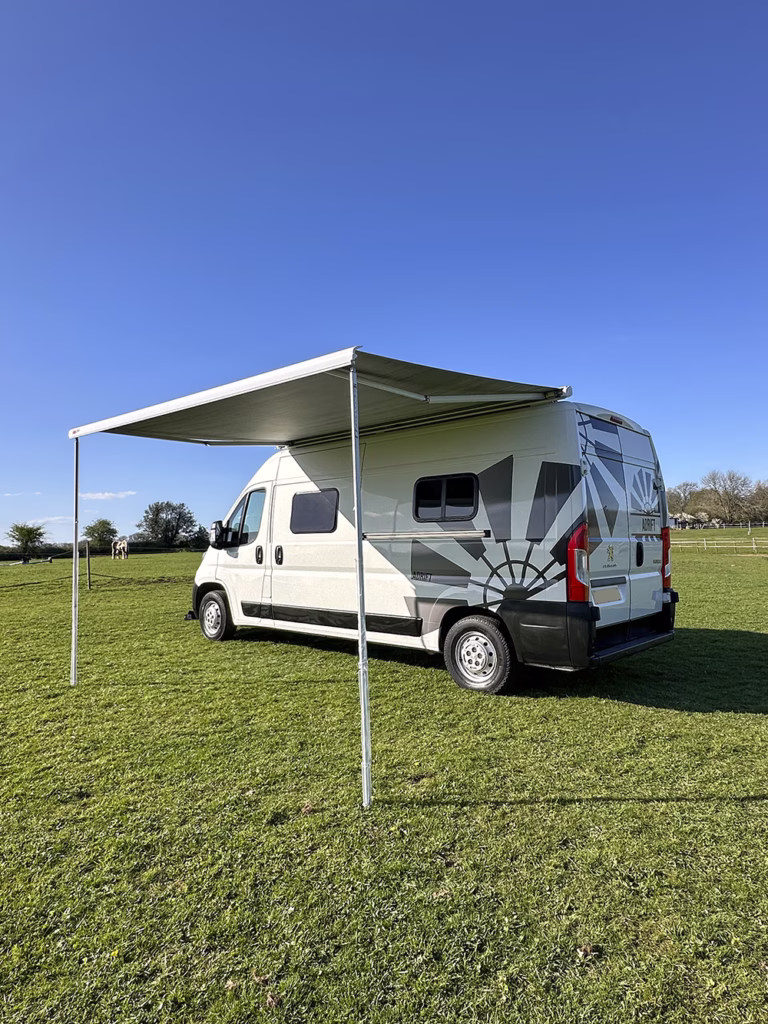

Awning – extendable for outdoor living and shade
Max Air fan – efficient roof ventilation for comfort in all seasons
Adventure skylight & windows – all fitted with built-in fly screens and blinds

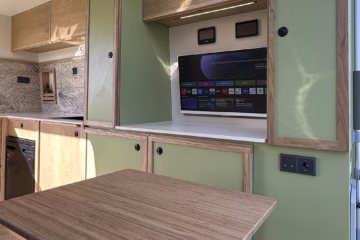

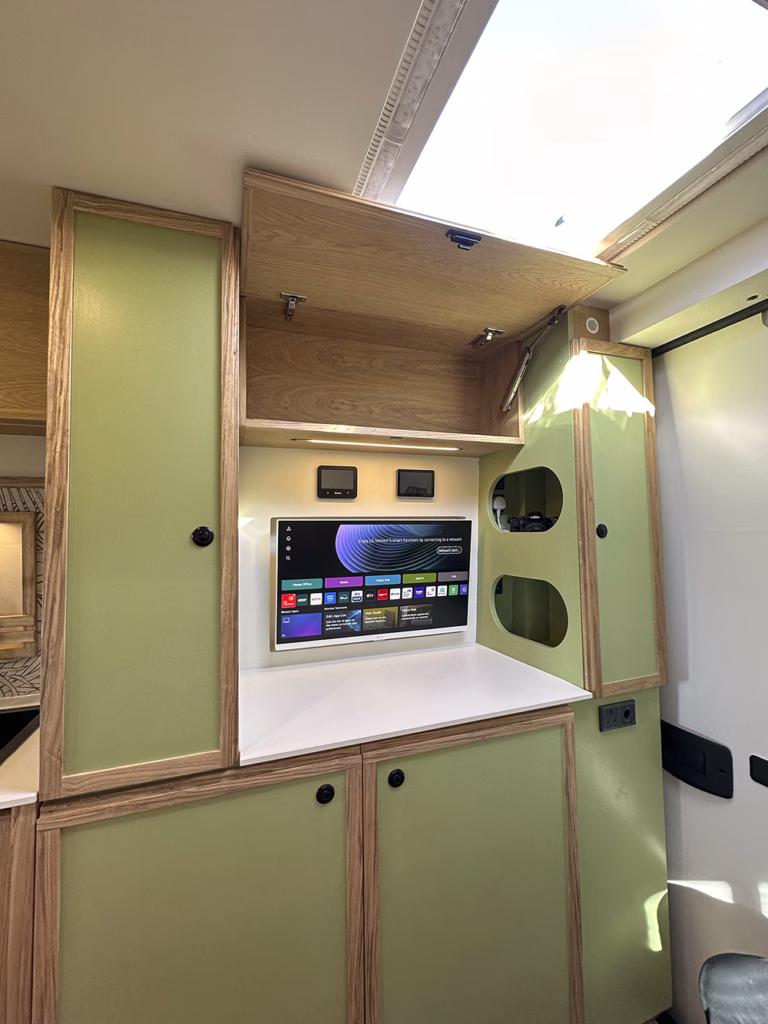

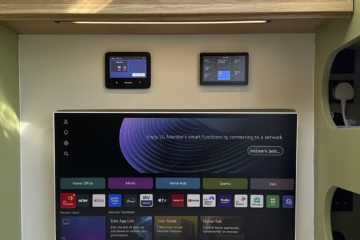

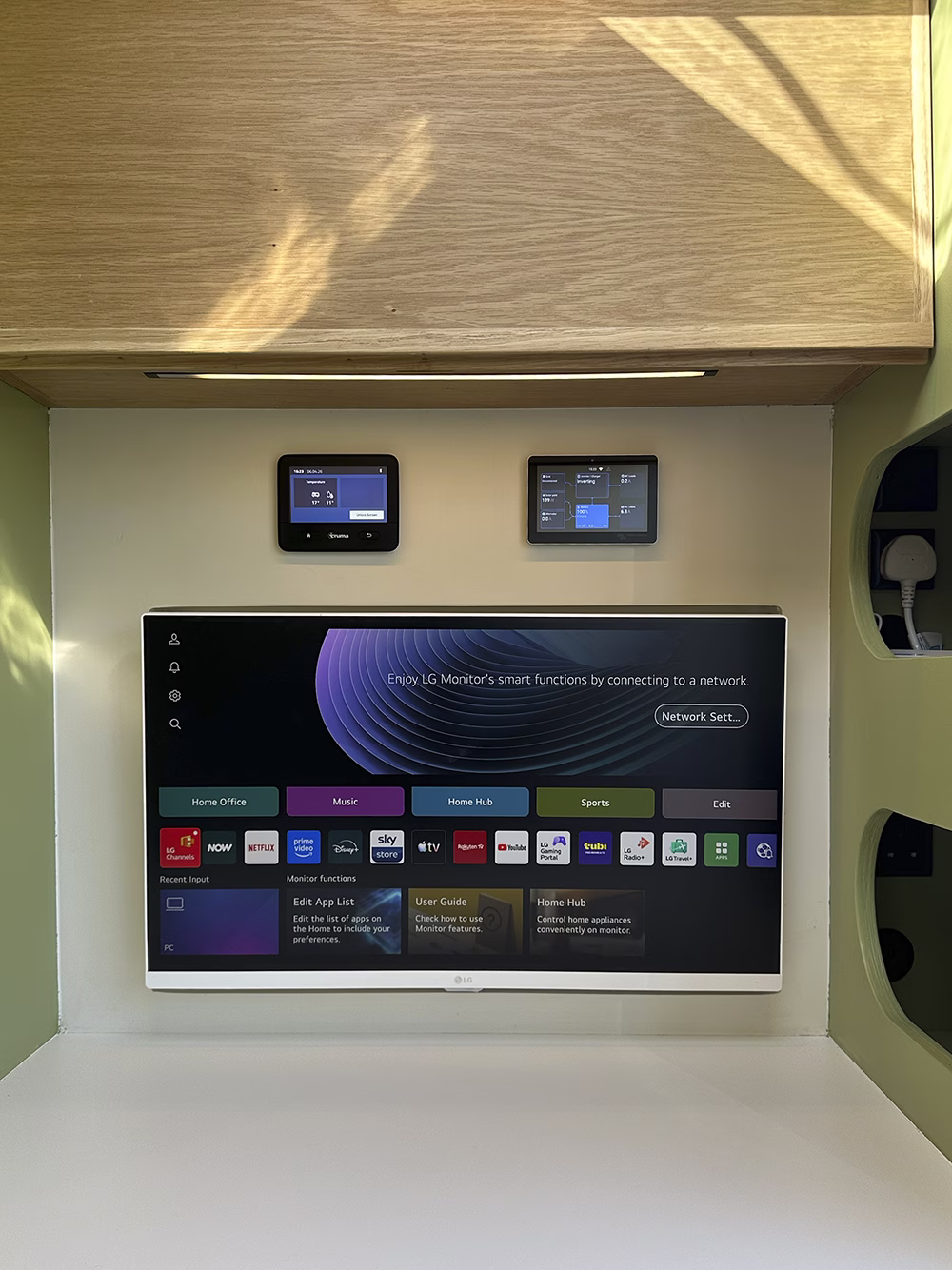

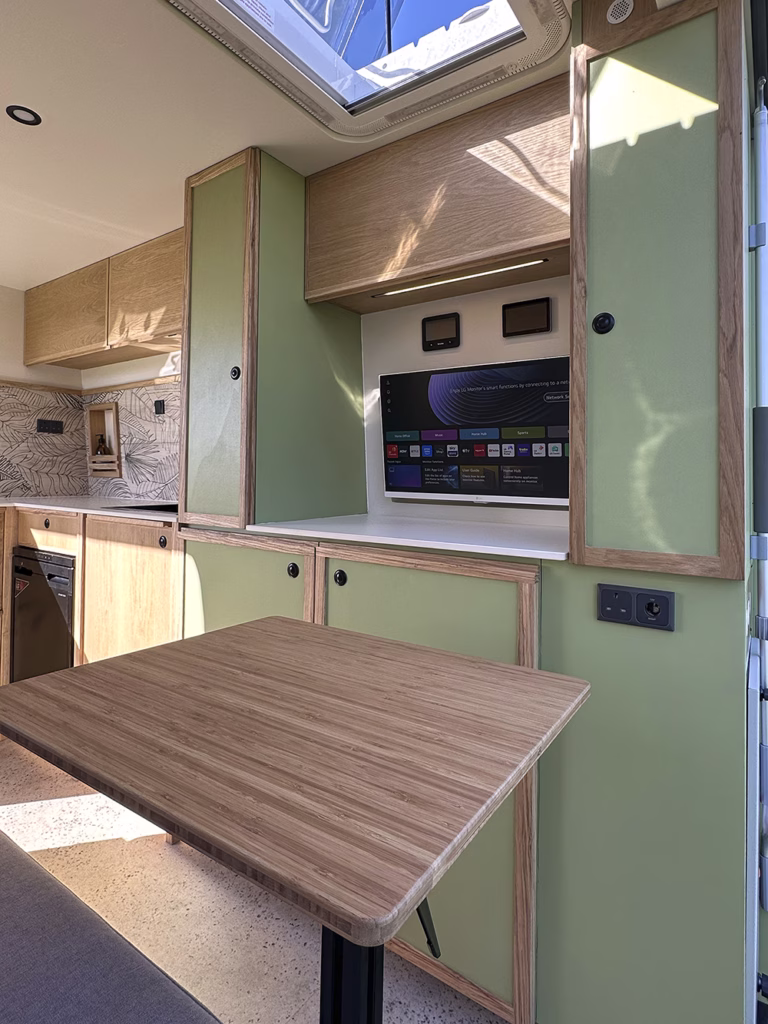

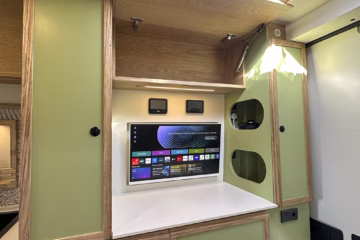

Smart TV – doubles as a monitor, with Bluetooth screen sharing and optional Wi-Fi hotspot via phone

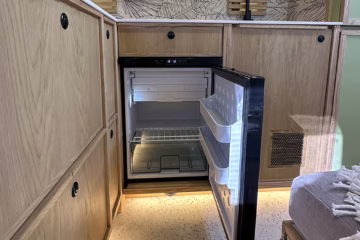

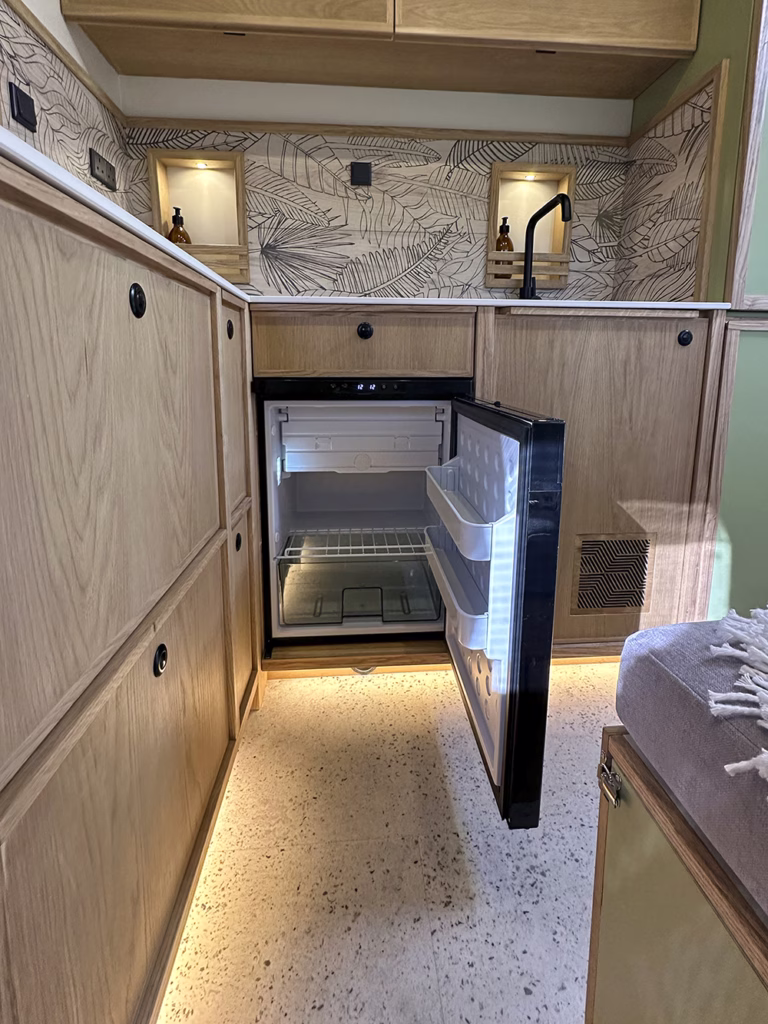

65-litre fridge/freezer – sliding door design allows easy access into the cab from inside the living space
Lugun swivel table – easily removable and storable above the cab
🛡️ Warranty & Certification
Build Warranty: 1-year warranty on all items built by adrift
Assistance in contacting manufacturers for repairs or replacements under warranty
Mechanical Warranty: None
Electrical Work: Signed off by JC Auto Electrical, with additional support available if needed
Gas System: Certified for personal use
Optional assistance to facilitate a rental certificate if required
DVLA Compliance:
DVLA checklist completed
Graphics and registration requirements ready for conversion to motorhome (buyer to arrange final registration)
Guaranteed Payload: Professionally built new conversion with verified weight and payload capacity
⚖️ Weight & Payload
Unladen weight: 3000kg (weight certificate provided)
Total payload available: 500kg
Real-world example:
Full fuel tank: ~75kg
2 passengers: ~150kg
Full water tank: ~80kg
➡️ Approx. 190kg remaining for personal belongings
With nearly 10 years of campervan building experience, this is the first conversion I’ve had the freedom to design and build entirely myself—bringing together years of knowledge to create a practical yet beautifully finished van.
Featuring a high-quality electrical and systems installation, this build delivers everything you’d expect from a premium conversion, with safety and regulations considered throughout.
The contemporary design offers a true bespoke, handcrafted feel, built with real passion and attention to detail.

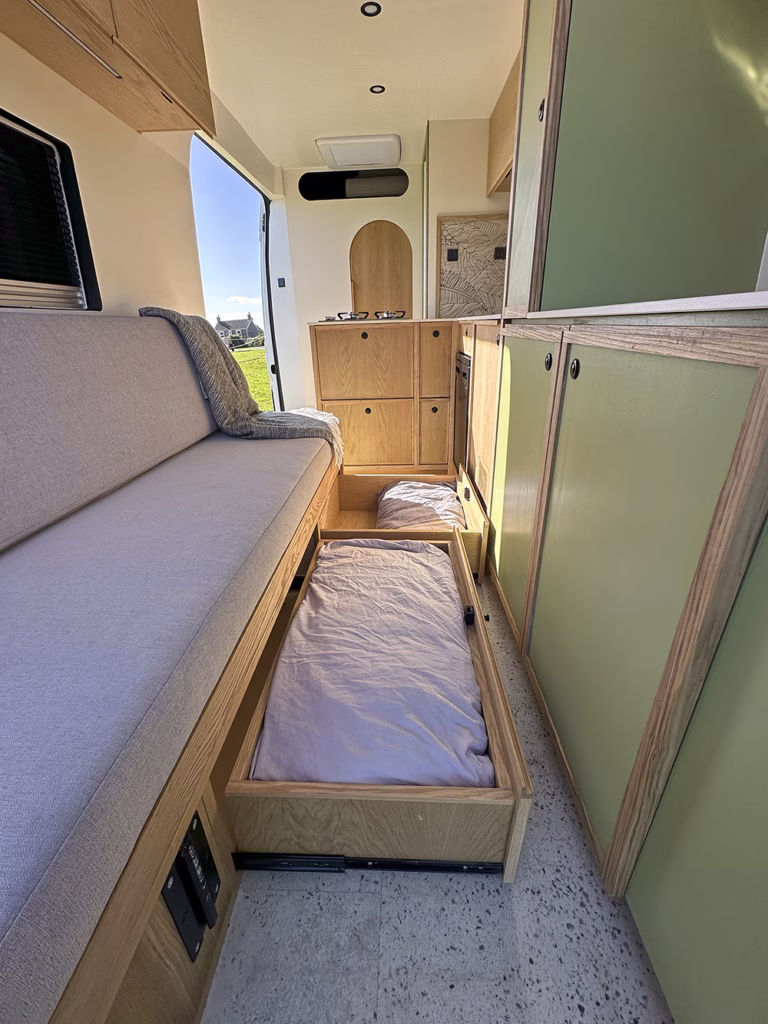

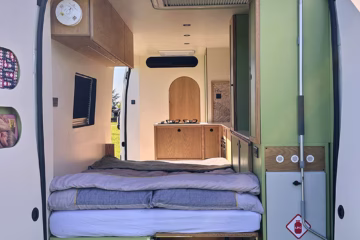

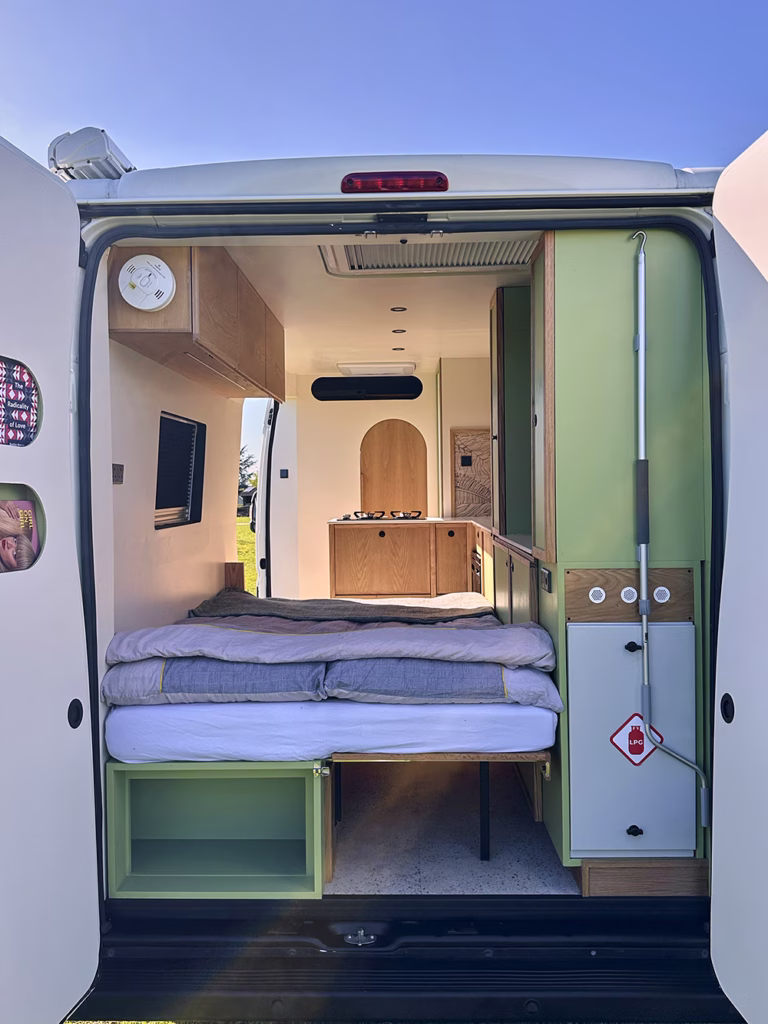

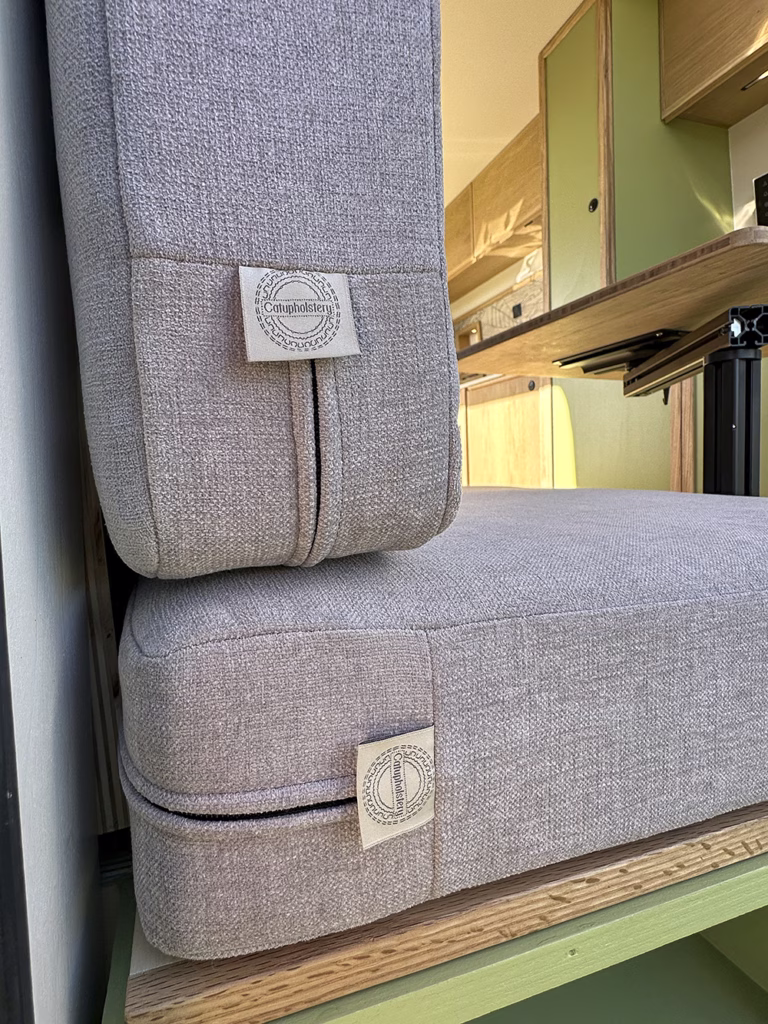

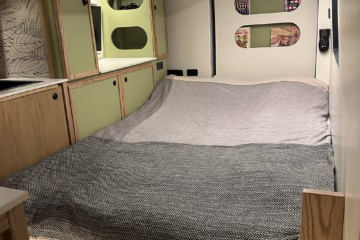

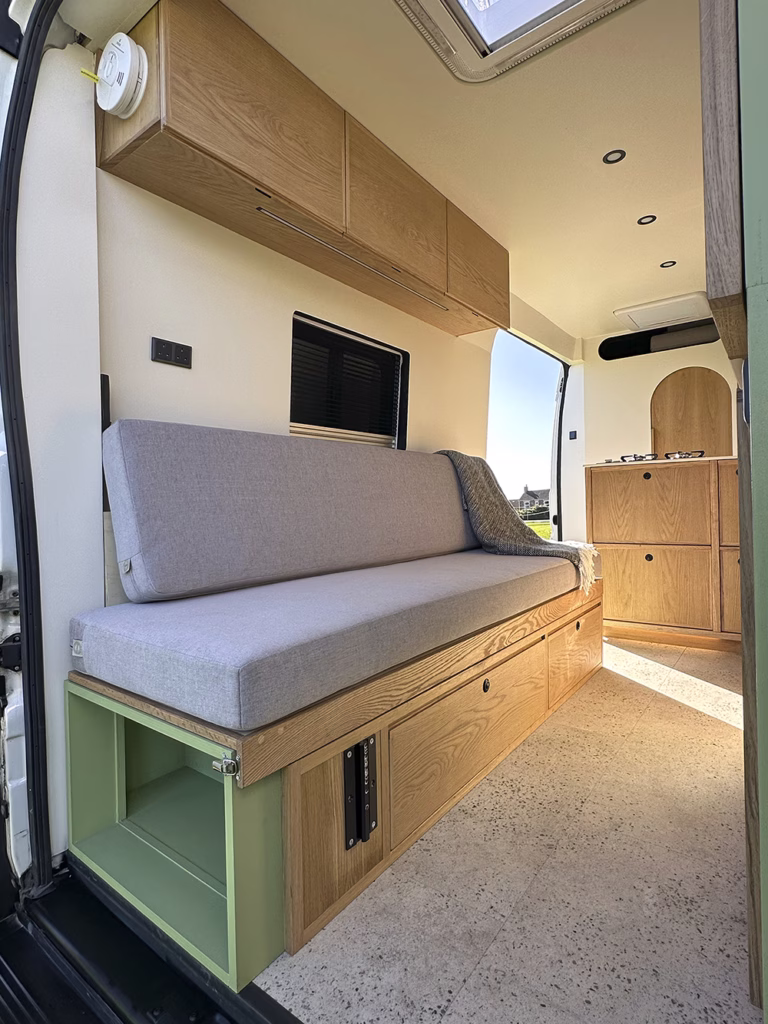

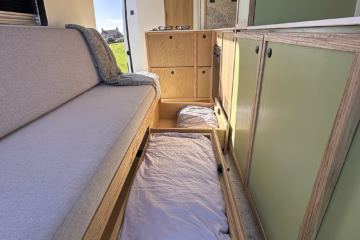

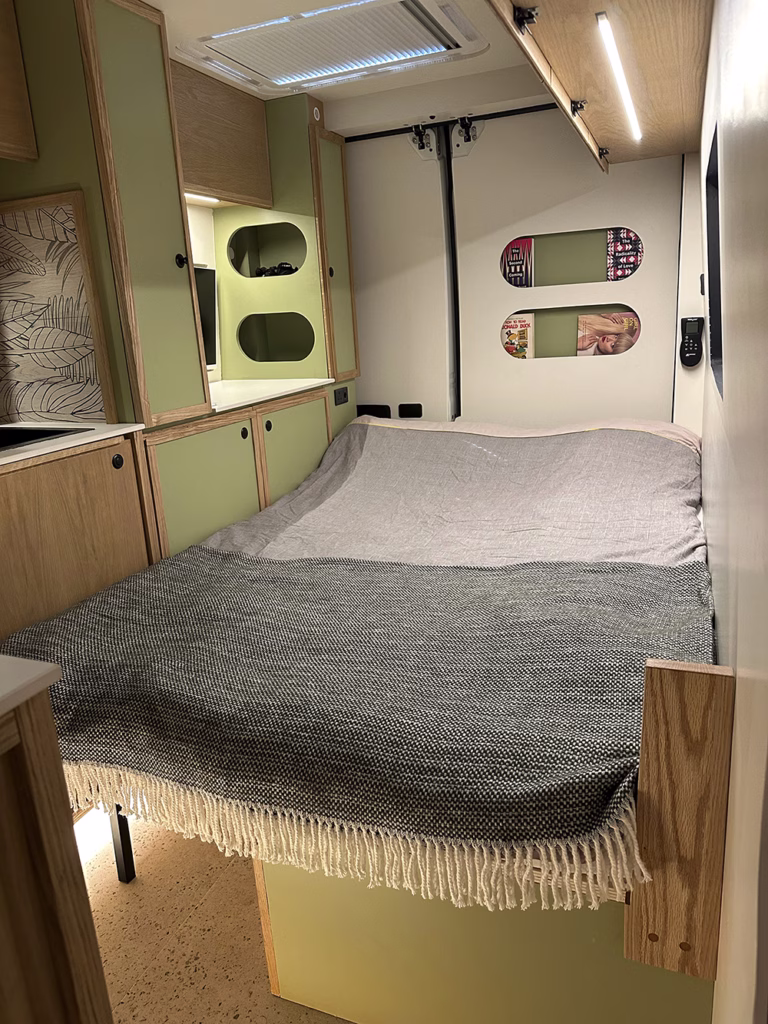

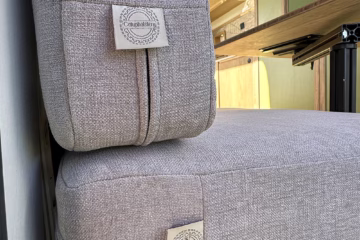

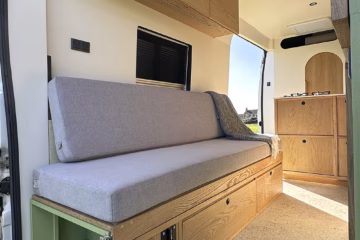

The seating effortlessly transforms into a full-size double bed by sliding forward, with integrated mechanisms doing all the work. Two additional cushions, neatly stored above the cab, complete the comfortable mattress.
