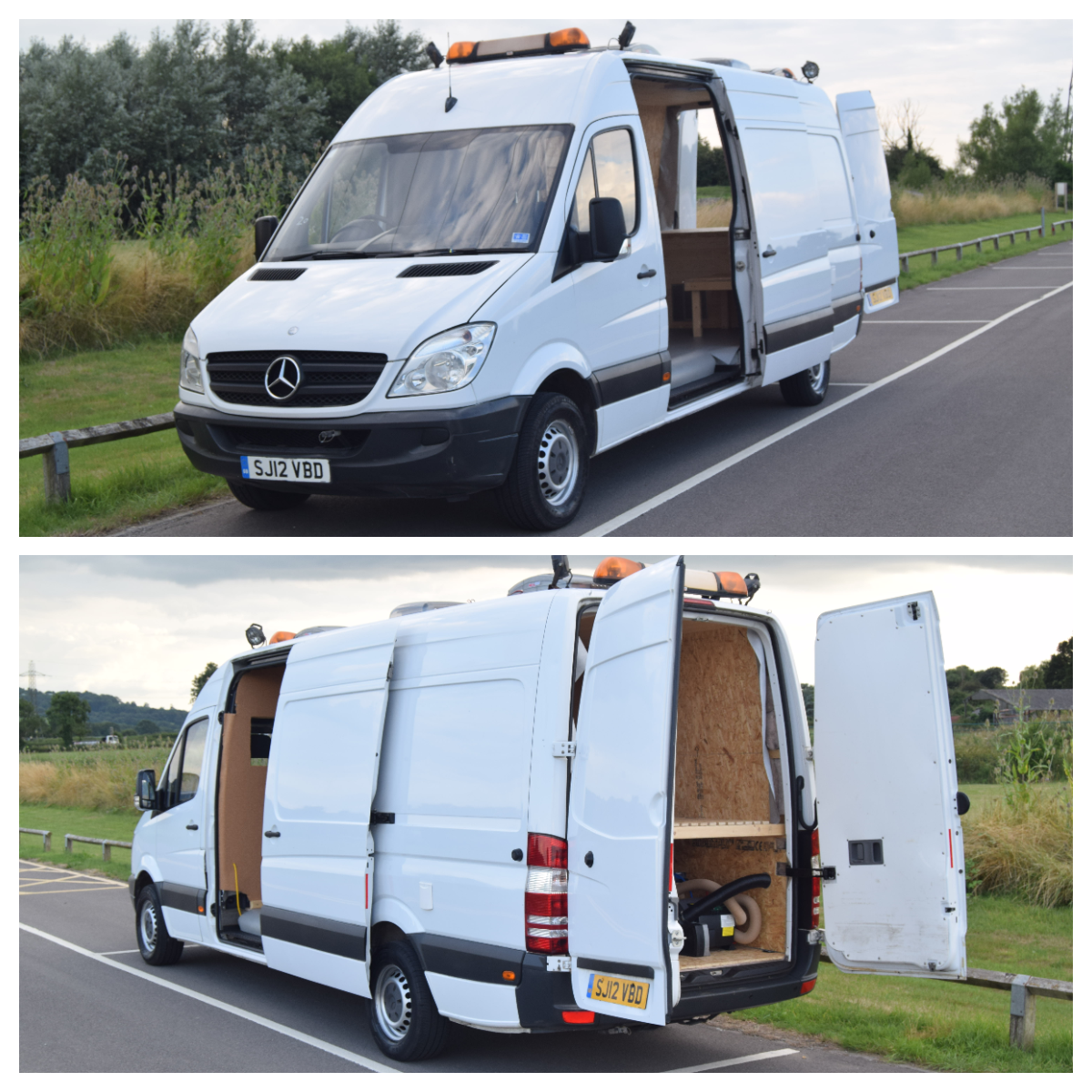

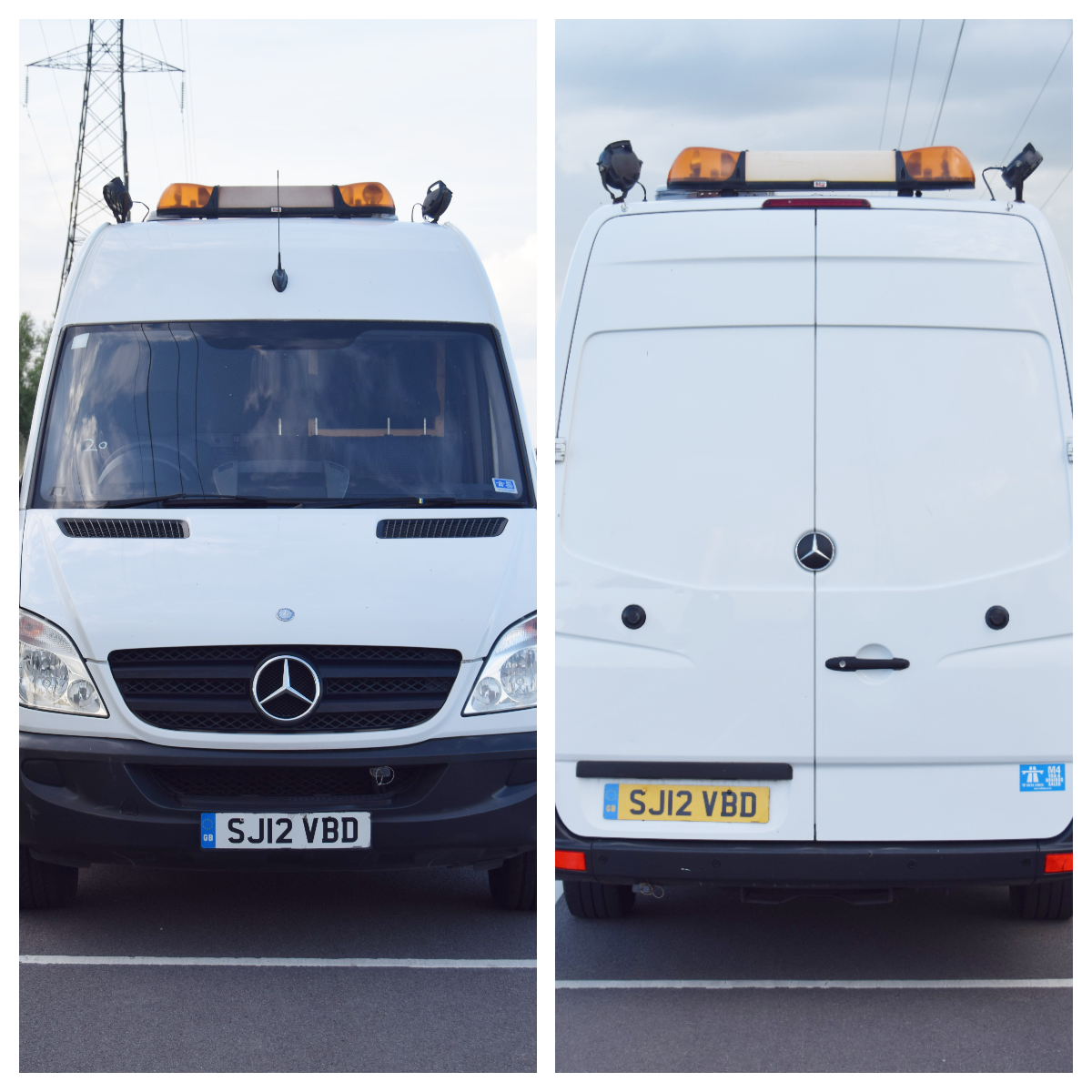

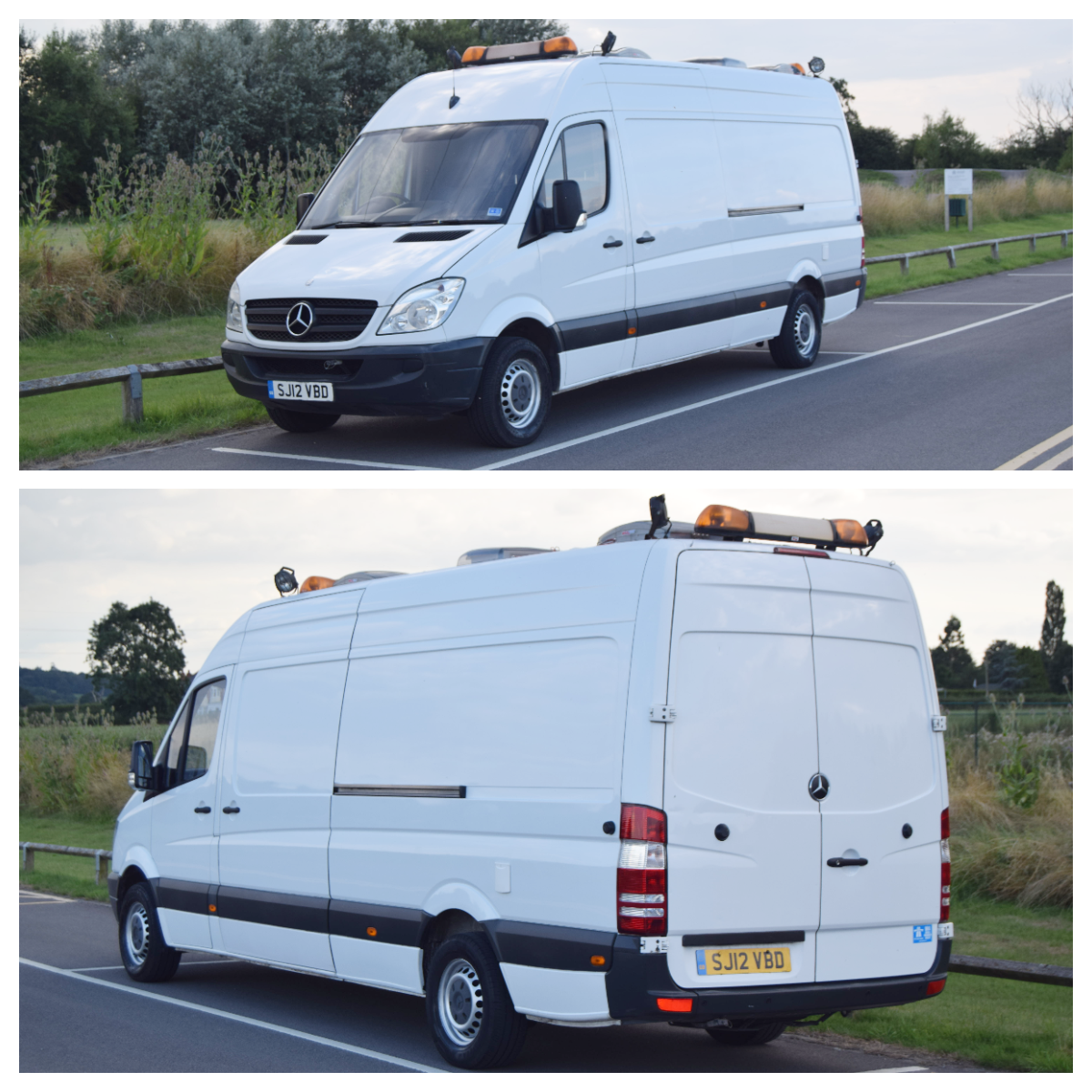

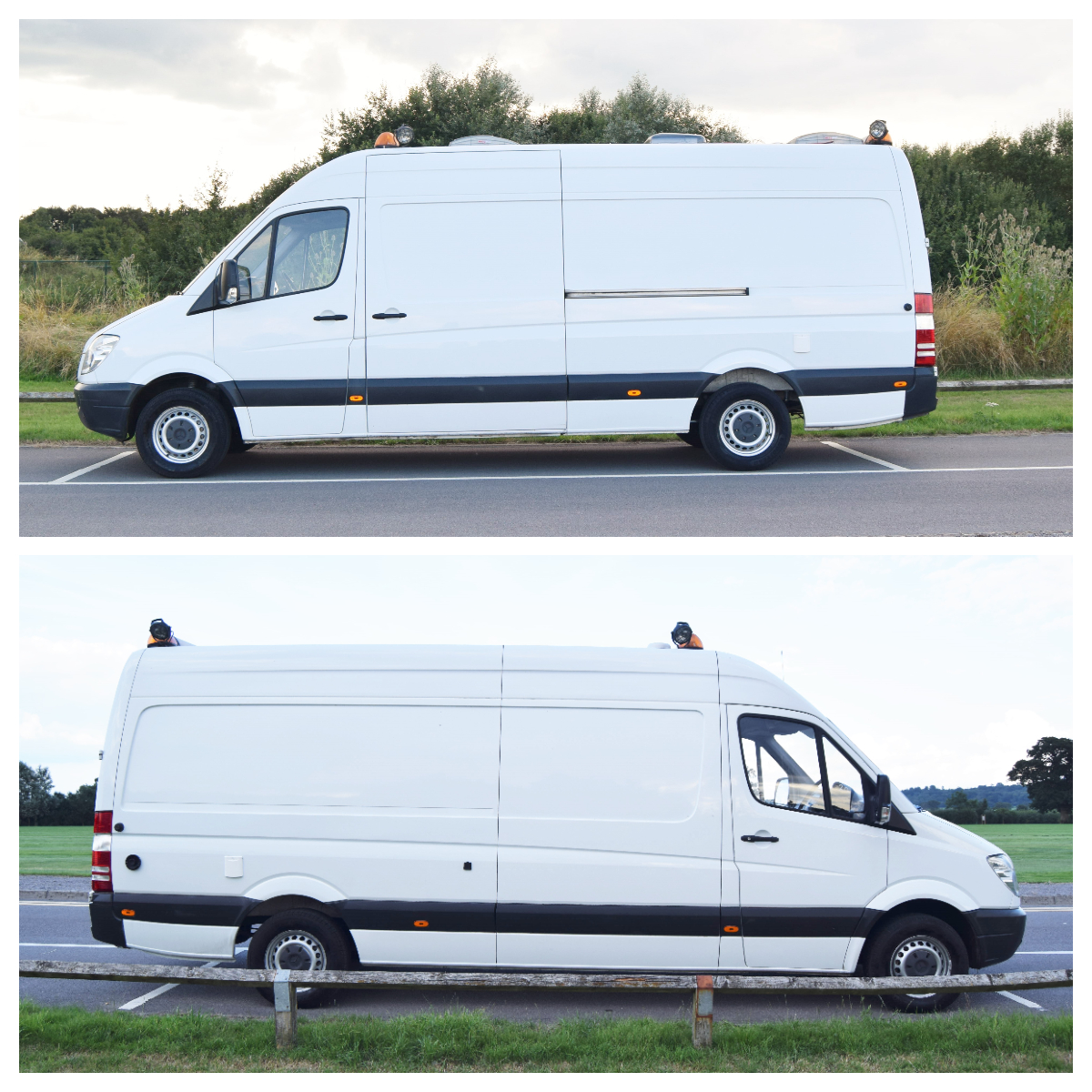

stealthy automatic low mileage LWB Mercedes Sprinter with shower 2012 80K 2.2l diesel L3 H2 A/C

Due to a change in circumstances, we are compelled to sell our van conversion as a work-in-progress. It is at the ideal stage where someone can easily finish what we started, over a few weekends, and complete it to their aesthetic.

The van was purchased in December 2020 from M4 Vans—a highly-respected dealership in the south-west of England—with a Trustpilot score 4.7/5. The van is mechanically sound with both the bodywork and cabin in very good condition—as evident in the photographs.

All of the products purchased for the conversion were bought new and unused and are top-of-the-range and, where possible, are either made in Europe or are environmentally-friendly.

INTERNAL

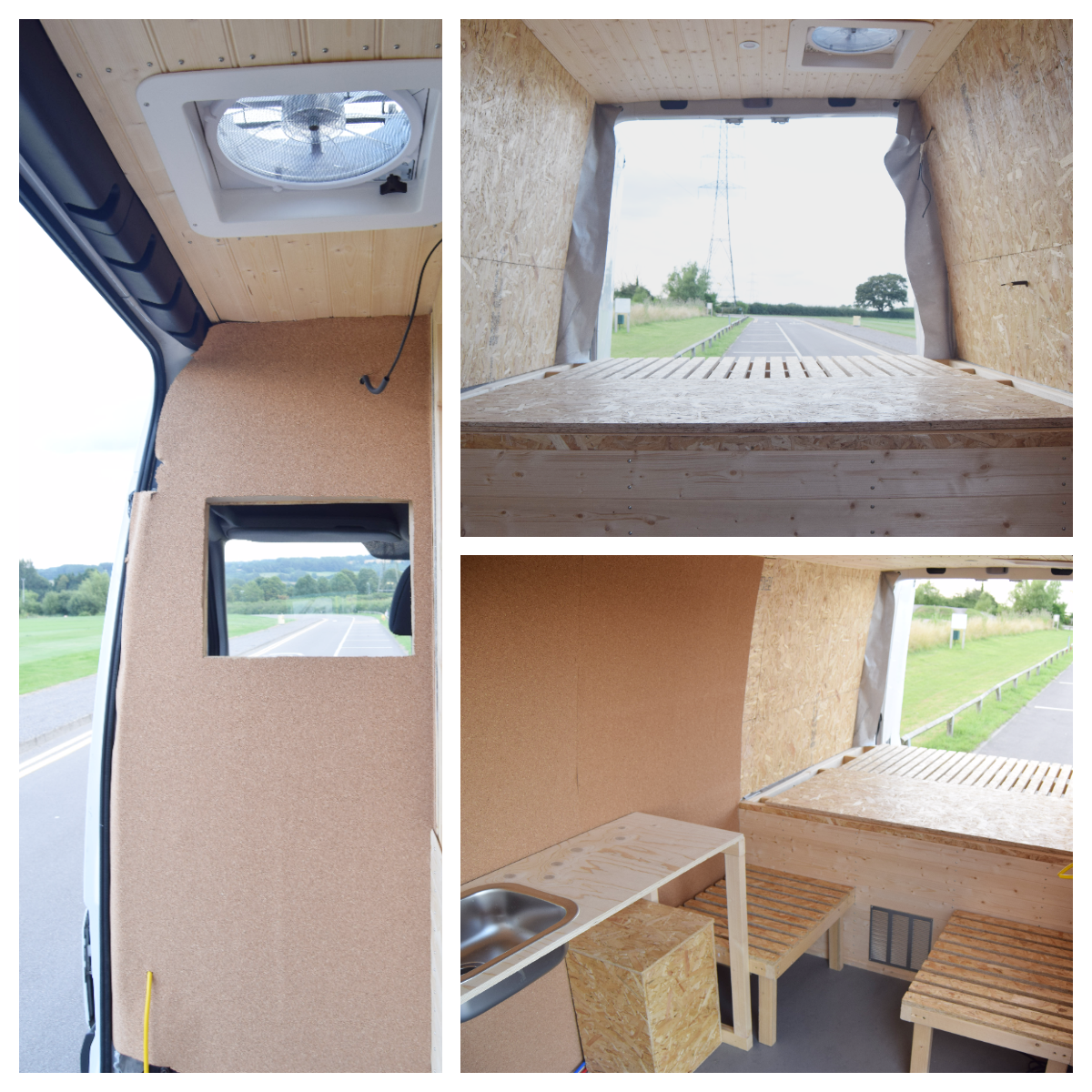

Layout: rear expanding double bed (to be completed), flexible centre lounge/dinette, centre kitchen and front corner wet room.

First fix plumbing completed:
New, unused Truma-style Combi D6E—diesel and mains electric hot water & space heating (fuel line to diesel tank to be completed)
John Guest Speedfit push-fit fittings and pipe used throughout

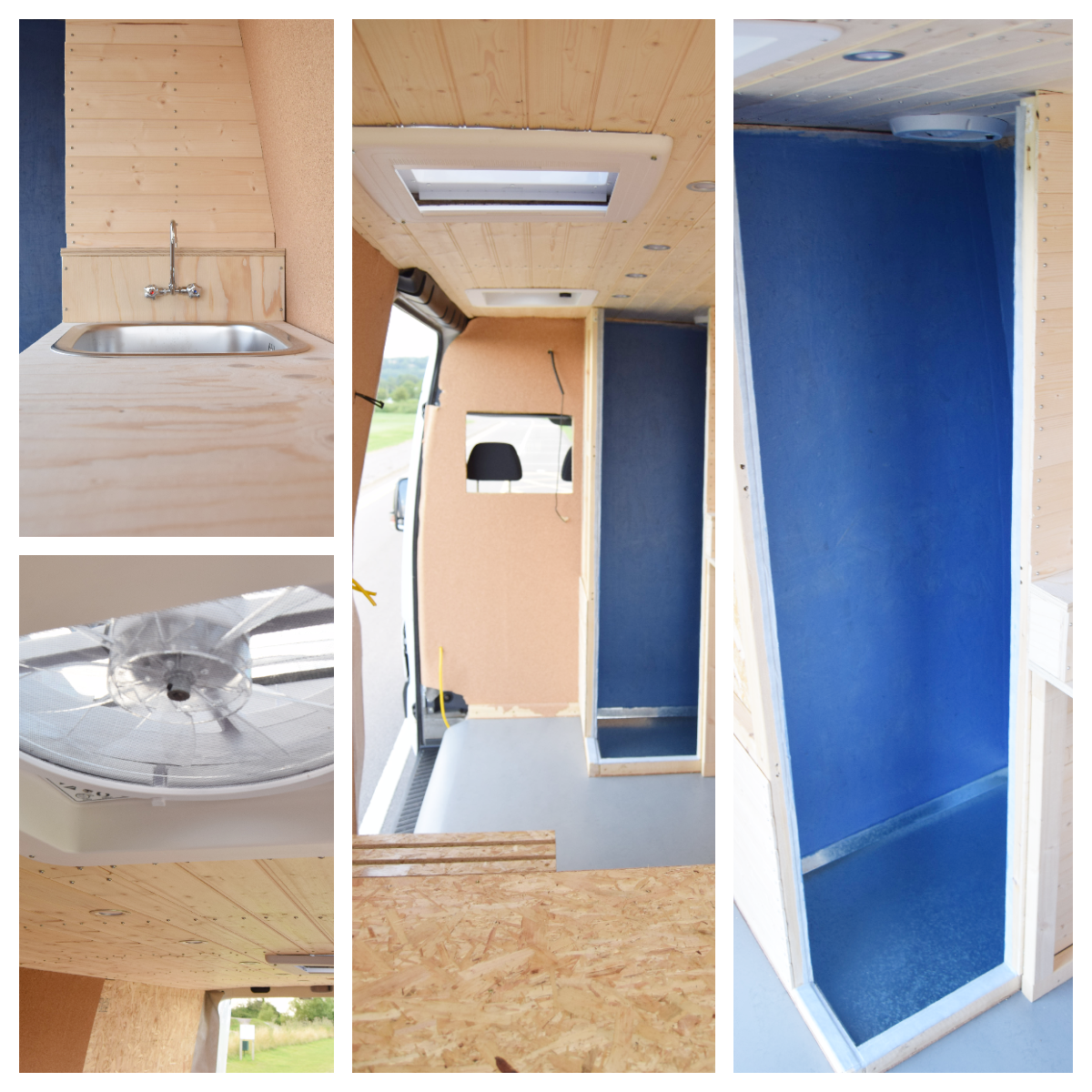

IKEA Kitchen sink with mixer tap and waste installed
Custom made wet room tray with hot & cold outlets and waste installed
125l fresh water tank with drain tap
New, unused Shurflo Trail King pump, Shurflo accumulator & Shurflo strainer
Pipework installed for garage-end shower point

Everbuild Aquaseal tanking used to waterproof wet room (ready for final wall finish)

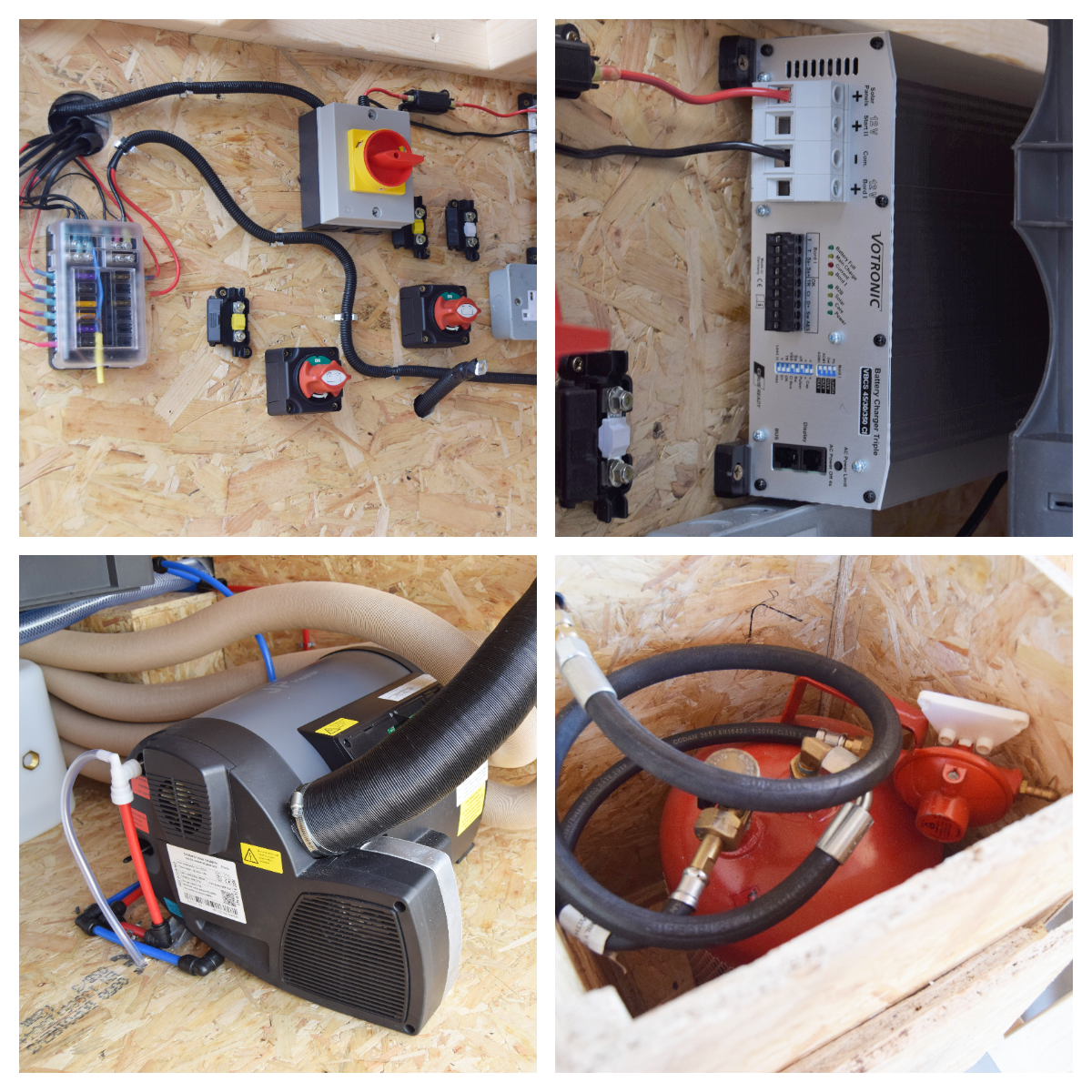

First fix electrics completed:
New, unused Votronic VBCS 45/30/350 Triple Battery Charger (alternator/mains/solar) (marine grade)
Auto Marine Cable Oceanflex tinned copper cable used throughout (marine grade)
All cable running in heavy-duty plastic conduit
Durite components used throughout (i.e. 12-way fusebox, fuses, fuse-holders, isolators etc.)
Europa 4 pole enclosed switch-disconnector (solar isolator)
Pro Car USB sockets
6X Aten Lighting touch dimmable LED ceiling downlight in warm white
4X electrical points for wall lights in front, centre and rear
3X electrical points for 240v mains sockets in front and centre

Gas-It LPG/autogas 6kg bottle with body mounted fill system inside purpose-built gas locker with drop vent plus European fill kit

Thermafleece British sheep’s wool insulation and SuperFOIL Reflective Breather Membrane throughout floor, ceiling and walls

FSC certified European OSB and cladding used throughout

Forbo Marmoleum Concrete (pale grey) linoleum flooring with cork underlay

Sand automotive carpet used on exposed metal, with SuperFOIL bubble insulation beneath, to reduce condensation

Escape hatch cut through bulkhead between cabin and habitation

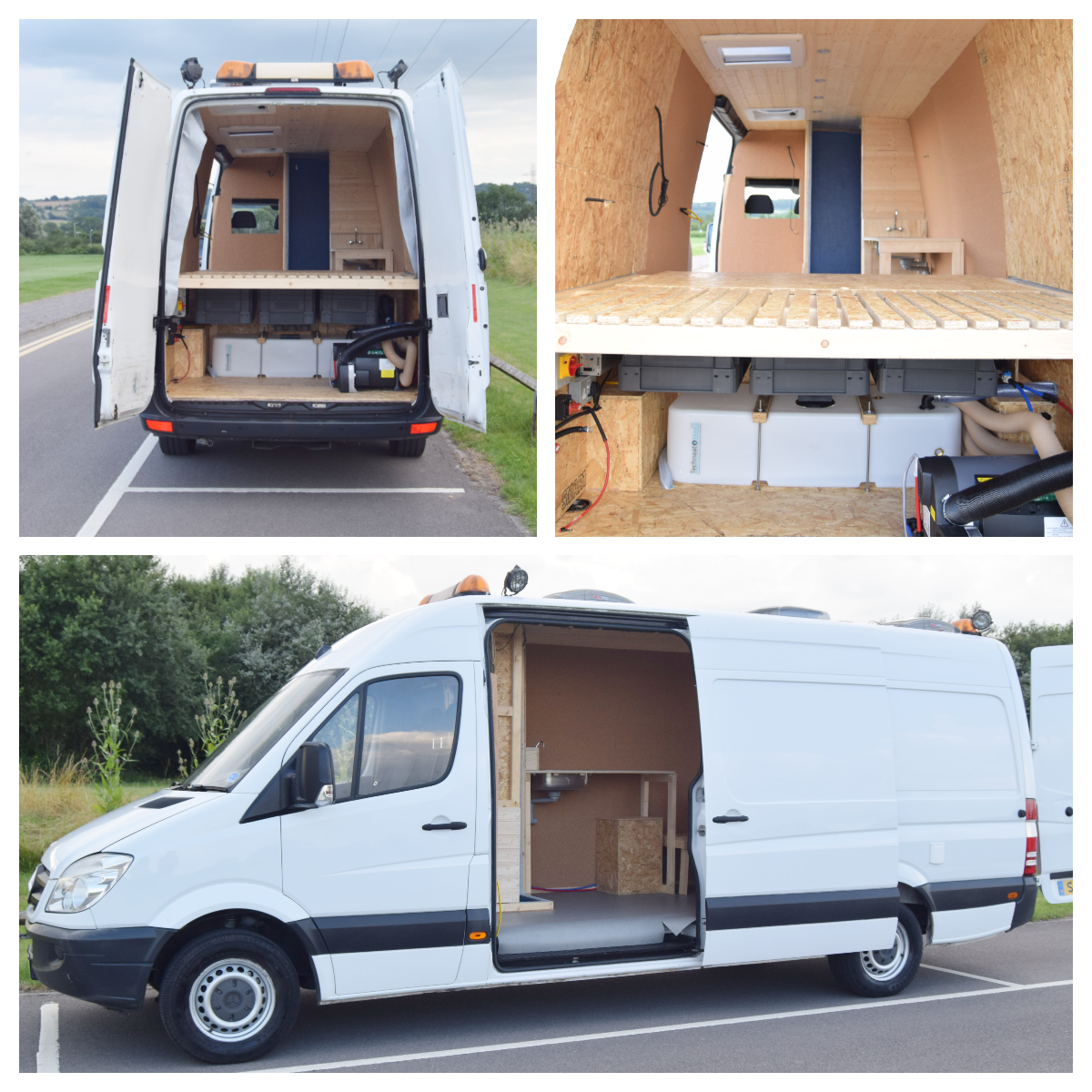

Under-bed garage houses all utilities

EXTERNAL

2X New, unused Maxxair Maxxfan Deluxe fans (transparent) at the front and rear for optimum ventilation—both remote controlled

1X New, unused Maxxair Maxxfan Dome Plus fan (with integrated LED light) in the wet room

1X New, unused Maxxair Skymaxx skylight (transparent) in the centre for maximum natural light distribution

Fawo 240V mains inlet socket with magnetic lid connected to Votronic VBCS 45/30/350 Triple Battery Charger

Fawo water fill point with magnetic lid connected to fresh water tank

Gas-It LPG/autogas fill point

Awning eye hooks around perimeter of van

Sale does not include:
Oven/hob
Refrigerator/freezer
Solar panels (electrical system capable of 350W maximum)
Leisure batteries
Inverter

Habitation internal dimensions:
Length: 4.3m/14’1”
Width: 1.8m/5’11”
Height: 2m/6’7”
