VW Transporter T5.1 LWB High Top 4motion Offgrid/Overland

|
482 | 2

£32,500
Campervan

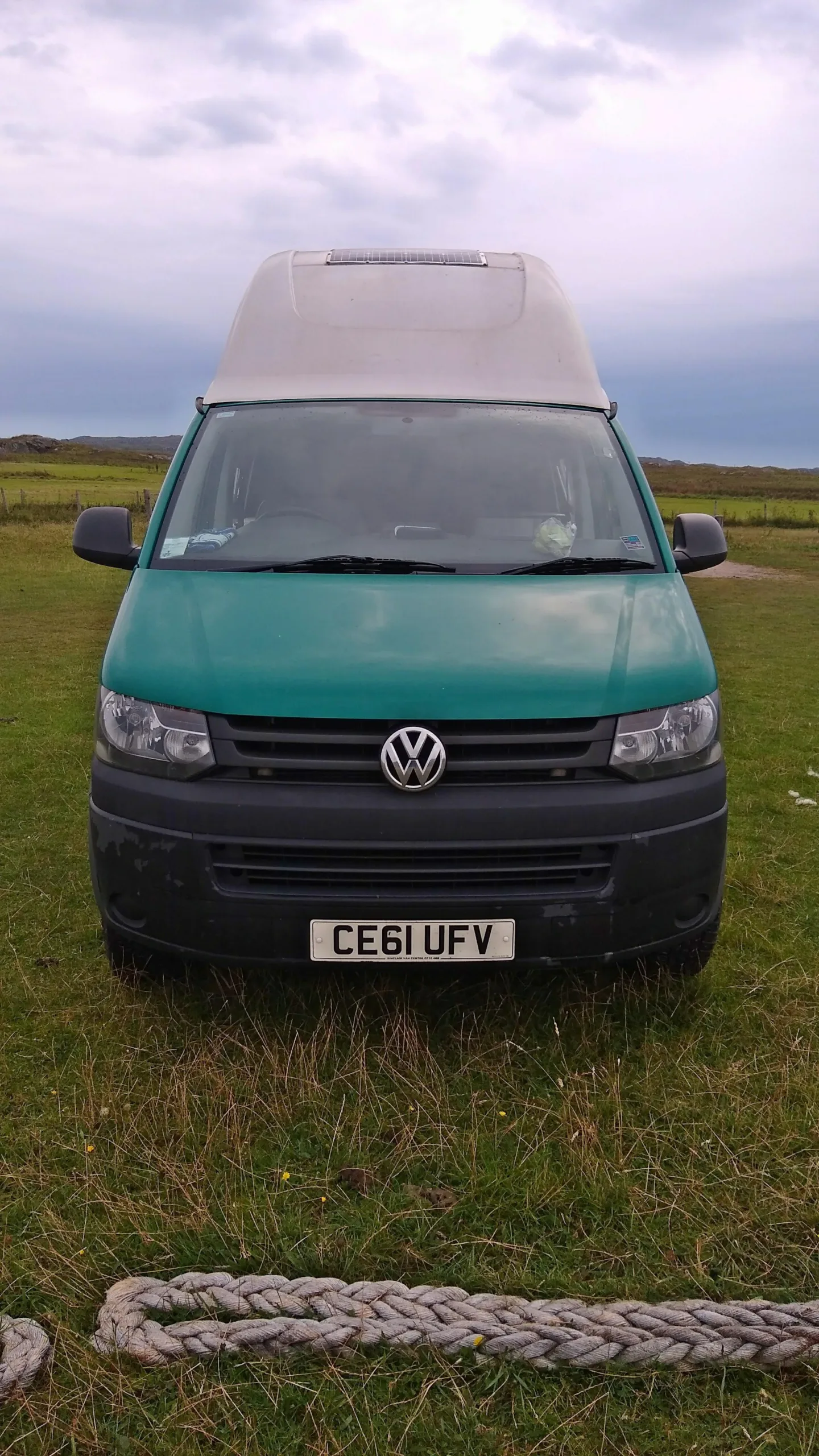

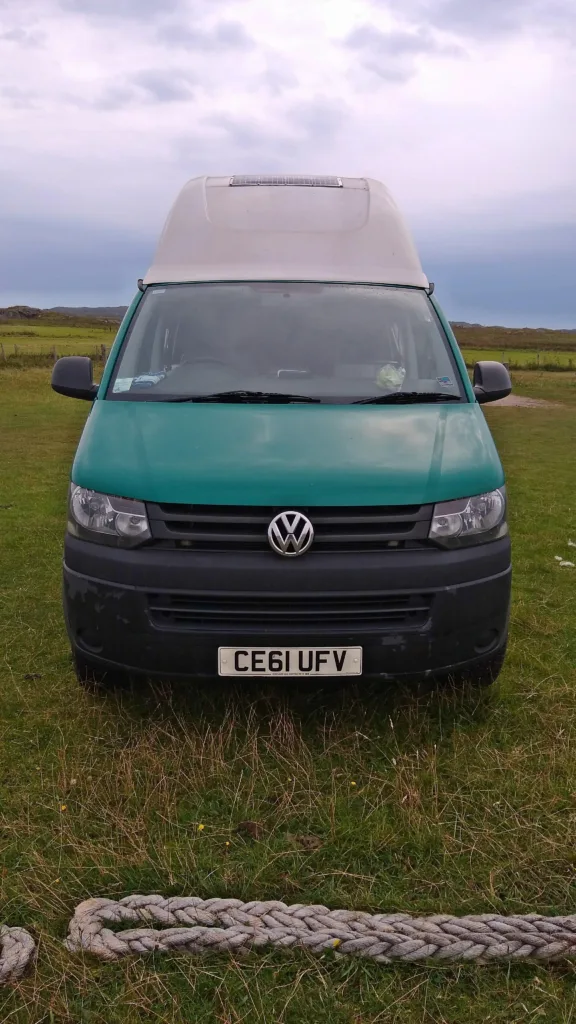

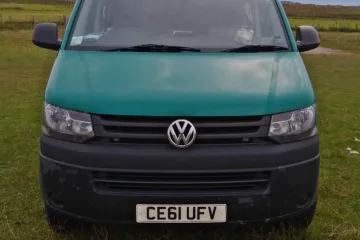

VW Transporter T5.1 T30 LWB High Top

Used
99,099 miles
3 Berths

Essential Information
Hob
Oven
Fridge
Kitchen Sink
Dining Table
Heater
Ceiling Fan/Vent
Shower - Internal
Shower - External
Toilet - Cassette
Pet Bed/Pet Friendly
DAB Radio
Audio Inputs
Awning
Extra Storage
Reversing Camera

Detailed Information
Vehicle Description

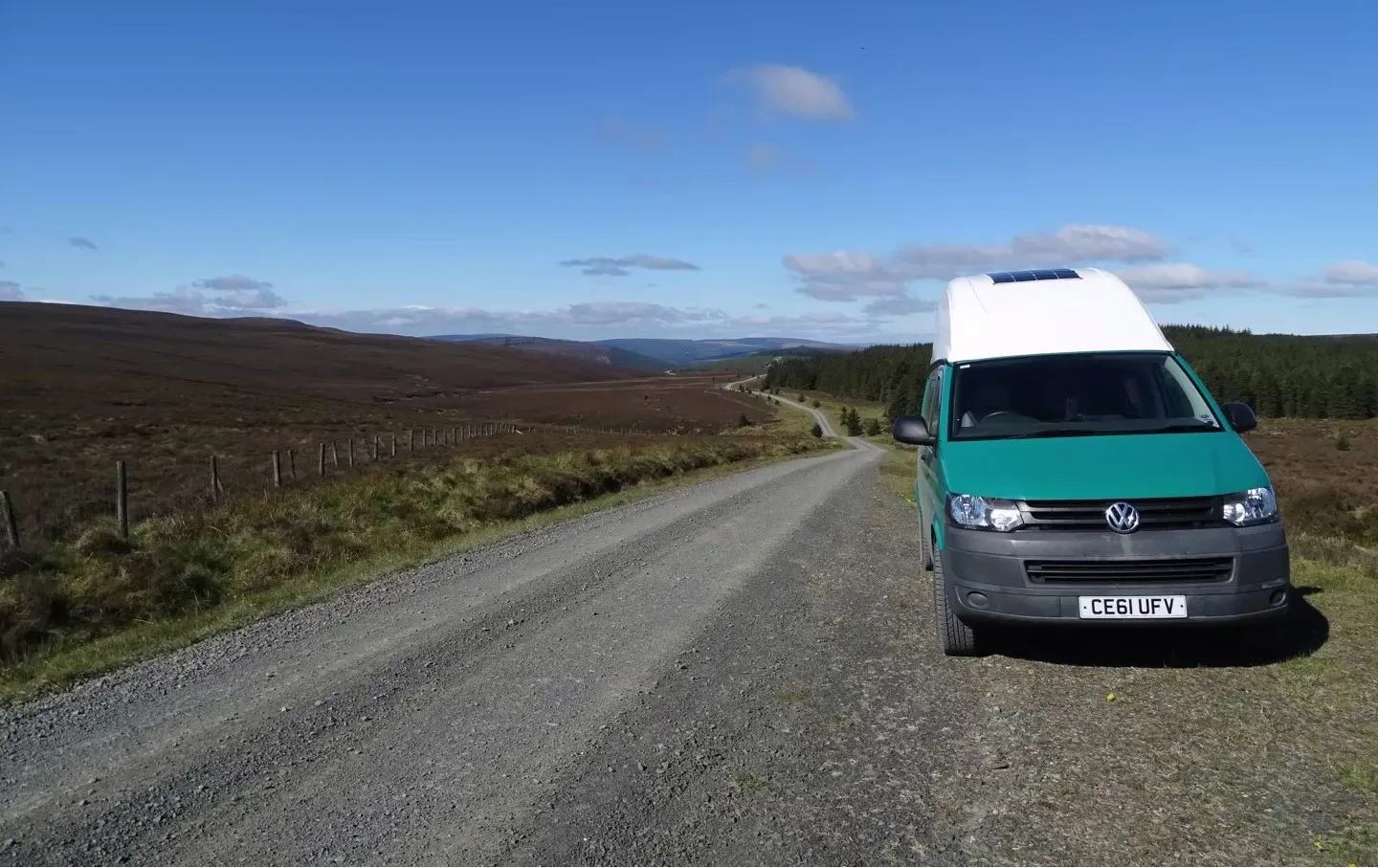

Something a bit different if you want to be able to go anywhere (well almost).
4×4 (4motion) with locking rear diff; raised suspension; All Terrain (Yokohama Geolander) tyres; Under floor fresh and waste water tanks; Large spare wheel size refillable gas tank; 3 Seat belts & Sleeps 3; Sink, Hob, Oven and Built in Fridge; Cassette Toilet with motorised flush; Internal/External Shower; Diesel Hot Air and Hot water heater; Solar panel with twin AGM batteries (total 150Ah); Votronics controller; Under bonnet EHU. Lots of storage and a flexible internal configuration.
Why not come and view and, maybe, make me an offer🤔

Base Vehicle

  • VW Transporter 2011 LWB 4Motion with locking rear differential
  • 140ps engine with 6 speed gearbox
  • 2 owners including myself
  • First owner was a Welsh council (self serviced)
  • Full history, with receipts, during my ownership (nearly 7 years)
  • No Aircon

Vehicle Modification / Enhancements / Servicing Work

  • Cambelt, pullies, water-pump replaced
  • Dual mass flywheel and clutch replaced
  • New front discs and pads
  • Steel sump and gearbox guard fitted
  • Pedders rear springs and dampers plus front spacers to level the van (approx. +35mm ride height all round including increase from tyres)
  • Tuff Torque Modular 16″ X 7″ ET45 Steel Wheels with 235/70 Yokohama Geolander AT tyres
  • Swivel Driver’s Seat
  • XTRONS Android sat nav / radio head unit fitted which allows Android apps to be downloaded
  • Wheel arch and side trims fitted
  • Reversing camera connected to Android Sat Nav

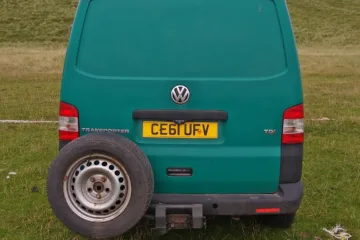

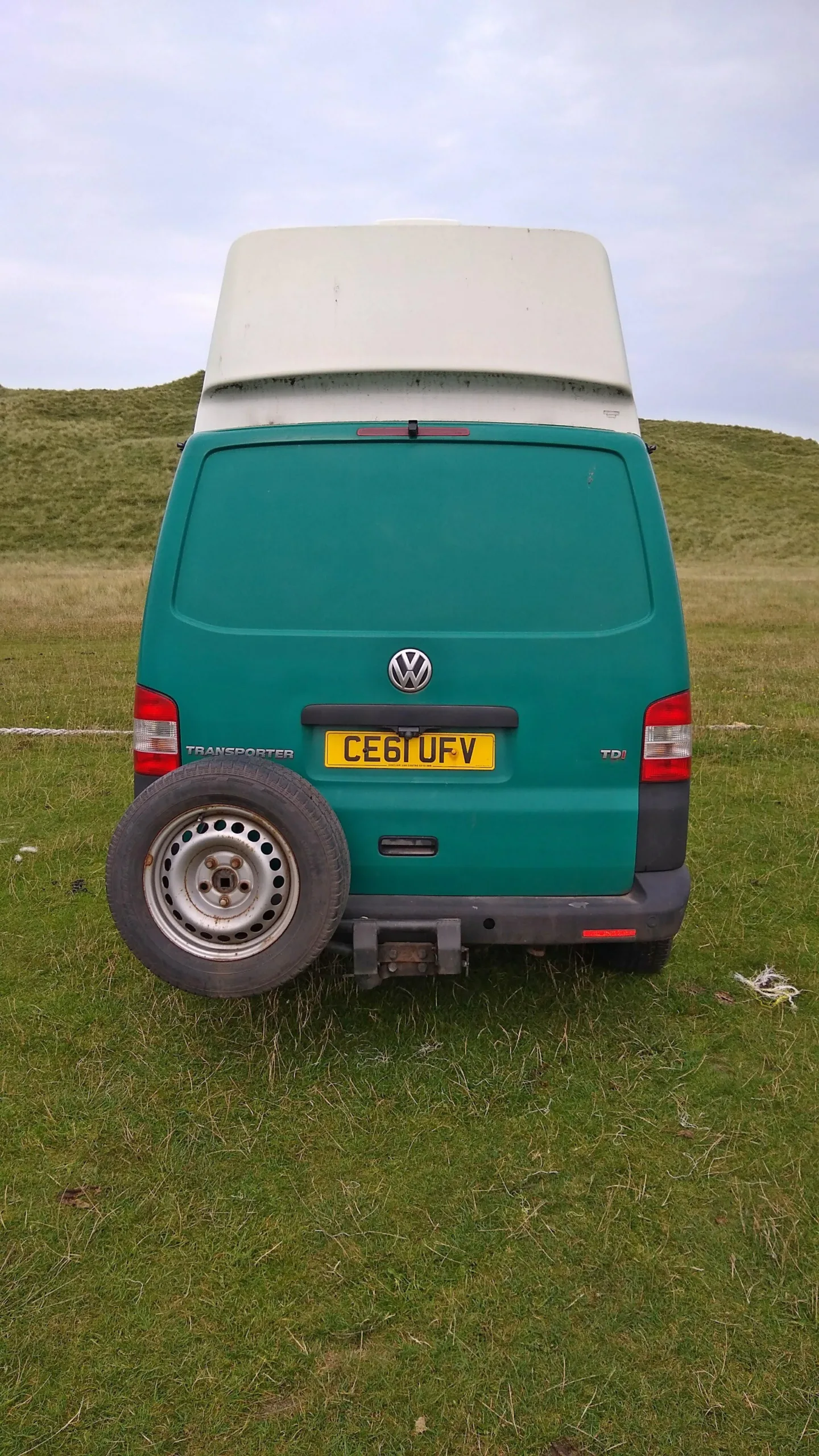

  • Bespoke spare wheel carrier attached to tow bar (tow hitch removed but could be refitted)
  • Abs sensors replaced
  • Haldex system has had new oil and filter
  • Actuator valves for locking rear differential replaced
  • Regularly serviced
  • Dash cam

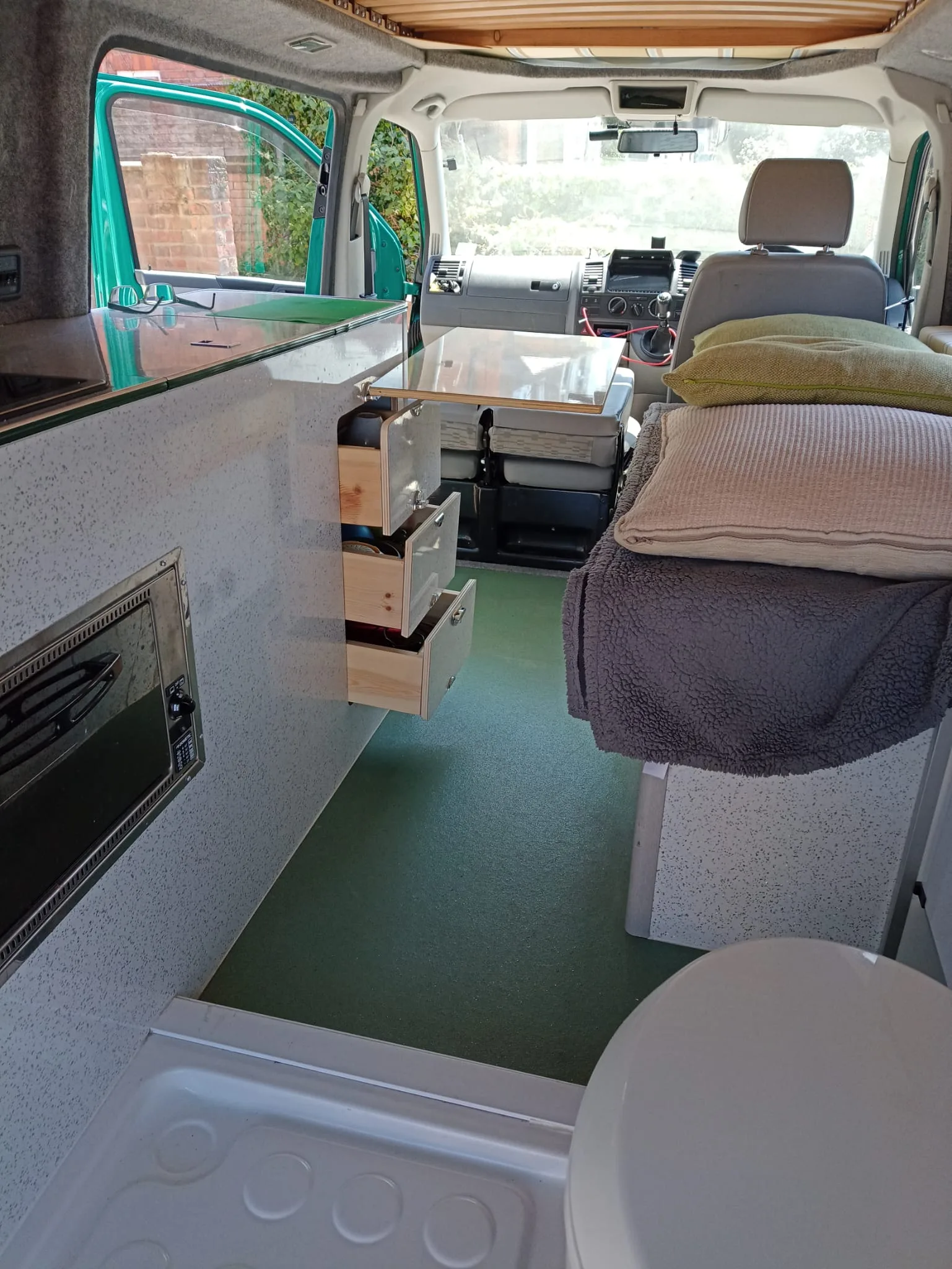

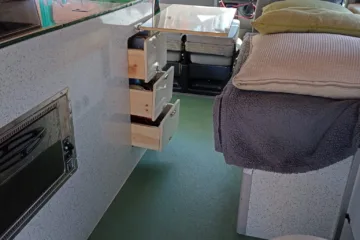

Campervan Build

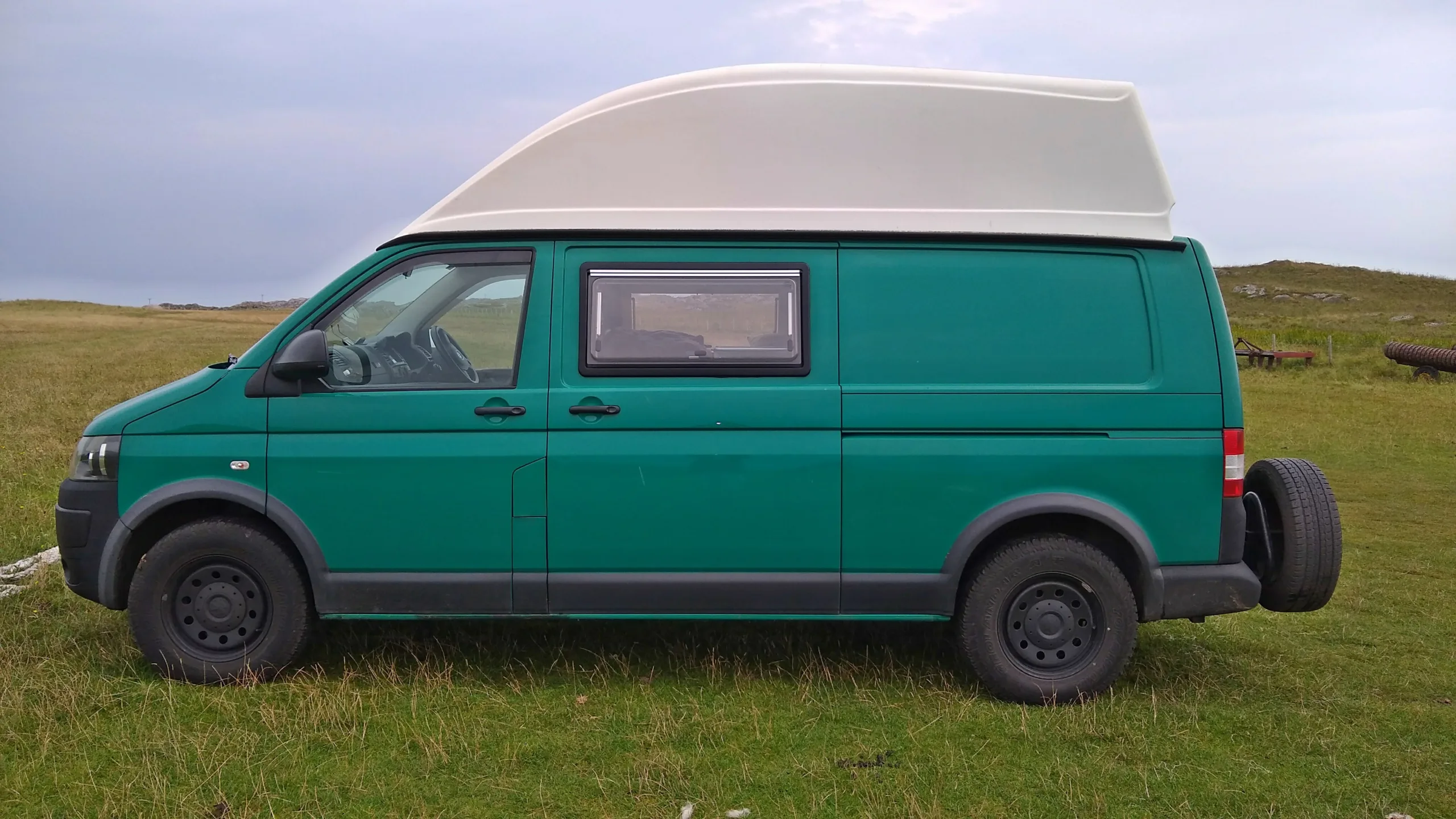

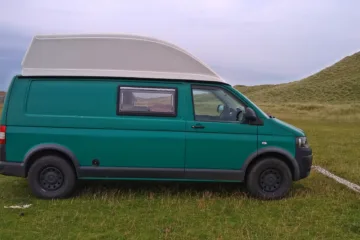

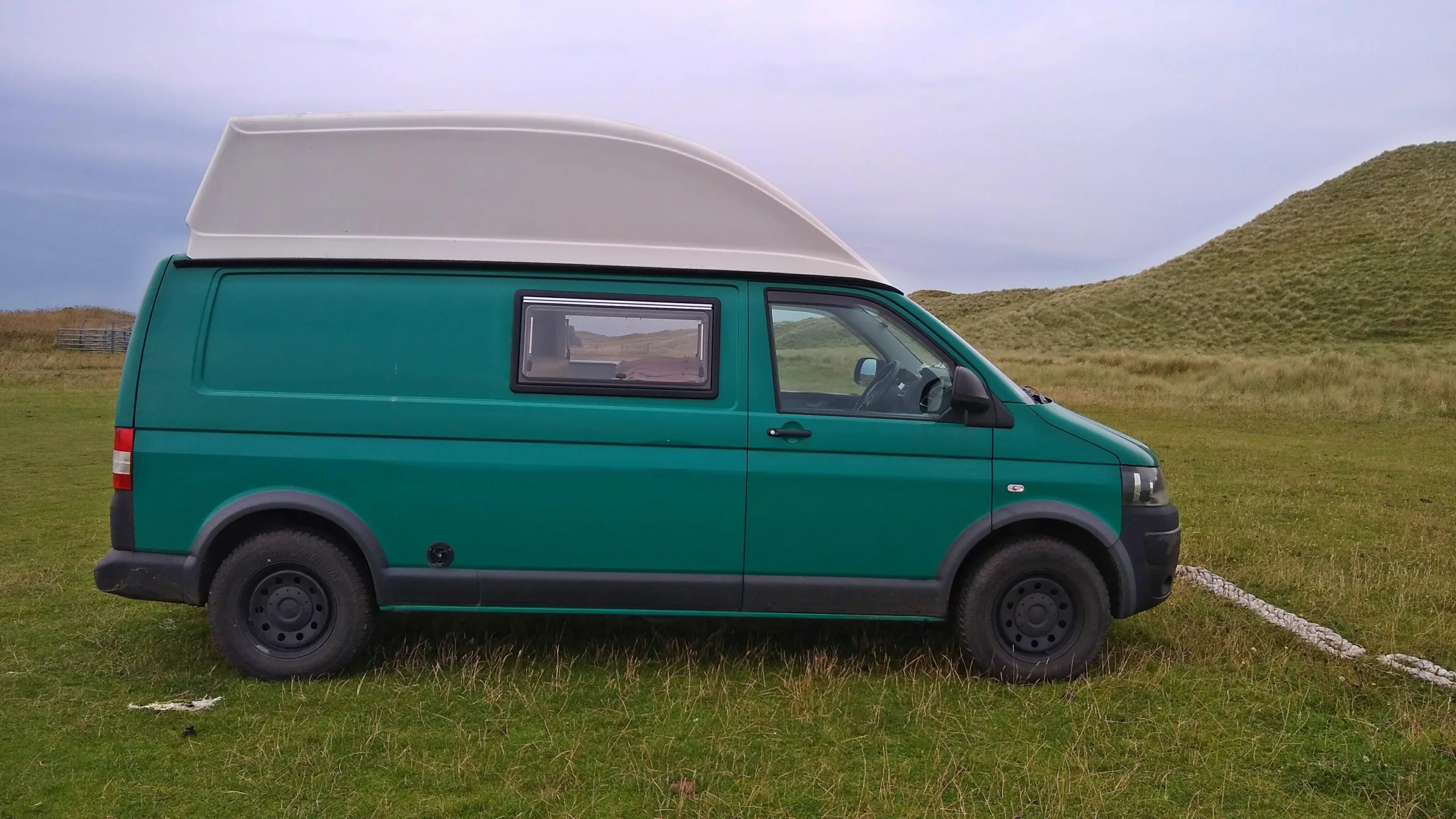

  • Fixed Reimo Ergoline Hardtop fitted by CMC (only official Reimo converter) including TUV approved strengthening frame
  • Reimo Multi-Rail fitted to hardtop
  • Gas-It LPG gas tank in place of underslung spare wheel (55 ltr)
  • Dometic CoolMatic CB 40W, Top-loading built-in compressor refrigerator, 40 ltr
  • Dometic Oven and Grill

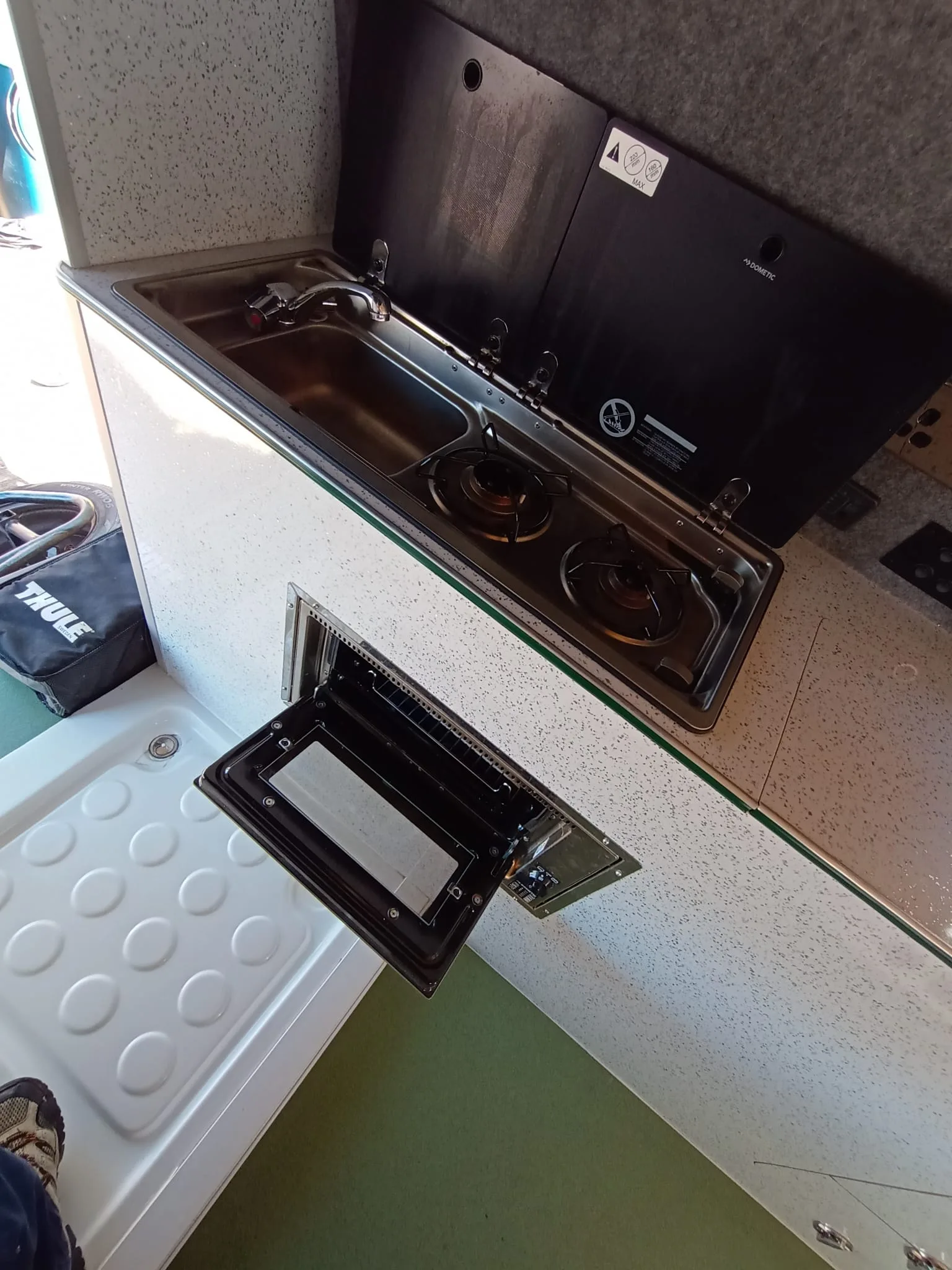

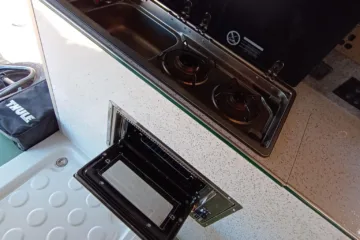

  • Hob & Sink – SMEV 9722-2 BURNER COMBI UNIT
  • Thetford Toilet with removal cassette and SOG (no need for chemicals) + Shower tray
  • All units made from lightweight Morwood plywood (Gloss White Sparkle)
  • Altro flooring
  • Van fully insulated and carpet lined by Jack’s Shack
  • Seitz / Dometic side windows, doubled glazed with integral blinds and fly screens
  • Skylight with fan and fly screen
  • Renogy flexible solar panel 175W
  • Twin 75 AH AGM Leisure batteries under passenger seat
  • Votronic VBCS 30/20/250 Triple-CI (Controls all charging and conditioning of batteries regardless of source. Solar, EHU or Alternator). Amazing piece of kit.
  • Webasto Thermo-top C on demand hot water and warm air heater
  • EHU under bonnet
  • Gas bonnet struts

NOTE – apart from the interior units and bed the remainder of the fitout was completed by Jack’s Shack

Other items included in sale

  • Internal & External silver insulating screens
  • Debus Sun Awning
  • EHU cable with 3 pin adapter
  • Spare toilet cassette & toilet lid/seat
Conversion Description

All conversions work excluding the internal units completed by Jack’s Shack (https://www.jacks-shack.co/)

Beds Description

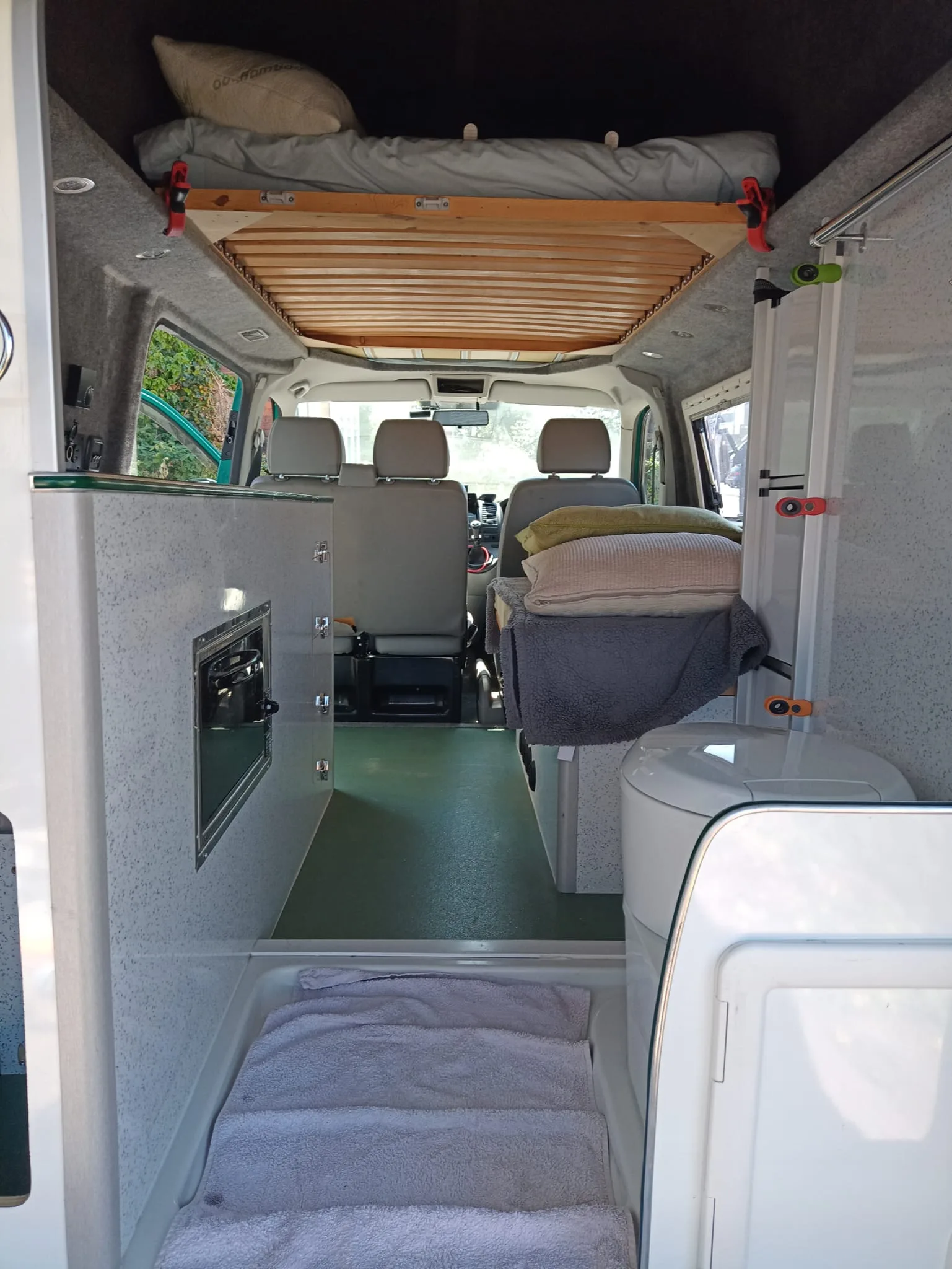

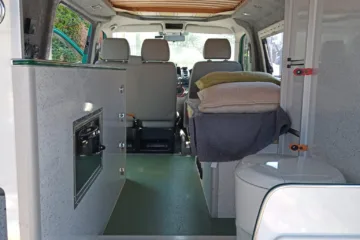

Full width bed (length 2m) in high top. Bed raises when extra head room required.

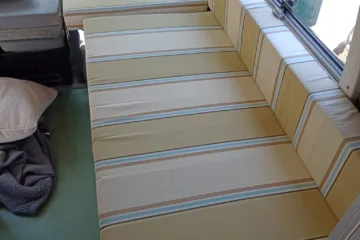

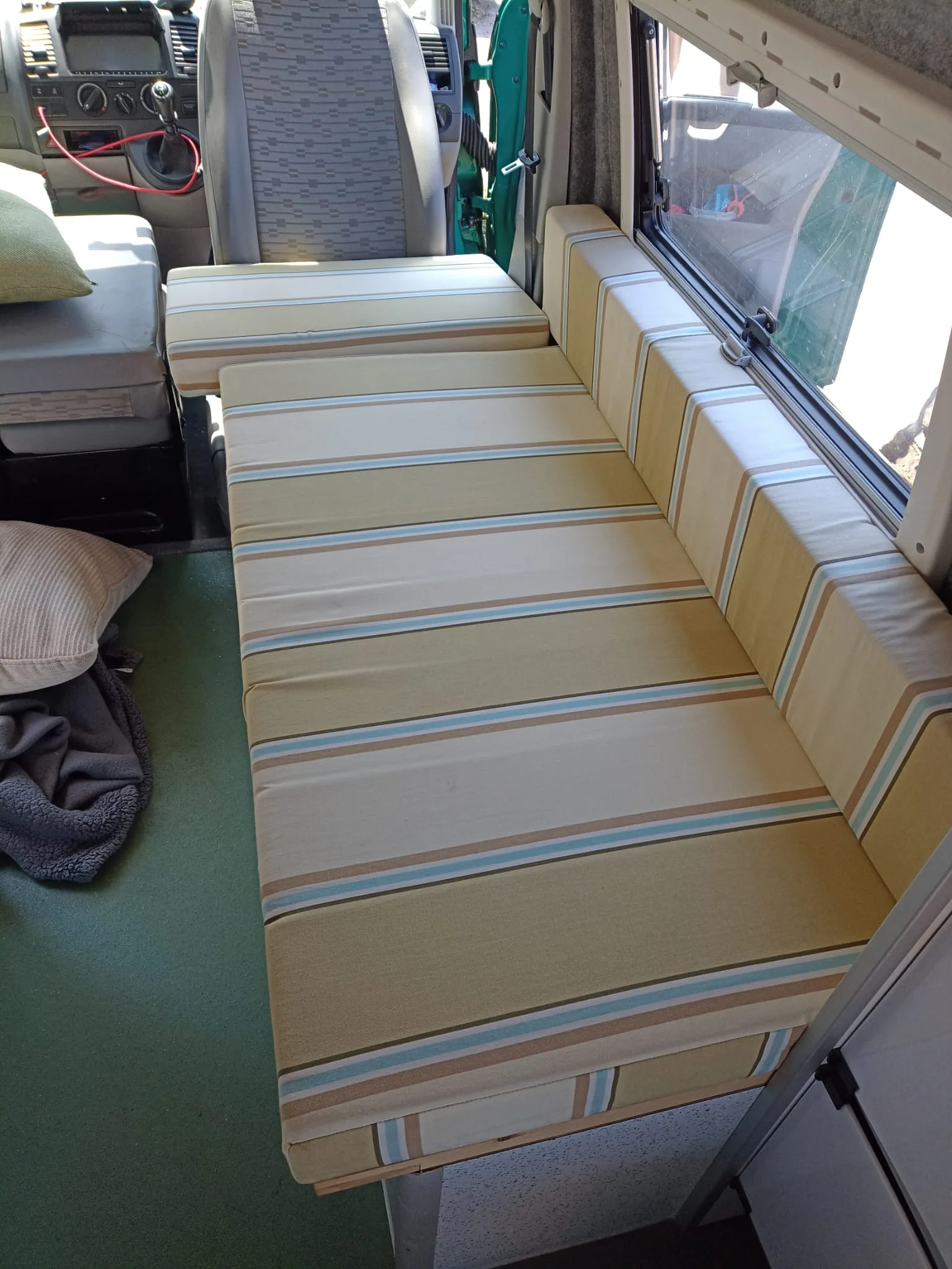

Single bed (length 1.9m) made from swivel drivers seat and the side seating.

Main Bed Length
200cm

Contact the Seller

The contact details for this vehicle are no longer available because it has either sold or the listing has expired.


Vehicle Spec
Fuel Type:
Diesel
Transmission:
Manual
Belted Seats:
3 Belts
Driving Side:
Right-Hand Drive
Vehicle Length:
5.50 meters
Vehicle Height:
2.80 meters
Vehicle Width:
1.90 meters
Registered Vehicle Type:
Motor Caravan - approved

Conversion Spec
Conversion Condition:
Good
Converter Type:
Professional - Handcrafted
Gas Sign-off:
Landlords Gas Safe Certificate
Max Weight (MAM/GVW/MTPLM):
3,000kg
Unladen Weight Verified:
No - the vehicle has not been weighed since completion
