ALPE Conversions - Beautifully Crafted, Expertly Engineered, OFF GRID Peugeot Boxer L3H2

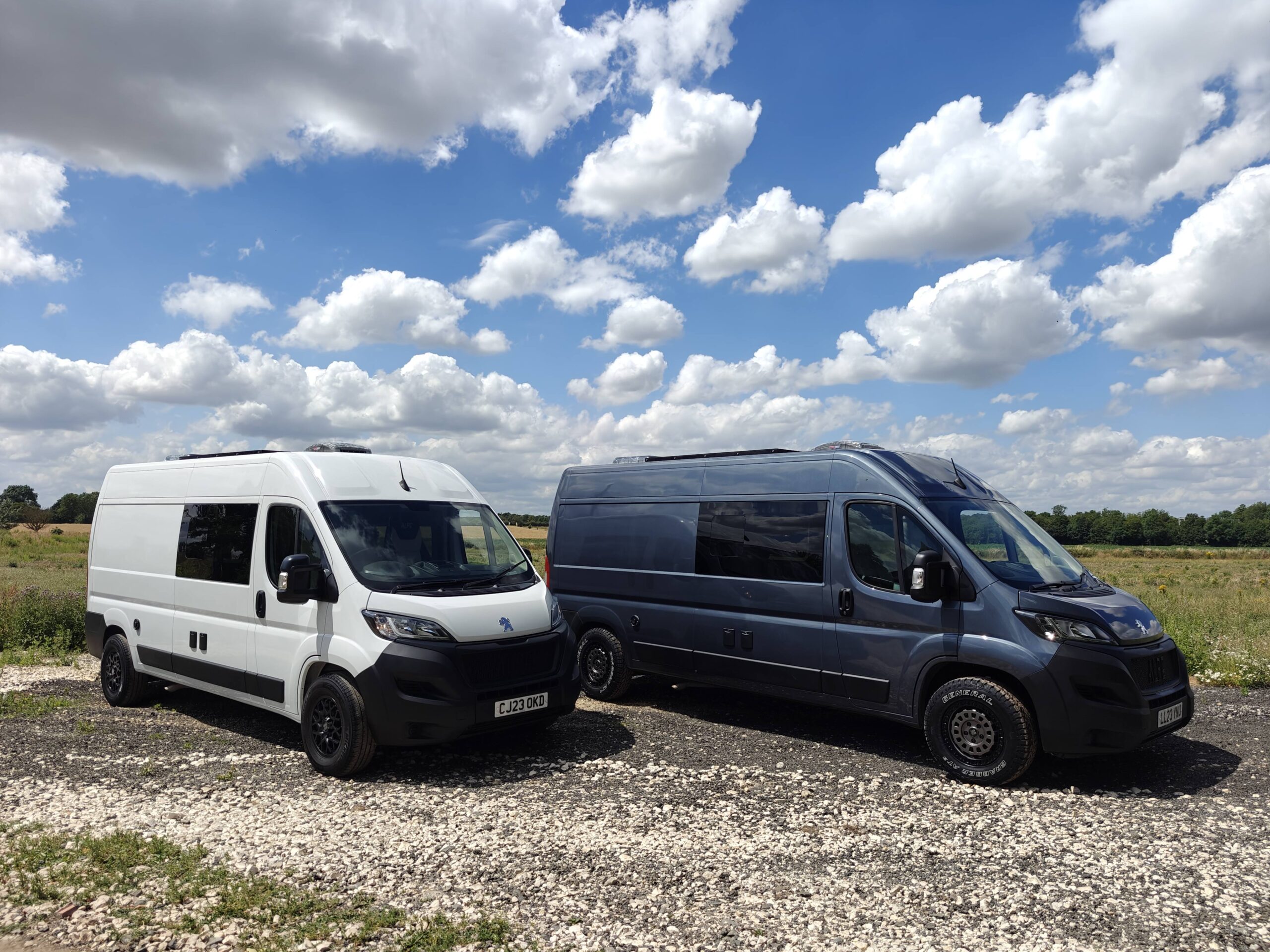

**This conversion is currently still in progress and therefore the photos of the interior are of a previous conversion that will be identical in layout and very similar in materials. The external photos are of the specific van itself. At this point in the build process there is still some scope for the buyer to select certain colours and options and provide an input into the layout of the garage area. The completion date for this conversion is the first week of October. We have a second van at the same stage of the build in white, also available for purchase for £54,950.***

This conversion is being completed to combine a stunning contemporary and sleek design with expert engineering to allow you to live in luxurious comfort anywhere, at any time, for as long as your adventure takes you.

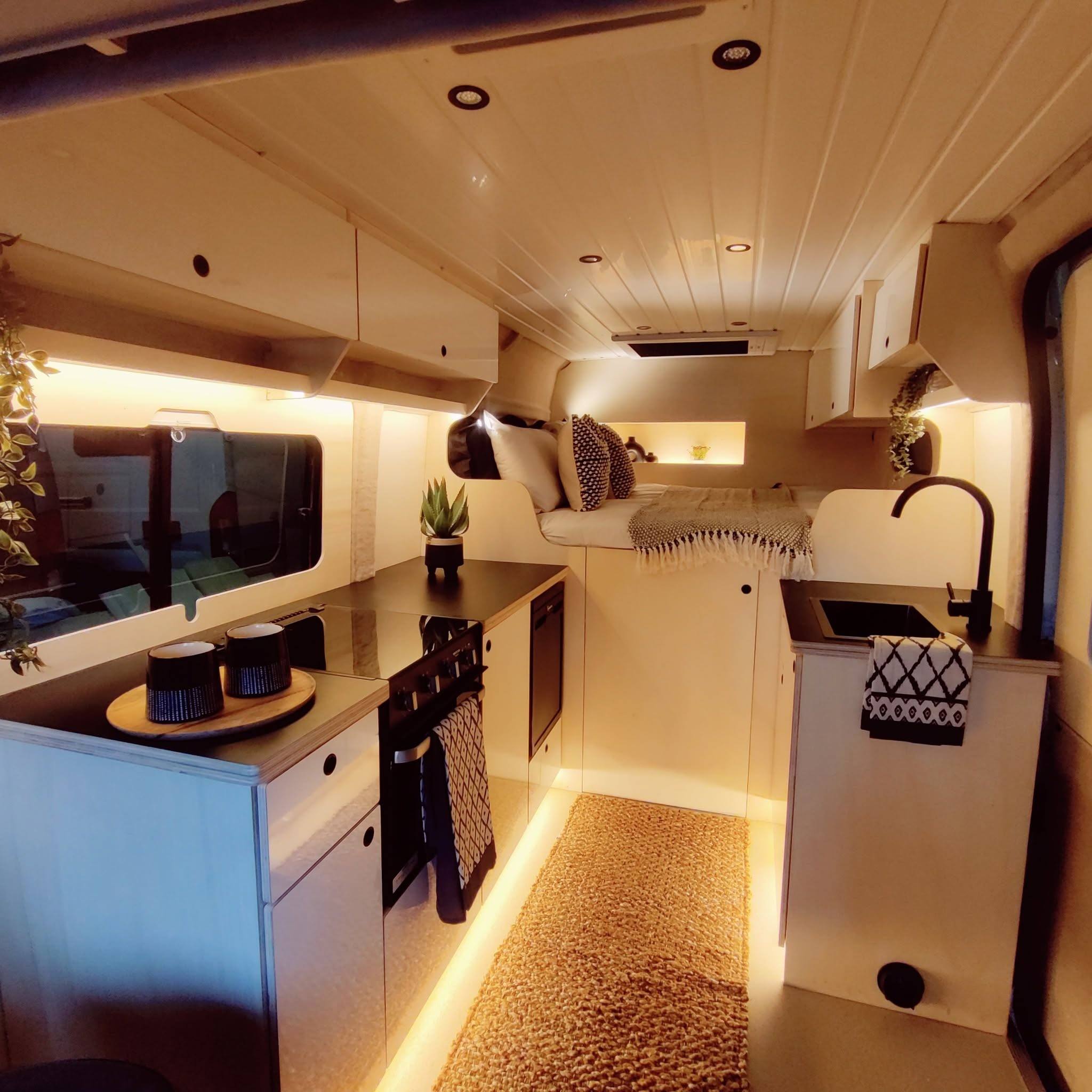

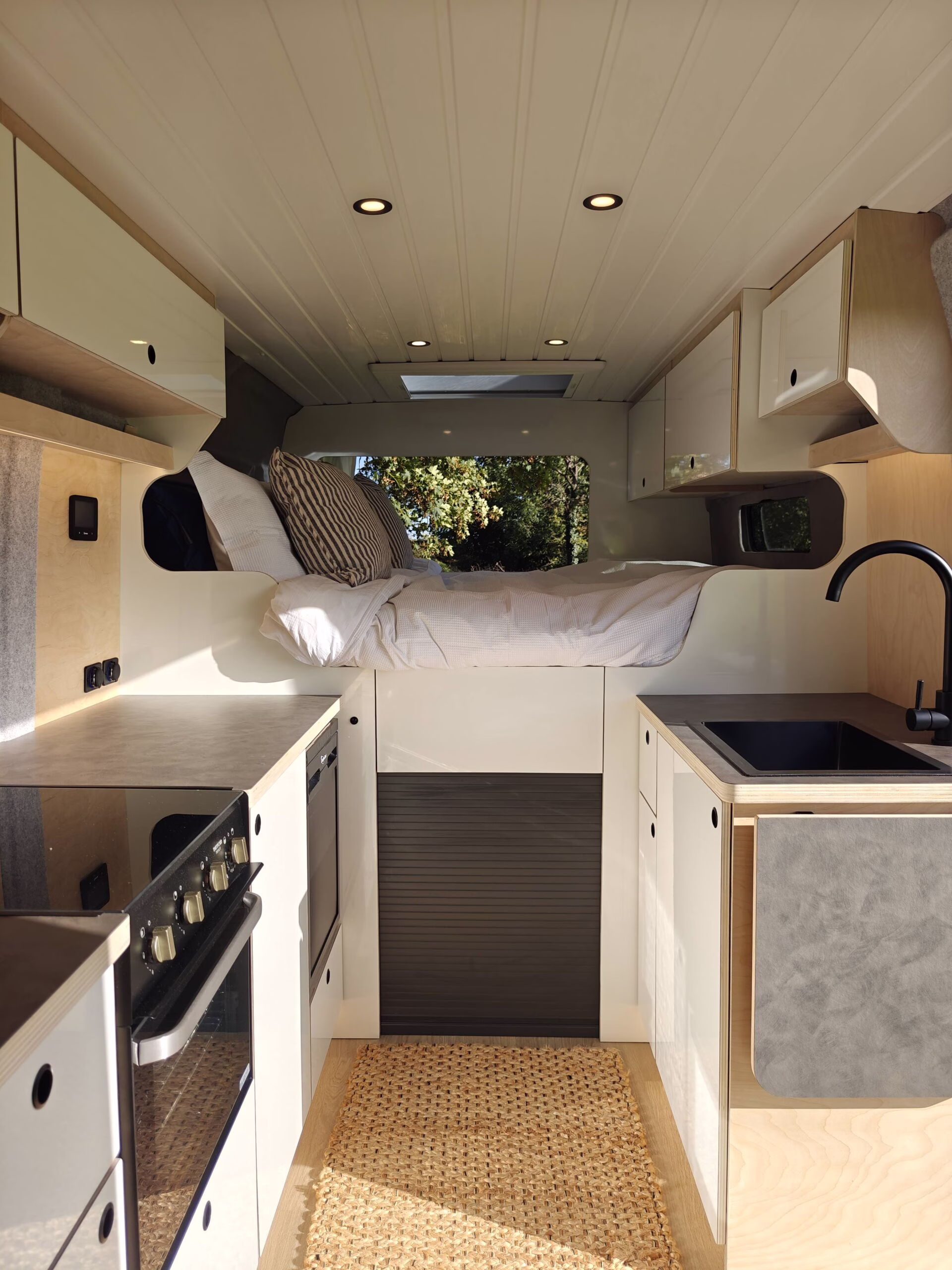

The eye catching interior has an exceptionally high quality finish using a combination of fine materials throughout. A high gloss white laminate ply combined with architectural poplar ply and matching matt black finishes set the tone for the sleek interior. There are a variety of lighting options spread throughout the van that can be used in different ways to set the feel at different times.

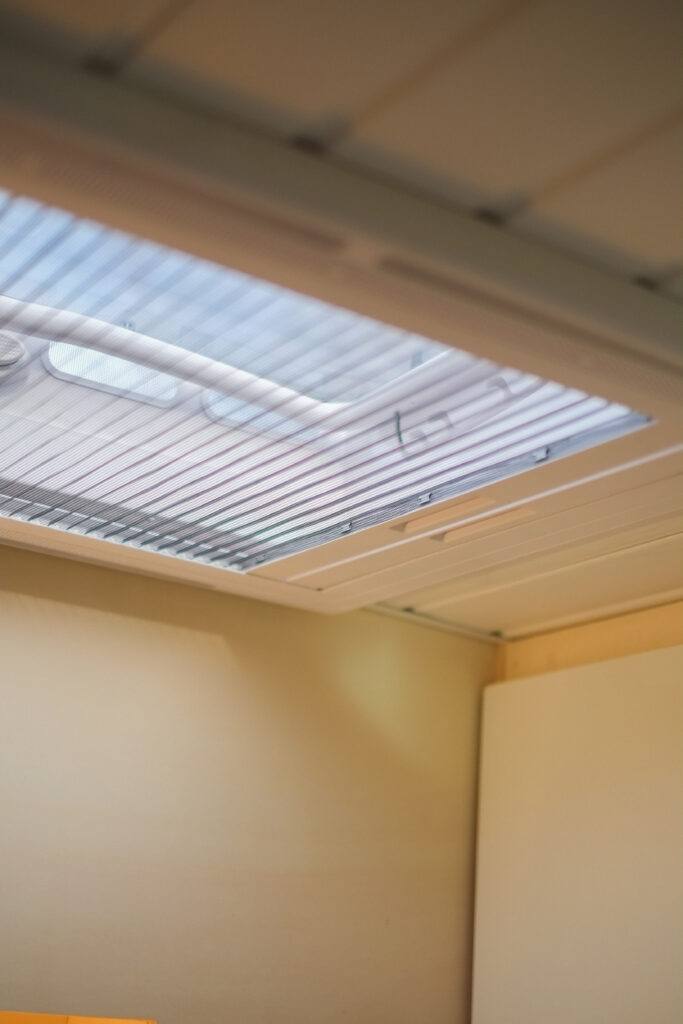

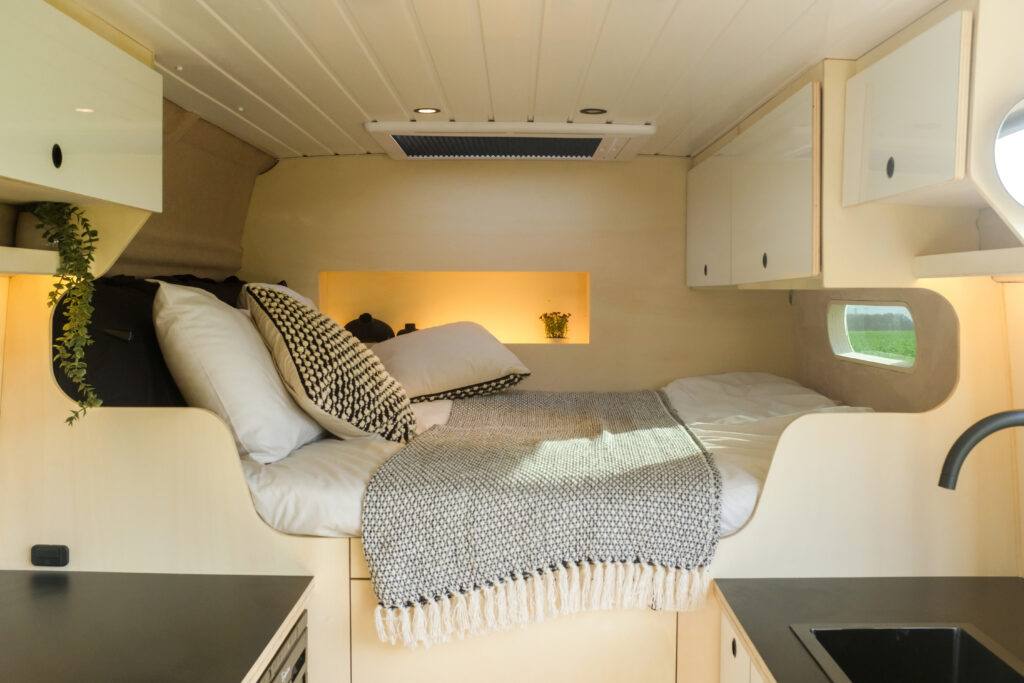

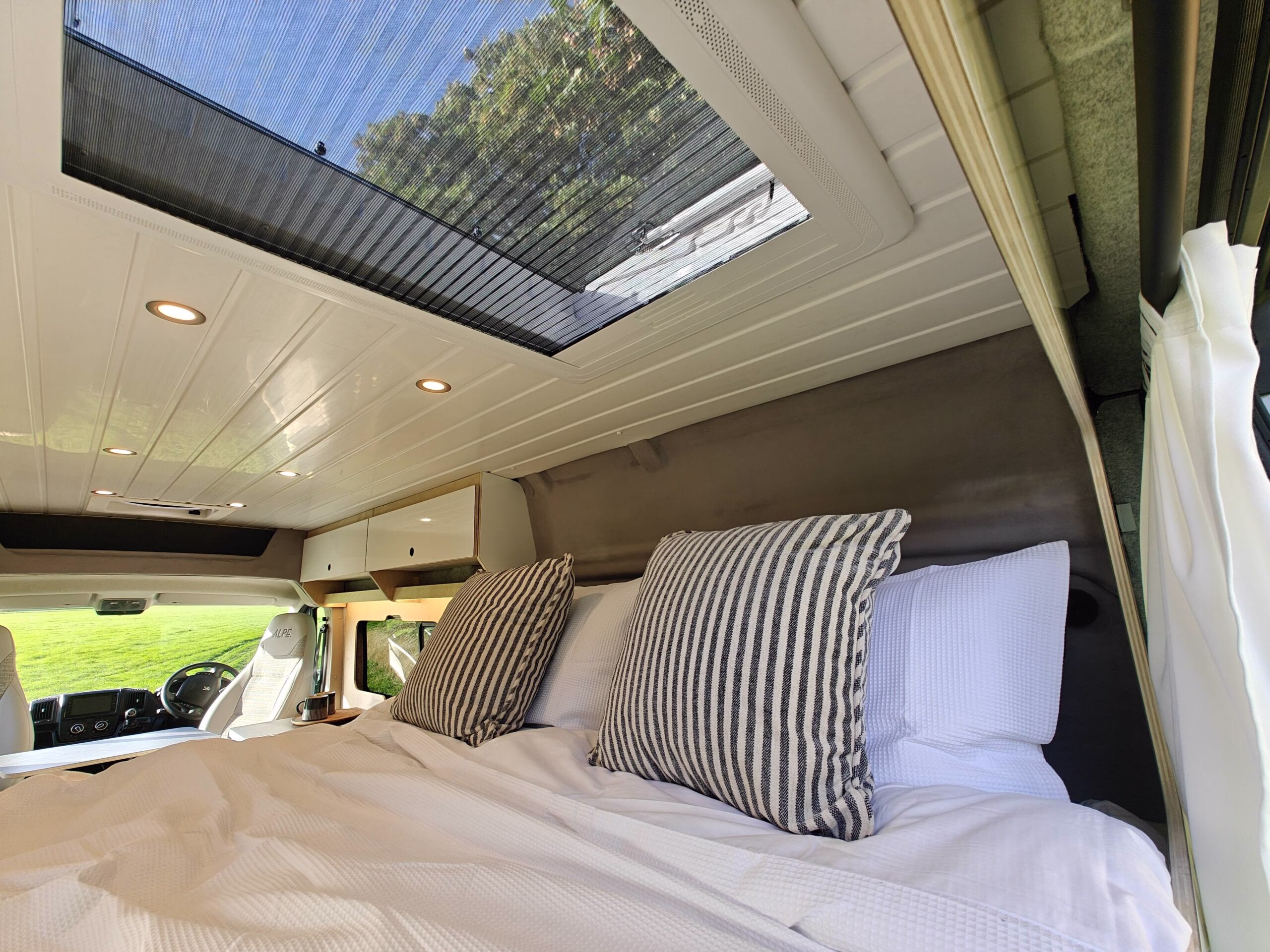

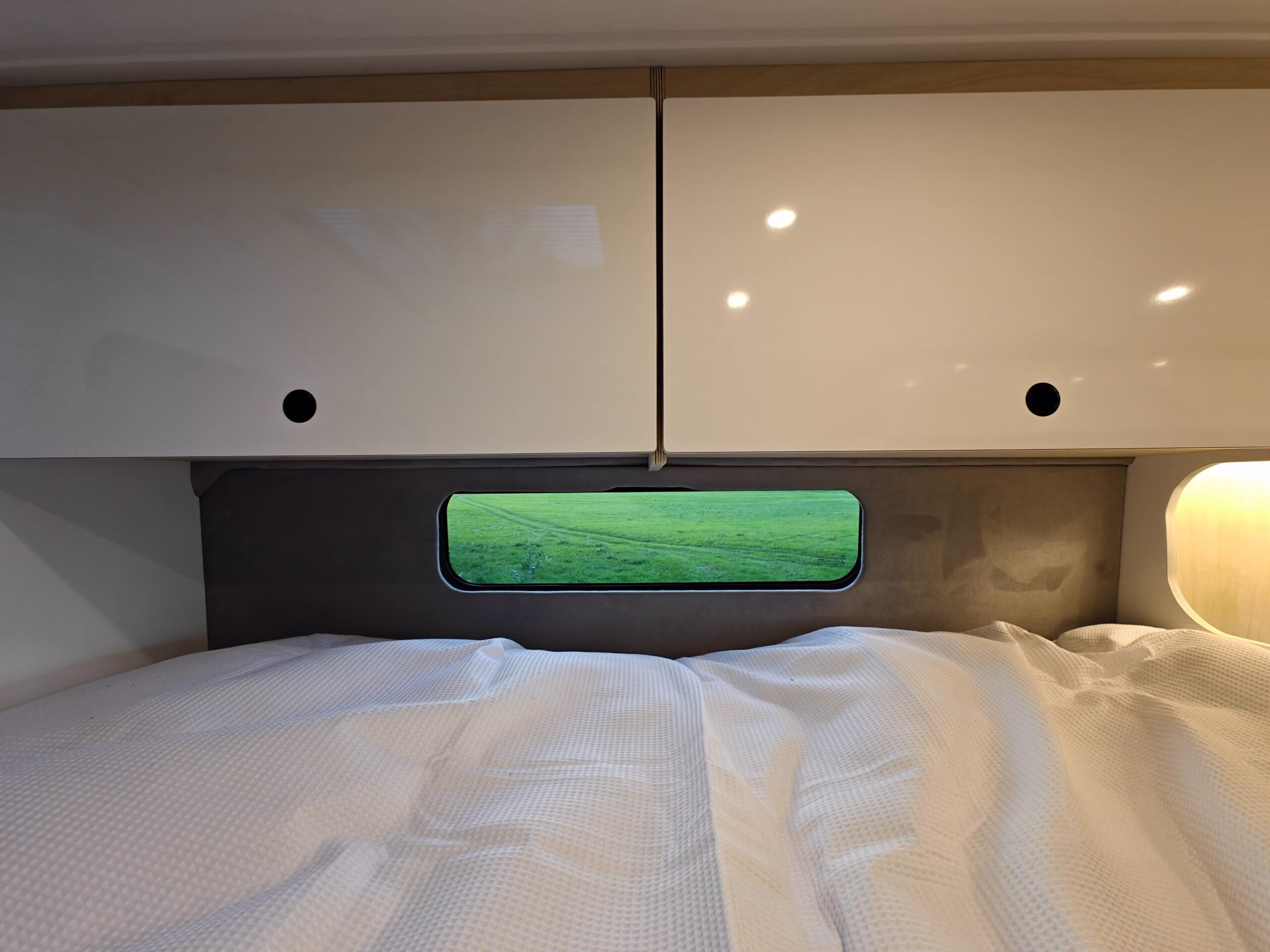

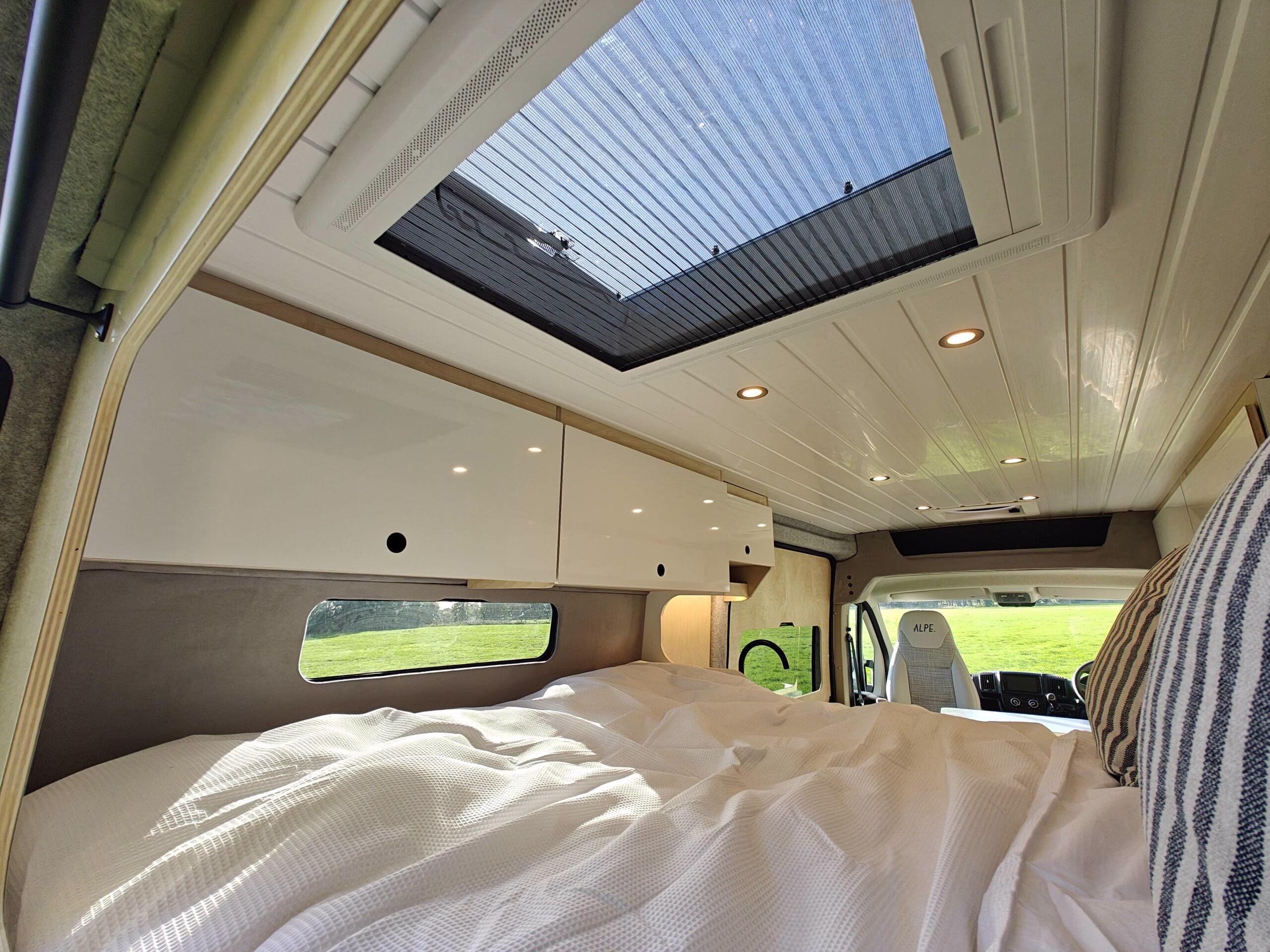

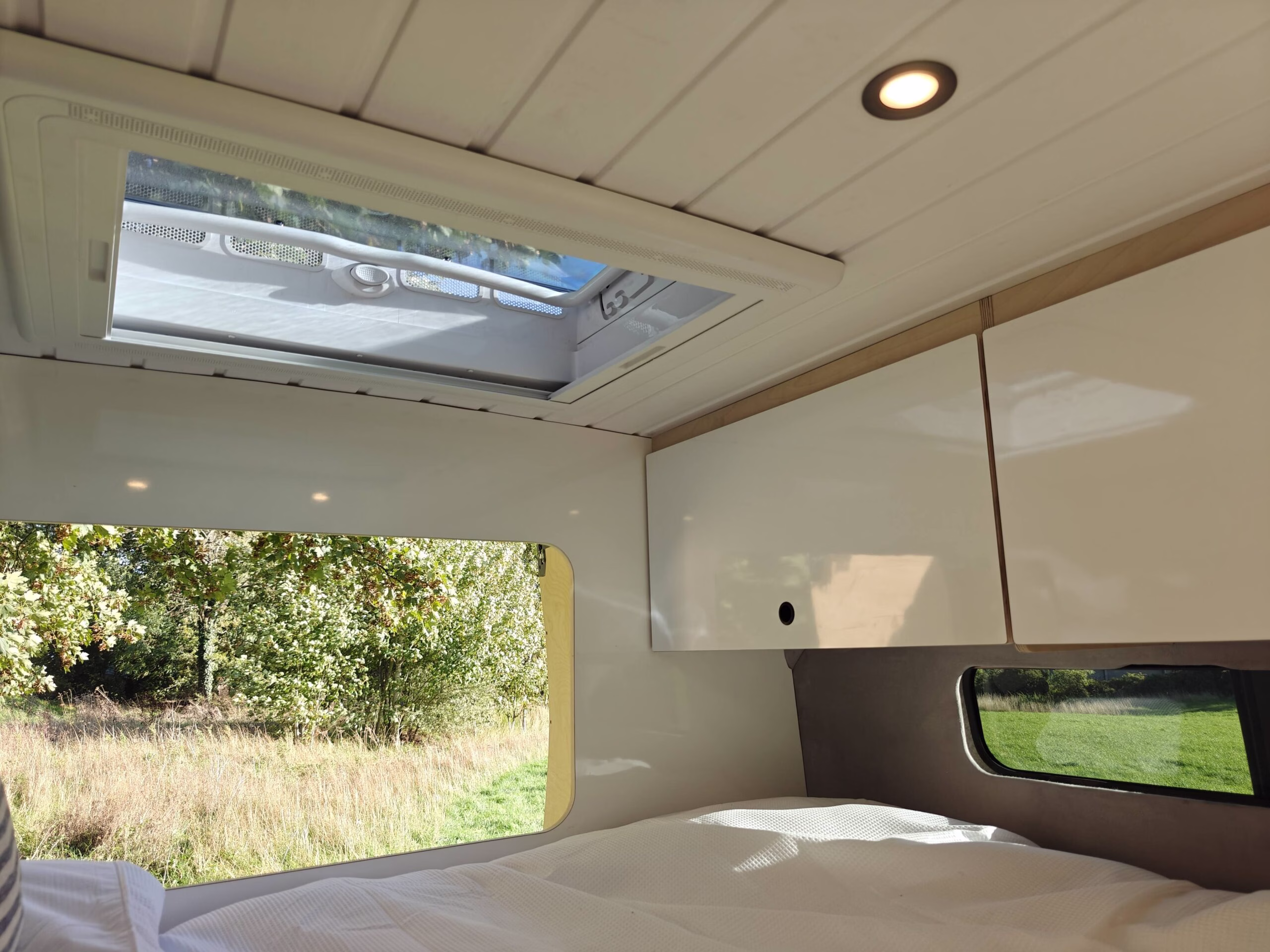

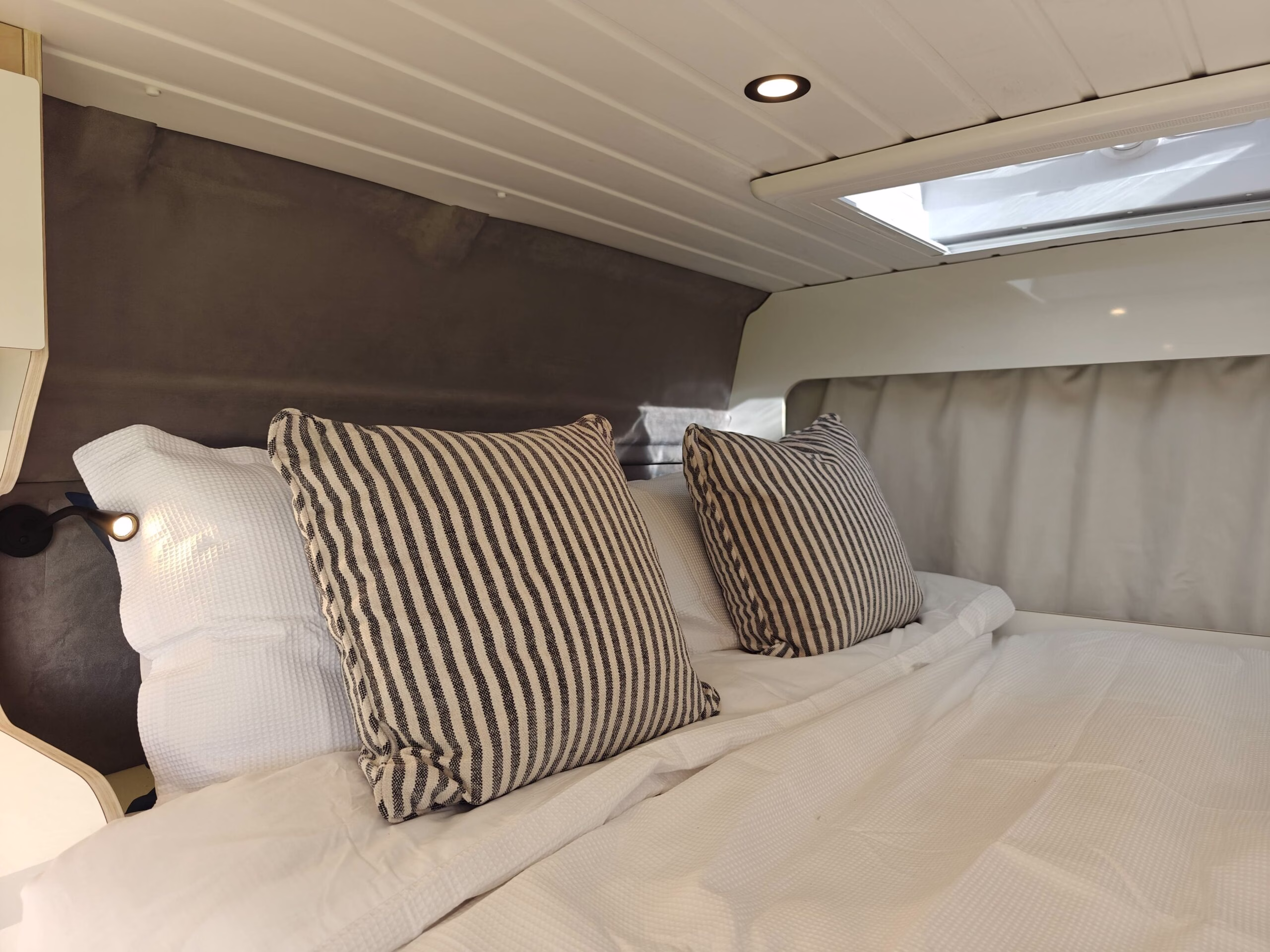

Behind the eye catching design, comfort in all climates has been considered at every point. The large fixed rear bed is 150 cm (5’00”) by 190 cm (6’3”) which is the width of a full king. With a memory foam mattress, individual reading lights, and a large opening skylight just above, the bed is designed to prioritise quality of sleep and provide an inviting place to rest and relax.

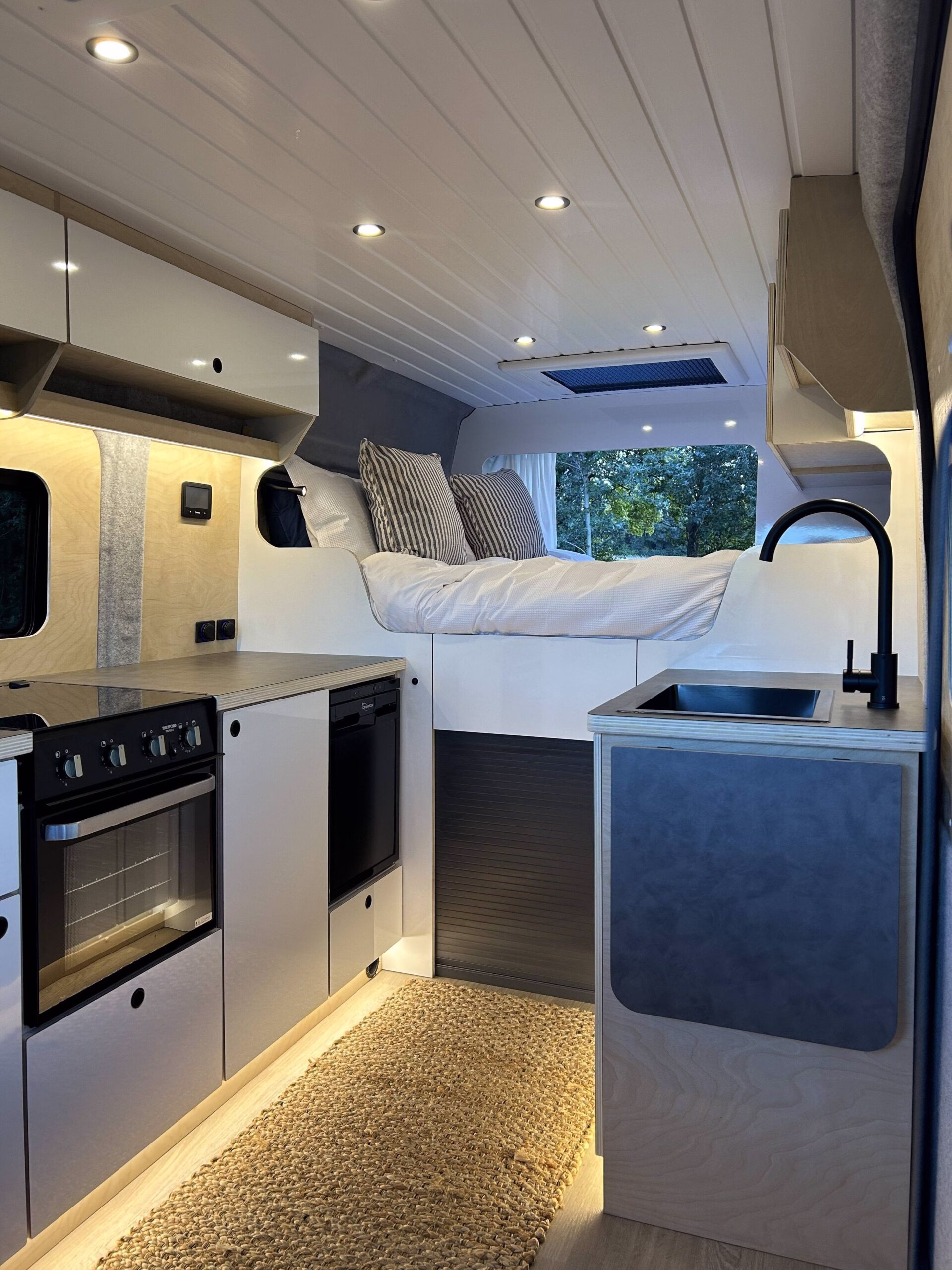

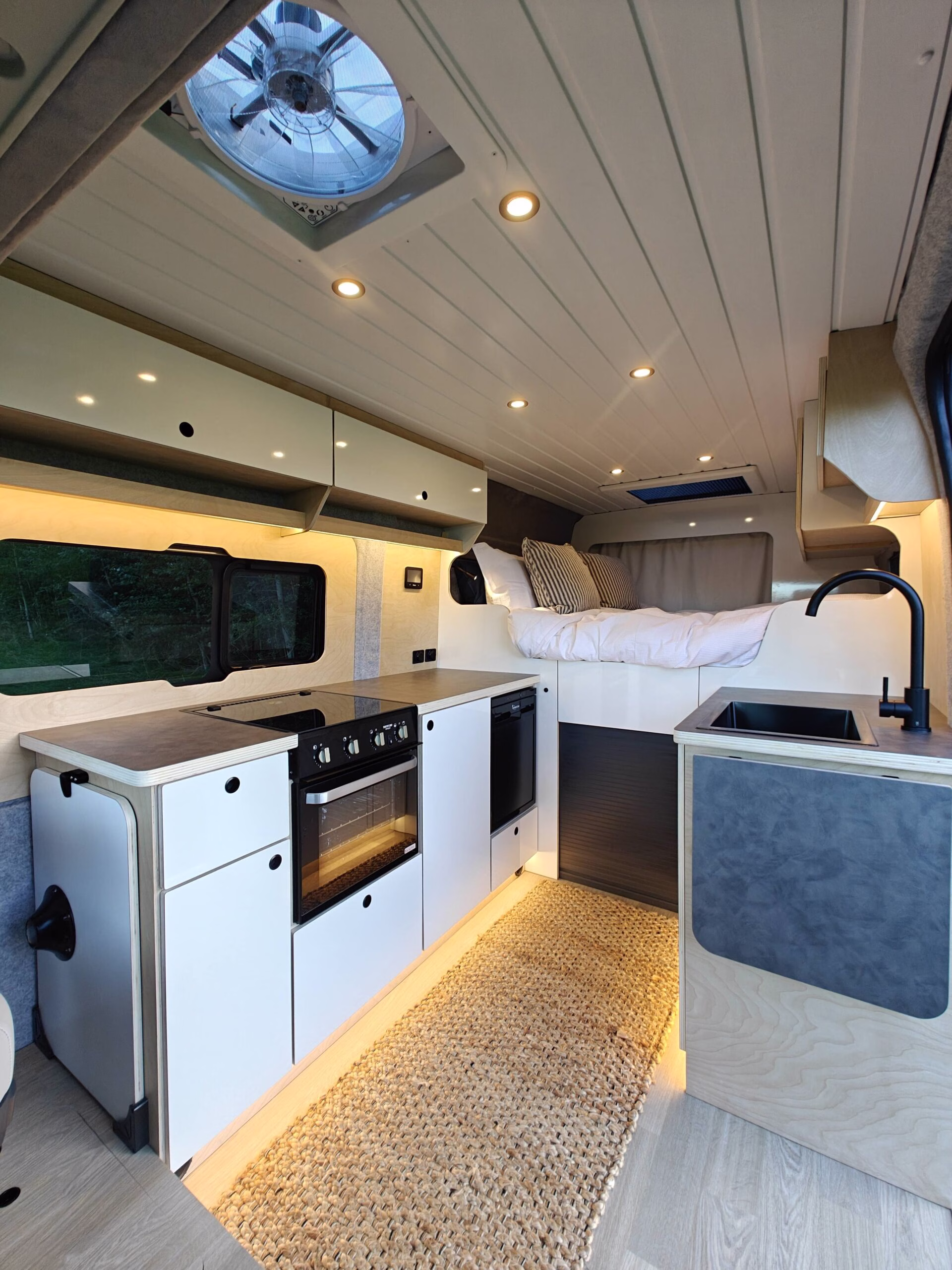

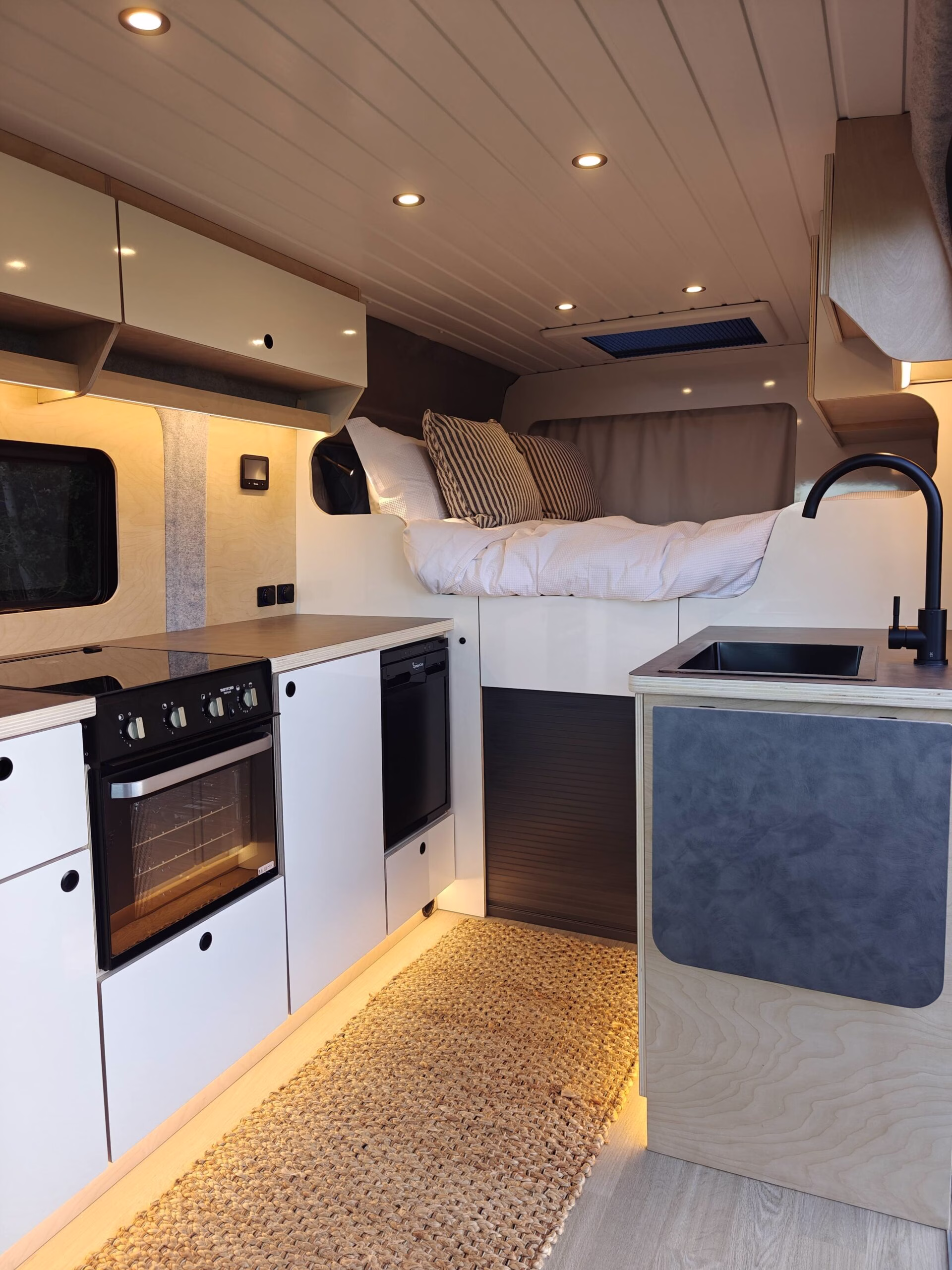

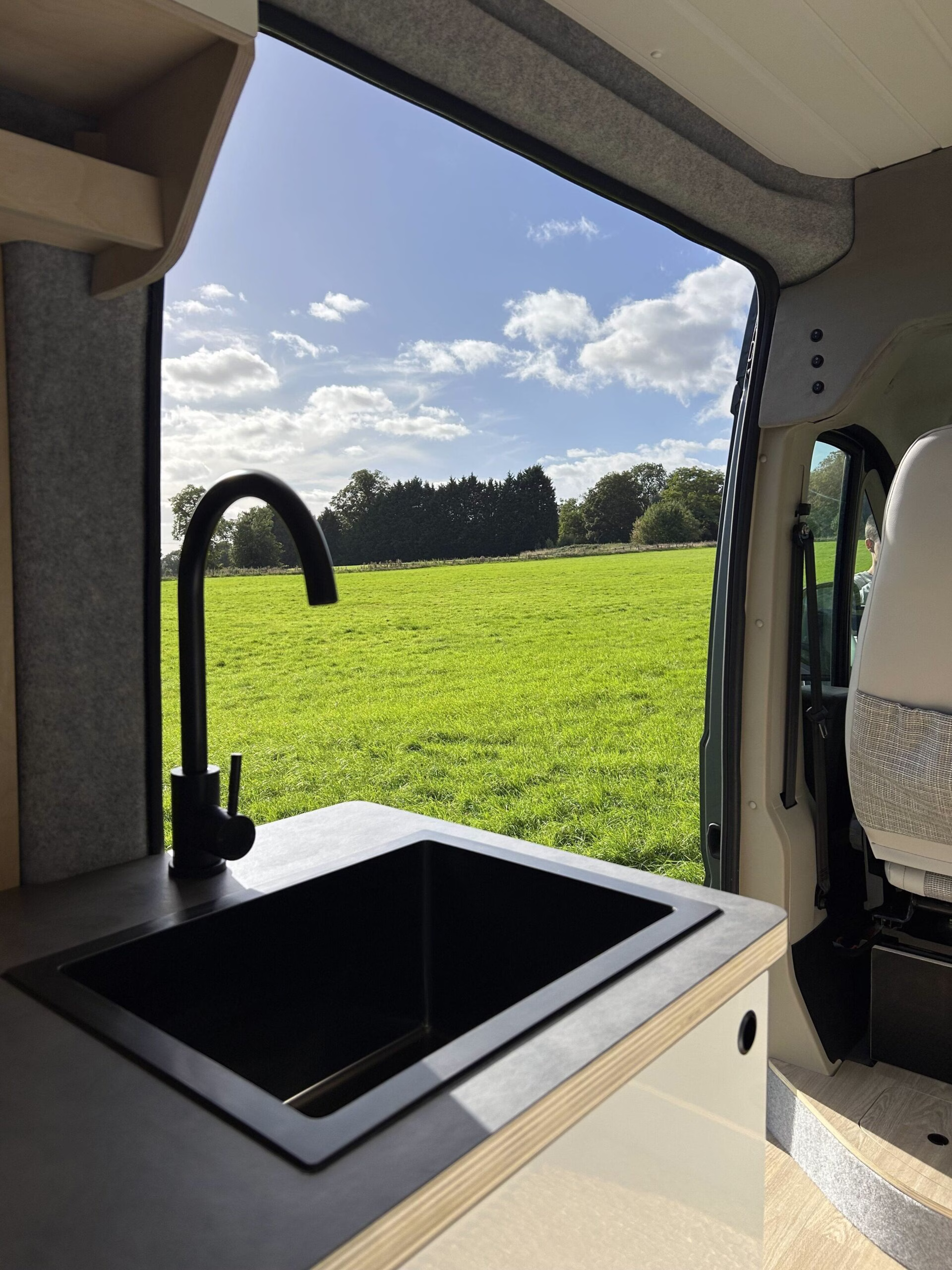

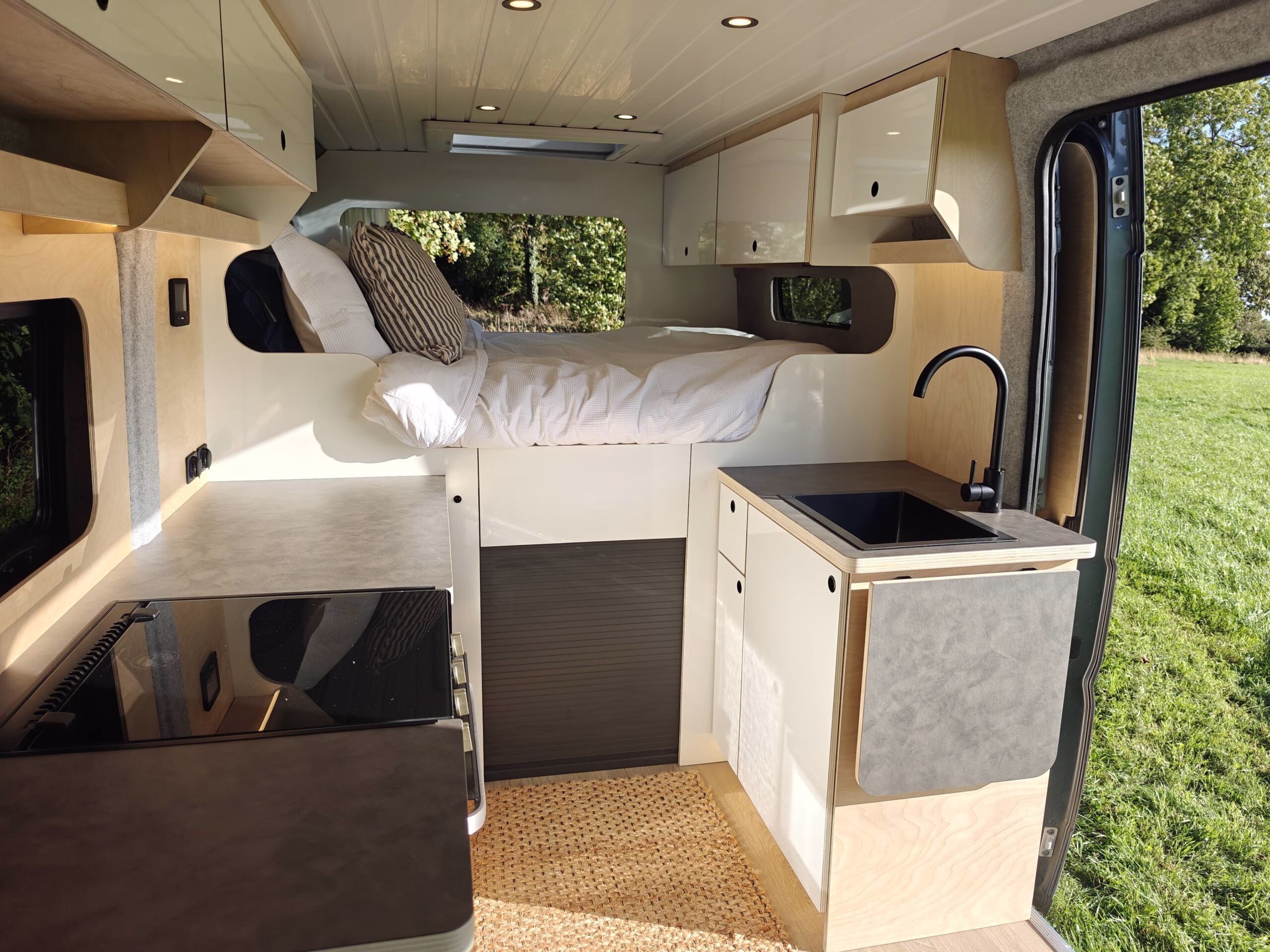

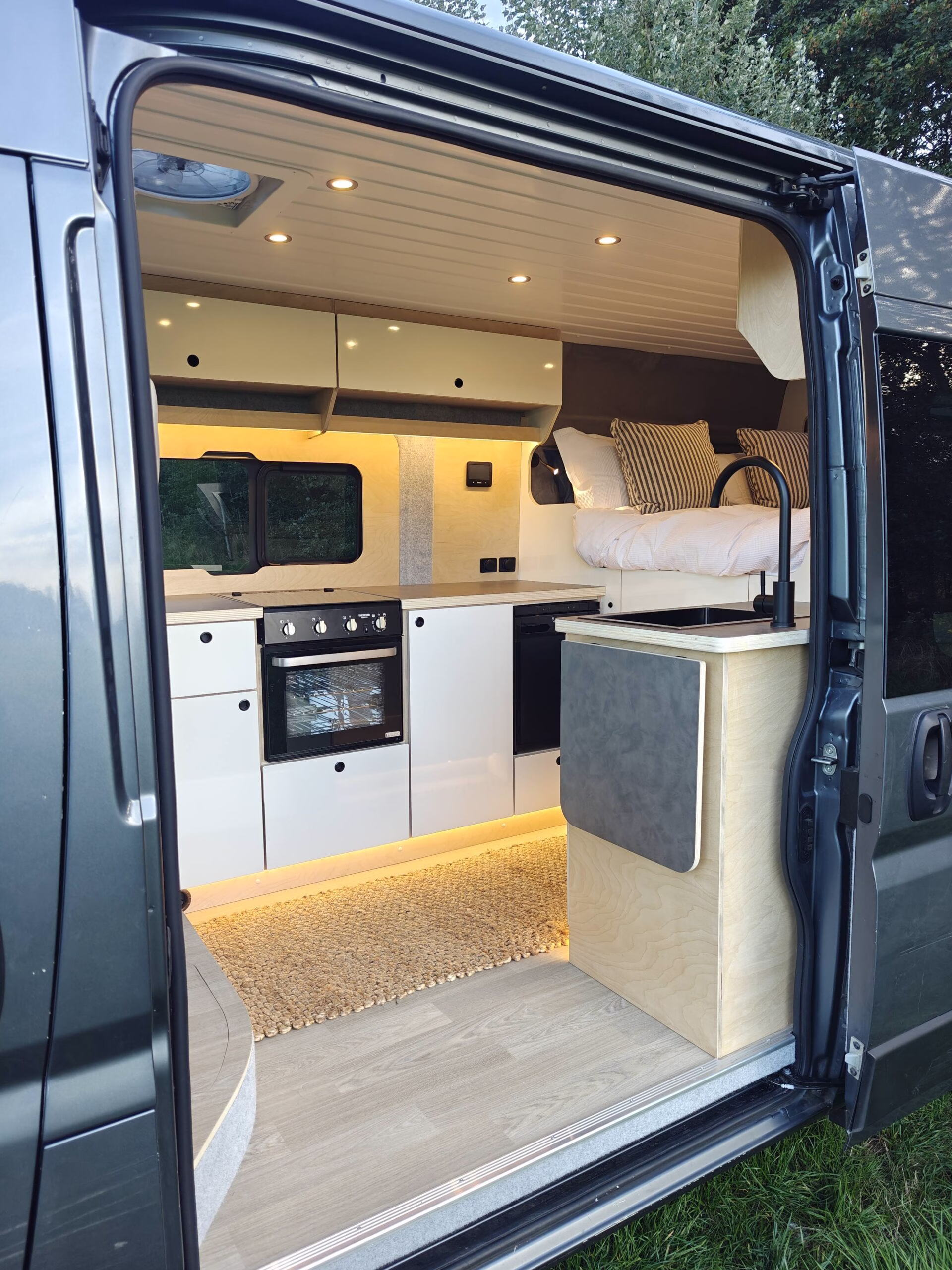

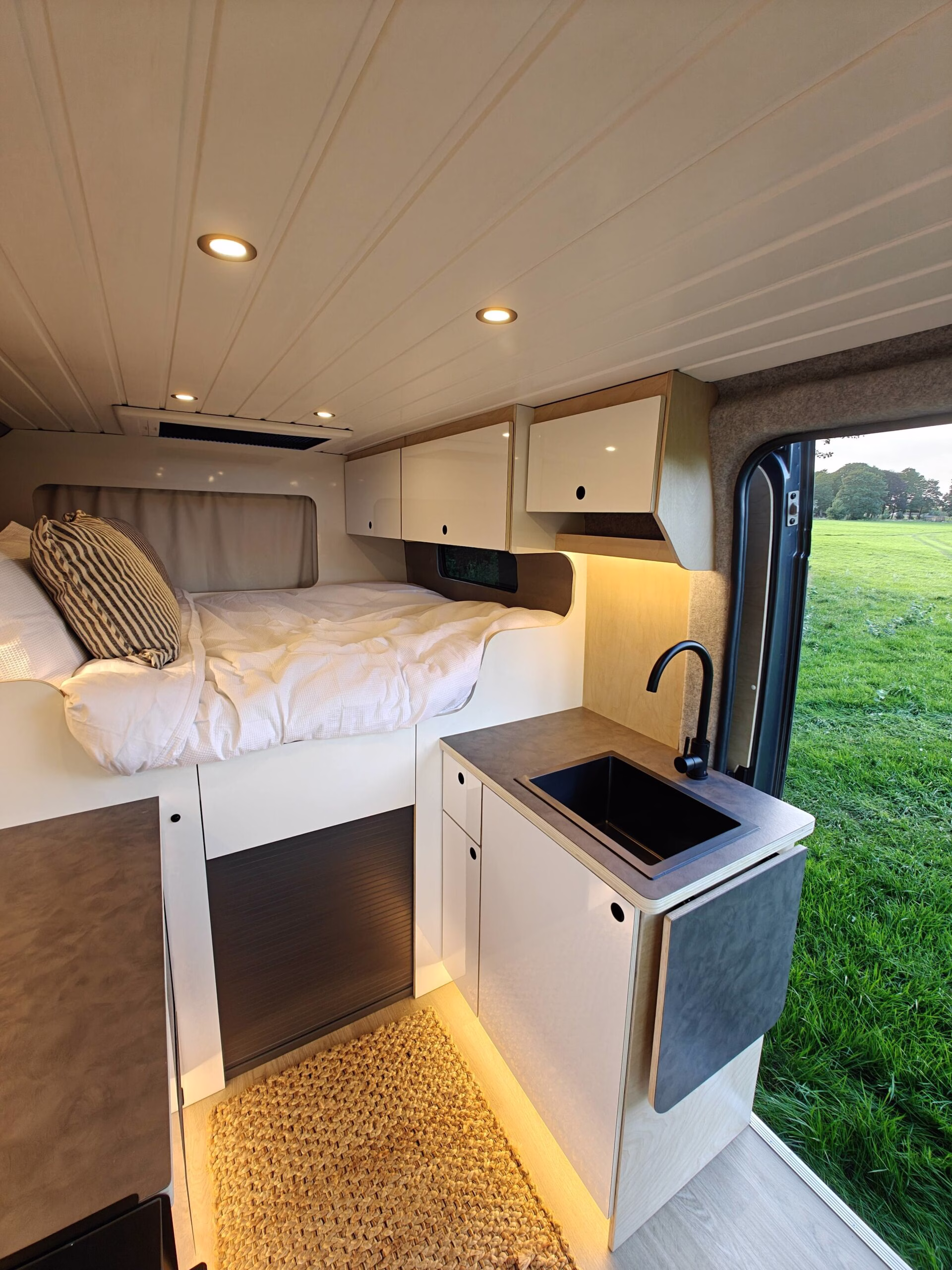

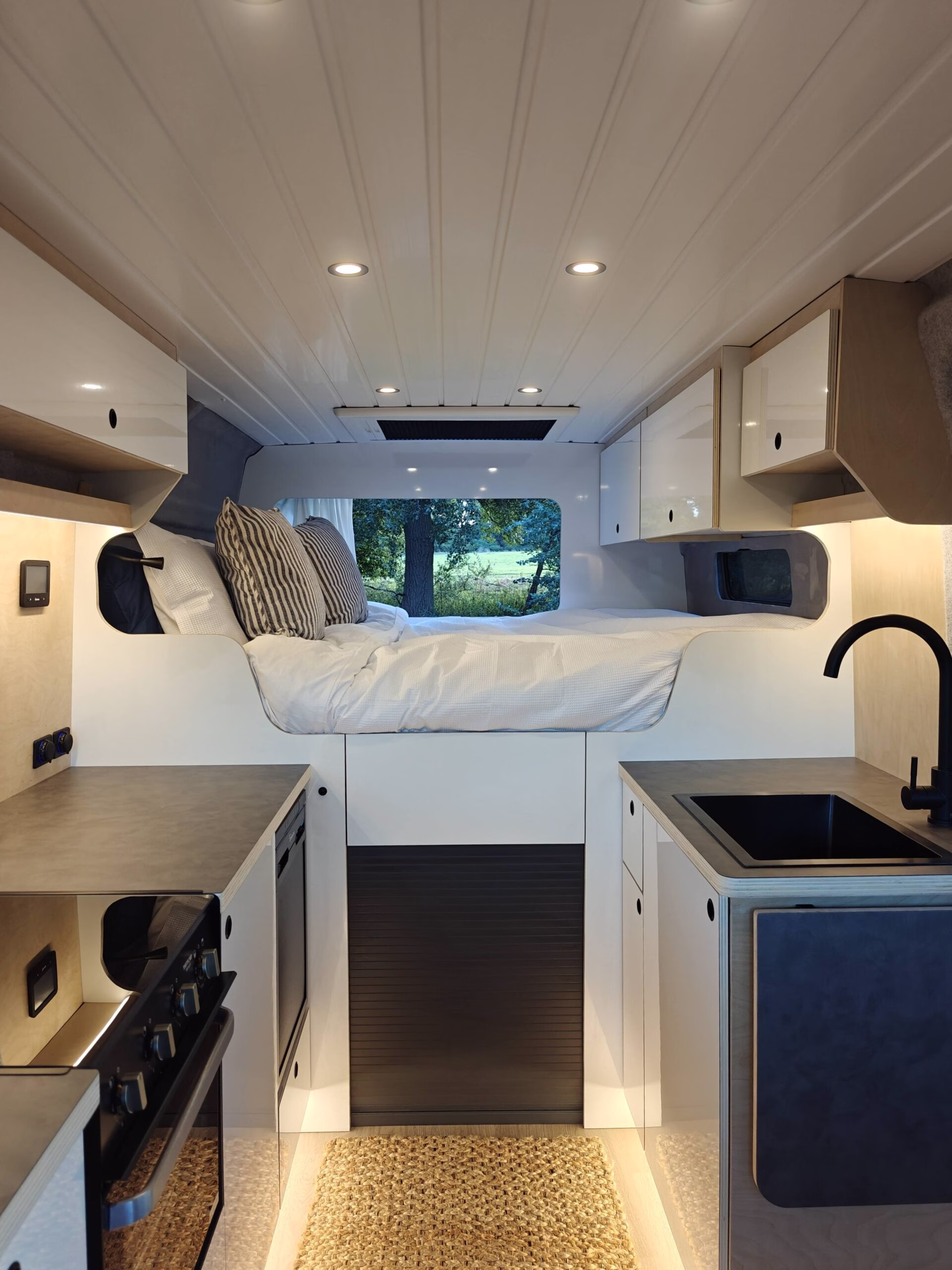

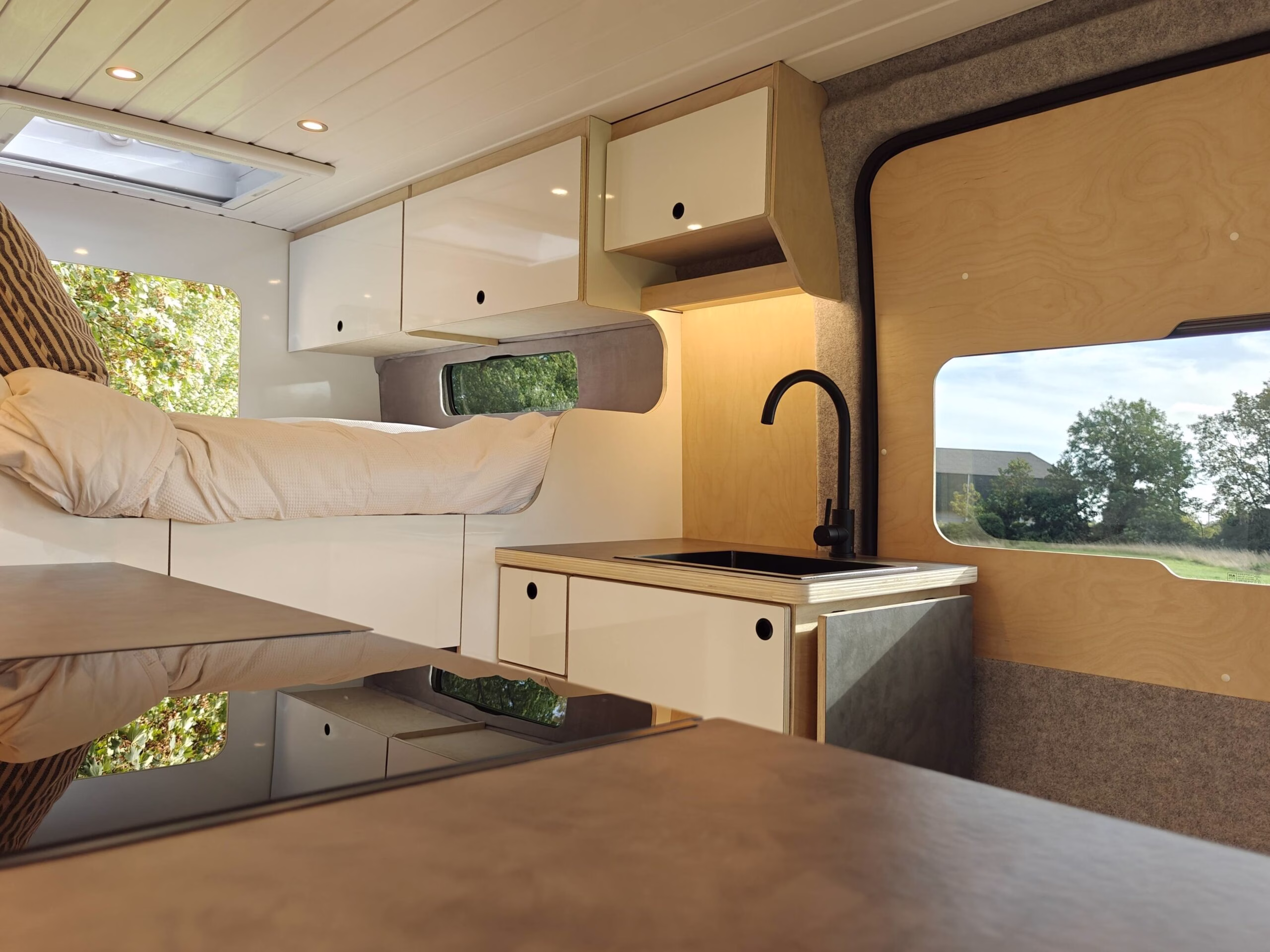

The kitchen is fully equipped and can be used liberally in the same way you would use a kitchen in the home. A fridge with freezer compartment, hob, full oven with grill, 240 V sockets, generous worktop space and large sink with hot water on tap allows you to enjoy cooking freely and without the limitations often brought about when travelling.

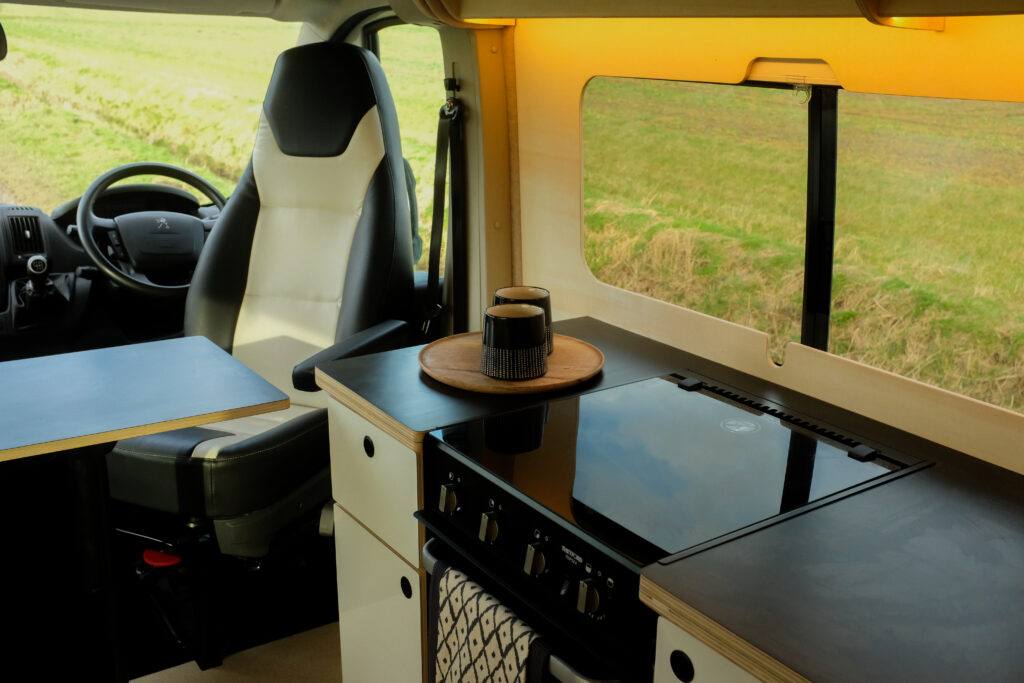

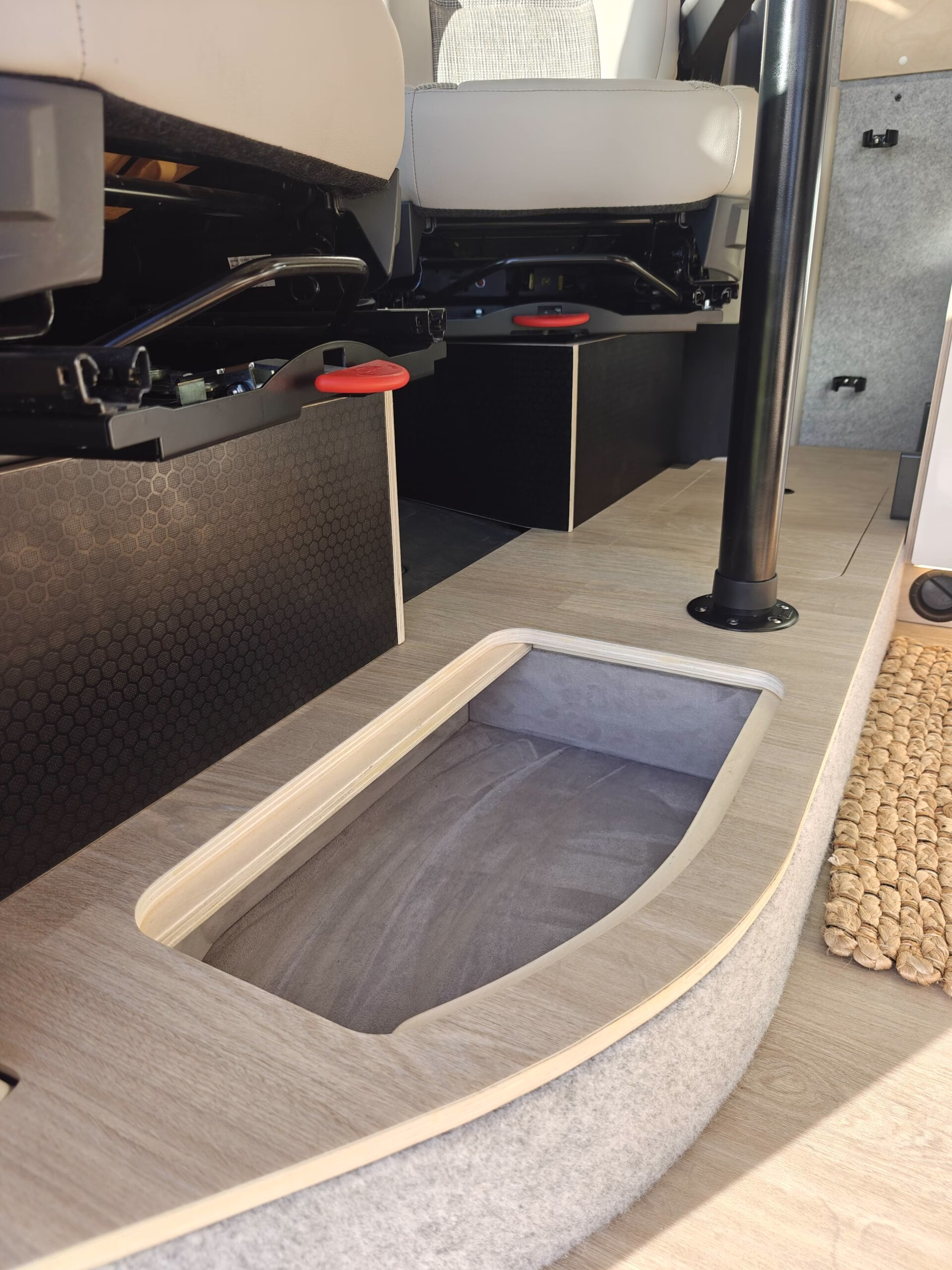

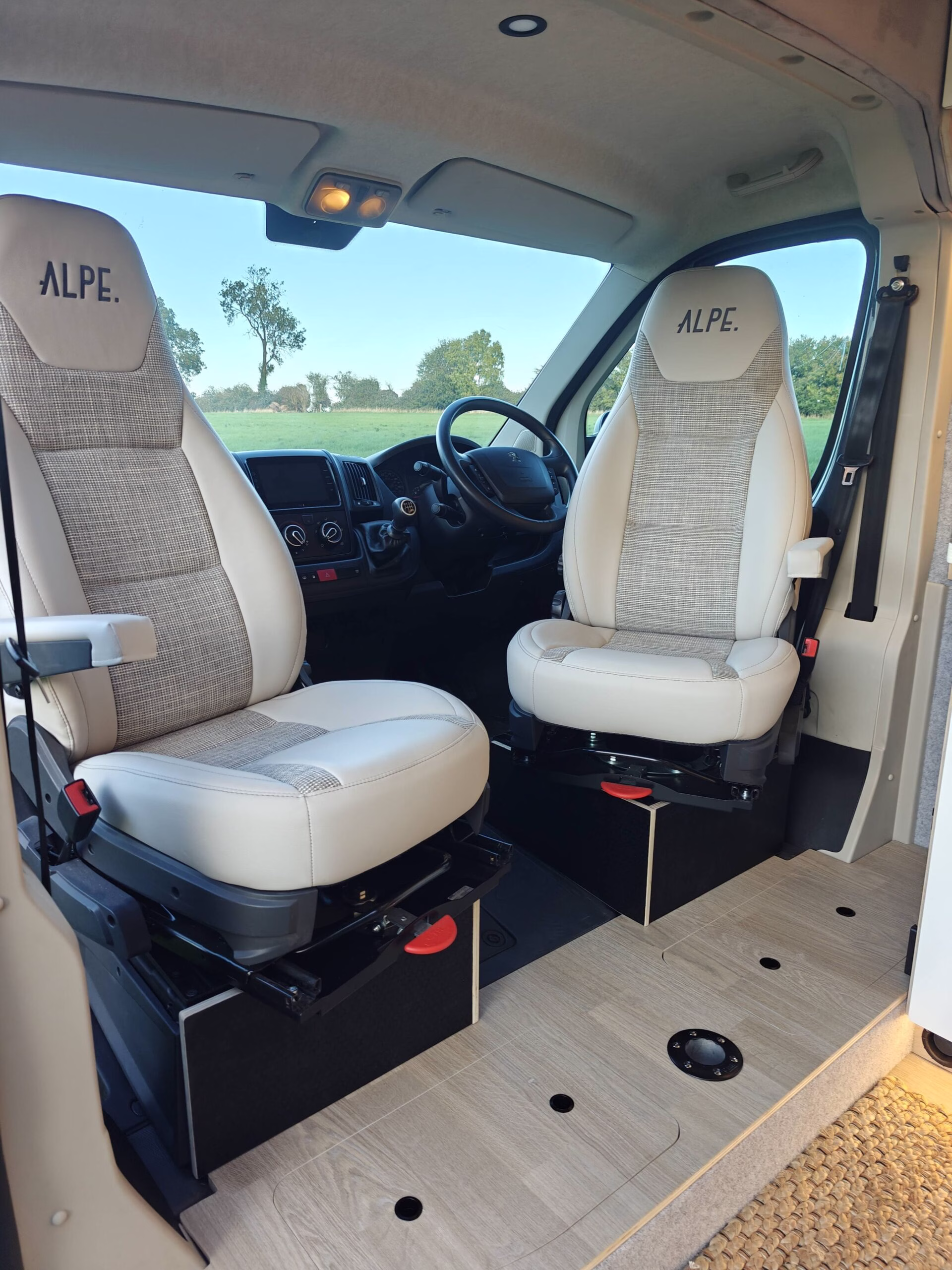

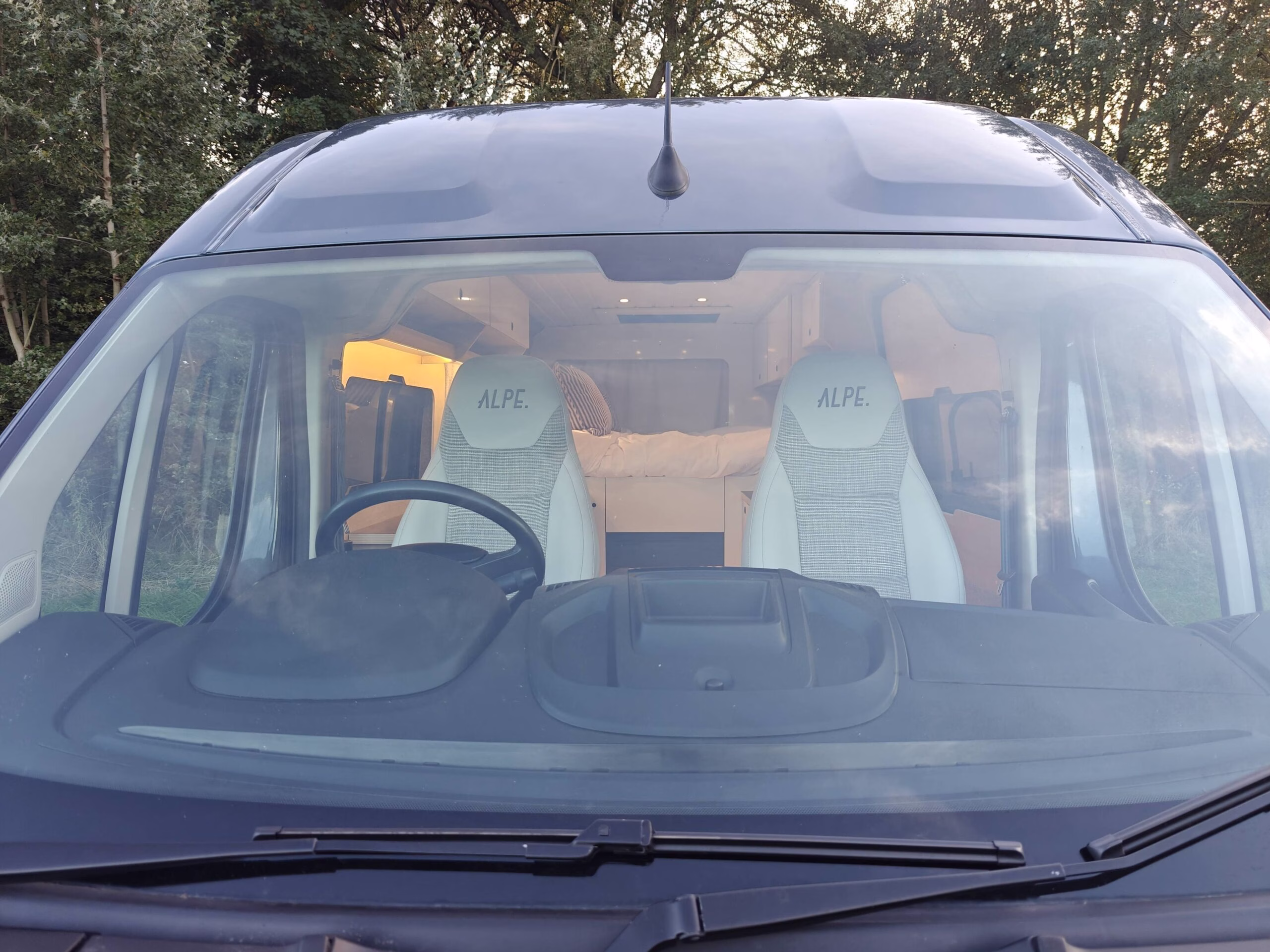

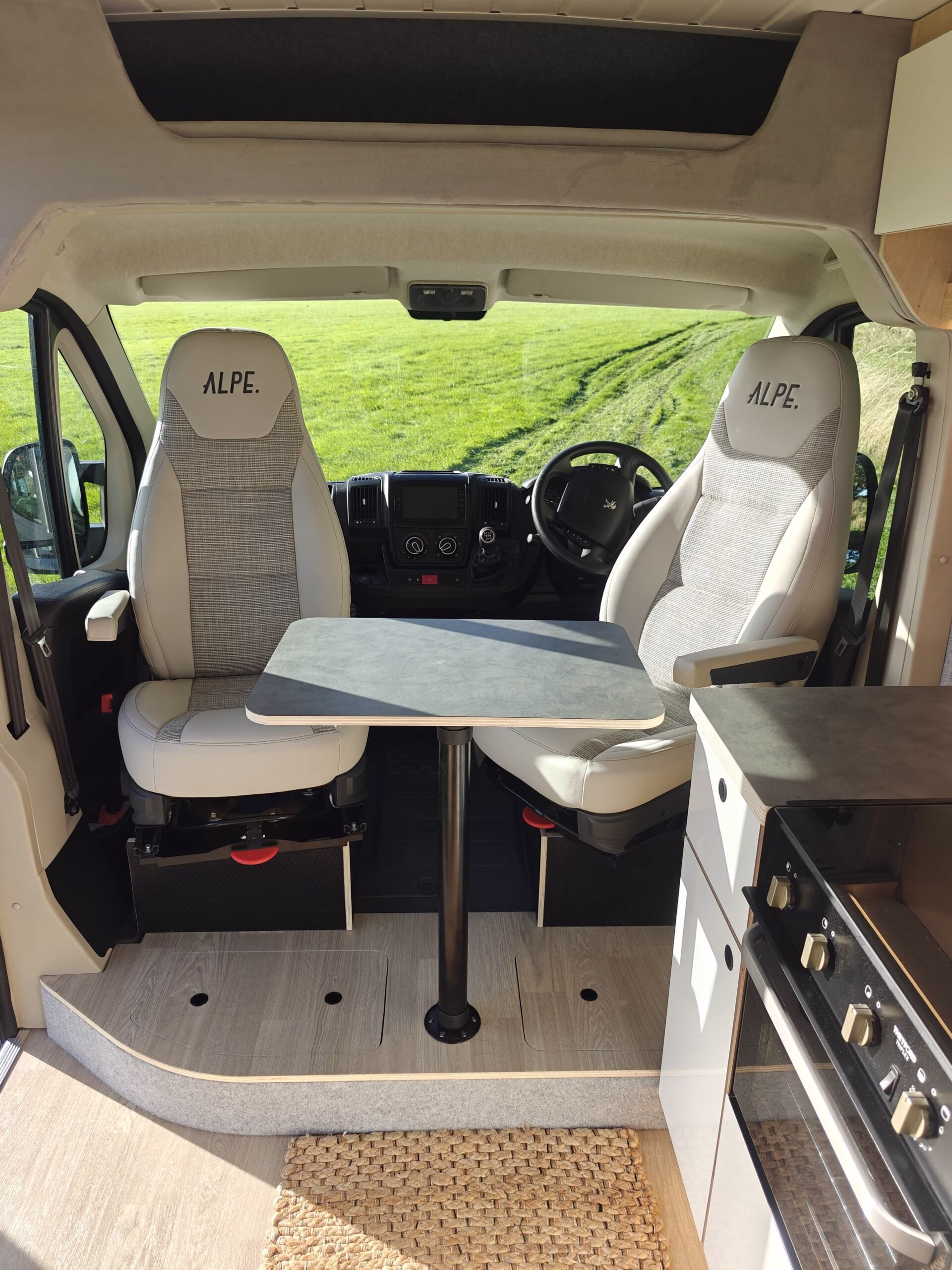

The main seating area utilises the front two captains swivel chairs to make the most efficient use of the space available. The front chairs simply turn around and a folding table (which takes seconds to set up) provide a comfortable area to relax, work, eat, etc.

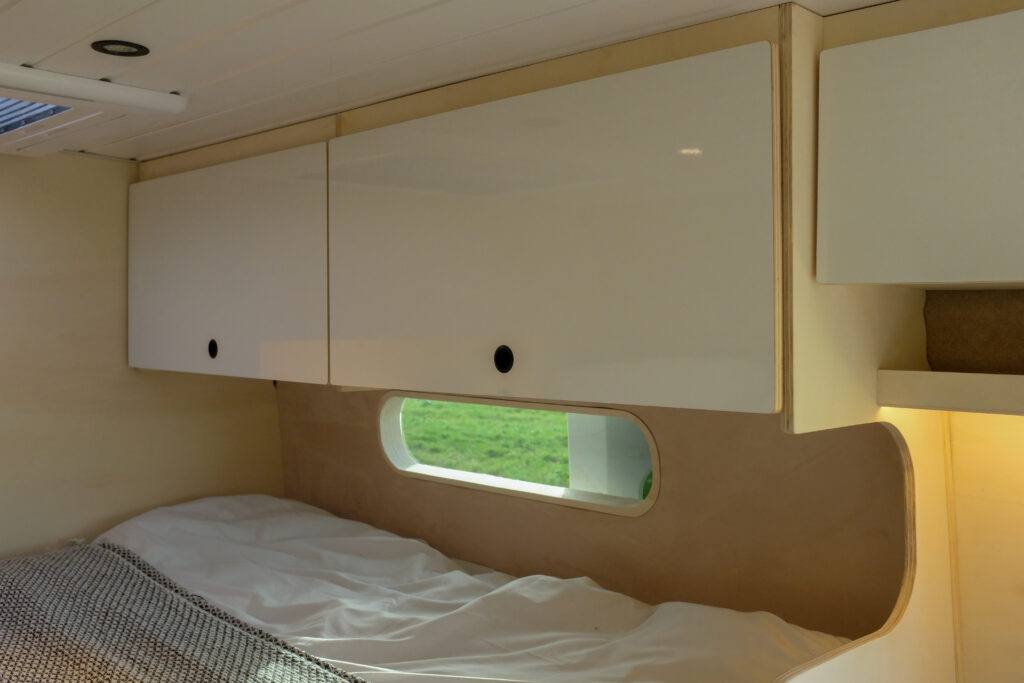

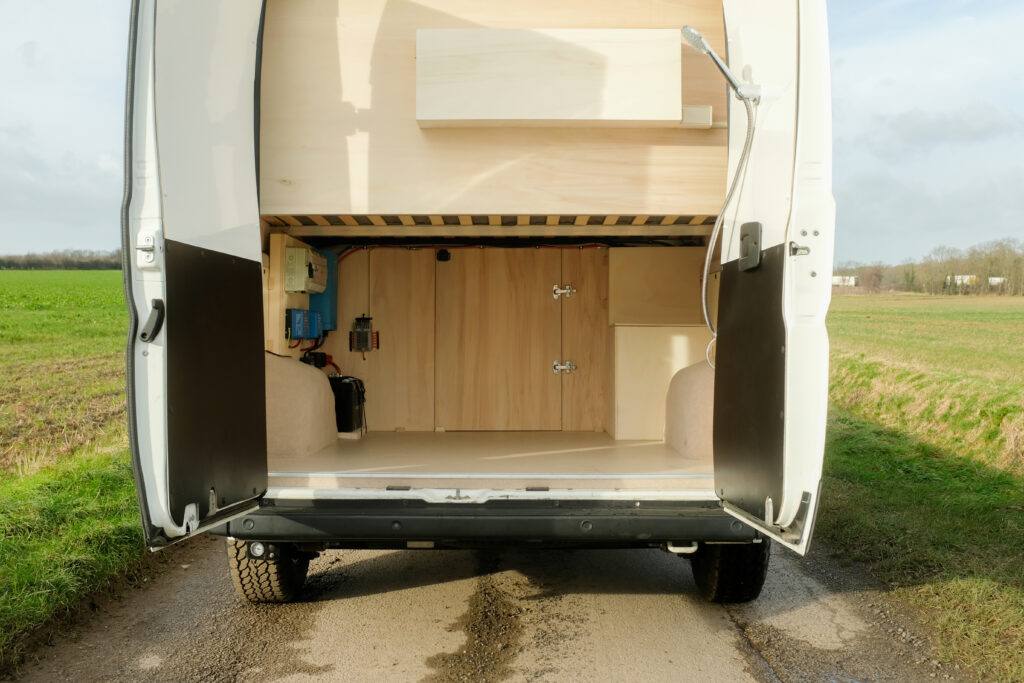

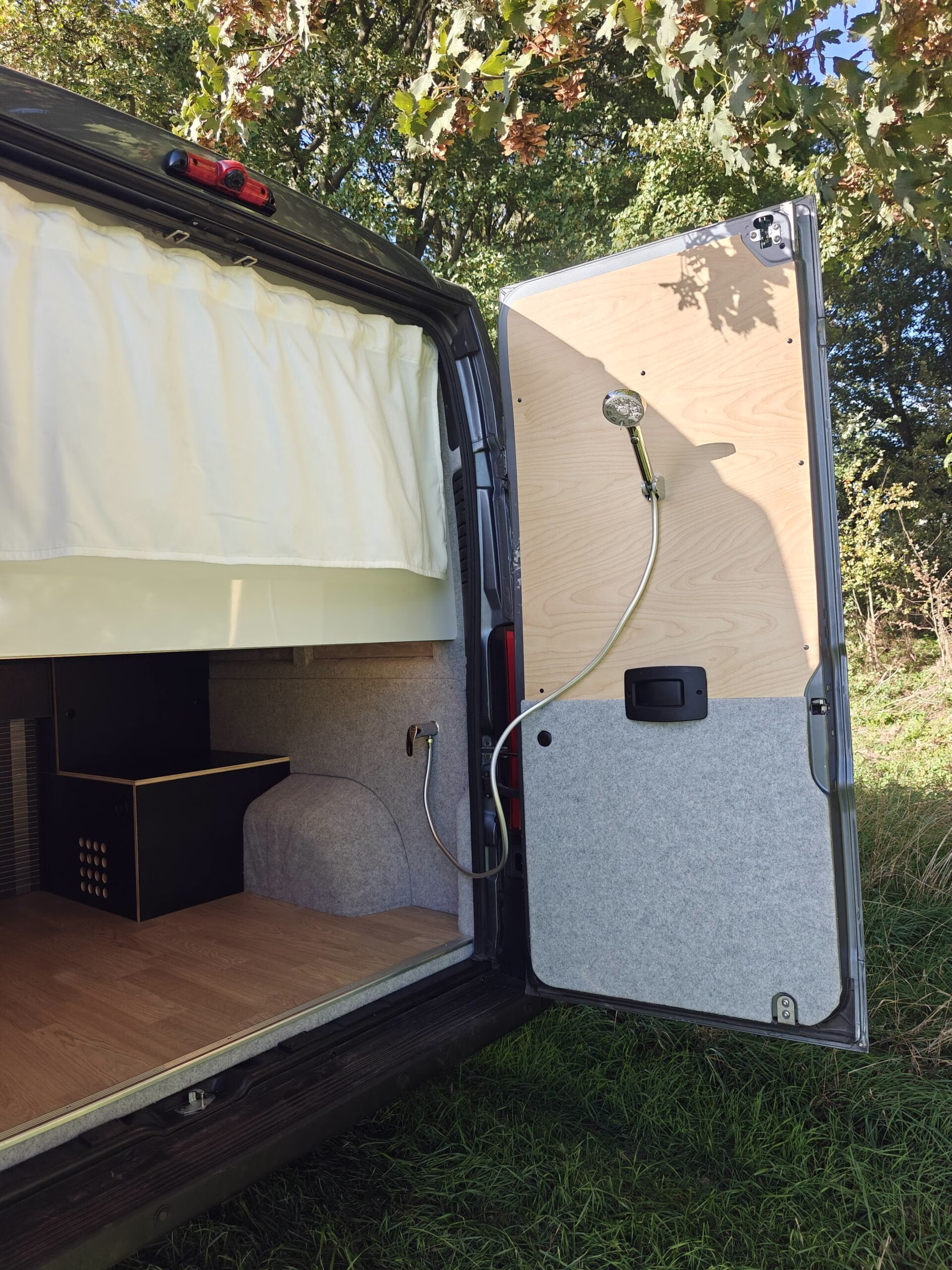

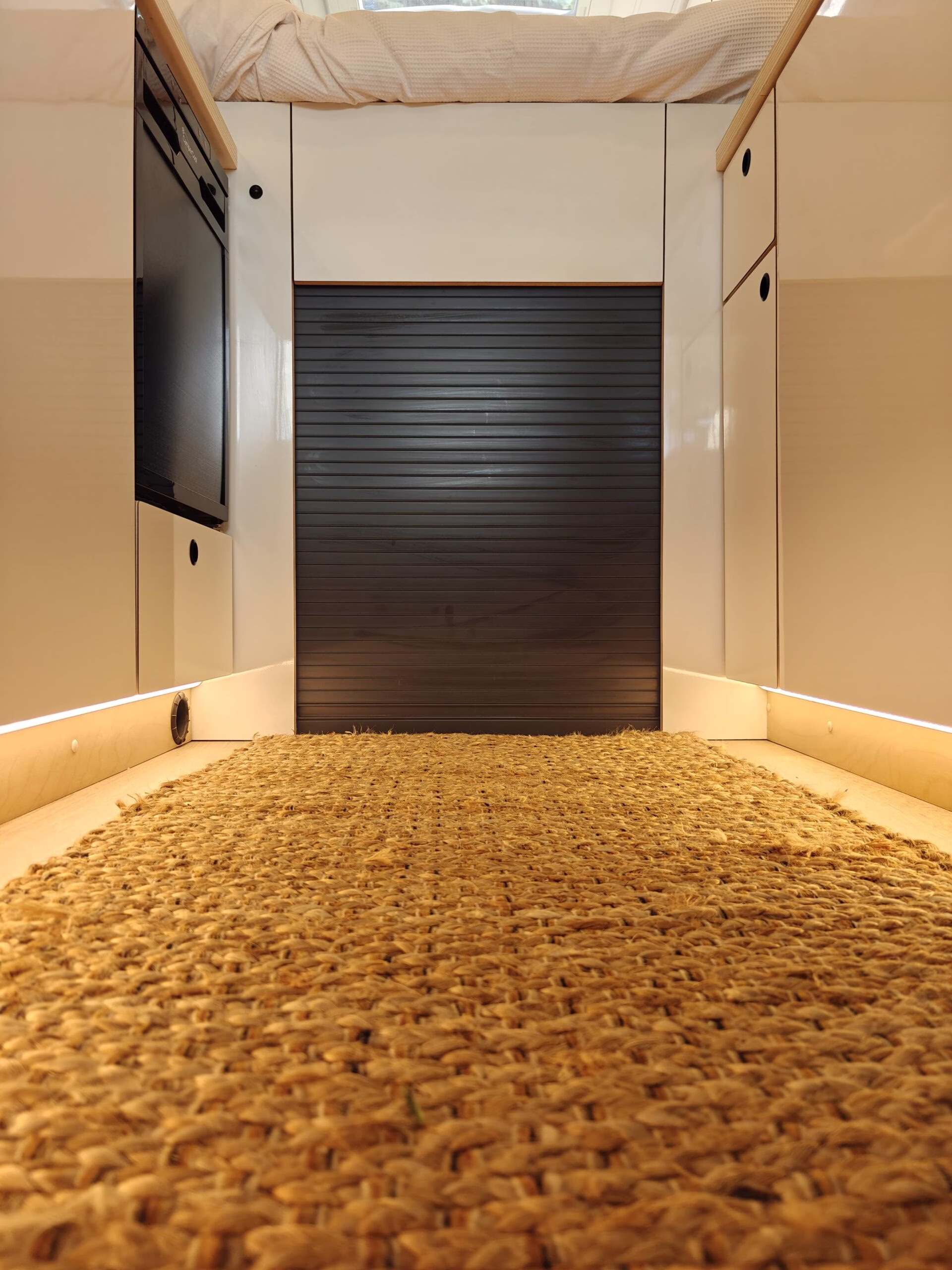

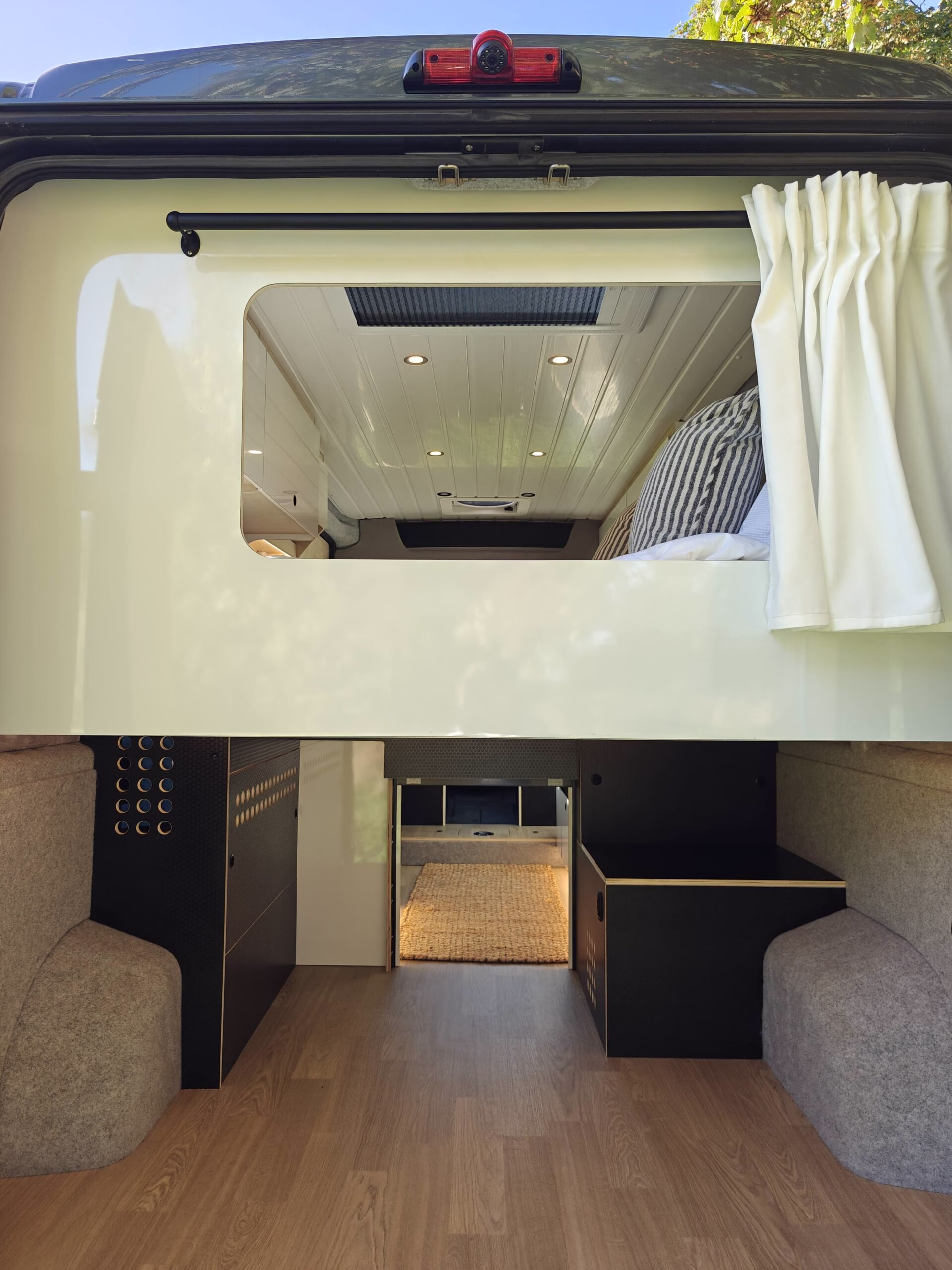

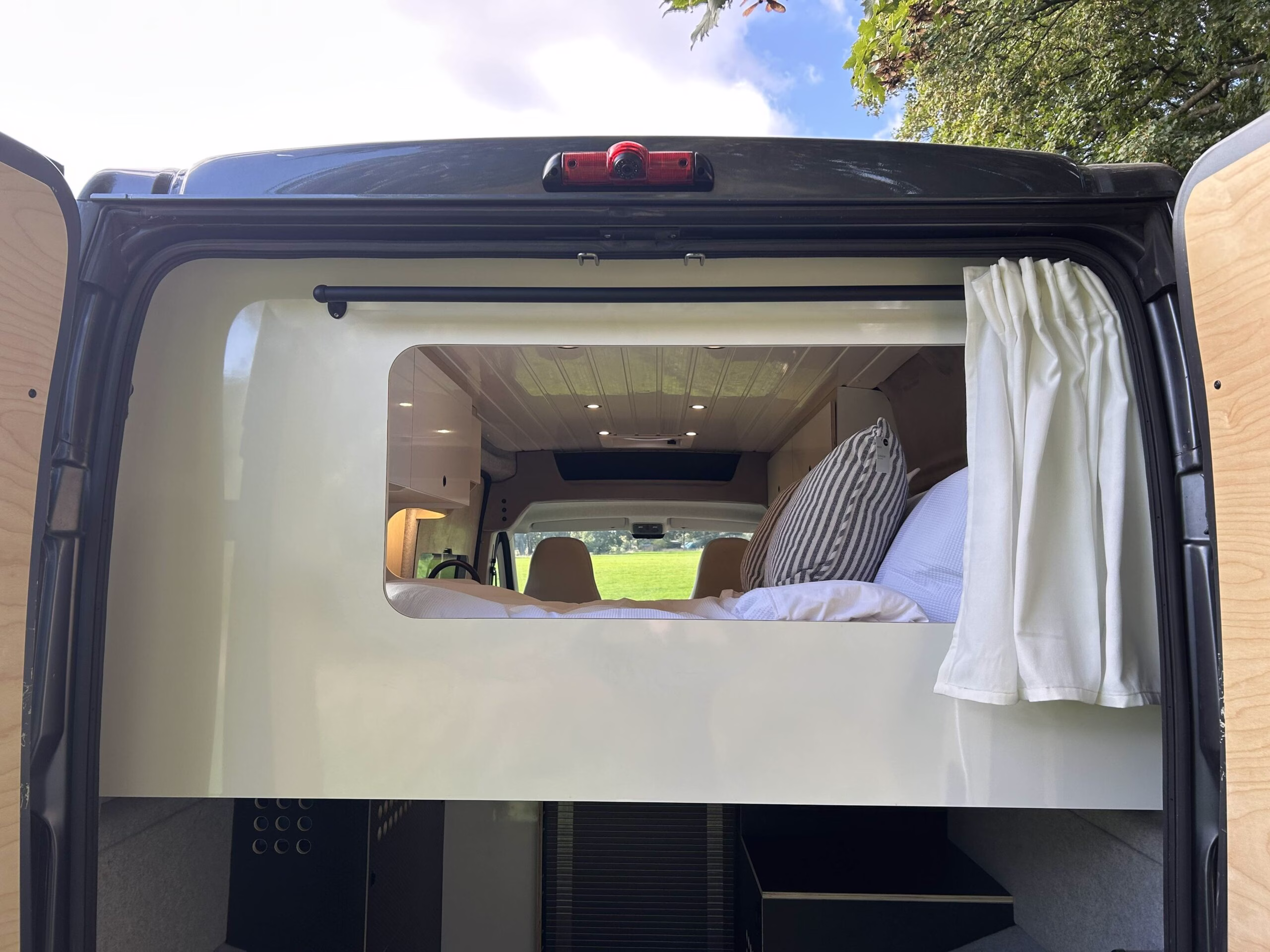

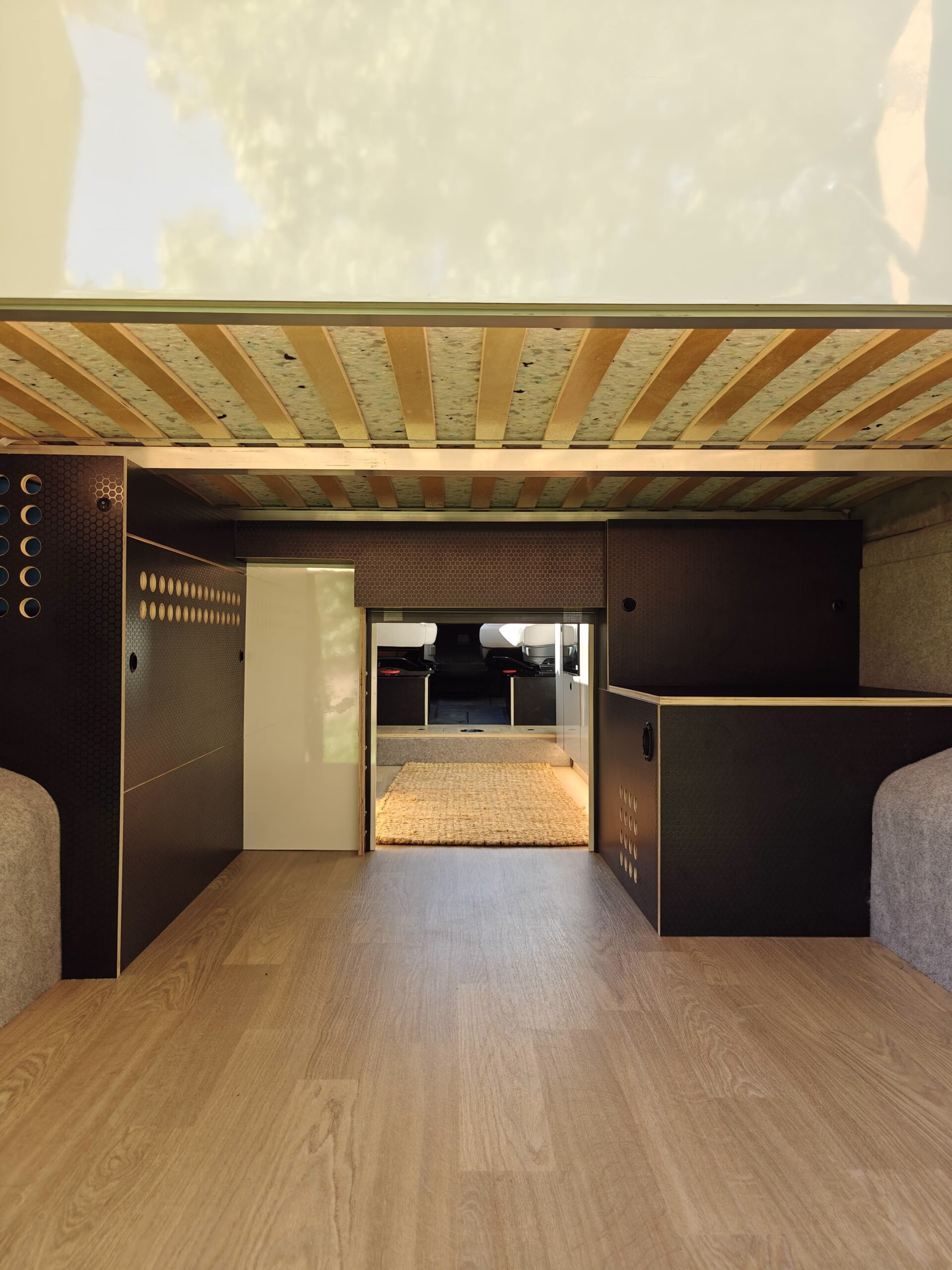

Storage of course is the other key factor that has been considered through the design and build process. The fixed raised bed provides space for a hugely generous garage area, with an access door through from the kitchen. Up to six bikes can easily be accommodated just by removing the front wheels. For any prospective buyers please note this garage area has been left empty, but options for shelving, slide out drawers, bike racks, kennels or anything else can be discussed. While the kitchen comes with several cupboards and drawers there are also overhead cupboards throughout including two large storage cupboards above the foot of the bed. Other creative storage areas include a handy shelf above the cab and plinth storage below the seating area.

The brief for this conversion was to combine a stunning modern design with effortless comfort in a way where the user doesn’t need to think about the all the workings of the gas, electric and water systems, they can just use the van freely and without limits. This means that all the details from a usability point of view have already been thought about and taken care of through the whole build process. Most of which you would never have reason to even be aware of.

The van was sound deadened and insulated using a combination of PIR boards and recycled plastic insulation. This helps keep noise to a minimum when travelling and allows the van to be used year round in all weathers. Integrated blinds provide privacy when needed and there is a ventilation fan which can be used in combination with the skylight to create a comfortable flow of air over the bed and through the van during the summer.

The gas system makes use of a large 25 litre LPG tank with an electric solenoid (meaning the gas can be completely isolated at the flick of a switch). Living in the van full time a tank of this size will last for over 5 weeks and is easily refilled at a petrol station for around £25.

Also hidden under the van is a large fresh water tank that you fill up using the fill point on the side of the van, and a grey water tank that is quickly and cleanly emptied with a simple pull of a slide valve. An LPG boiler provides hot water for showers and washing up, as well as heating that can be set to a timer or be on a thermostat.

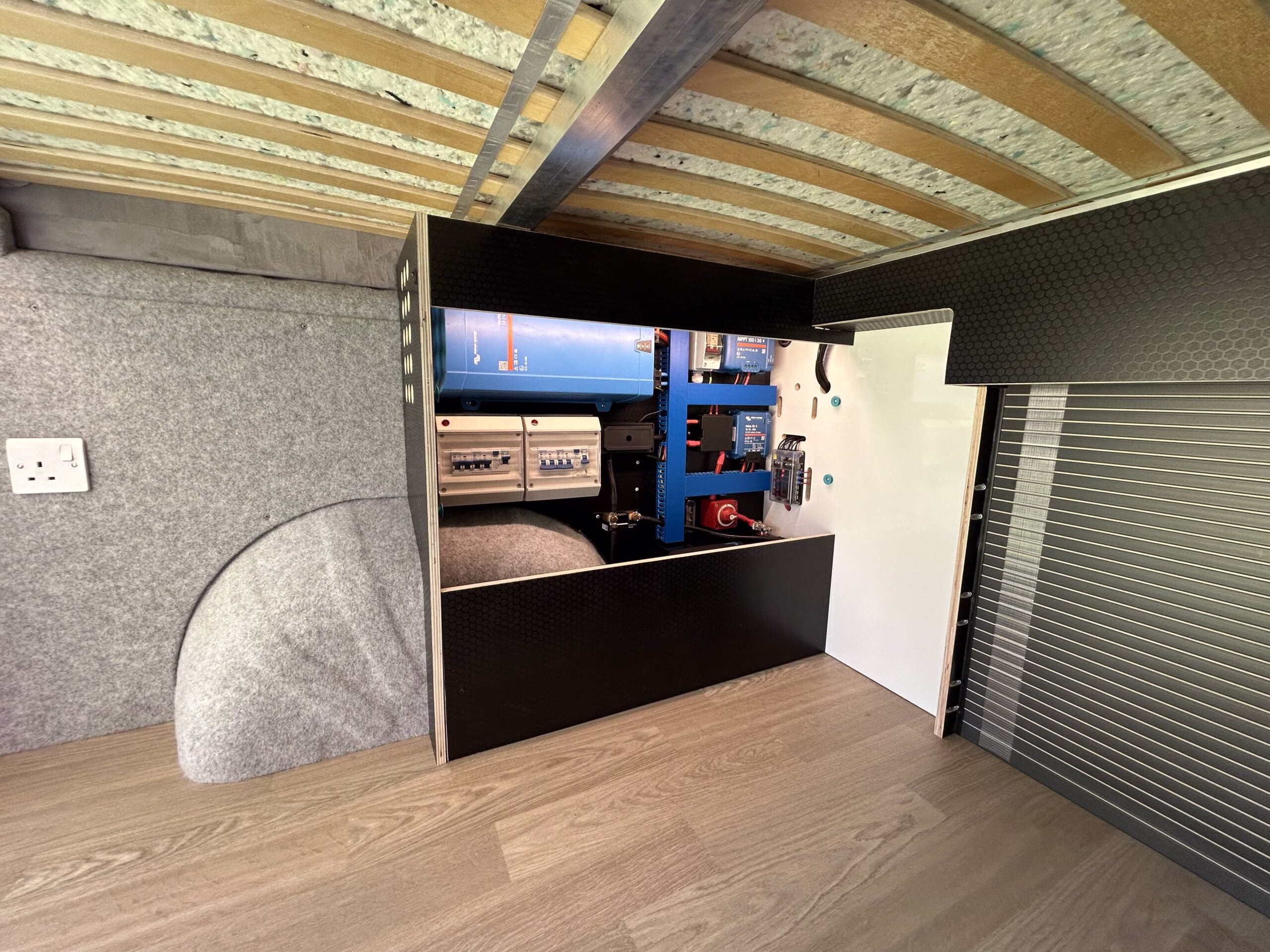

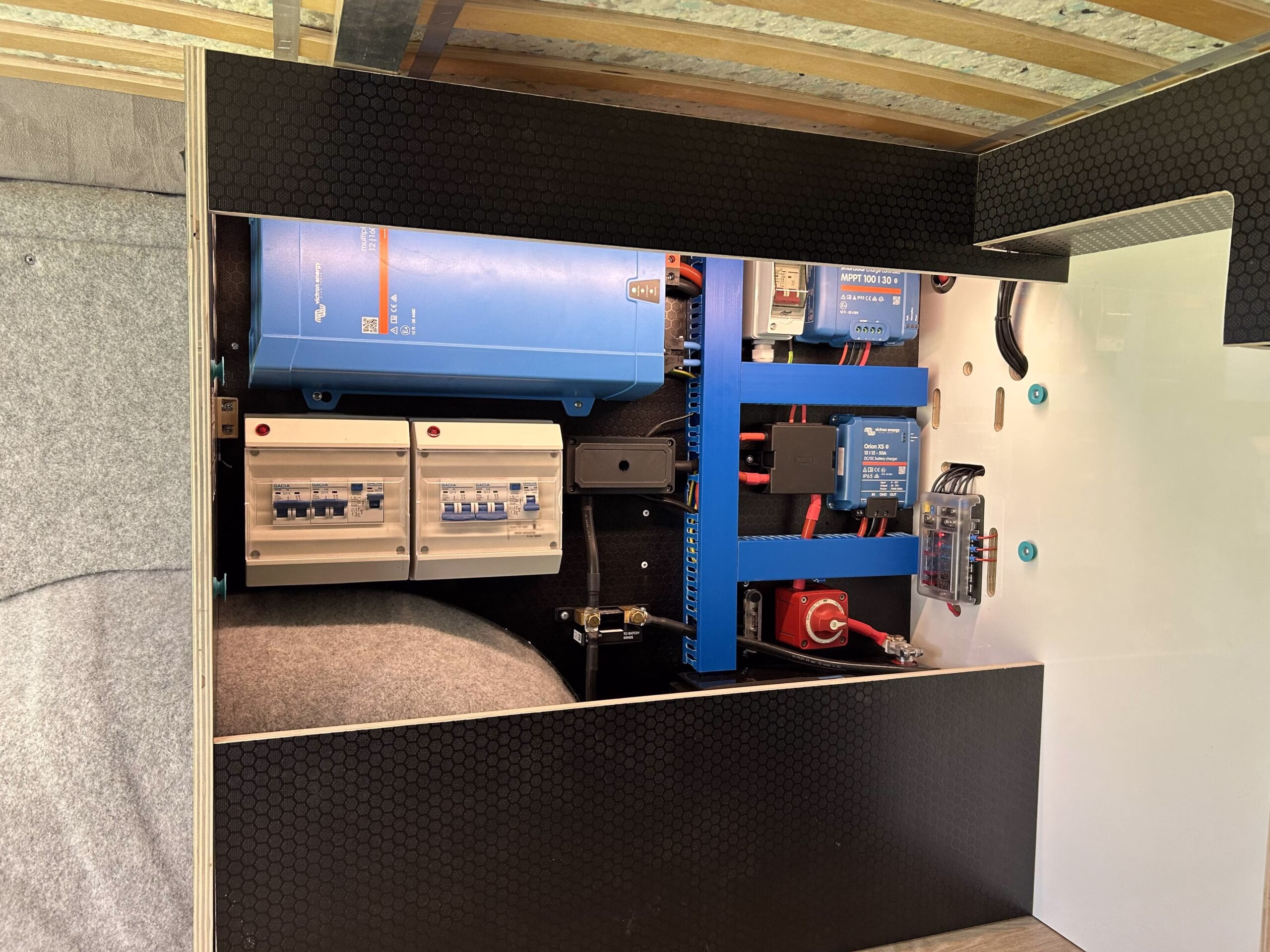

A great deal of expertise and experience has gone into the design of the solar and electrical system. A huge capacity lithium leisure battery is kept charged by a large solar panel and also by the alternator when driving. The van can also be hooked up at home or at a campsite if desired although the system is designed to be used without ever needing to be on hookup. A 1600 VA inverter means 240 V can be used at any time, with sockets available in the kitchen area and in the garage. Victron charge controllers and inverter have been used to allow maximum reliability with minimal user input. Victron components are the best available on the market and the whole system will run itself and automatically recharge and turn on/off as it is used. Again lithium has been chosen because of its unparalleled usability and low weight.

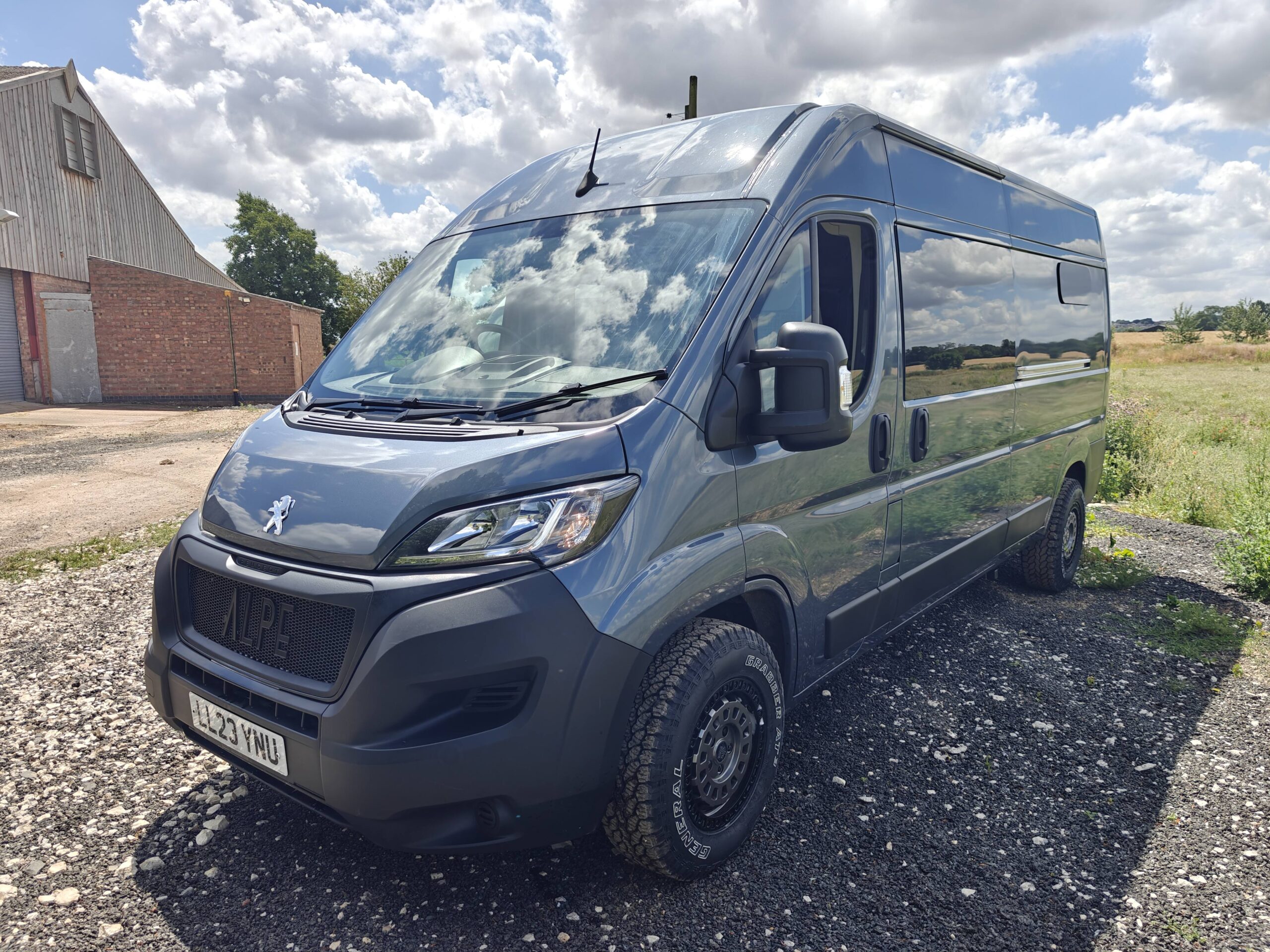

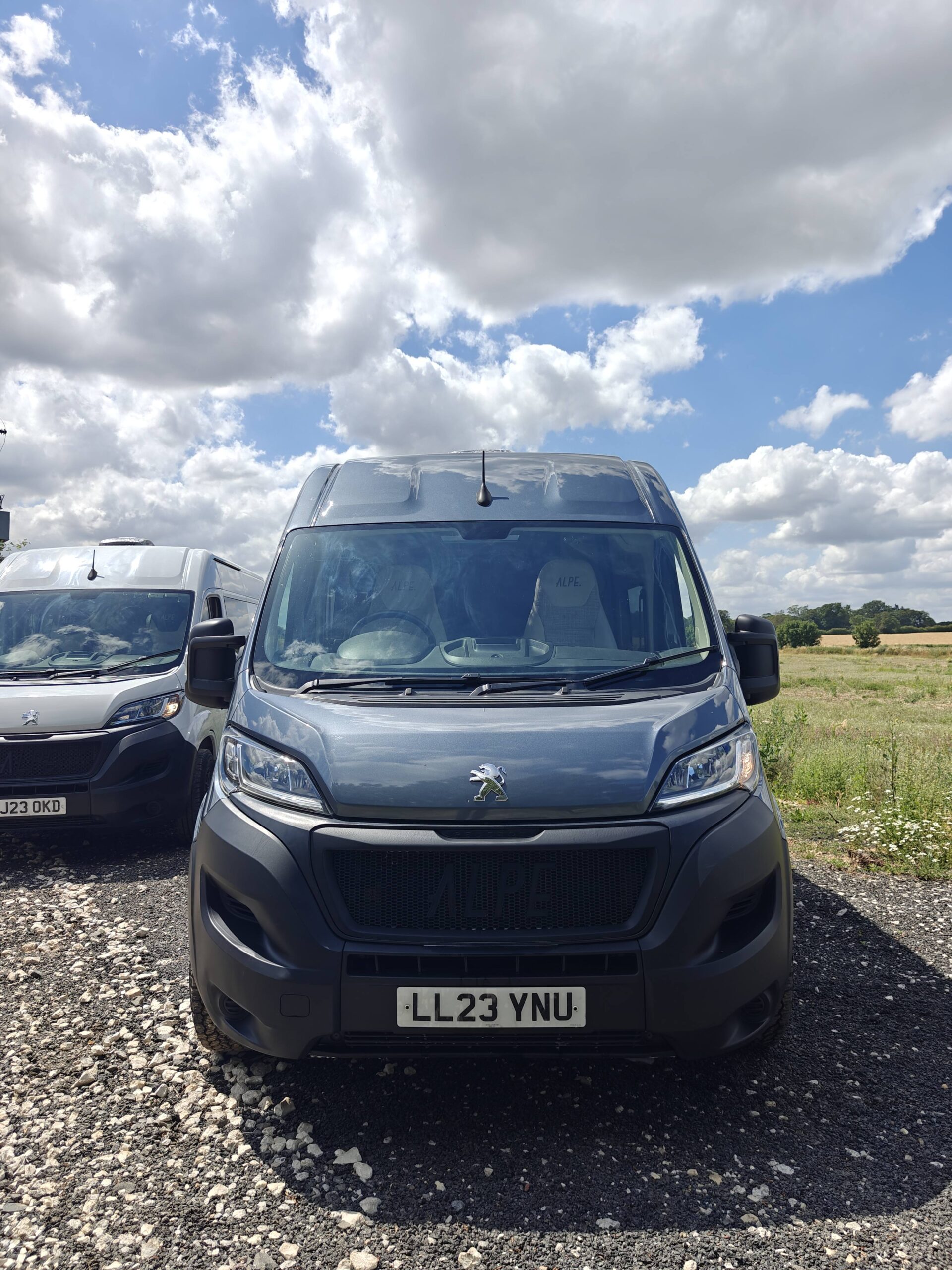

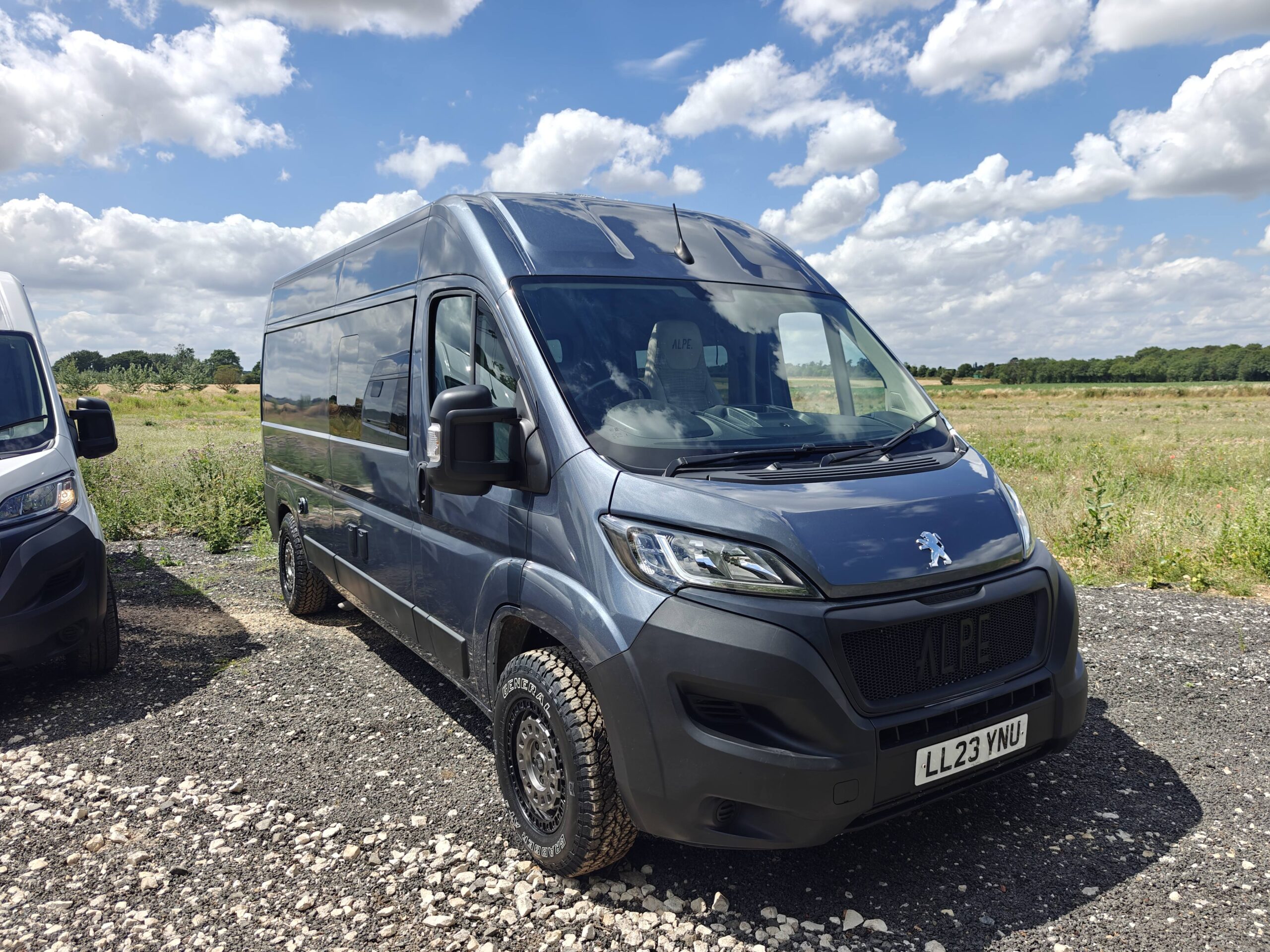

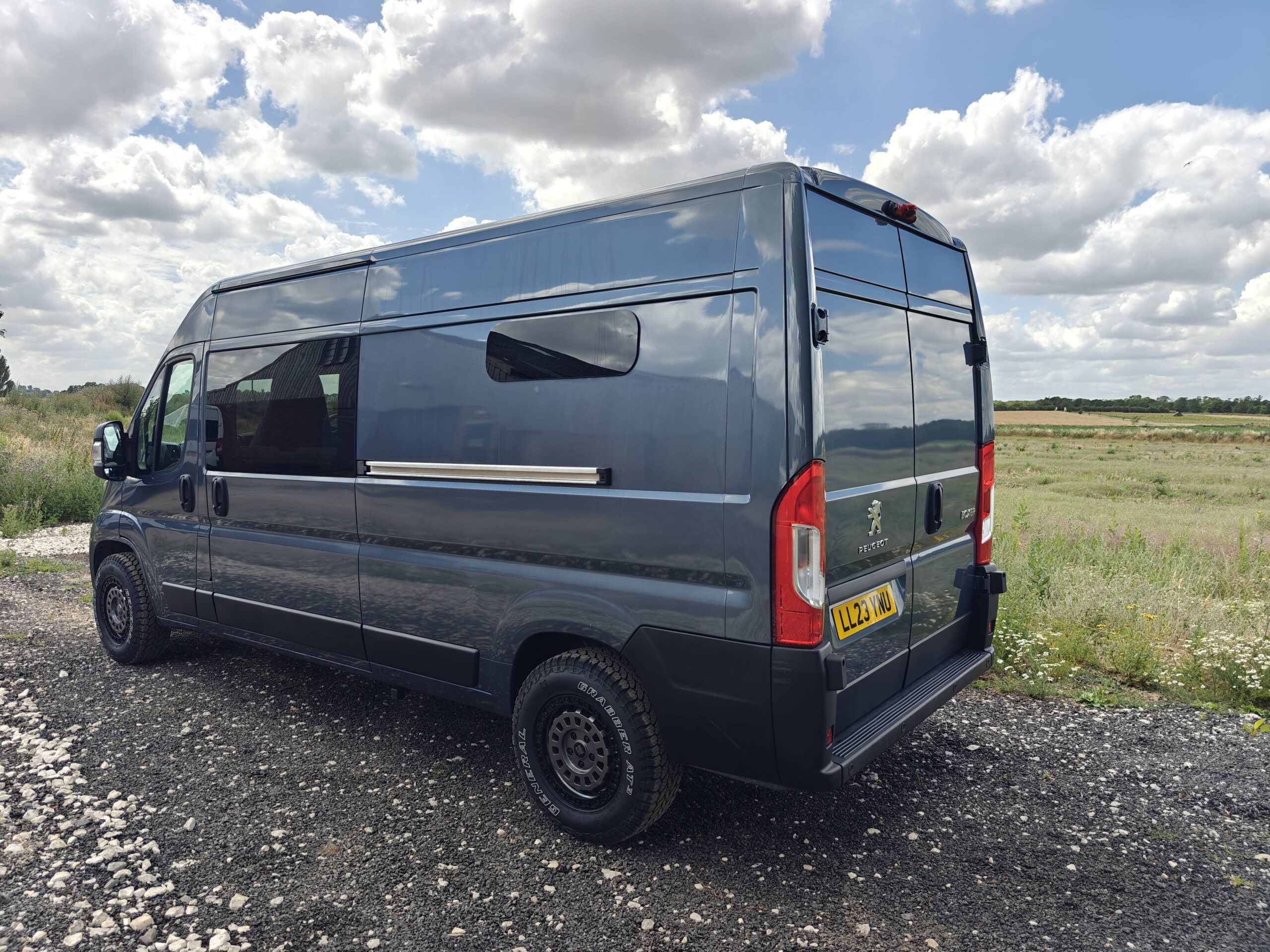

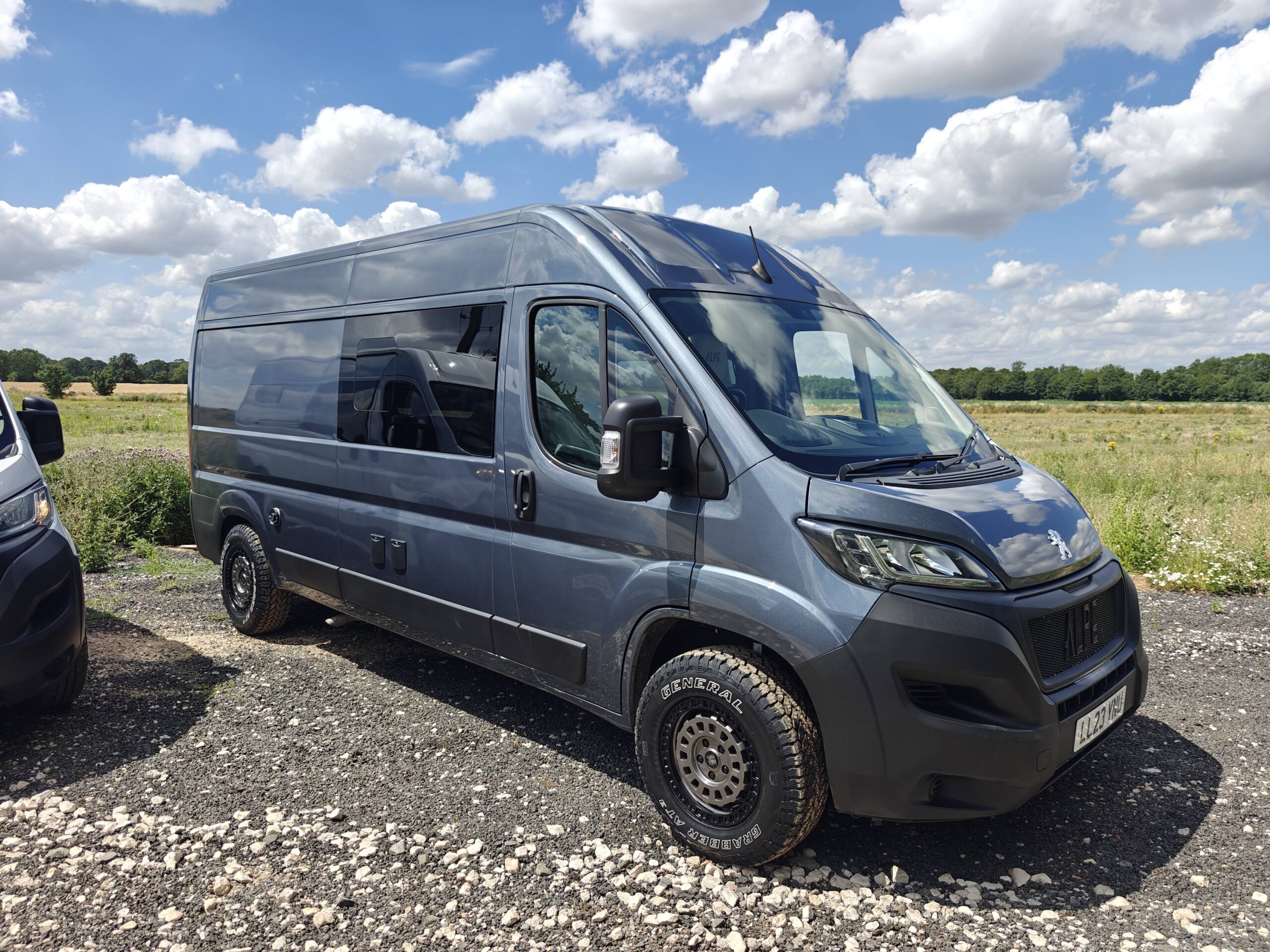

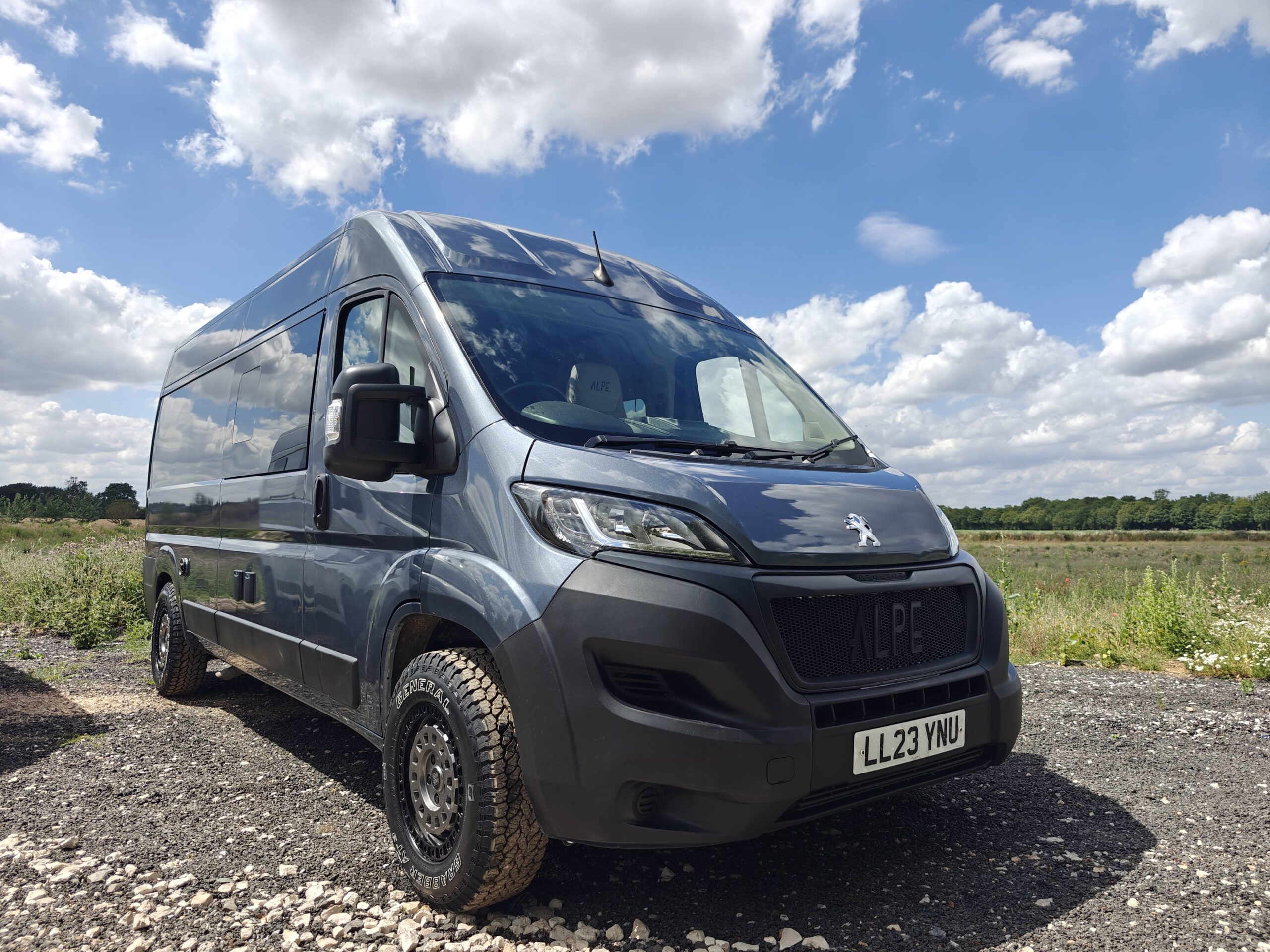

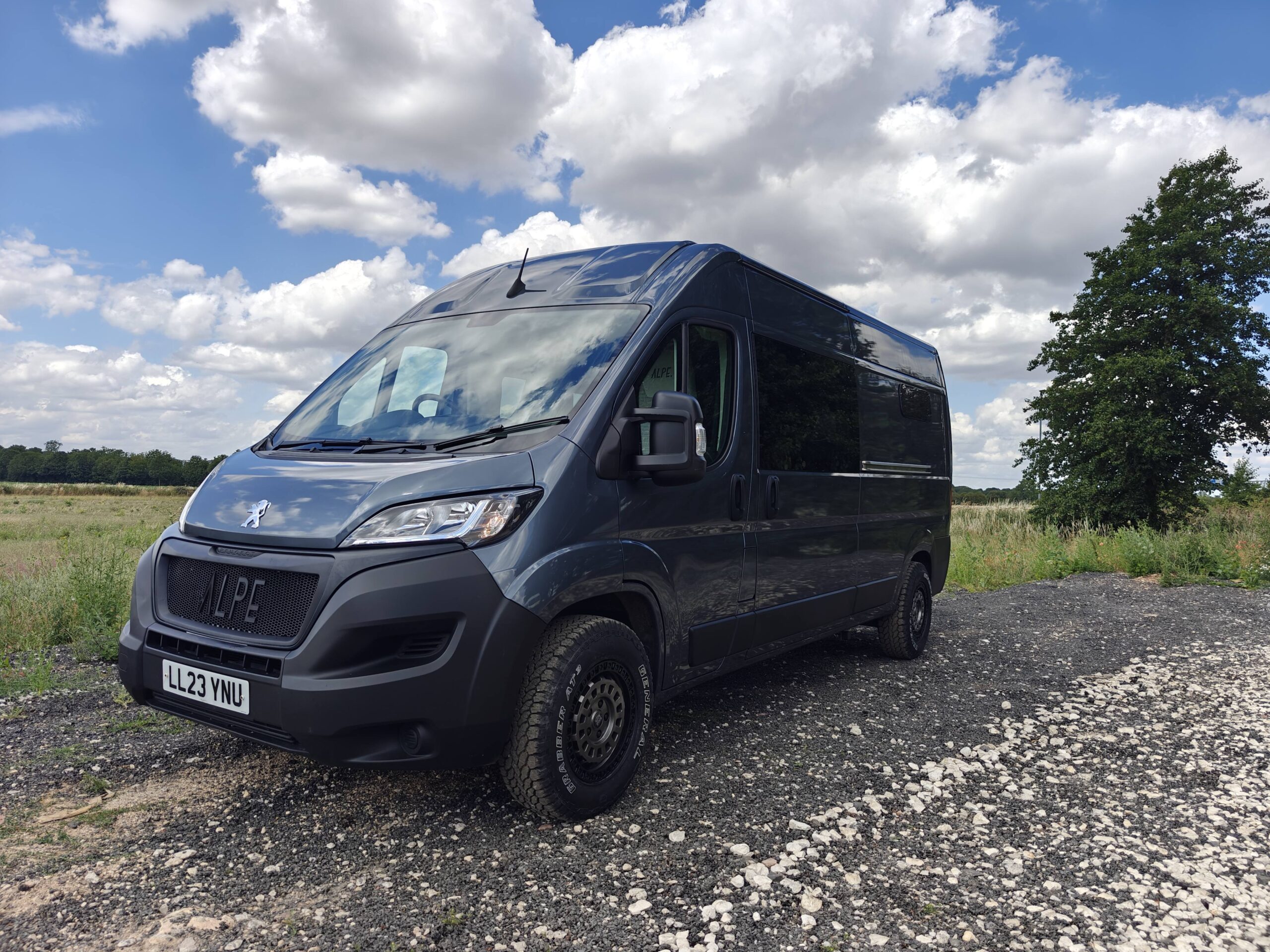

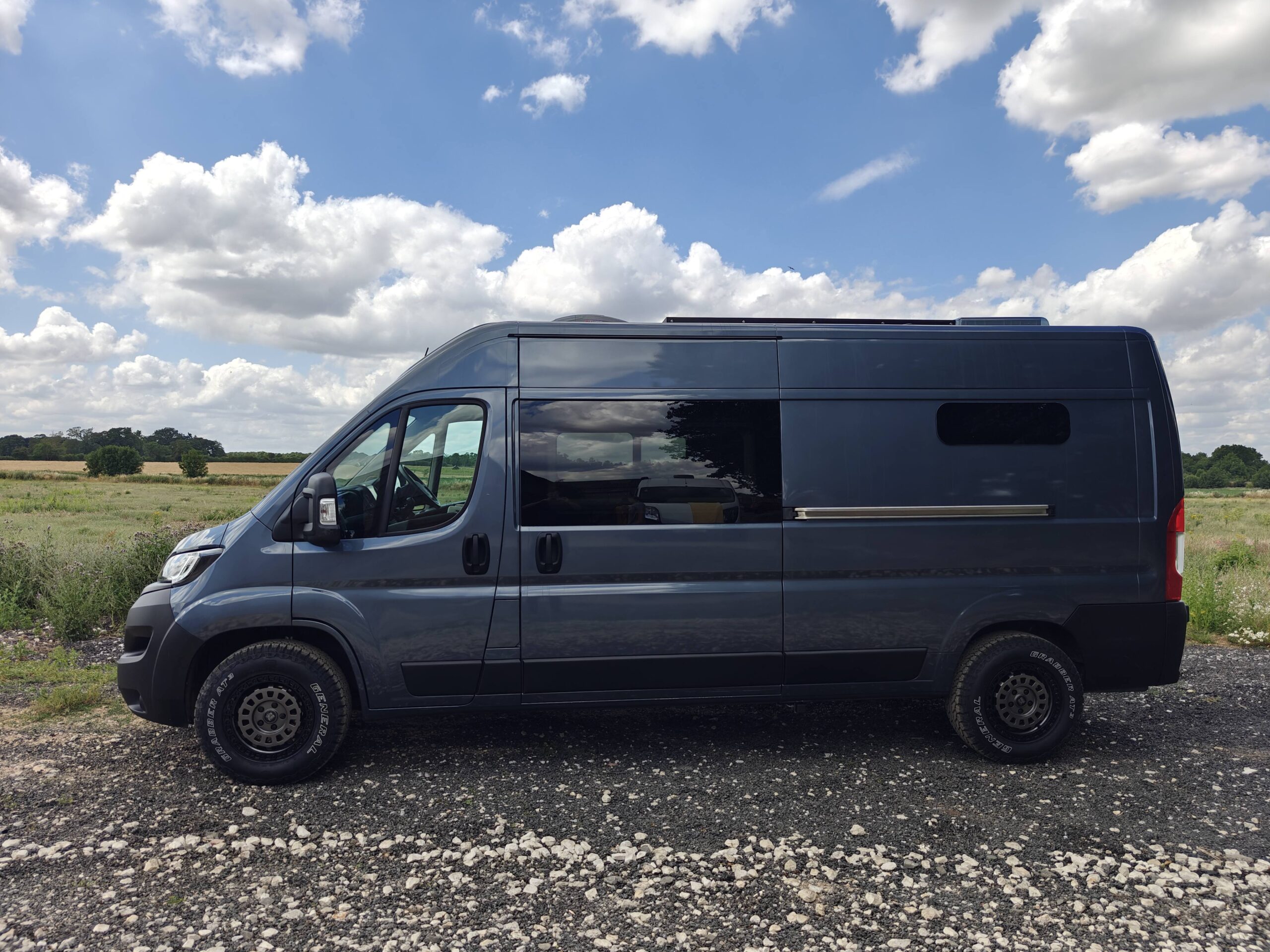

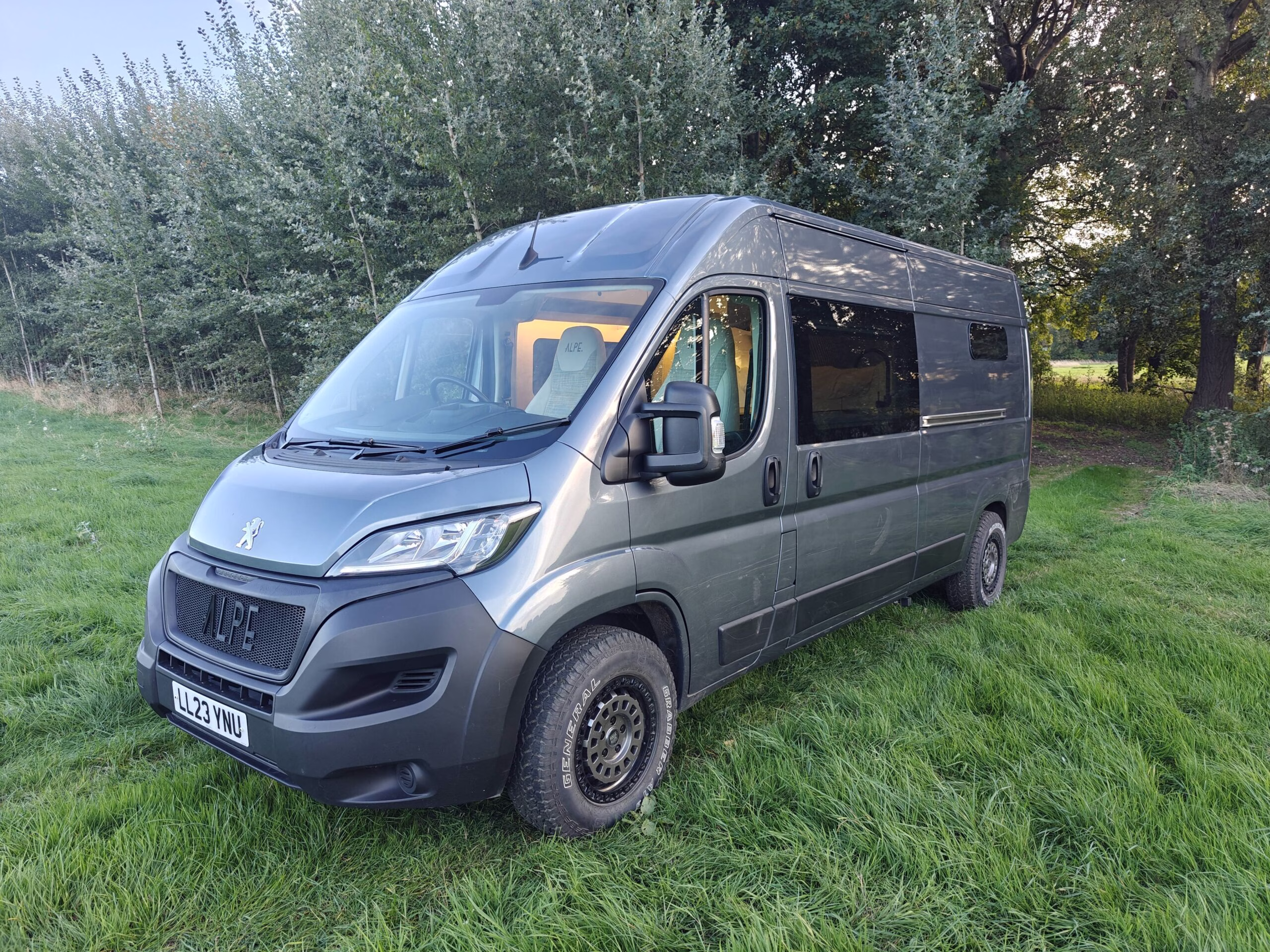

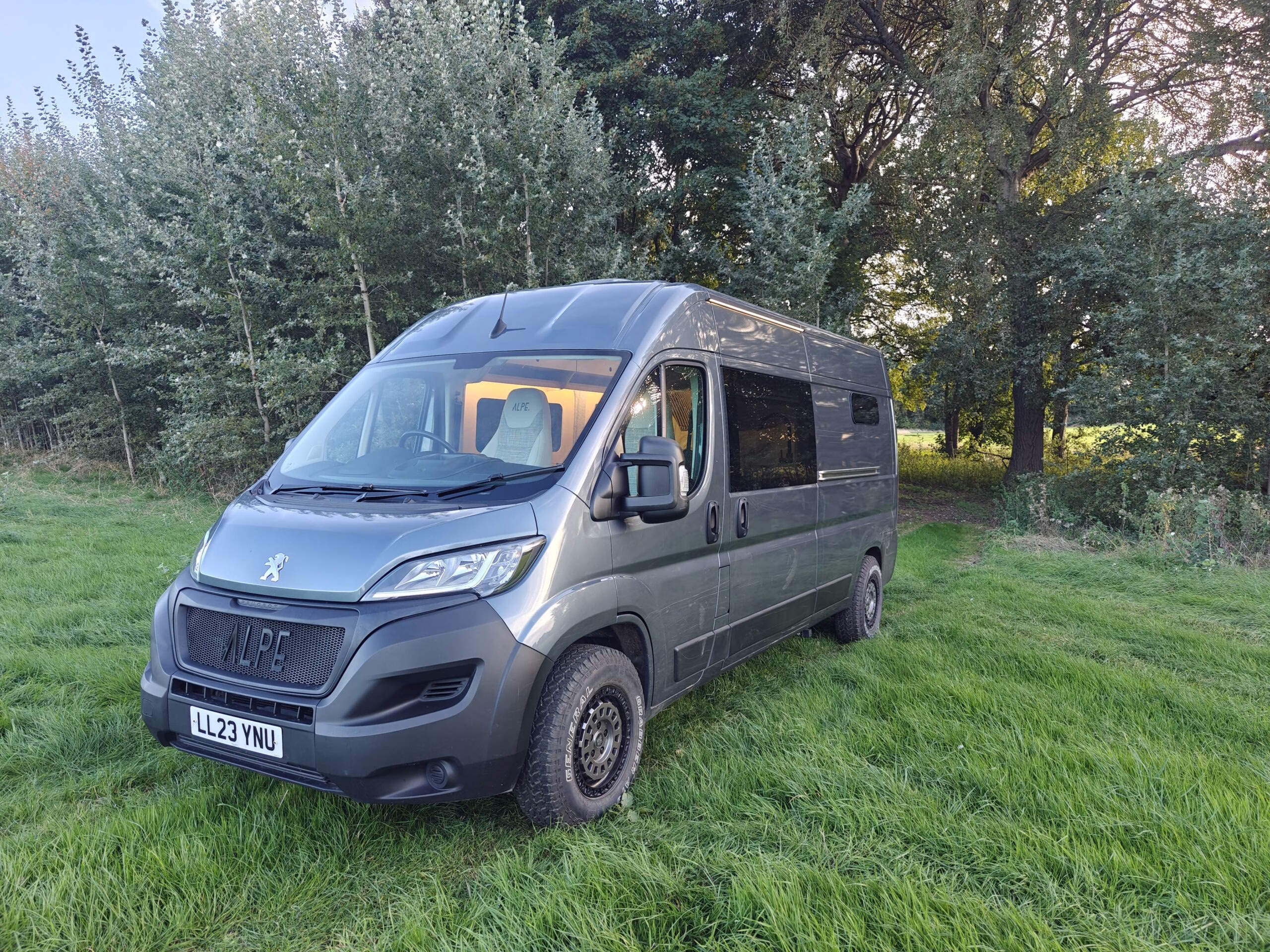

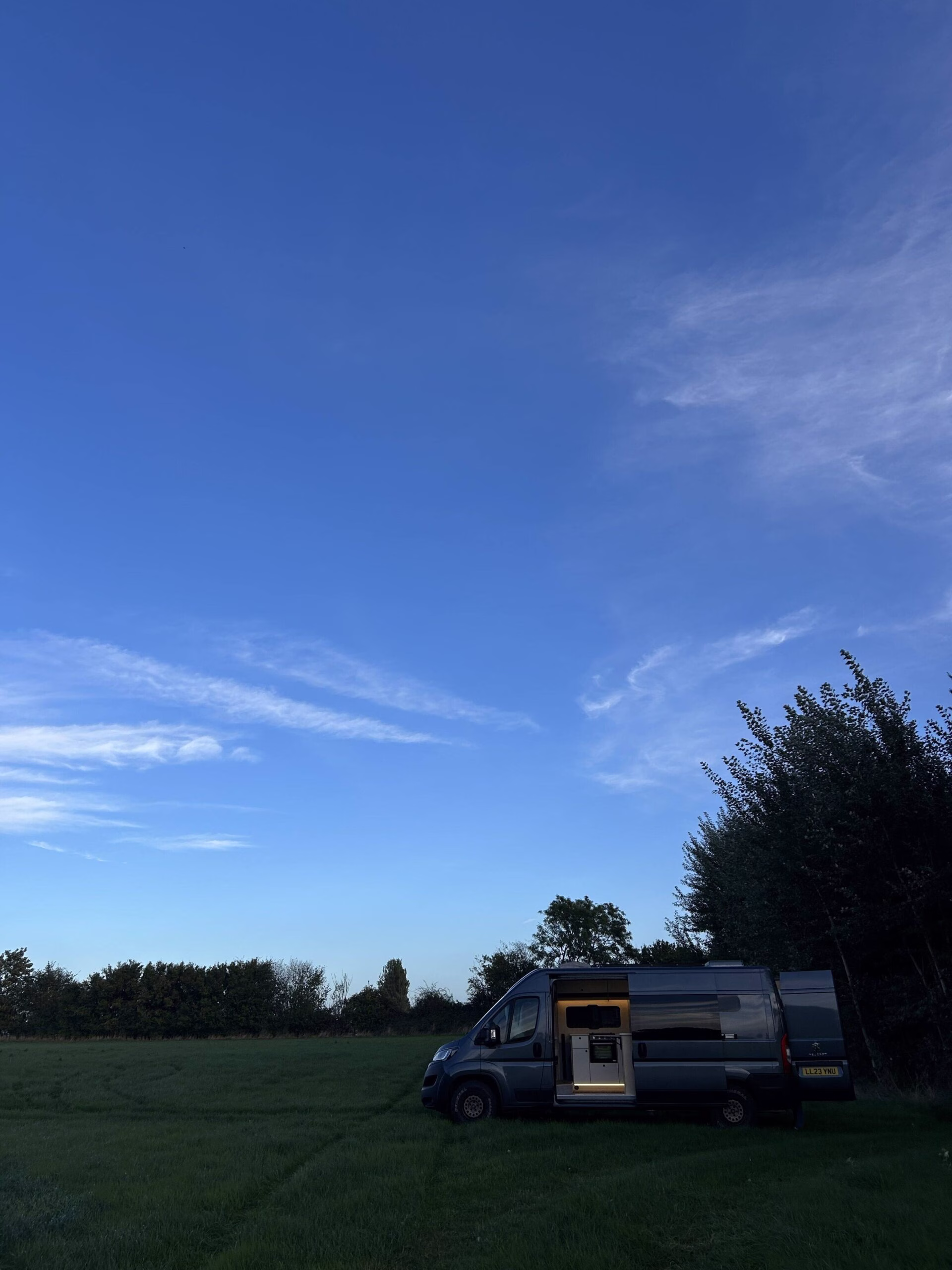

The base van is a super clean low mileage Peugeot Boxer. We have finished the van with 16” alloys and Michelin Agilis tyres. These combine with an upgraded air assisted rear suspension to create a really stunning overall aesthetic and a van that is extremely capable.

A full spec is listed below. Potential buyers are encouraged to view the van in person to fully appreciate the craftsmanship, engineering and thoughtful design that has gone into creating what we think is the perfect two person, fully off grid, luxury adventure van.

Due to the fact that the van is still in the build phase, anyone purchasing the van at this point has the option to have some input on the final design and colour scheme, including which colour ply to use for the cupboard fronts.

Kitchen:

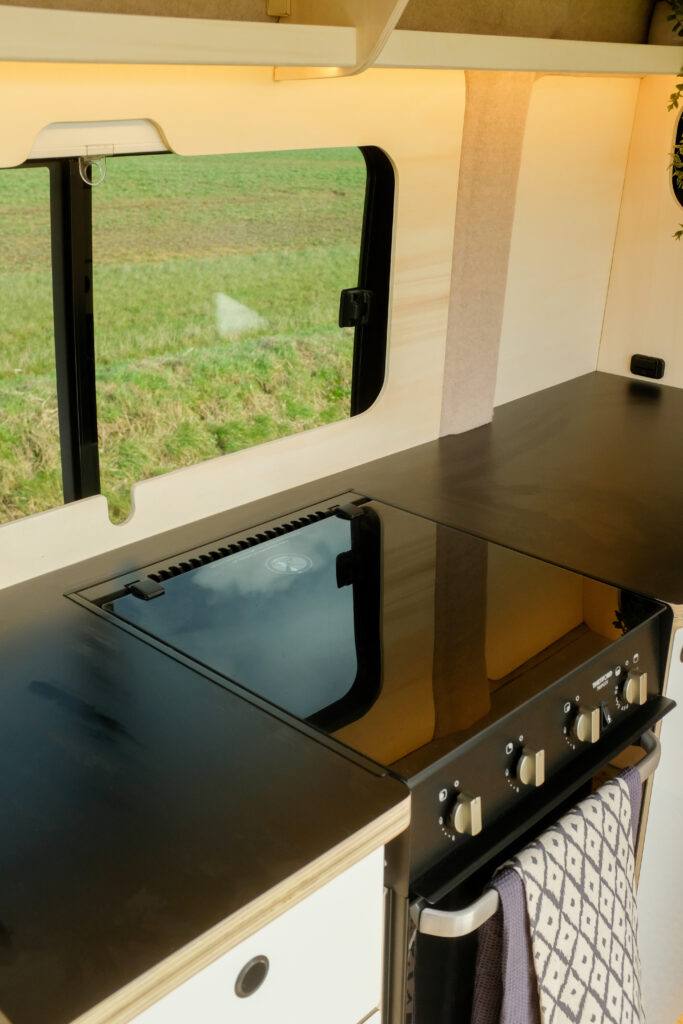

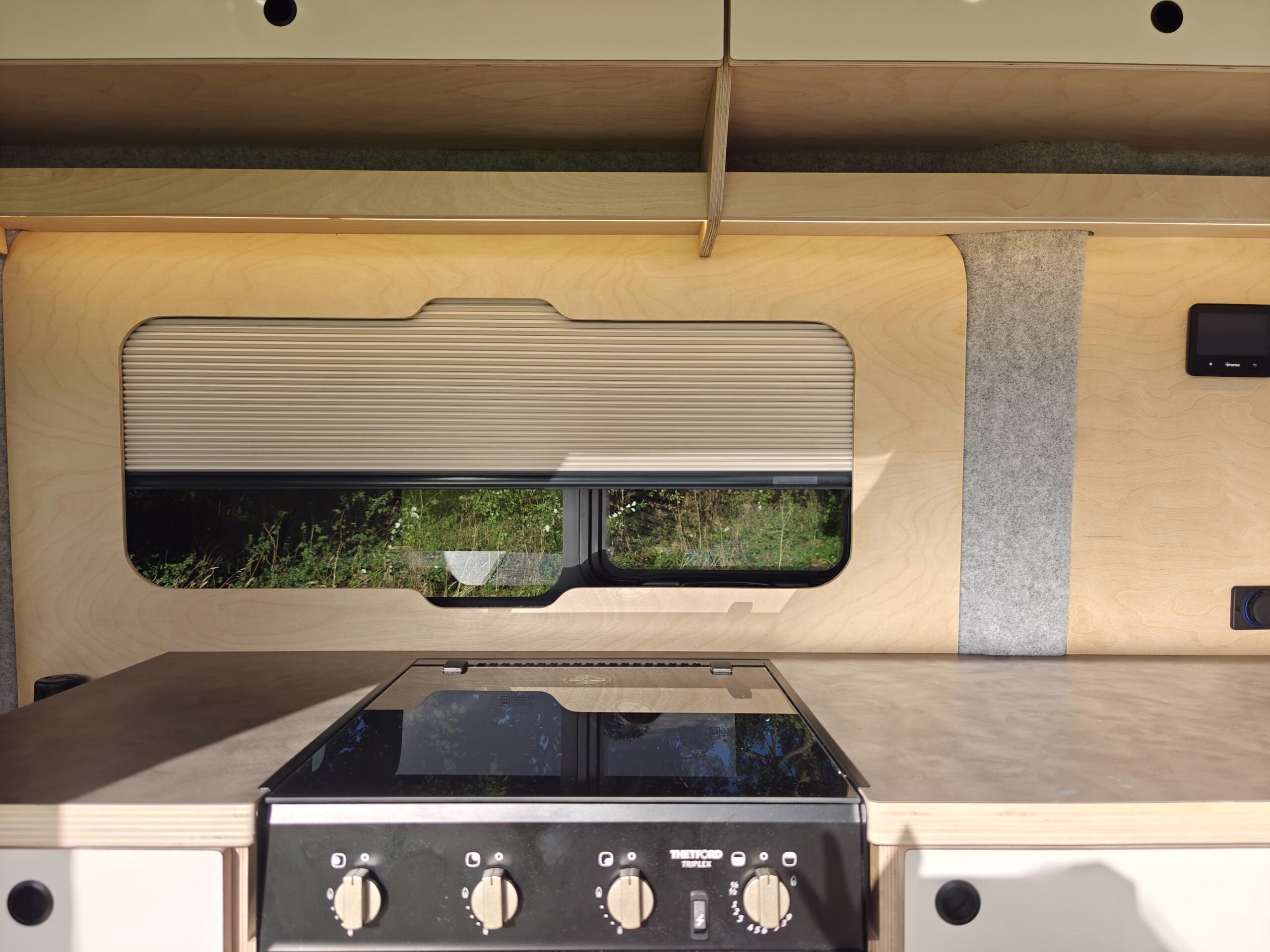

Thetford Triplex LPG Oven, grill and 3 burner hob.
Campercool 12 V compressor fridge with removable freezer compartment
Soft close hinges and hidden locking mechanisms on all doors

Electrics System:
Fully automated off grid Victron system
External hook-up point
Victron Orion DC-DC charge controller
Victron MPPT solar charger controller
Victron Multiplus Inverter/Charger (1600 VA)
314 Ah Fogstar Lithium leisure battery
240 V sockets in kitchen area and garage
USB sockets

LPG Sytem:
GasSafe certificate
25 l underslung LPG tank
External refill port
Electric solenoid auto gas shut off

Water and Heating System:

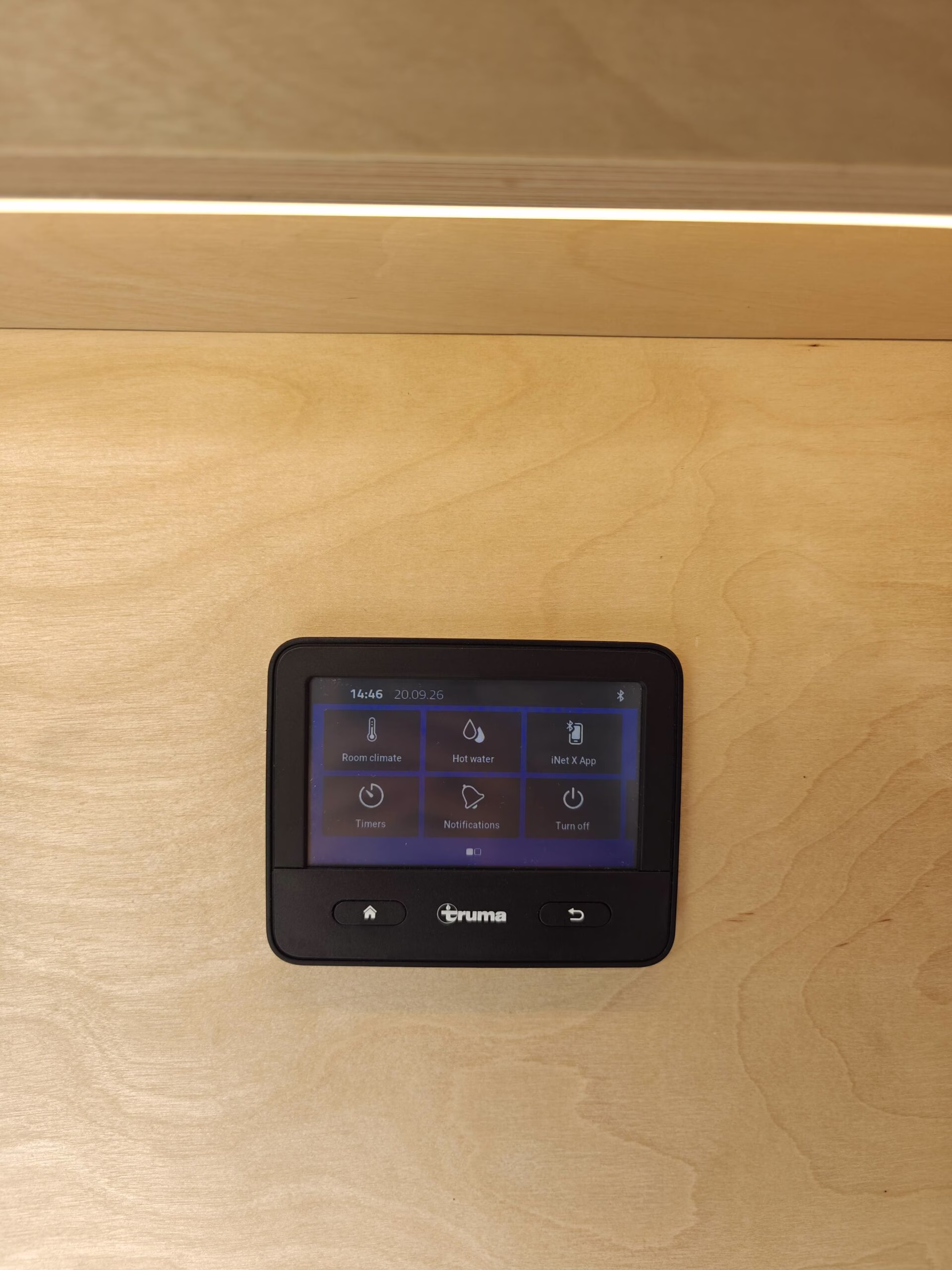

Truma Combi 6E water and air heater
External refill point
Underslung fresh (66 L) and grey (50 L) water tanks

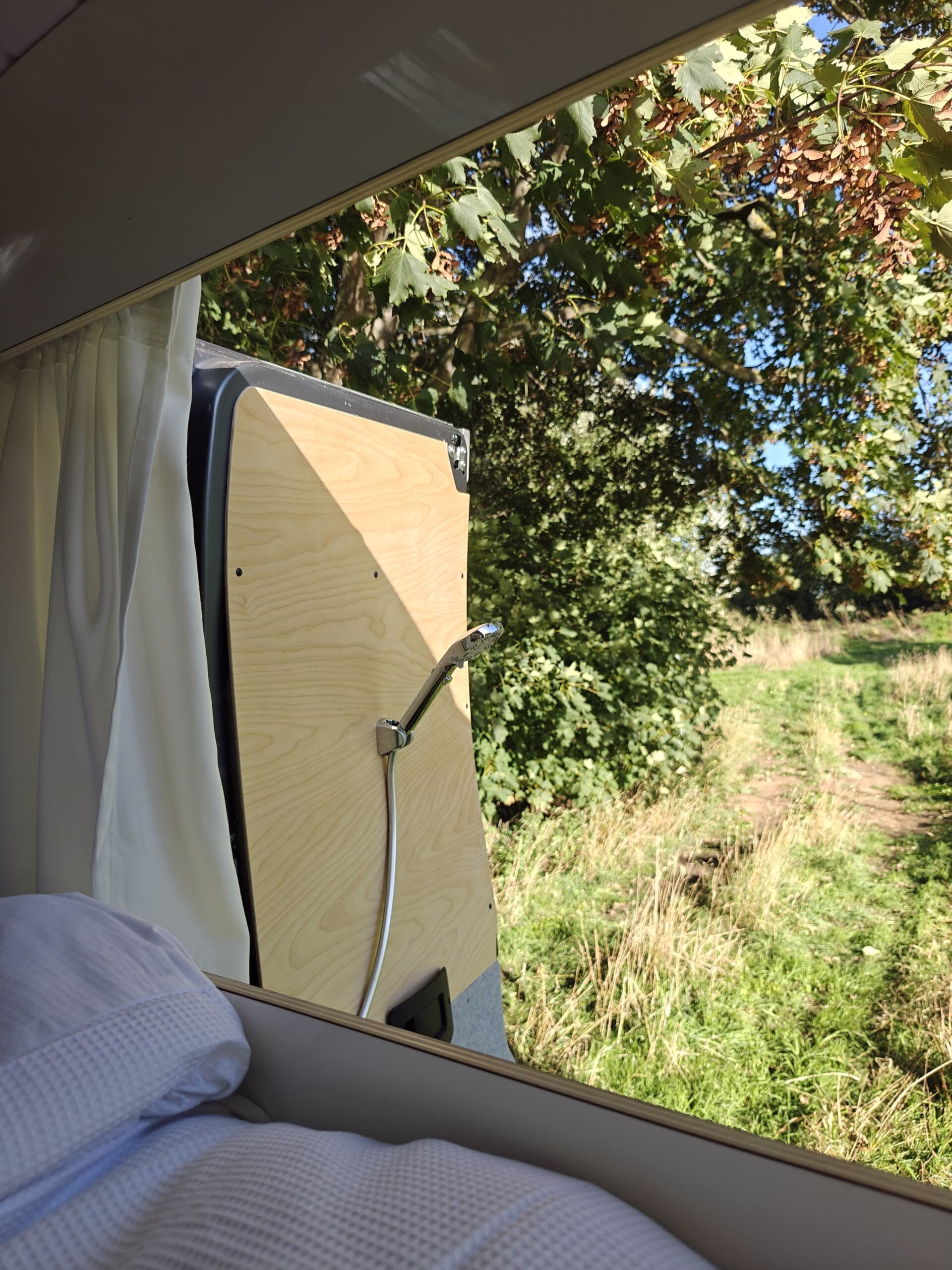

External shower

Cab:

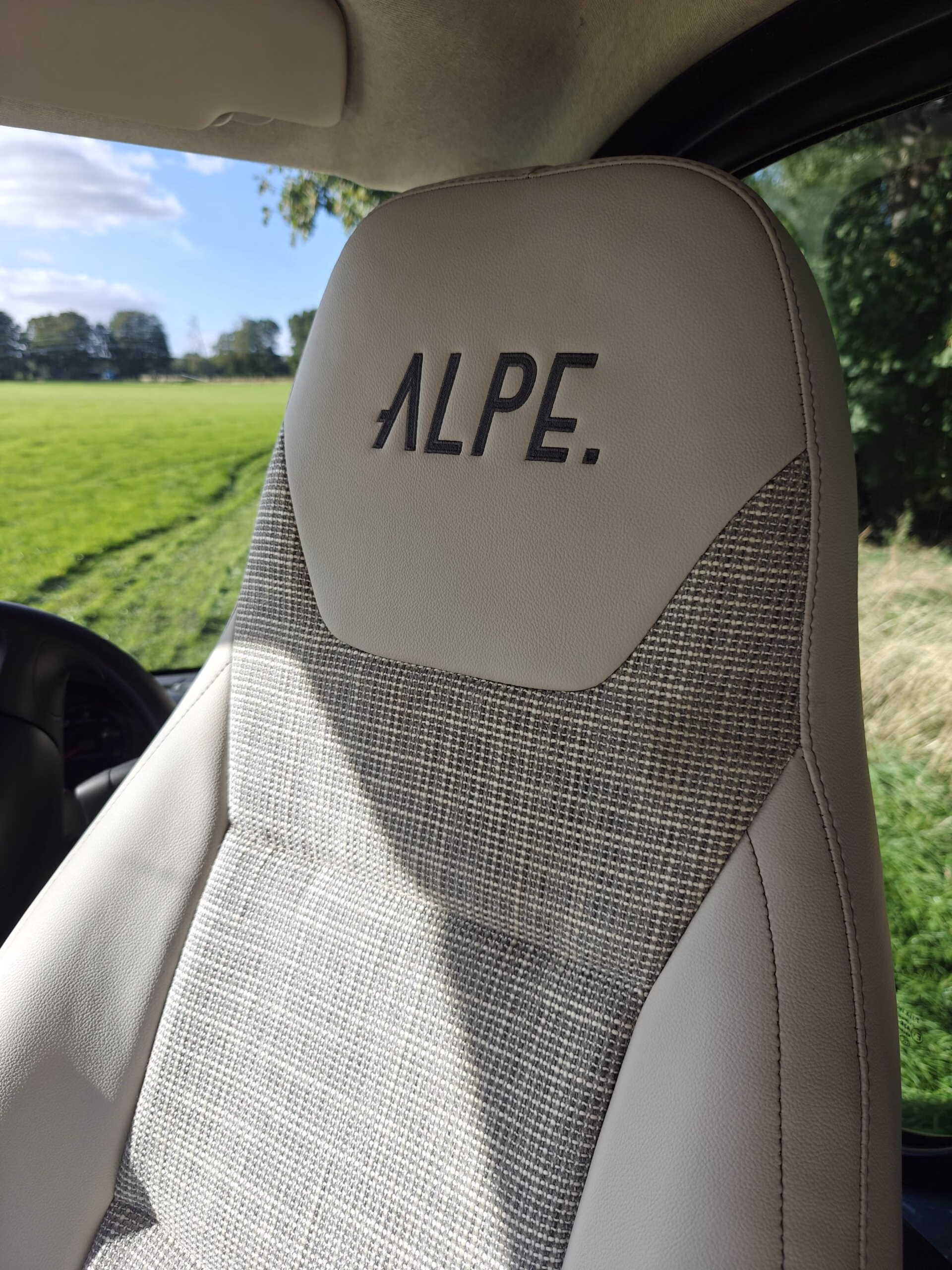

Brand new captains seats
Integrated rear view camera
Touch screen with Apple CarPlay and Android Auto
Rear parking sensors
Aircon
Cruise control
6 speed manual gearbox

Other features:

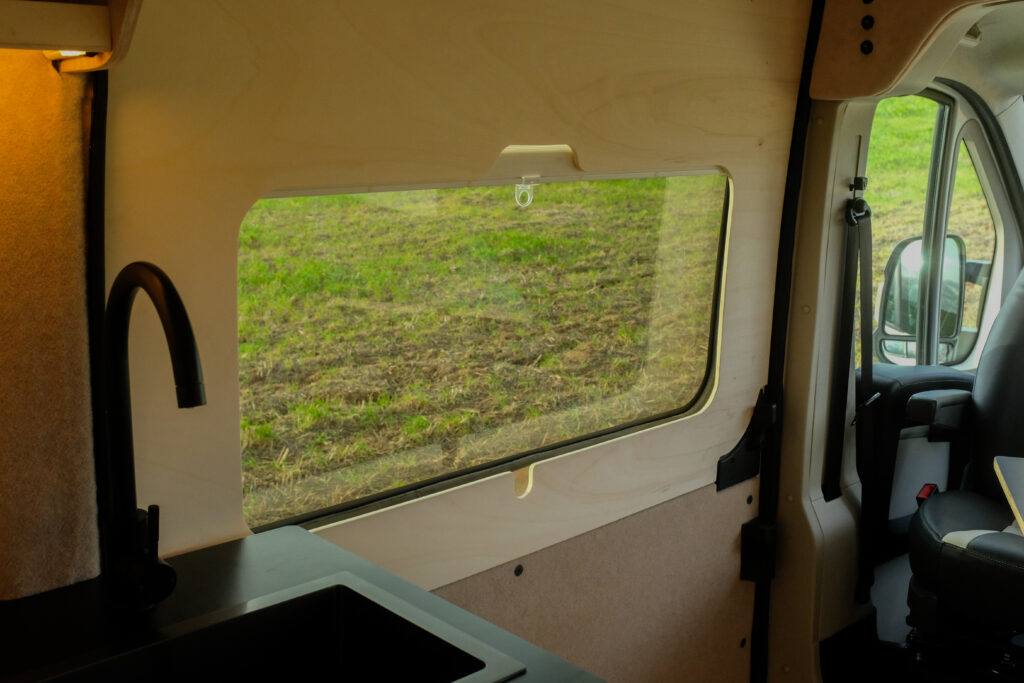

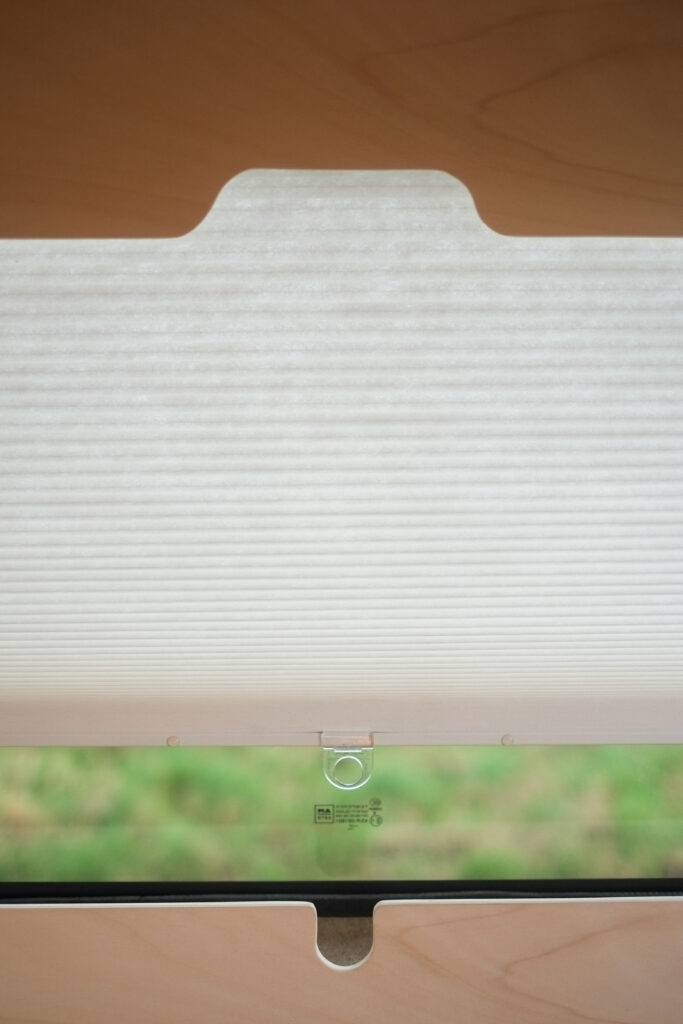

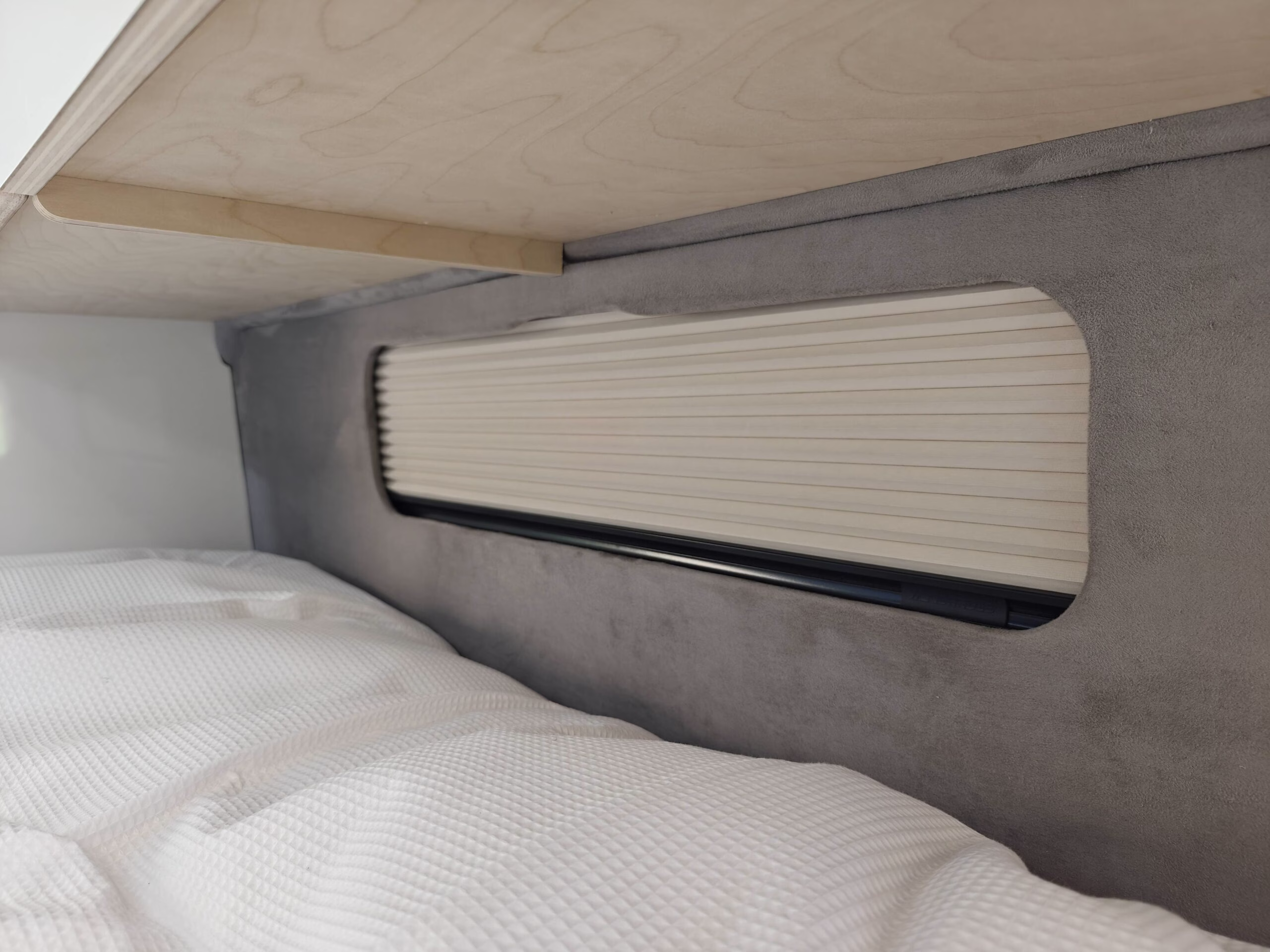

Integrated blinds on side windows
Air assisted adjustable rear suspension
Large rear skylight

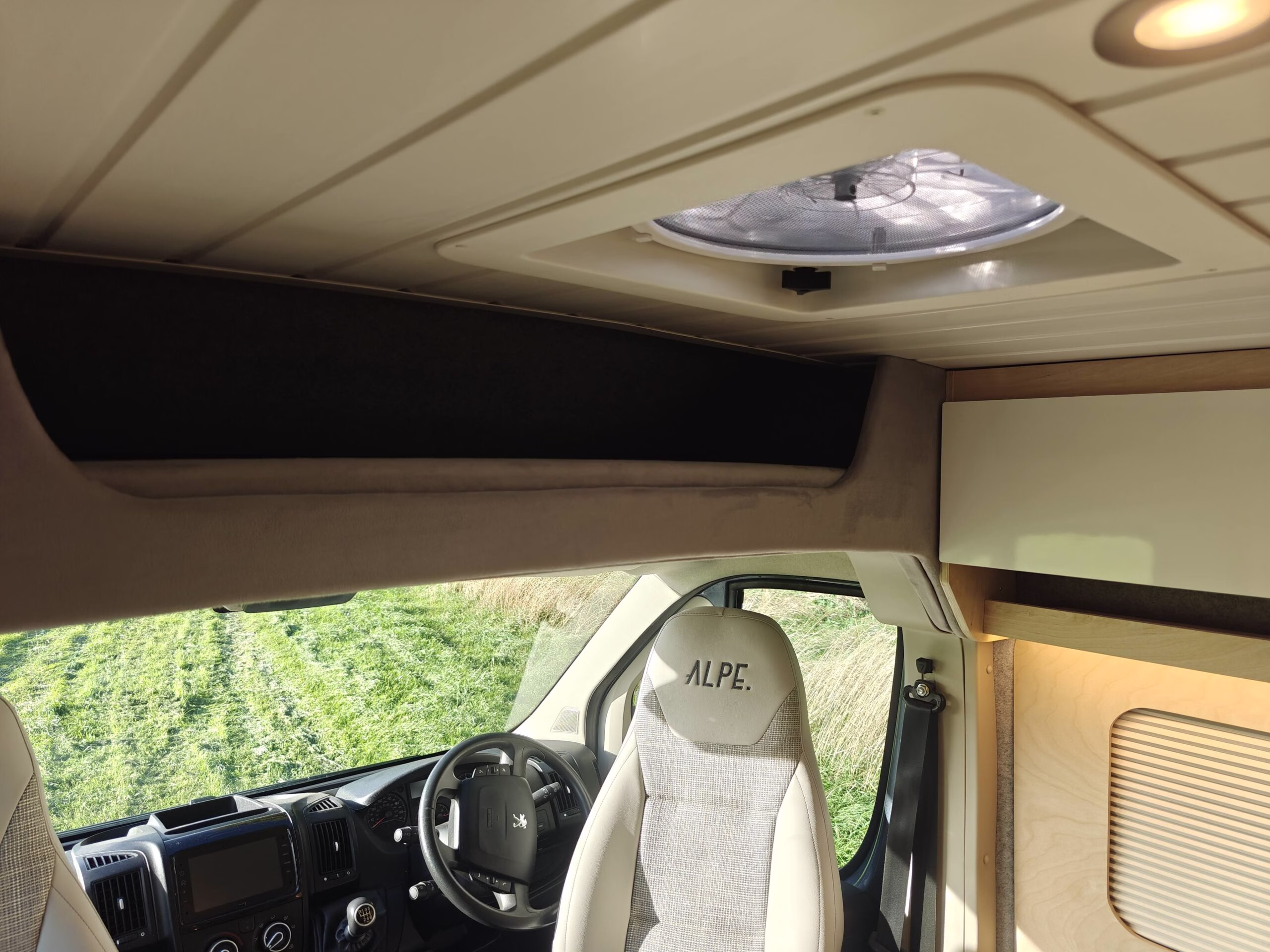

Extractor fan over kitchen area (Maxxfan)
New 16″ alloys with Michelin Agilis tyres

Beds Description
King size fixed bed at rear

Main Bed Length
190cm
