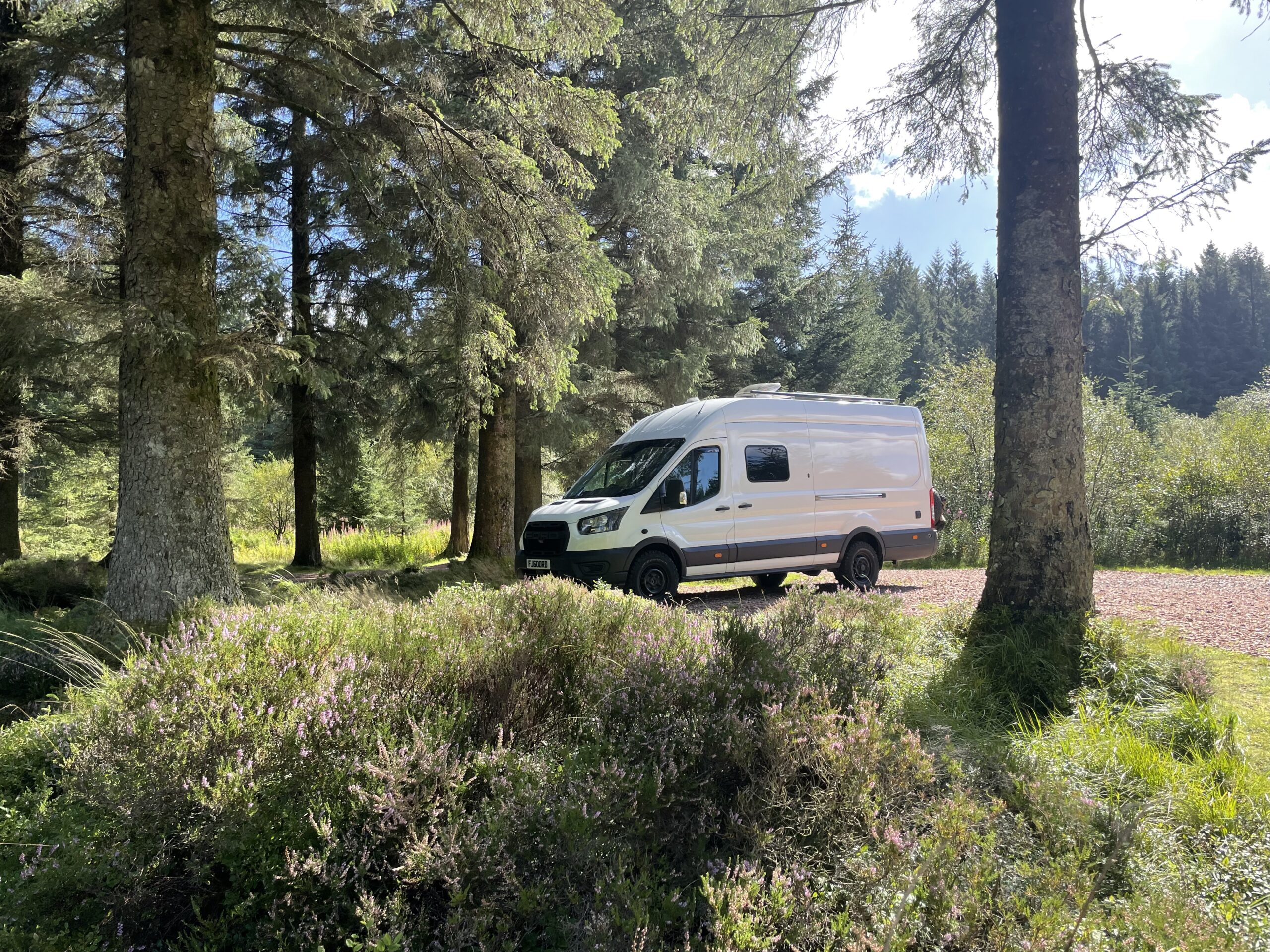

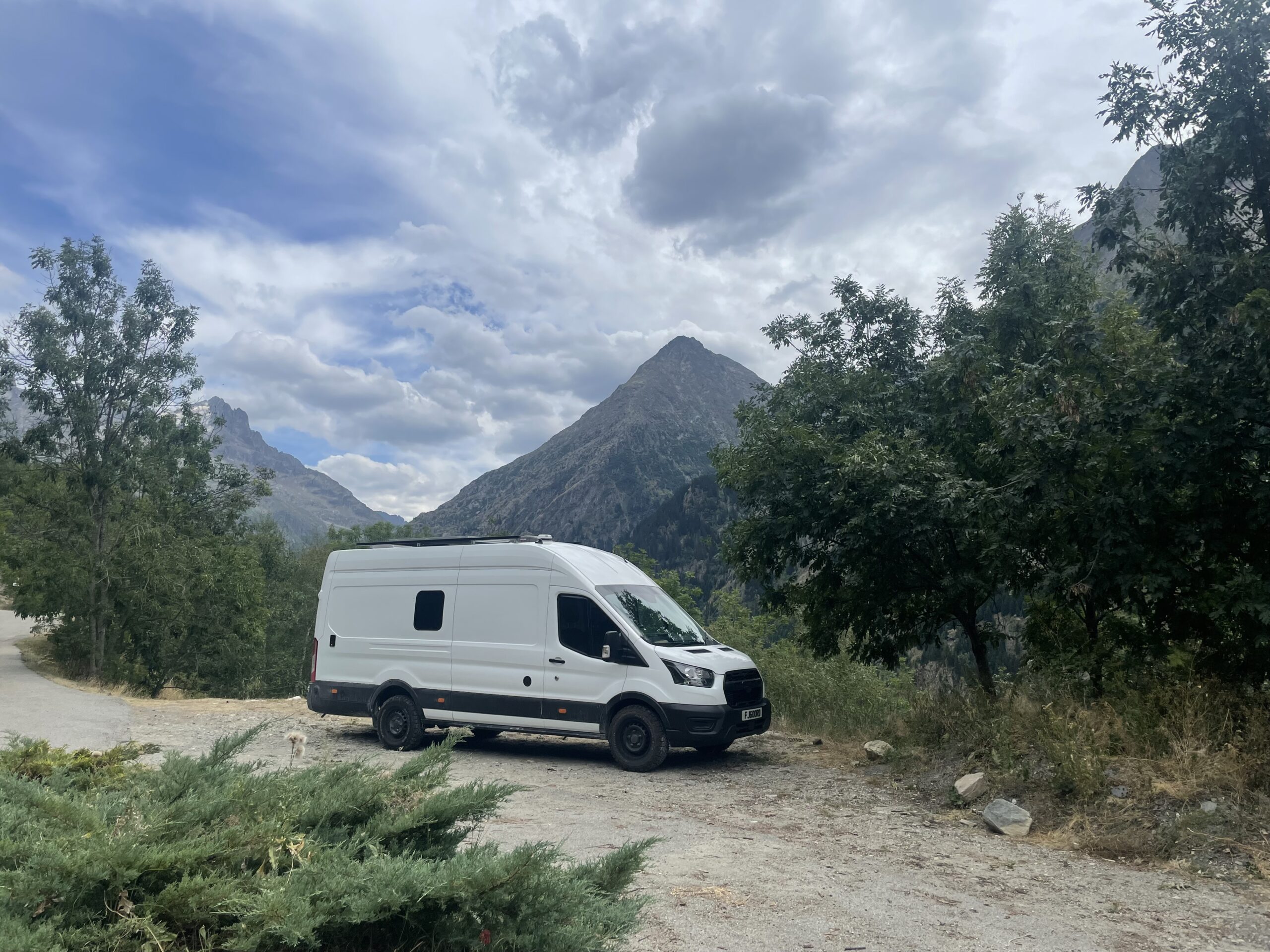

Ford Transit 2020 350 Ecoblue L4H3
+ Ford Transit 2020 L4H3
+ Service & MOT until June 2025
+ Euro 6 Diesel (Clean Air Zone / Low Emission Zone / ULEZ Compliant)

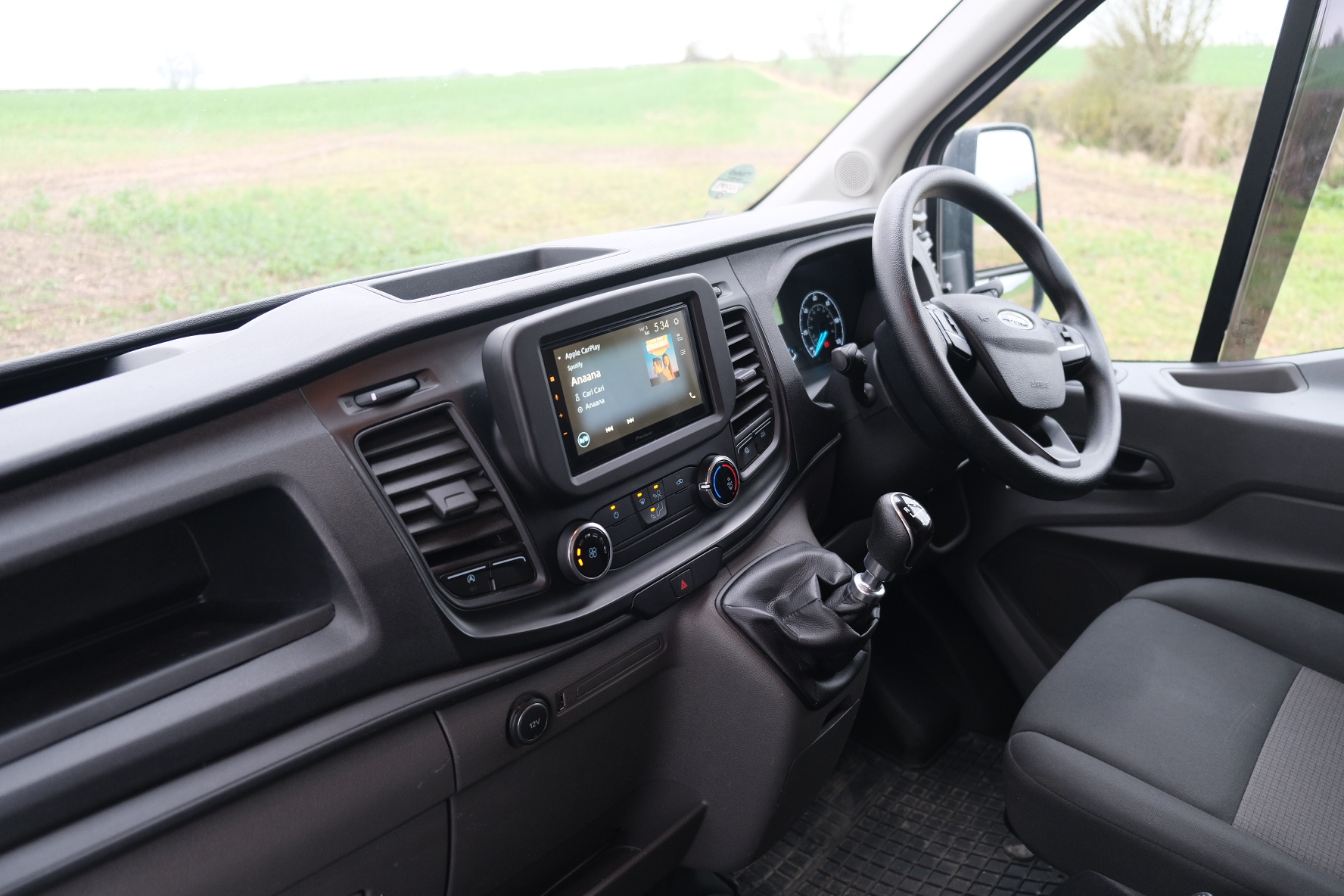

+ Apple CarPlay Touch Screen Entertainment / Navigation
+ Reverse Camera & Side / Blindspot Camera
+ Insurance Rated Security & Anti-Theft Upgrades
+ Service History
+ BF Goodrich AT3 All Terrain Tyres
+ Spare Wheel & Tyre (Full Size – Rear Door Mounted)
+ Uprated Suspension Leaf Springs & Bump Stops

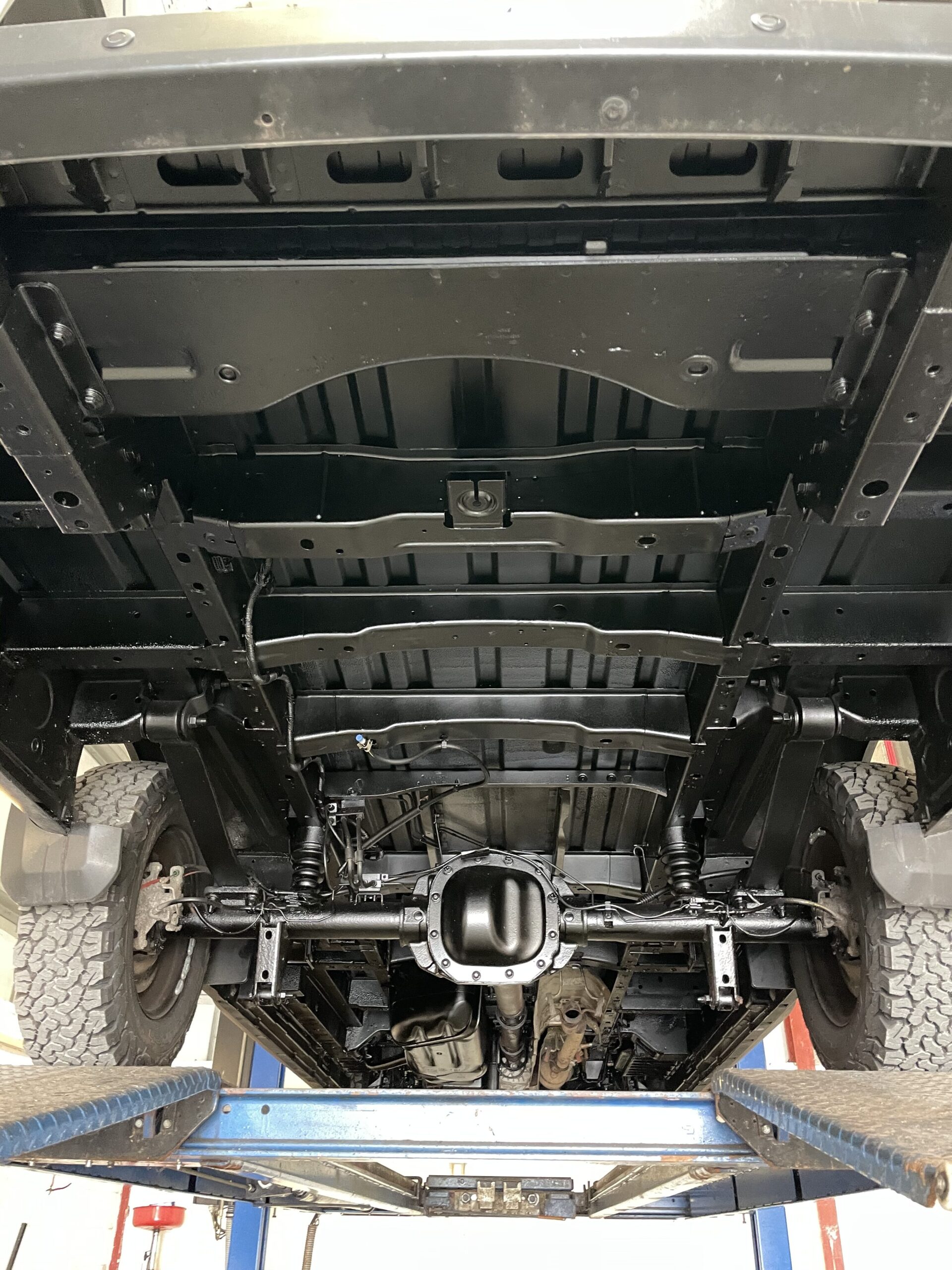

+ Dinitrol Underbody Rust Protection & Cavity Wax by South West Rust Proofing (with annual top-up & inspections) – photo shows when first done when van was only 18 months old & circa 15k miles
+ Boho / Scandinavian off-grid adventure camper with internal bike/gear garage +
Suitable for travel, rental or tiny living.
Built with durability, quality and maintainability in mind.
+ OVERVIEW +

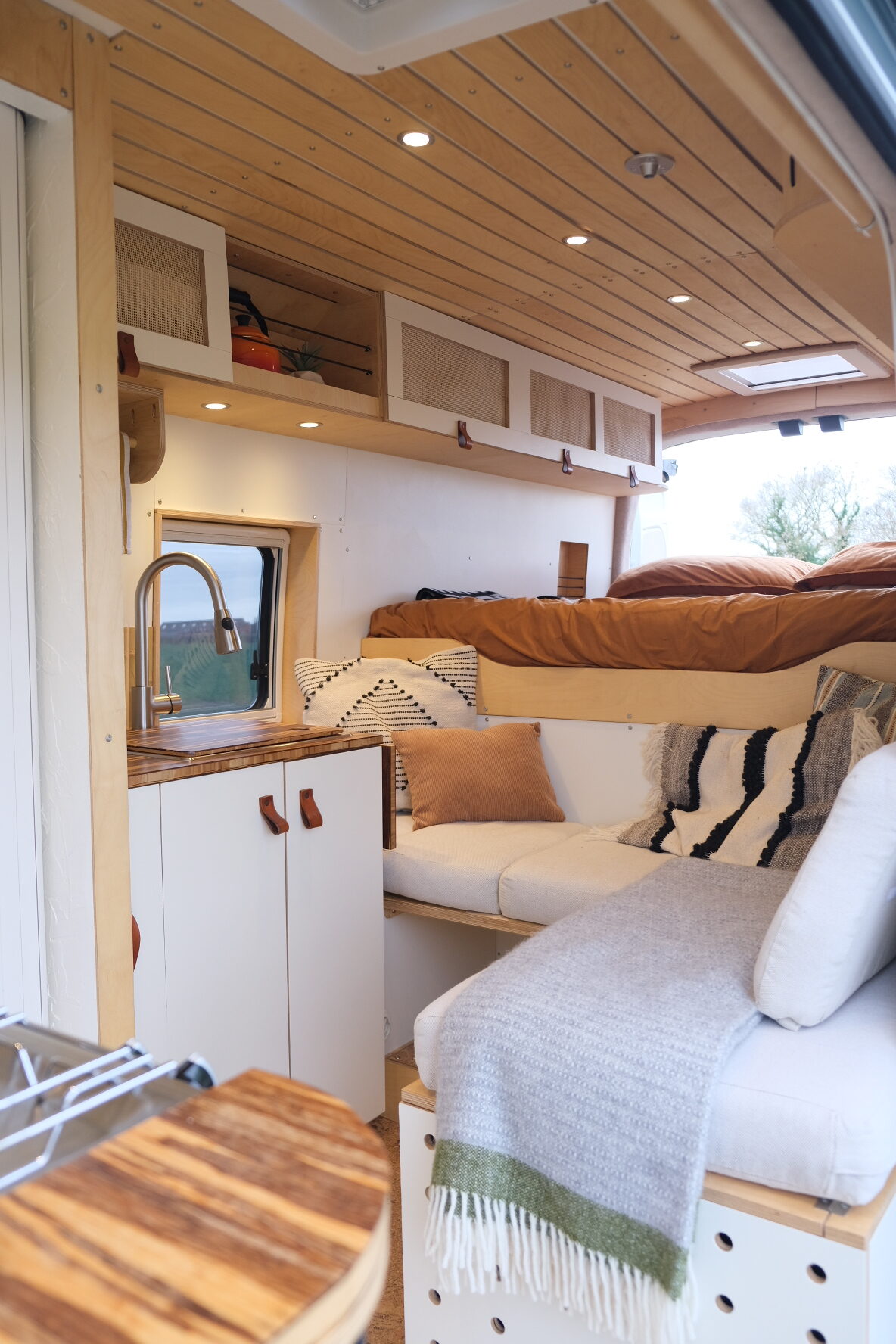

+ Bespoke birch & poplar plywood interior and cabinetry
+ Off-grid Victron electrical system with solar & alternator/B2B charging (Professionally designed and specified by Tiny Build Electrics)
+ 12v and 230v power
+ Hot water system (BobilVans Hybrid diesel heater & electric heating)
+ Air heater (Eberspacher D2 professionally installed)

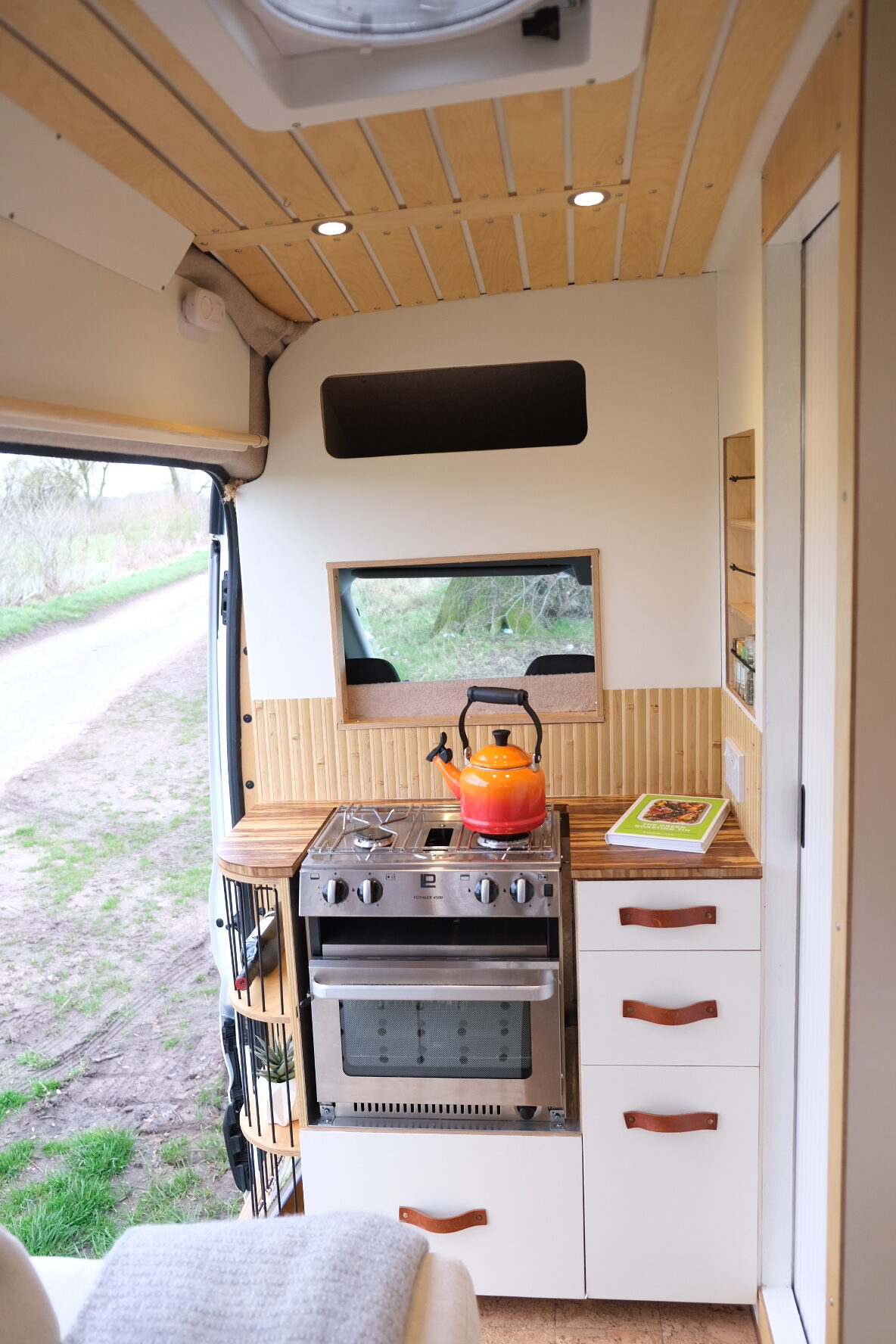

+ Gas twin hob / oven / grill (Voyager 4500)
+ Underslung LPG tank (Professionally installed)

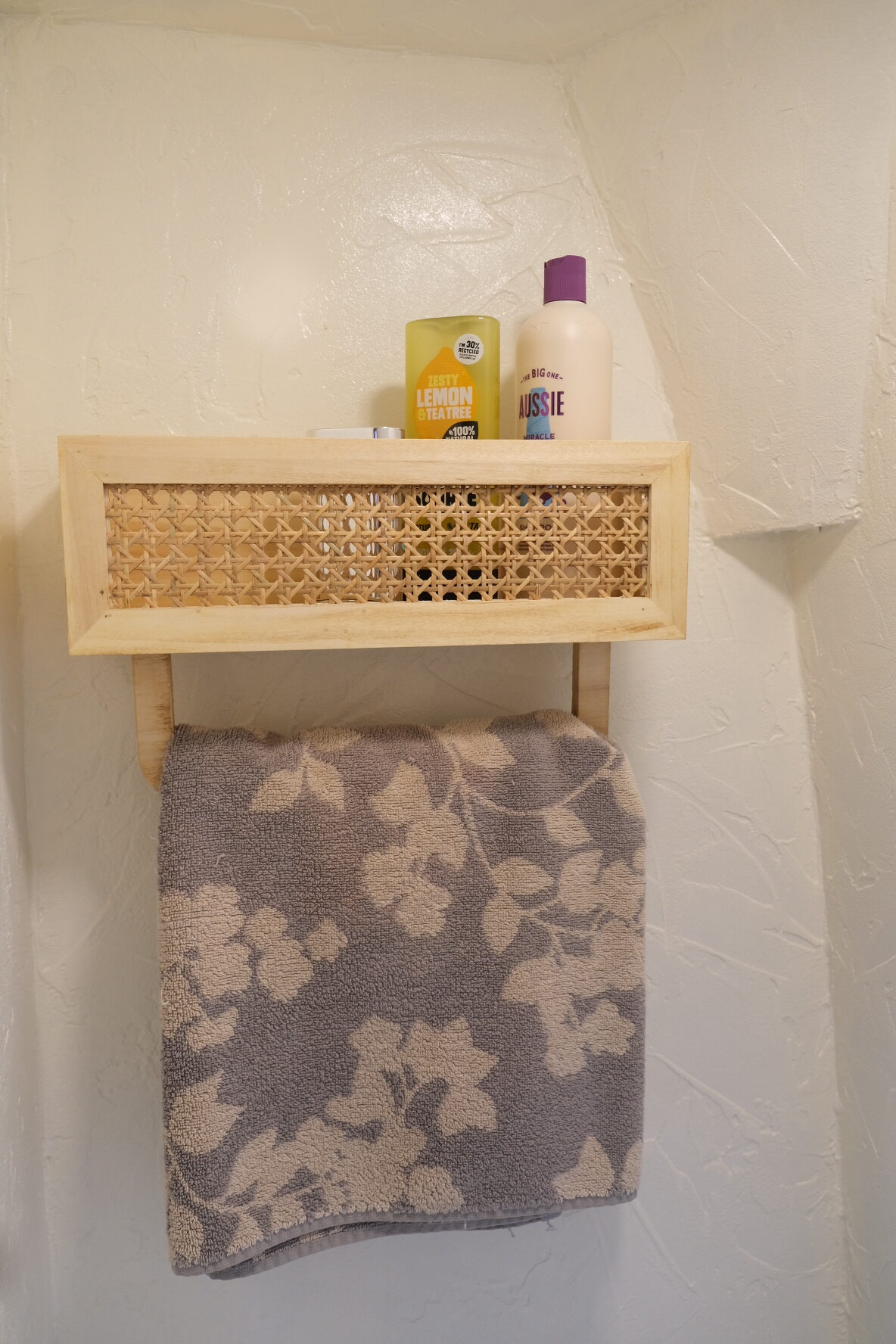

+ Internal WC / shower room / drying room

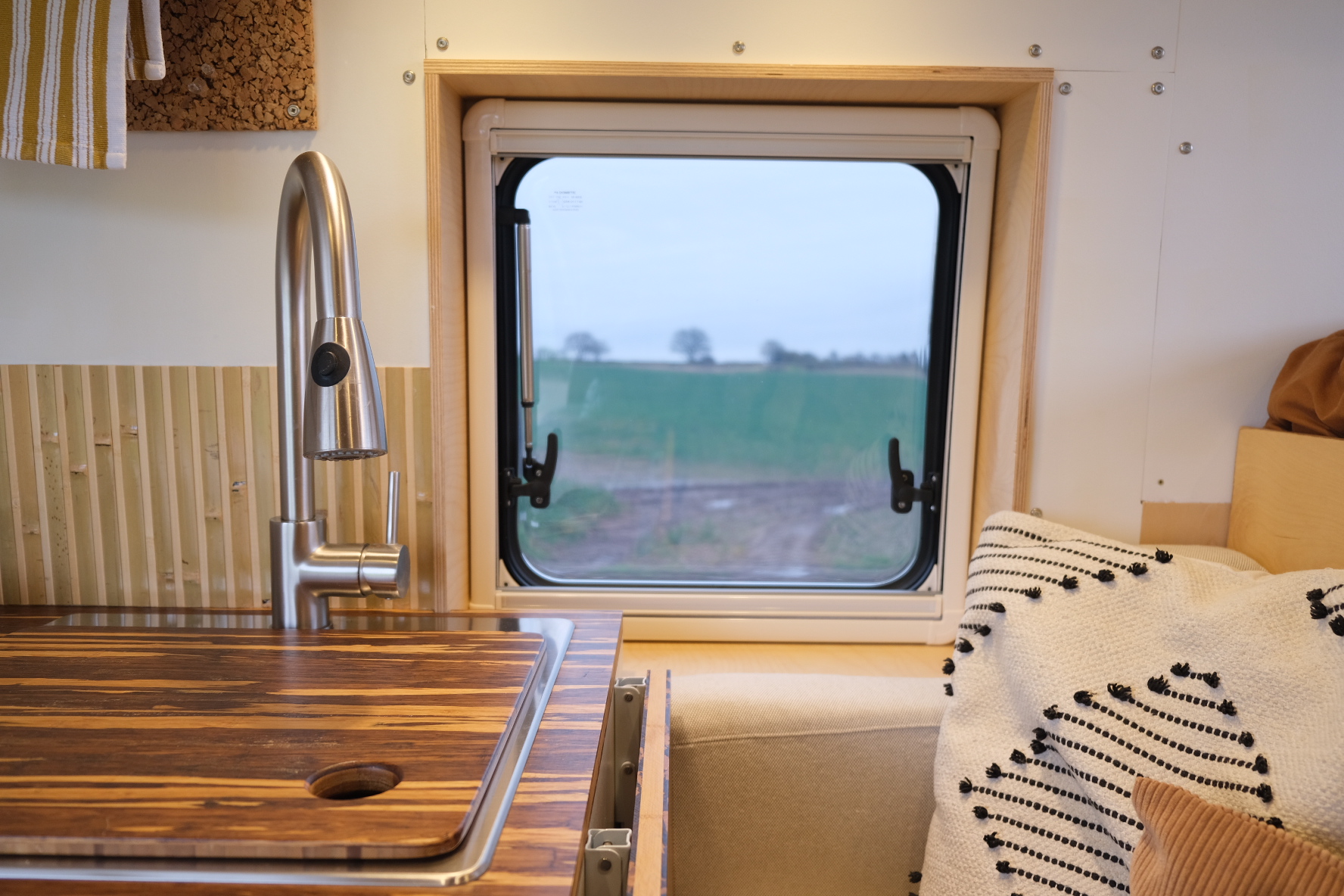

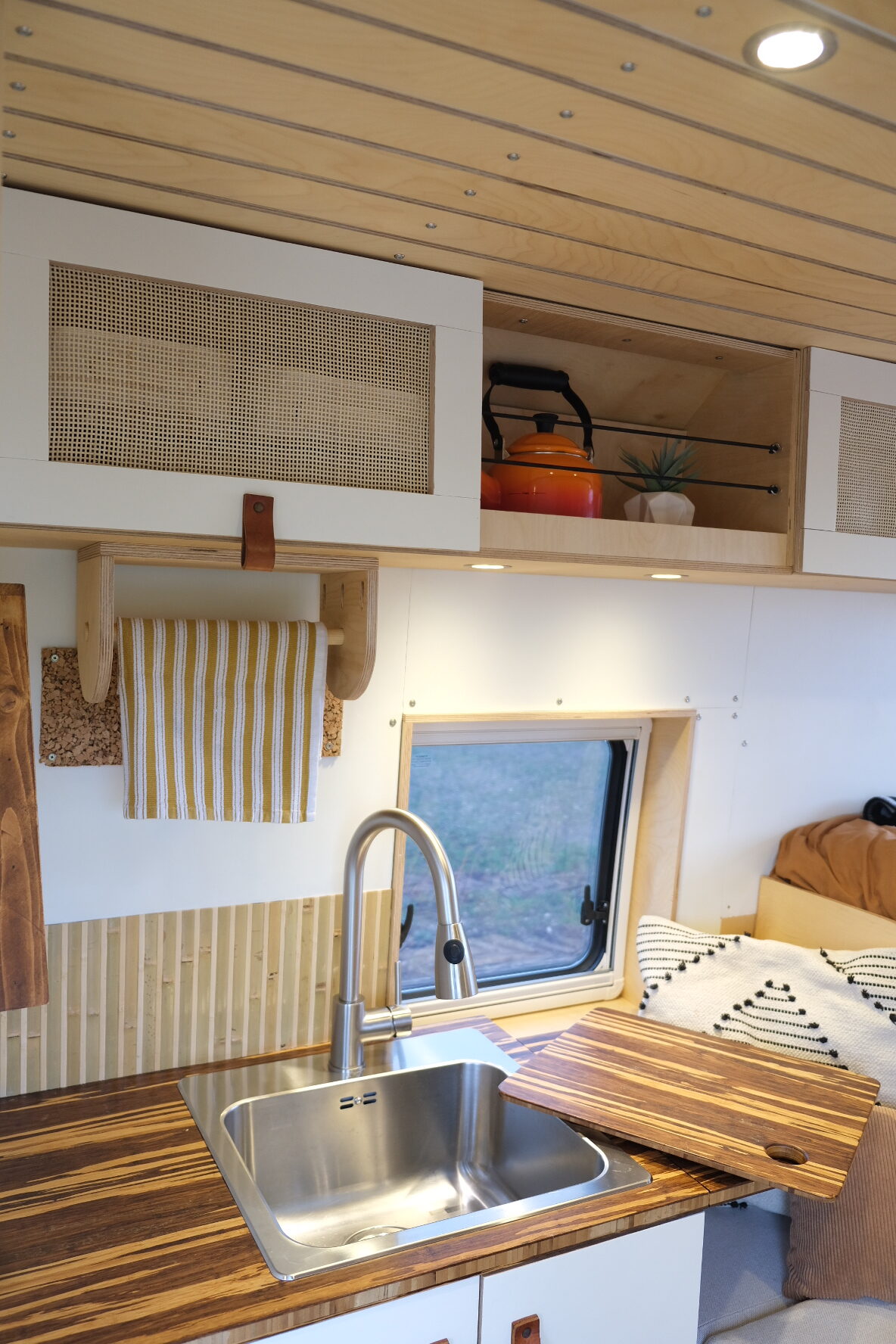

+ Large sink & pull-out spray tap (also functions as outdoor shower)
+ Adjustable sofa seating for up to 4
+ Hideaway dining table

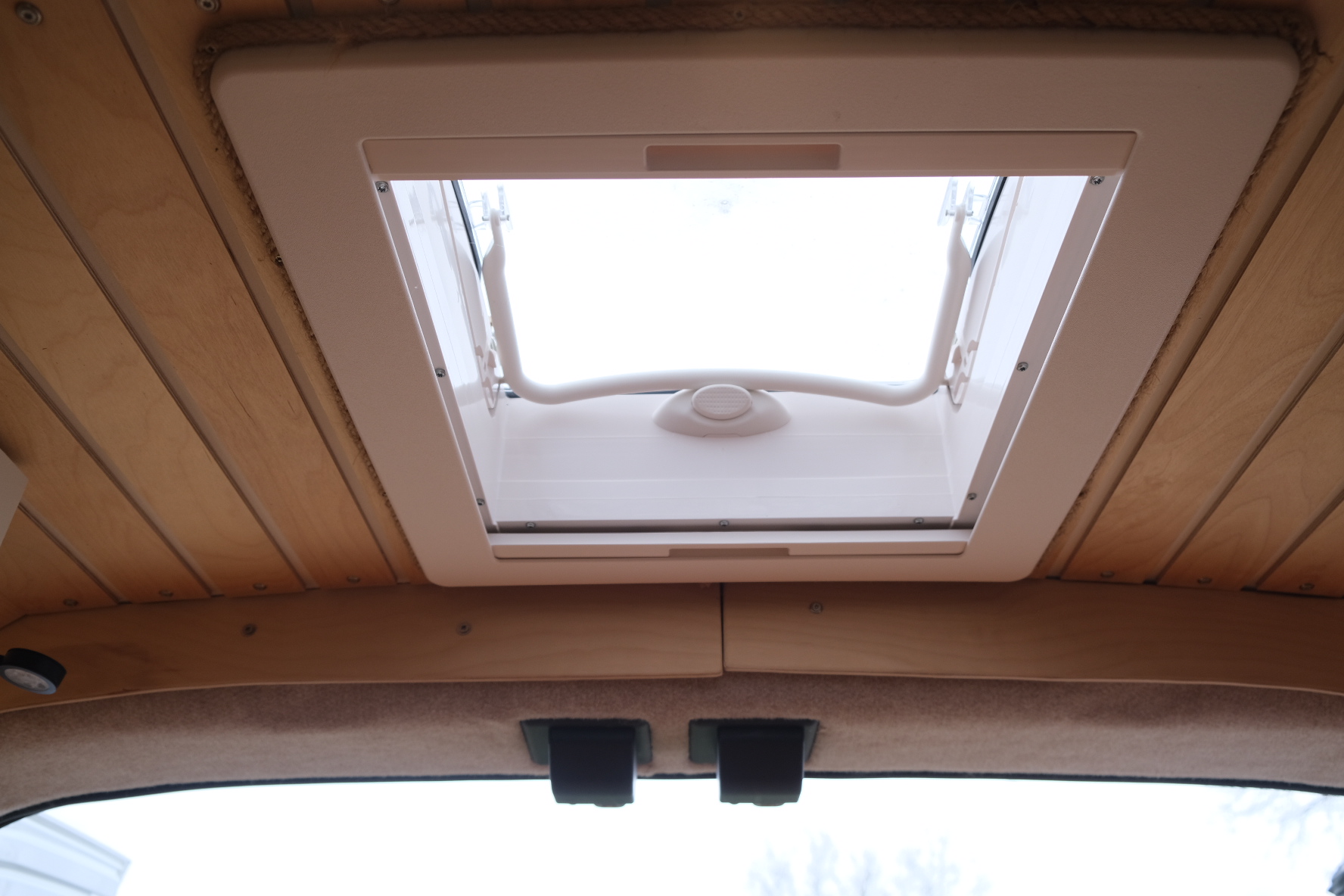

+ Skylight
+ Roof vent fans x2 (MaxxFan)

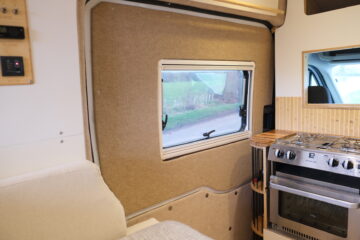

+ Windows (Dometic S7 privacy with blackout and bug mesh)

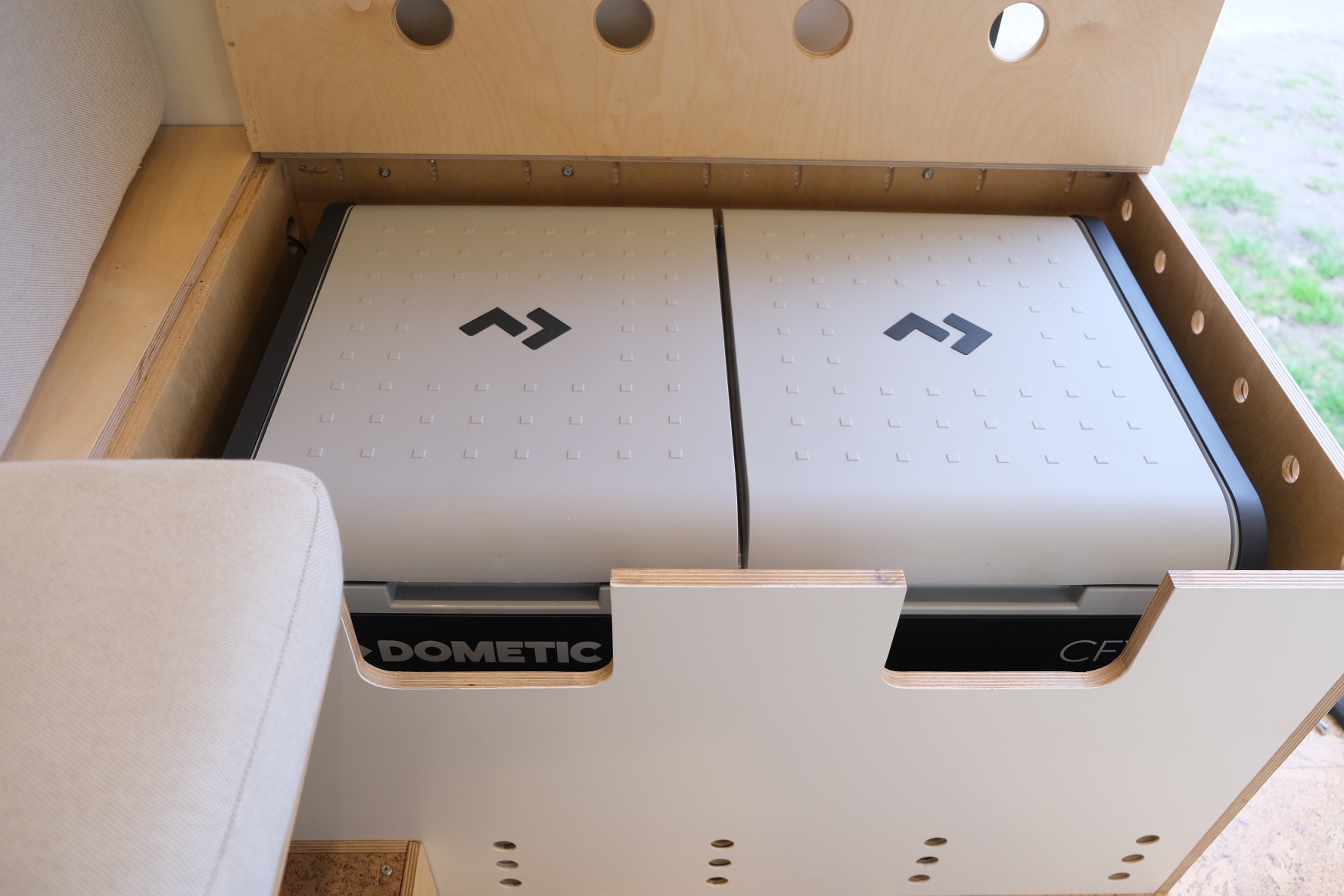

+ Large dual-zone fridge/freezer (Dometic CFX3 75ltr)
+ Loads of handy internal storage

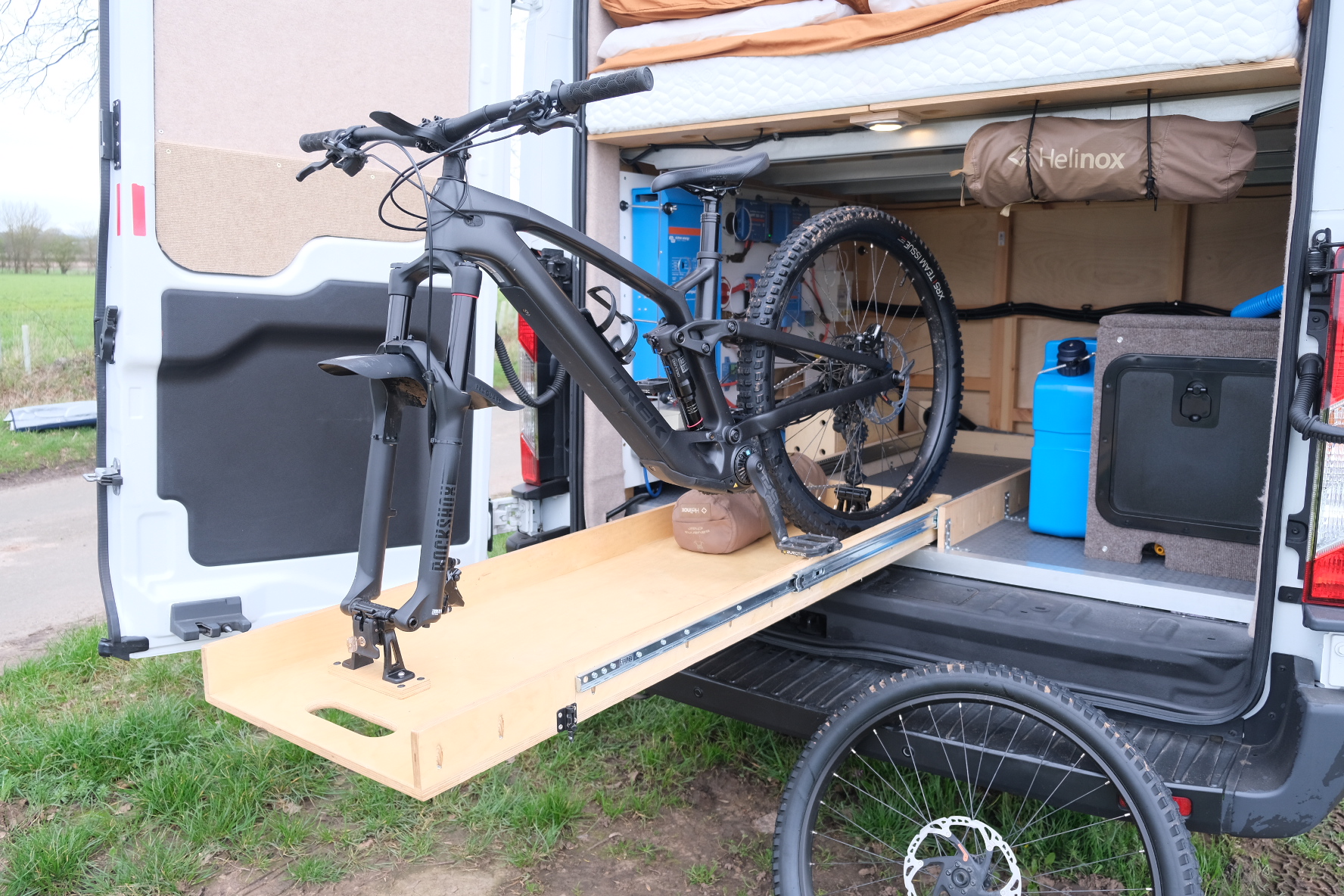

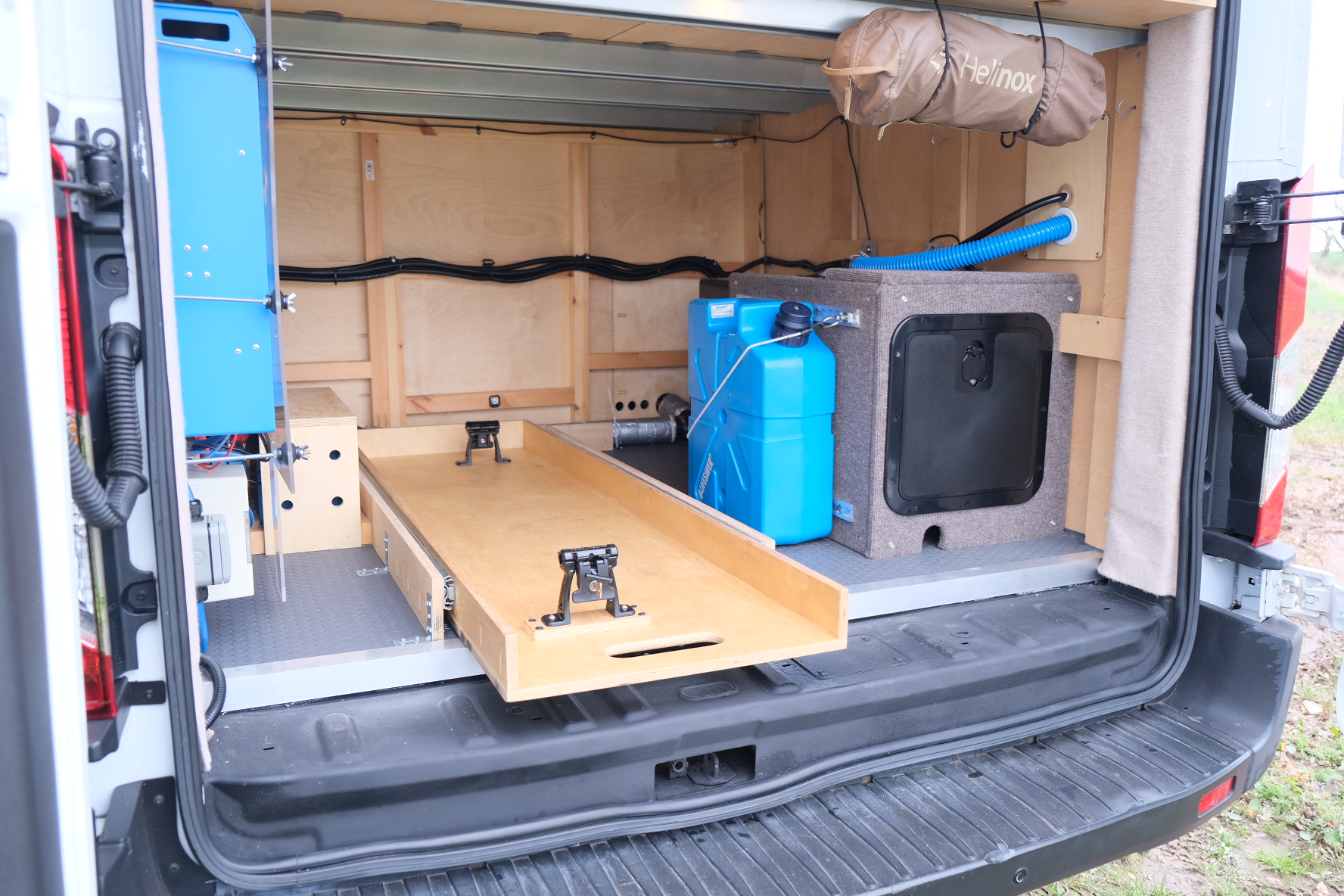

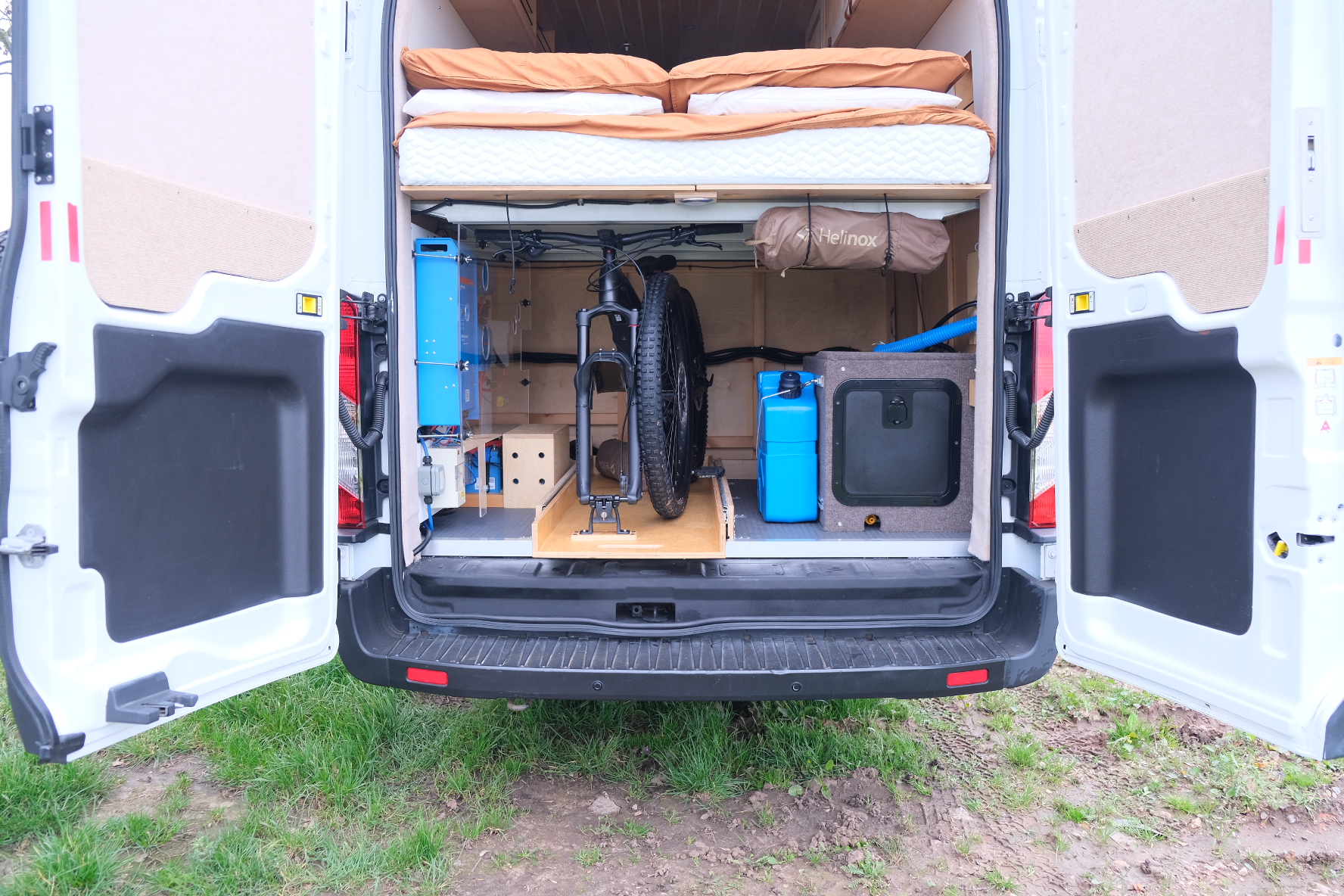

+ Bike/gear garage with slide-out bike tray for 2x bikes (and E-bike charge point)
+ Pull-down projector screen for movie nights
+ Internal frost-protected fresh water tank (57ltr)
+ Filtered & purified drinking water jerry can (18ltr – Lifesaver)
+ Underslung grey water tank (60ltr)

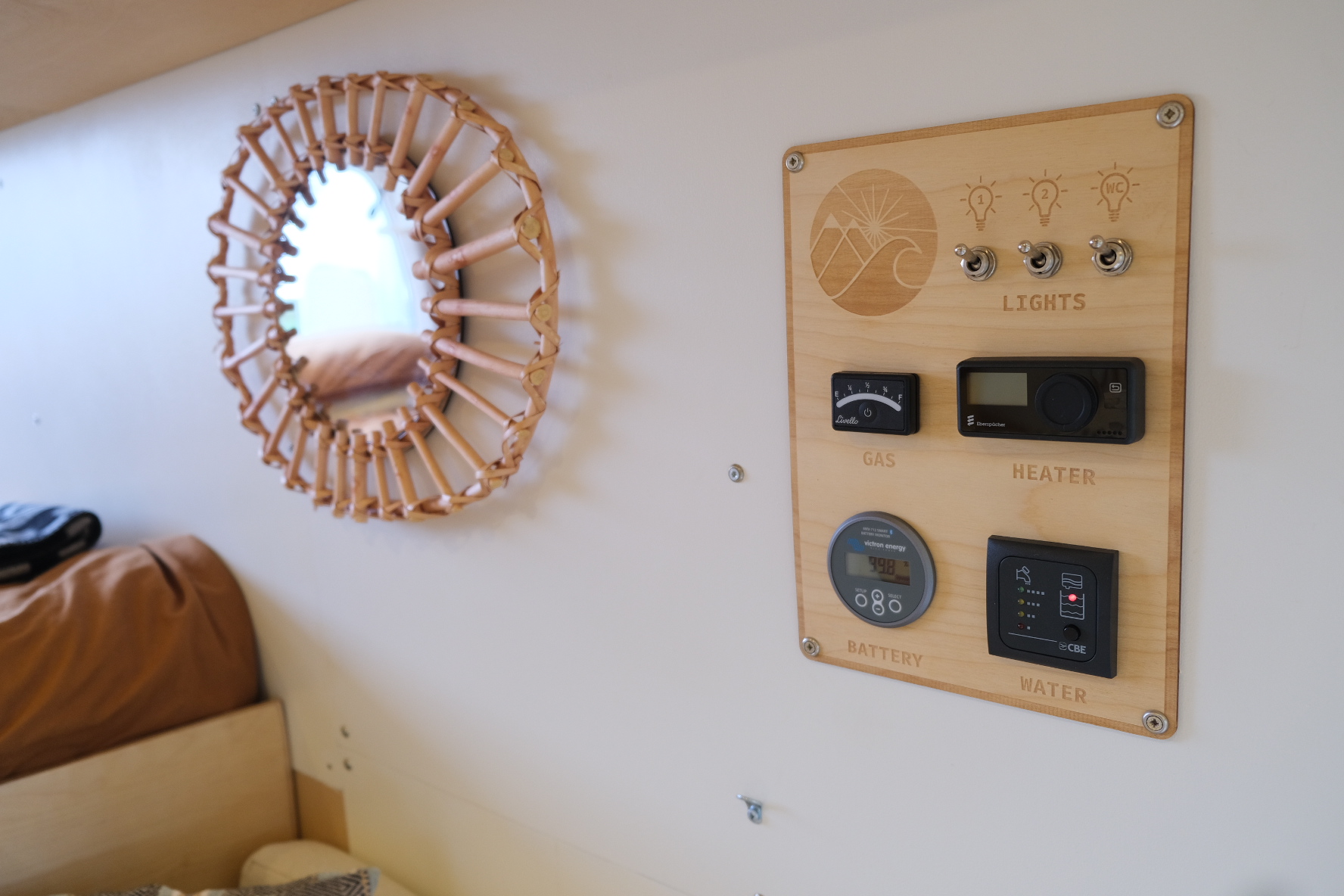

+ Habitation systems monitoring and controls panel
+ Gas & Electric safety sign off (for peace of mind and suitable for rental)
+ 230v mains hook-up
+ DETAILED SPECIFICATION +
Electrical
+ 2 x 175w Victron solar panels (roof mounted on custom roof rack)
+ 200ah Victron LiFePO4 batteries (2 x 100ah)
+ 2000va Victron Multiplus charger/inverter – can power a proper hair dryer
+ Victron SmartSolar charge controller MPPT 100/30
+ Victron Orion smart B2B charger 12/30
+ Victron Lynx distribution / bus-bar
+ Victron BMV712 Smart battery monitor with Bluetooth monitoring on phone and display in living area
+ BlueSea main isolator switch / circuit breakers / blade fuse distribution blocks
+ Touch sensitive warm LED spot lights x 8

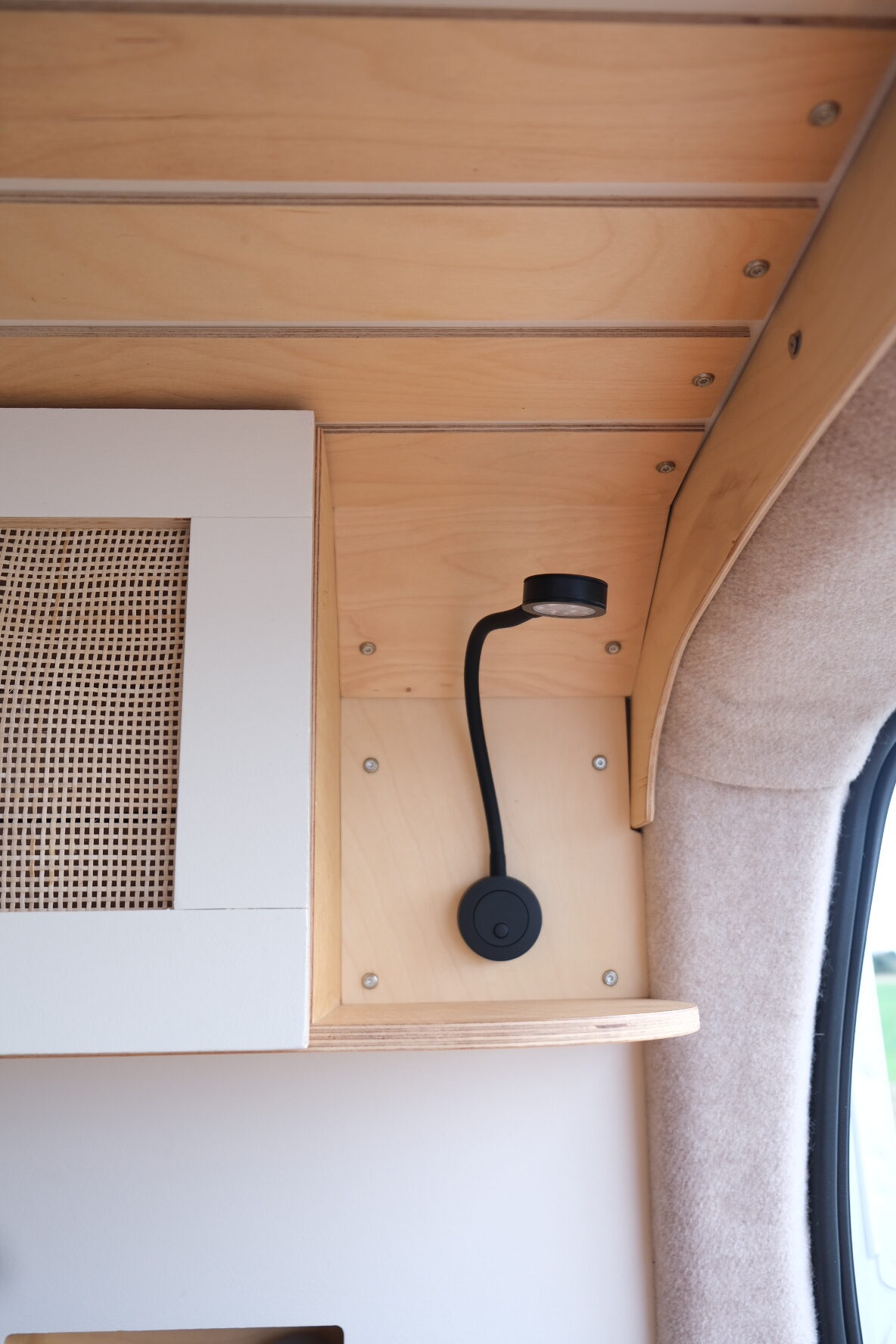

+ Reading light
+ 230v double socket outlets with USB charging x 2

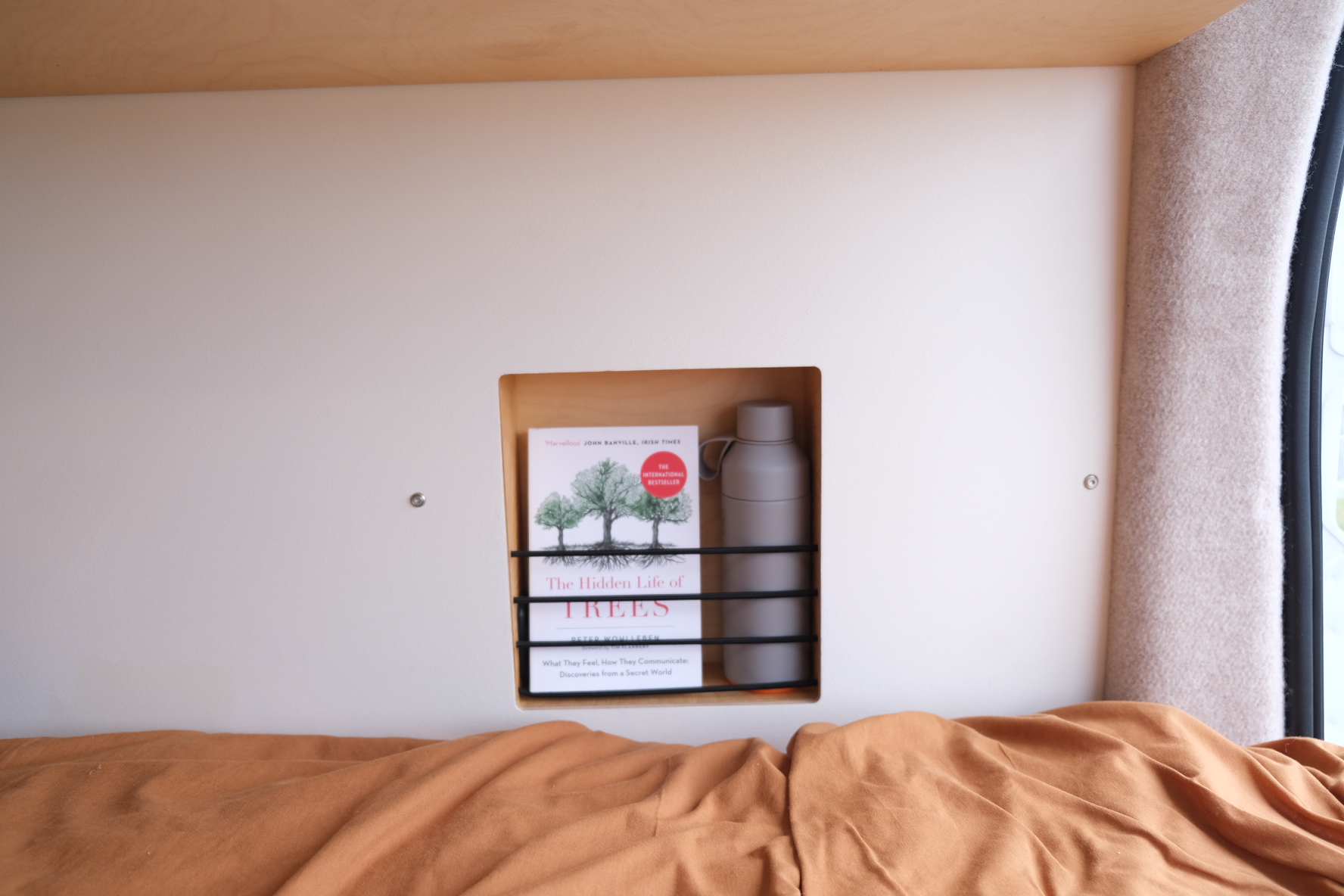

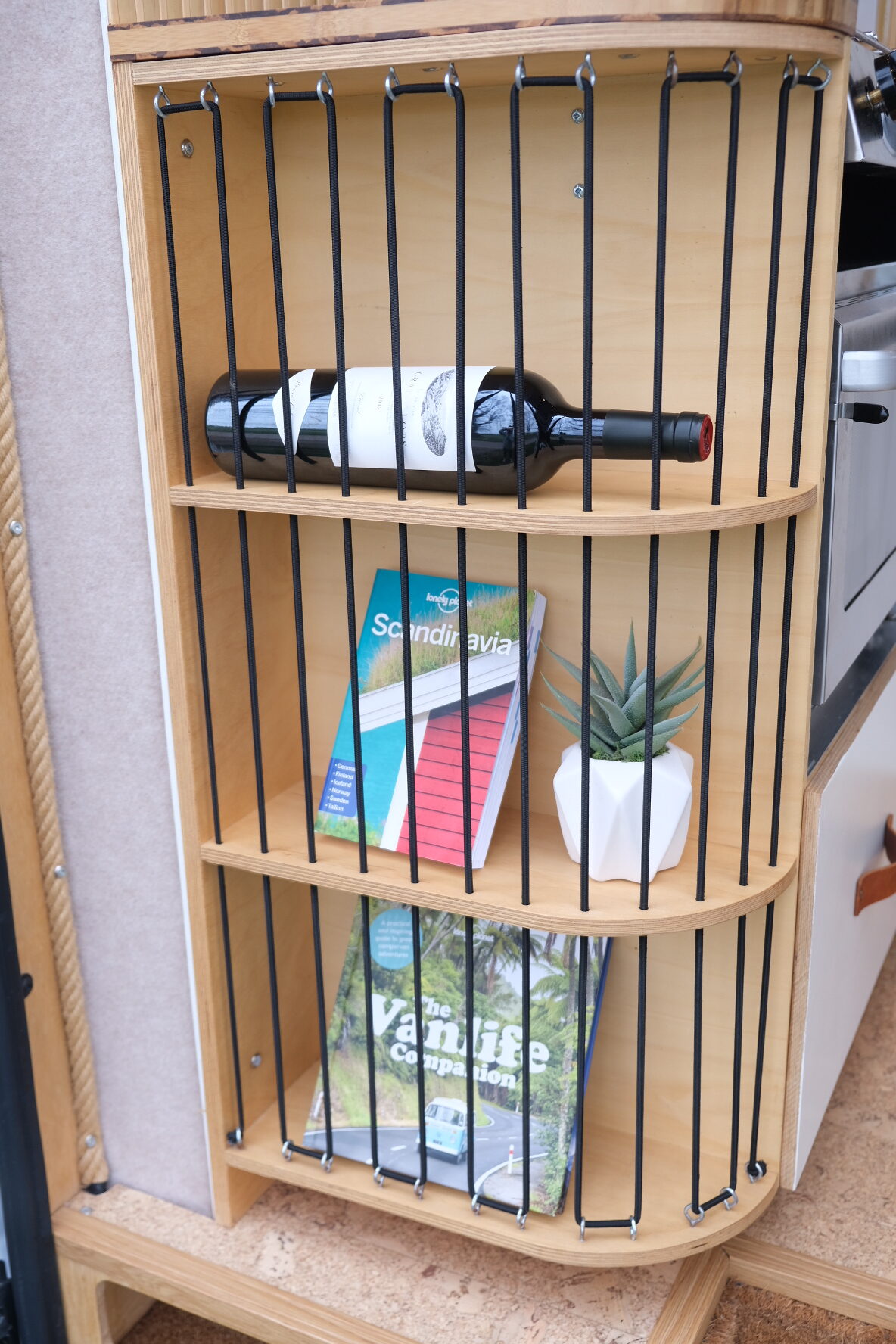

+ Book and bottle storage ‘nooks’ next to bed with USB-B & USB-C charge points x 2
+ All electrical equipment visible in garage with clear Perspex protective screen, ventilated and easy access to switches / isolators / fuses etc
Water & Heating
+ BobilVans Air Hybrid (12V) with dedicated 10ltr insulated tank – heats water via diesel air heater heat exchanger & excess solar charging load
+ Eberspacher Airtronic S2 D2L diesel air heater with thermostatic controller – professionally installed by Automotive Aircon Services, Stafford
+ Hot & cold water to large sink
+ Water pipework regularly isolated in easily accessible locations
+ Air heating outlets to living area, drying/shower room, and battery heater (for cold weather battery care)
+ ‘Whale’ lockable sliding re-fill socket in side of van
+ Underbody grey water discharge ball-valve outlet
+ Internal fresh water drain down
+ Custom epoxy resin fibre-glass shower tray

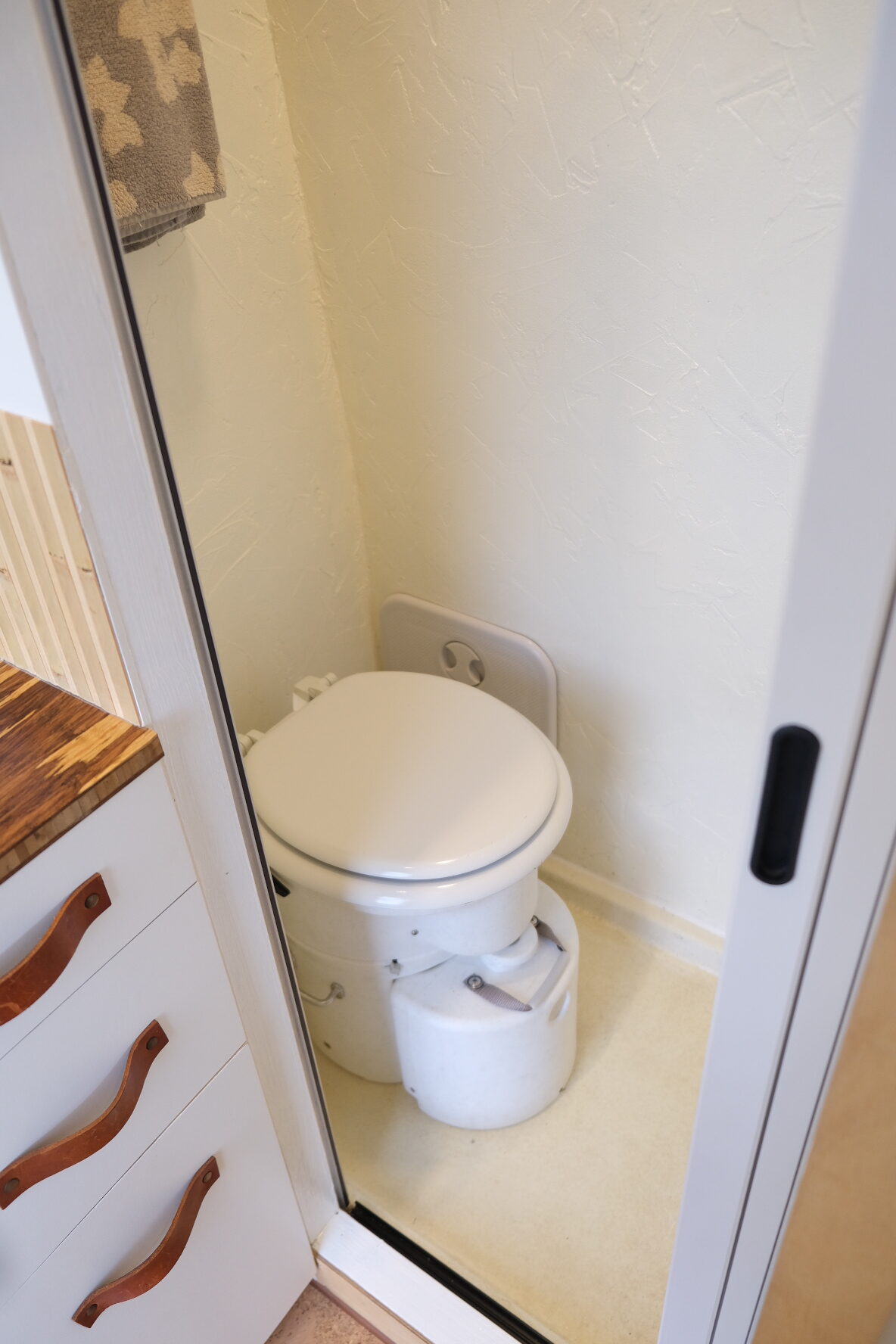

+ AirHead Composting Toilet, externally mechanically vented (no chemical disposal issues, long lasting and environmentally friendly)
Gas / LPG
+ 24ltr LPG tank (under mounted) – lasts for months
+ Professionally installed by Autogas 2000 Leisure, Thirsk
+ Easy internal isolator access
+ Internal gas level monitor
+ Bayonet re-fill valve to side of van

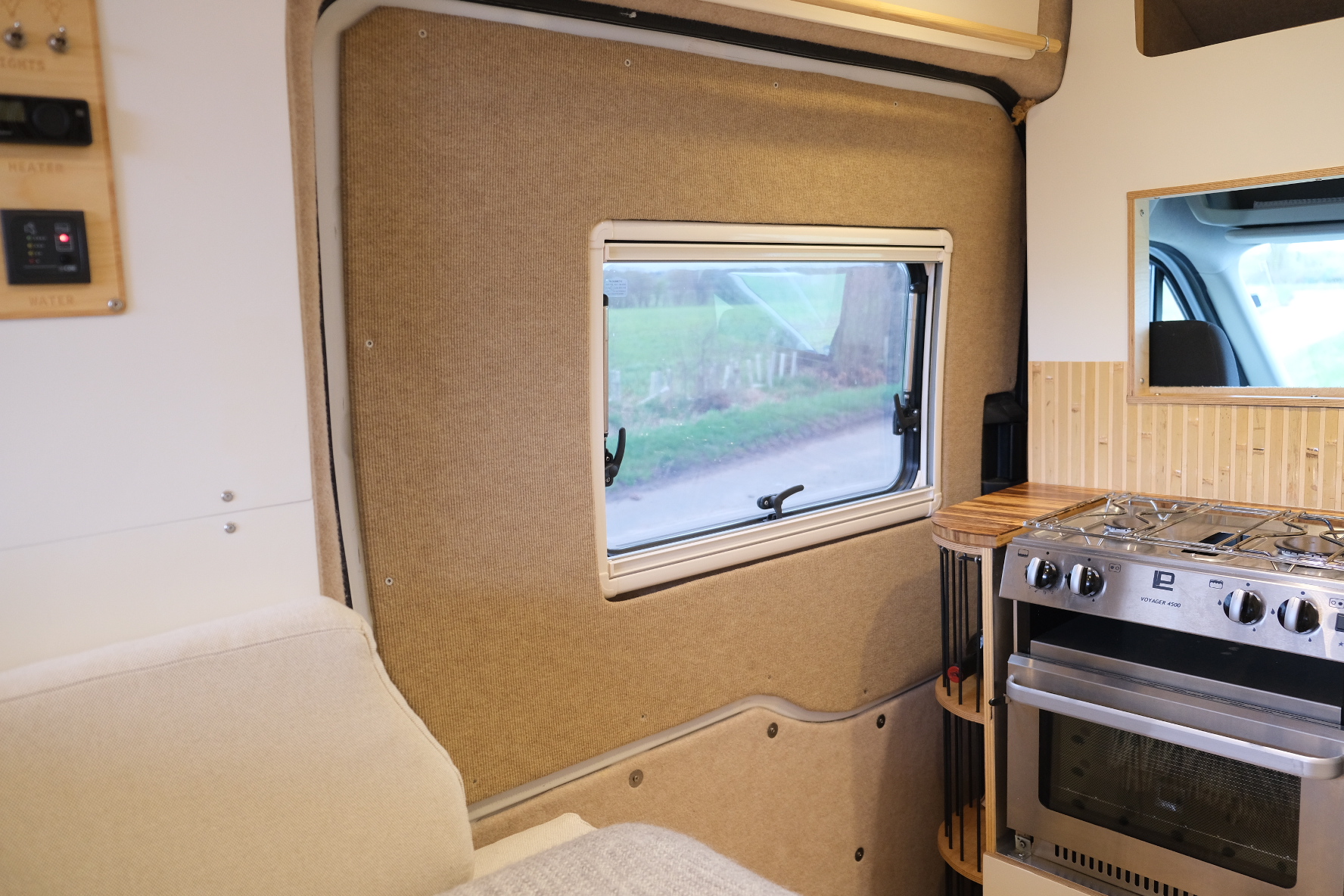

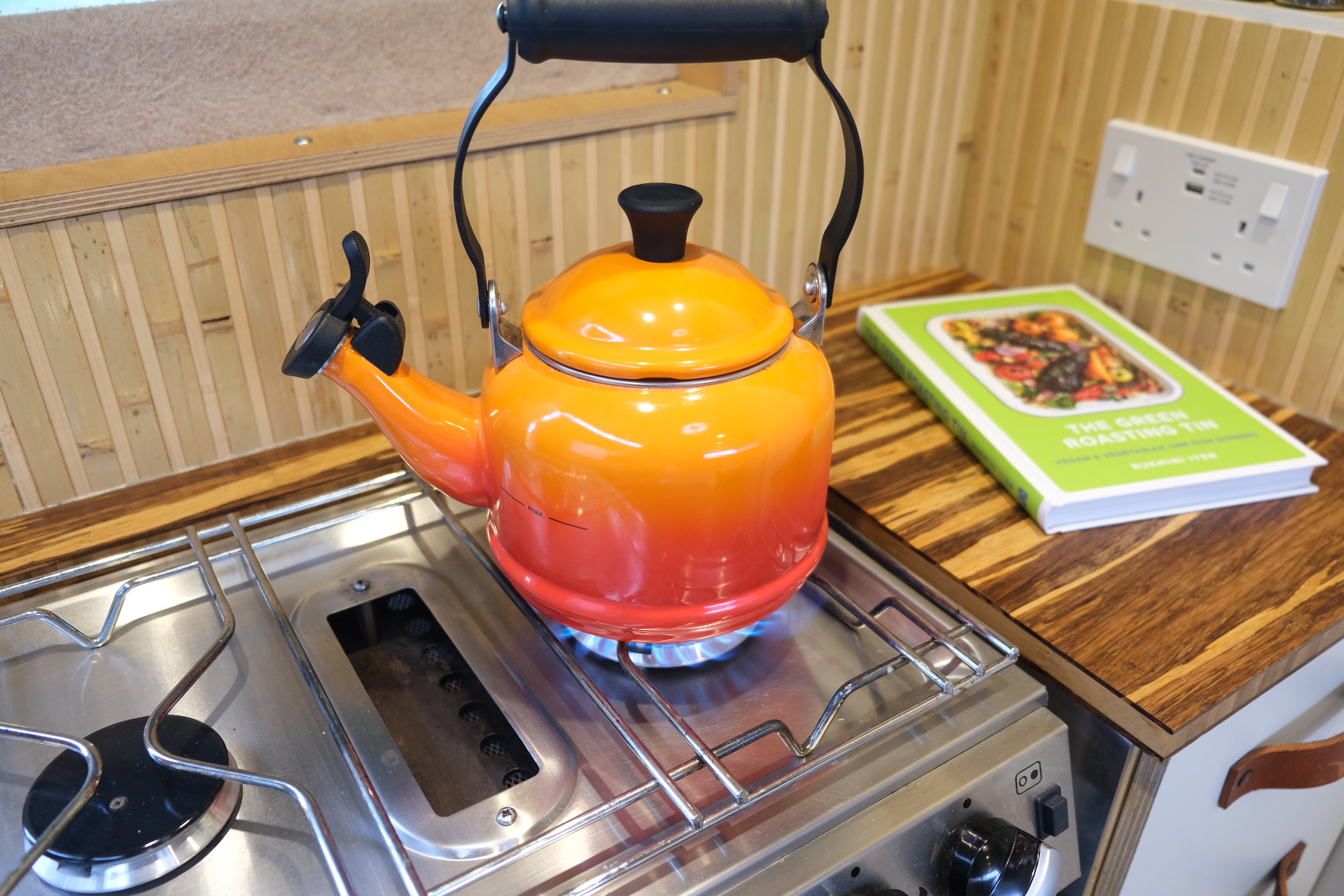

+ Voyager 4500 LPG oven, grill and hob cooker
Fixtures, Fittings & Finishes
+ Tiger bamboo worktops
+ Birch ply door & drawer fronts

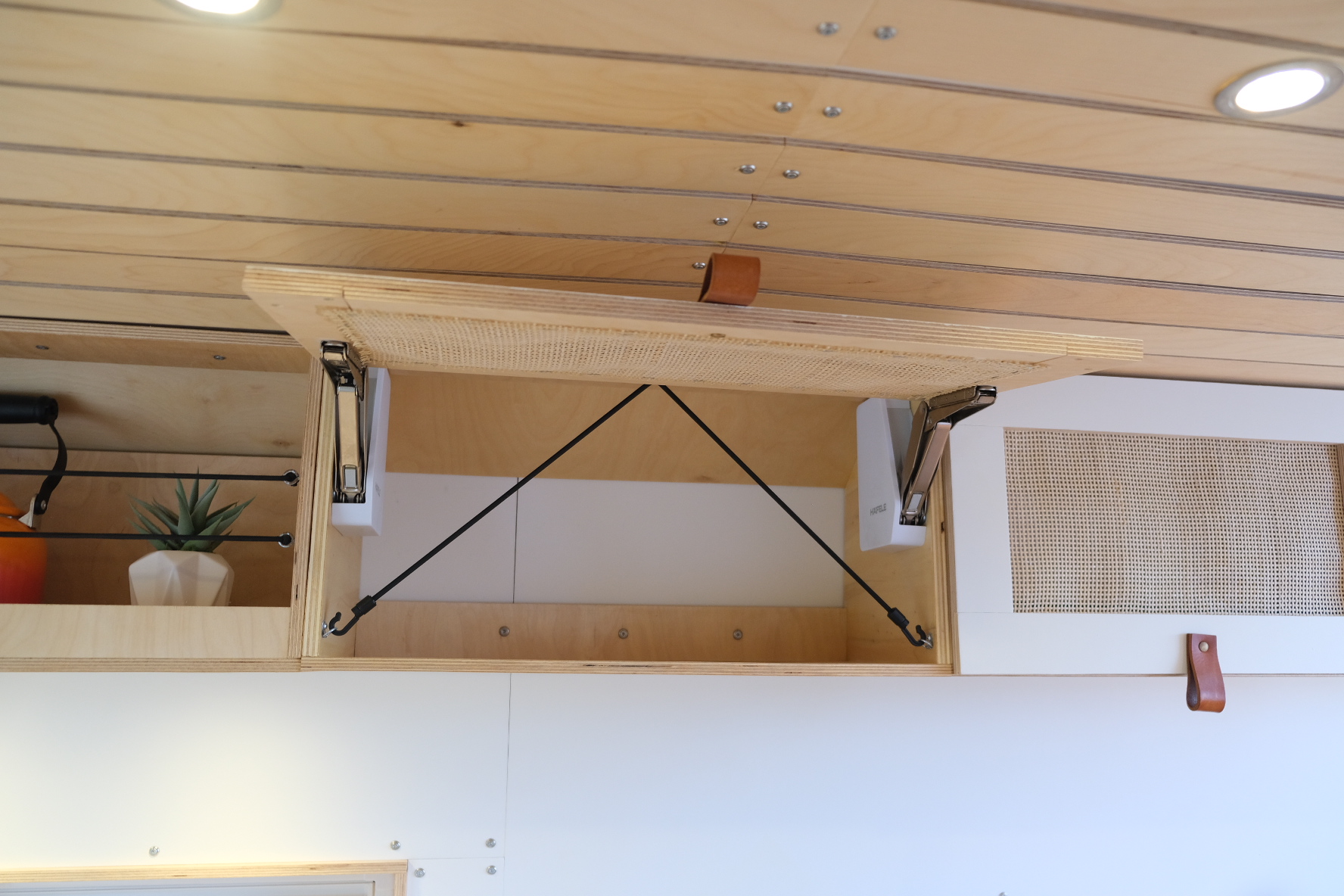

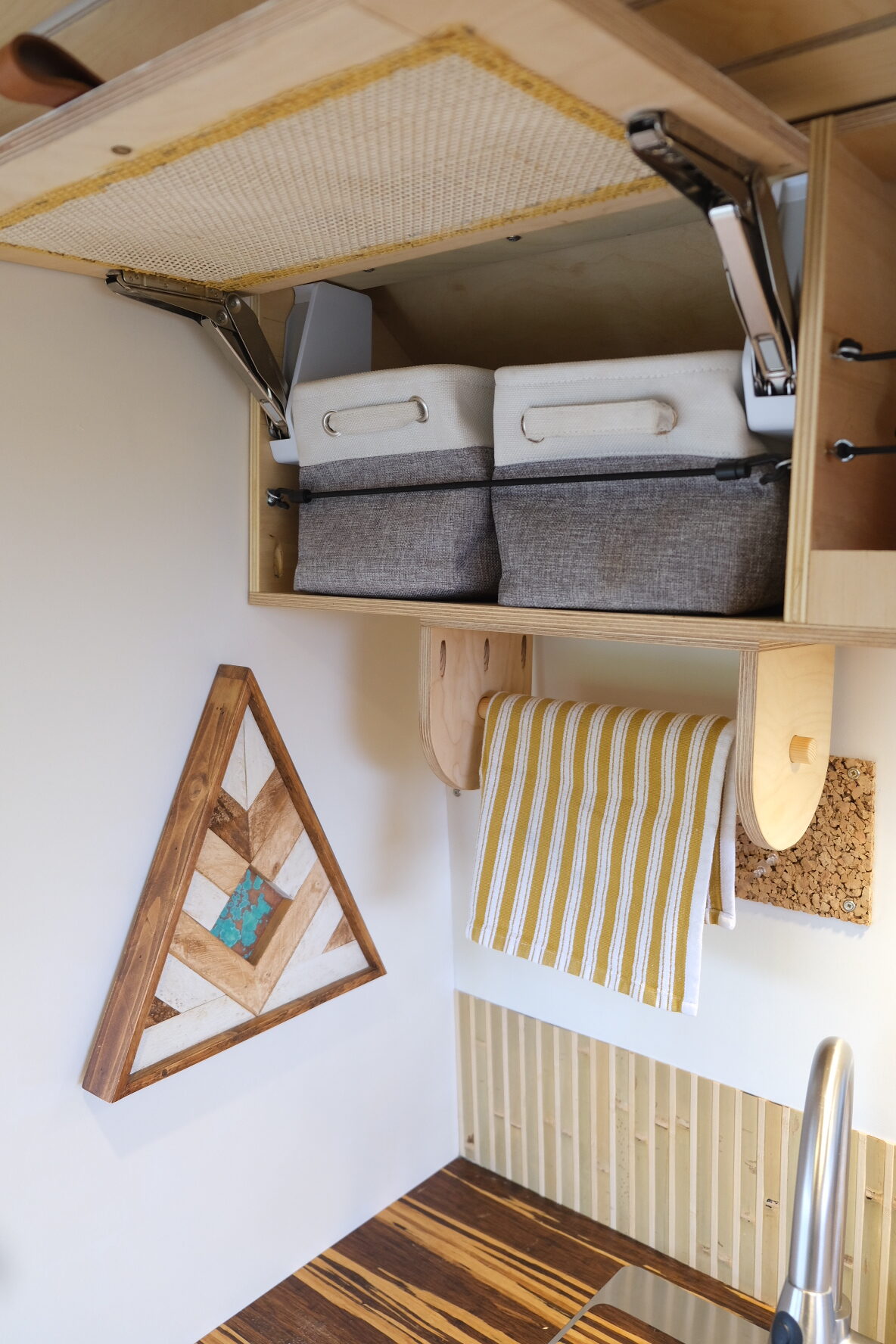

+ Hafele soft-close door & drawer gear
+ Commercial grade durable cork flooring (carbon negative)
+ Wipeable & durable Little Greene Intelligent Eggshell paint
+ Wall sub-frames fixed to van body with rivet nuts / jack nuts (much more safe & secure than self-tapping screws)
+ Coir entrance step mat (removable by Velcro to clean/replace)
+ Shoe/sandal storage

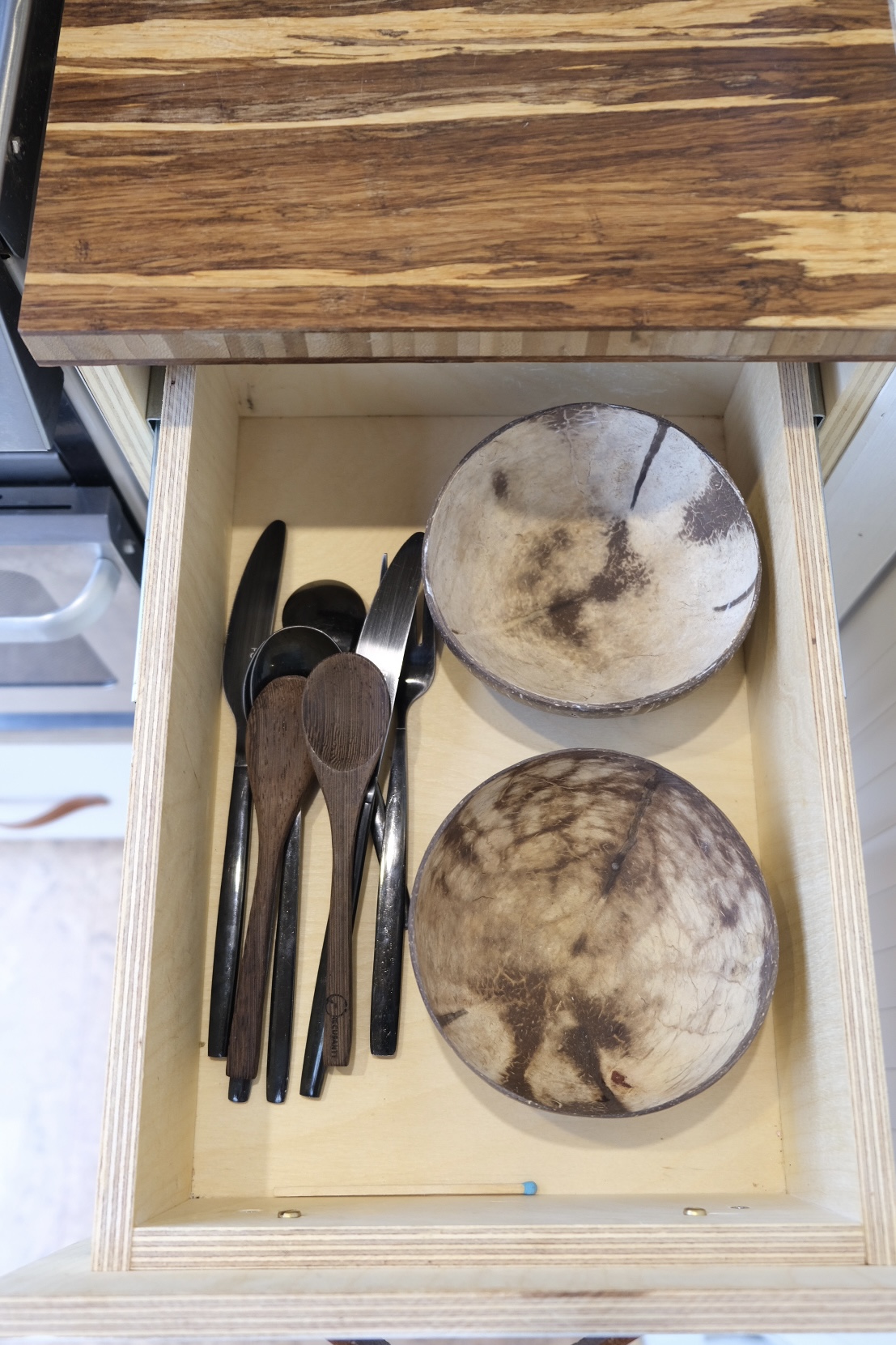

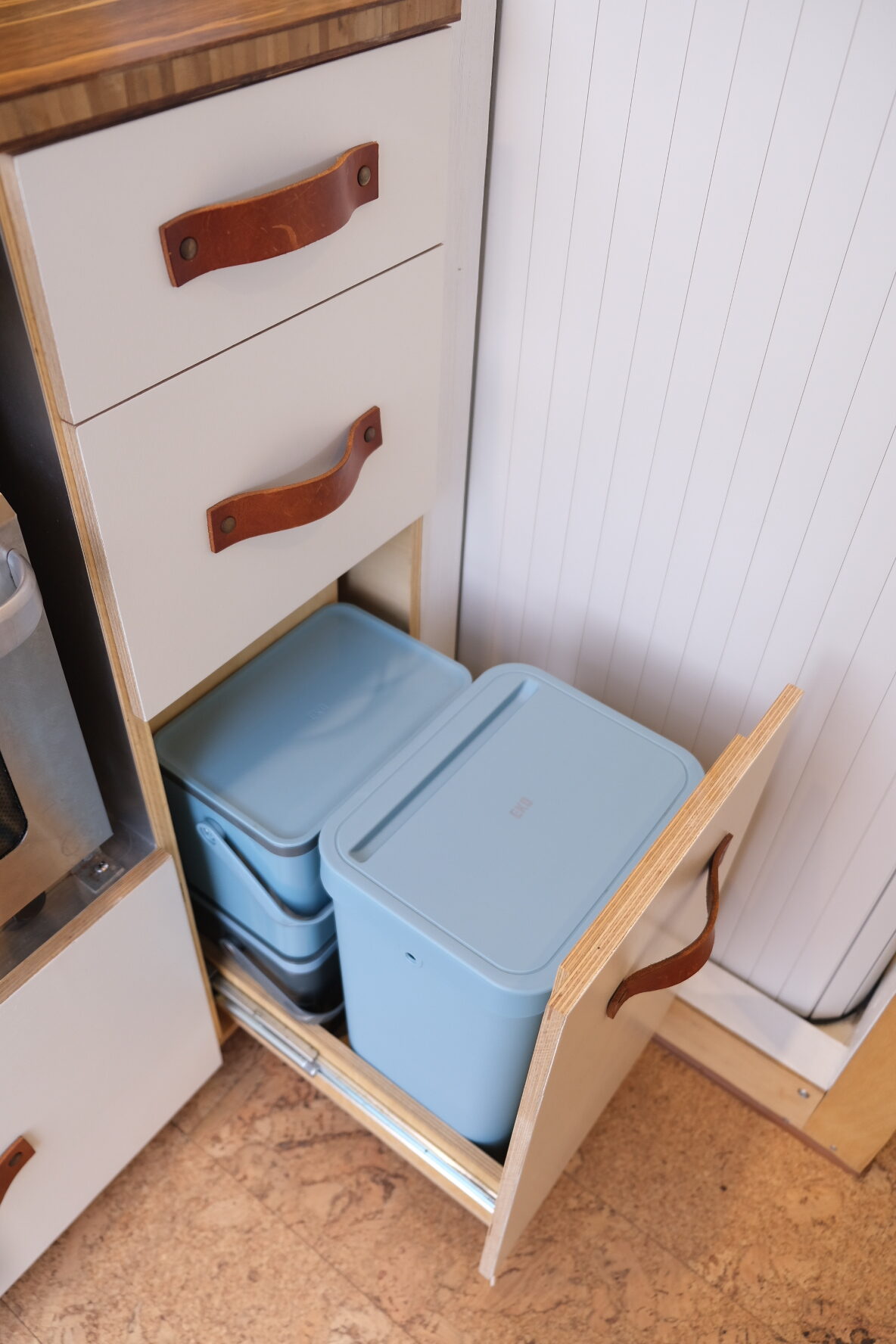

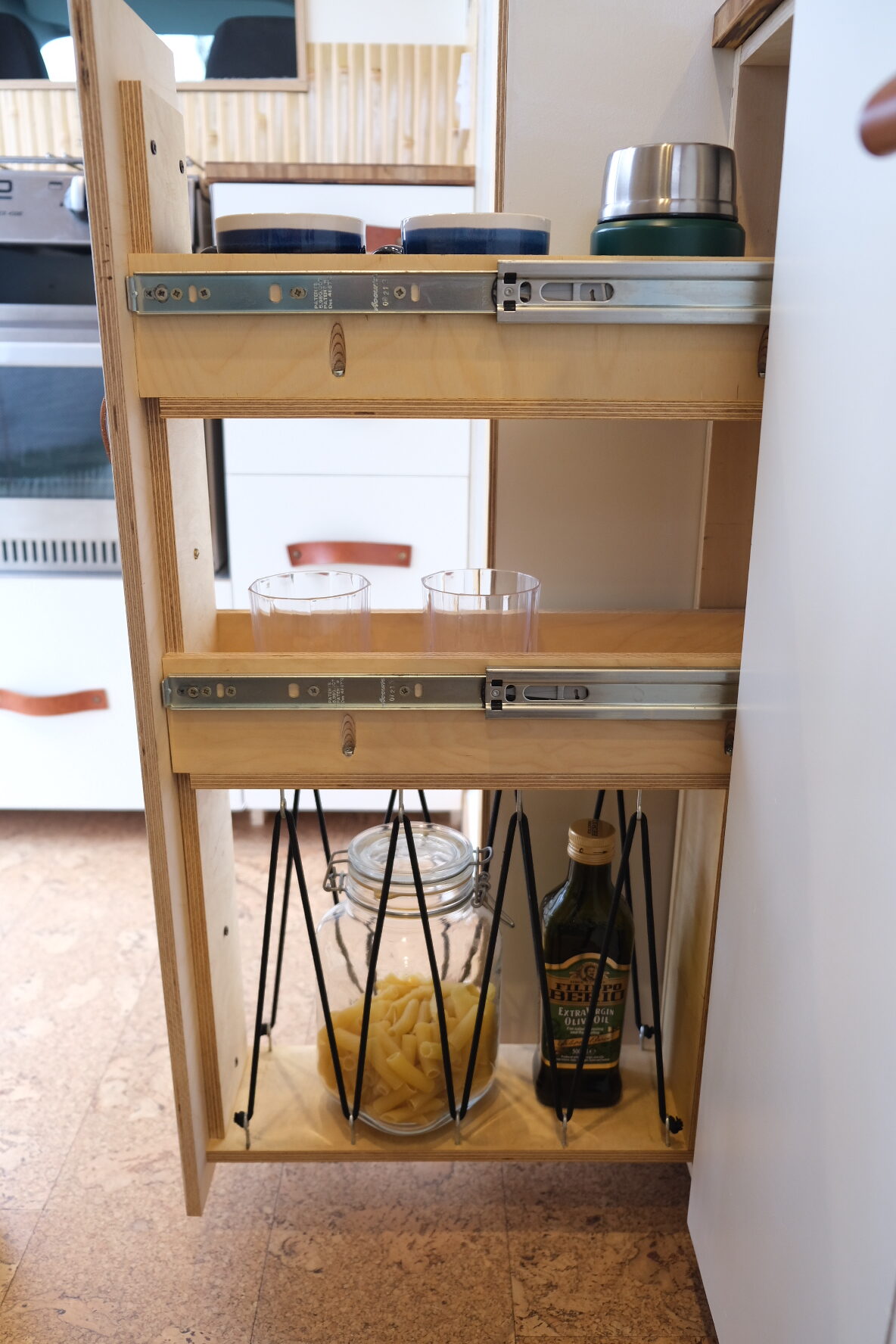

+ Slide out pantry unit, pan drawer, waste & recycling drawer, cutlery drawers and under-sink storage
+ Storage under seats

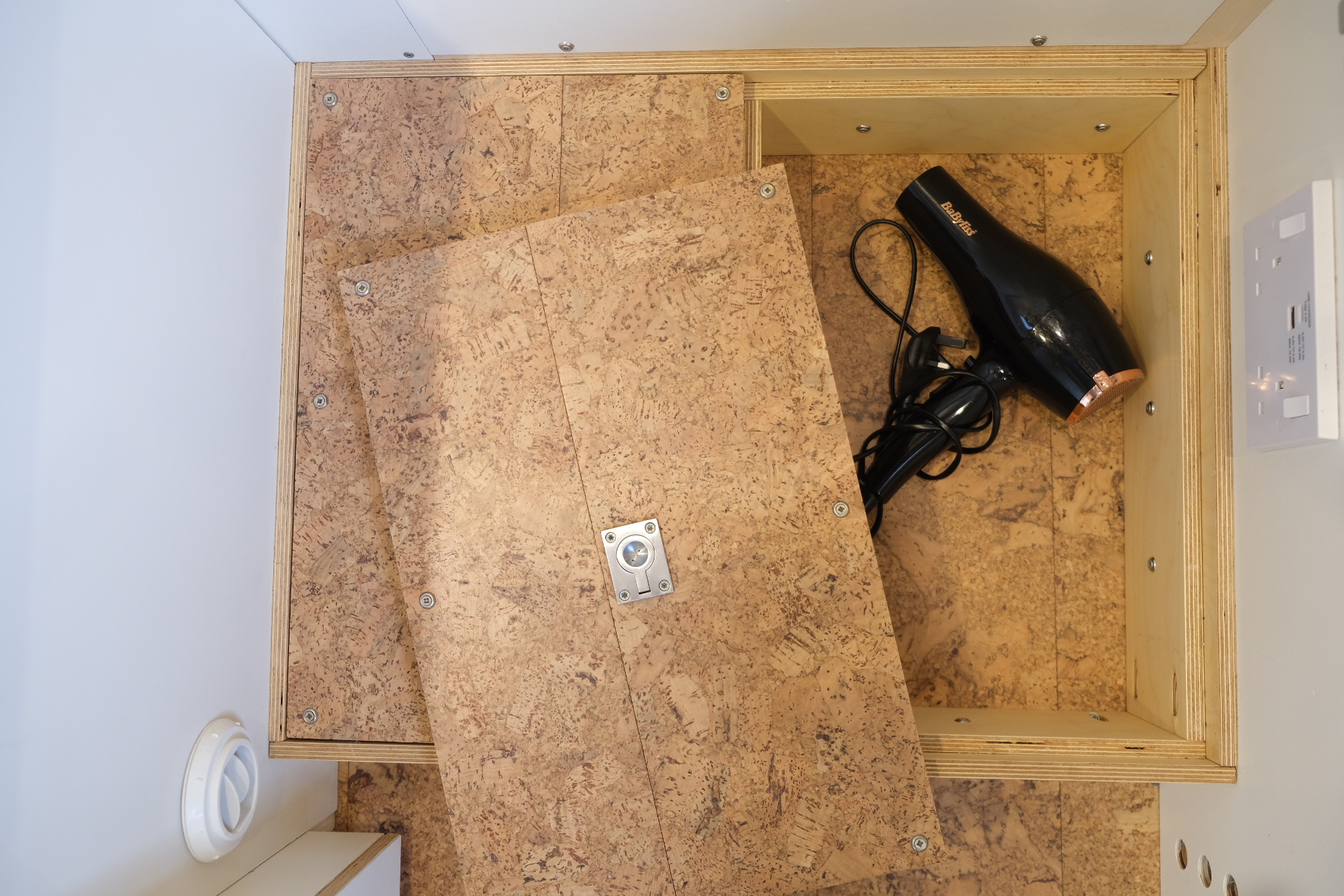

+ Raised floor storage

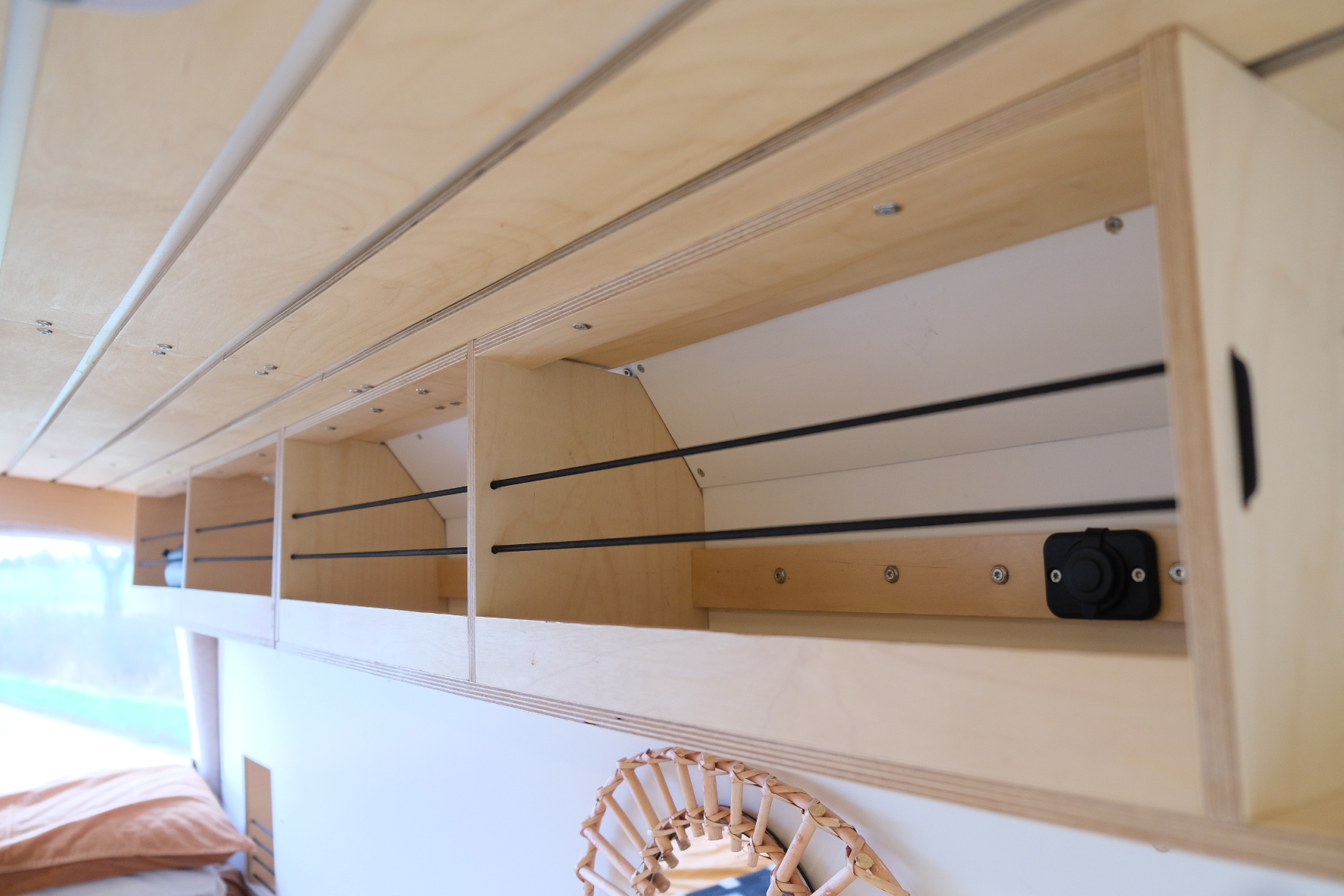

+ Over-cab bulkhead storage area
Insulation
+ Sound deadening
+ Interior metalwork fully pre-lined with flexible closed-cell foam liner – thermal, moisture and acoustic break
+ Recycled plastic fleece insulation
+ Insulated plywood sub-floor (PIR / celotex)
+ Insulated bulkhead (PIR / celotex)
Other

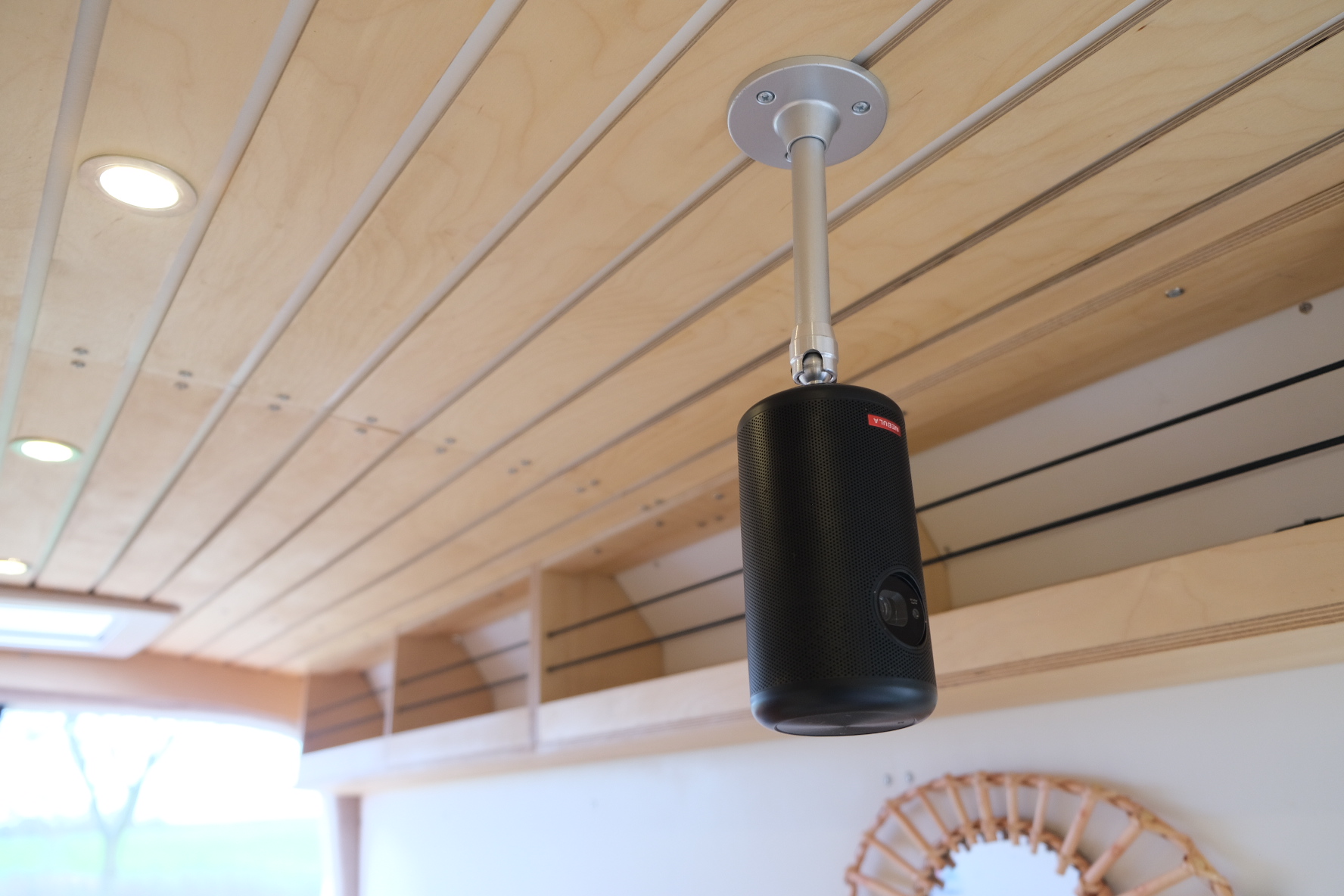

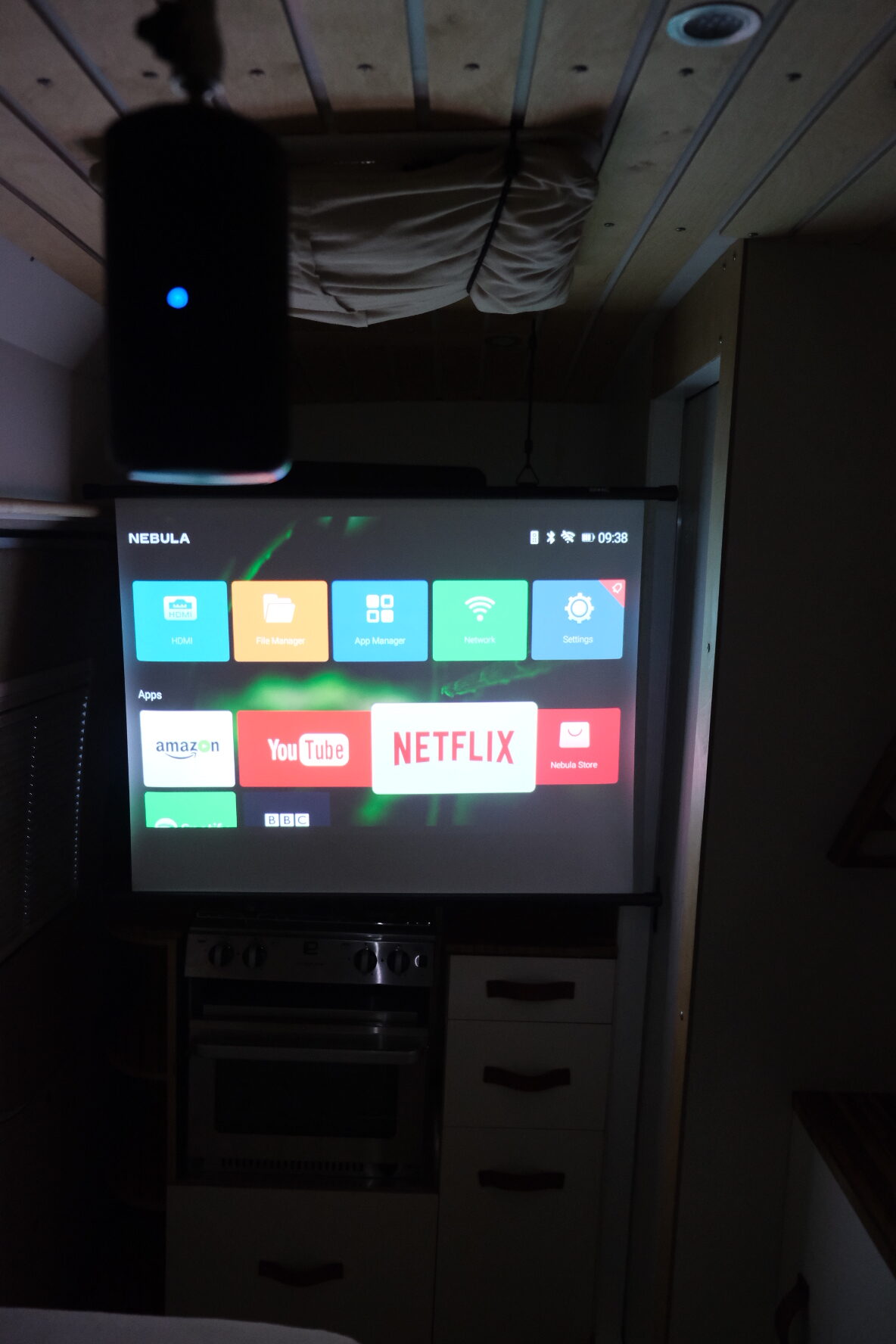

+ Anker Nebula projector and hide-away ceiling hung projector screen
+ LifeSaver Jerry Can portable drinking water filtration (18ltr)
+ RockyMount DropTop lockable bike thru-axle mounts

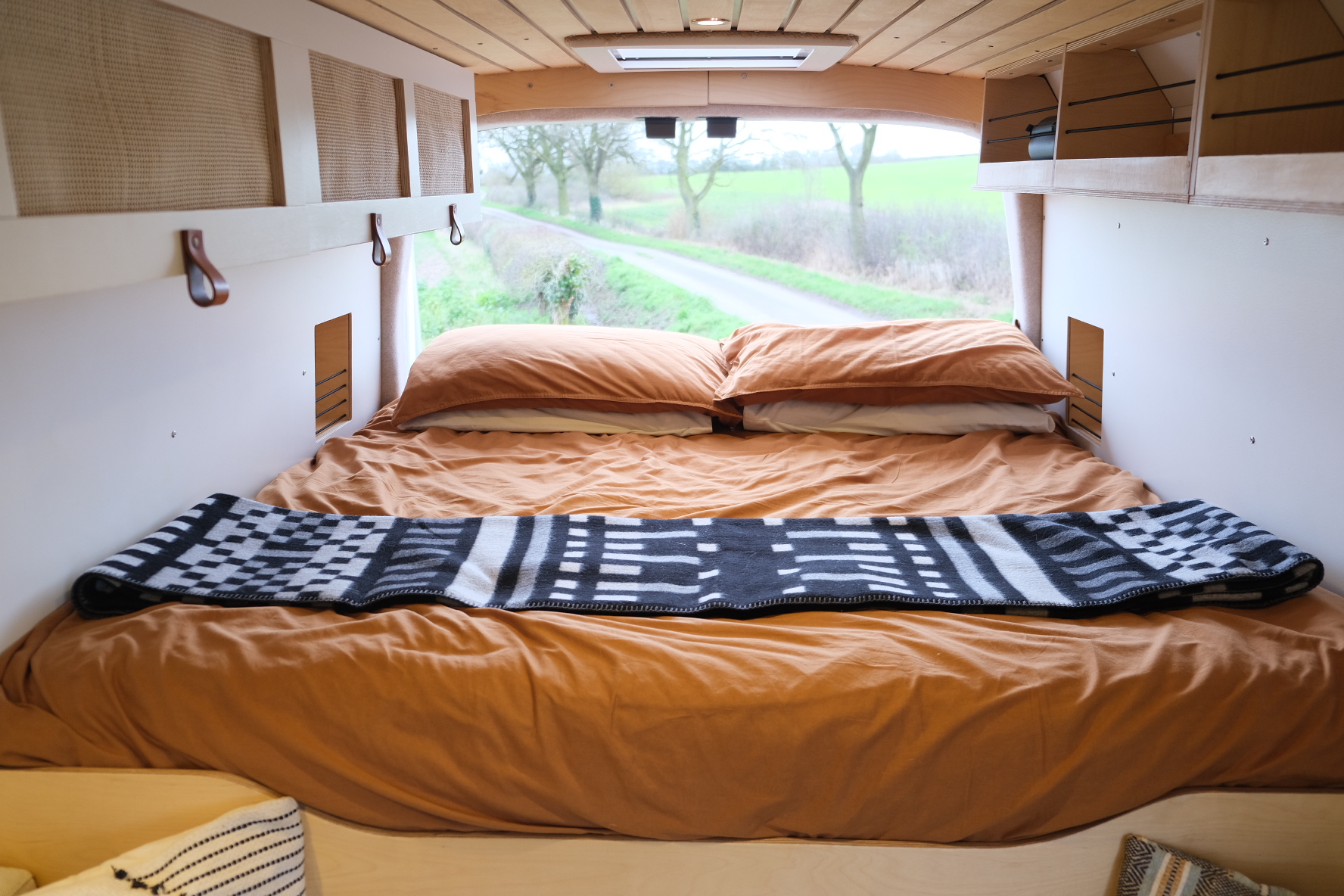

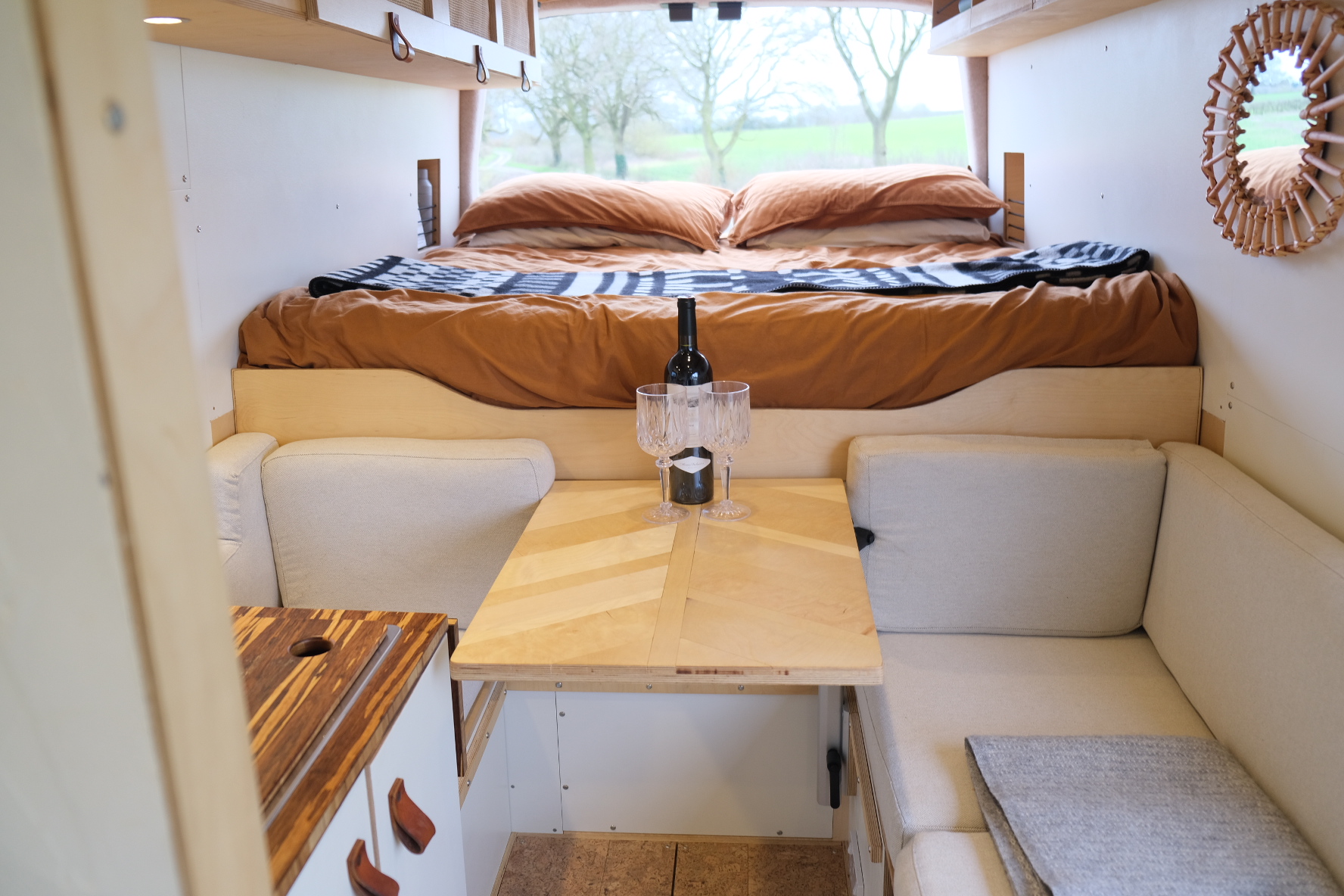

+ Permanent large full-width platform bed – super comfy near king size custom memory foam mattress
+ Sofa suitable for child’s bed
