This conversion is the Signature Series by Campervan Explorers which has been refined over numerous conversions resulting in a great campervan.

The layout has been created logically based on experience and functionality giving preference to the features used most frequently.

Fixed bed for the convenience of not having to assemble/disassemble the sleeping area.

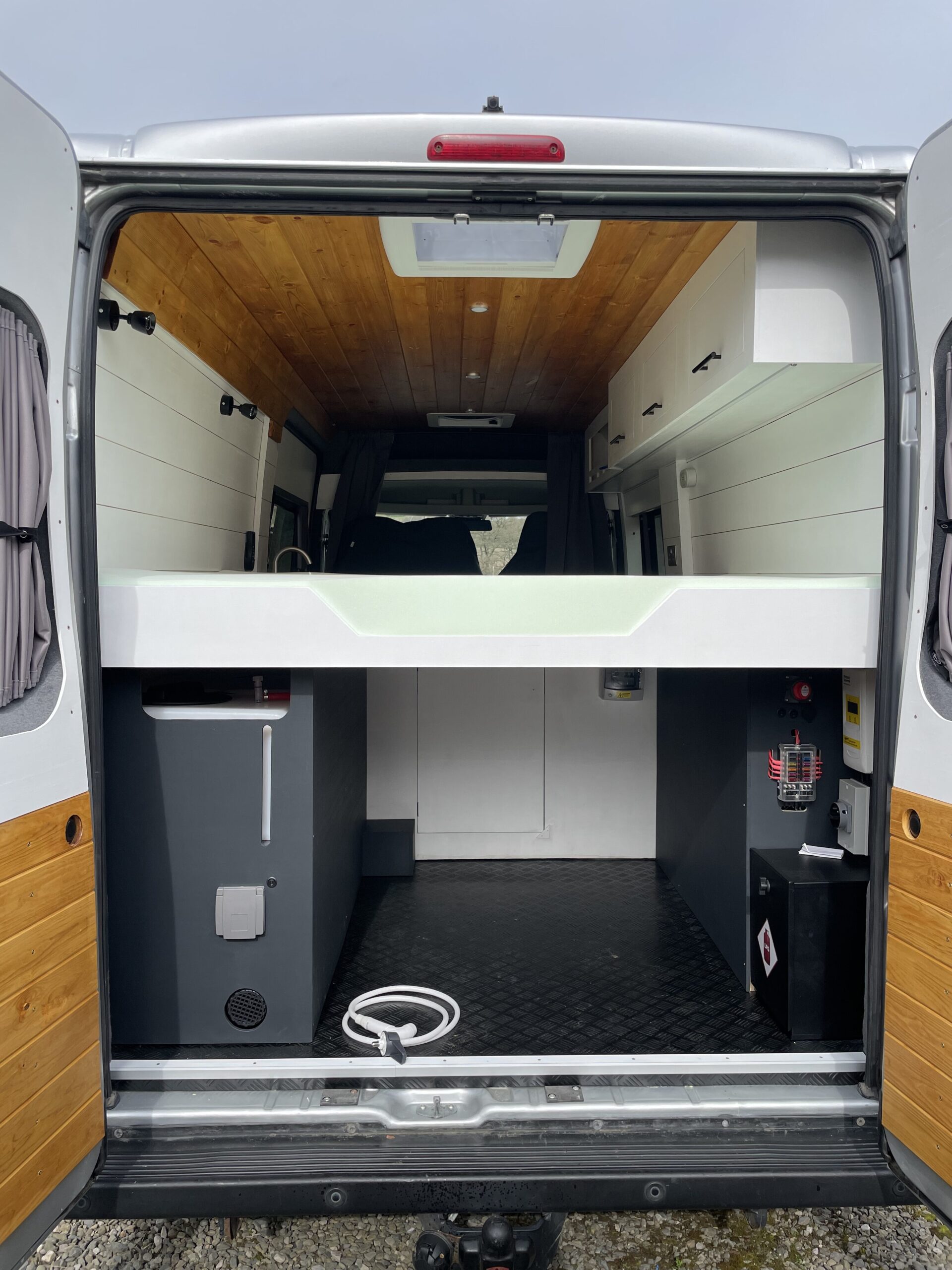

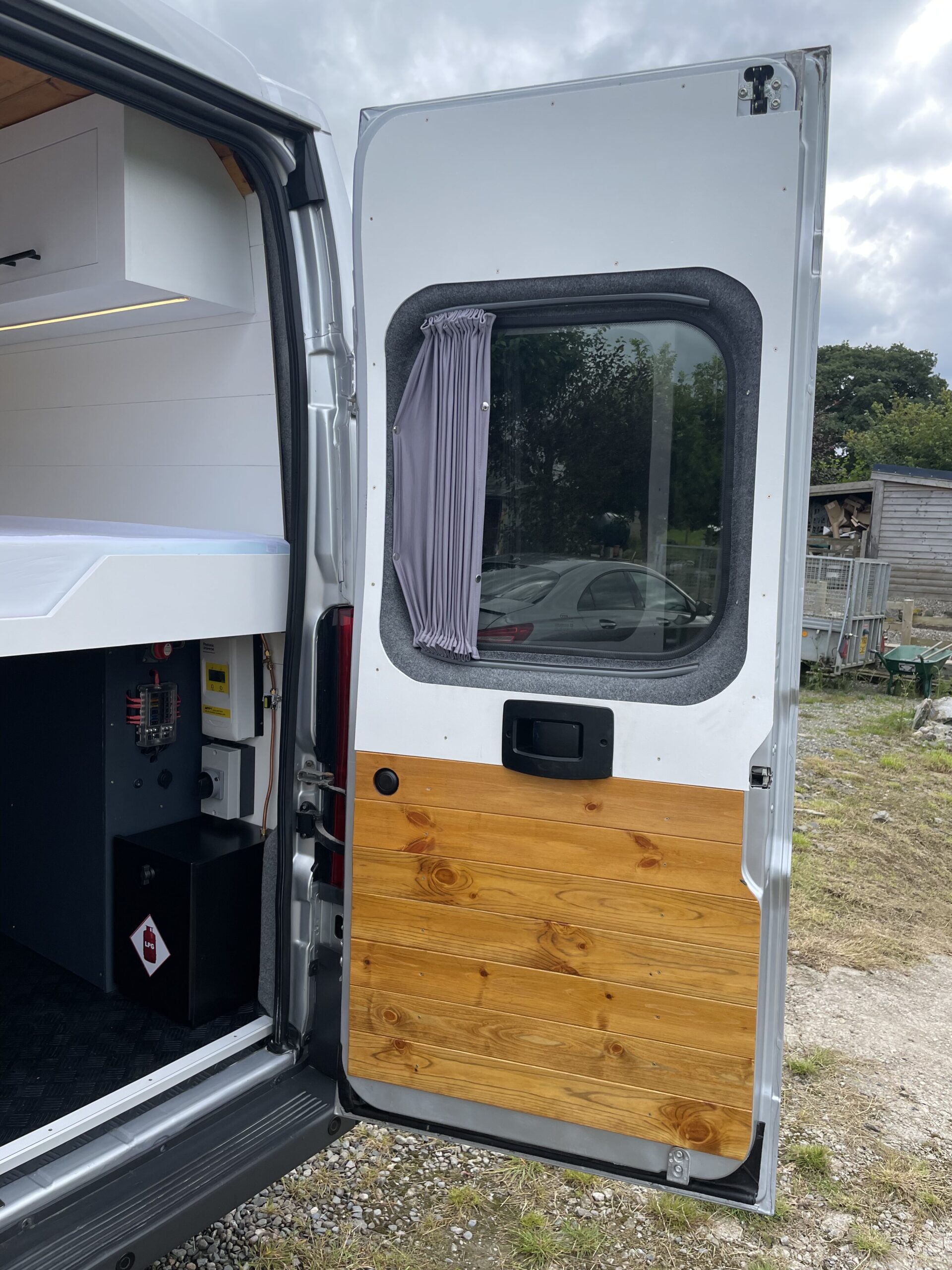

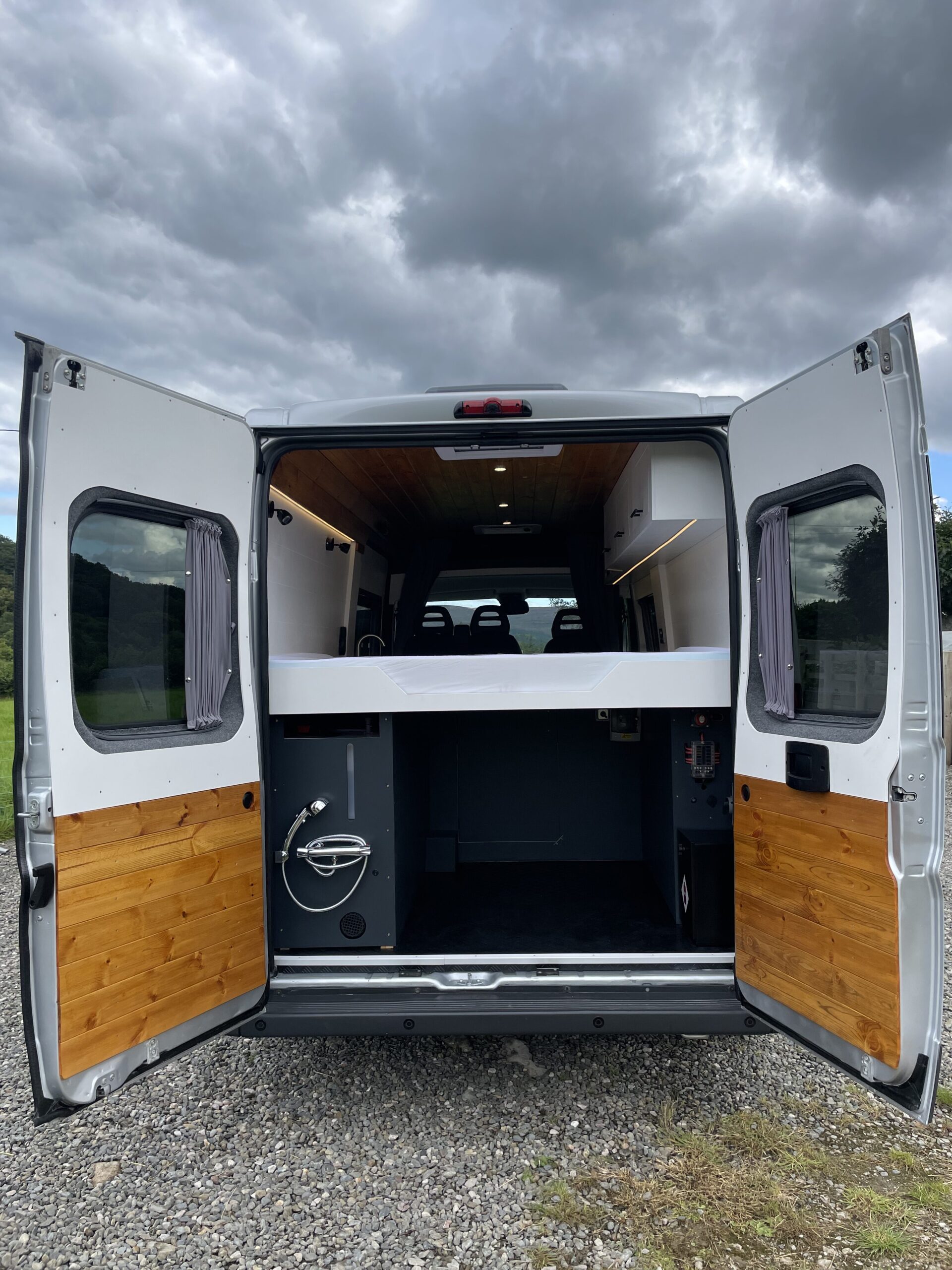

Large boot/garage for storing outdoor equipment such as bikes, camping equipment etc.

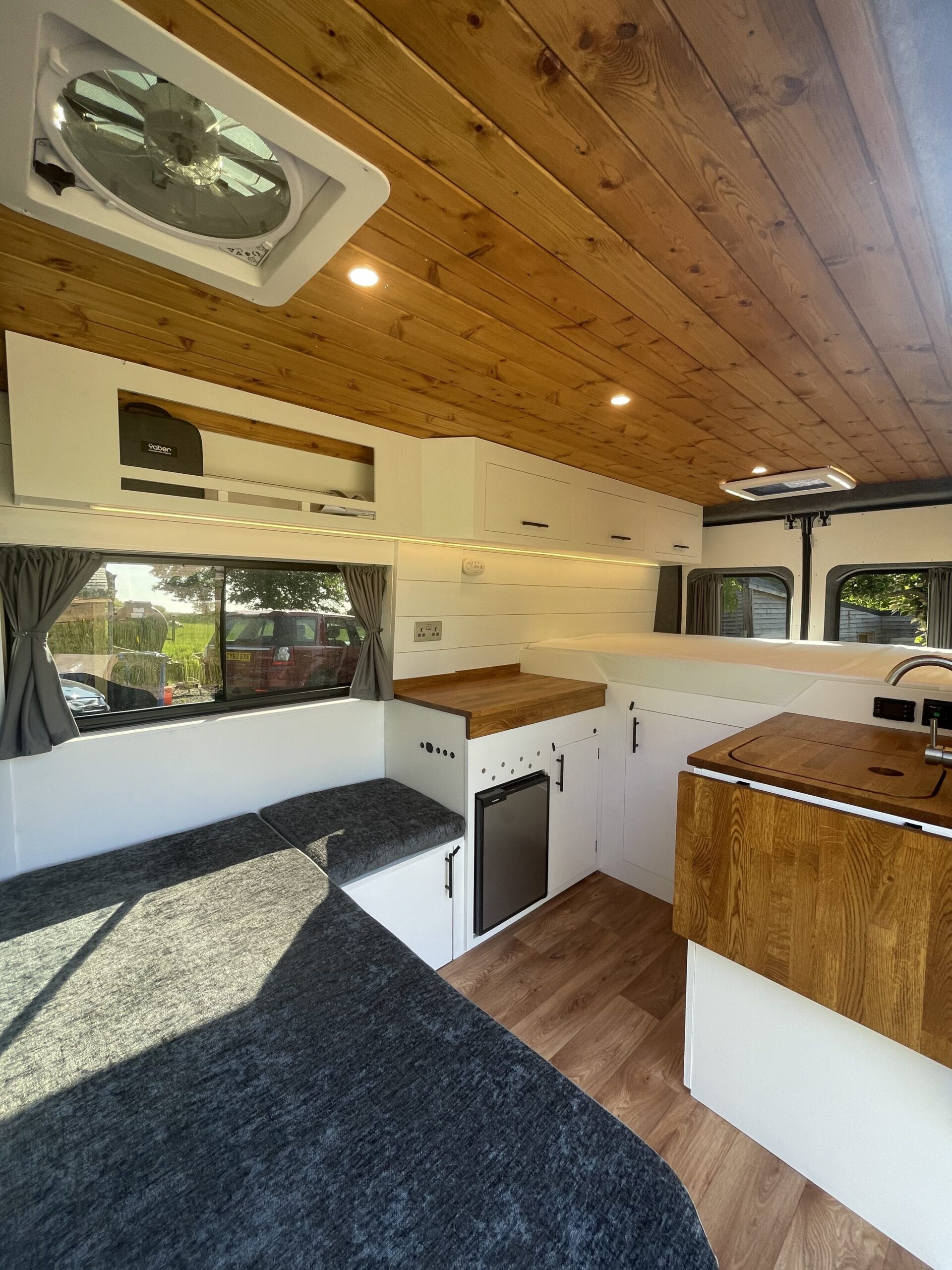

L-shape sofa for reclining after a long day or when the weather isn’t optimum to sit back and relax in comfort.

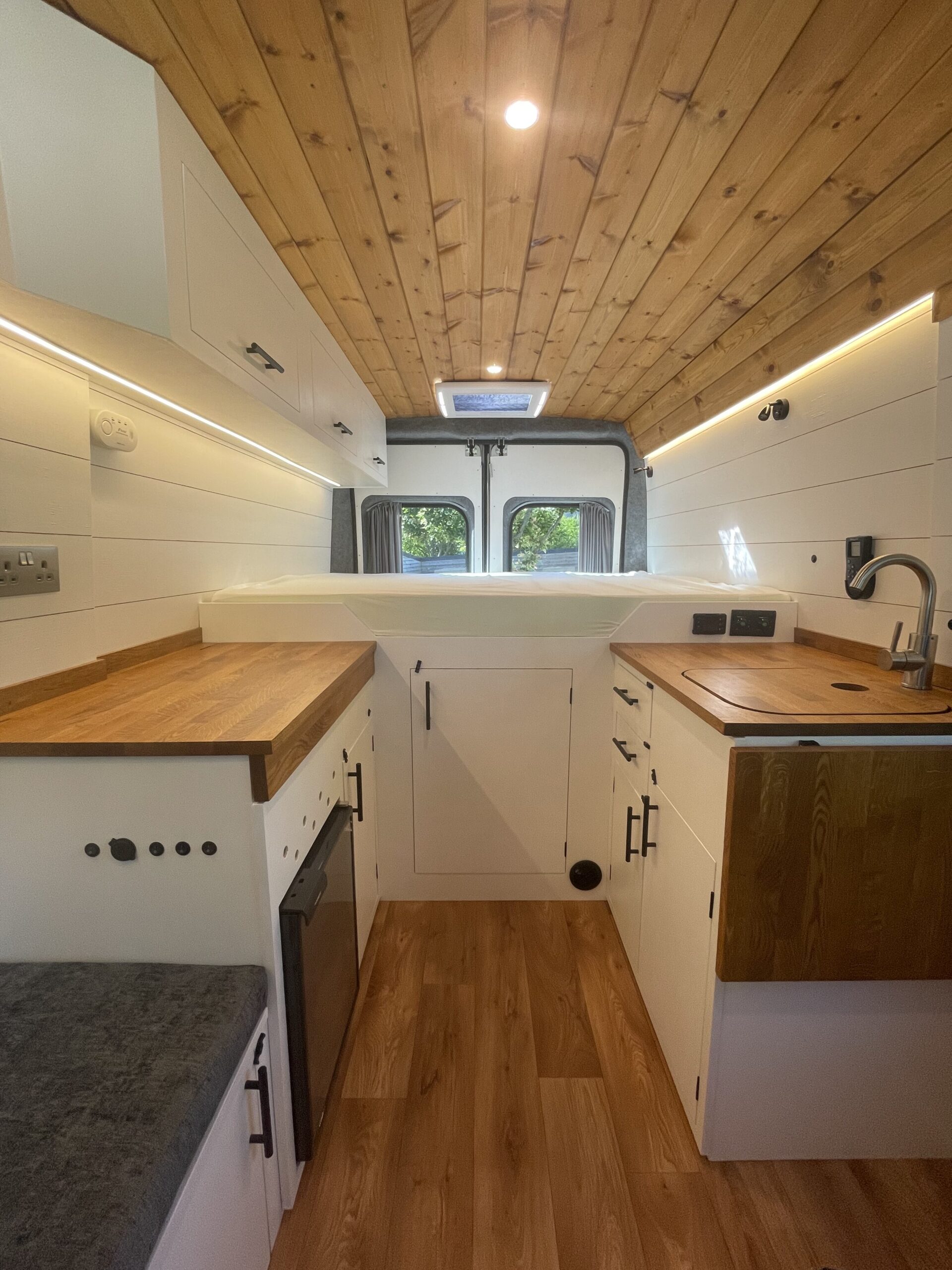

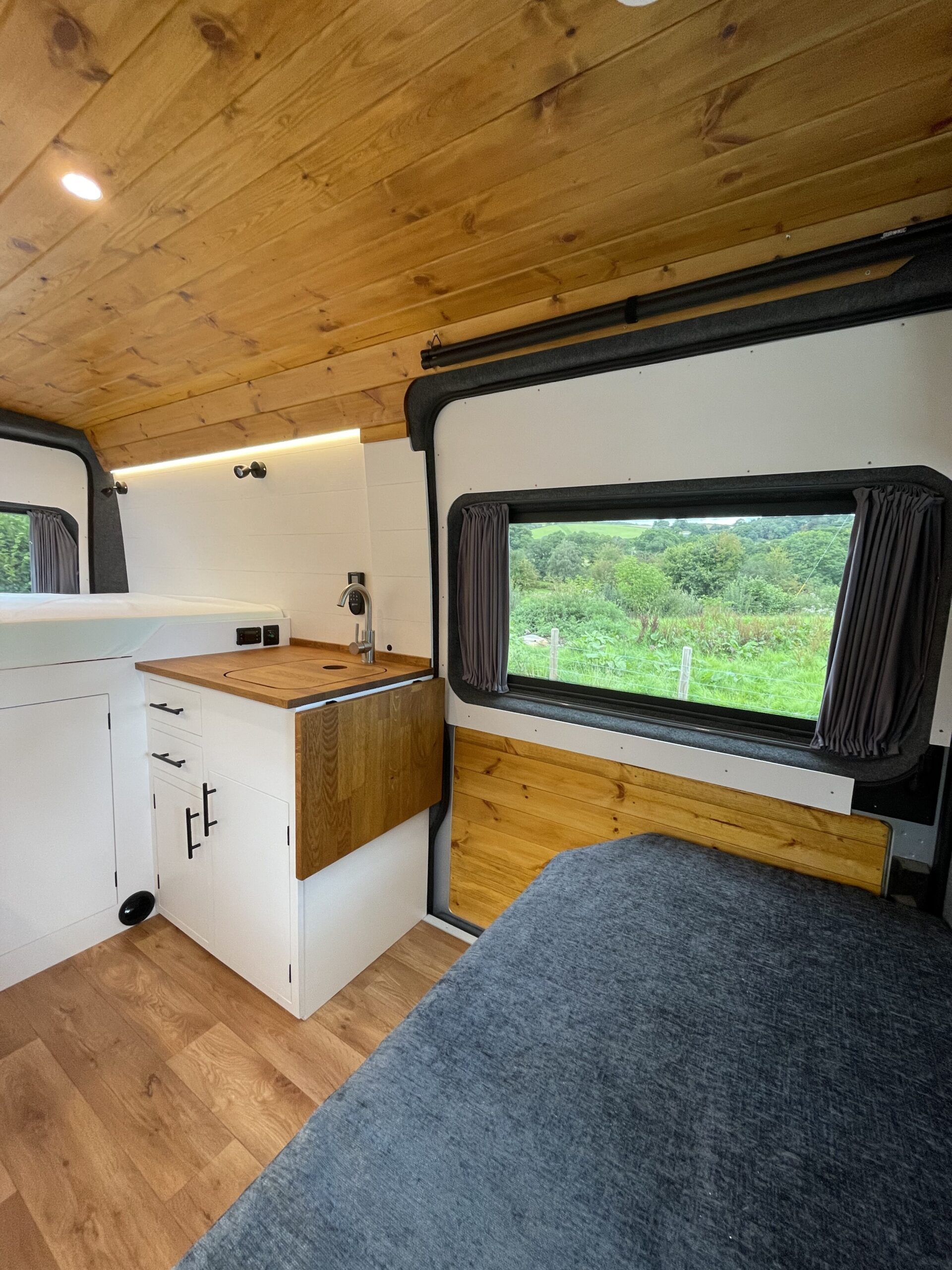

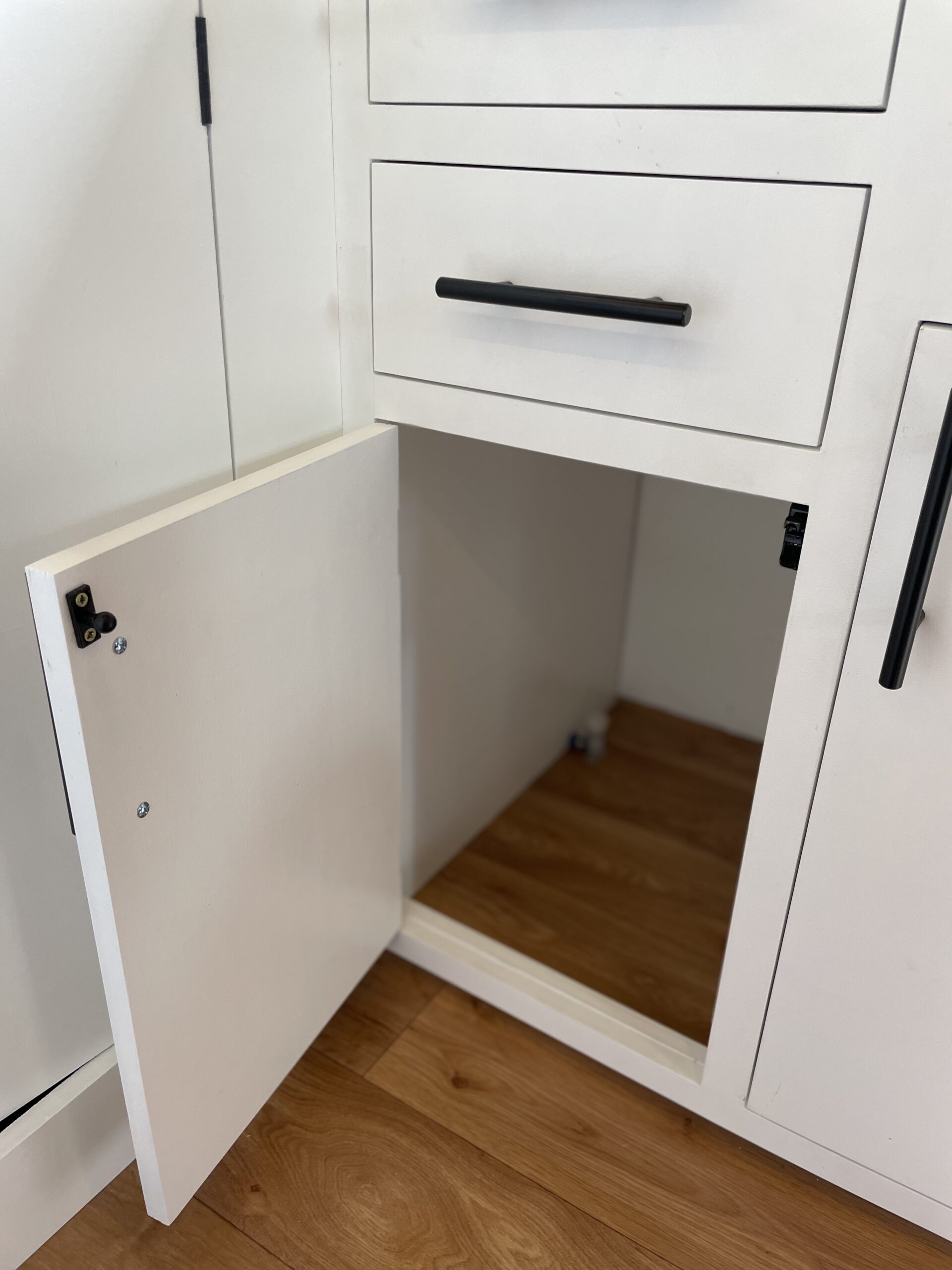

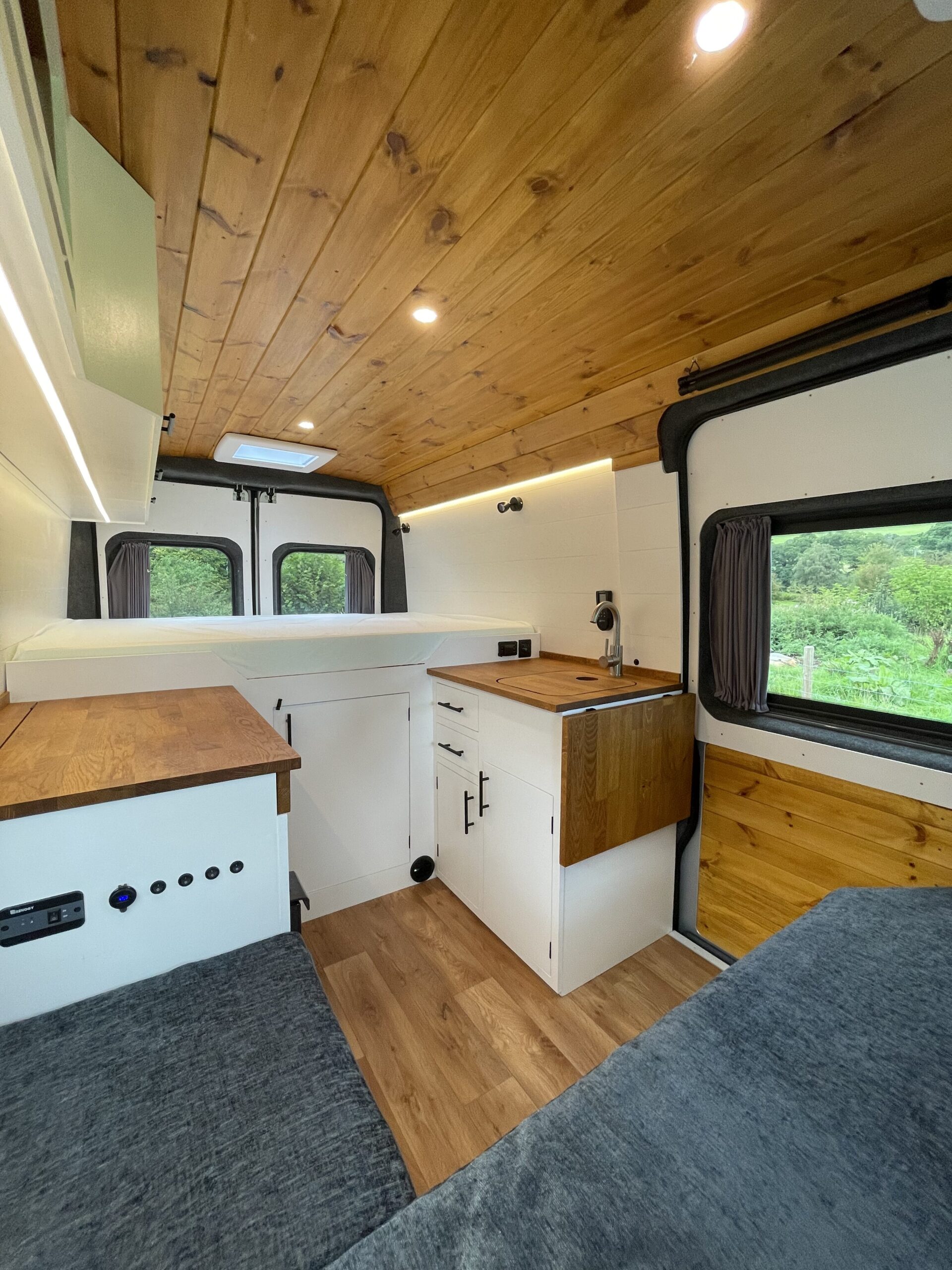

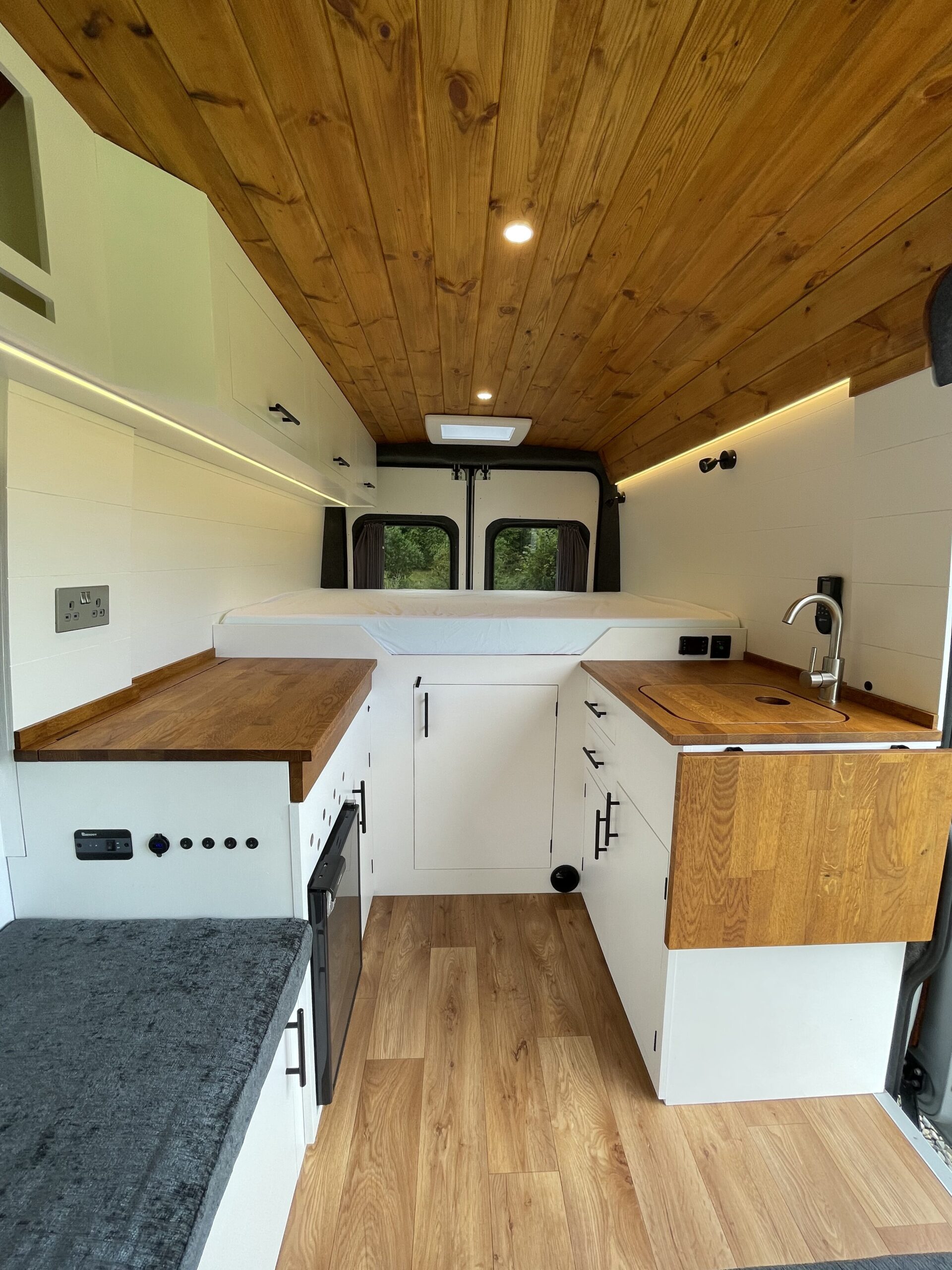

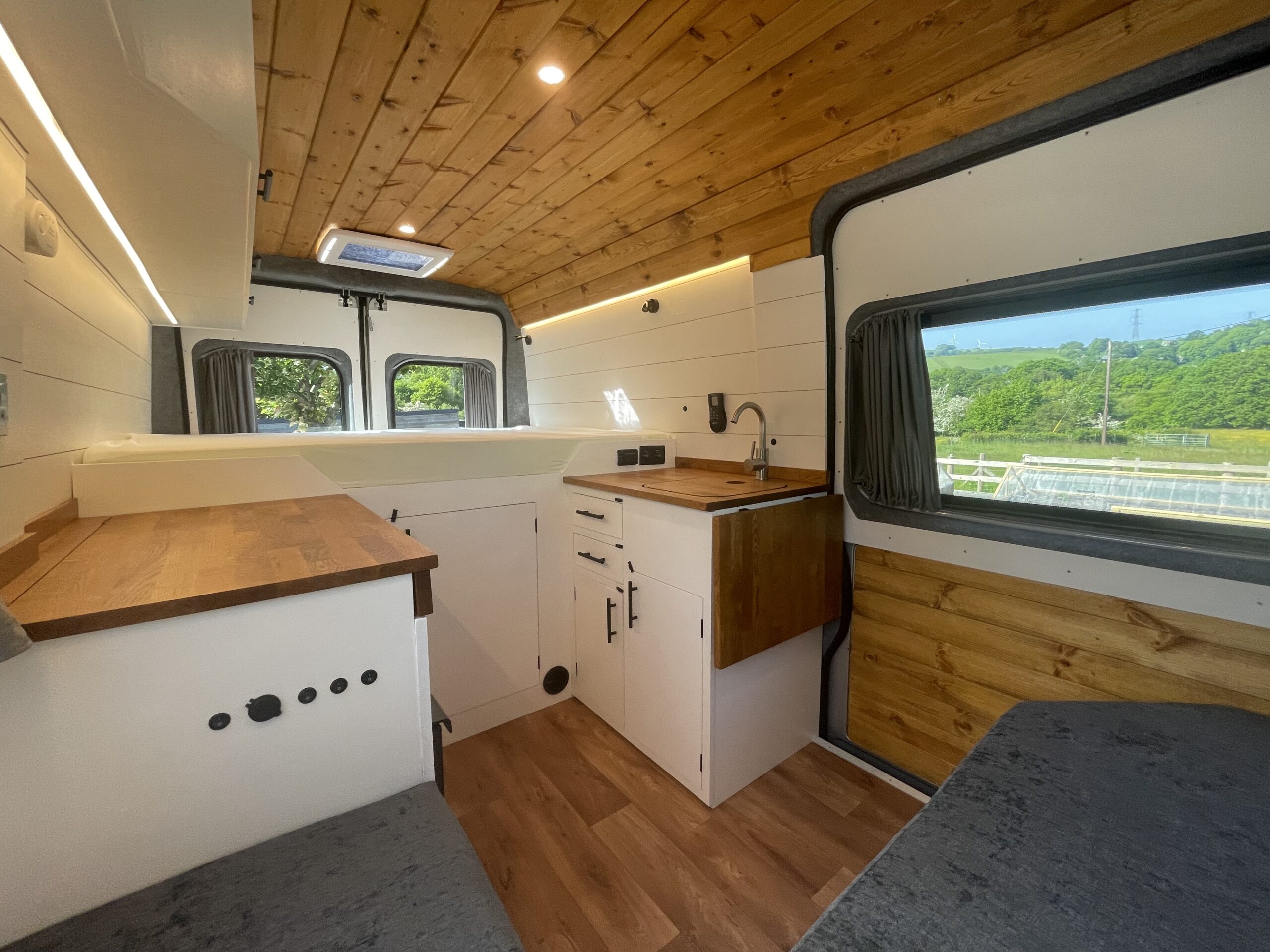

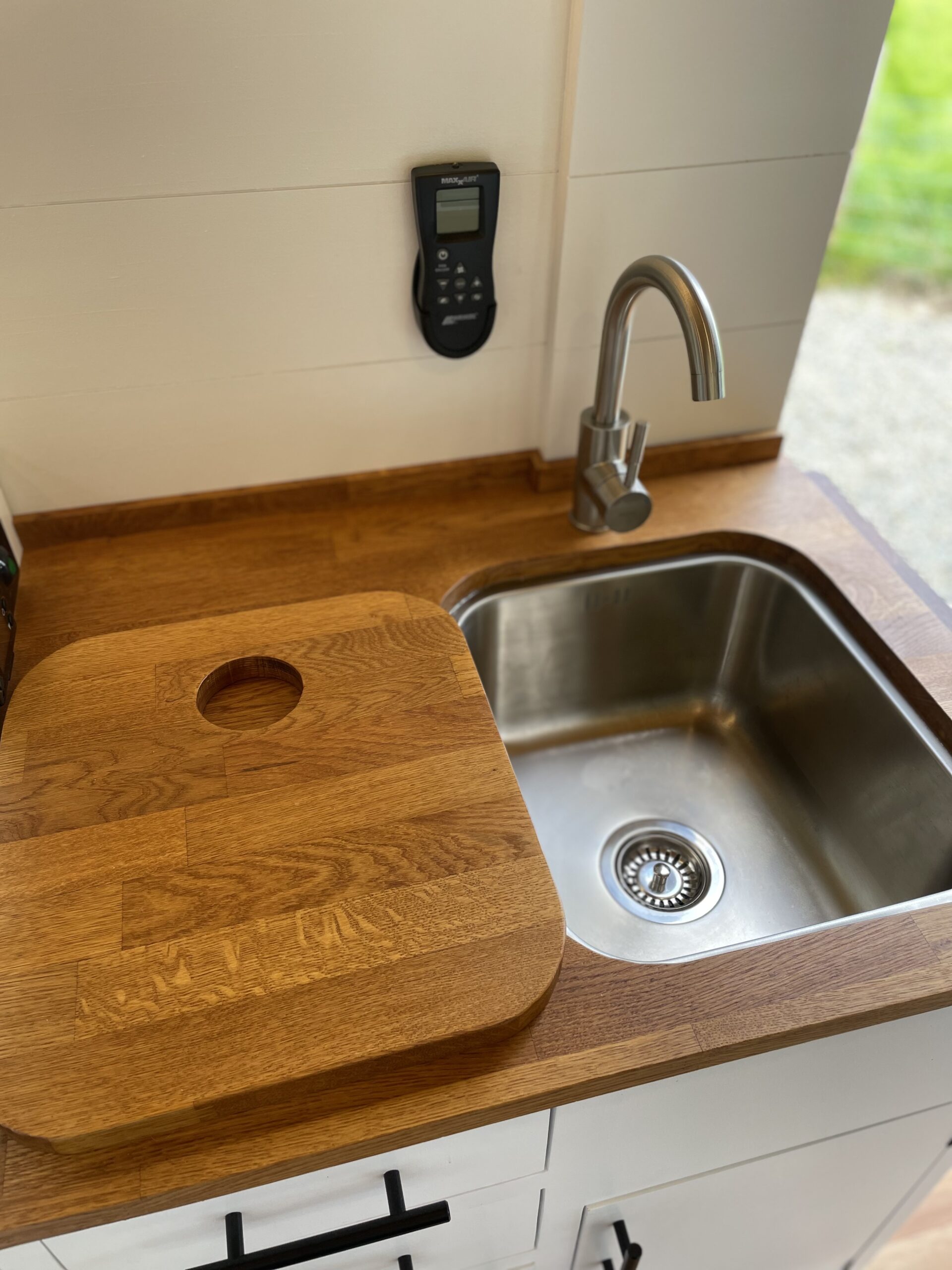

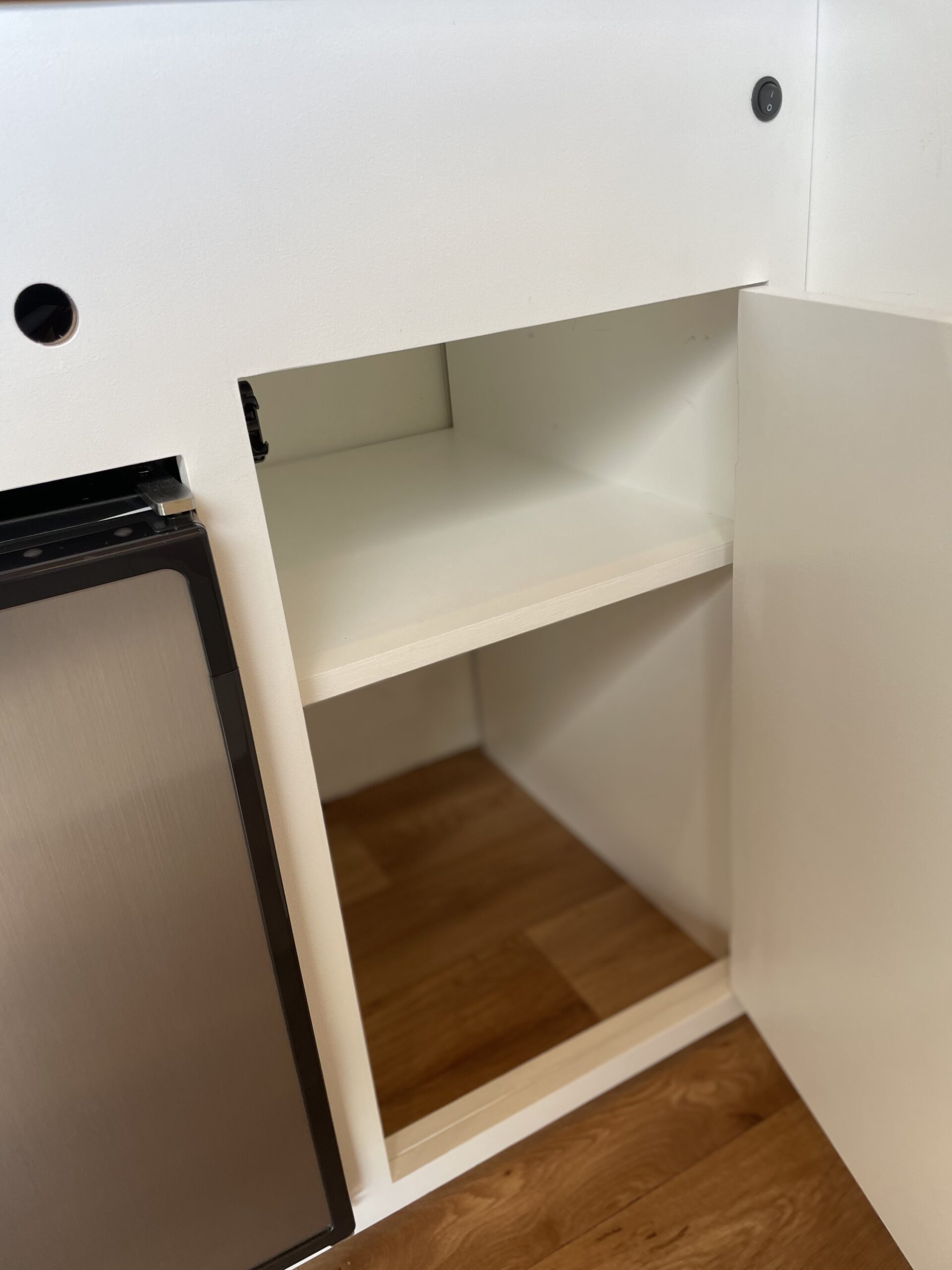

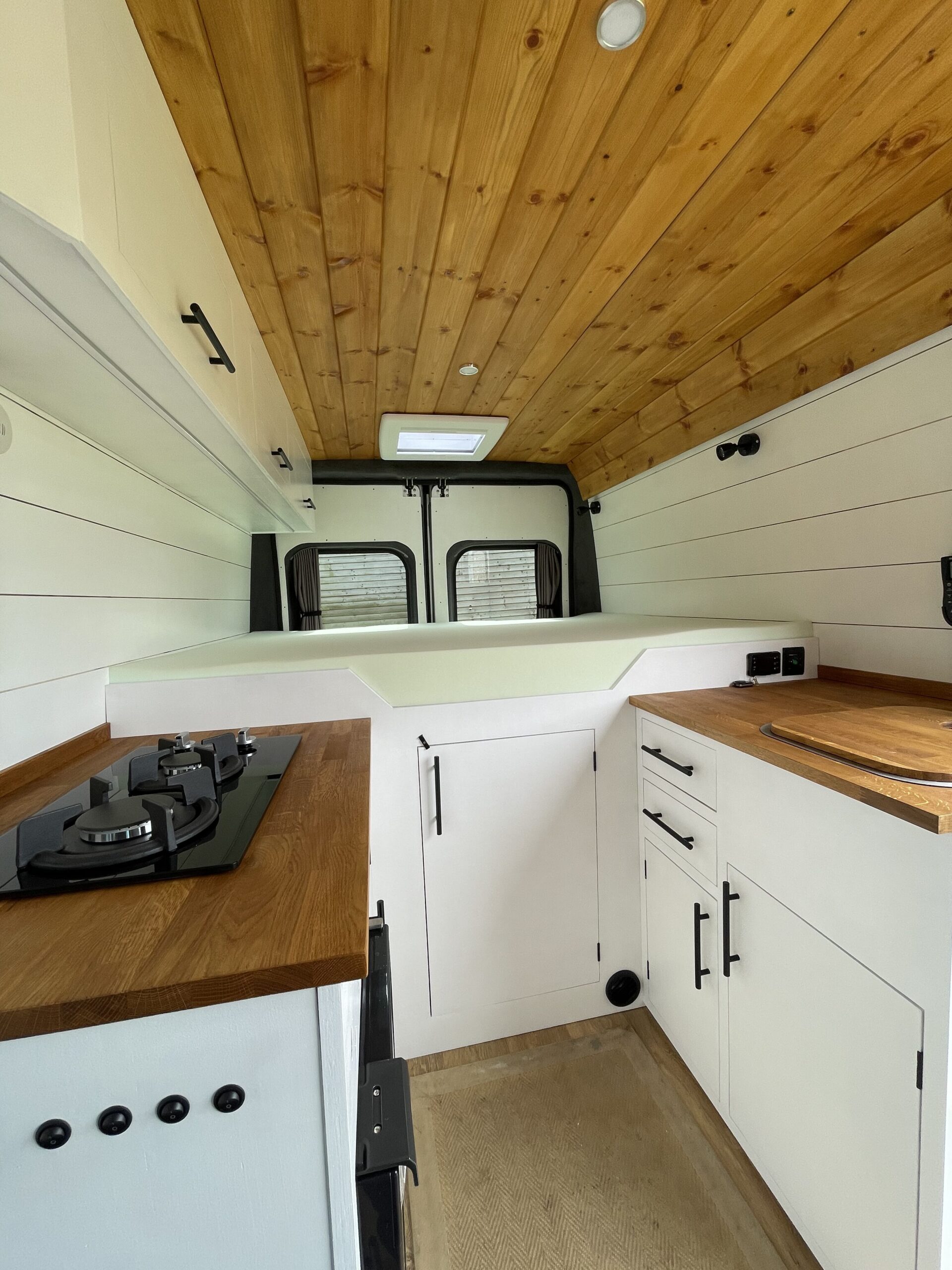

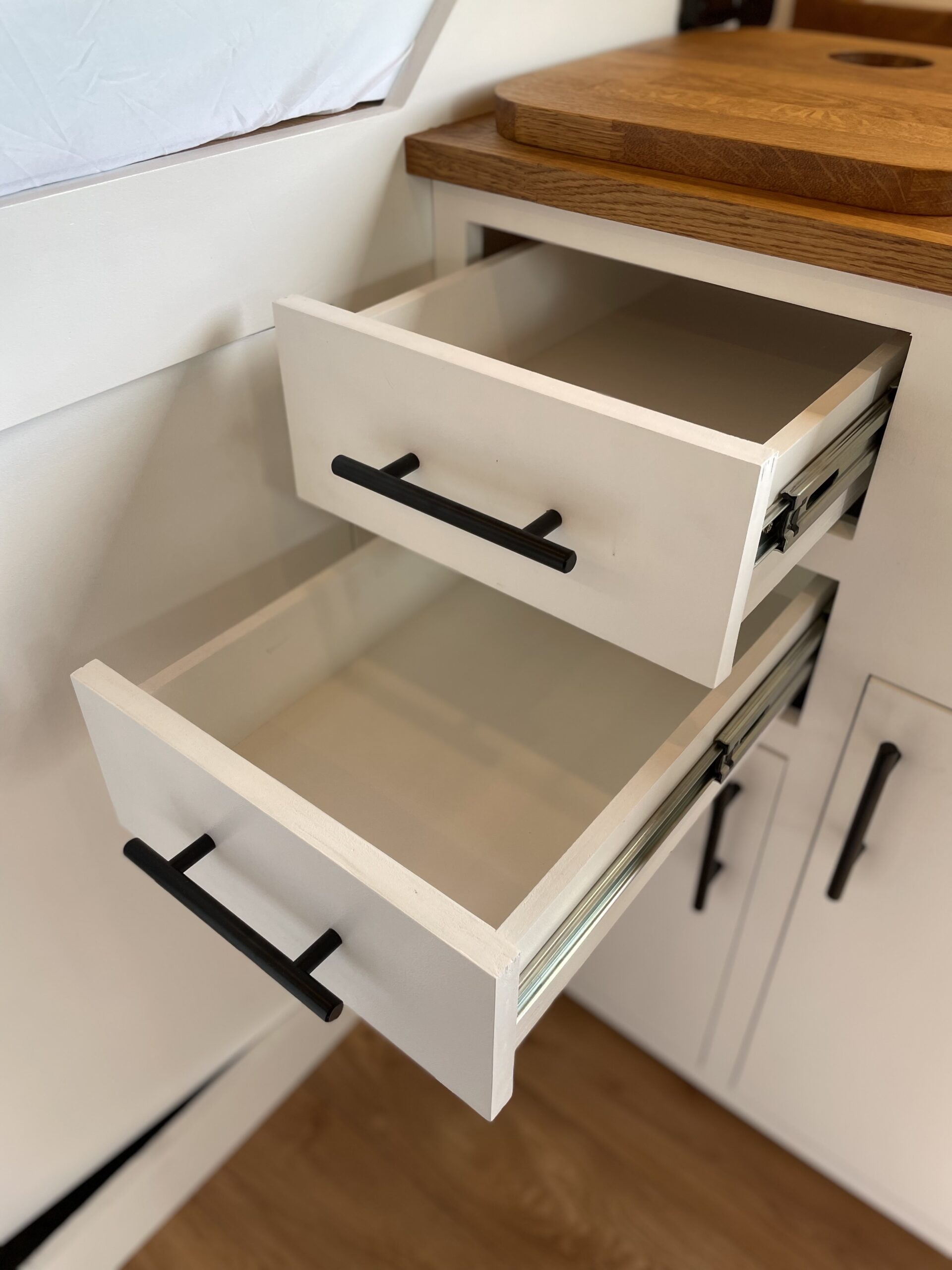

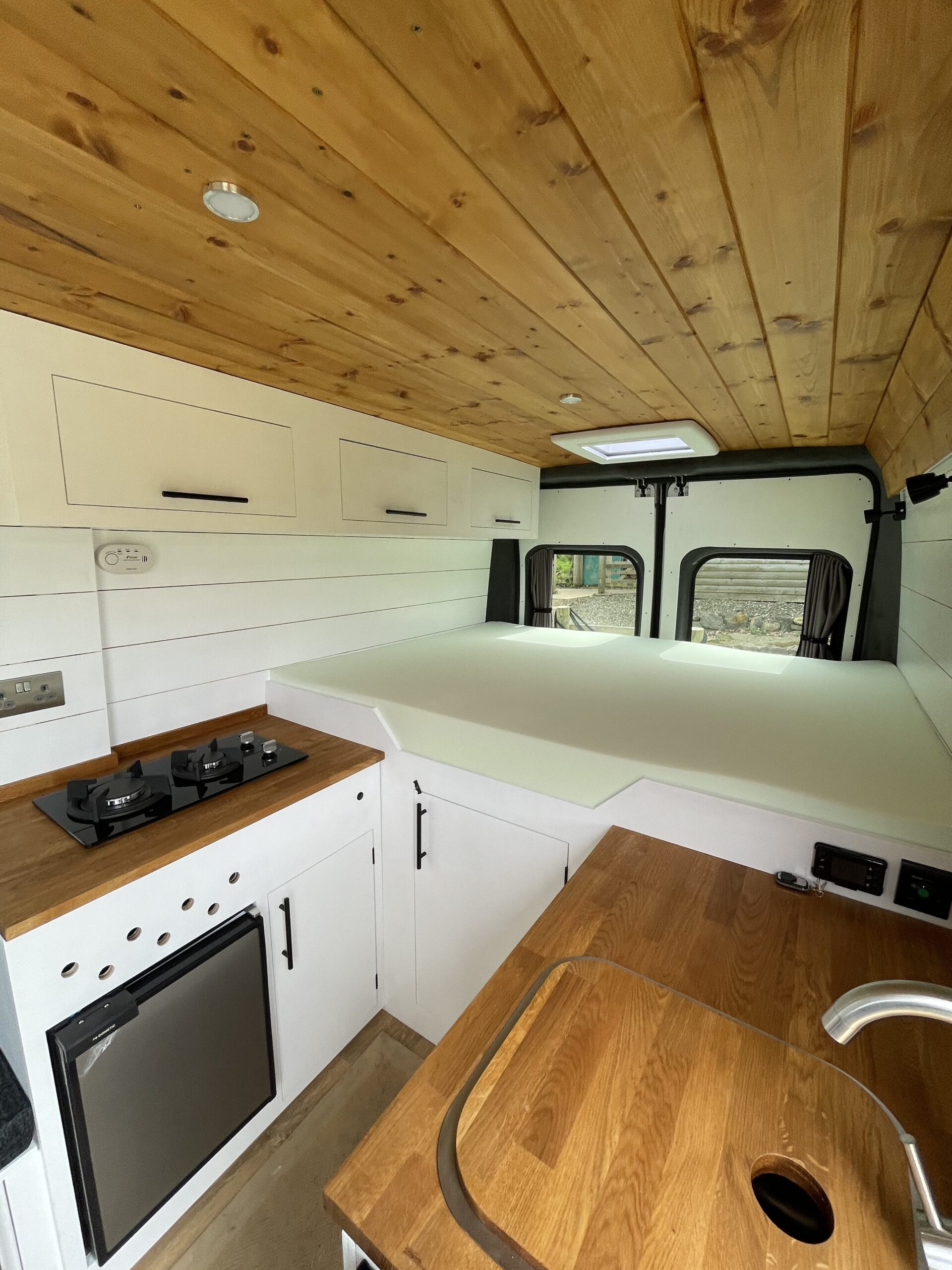

Innovative galley kitchen with plenty of storage and a concealed hob to allow for additional worktop space as well as a worktop extension.
With the bulkhead removed and side and back windows added, plenty of light makes the space feel open and airy.

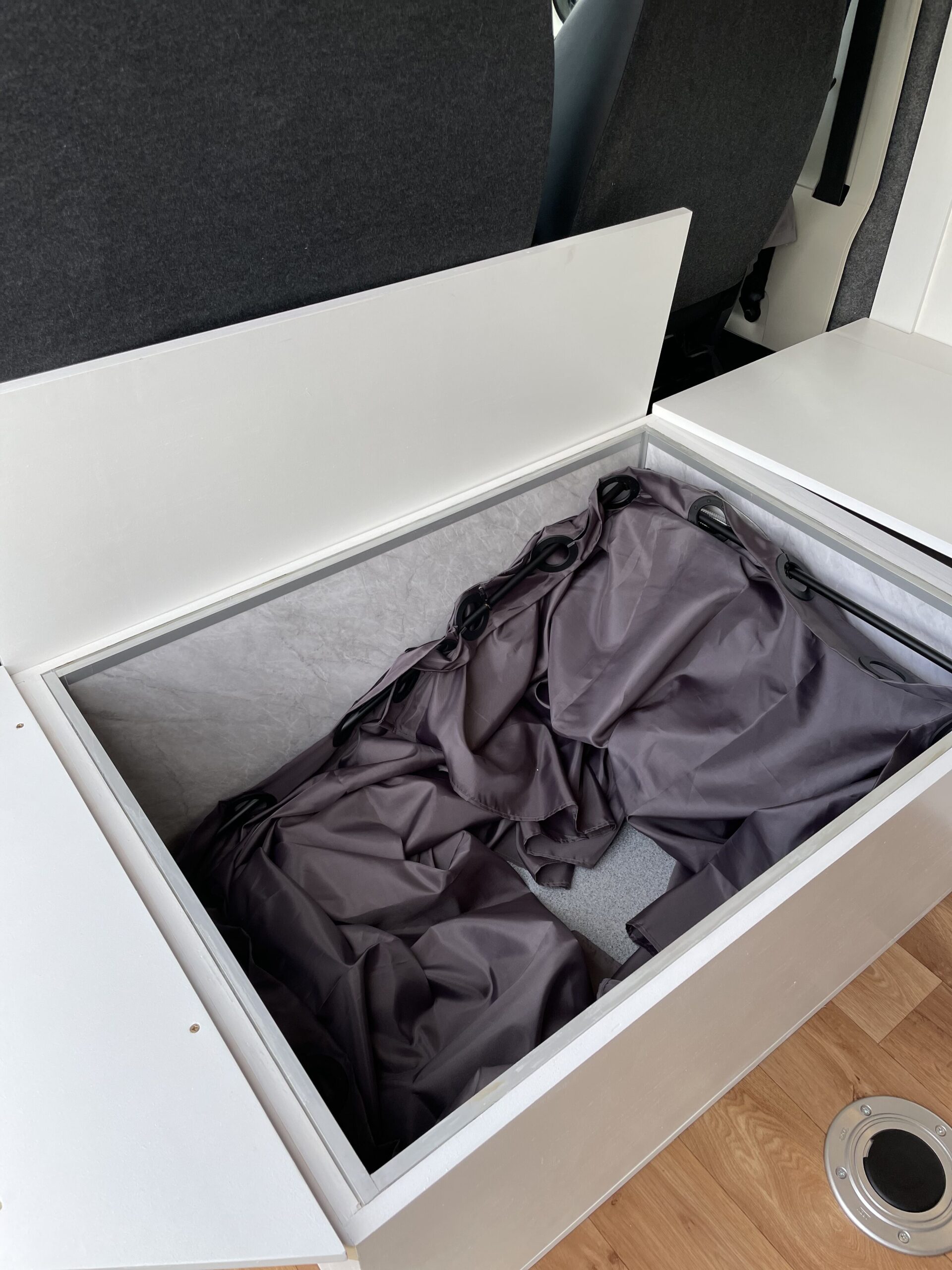

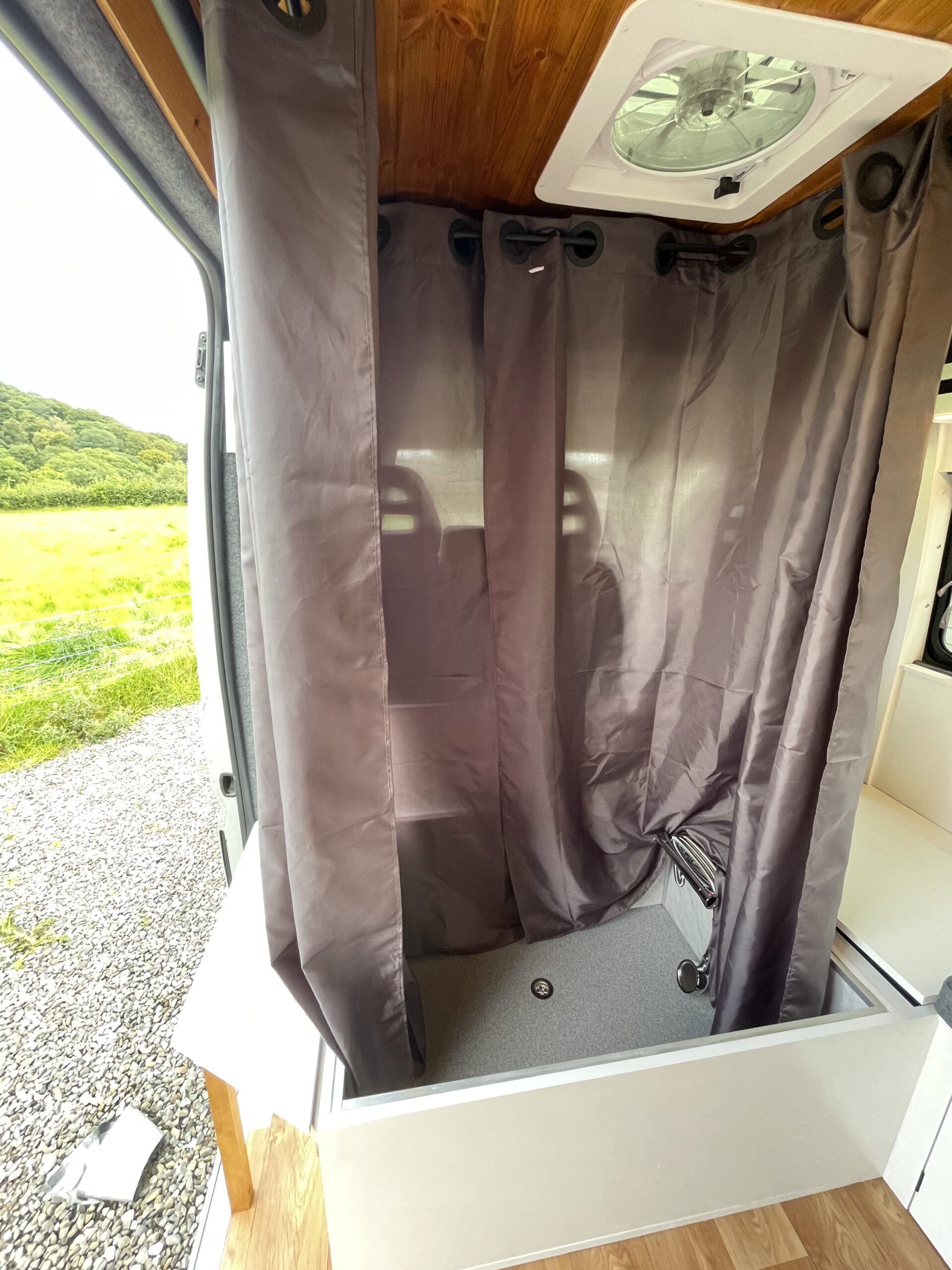

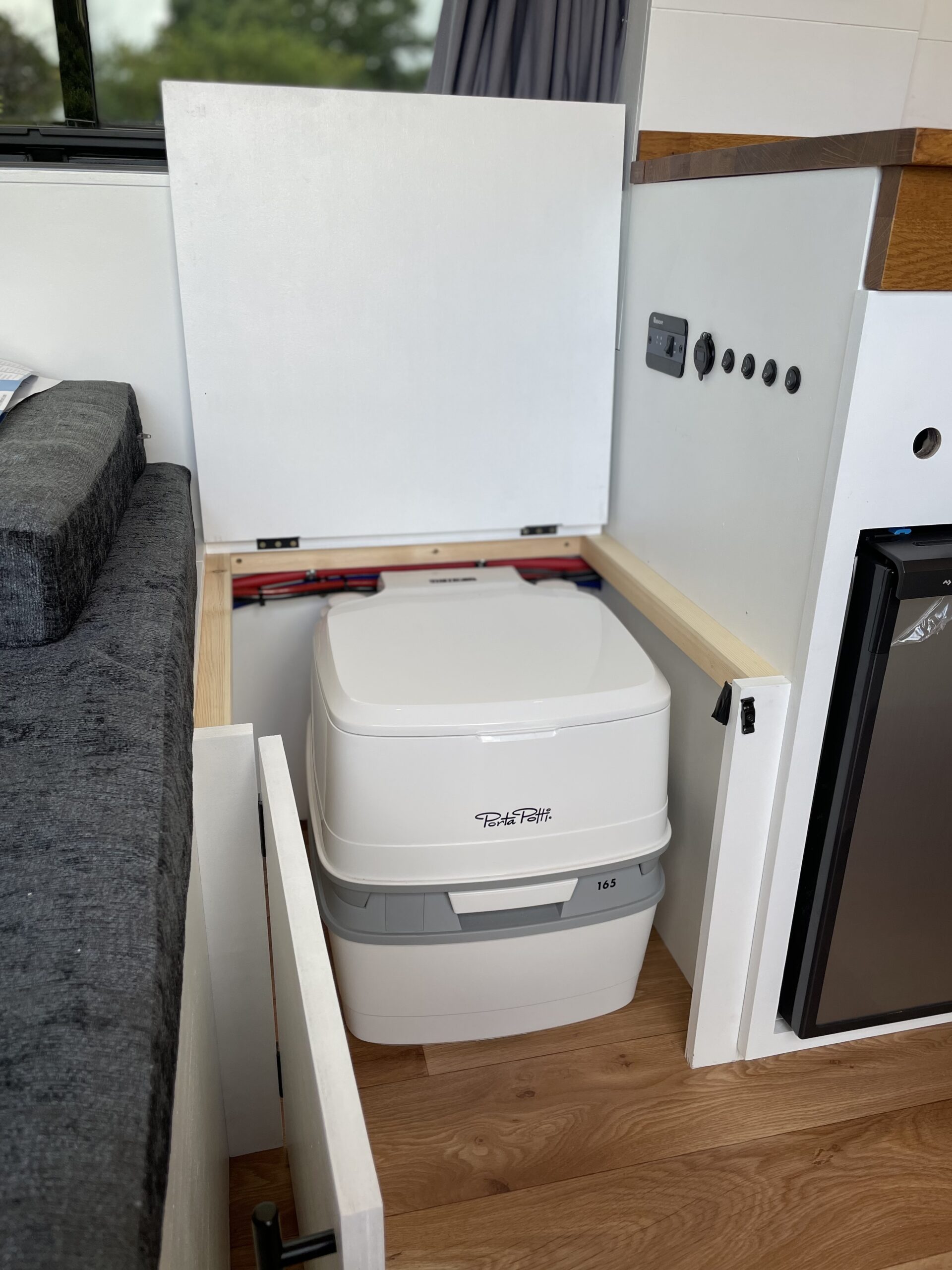

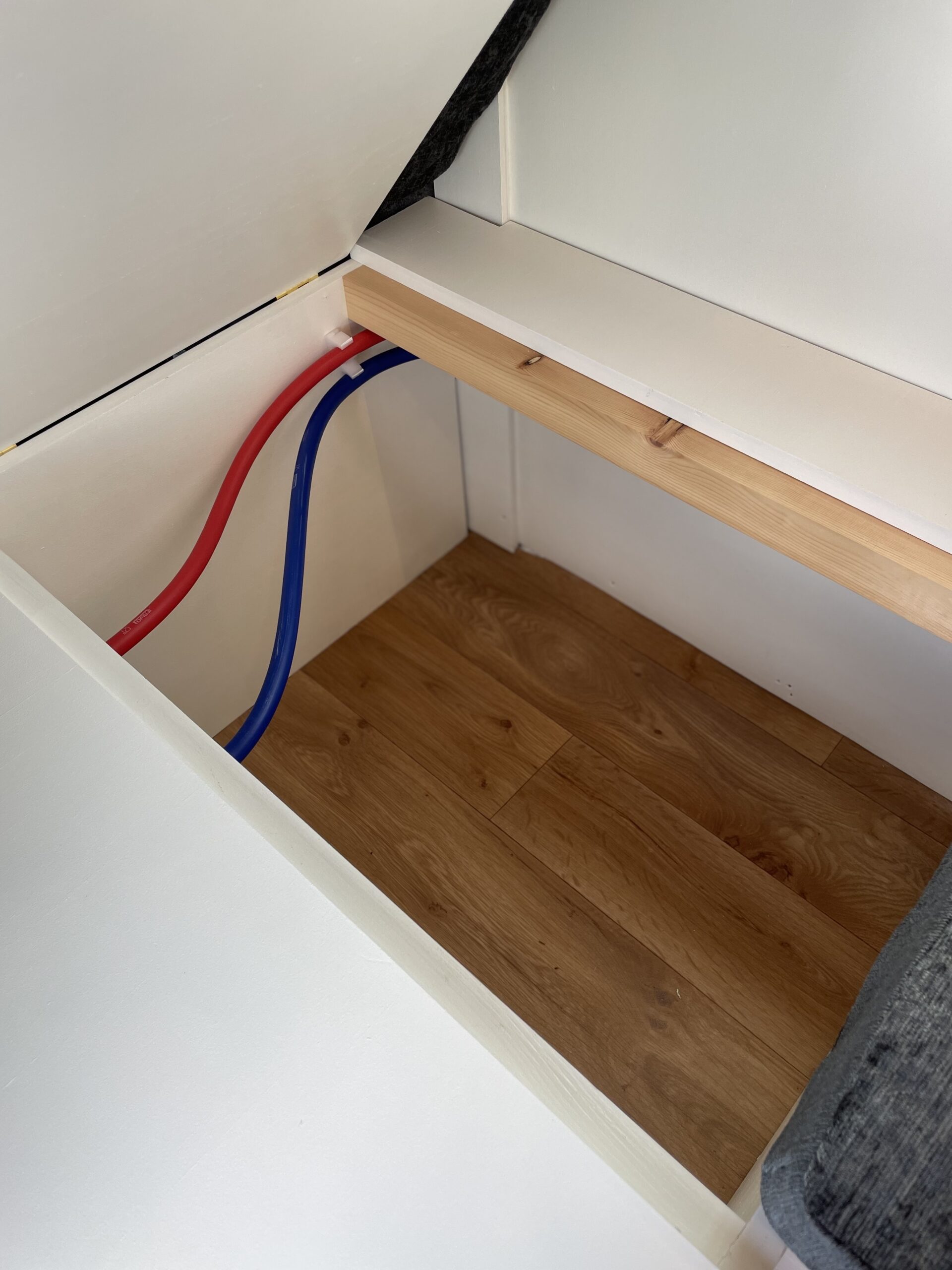

Additional storage can be found underneath the sofa with a portable toilet in one section which has a door access for ease of retrieving and an internal shower with a raising shower curtain situated below the extraction fan for good ventilation.

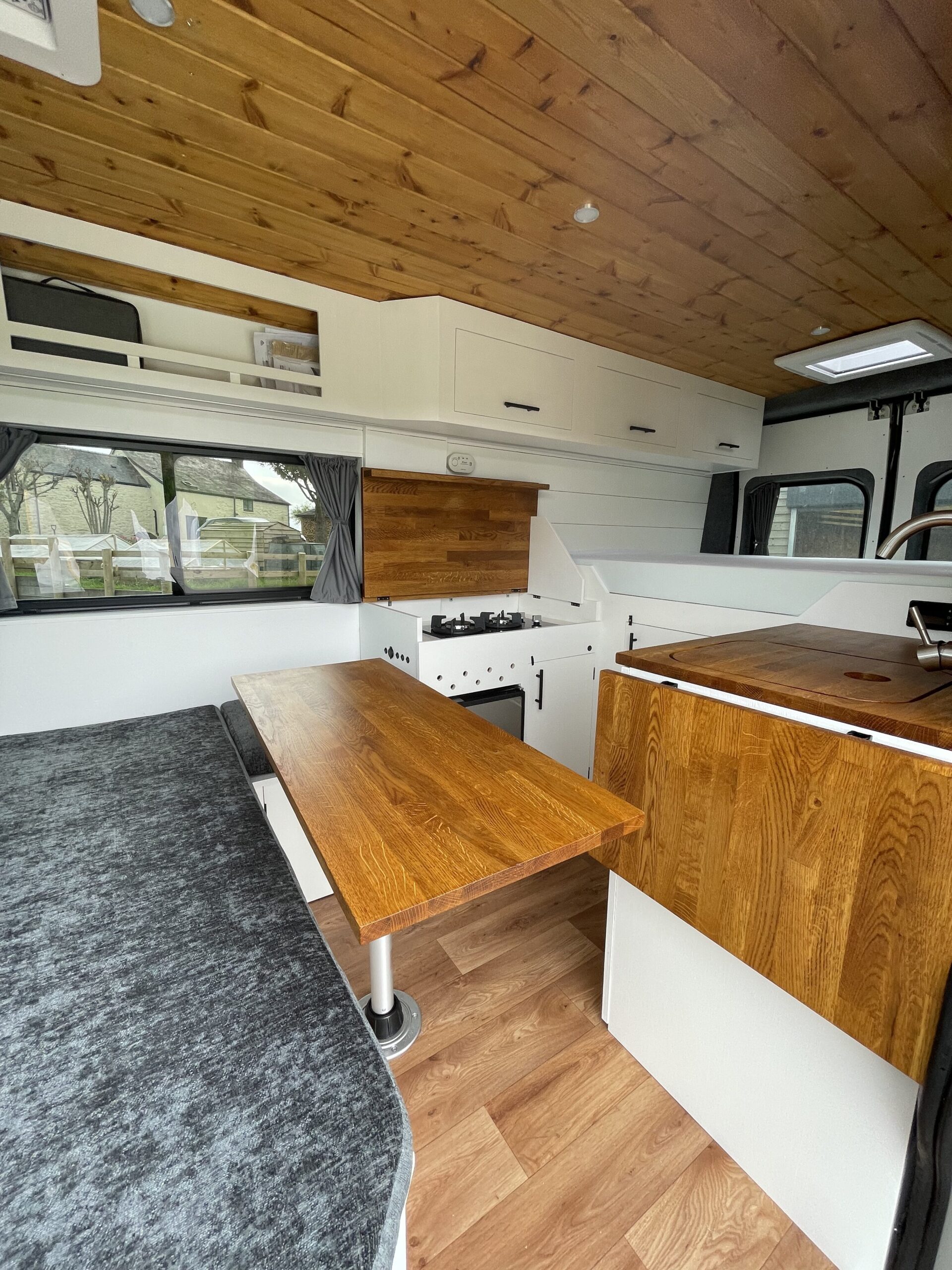

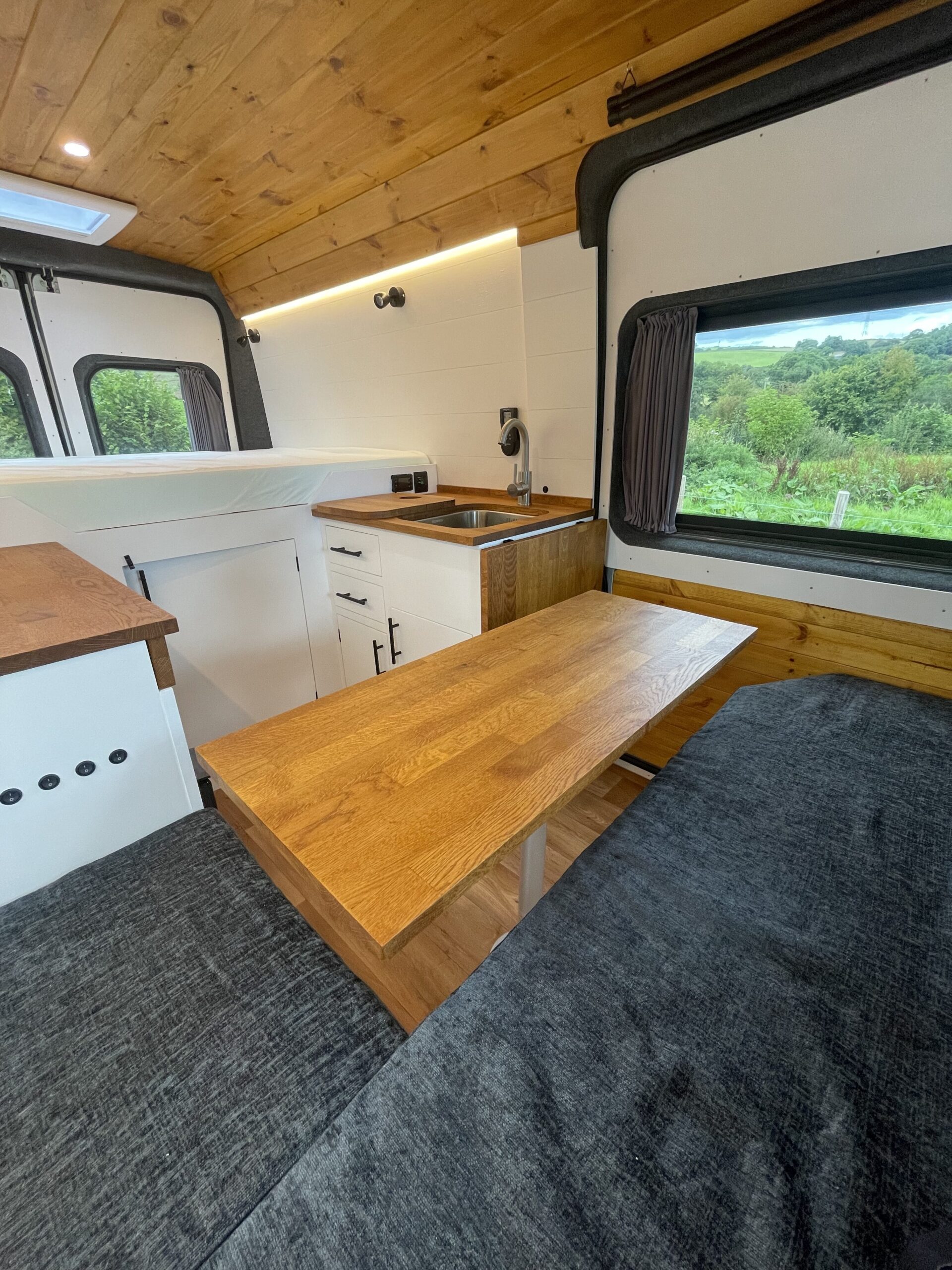

A table for dining is found stored above the cab and uses a Sequoia Table Leg to accommodate 3 people for a meal easily.
Thermal curtains at the front and rear give privacy and helps insulate the campervan further with a smaller curtain on the side windows.

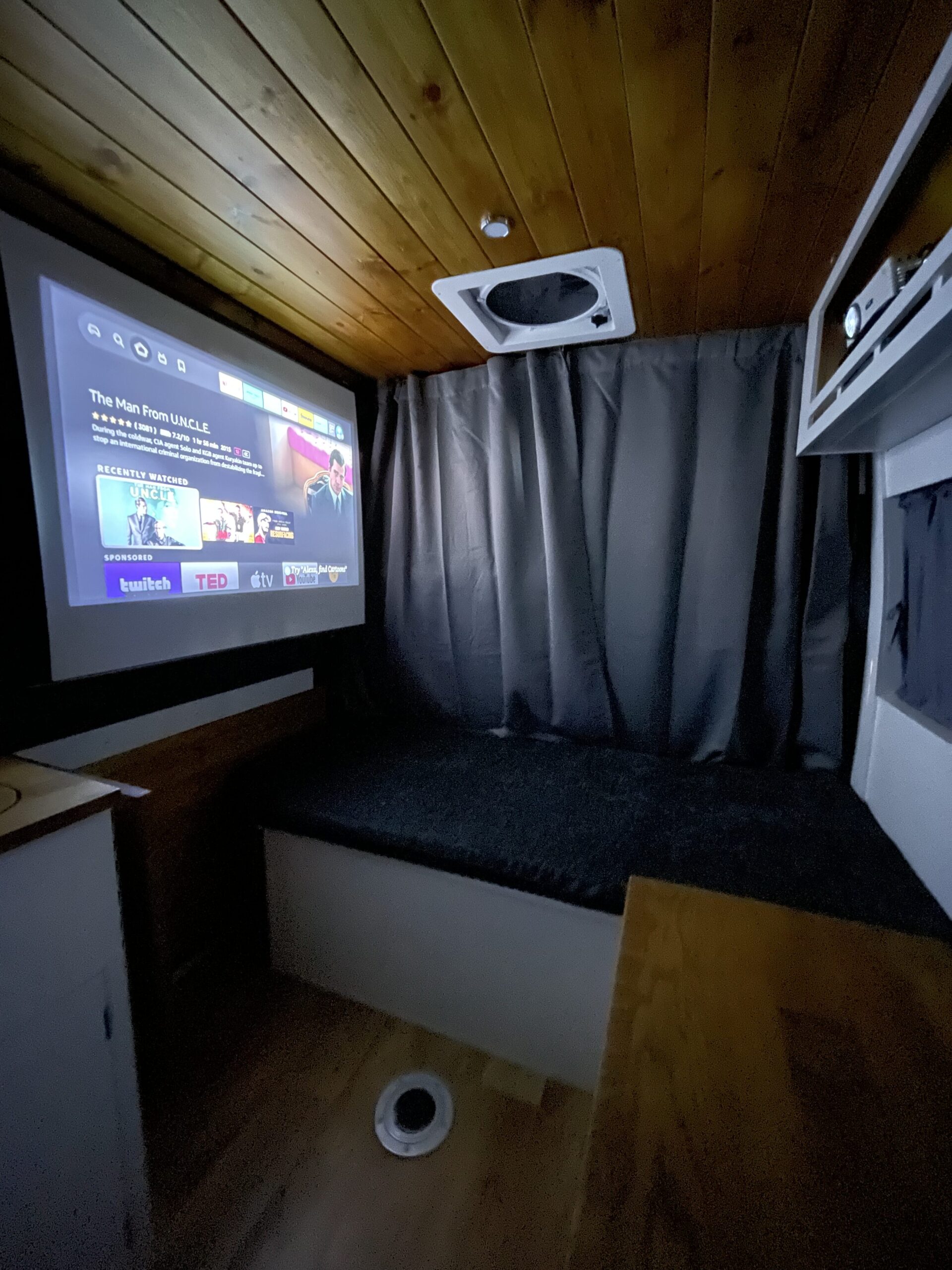

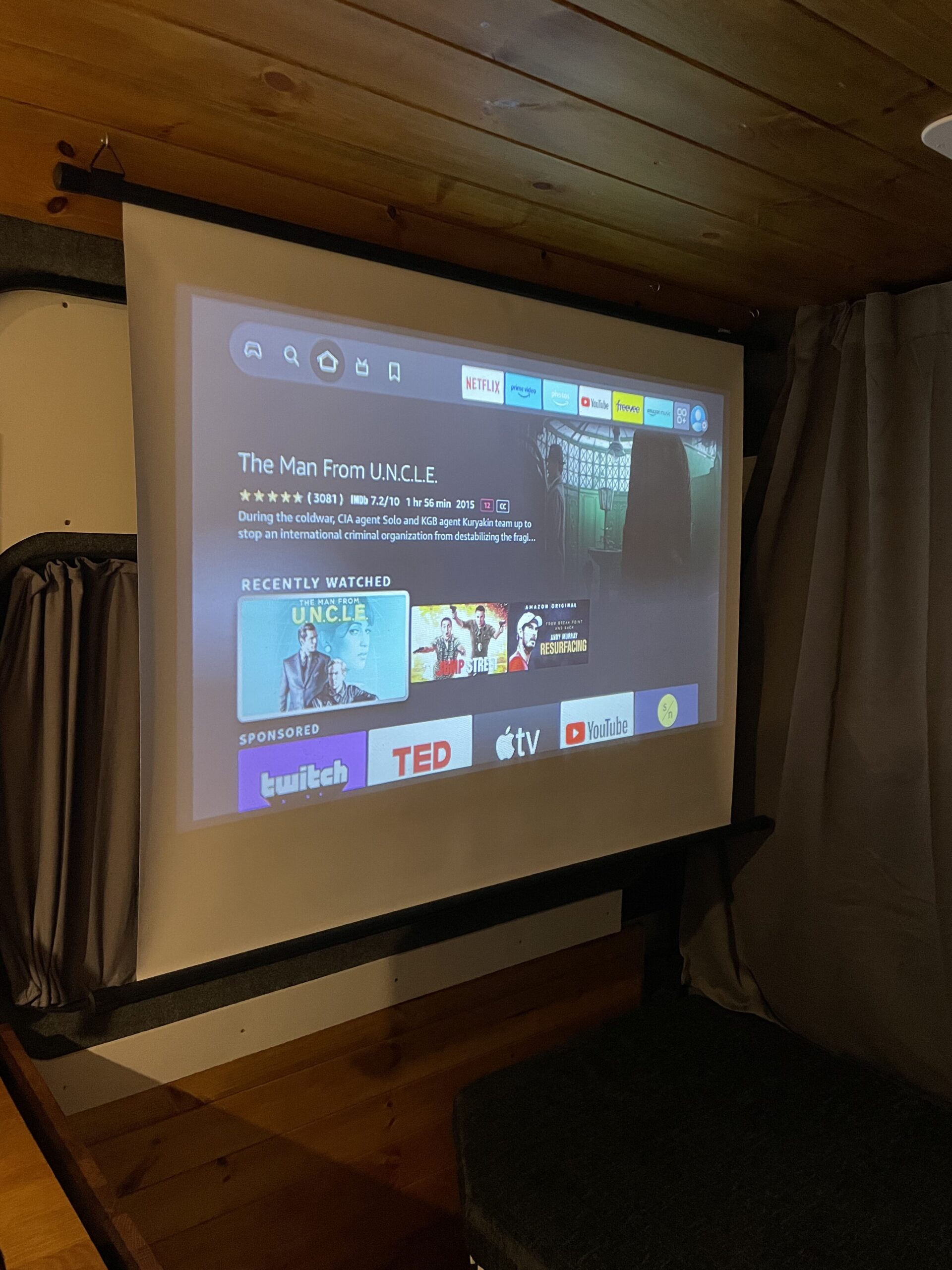

A drop down projector screen, located above the sliding door is perfectly situated to watch movies from the comfort of the sofa.

Other features of the campervan include a clever water heating system which in summer months can be powered by the large solar array and during the winter topped up by the diesel heater. This allows hot water for washing the dishes and a hot shower inside or out.

The diesel heating system is dual zone, heating the main living area and the boot/garage and can be temperature set and put on timer. The diesel heater is supplied from the campervans fuel tank directly and on average consumes 0.2l per hour.

A Maxxfan Deluxe which again can be temperature set is very useful in summer months to keep the campervan cool and also has an extract feature to vent during cooking. It can also be operated when raining.

The fully insulated walls using PIR boards and Earthwool with a Foil Membrane as a vapour barrier reduce heat loss and helps keep the campervan cool in the summer and warm in the winter.

Power system is catered for with a 360W solar array on the roof and 30A DC/DC charger to give ample power for off-grid living and a Mains Charger for when the 200Ah Lithium Battery needs topping up. The Battery is top of the range and will out perform any regular lead acid battery and comes with a 5 year warranty.
For 240v power a 2000W inverter is provided and will cater for most your needs.
All these systems can be monitored via a Bluetooth BMS which will show the leisure batteries capacity and display all in and outgoings.

Gas for the 2 burner hob is situated by the back door for ease of access and uses a Campingaz R907 bottle which is widely available in the UK and Europe. Gas appliance is Gas Safe Certified and for additional safety a carbon monoxide alarm is installed.

Water tanks consists of a very large 125l fresh water tank situated in the boot/garage area in a transparent tank which you can visually monitor the water level accurately. The gray water tank is underslung and can hold 55l and has a release valve again making the process as easy as possible with no heavy lifting.

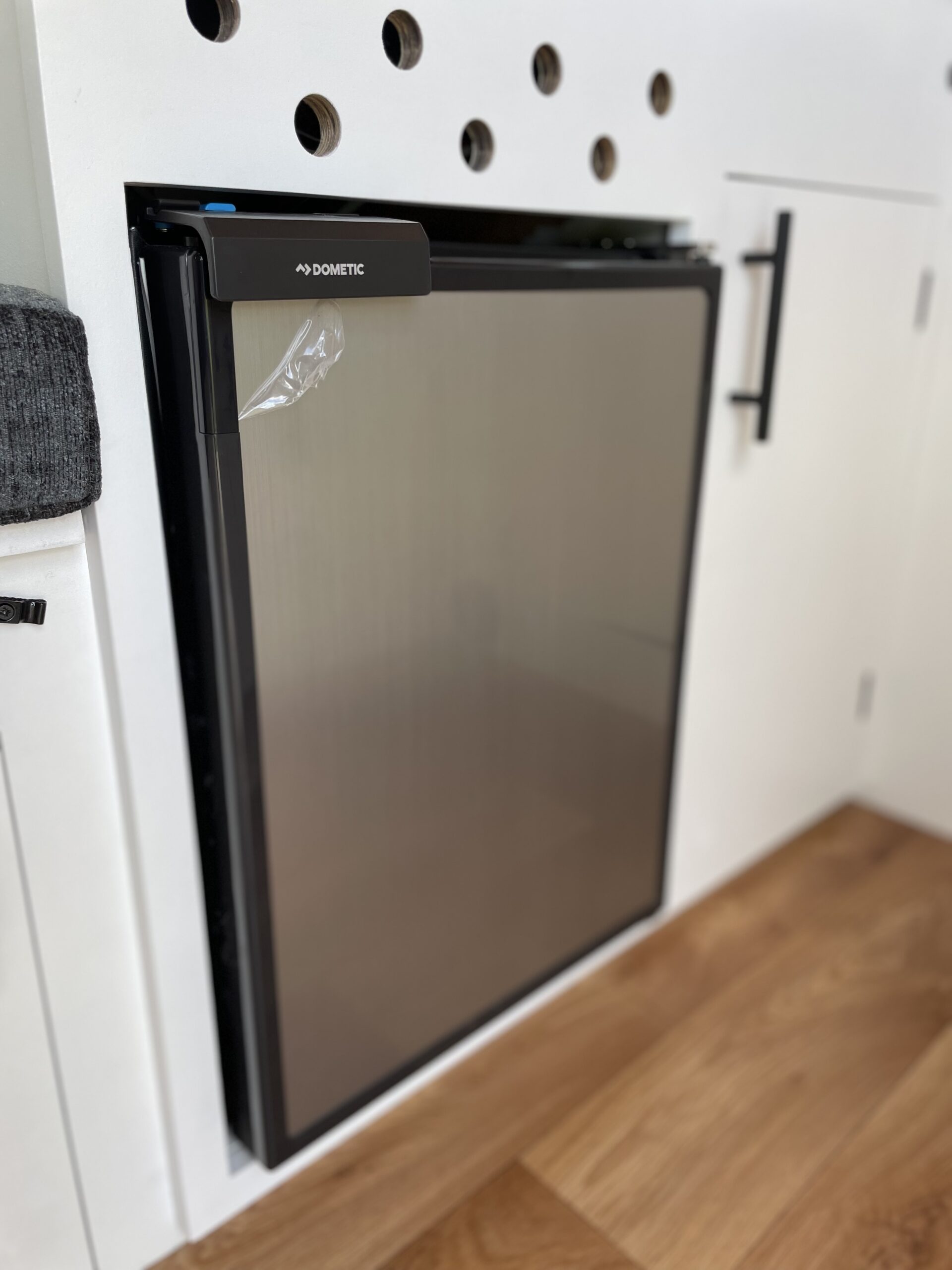

The fridge/freezer is the top of the range Dometic CRE50 which gives a 45l capacity fridge and 5l freezer which works on minimal power.

Spec List:-

– Maxxfan Deluxe
– 360W solar panel
– Side tinted window with slide opening and 2 rear fixed
– 240v external hook-up
– Reversing Camera
– Fully insulated with 25mm PIR boards on the roof and floor, 100mm of Earthwool in the walls and reflective double layer foil vapour barrier
– 200Ah Renogy Lithium Battery
– 30A Victron Blue Smart IP22 Mains Charger
– 30A Victron Orion DC/DC charger
– 30A Photonic Universe Solar Charger Controller with temp sensor
– 2000W Renogy inverter with remote switch on/off
– Consumer Unit RCD Box, Isolation switch, 2 pole solar isolator, 240v 2 pole change over switch (between mains & inverter) and 12v Fuse Box
– Campingaz R907 Container
– 125l fresh water tank
– 55l gray water tank underslung

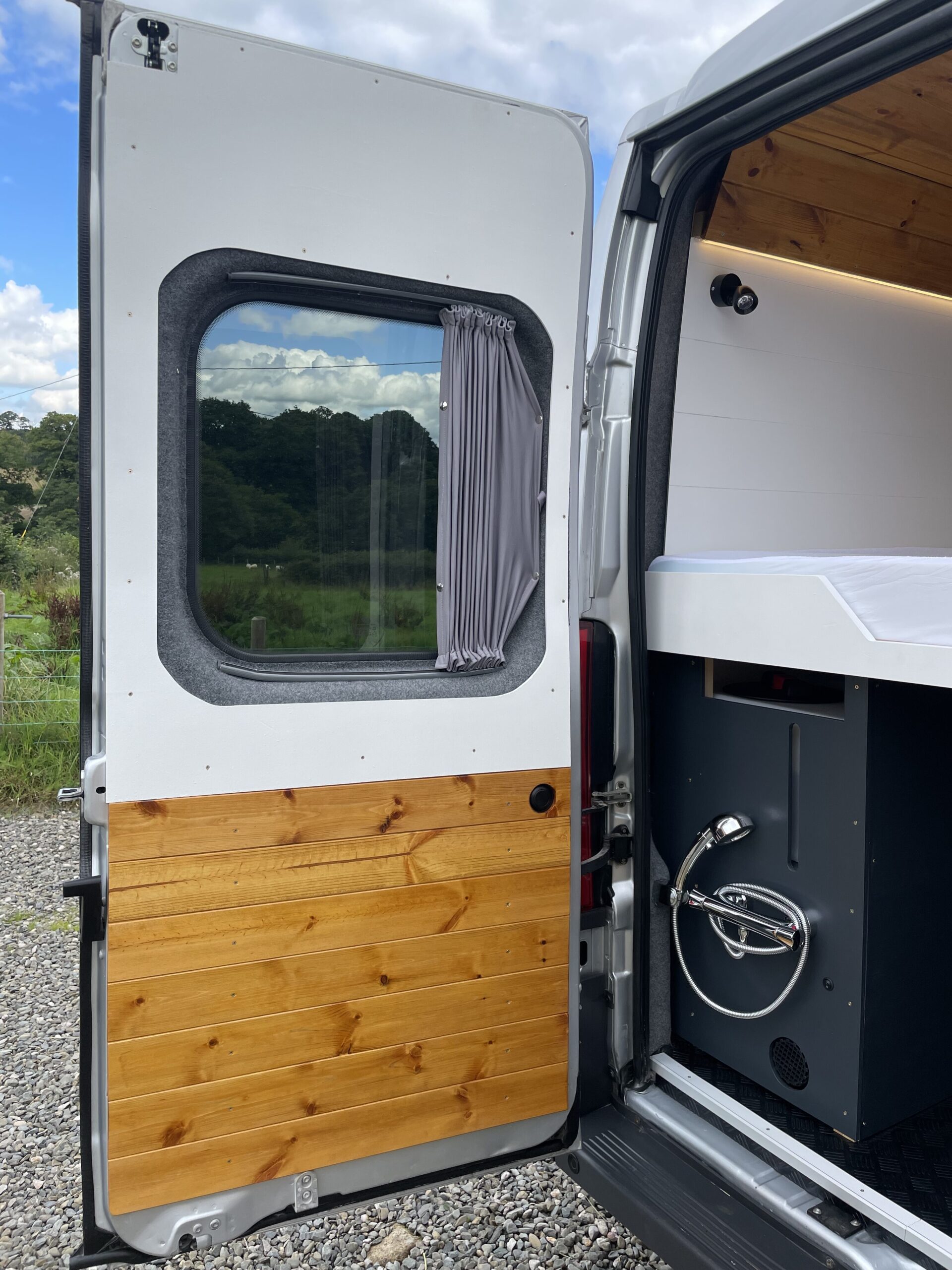

– Indoor/outdoor shower
– 10l Truma Therme water boiler
– Diesel heater
– Shurflow 12v Trail King water pump with filter
– Fiamma Accumulation expansion tank
– 2 burner hob
– Dometic CRE50 fridge/freezer
– Portta Potti 165
– Maxxfan Deluxe & Maxxfan Skylight
– Sequoia Table Leg
– Projector screen 1.2 x 0.9m
– Oak hardwood worktops and table
– Vinyl floor in living area and industrial rubber in boot/garage
– LED spot lights
– LED strip

For more details visit @campervan.explorers on instagram to see build process and other previous conversions.

Contact via Campervan.explorers@gmail.com or 07825983312
